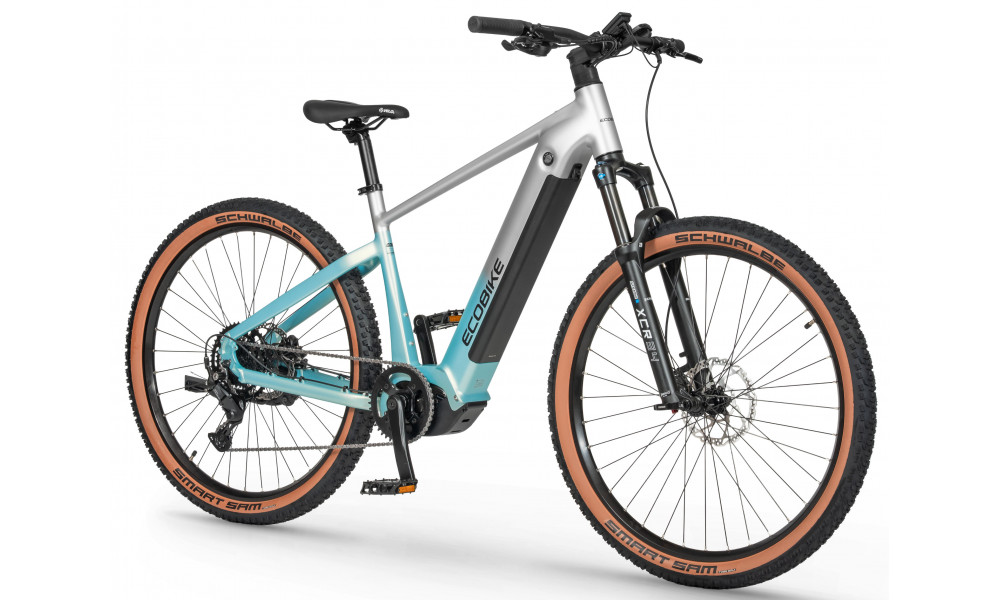

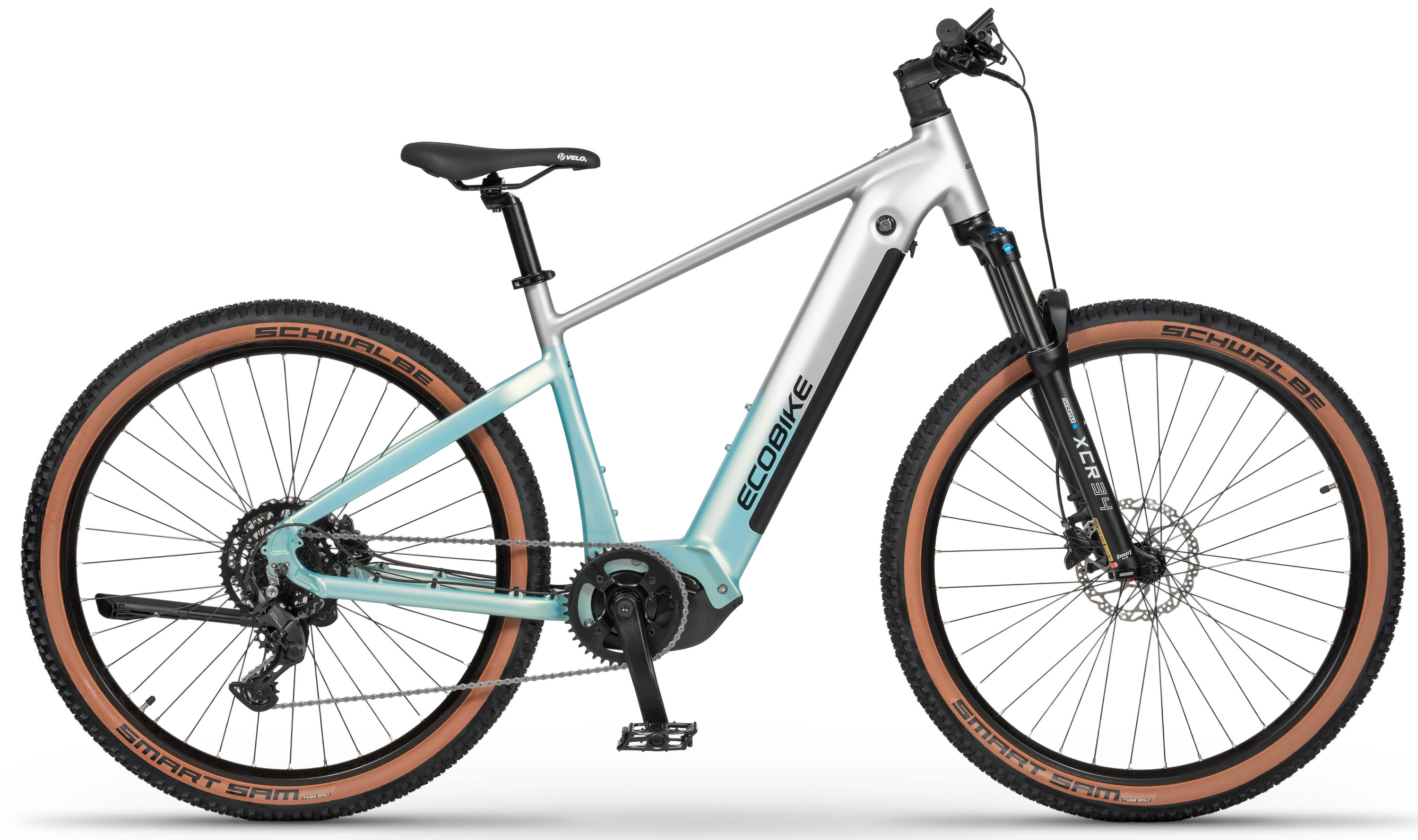

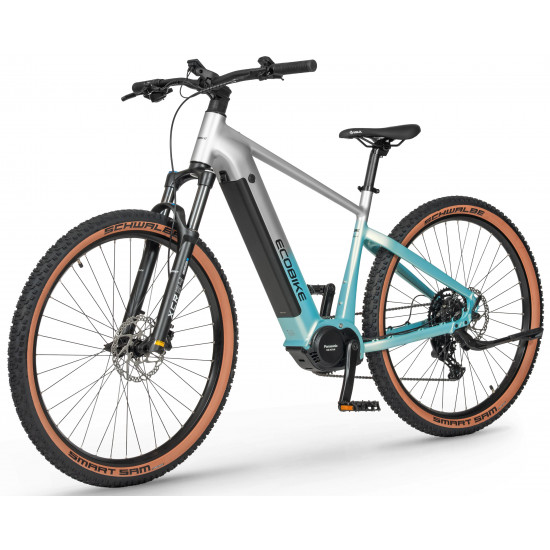

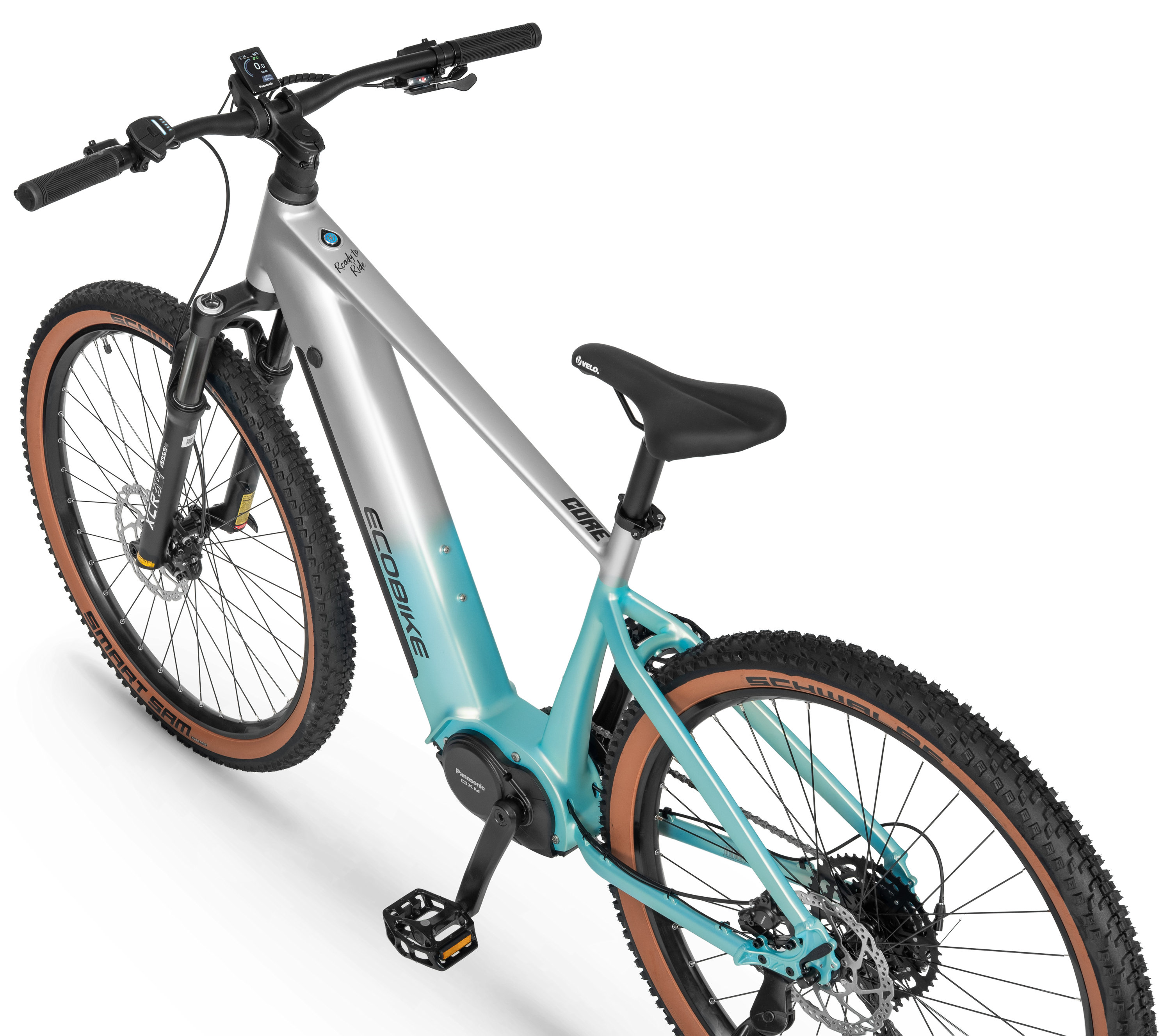

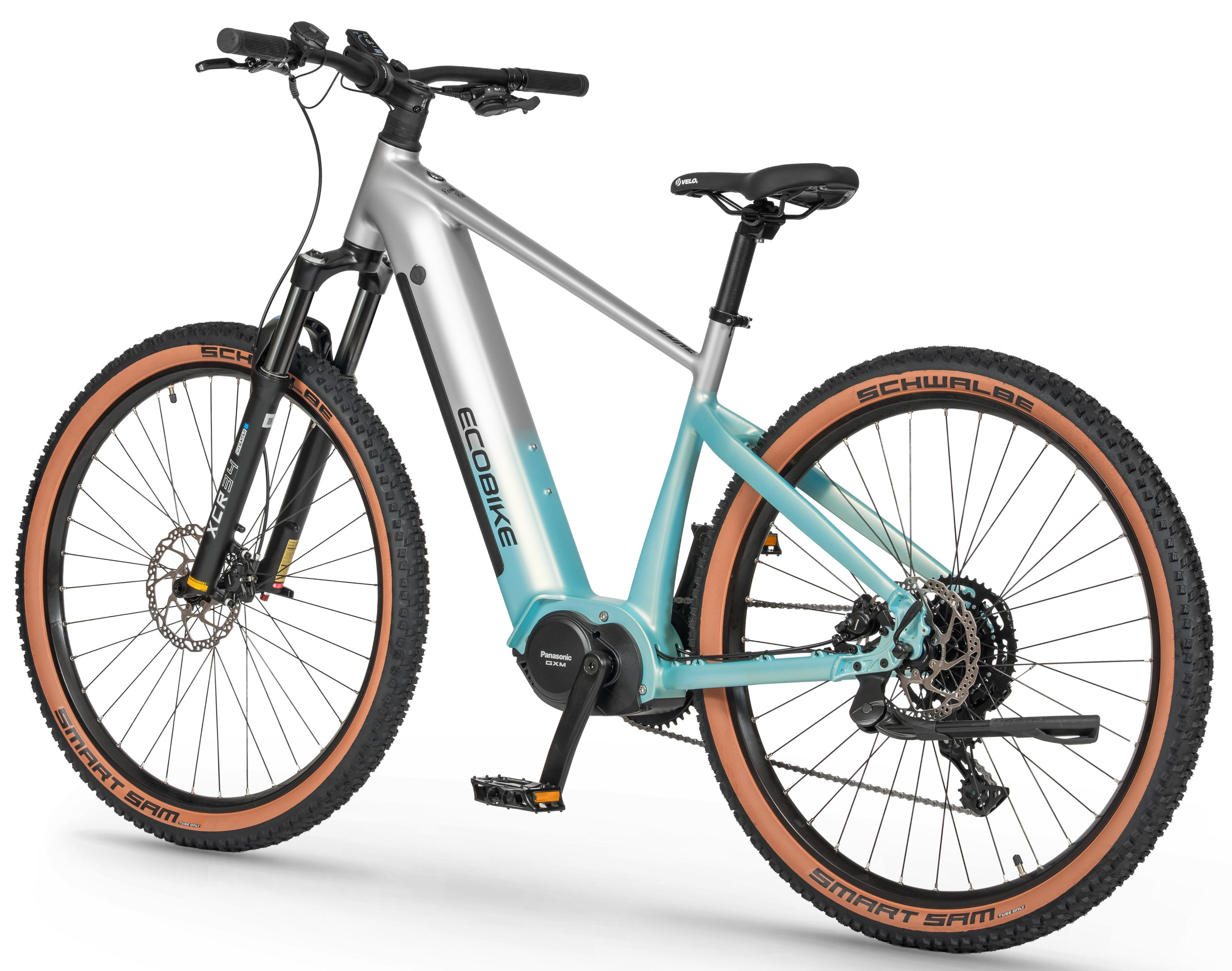

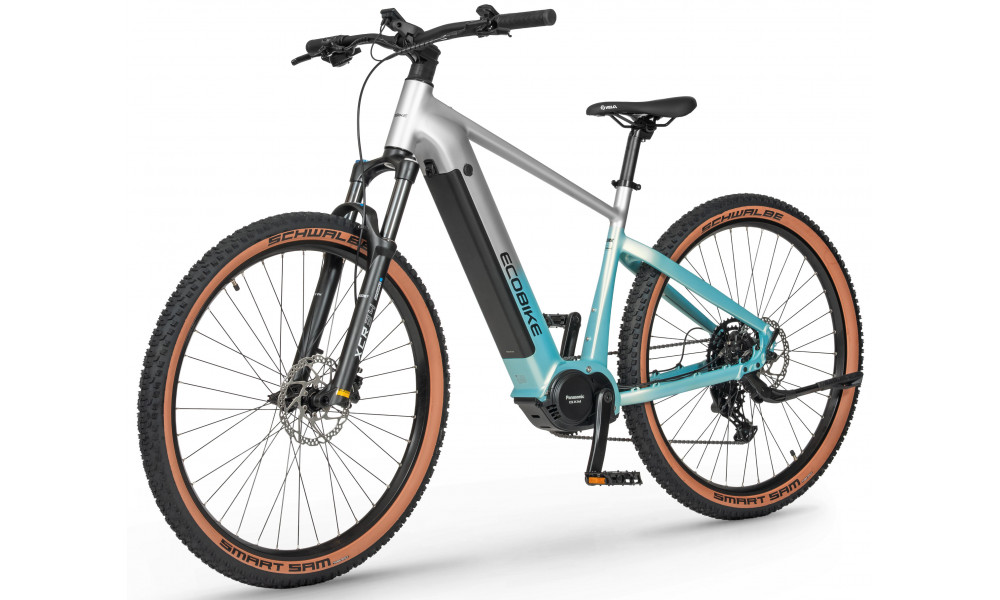

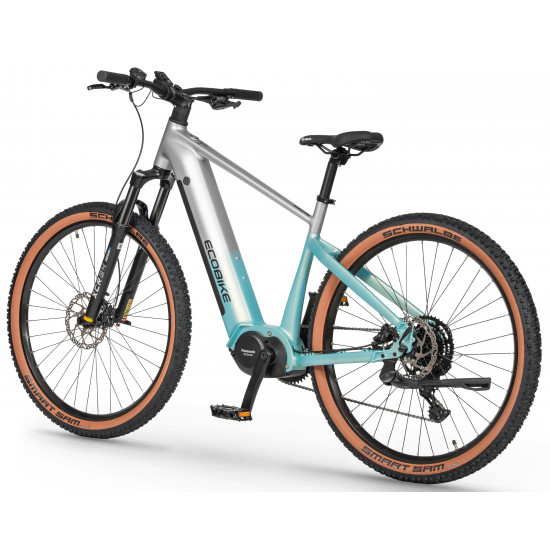

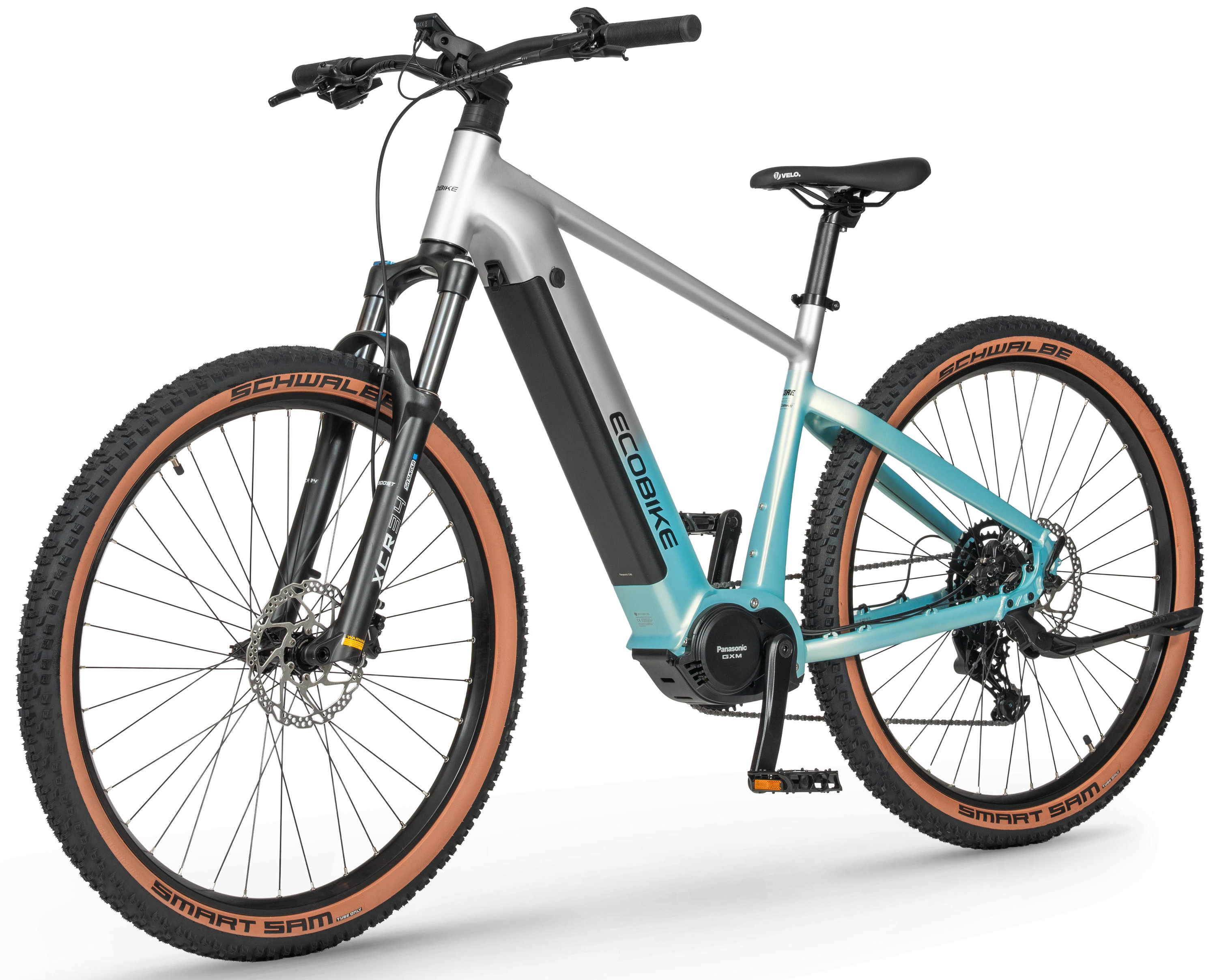

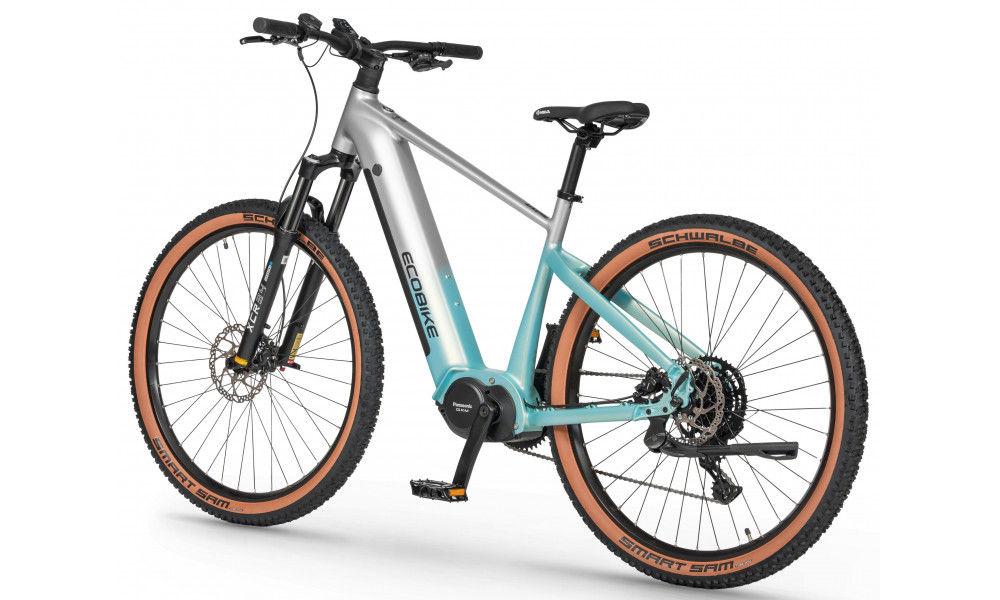

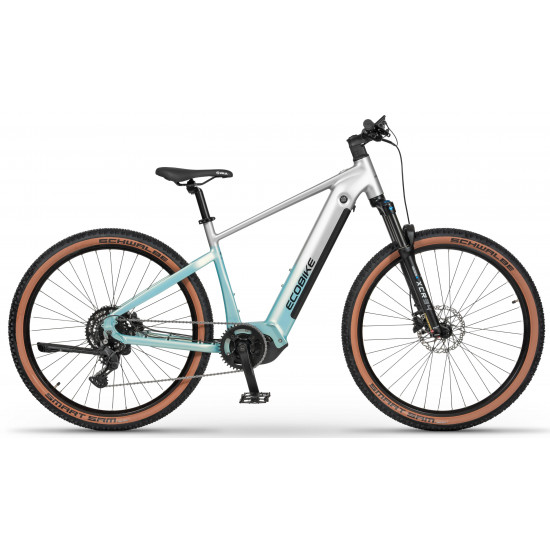

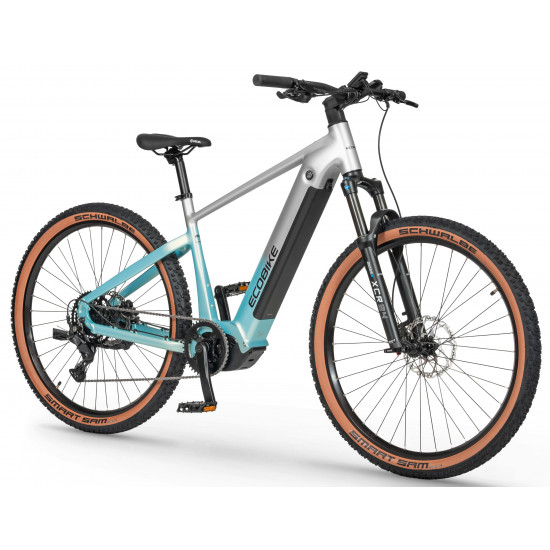

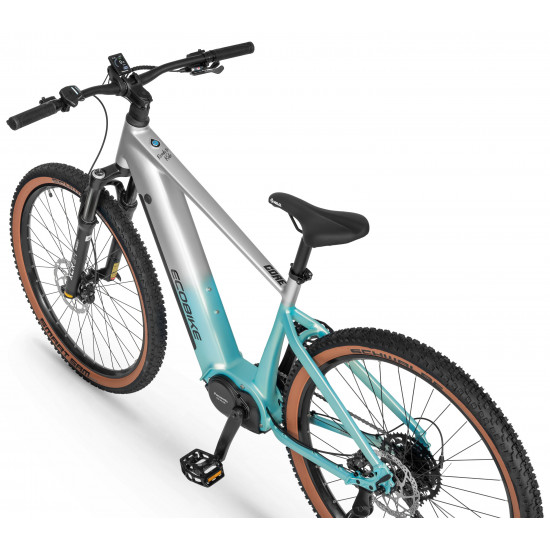

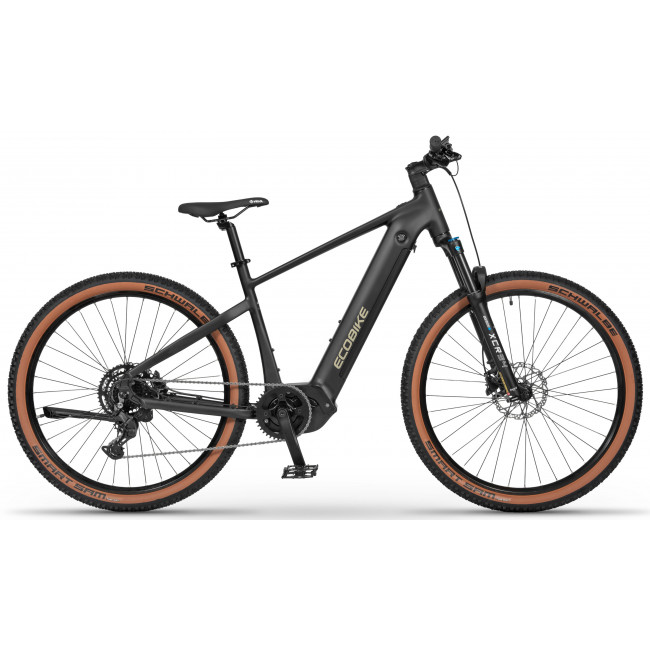

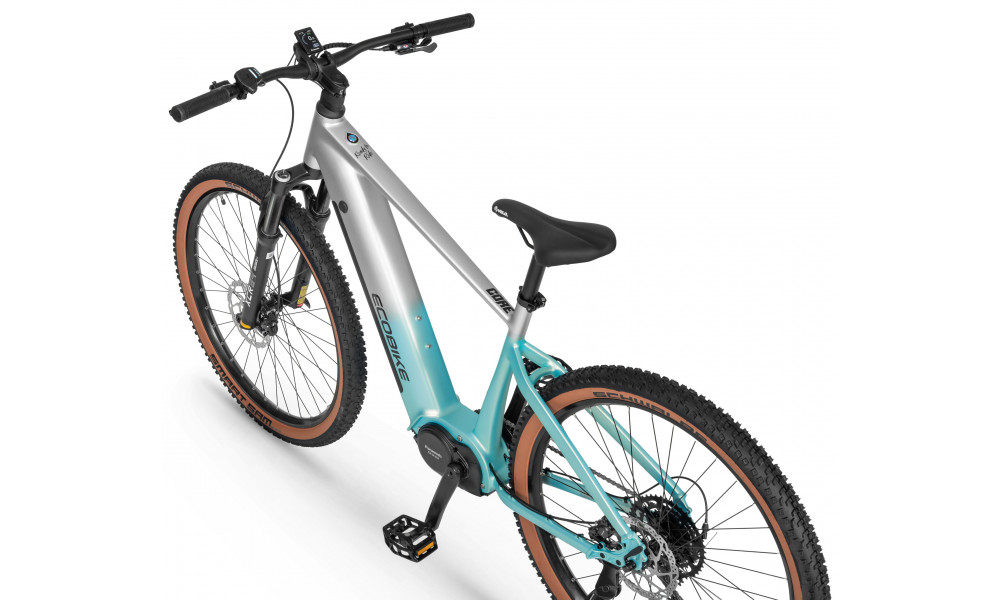

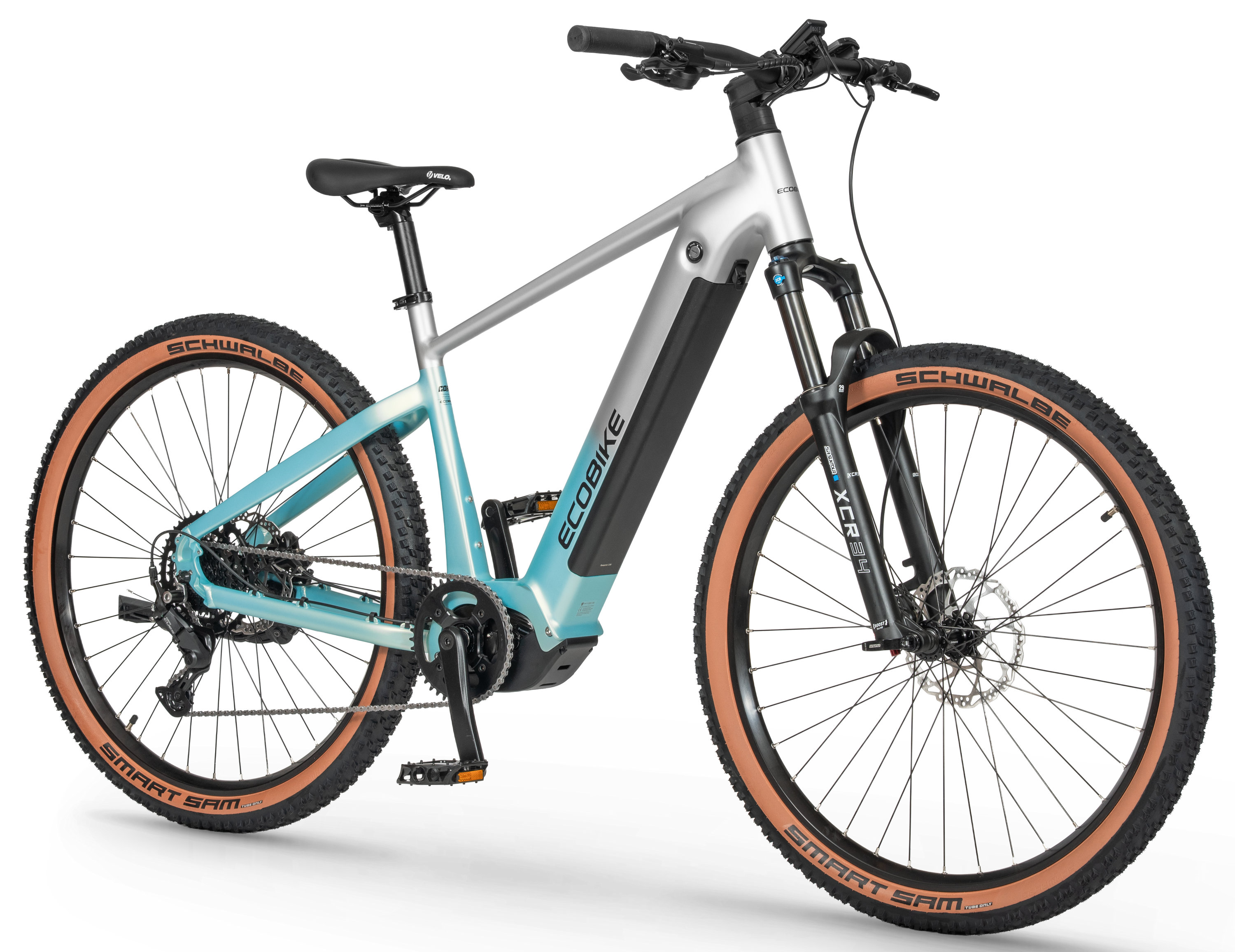

Ecobike CORE is an electric MTB designed for those who dont accept compromises. Its a combination of raw strength, impressive range, and modern solutions that make every mountain trail a pure pleasure.

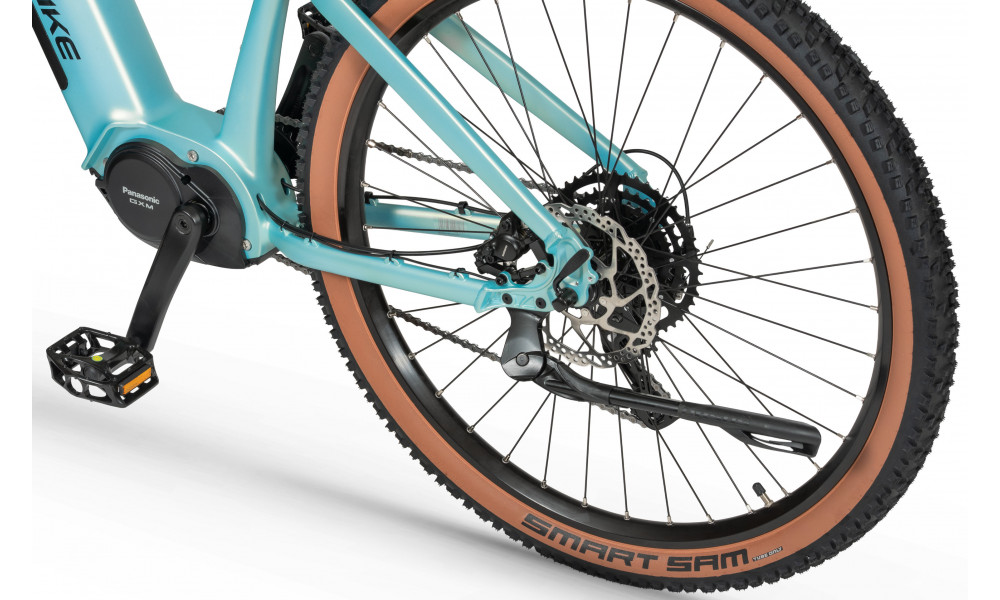

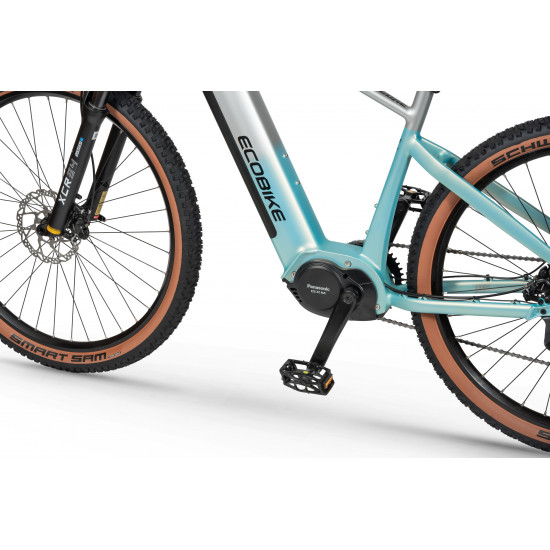

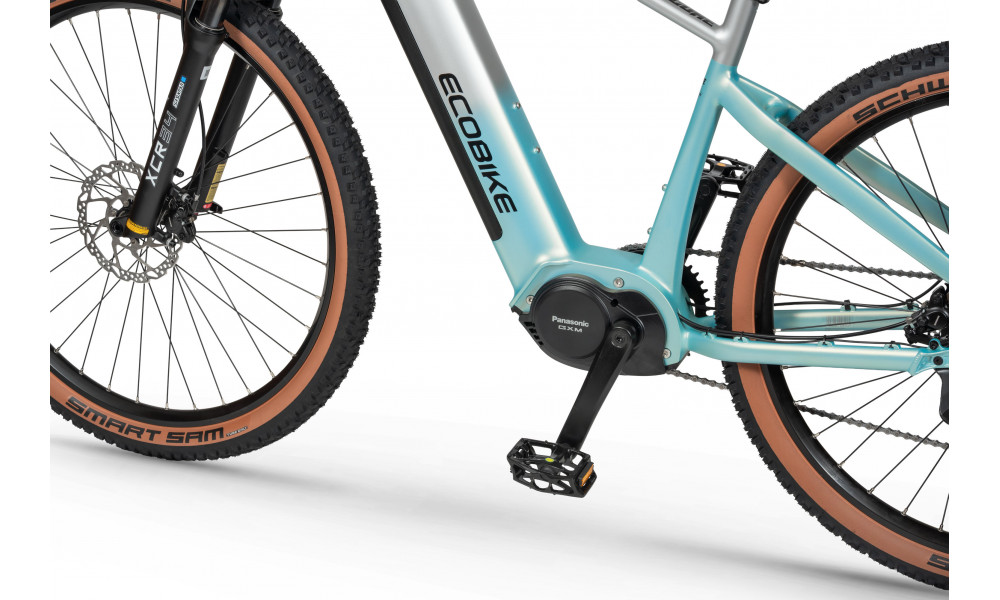

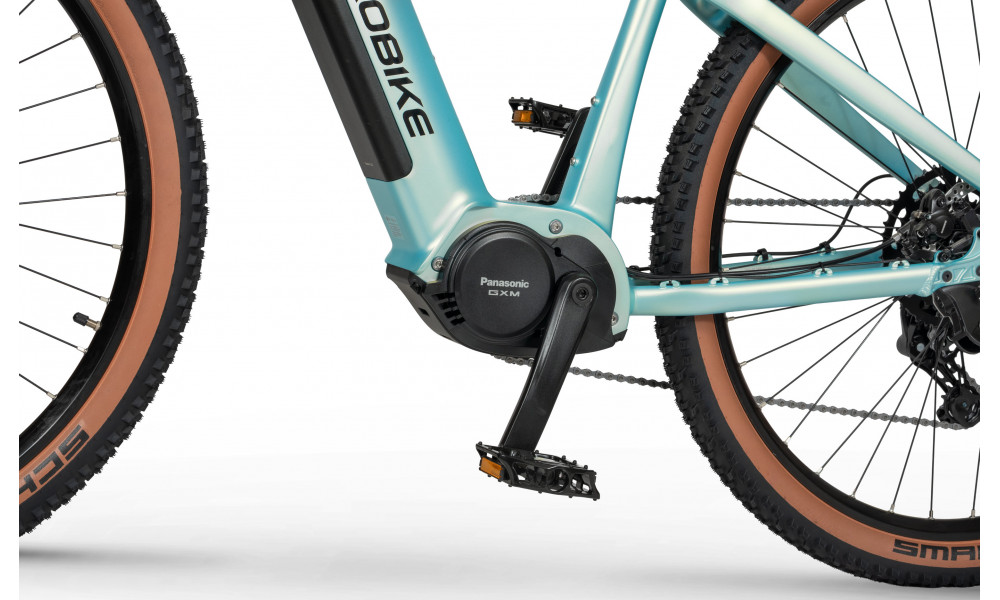

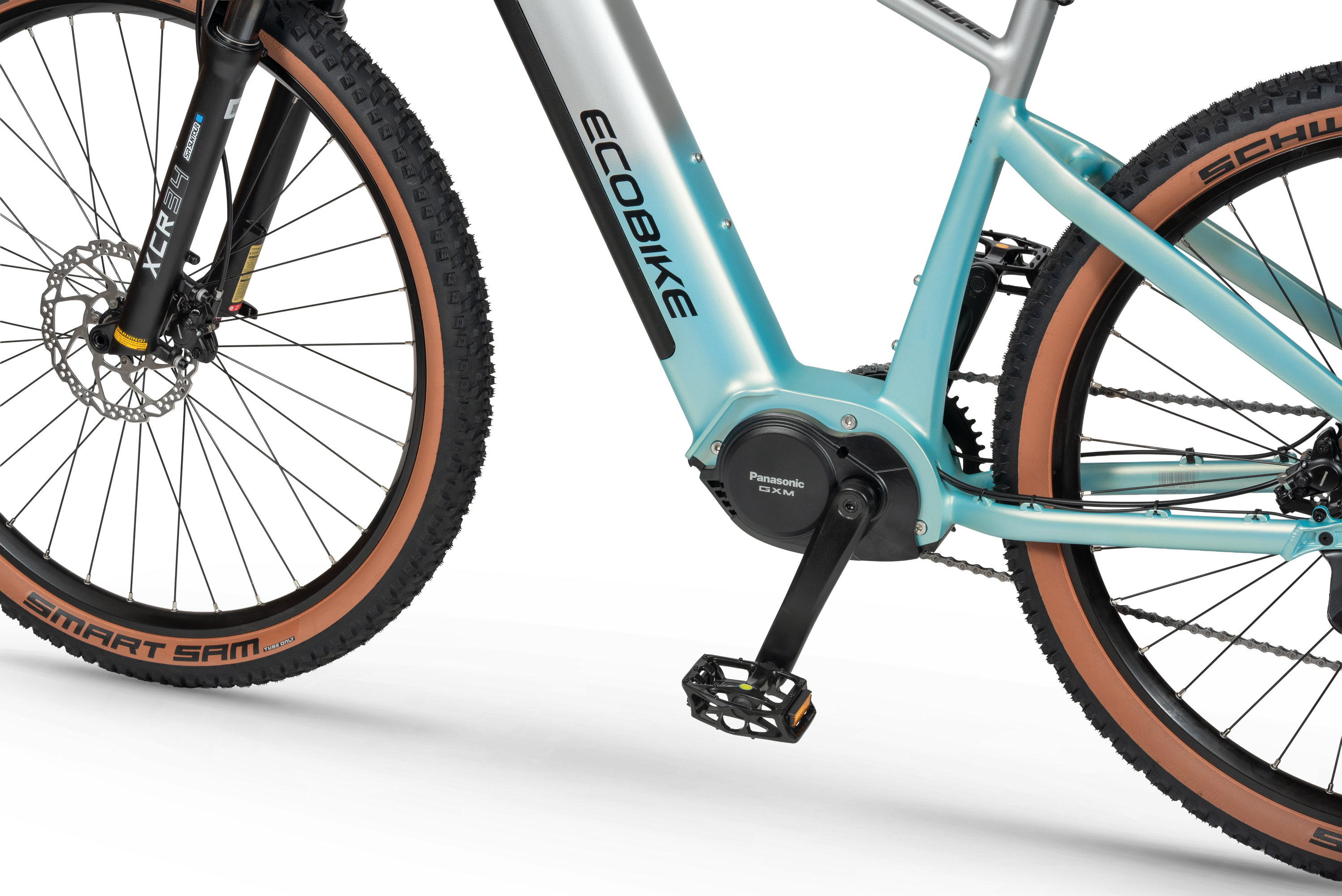

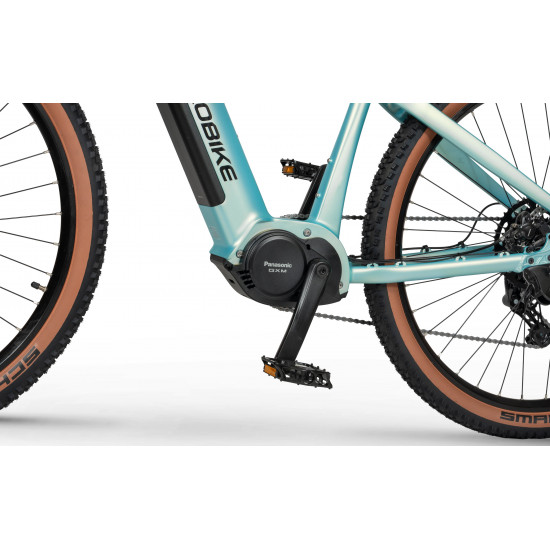

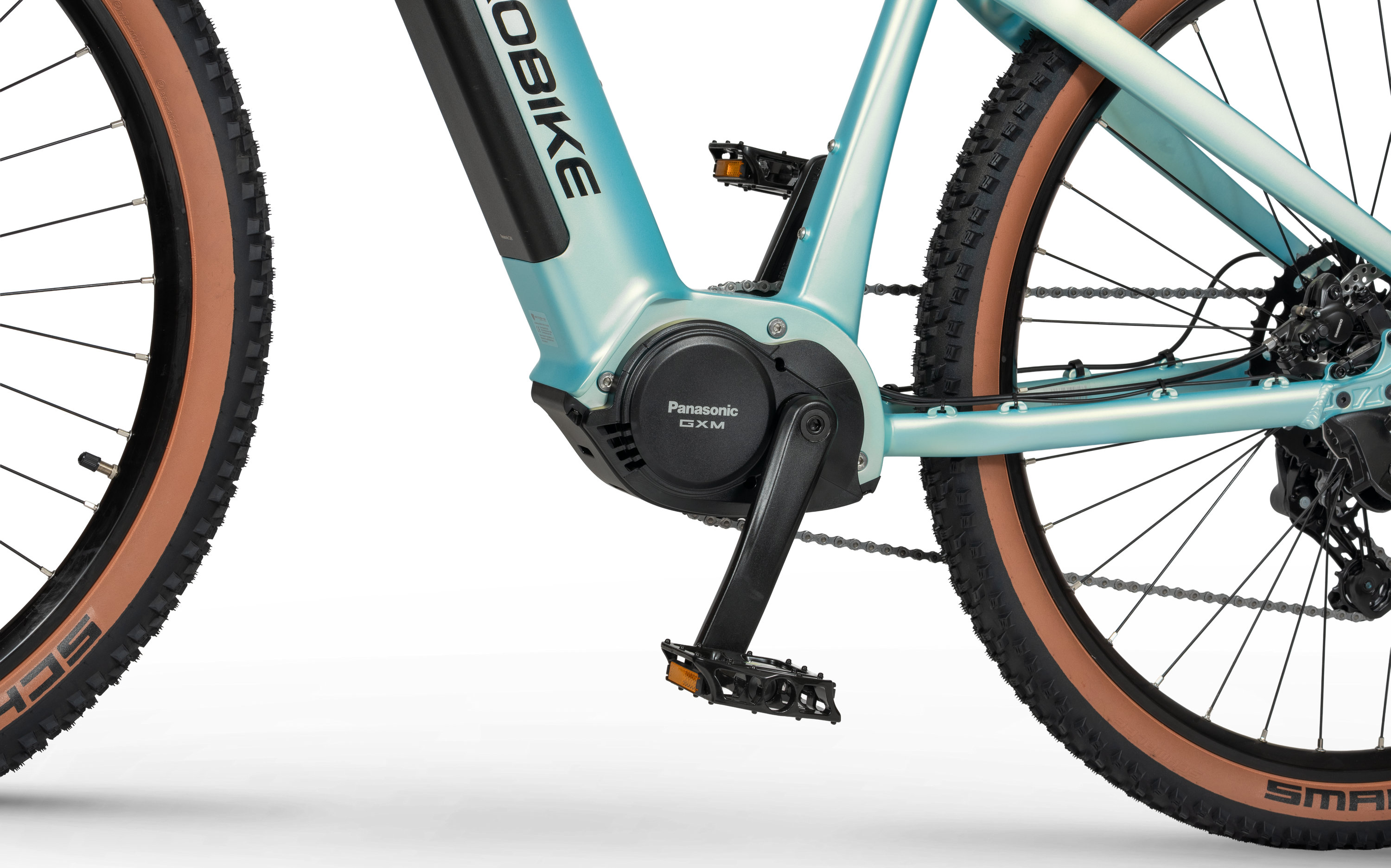

At the heart of CORE lies the latest and most powerful Panasonic GXM Ultimate motor with 100 Nm of torque, developed especially for Ecobike enthusiasts. It guarantees instant acceleration and effortless climbing even on steep trails.
A massive 1000+ Wh battery allows you to ride up to 180 km on a single charge. This means you can go further than ever before.
A hydroformed aluminum frame, 120 mm air suspension fork, reinforced 29-inch wheels, and hydraulic disc brakes guarantee stability, safety, and comfort on any terrain.
Product technical specifications

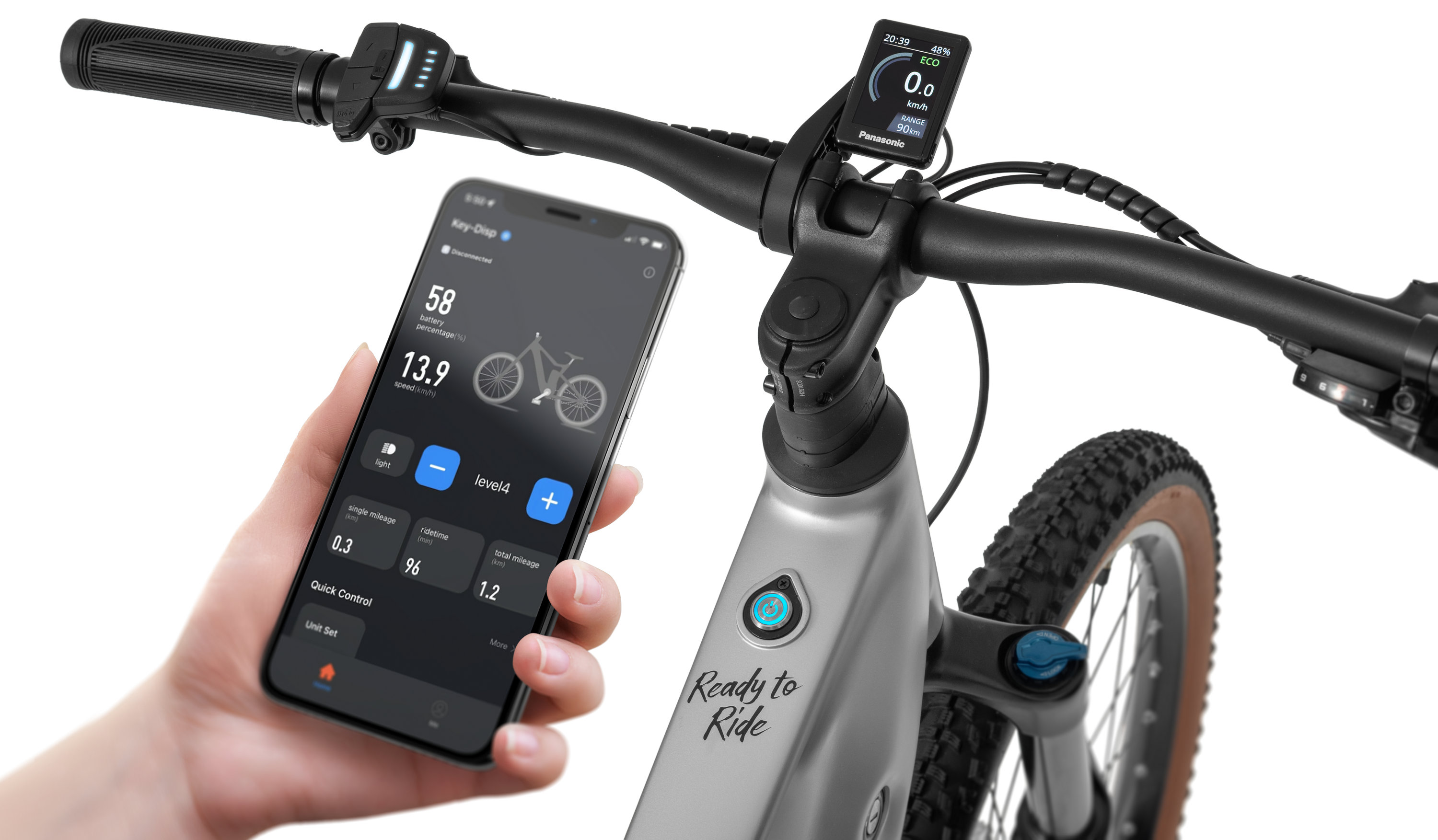

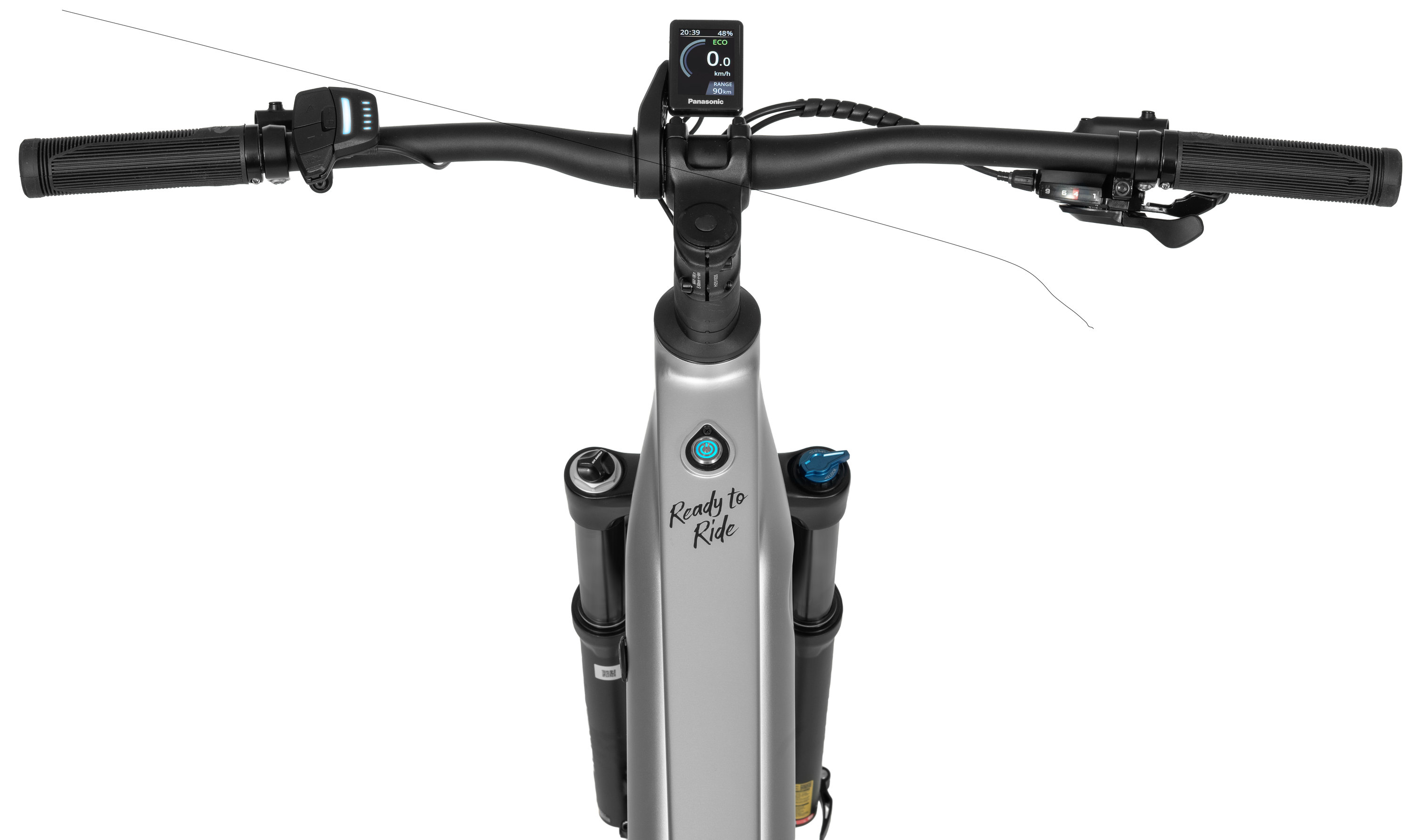

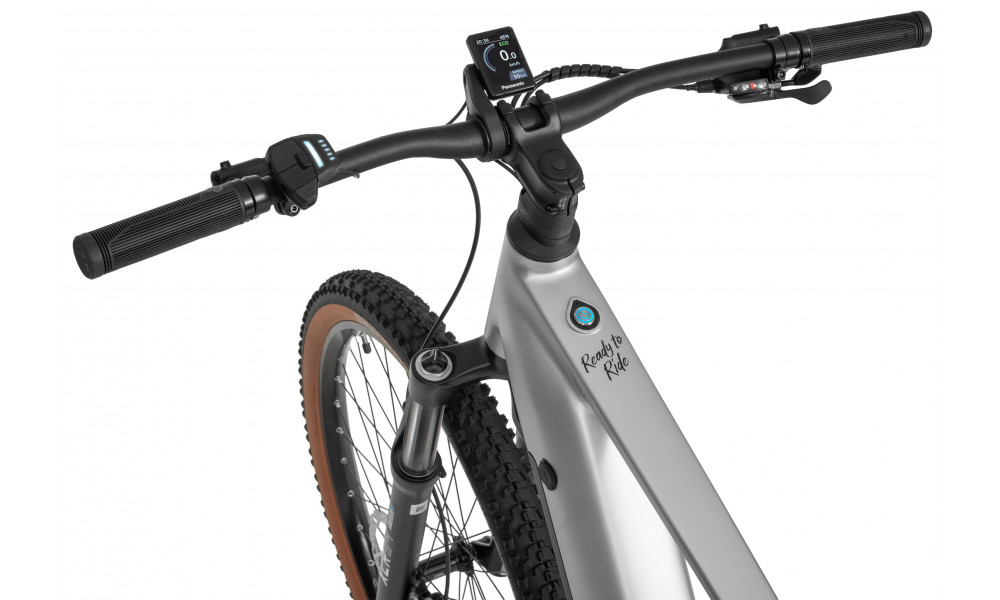

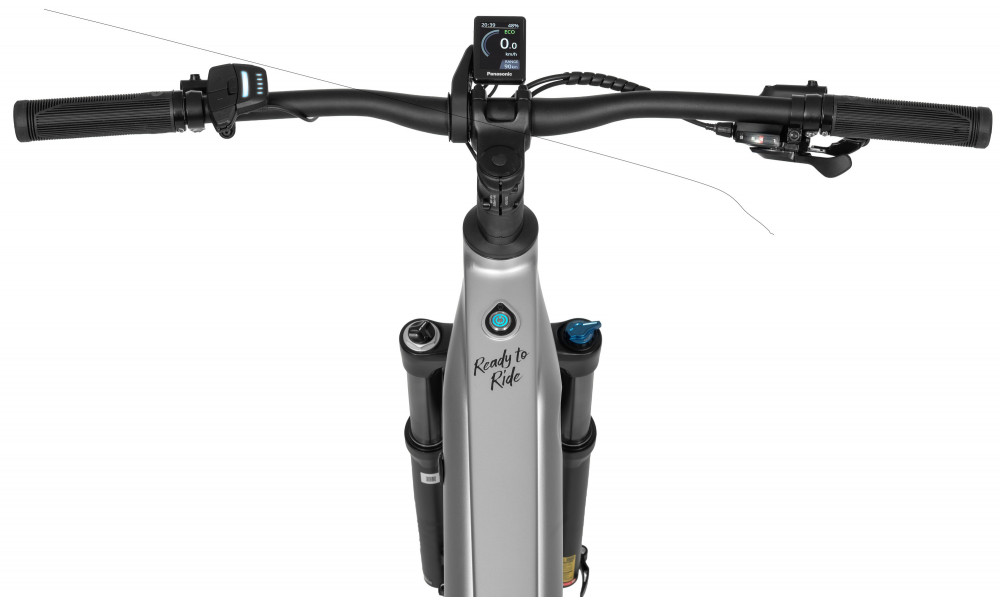

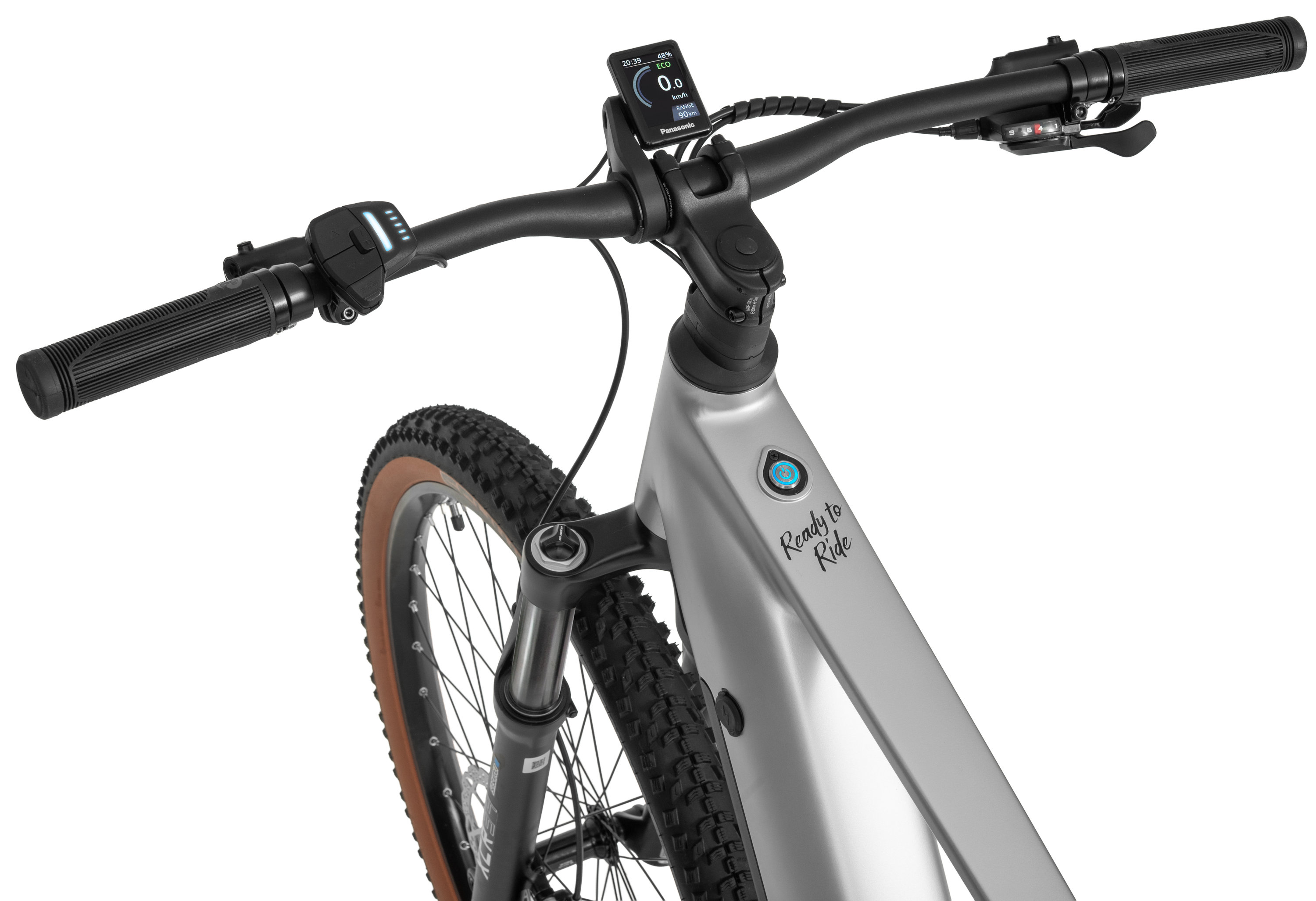

- Display model: NKS518S
- Display type: Color LCD

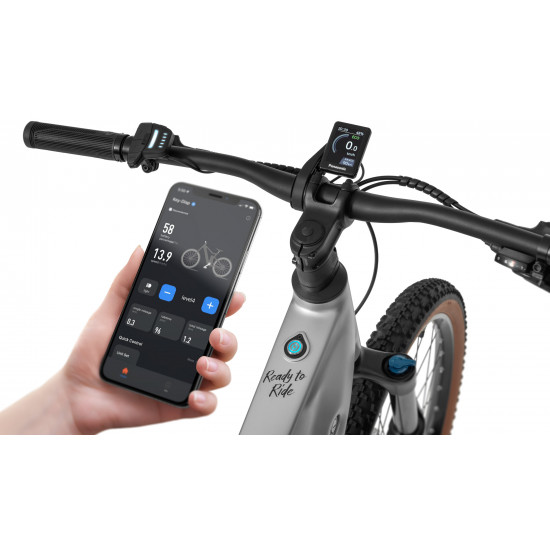

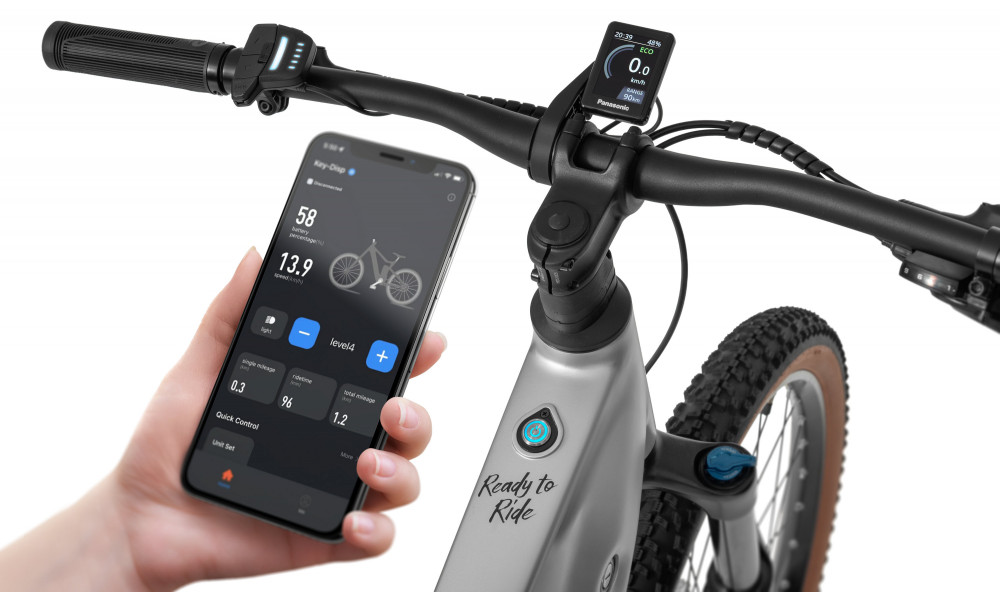

- Compatible application: Panasonic e-Bike
DISPLAY:
- Capacity and range:
- 1008 Wh: MAX 180 km
- Voltage: 36V
- Mount: Mid-drive
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 100 Nm
- Motor's brand: Panasonic
- Power: 250 W
DISTANCE:
ENGINE:
- Type: Li-ion
- Voltage: 36V
- Charger: 100-240V / 54.6V / 3A
- Cells brand: LG
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 7-8 hours
- FRAME: Hydroformed aluminium
- FRAME SIZE: 17"

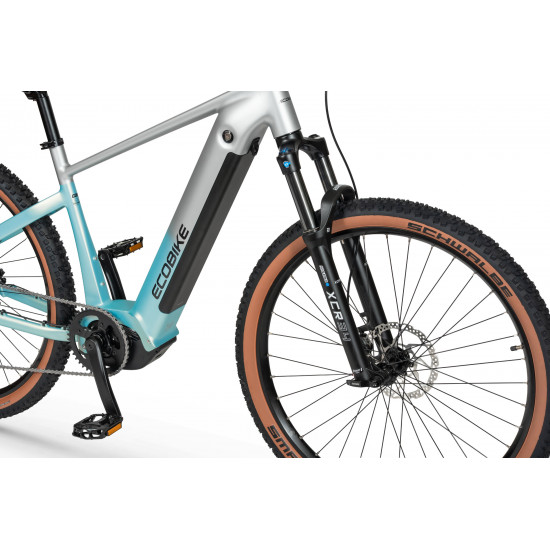

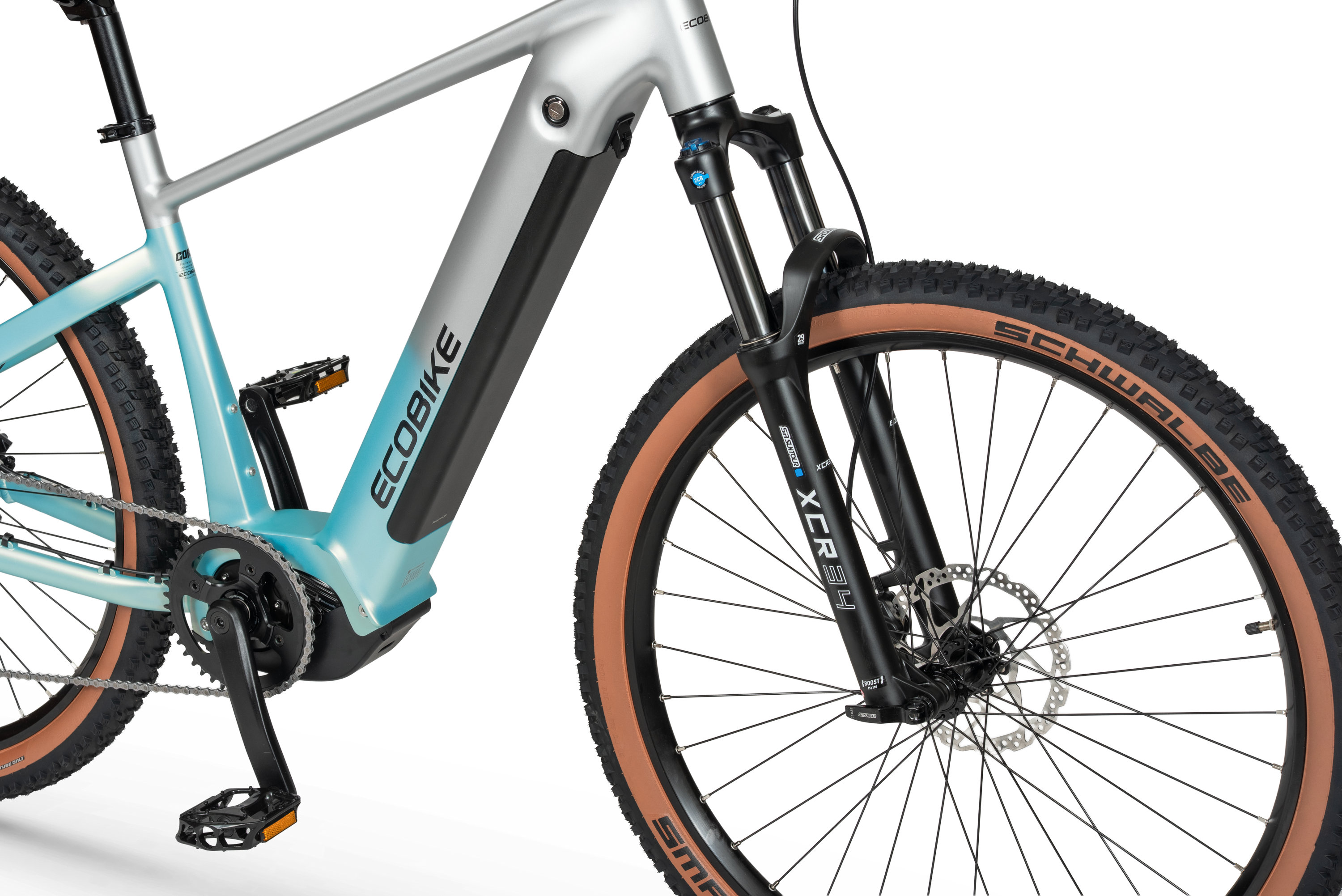

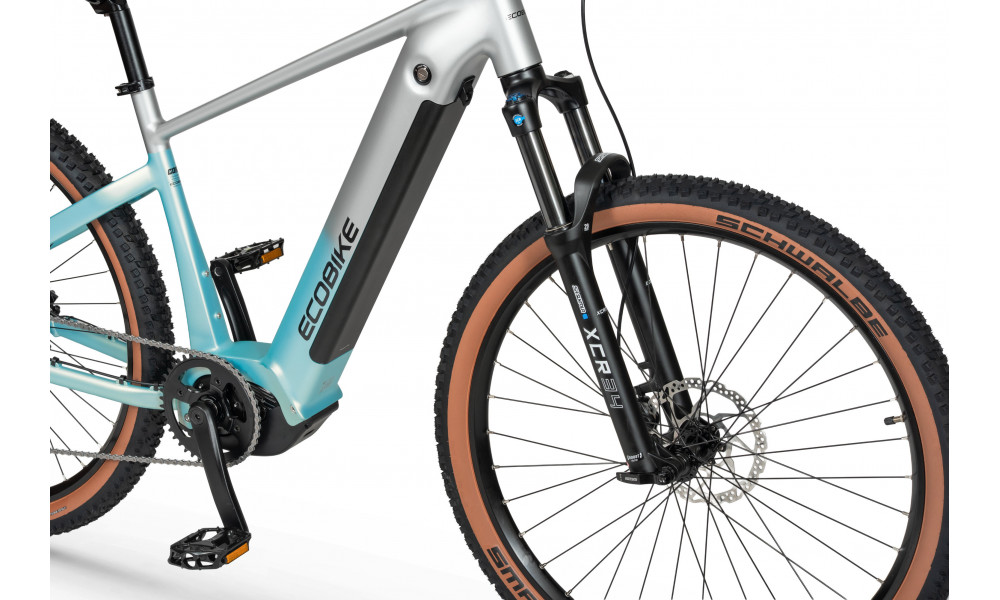

- FORK: SunTour XCR34 AIR BOOST, 120 mm travel
- BRAKES: Shimano MT200 hydraulic disc
- CHAIN: KMC eGlide EPT
- CHAINWHEEL: Prowheel 42T, narrow wide, ISIS

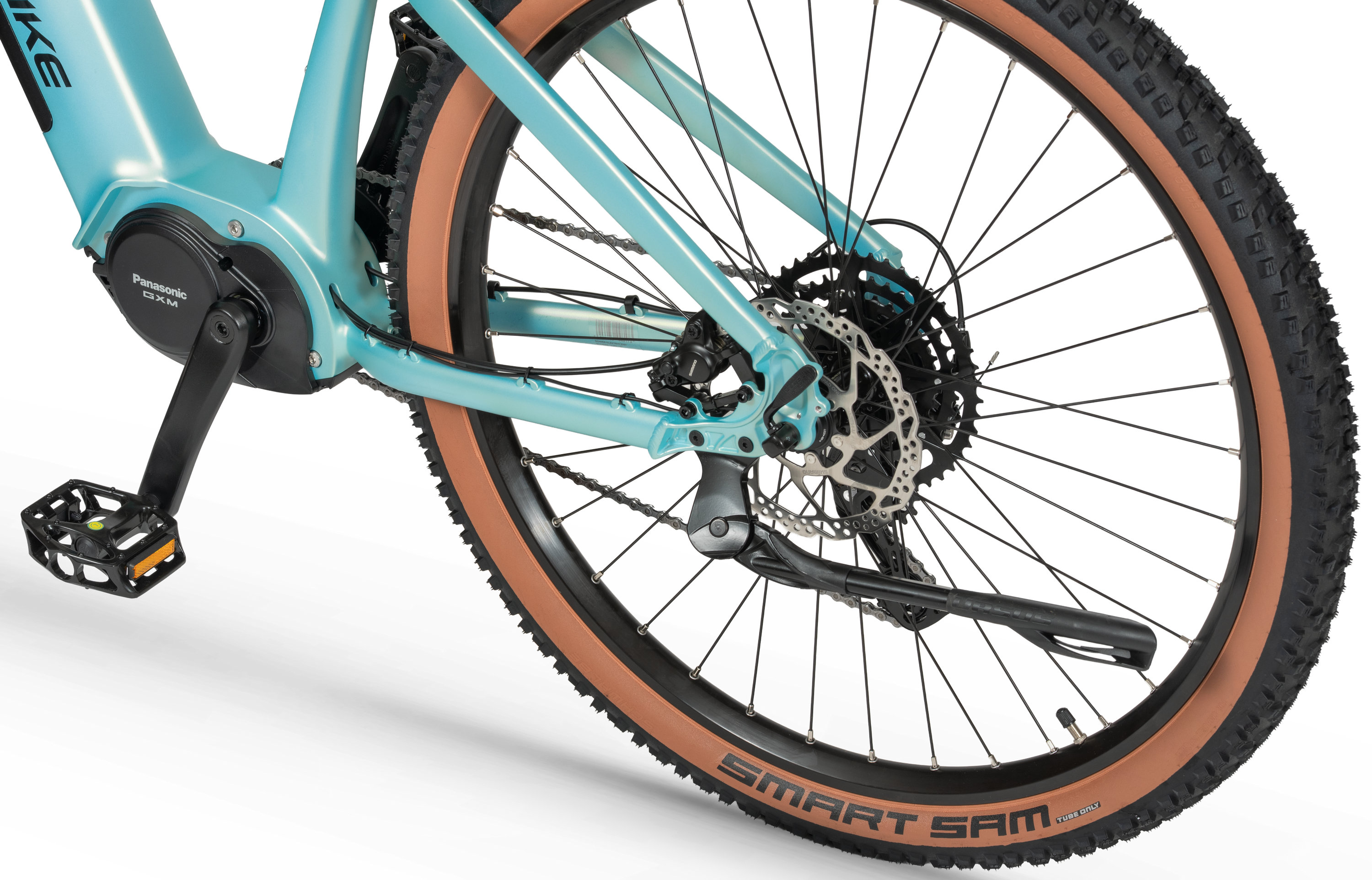

- REAR DERAILLEUR: Shimano Cues, 9 speed

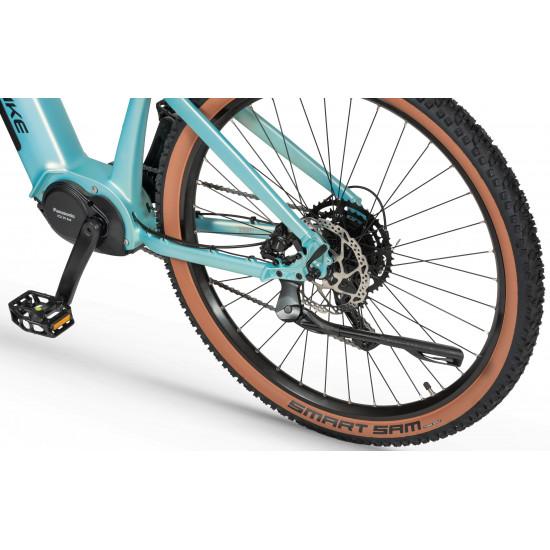

- FREEWHEEL: Shimano Cues, 11-46T, 9 speed

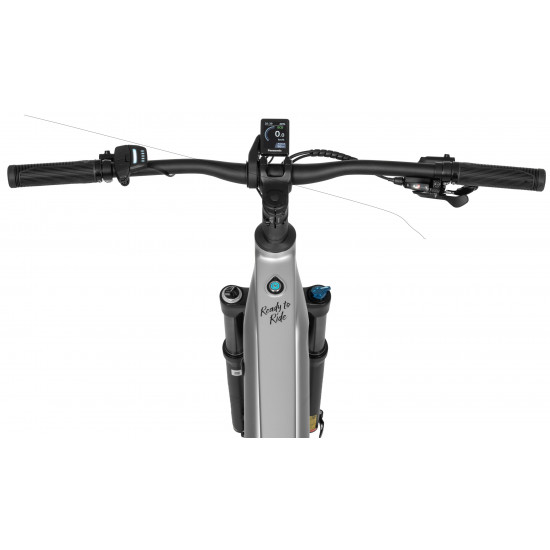

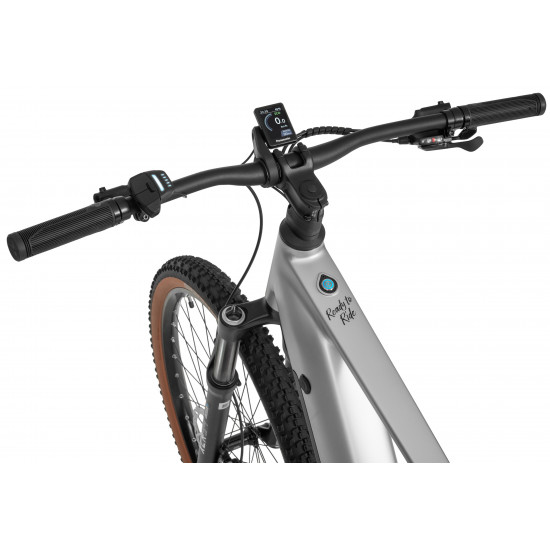

- HANDLEBAR: Zoom MTB-AL-320BT, 760 mm x 31.8 mm, Rise: 20 mm
- STEM: Promax TDS-D631-8, 31.8 mm / 60 mm
- HUBS: Front hub: Shimano HB-TX505-8, AXLE: 108 mm, center lock, thru-axle; Rear Hub: Shimano FH-QC400-HM, 36H, Center lock, QR
- PEDALS: FP FP-963
- RIMS: 29" reinforced three-chambered rims, Sapim spokes
- SADDLE: Velo VL-3363
- SEAT POST: Promax SP252, 30.9 x 350 mm
- SHIFTERS: Shimano Cues, 9 speed
- TYRES: 29" x 2.35" Smart Sam Performance
- WEIGHT: 28 kg
- SPEEDS: 9
- GRIPS: Herrmans Grip Rib single lock
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
BATTERY:
Pyörä lähetetään valmistajan alkuperäisessä pakkauksessa (etupyörä, ohjaustanko ja satula ovat yleensä irrotettuina), mikä varmistaa tuotteen turvallisuuden varastointi- ja kuljetusvaiheessa. Kun ostaja hankkii pyörän sellaisessa pakkauksessa, hän itse tai valitsemansa pyörähuollon ammattilainen on vastuussa asianmukaisesta pyörän kokoamisesta, säätämisestä ja käyttöönotosta.
