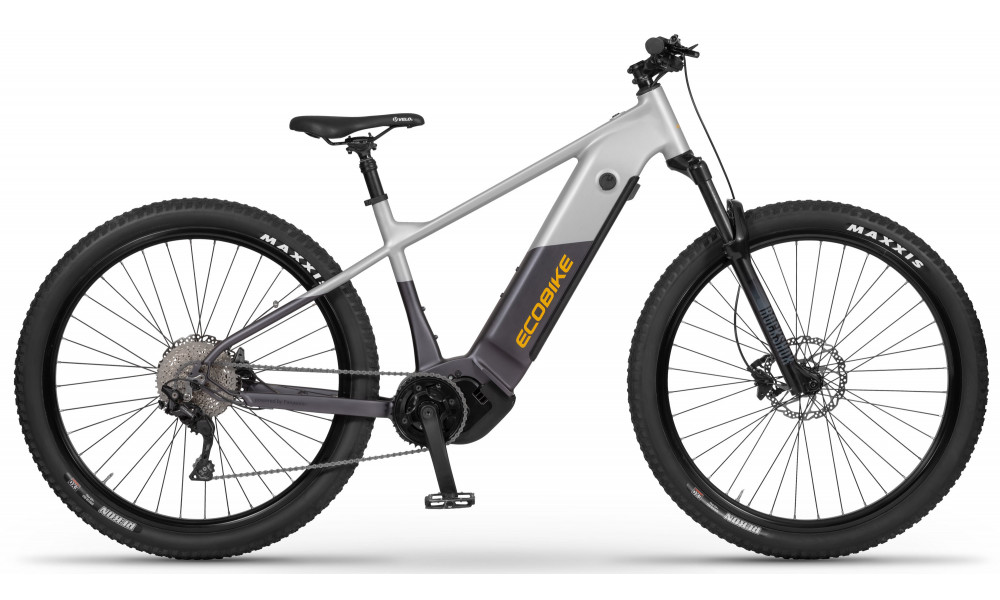

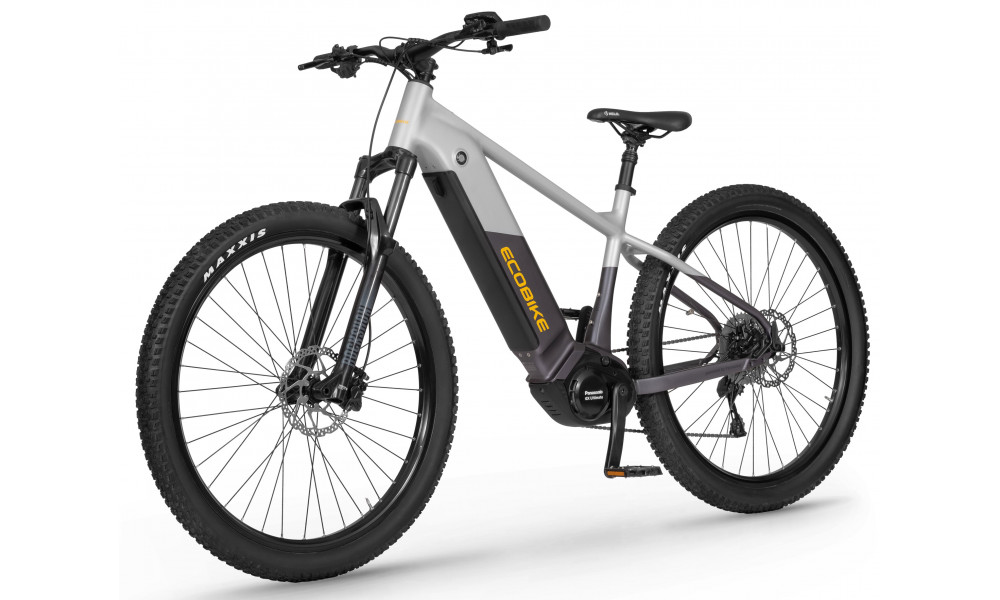

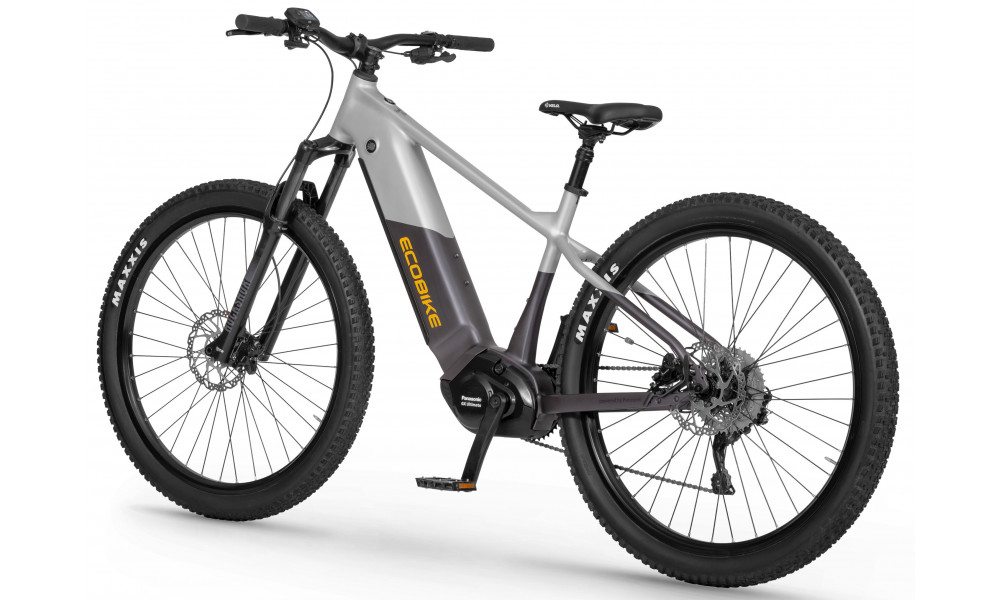

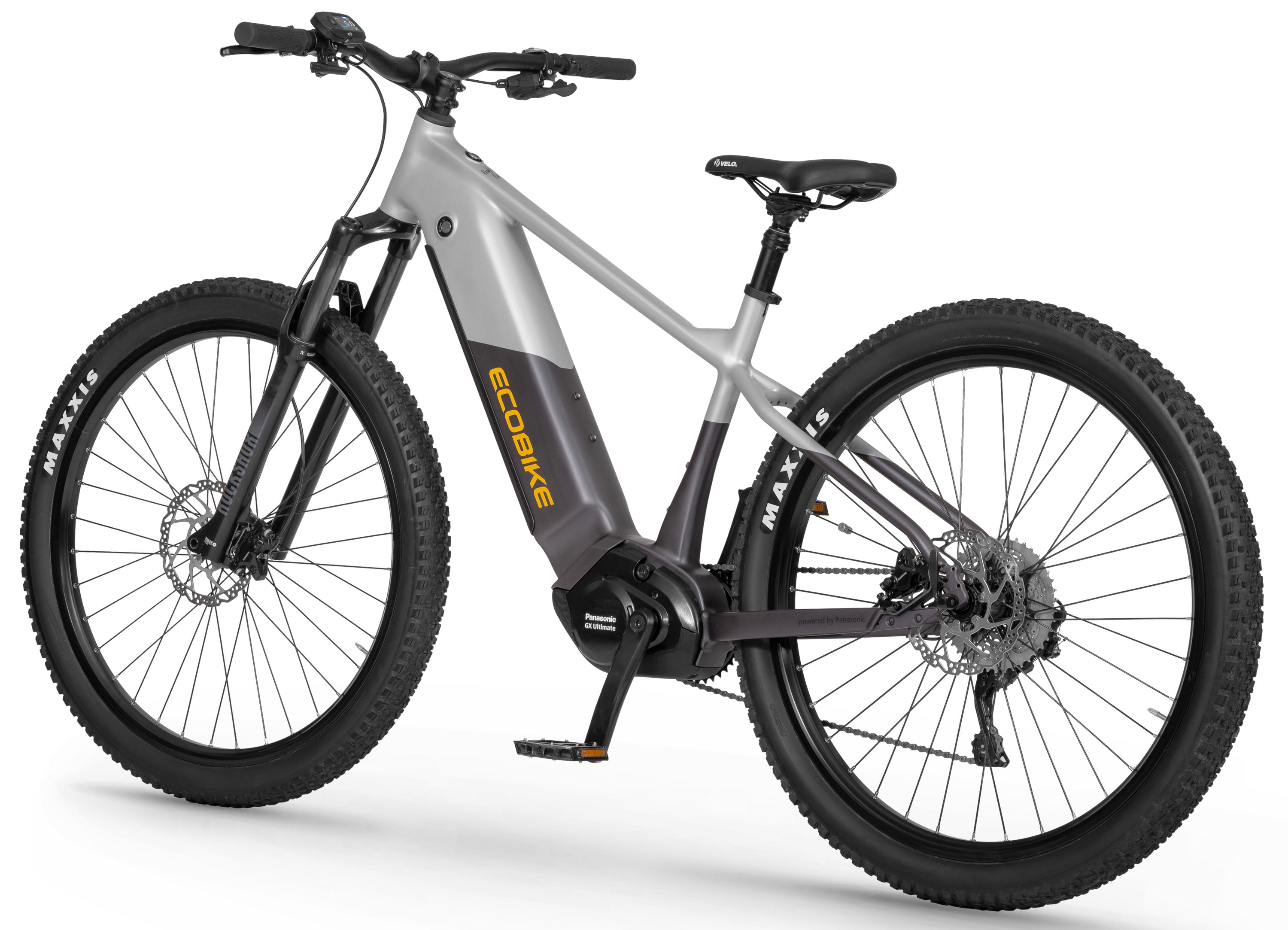

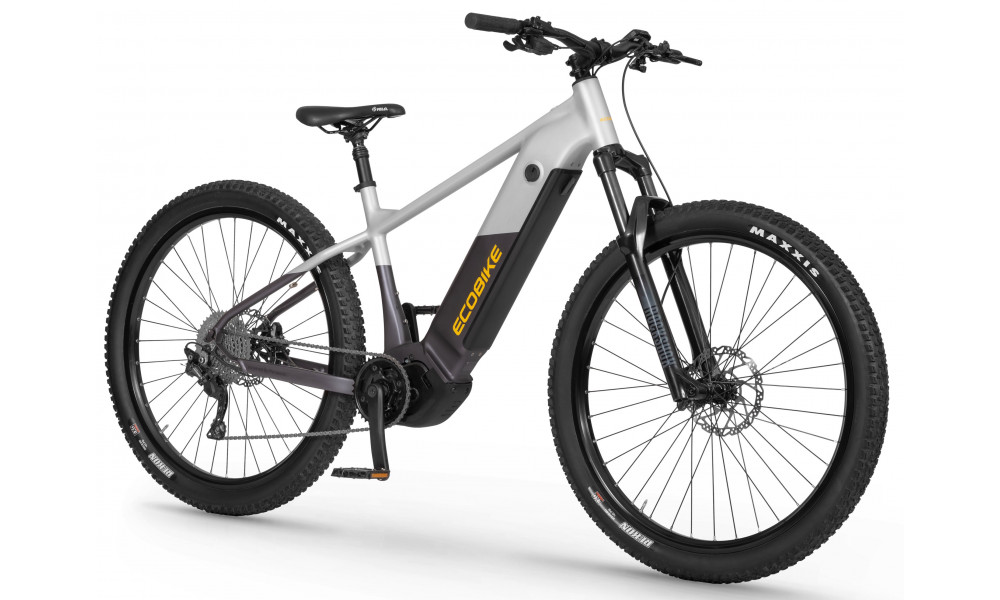

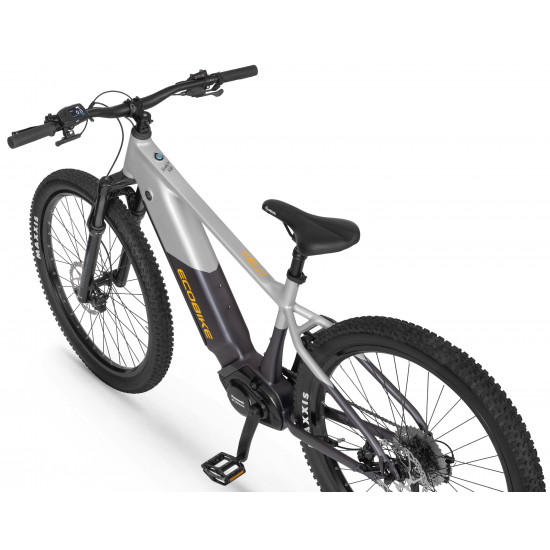

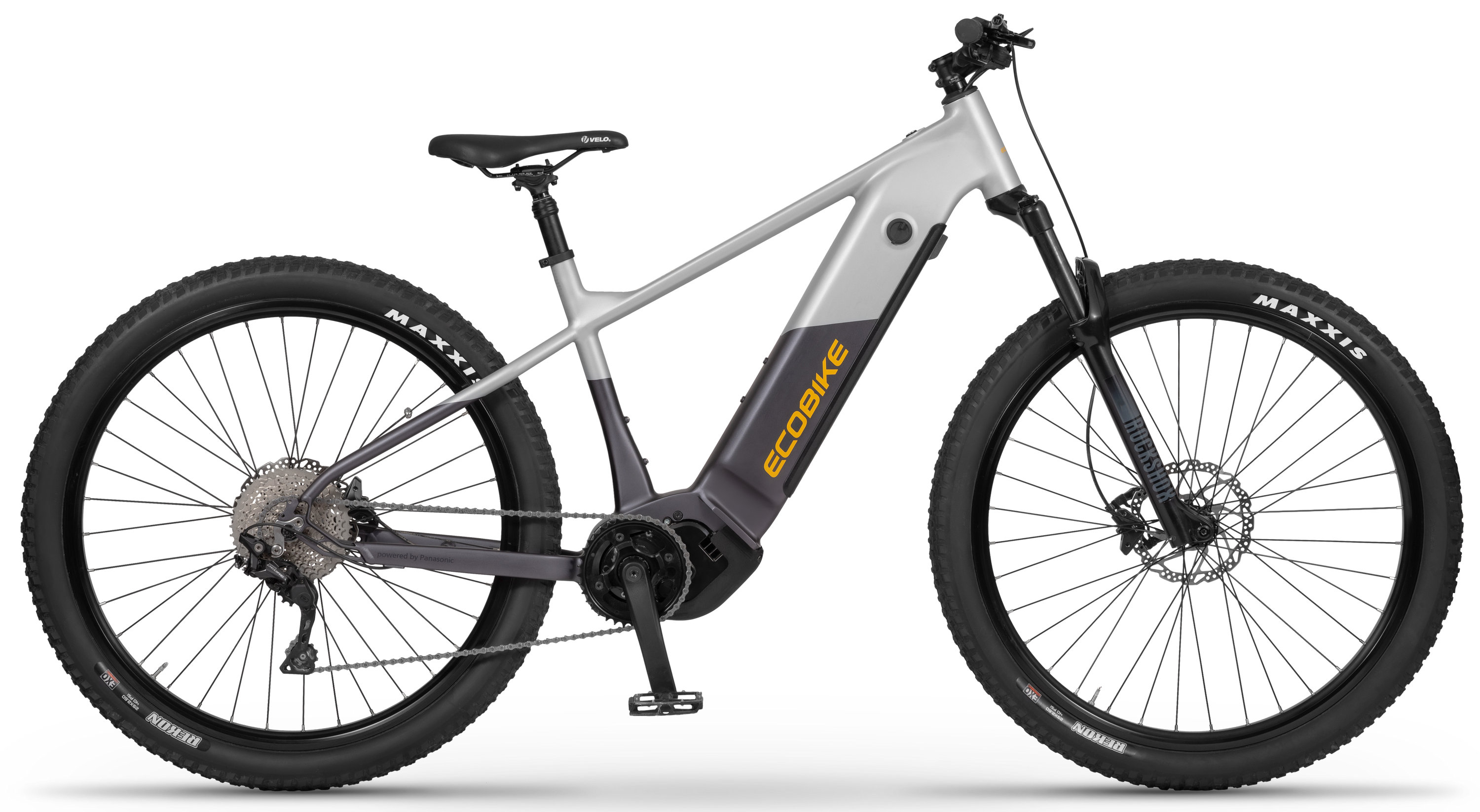

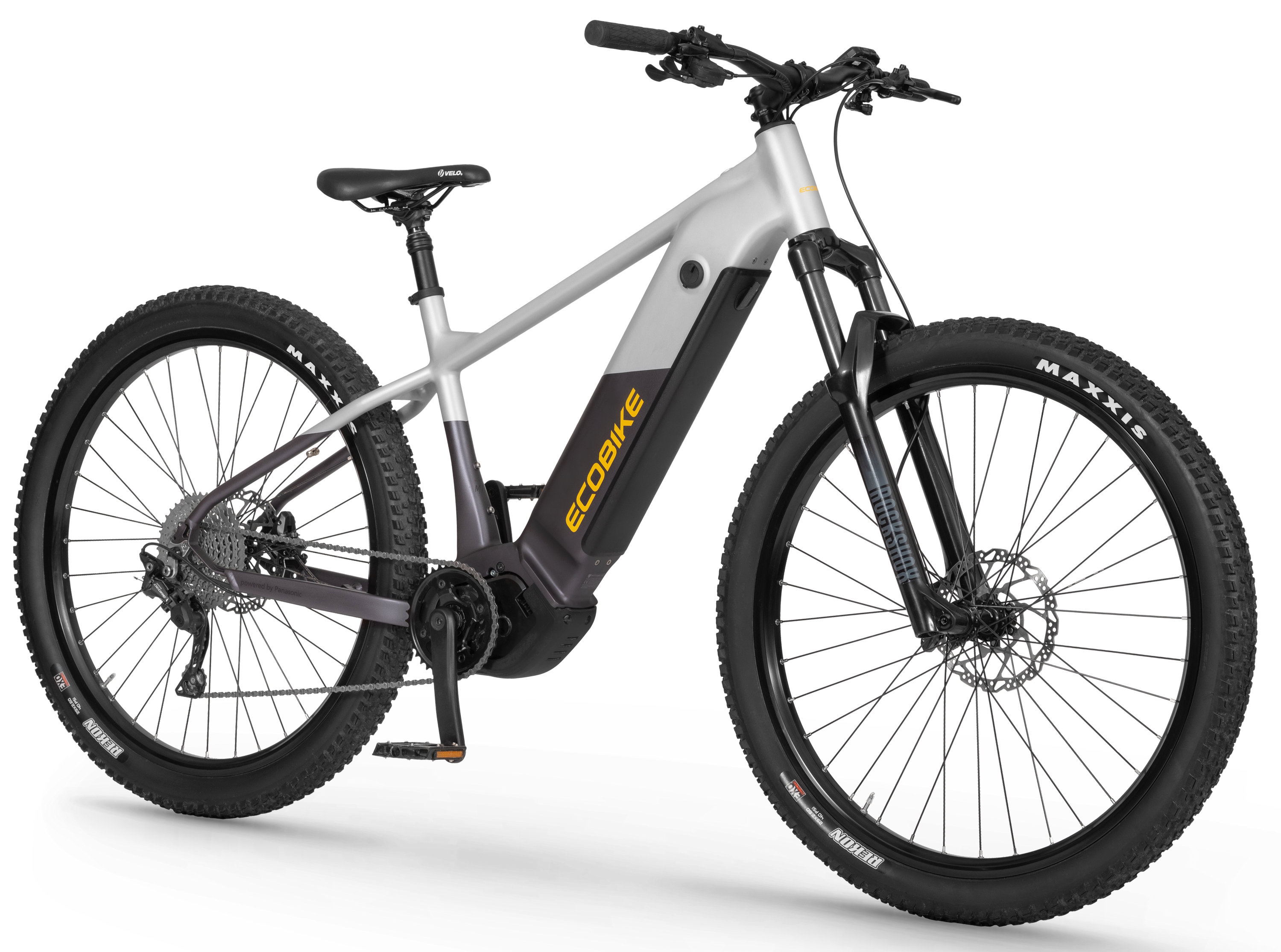

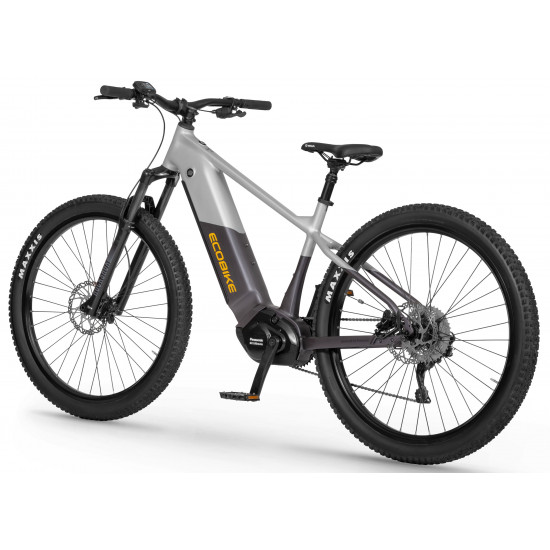

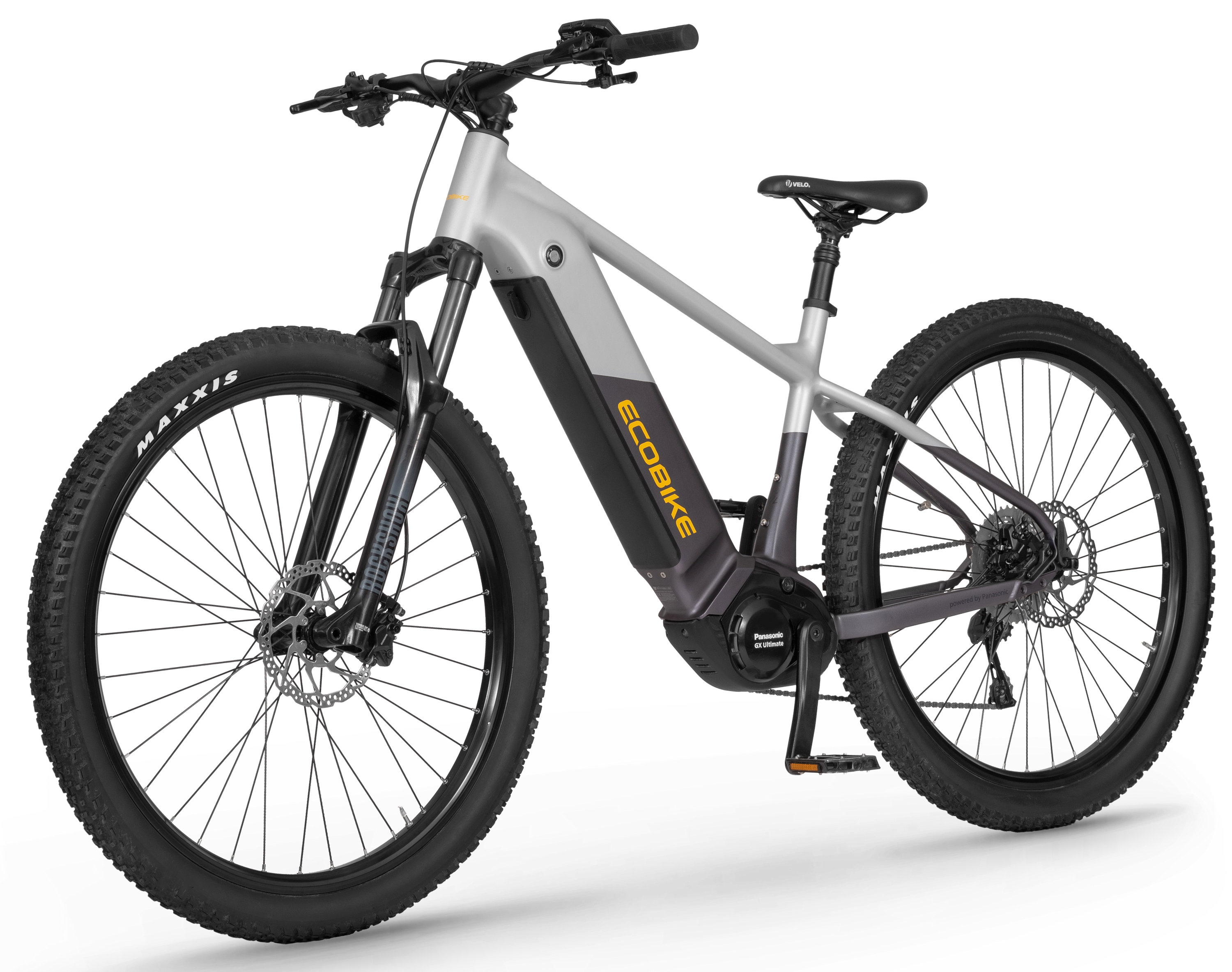

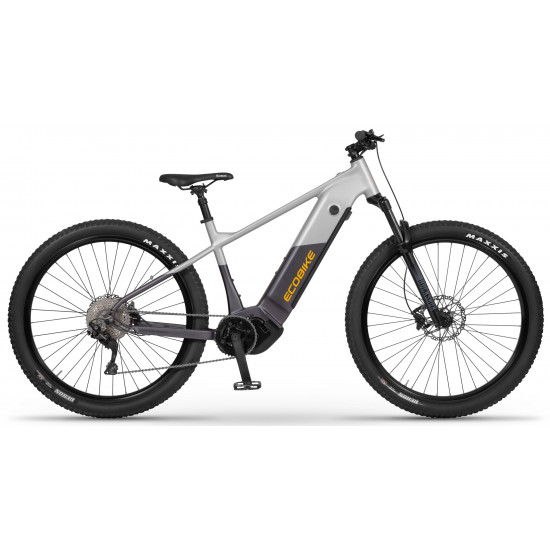

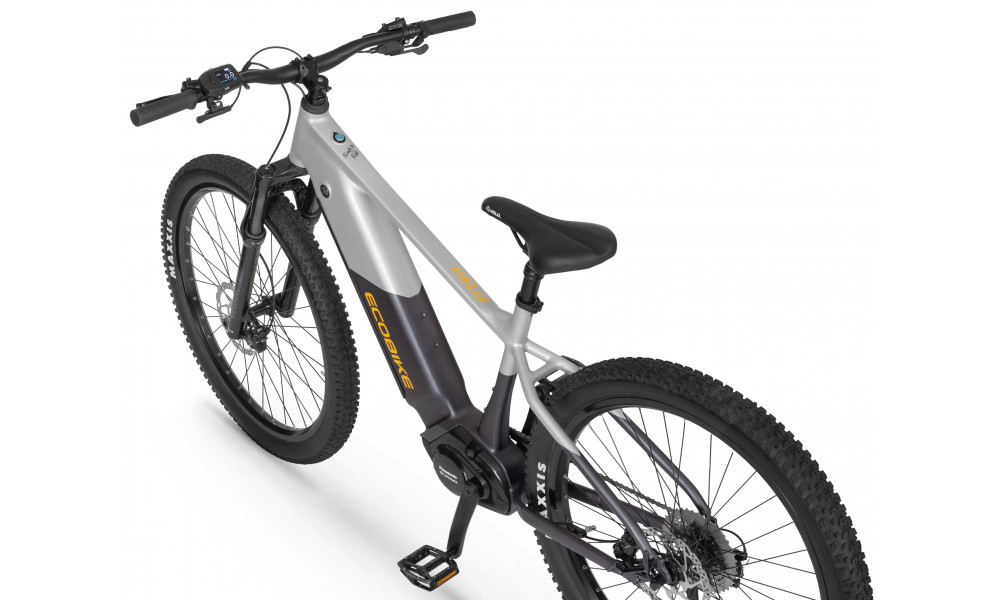

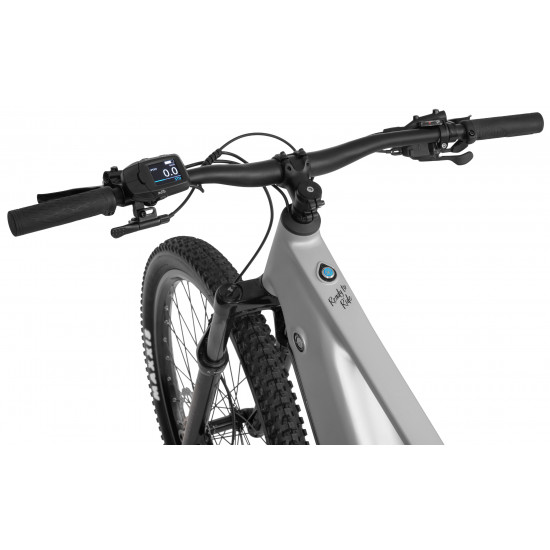

Kuvaus - Sähköpyörä Ecobike Mauler 720Wh
Ecobike is one of the first e-bike manufacturers in Europe. This means company has a many years of experience in electric bikes manufacturing and it can offer an ideal price vs quality ratio. World-class components assembled carefully with love for bicycles in Poland. All these advantages gained trust across the entire European continent.
The Mauler is engineered for the extraordinary, representing a fusion of innovation and capability that sets a new standard in MTB excellence.
Product technical specifications

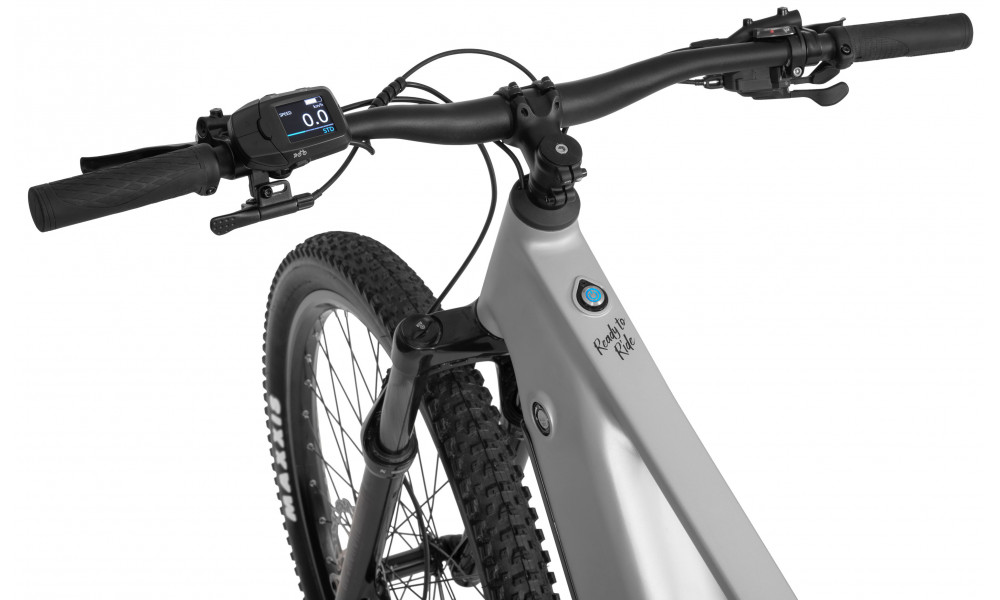

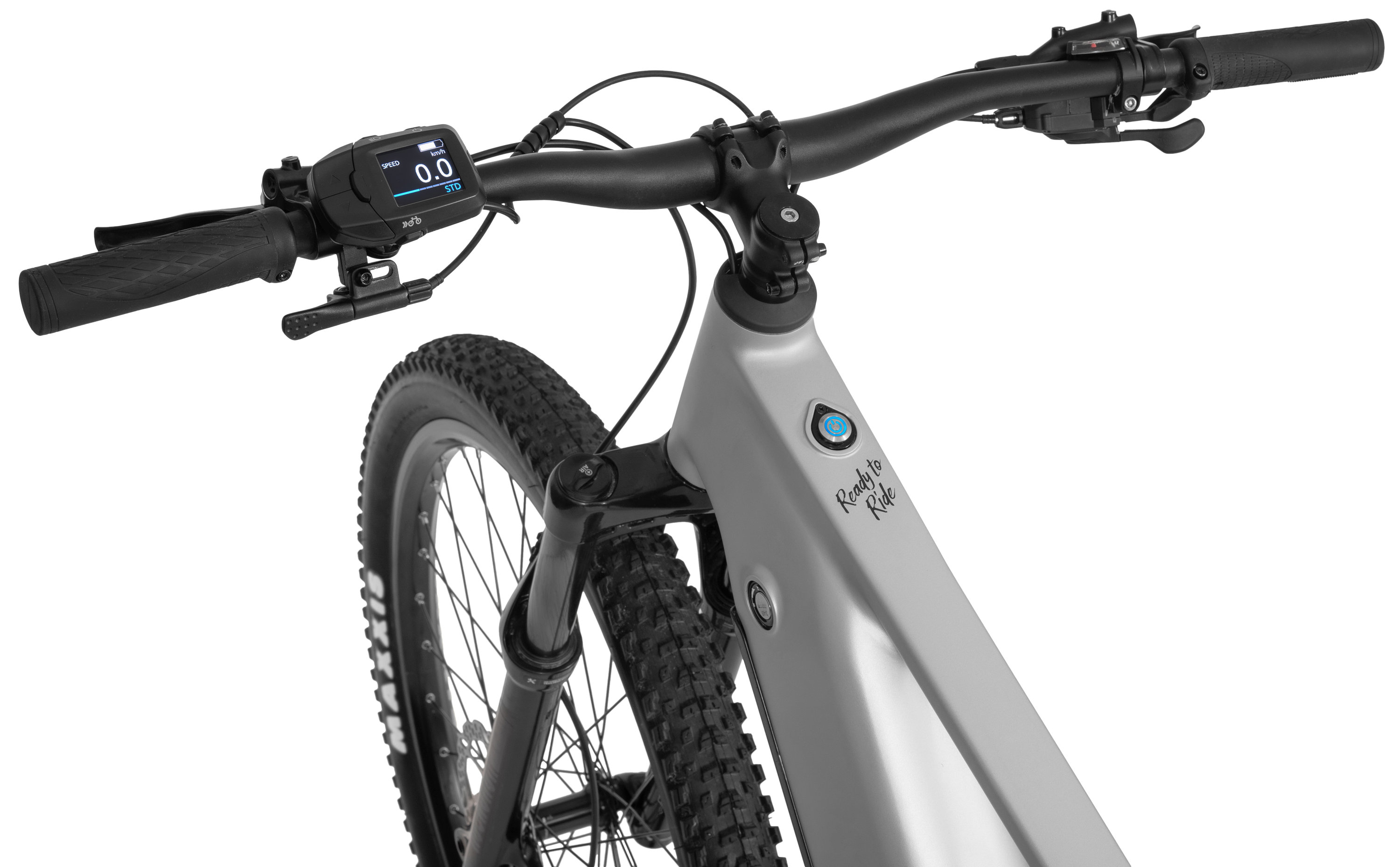

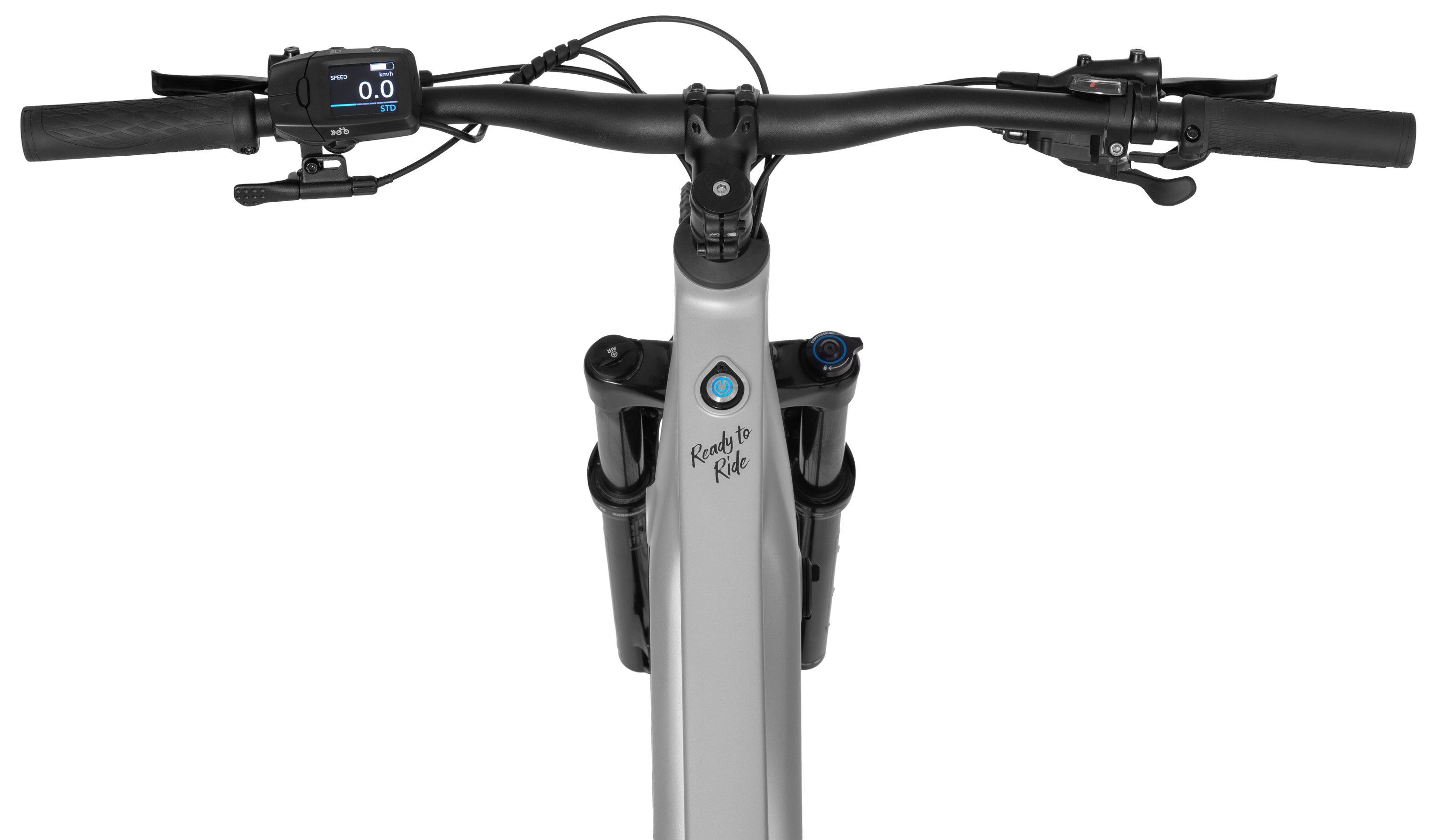

- Display model: Side color display
- Display type: Color LCD
- Compatible application: Koomot, Strava
DISPLAY:
- Capacity and range:
- 720 Wh: MAX 200 km
- Voltage: 36 V

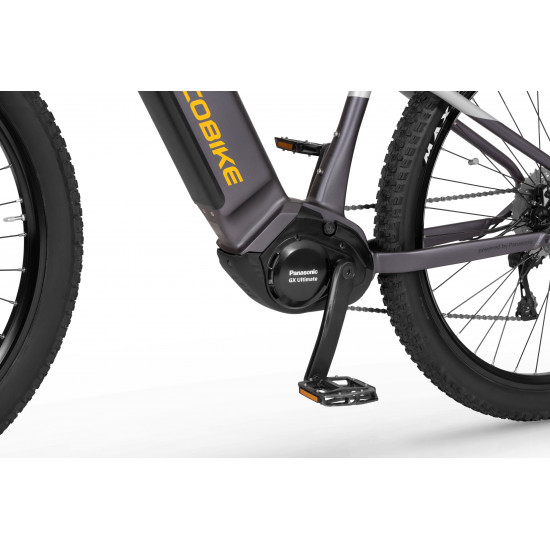

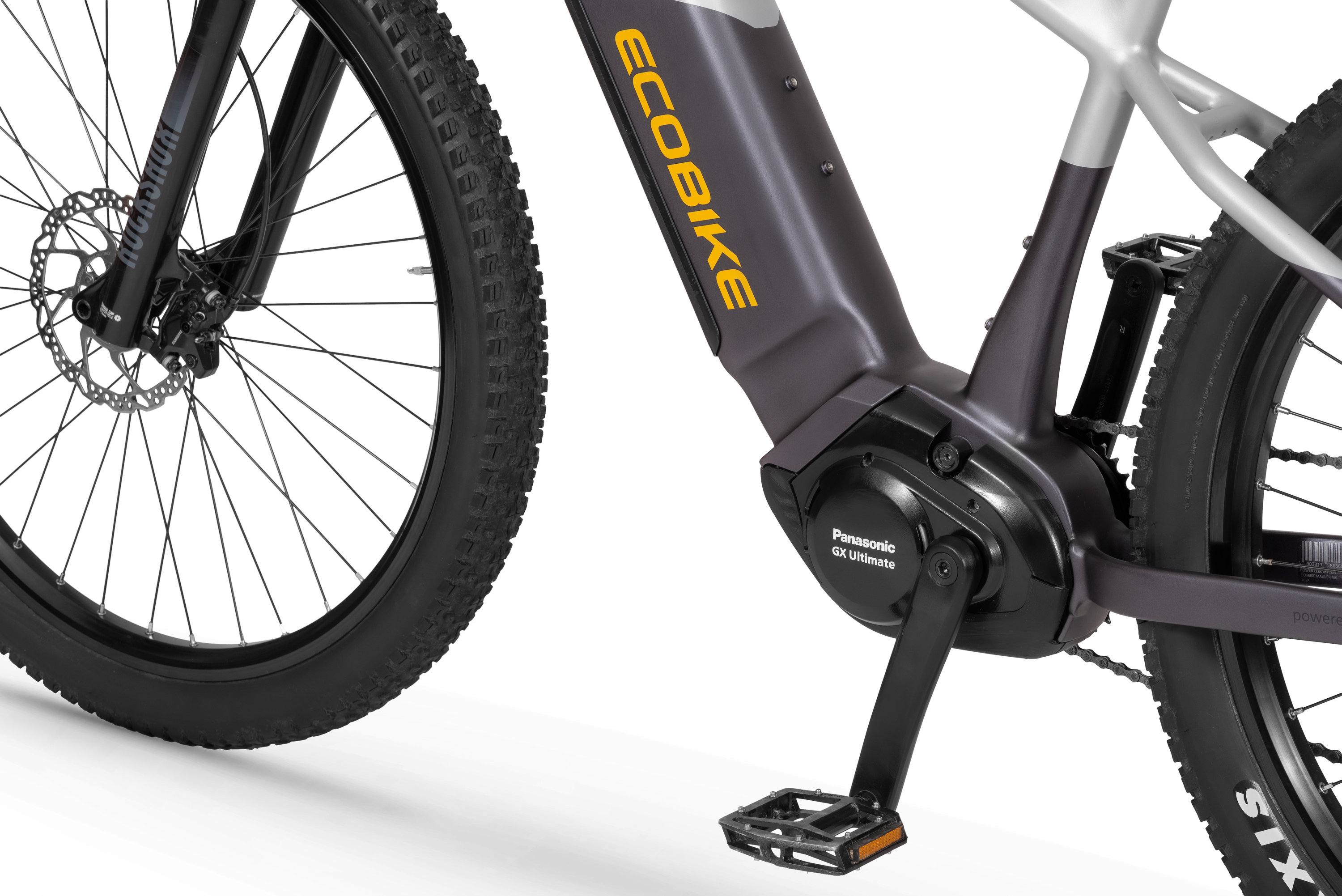

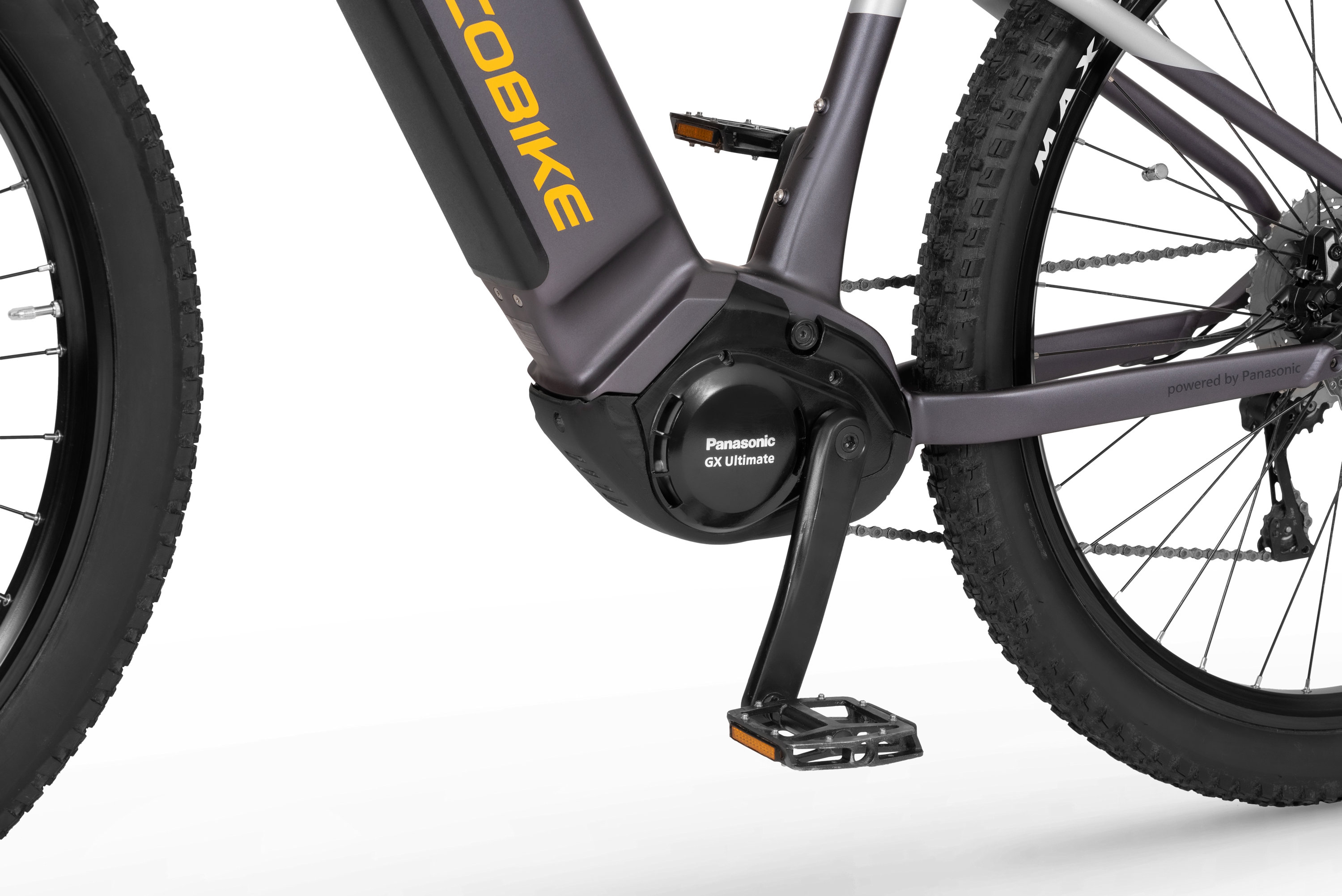

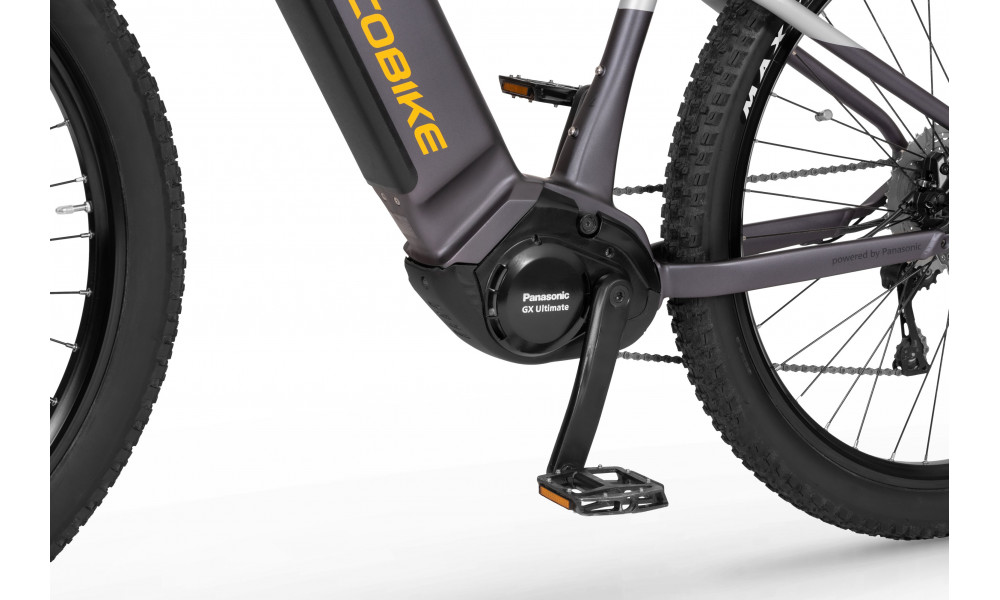

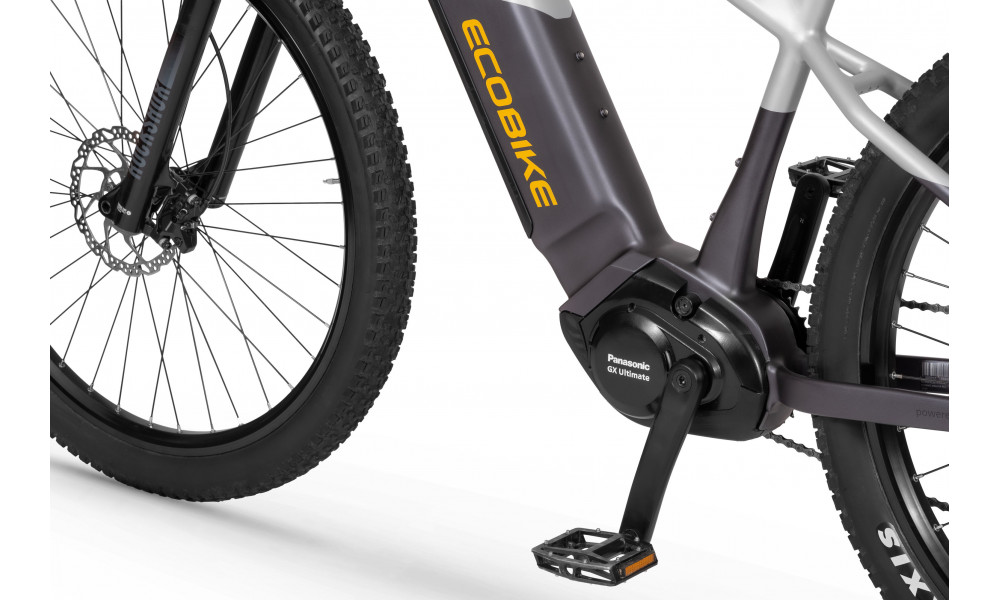

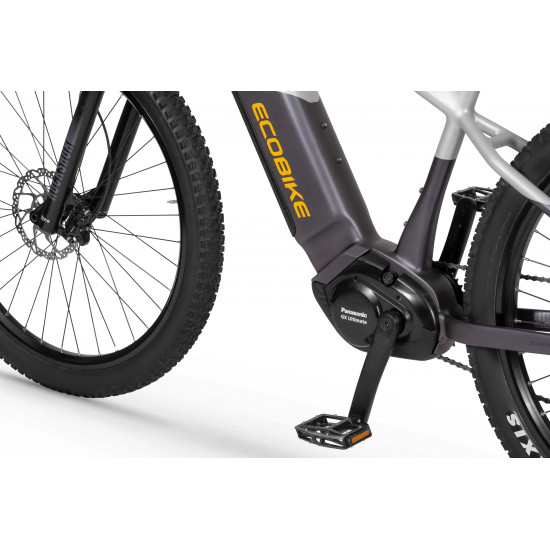

- Mount: Central (mid-drive)
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 95 Nm
- Motor's brand: Panasonic
- Power: 250 W
DISTANCE:
ENGINE:
- Lifespan: 700 charges
- Type: Li-ion
- Voltage: 36 V
- Charger: 100-240V / 42V 3A
- Cells brand: LG
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 7-8 hours
- FRAME: Hydroformowane aluminium
- FRAME SIZE: L-XL

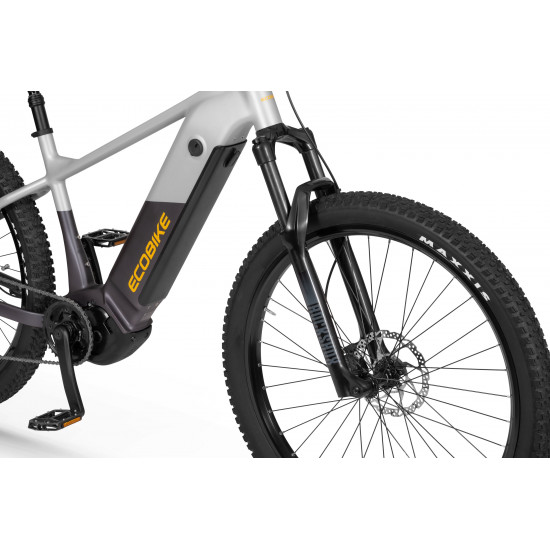

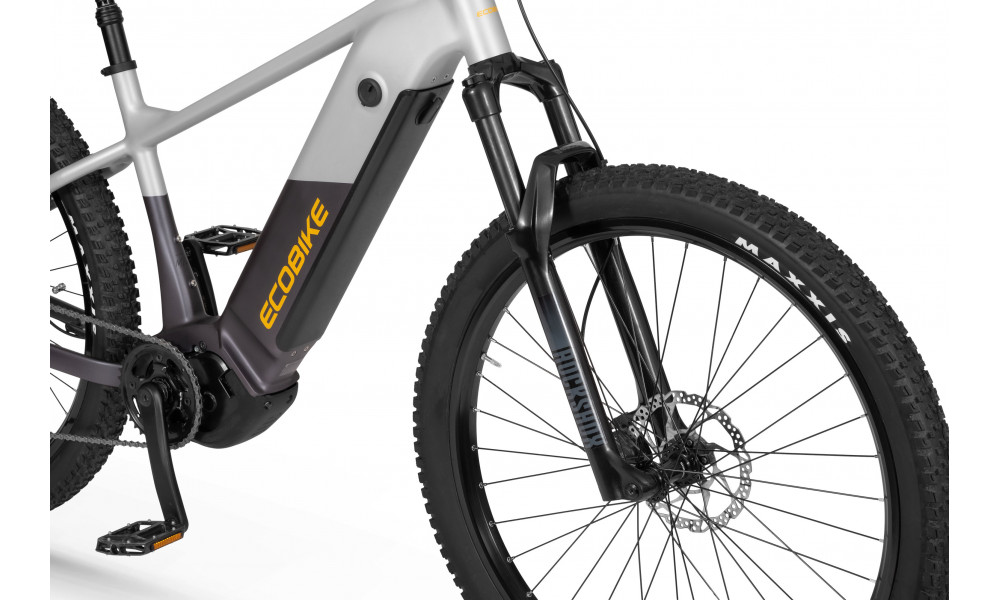

- FORK: Rockshox Recon AIR, travel 140 mm, through axle
- BRAKES: Shimano MT401 hydraulic disc
- CHAIN: KMC e10 Turbo Silver
- CHAINWHEEL: Prowheel 38t (104 BCD), 175 mm

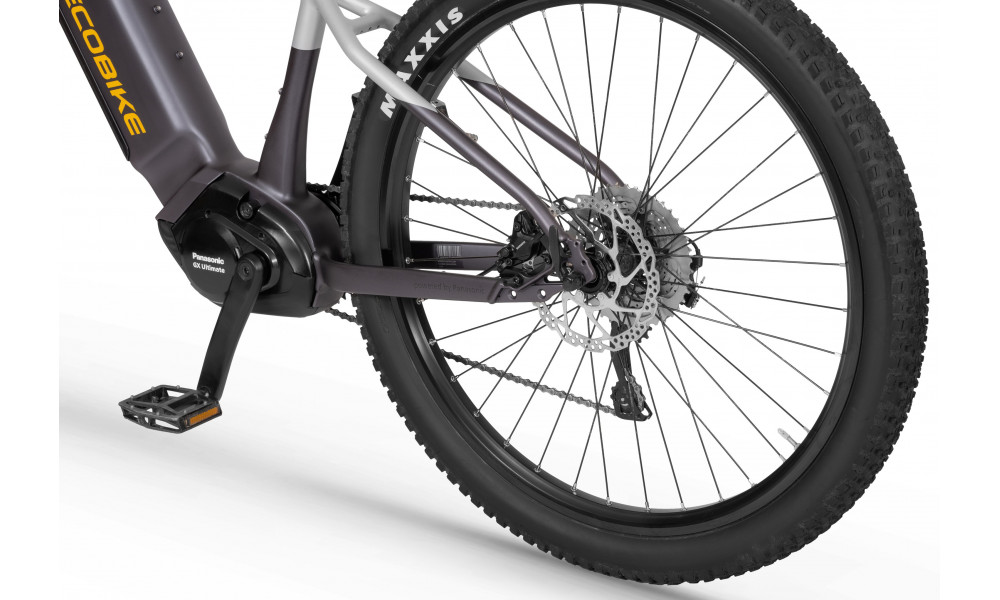

- REAR DERAILLEUR: Shimano Deor, 10-speed
- FREEWHEEL: himano CS-M4100, 11-42T, Deore, 10-speed
- HANDLEBAR: Zoom 760 mm x 35 mm x 30H
- STEM: Zoom 35 / 70 mm
- HUBS: Front hub: Shimano TX505 / Rear Hub: Shimano FH-TX505-8 / FH-QC300-HM, 135 mm, 36H, Center lock
- PEDALS: VP FP-203ZP
- RIMS: 29" reinforced three-chambered rims
- SADDLE: Velo VL-3363
- SEAT POST: Zoom 30.9 / 440 mm, travel 125 mm
- SHIFTERS: Shimano Deore, 10-speed
- SPOKES: Sapim
- TYRES: 29" x 2.6 Maxxis Rekon
- WEIGHT: 26.4 kg
- SPEEDS: 10
- GRIPS: Herrmans RIB single lock
- Effective top tube length: 650 mm
- Head tube lenght: 140 mm
- Frame size: 463 mm
- Wheel base: 1275.9 mm
- Seat tube angle: 71.7
- Headset angle: 64.9
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
BATTERY:
GEOMETRY:
Tuotteen tiedot
Näytä lisää
Pakkausvaihtoehdot
Valmistajan pakkaus
Ostaja on vastuussa pyörän kokoamisesta ja käyttöönotosta - Ilmaiseksi / Toimitus 3 - 5 arkipäivän sisällä
Pyörä lähetetään valmistajan alkuperäisessä pakkauksessa (etupyörä, ohjaustanko ja satula ovat yleensä irrotettuina), mikä varmistaa tuotteen turvallisuuden varastointi- ja kuljetusvaiheessa. Kun ostaja hankkii pyörän sellaisessa pakkauksessa, hän itse tai valitsemansa pyörähuollon ammattilainen on vastuussa asianmukaisesta pyörän kokoamisesta, säätämisestä ja käyttöönotosta.
