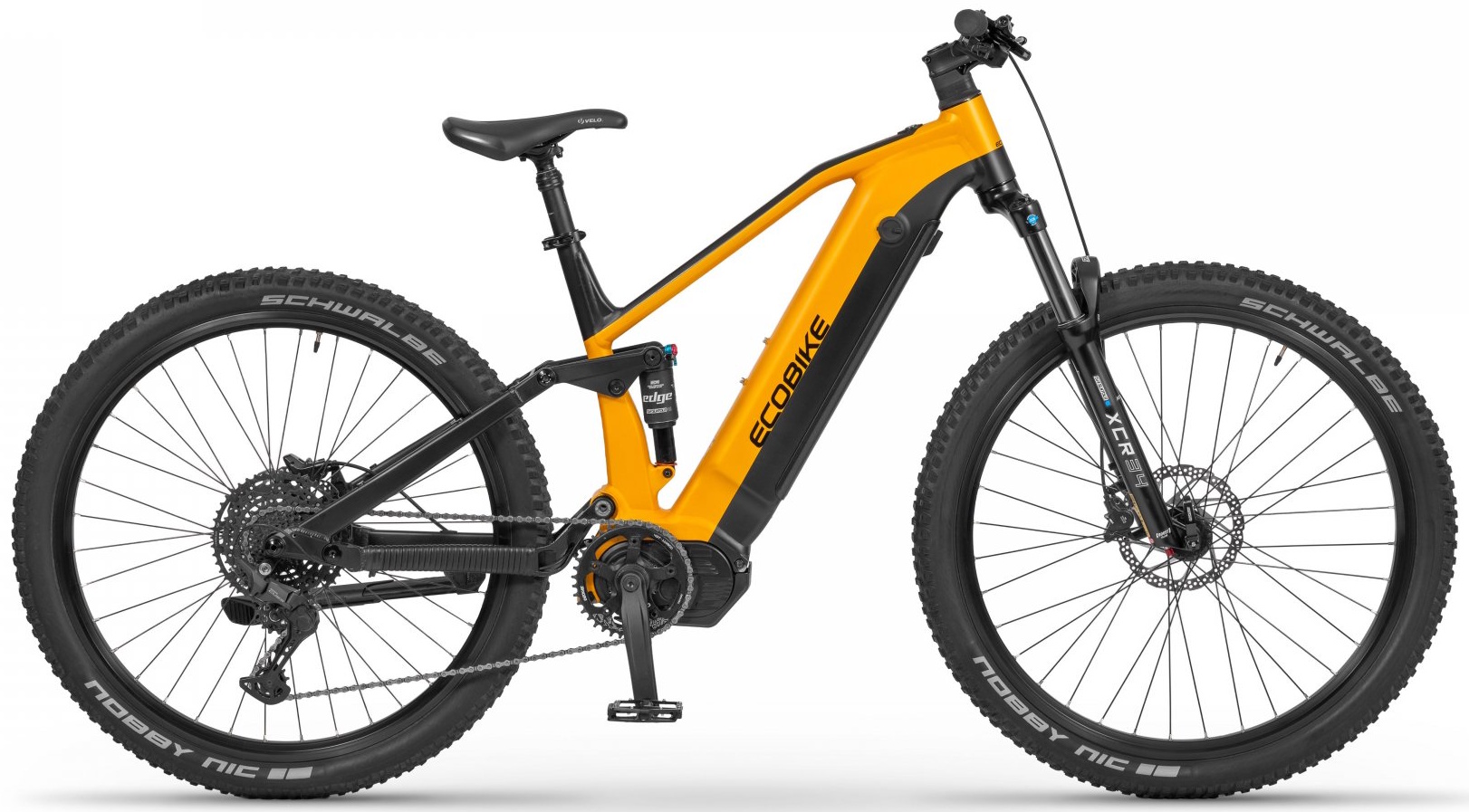

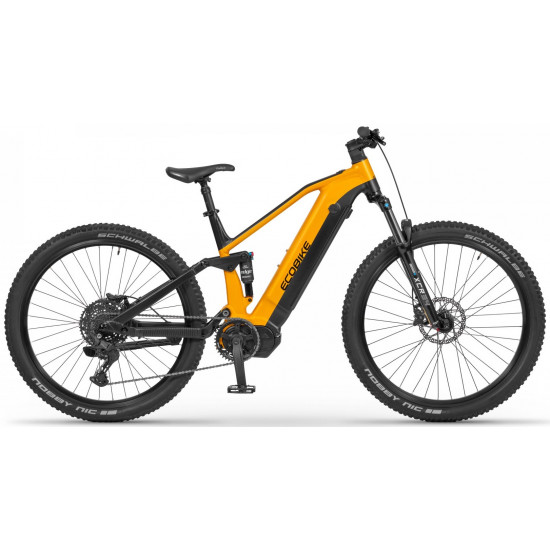

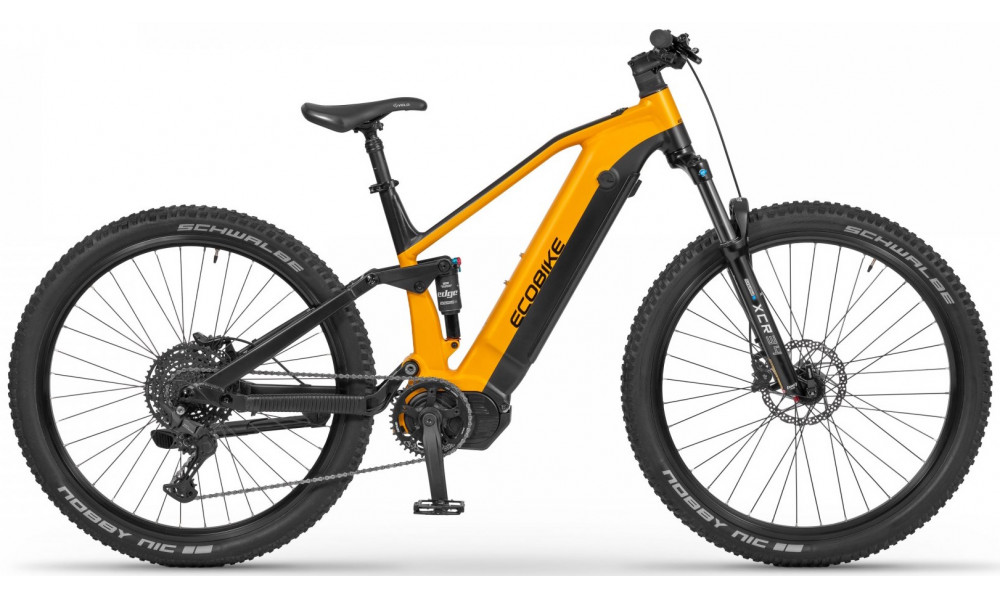

Kuvaus - Sähköpyörä Ecobike RX500 Max Yellow 960Wh
Ecobike is one of the first e-bike manufacturers in Europe. This means company has a many years of experience in electric bikes manufacturing and it can offer an ideal price vs quality ratio. World-class components assembled carefully with love for bicycles in Poland. All these advantages gained trust across the entire European continent.
The Ecobike RX 500 MAX is an electric bike created for those who dont accept compromises. Its the evolution of the iconic RX 500 – with full suspension, opening up a whole new dimension of comfort and control.
At its heart is the Ananda M100 motor, specially mapped for Ecobike, delivering assistance that feels both natural and dynamic. With 130 Nm of torque, no climb is a challenge. A magnet integrated into the rear brake rotor ensures reliable motor support – exactly when you need it.
Product technical specifications
- Display model: KD-586
- Display type: Color LCD
- Compatible application: Ananda Ride
DISPLAY:
- Capacity and range:
- 960 Wh: MAX 175 km
- Voltage: 48 V
- Mount: Central (mid-drive)
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 130 Nm
- Motor's brand: ANANDA
- Power: 250 W
DISTANCE:
ENGINE:
- Lifespan: 700 charges
- Type: Li-ion
- Voltage: 48 V
- Charger: 100-240V/54.6V 3A
- Cells brand: LG
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 7-8 hours
- FRAME: Hydroformed aluminium
- FRAME SIZE: L/XL
- FORK: SunTour SF26-XCR34X AIR BOOST, 130 mm travel
- REAR SHOCK: SunTour RS24-EDGEX-R Trunnion, travel 120 mm
- BRAKES: Shimano MT401 hydraulic disc
- CHAIN: KMC eGlide EPT, 128L
- CHAINWHEEL: Ananda 40T, Narrow wide
- REAR DERAILLEUR: Shimano Cues, RD-U6000, 10 speed
- FREEWHEEL: Shimano Cues, 11-48T, 10-speed
- HANDLEBAR: Zoom MTB-AL-320BT, 760 mm x 31.8 mm, rise 20 mm
- STEM: Promax TDS-D631-8, 31.8 mm / 60 mm
- HUBS: Front hub: Shimano HB-TC500-15-B, 36H, 110 mm, Center lock, Thru type / Rear Hub: Shimano FH-TC500-HM-B, 148 mm, 36H, Center lock
- PEDALS: FP-203ZP
- RIMS: 29" reinforced three-chambered rims
- SADDLE: VELO VL-3363
- SEAT POST: Zoom SPD-811, 30.9 mm x 303 mm, travel 80 mm
- SHIFTERS: Shimano Cues, SL-U6000-10R, 10-speed
- TYRES: 29" x 2.6" Maxxis Rekon
- WEIGHT: 29.2 kg
- SPEEDS: 10
- GRIPS: Herrmans RIB single lock
- Effective top tube length: 605 mm
- Head tube lenght: 120 mm
- Frame size: 474 mm
- Wheel base: 1245.1 mm
- Seat tube angle: 77
- Headset angle: 67
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
BATTERY:
GEOMETRY:
Tuotteen tiedot
Näytä lisää
Pakkausvaihtoehdot
Valmistajan pakkaus
Ostaja on vastuussa pyörän kokoamisesta ja käyttöönotosta - Ilmaiseksi / Toimitus 3 - 5 arkipäivän sisällä
Pyörä lähetetään valmistajan alkuperäisessä pakkauksessa (etupyörä, ohjaustanko ja satula ovat yleensä irrotettuina), mikä varmistaa tuotteen turvallisuuden varastointi- ja kuljetusvaiheessa. Kun ostaja hankkii pyörän sellaisessa pakkauksessa, hän itse tai valitsemansa pyörähuollon ammattilainen on vastuussa asianmukaisesta pyörän kokoamisesta, säätämisestä ja käyttöönotosta.
