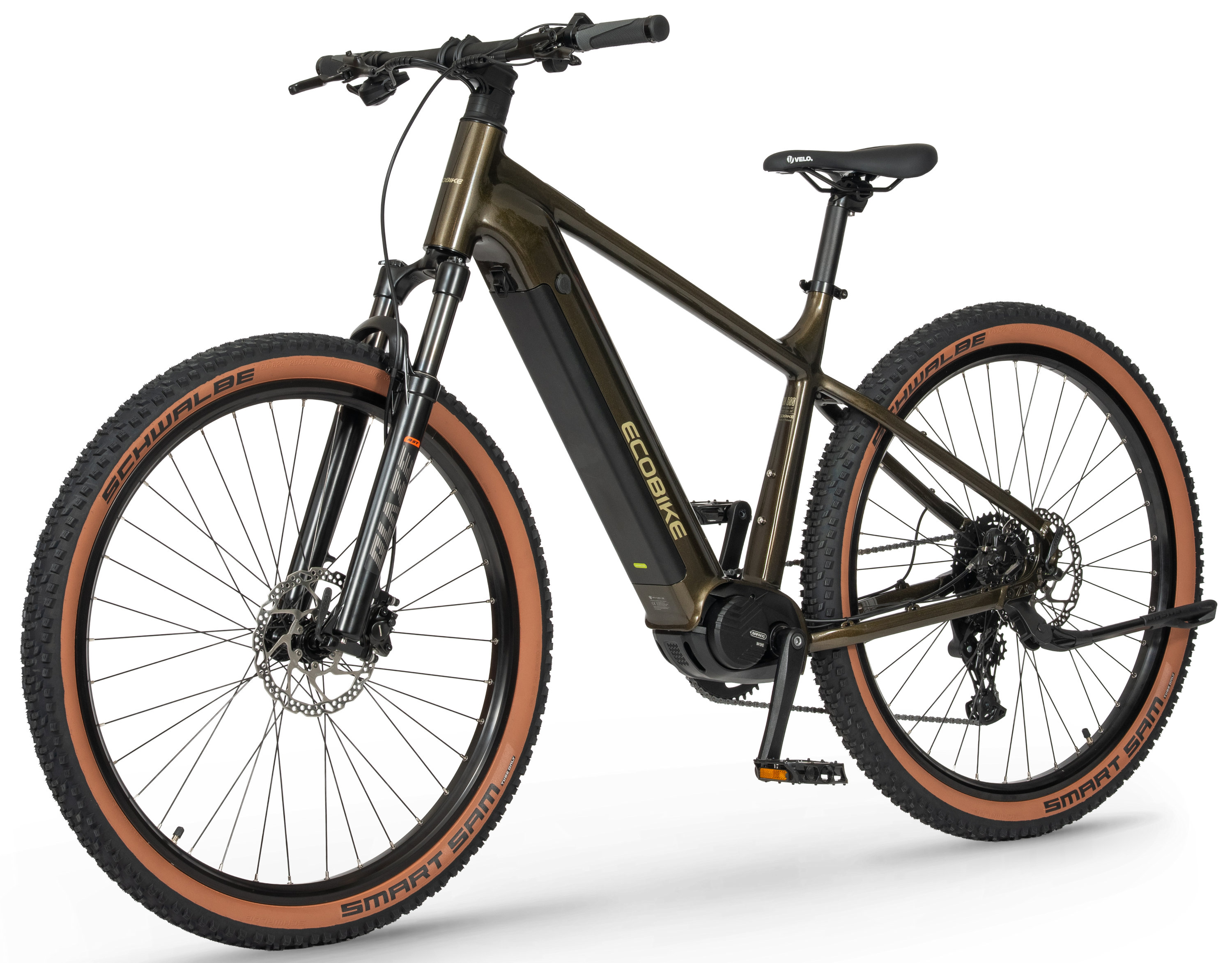

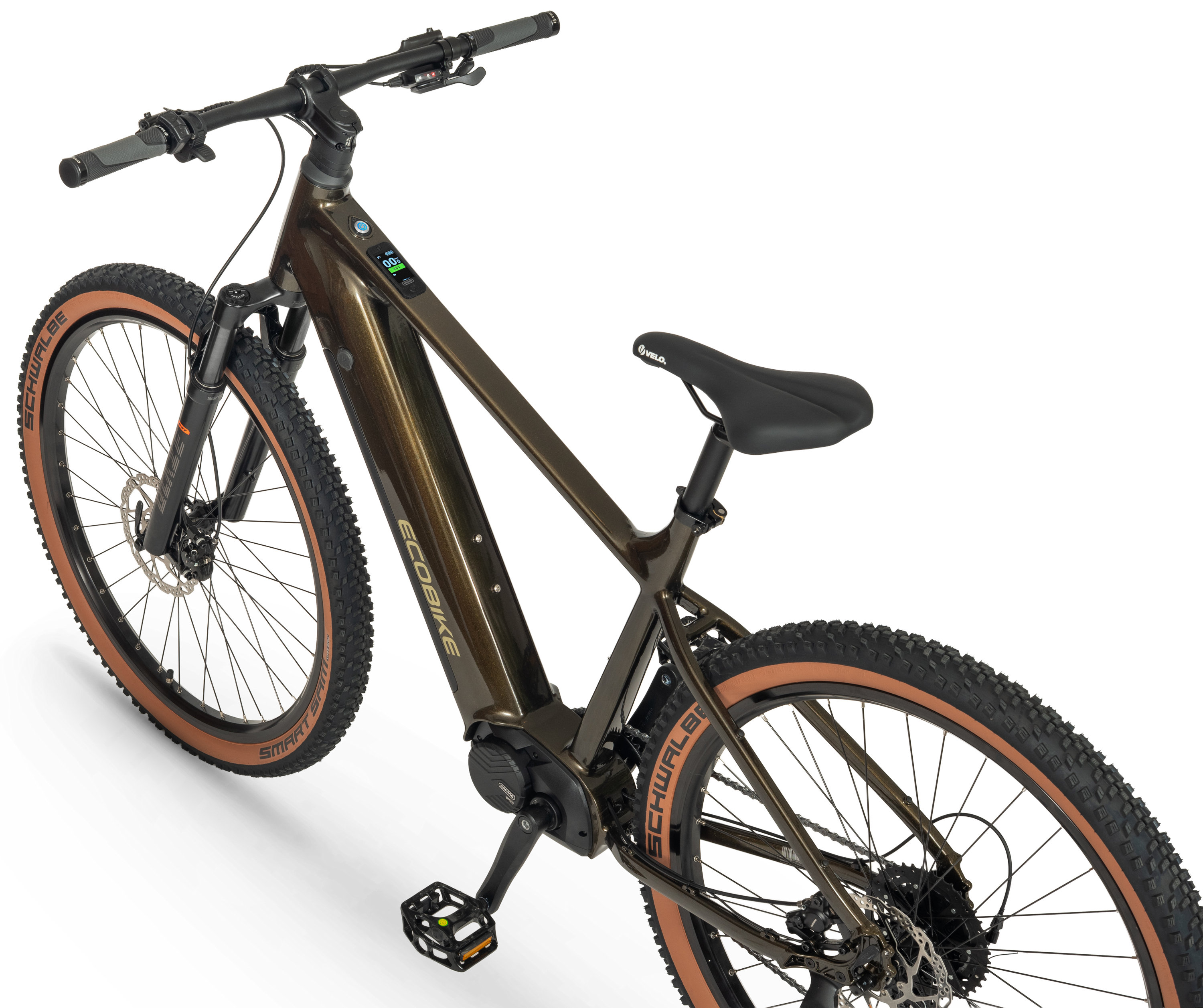

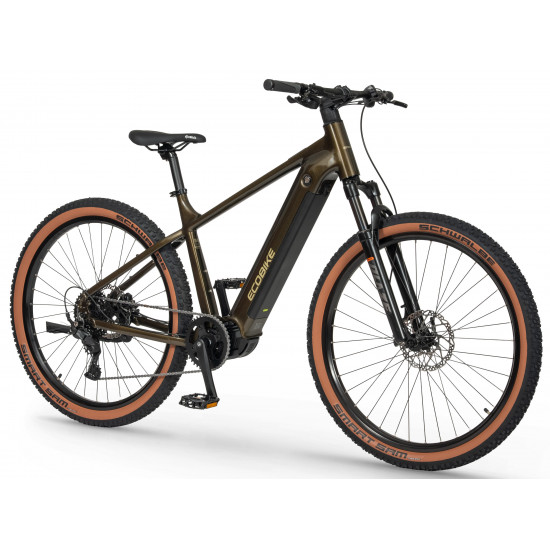

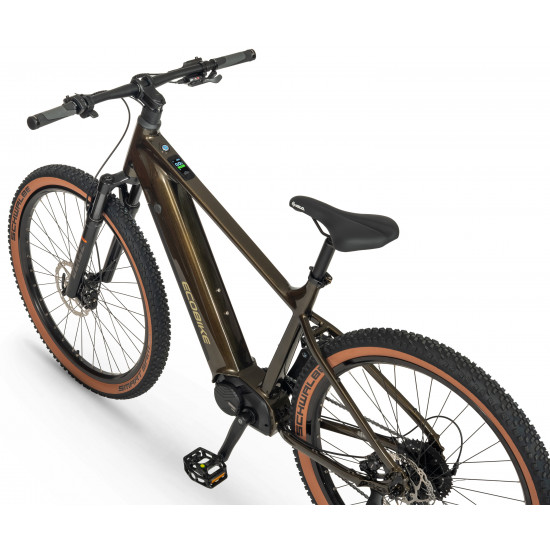

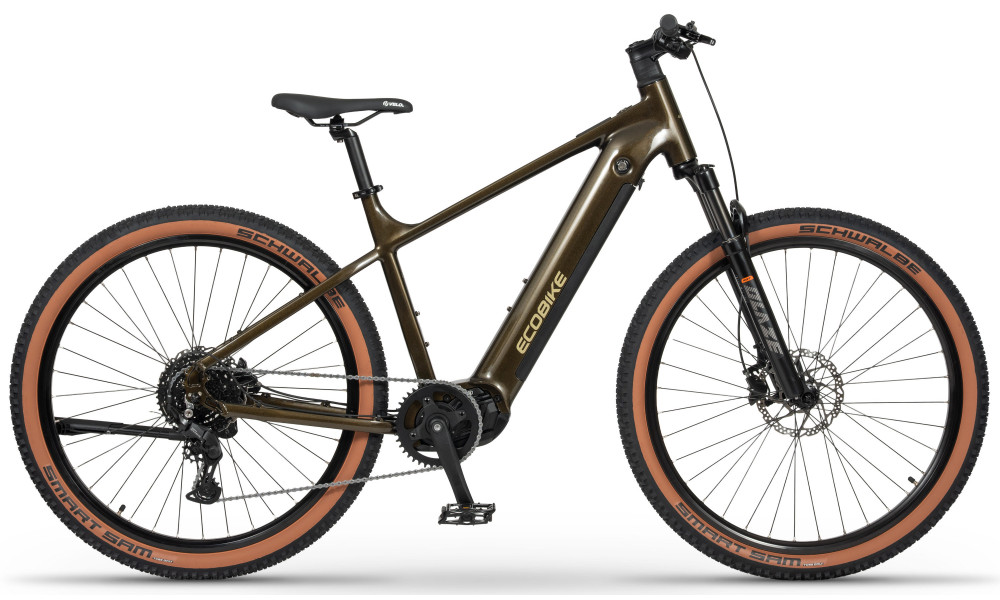

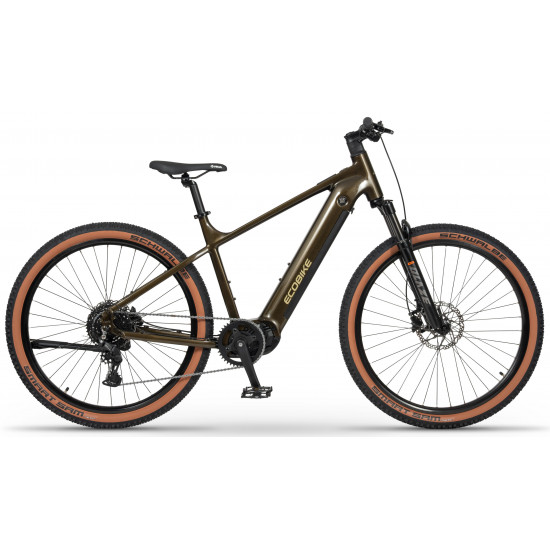

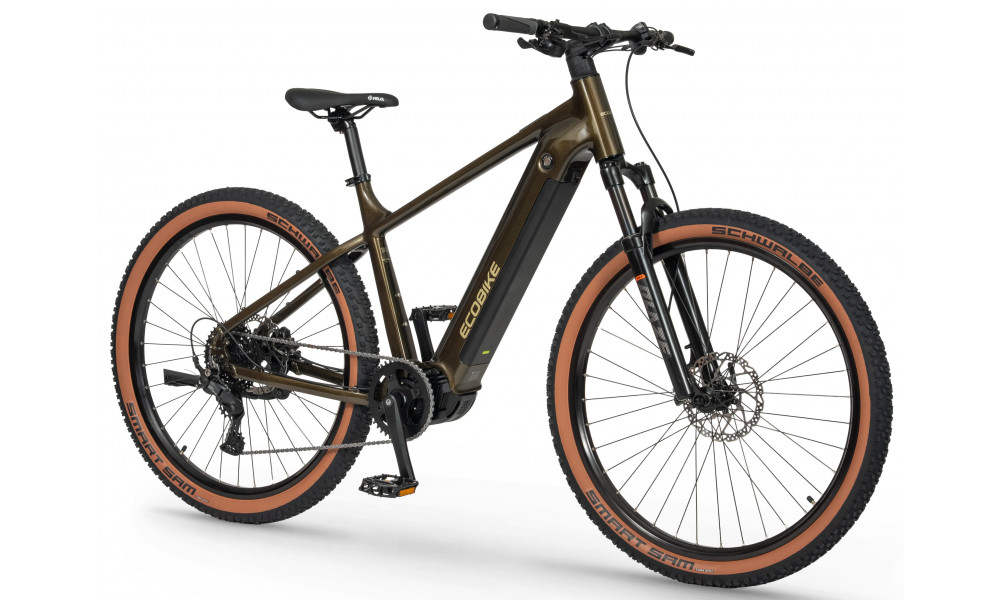

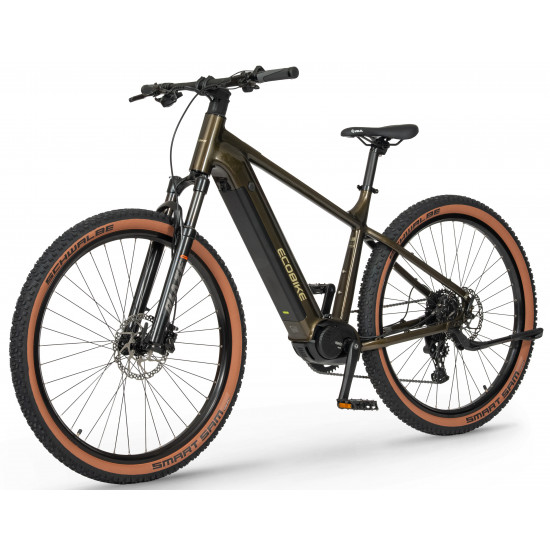

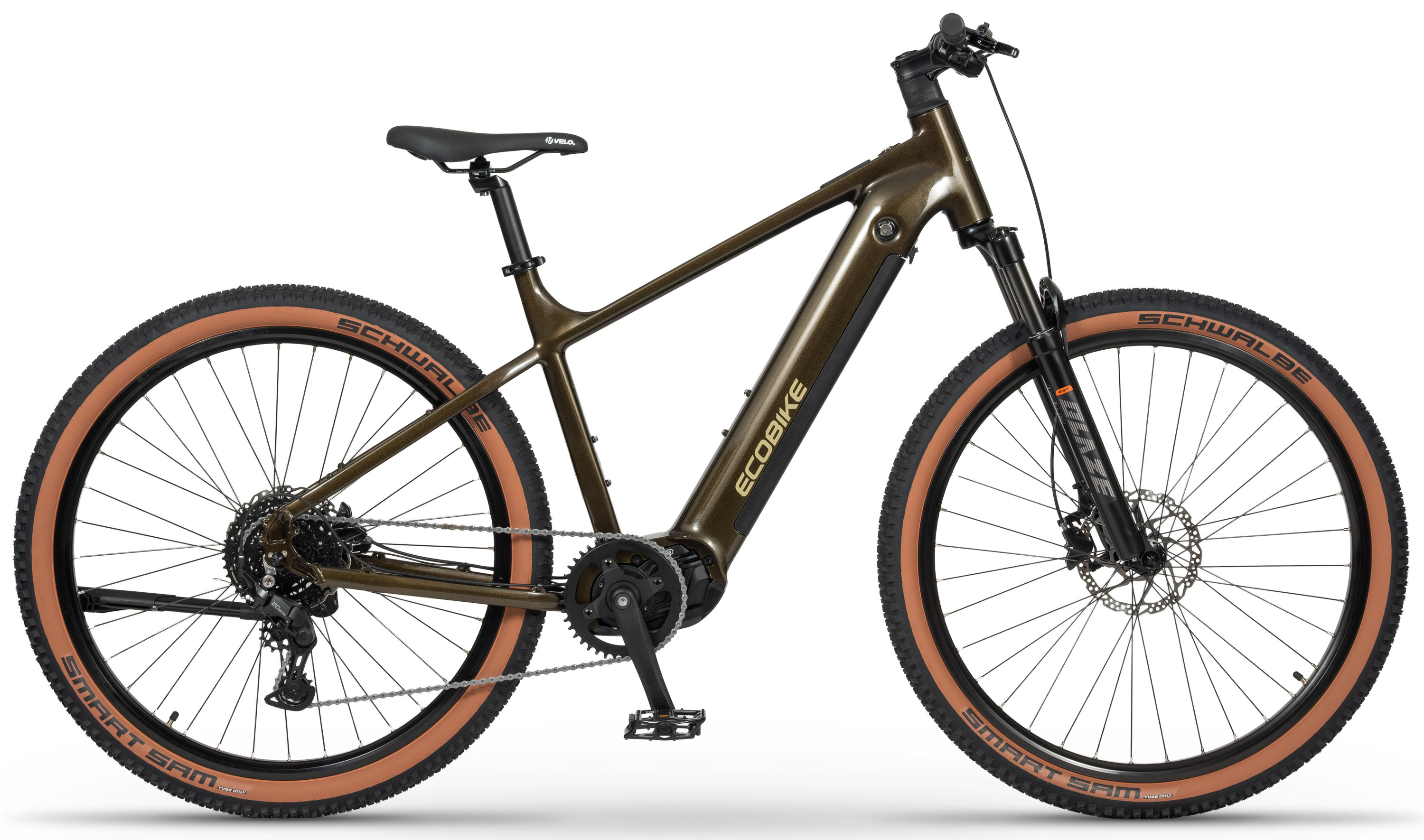

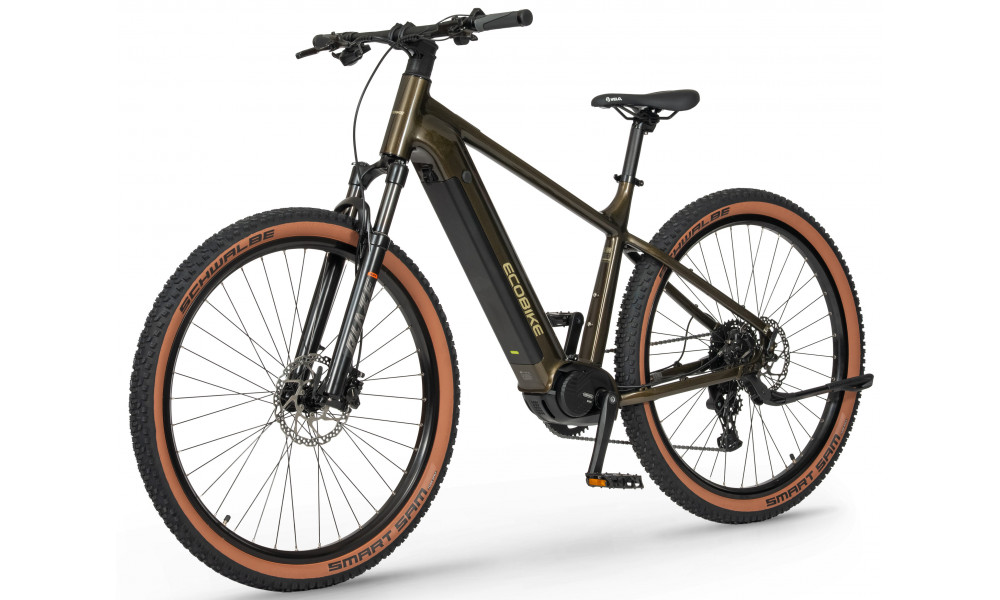

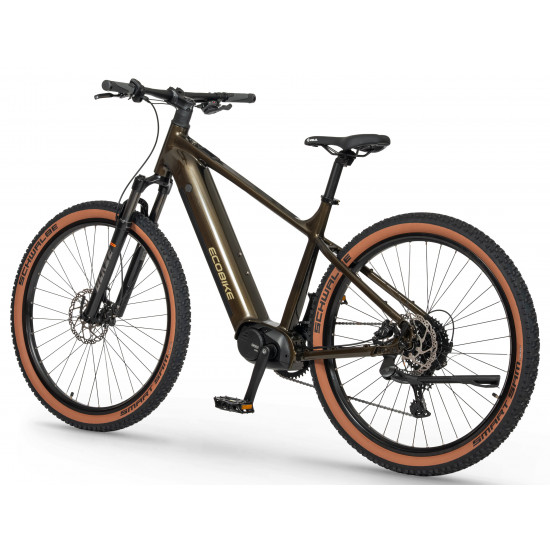

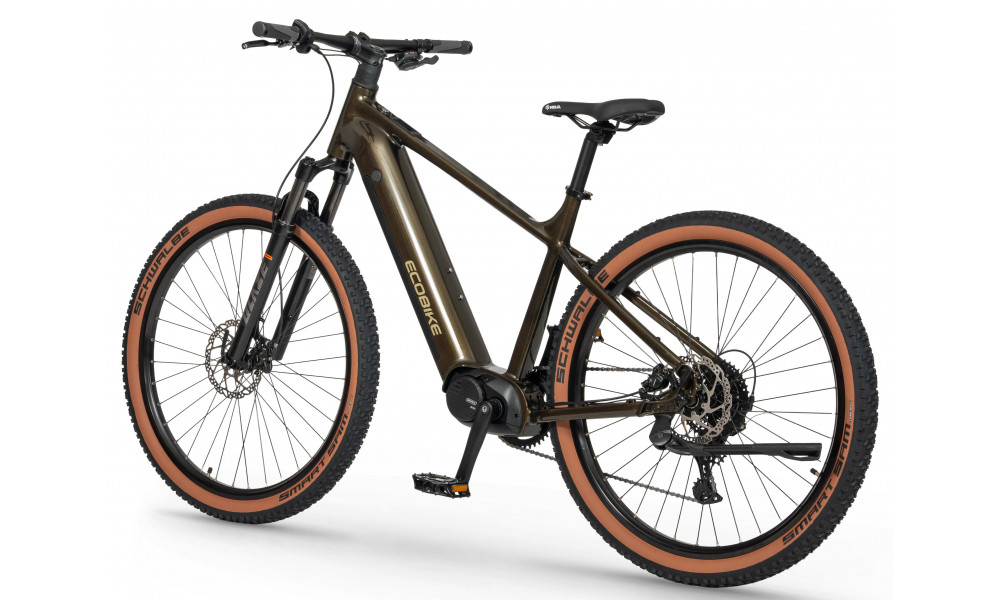

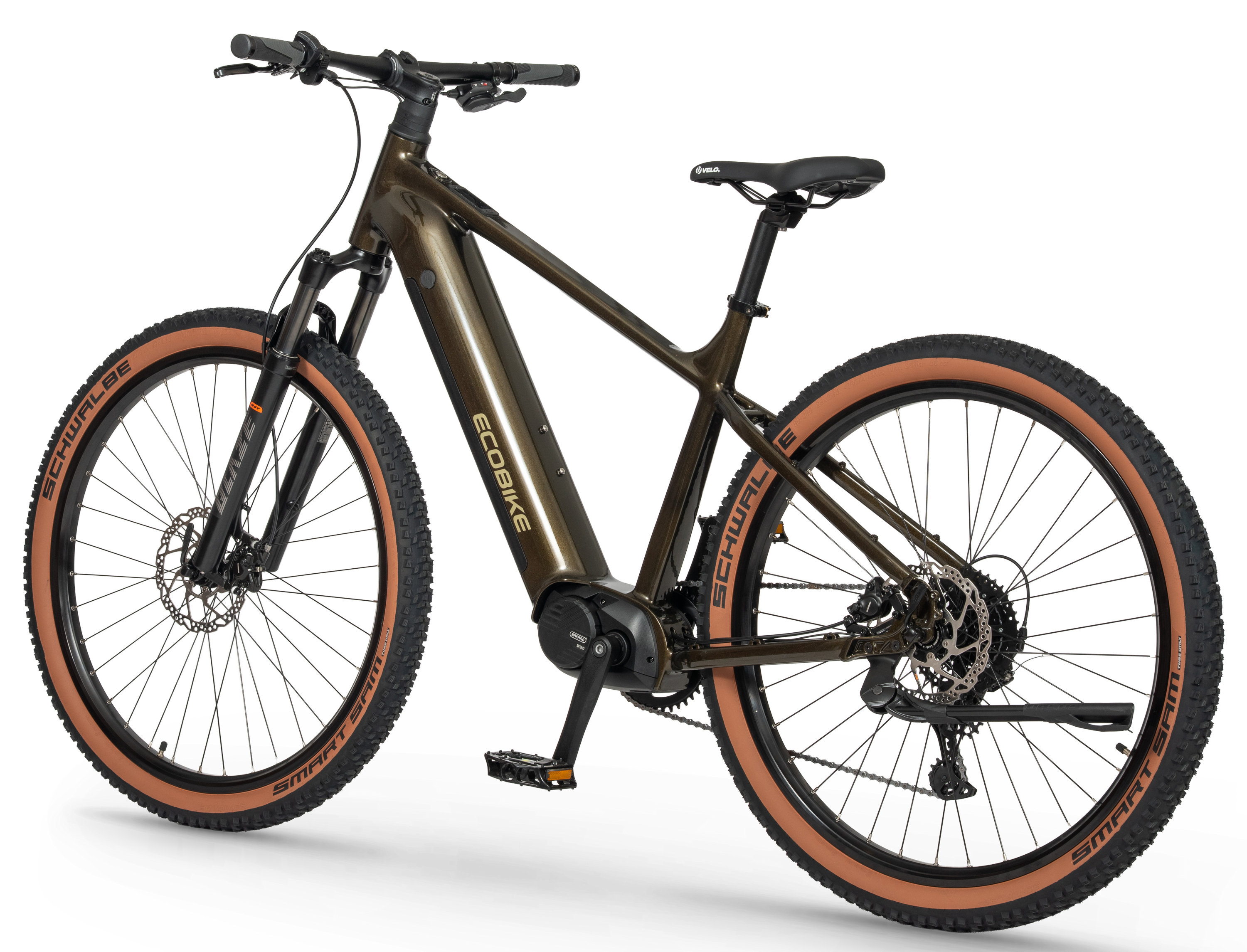

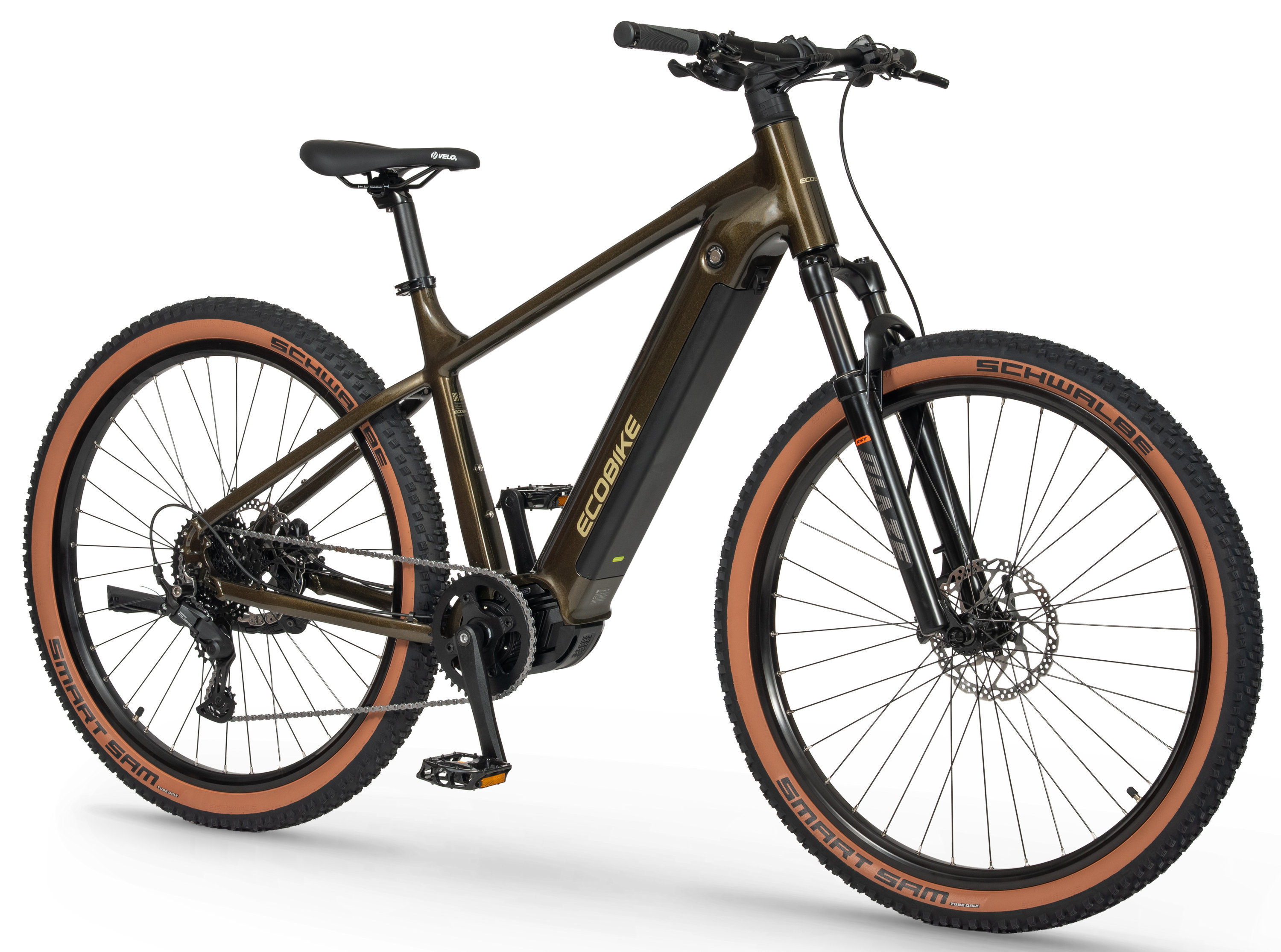

The Ecobike SX 300 combines power, modern design, and advanced technology created for riders who love off-road adventures. Its not just the successor of the previous model – its a whole new standard in the Ecobike MTB family.

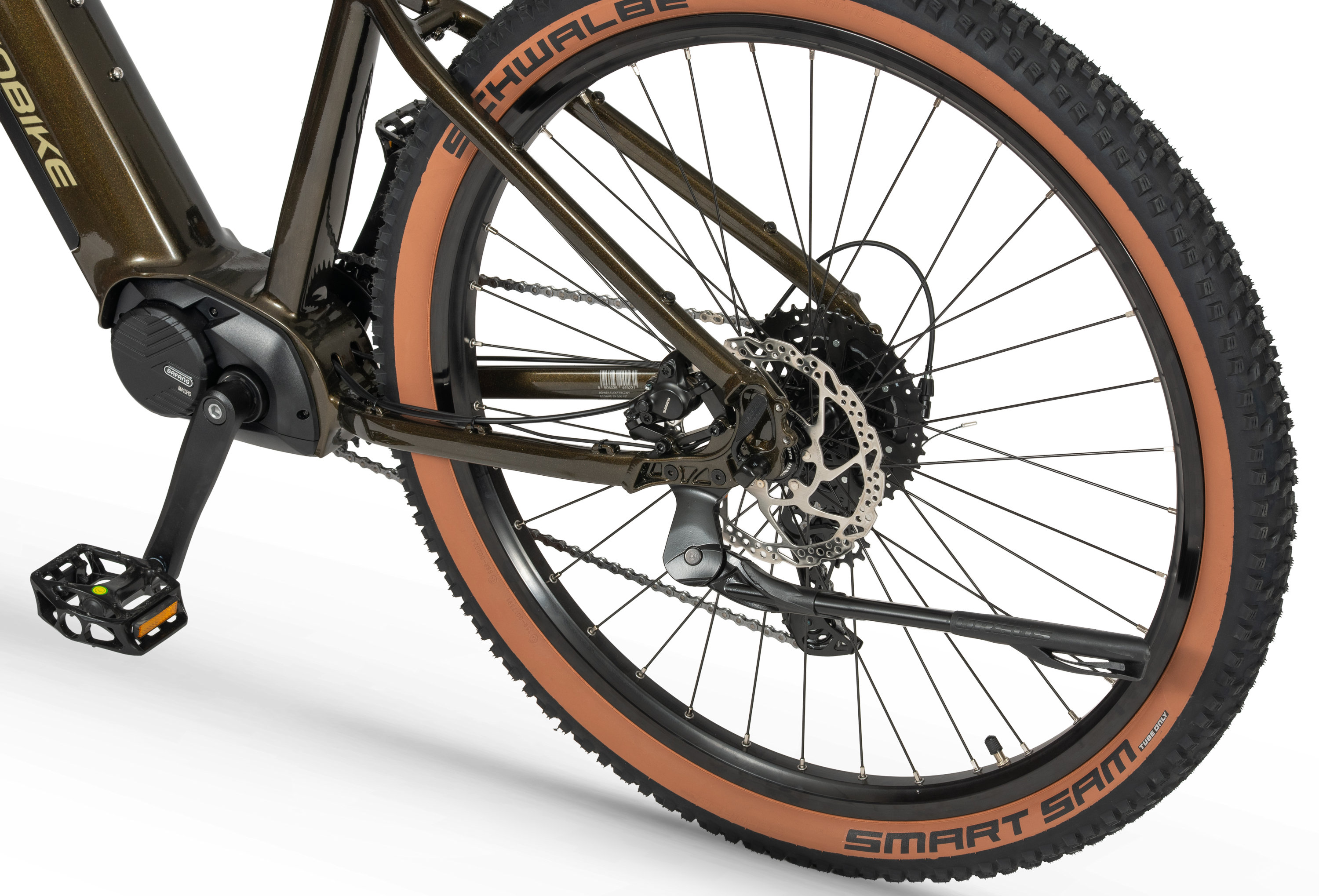

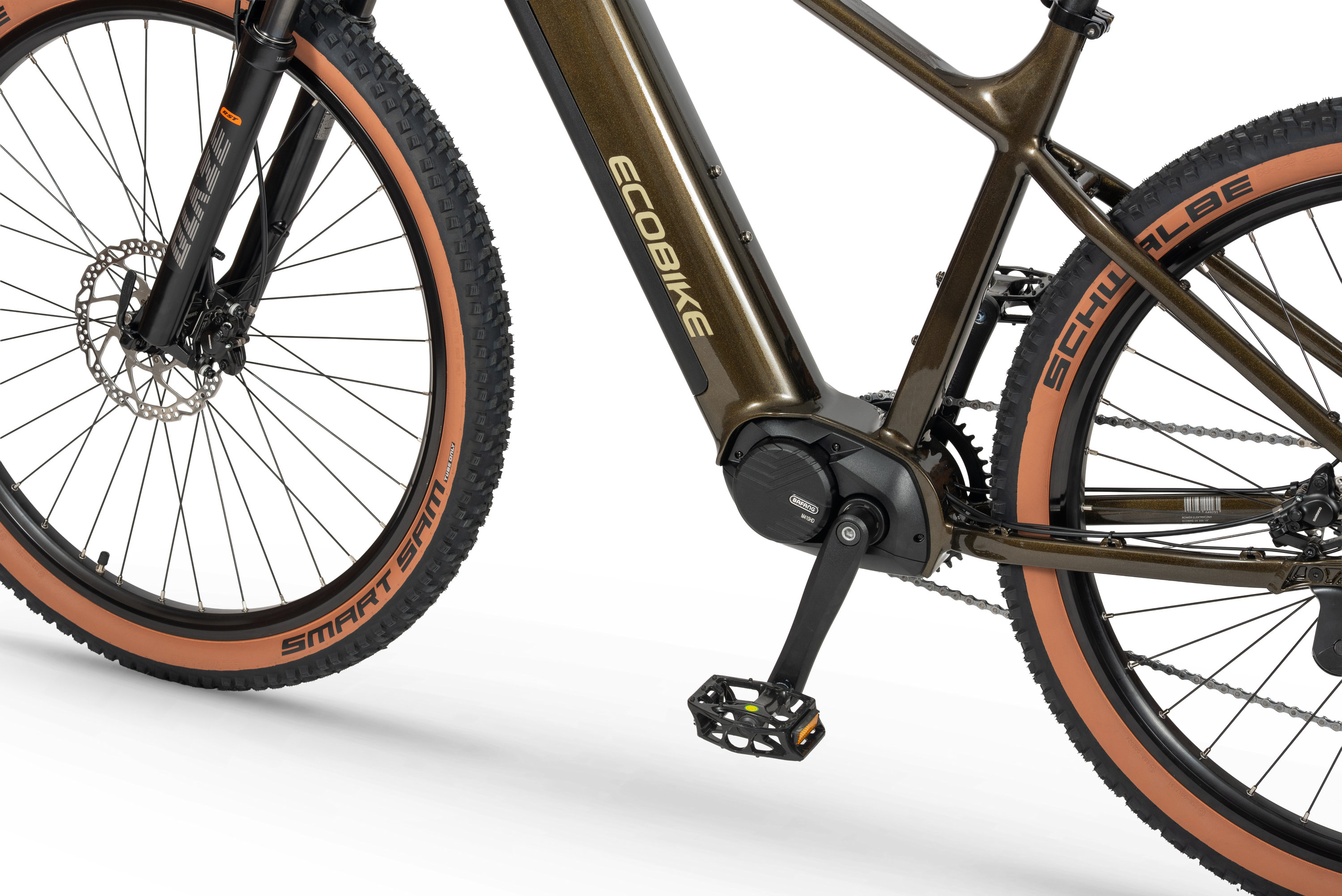

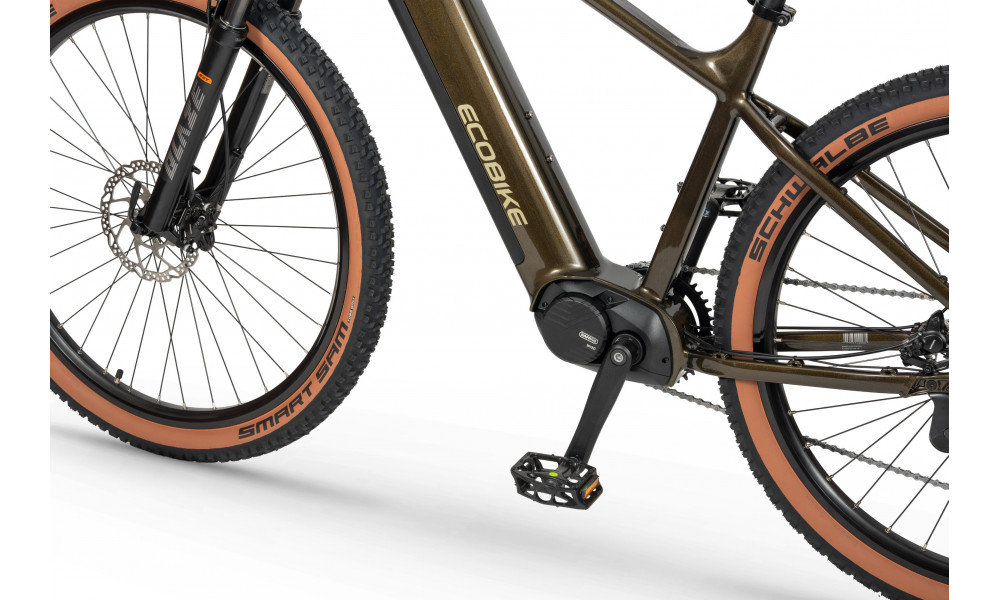

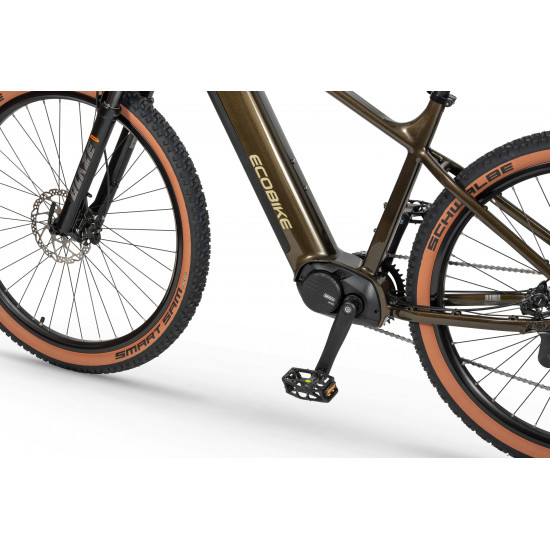

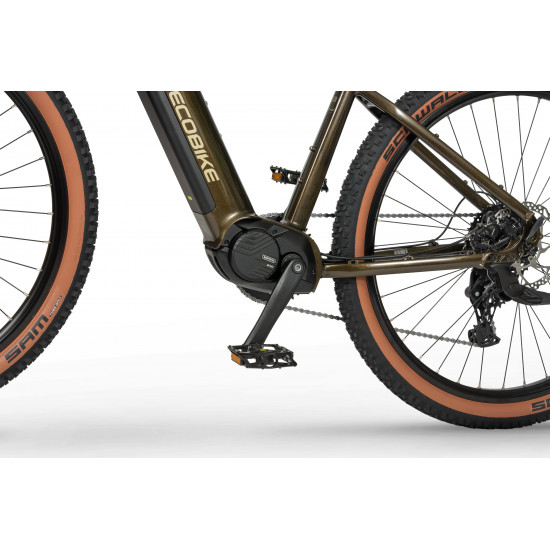

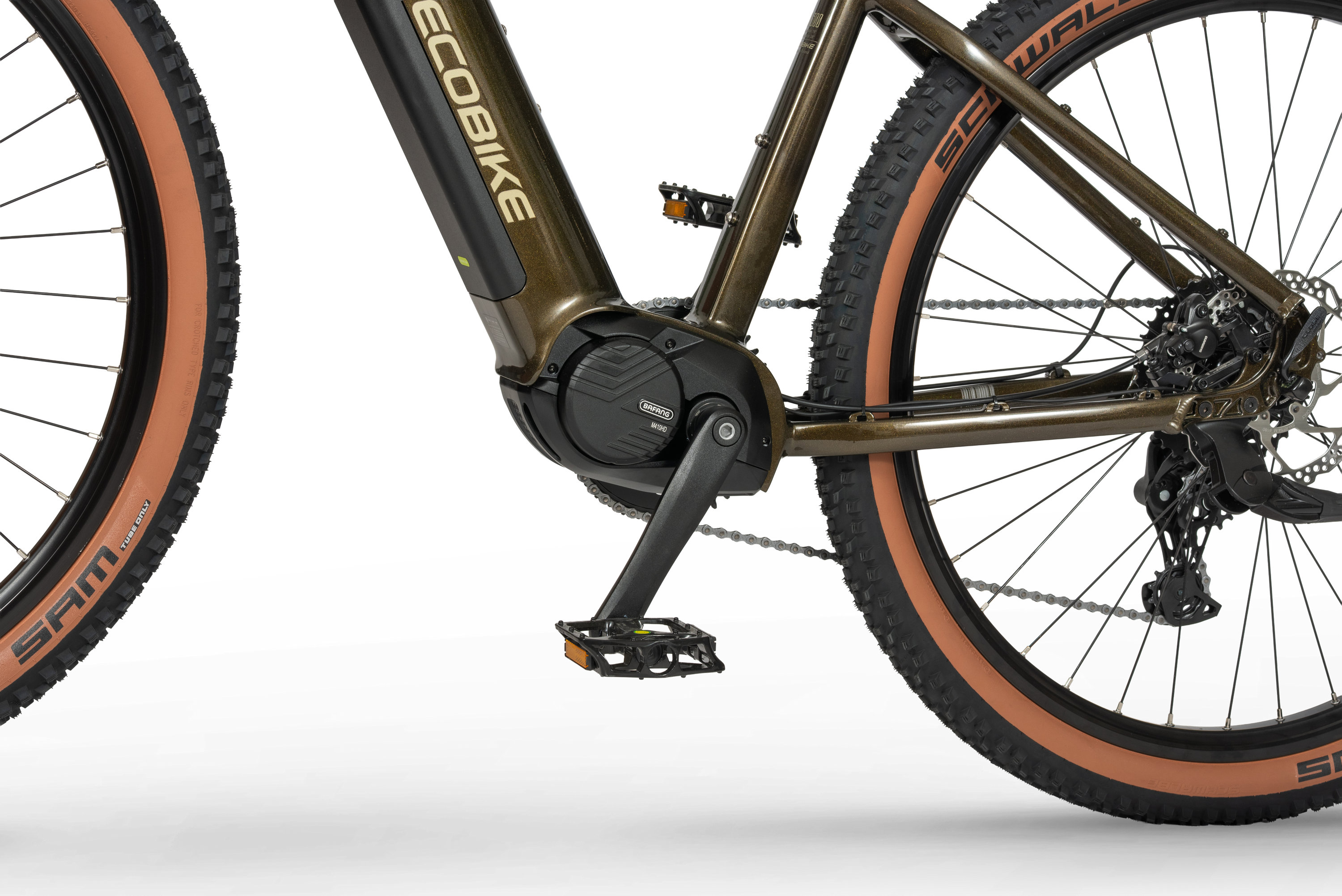

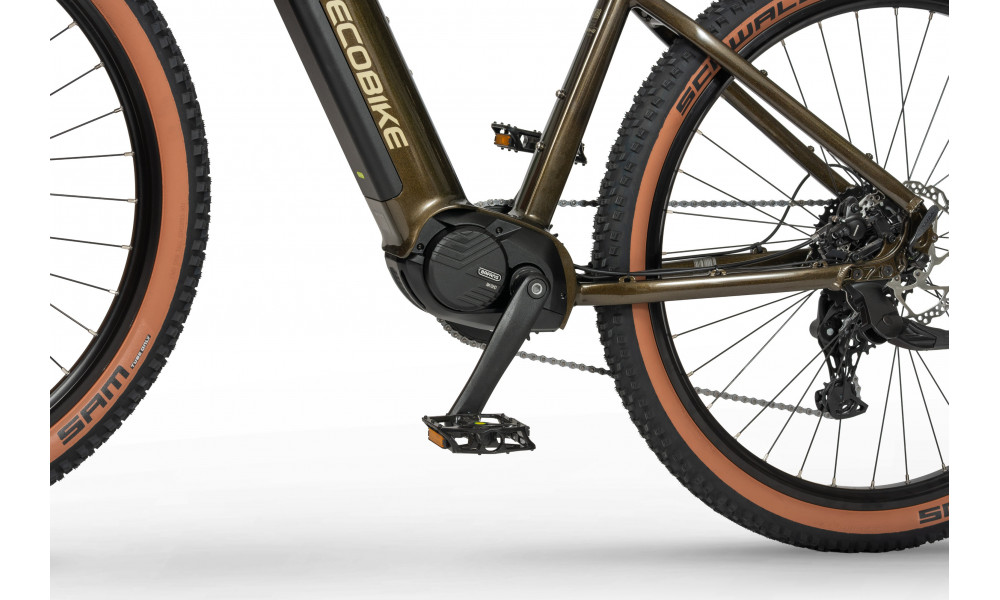

At the heart of SX 300 lies the Bafang M410HD mid-drive motor with 100 Nm of torque, supported by the complete Bafang system. This setup ensures smooth power delivery, making even steep climbs feel effortless.
A massive 900 Wh battery gives you a range of up to 170 km on a single charge. Perfect for long rides without worrying about running out of energy.

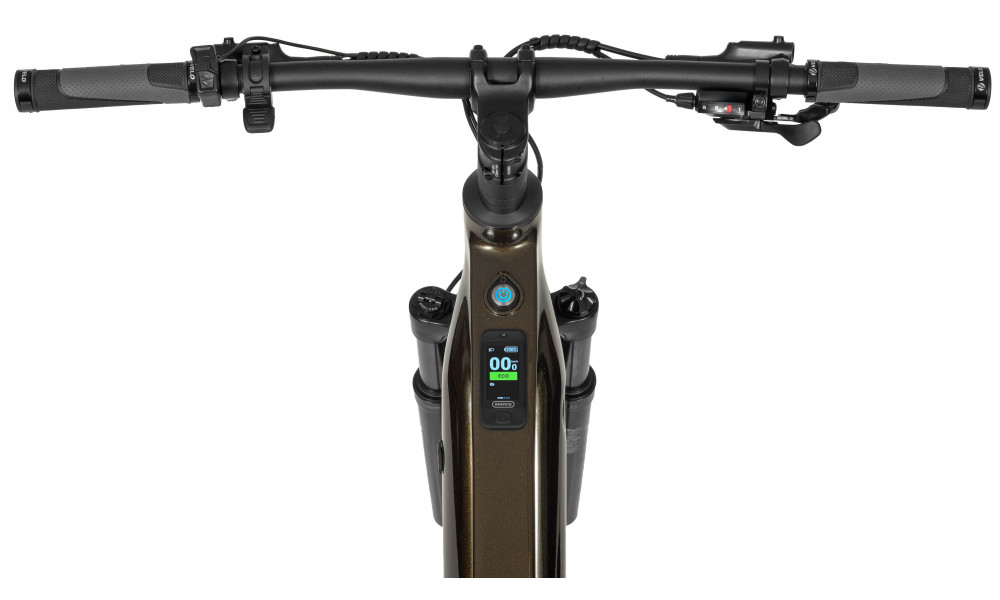

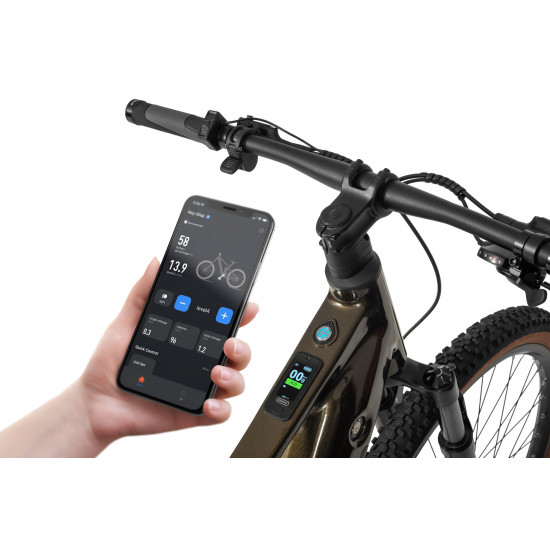

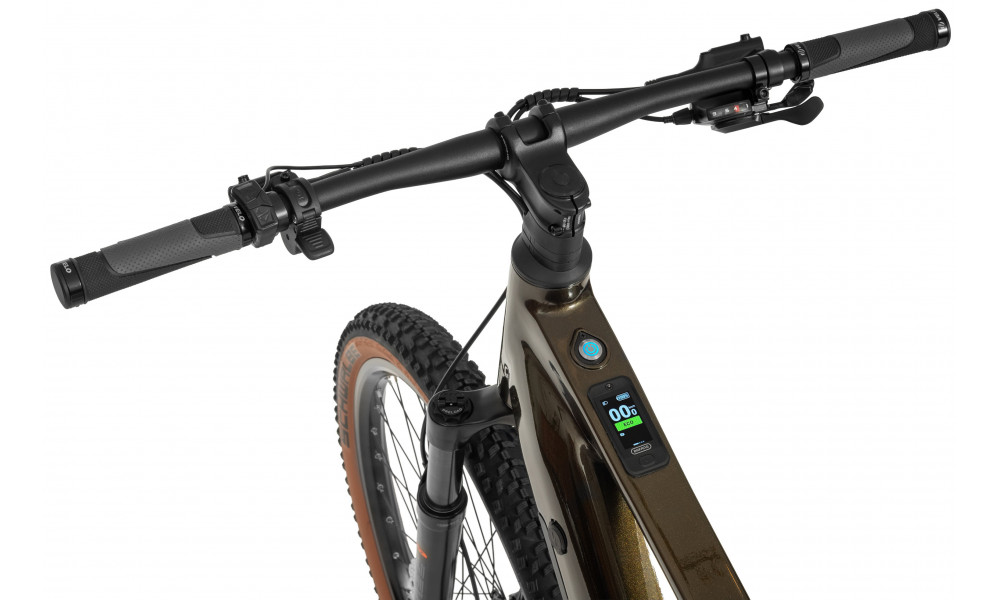

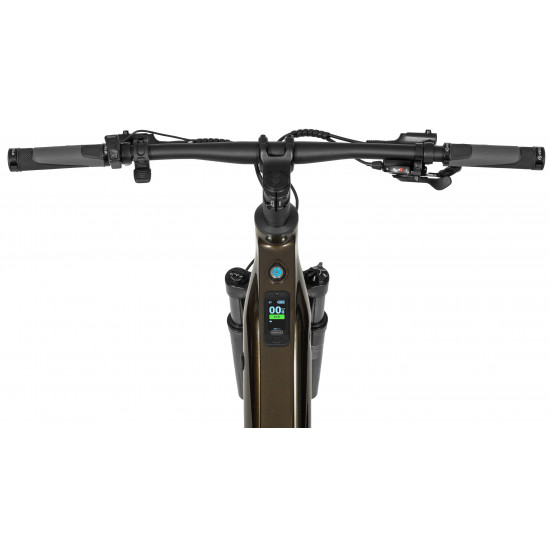

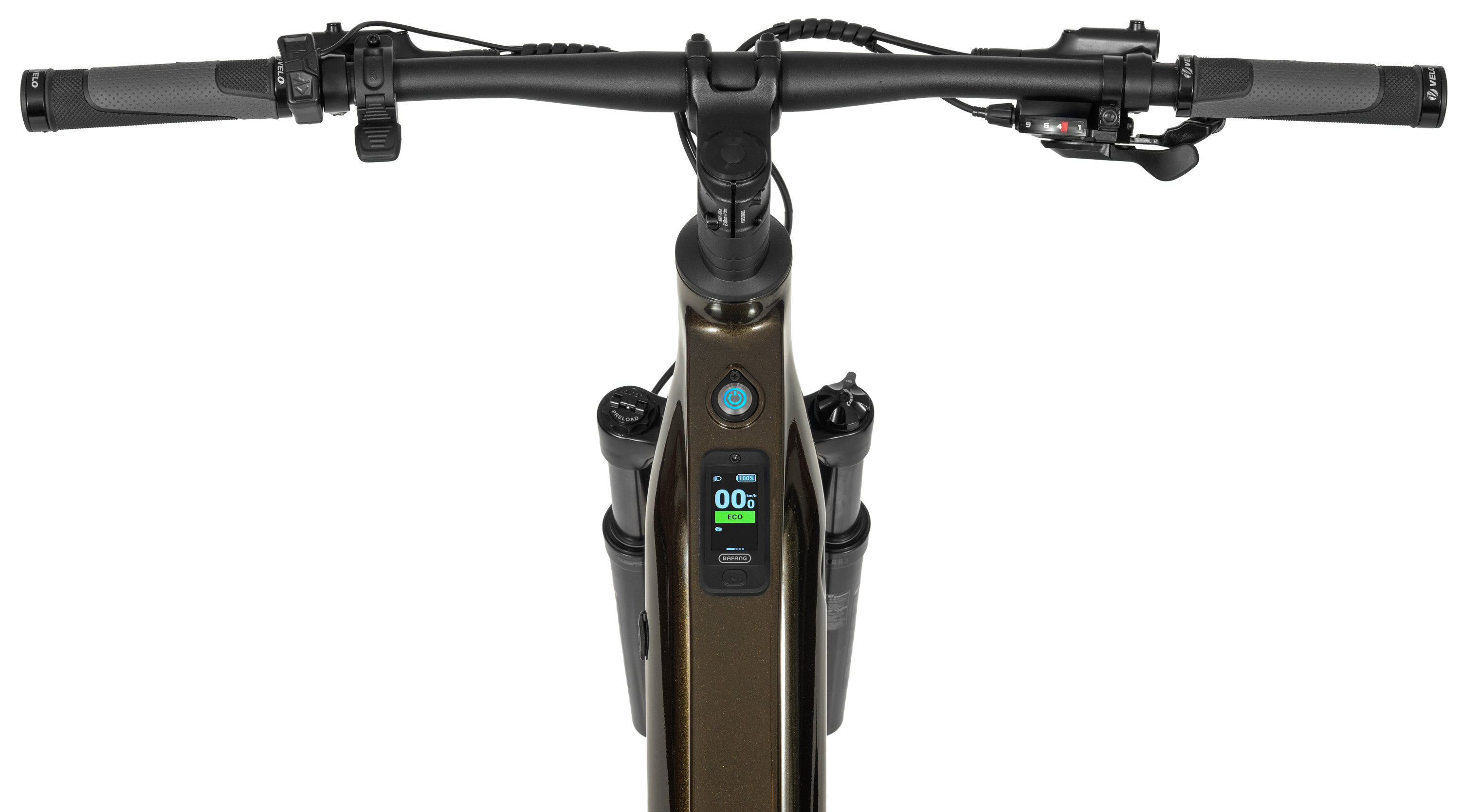

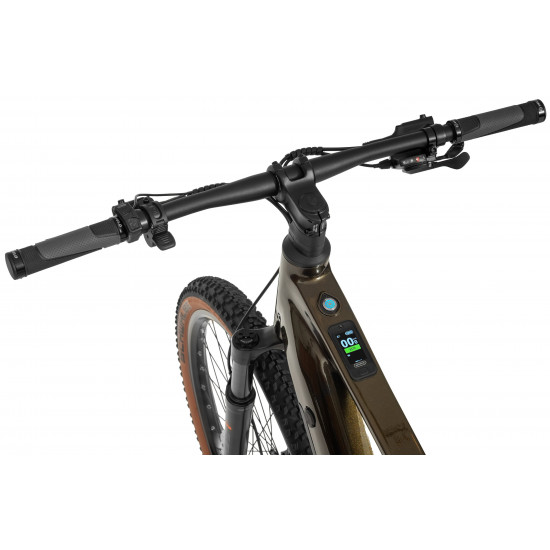

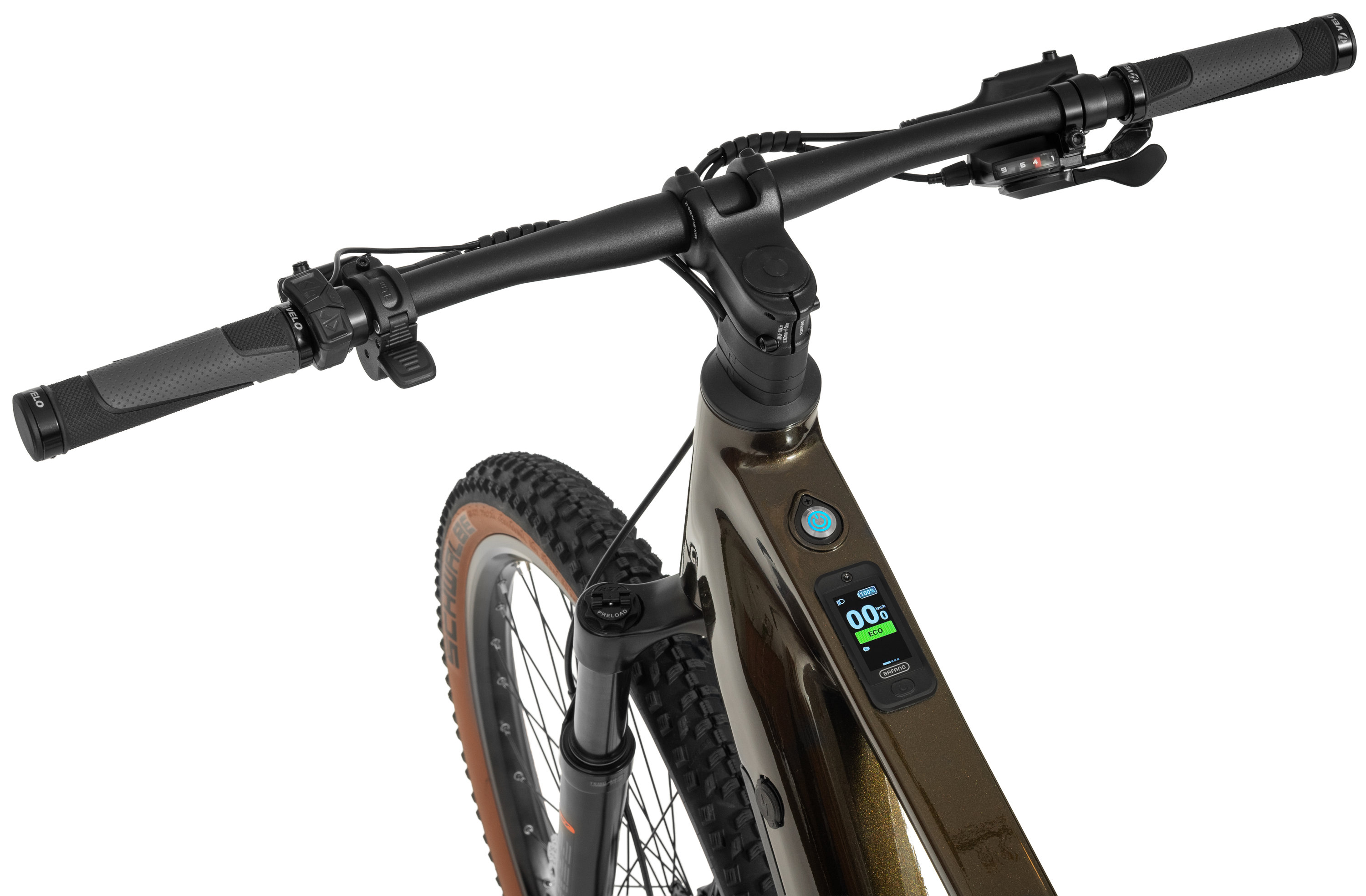

The SX 300 features the brand-new Bafang C030 color display, elegantly integrated into the top tube. Combined with the clean cockpit system, it offers a minimalist look while keeping all the essential riding data at your fingertips.

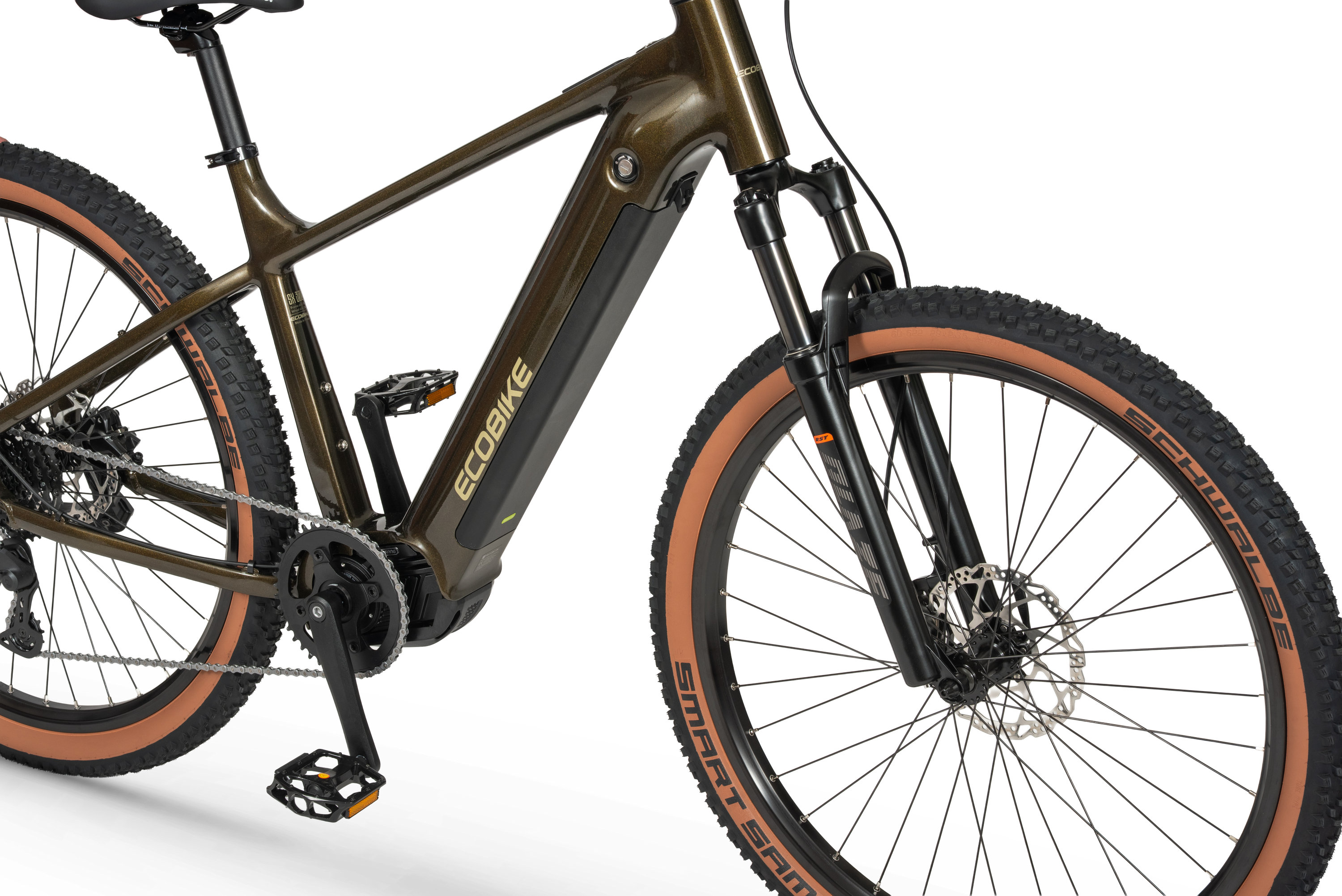

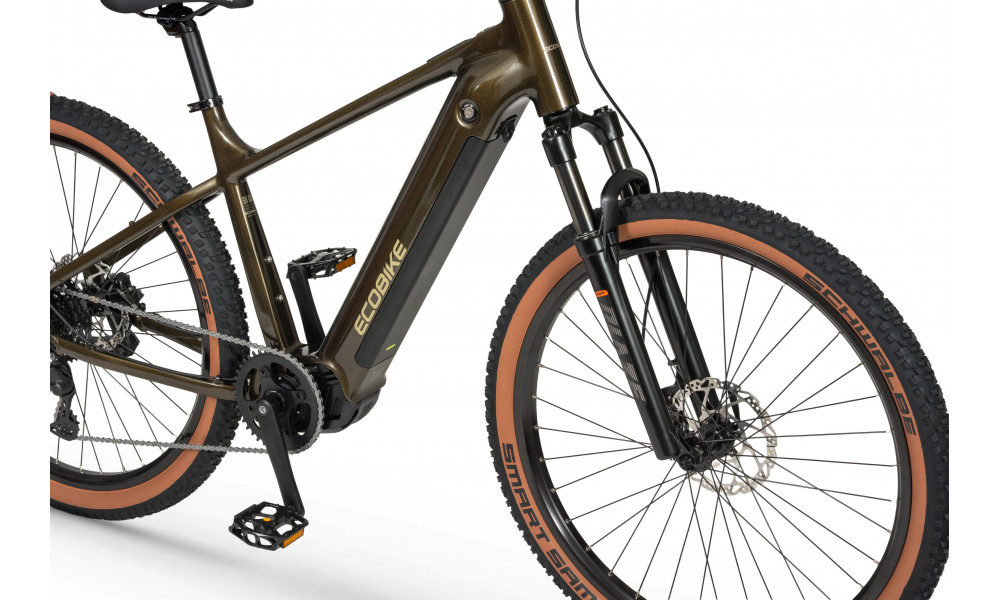

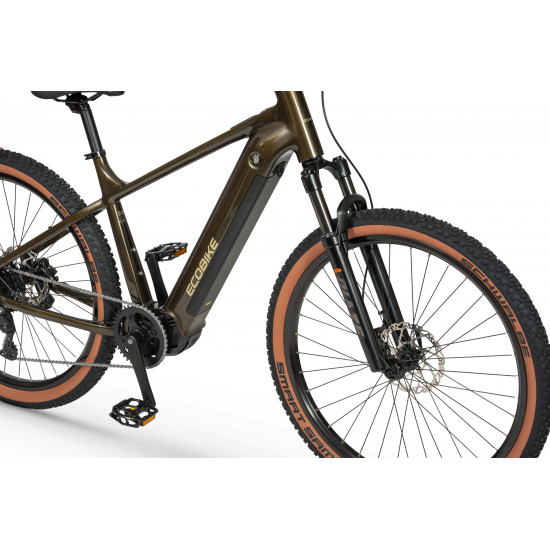

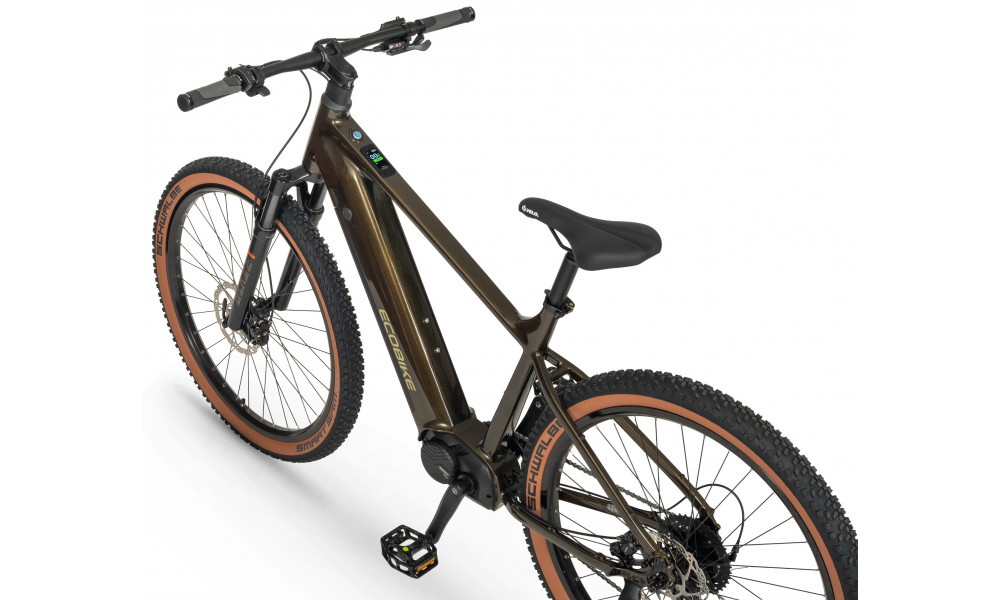

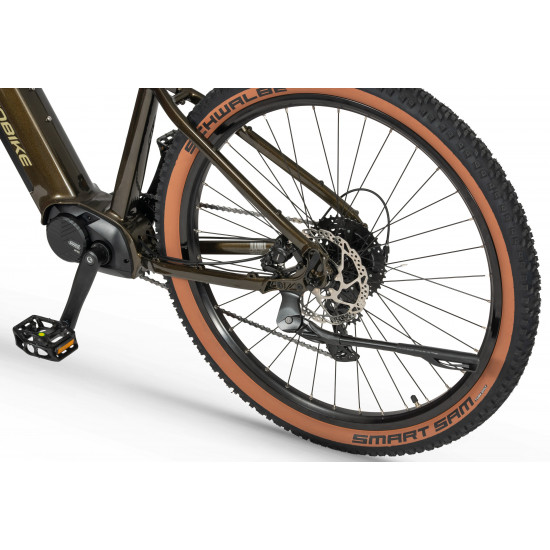

A hydroformed aluminum frame, suspension fork, and MTB geometry ensure great handling on forest trails and mountain paths. The updated headset improves steering precision, while the magnetic sensor in the rear brake rotor adds reliability to the electronics.
Product technical specifications
- Display model: DP C030
- Display type: Color LCD

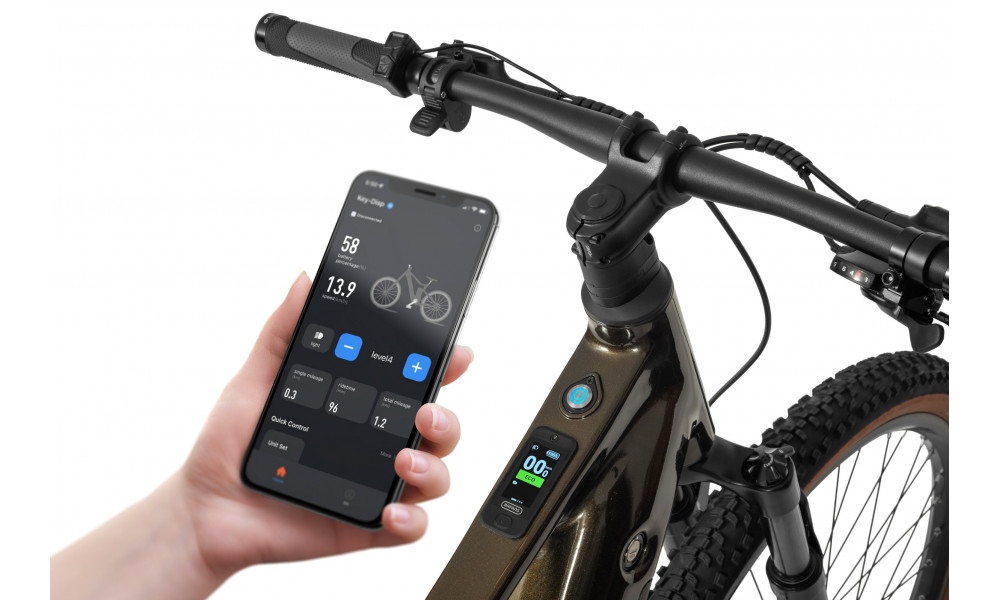

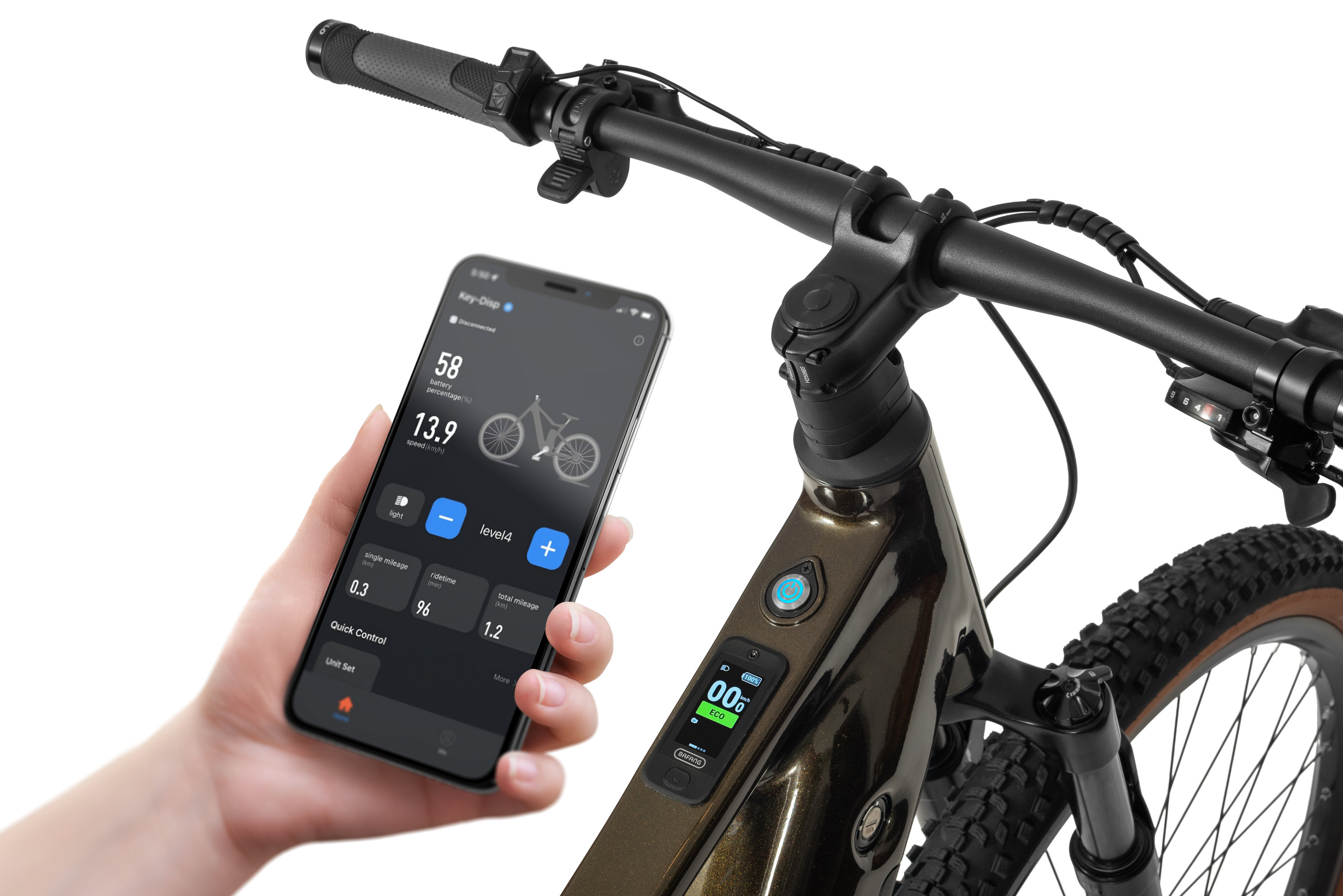

- Compatible application: Bafang Go
DISPLAY:
- Capacity and range:
- 900 Wh: MAX 170 km
- Voltage: 36 V
- Mount: Central (mid-drive)
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 100 Nm
- Motor's brand: Bafang
- Power: 250 W
- Lifespan: 700 charges
- Type: Li-ion
- Voltage: 36 V
- Cells brand: LG
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 4-8 hours
- FRAME: Hydroformed aluminium
- FRAME SIZE: 17"
- FORK: RST BLAZE TNL, travel: 100 mm, suspension
- BRAKES: Shimano MT200 hydraulic disc
- CHAIN: KMC eGlide EPT
- CHAINWHEEL: Prowheel 1-speed, 42T
- REAR DERAILLEUR: Shimano Cues 9-speed
- FREEWHEEL: Shimano Cues, RD-U4010, 9 speed
- HANDLEBAR: Zoom 720 mm 31.8
- STEM: Zoom 7 degrees / 70 mm
- HUBS: TORA 36H, centerlock / Rear Hub: Shimano TX505, 36H, centerlock
- PEDALS: FP-963
- RIMS: 29" reinforced three-chambered rims
- SADDLE: VELO VL-3363
- SHIFTERS: Shimano Cues 9-speed
- TYRES: 29" x 2.35 Schwalbe Smart Sam Performance Bronze
- WEIGHT: 27.2 kg
- SPEEDS: 9
- GRIPS: VELO VLG-776
- KICKSTAND: Rear, adjustable length, aluminium
- Effective top tube length: 615 mm
- Head tube lenght: 165 mm
- Frame size: 432 mm
- Wheel base: 1186 mm
- Seat tube angle: 73
- Headset angle: 67.90
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
DISTANCE:
ENGINE:
BATTERY:
GEOMETRY:
Pyörä lähetetään valmistajan alkuperäisessä pakkauksessa (etupyörä, ohjaustanko ja satula ovat yleensä irrotettuina), mikä varmistaa tuotteen turvallisuuden varastointi- ja kuljetusvaiheessa. Kun ostaja hankkii pyörän sellaisessa pakkauksessa, hän itse tai valitsemansa pyörähuollon ammattilainen on vastuussa asianmukaisesta pyörän kokoamisesta, säätämisestä ja käyttöönotosta.
