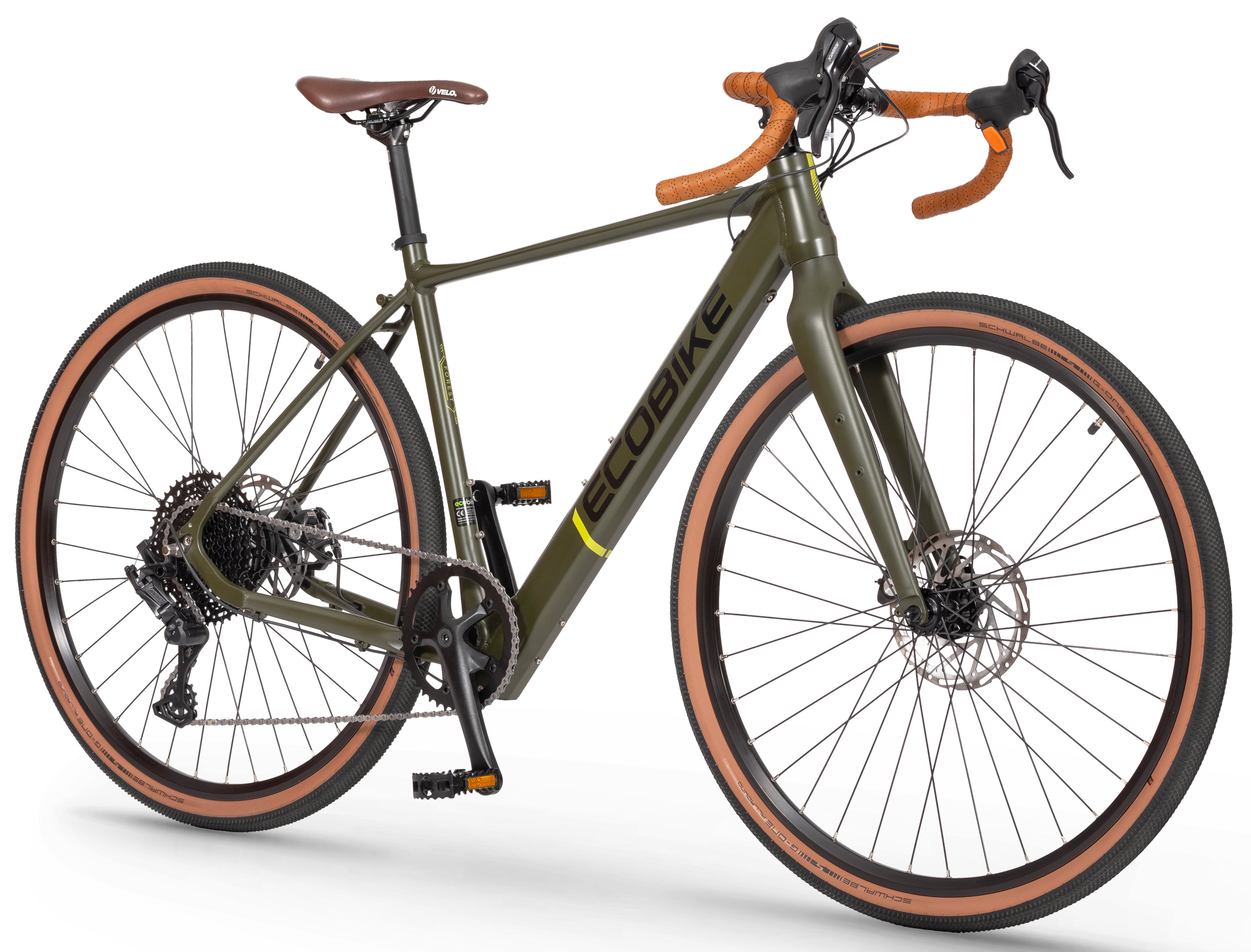

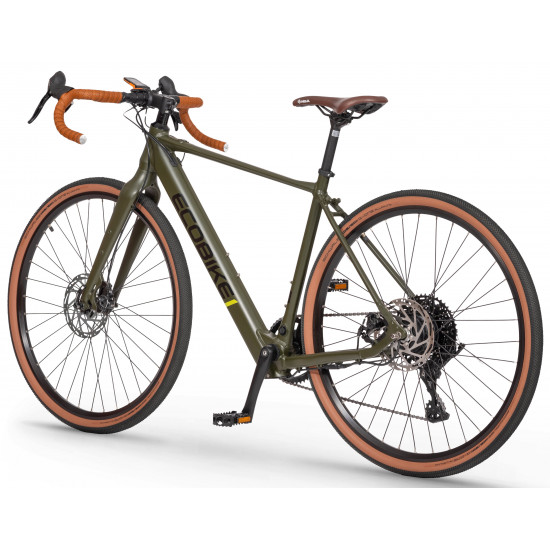

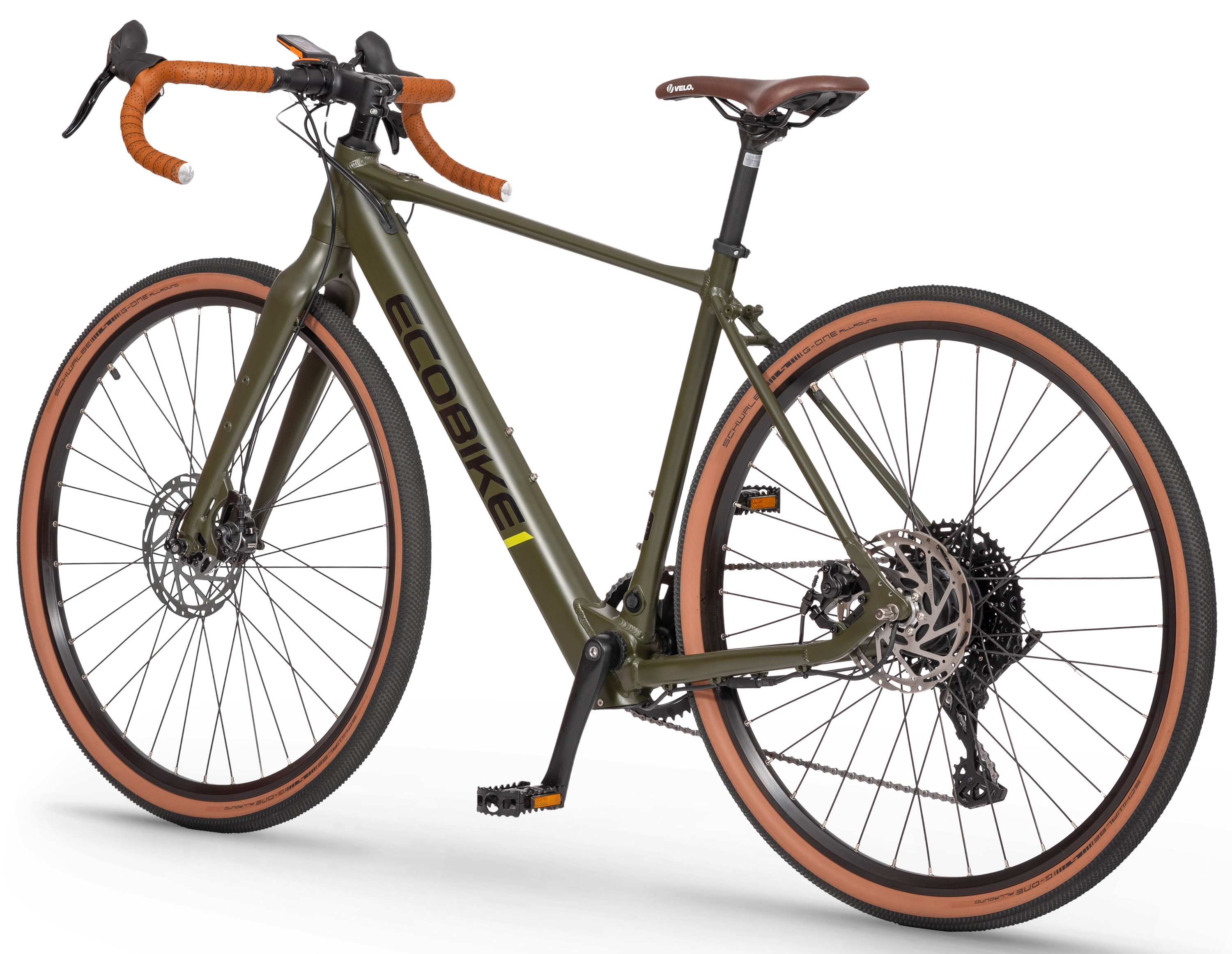

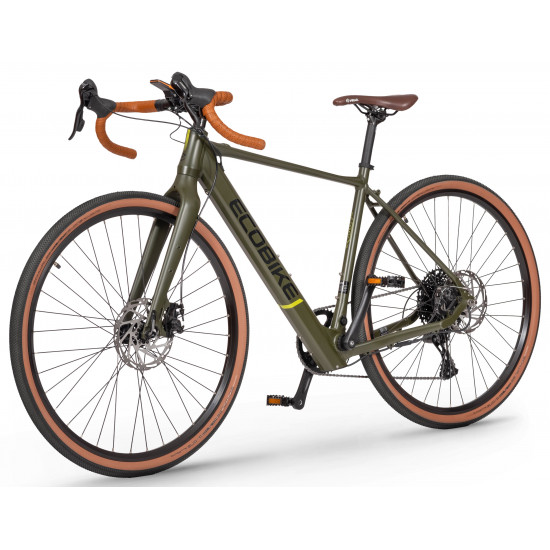

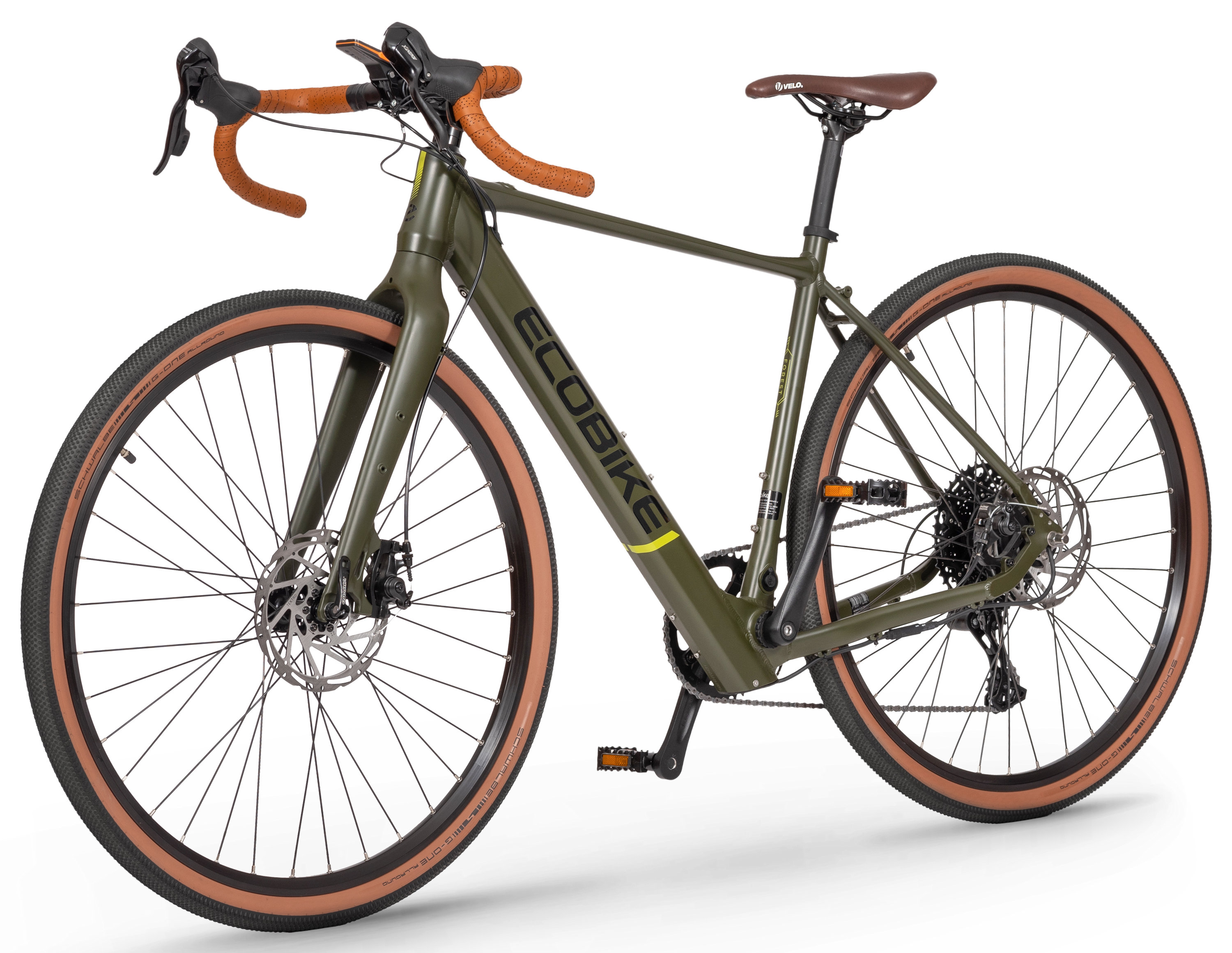

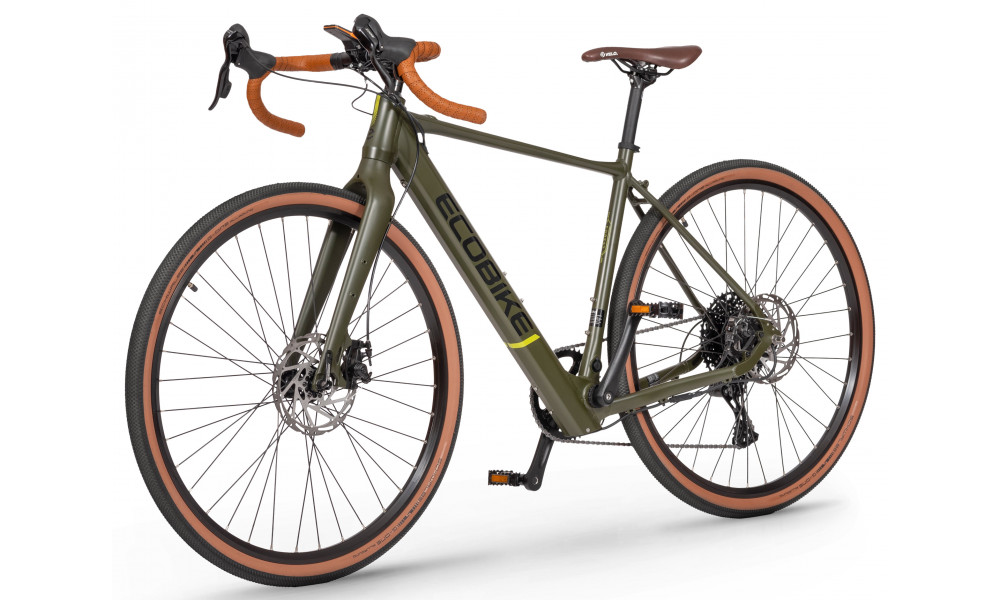

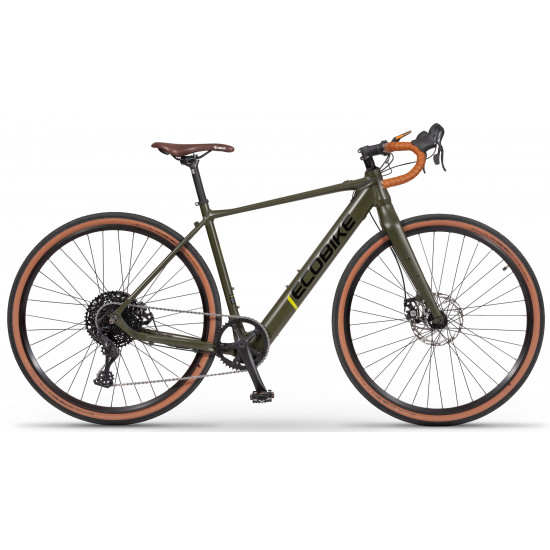

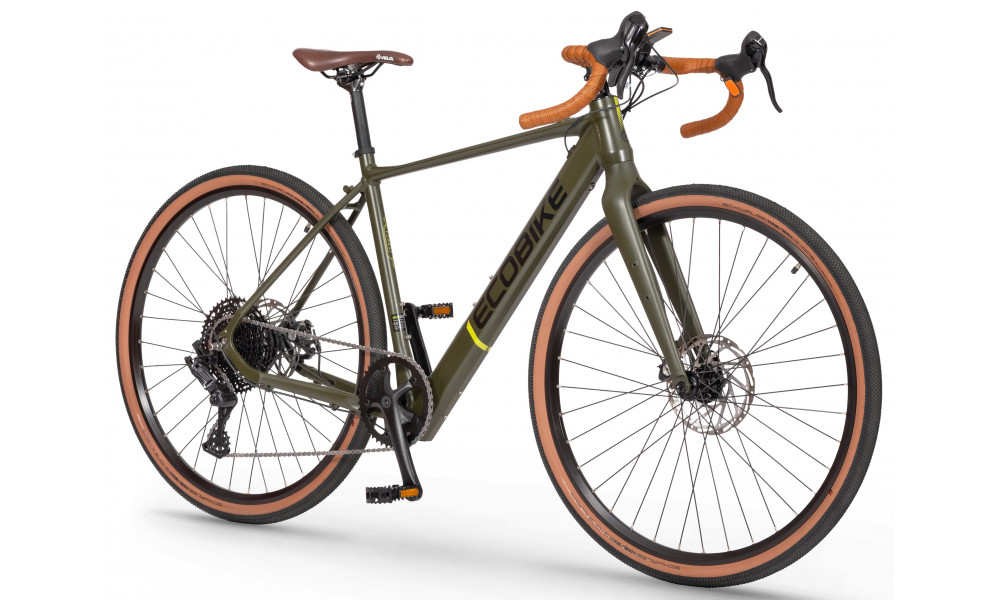

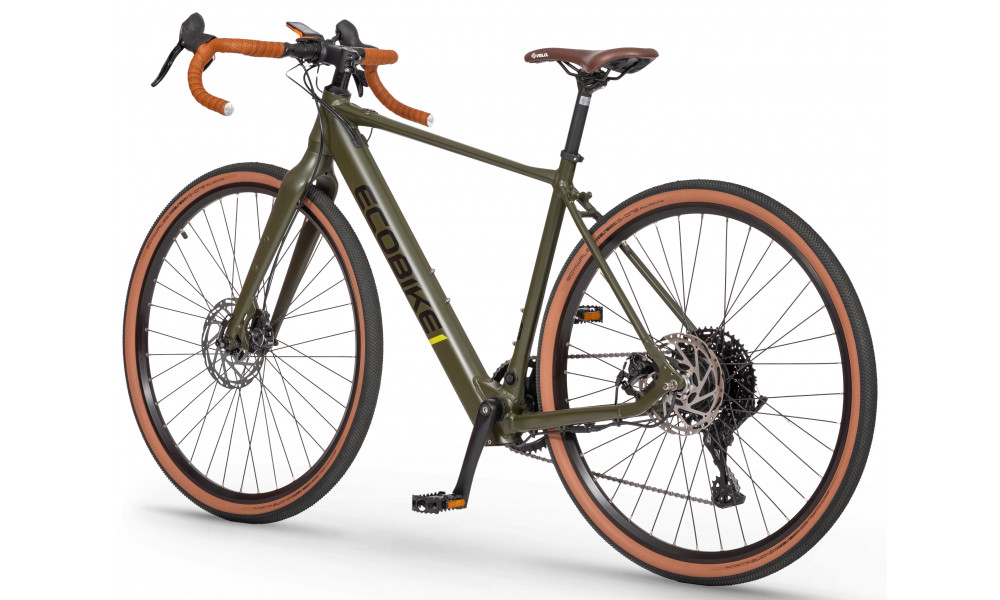

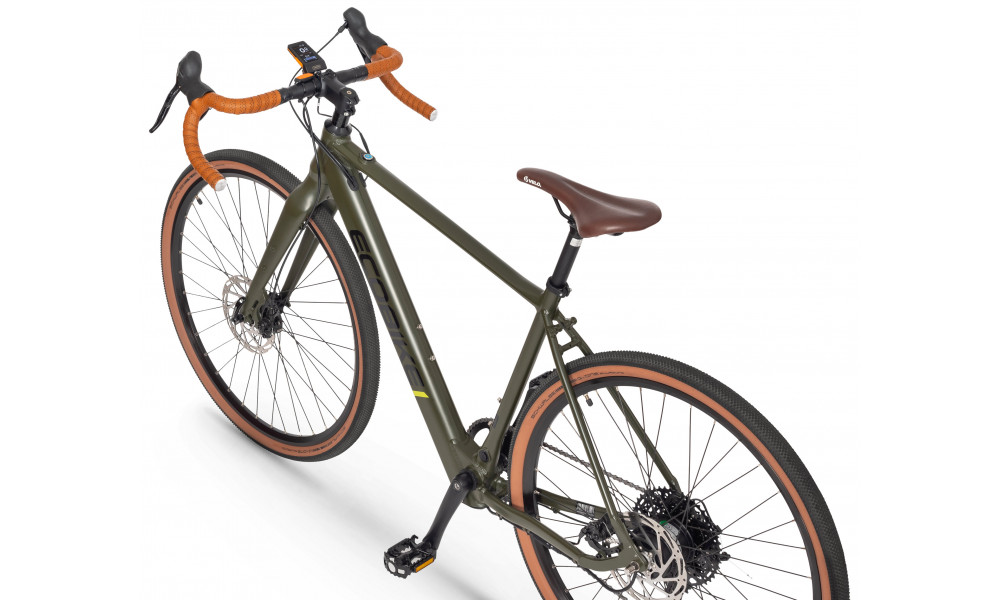

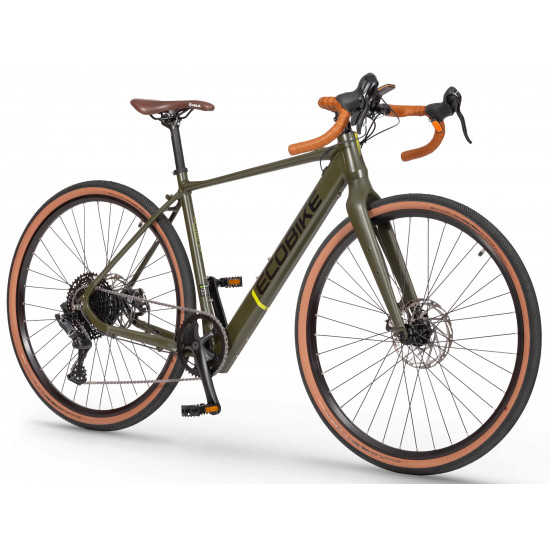

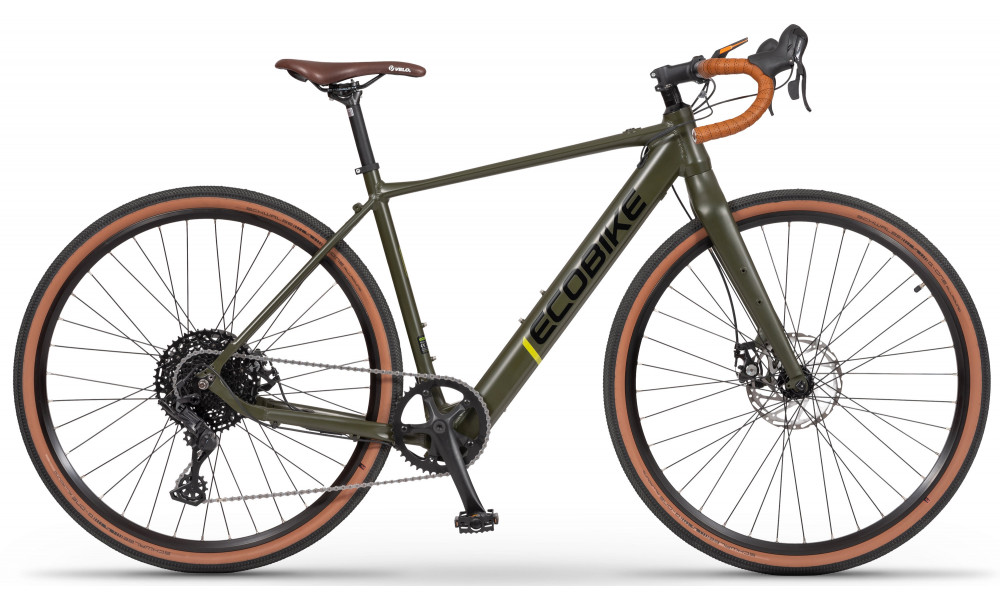

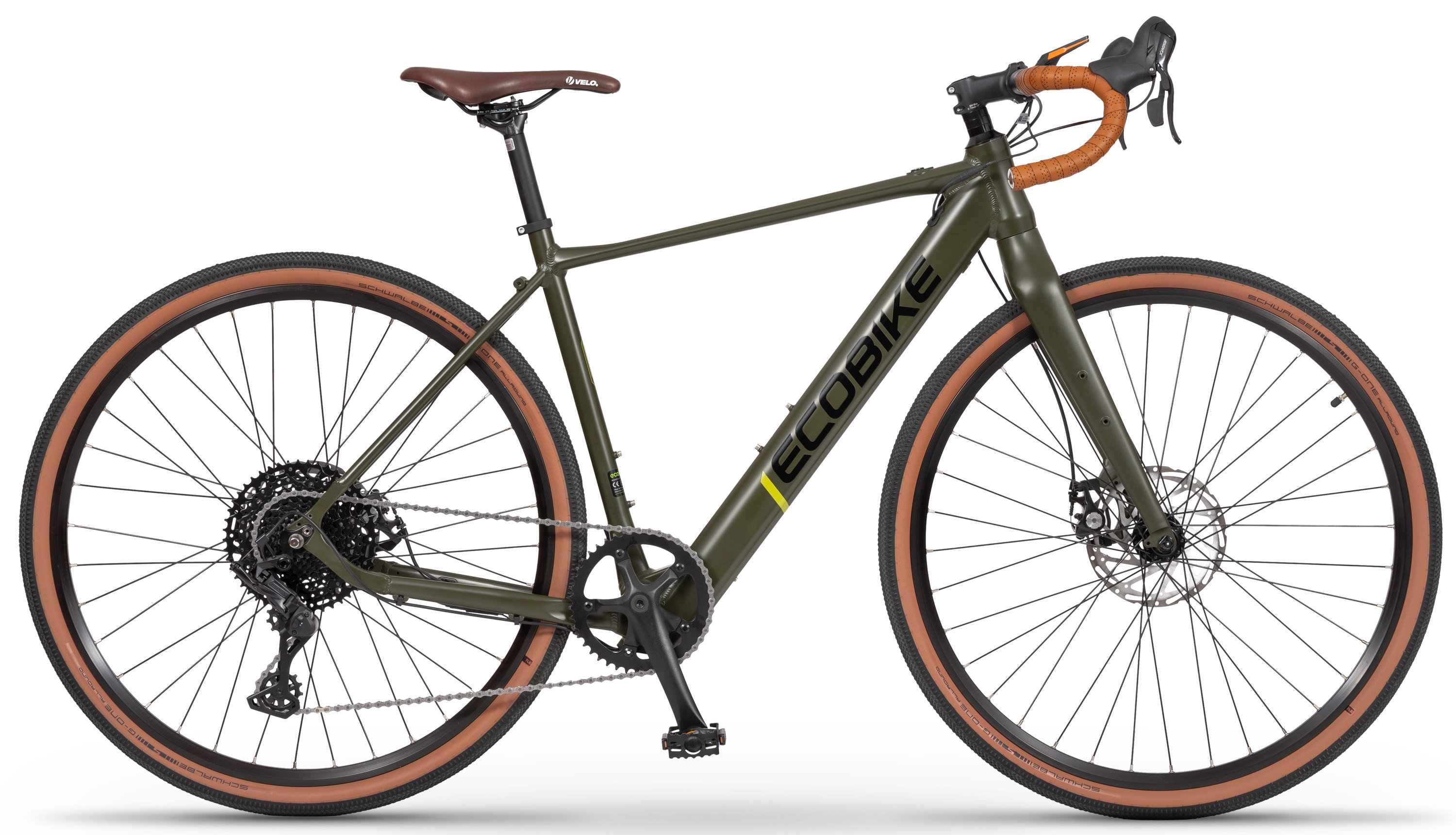

Innovation and versatility are the main strands of the Ecobike philosophy. Gravel is a road bike whose possibilities do not end with the asphalt. When we saw the increase in popularity of this type of bike around the world, we had no doubt that we wanted to propose our - electric - vision of such equipment.
The inconspicuous and minimalist design deceives the senses, but it hides everything that an e-bike should contain.

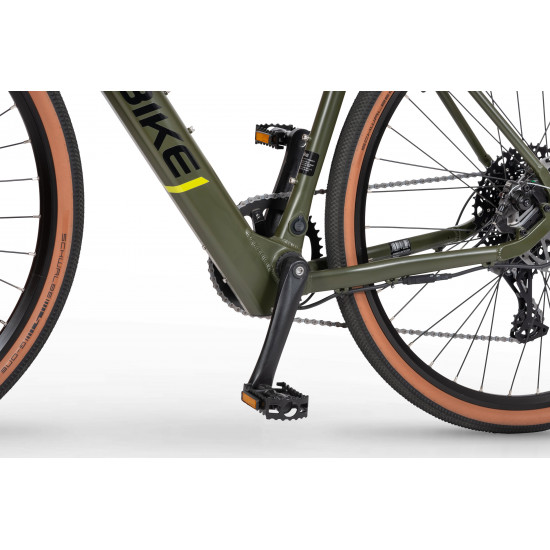

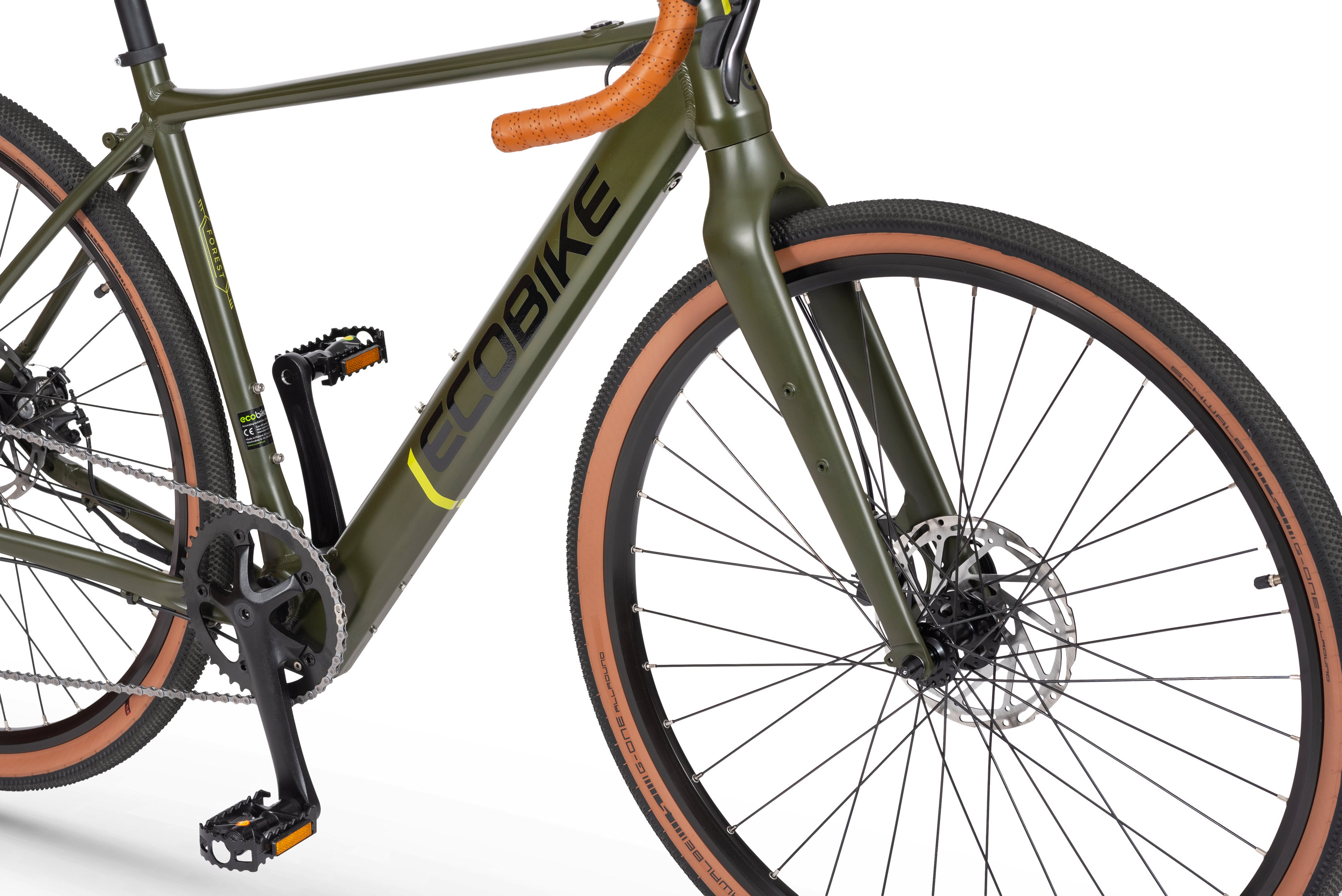

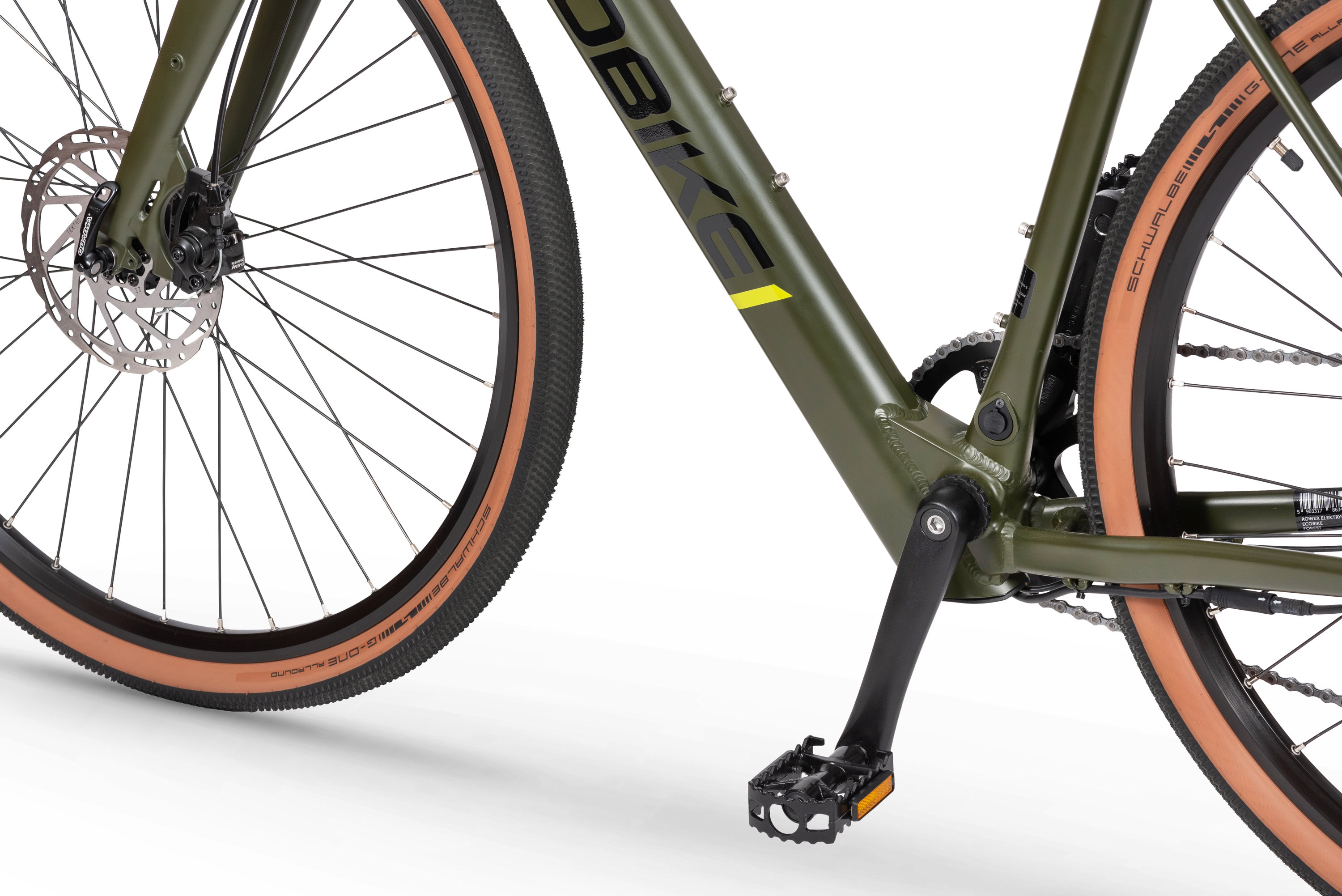

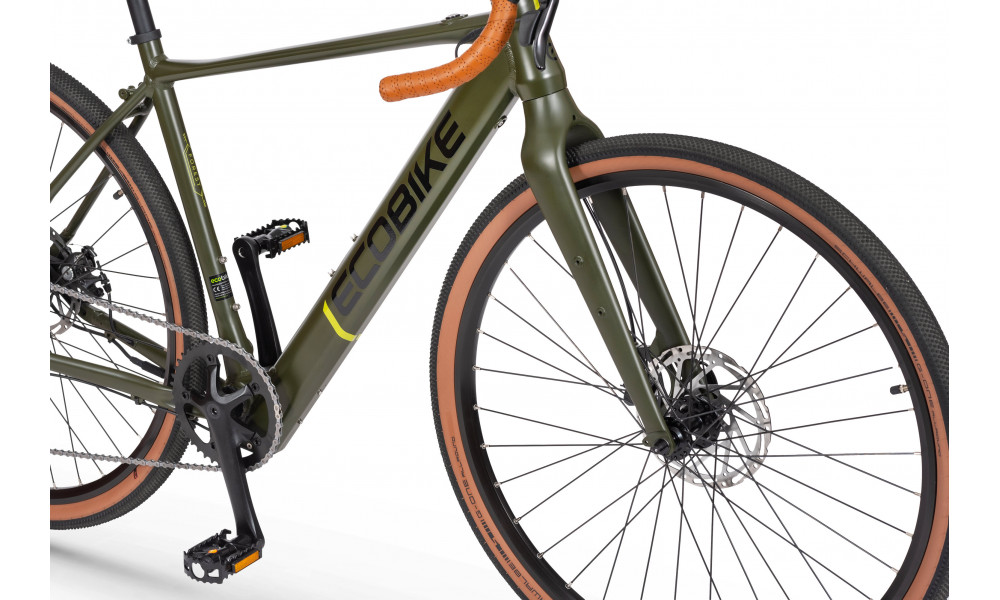

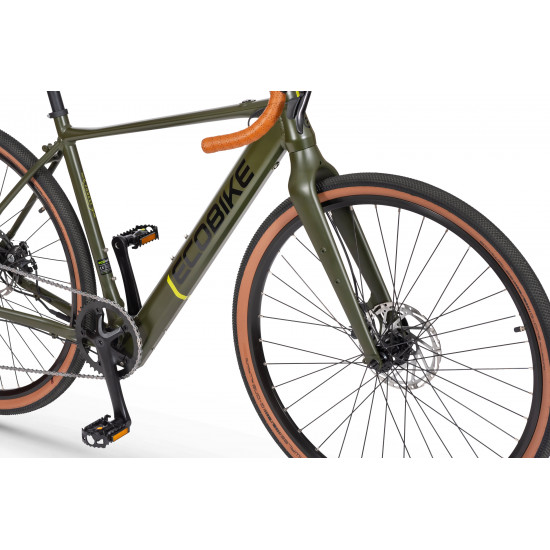

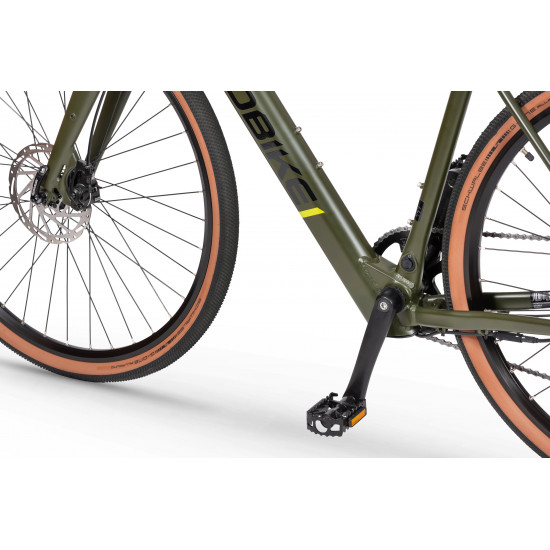

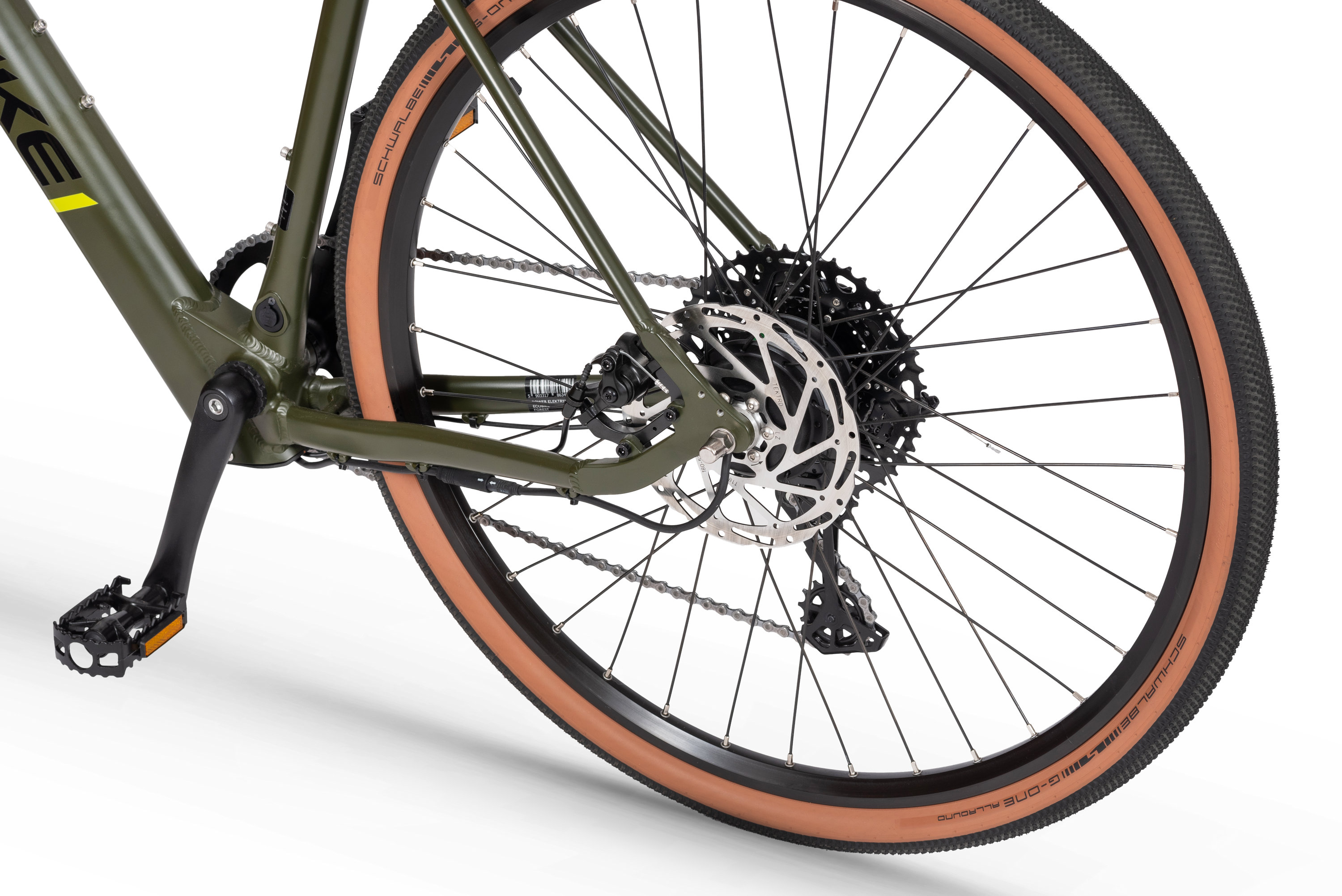

A light structure based on an aluminum frame and proven equipment are the basis of a bike that must cope with even very long trips. The equipment includes solid components, starting with the Microshift derailleur, which, in combination with a long-span cassette, will allow you to navigate even highly varied terrain. To keep the bike safe in the toughest conditions, Tektro mechanic disc brakes are also present. A characteristic element of gravel are tires - we used CST with a tread, which will work well on unpaved and wet surfaces.

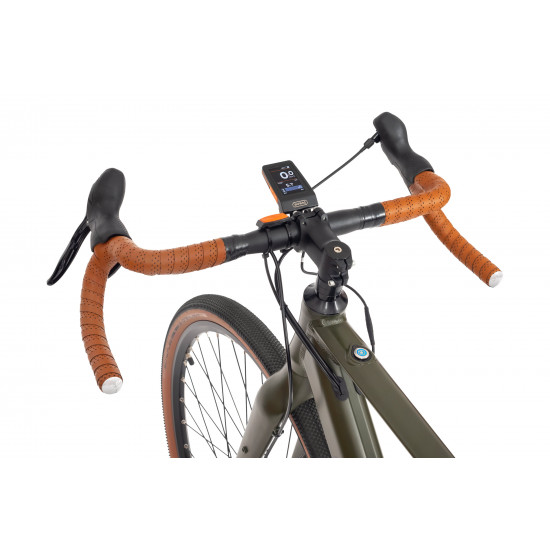

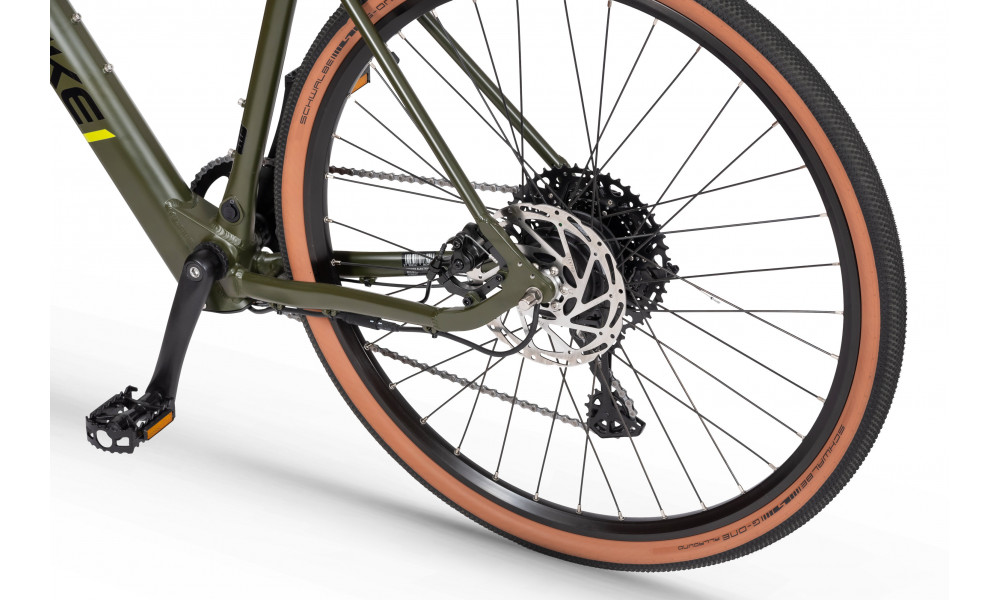

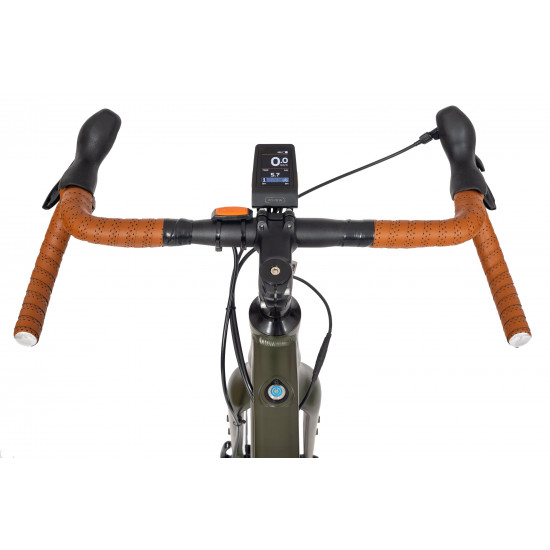

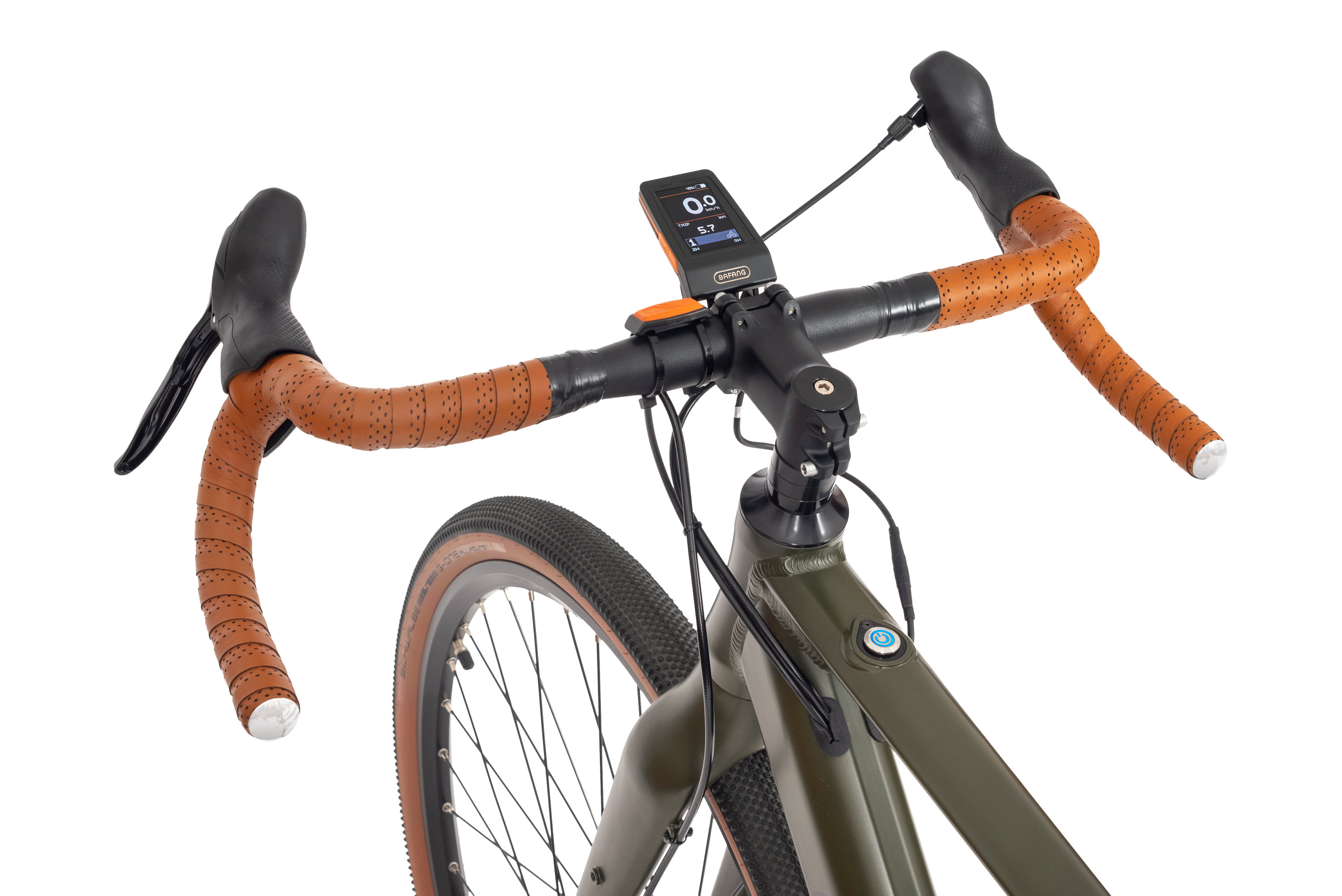

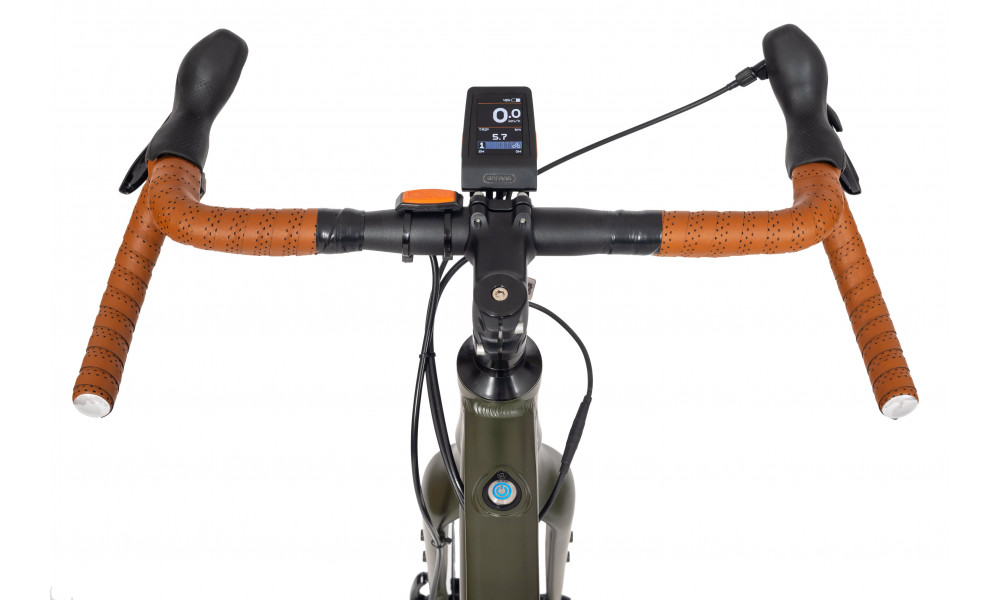

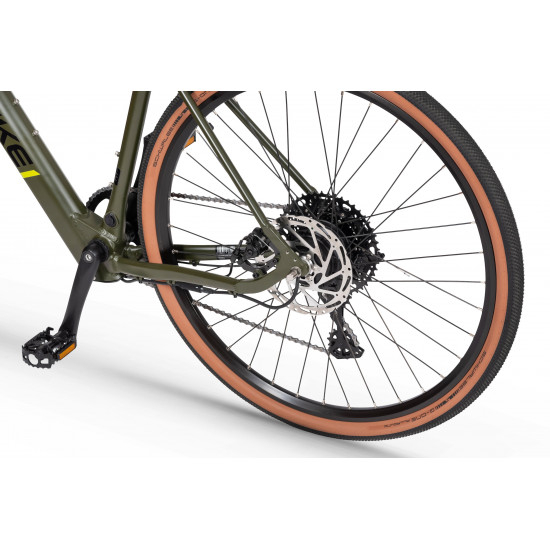

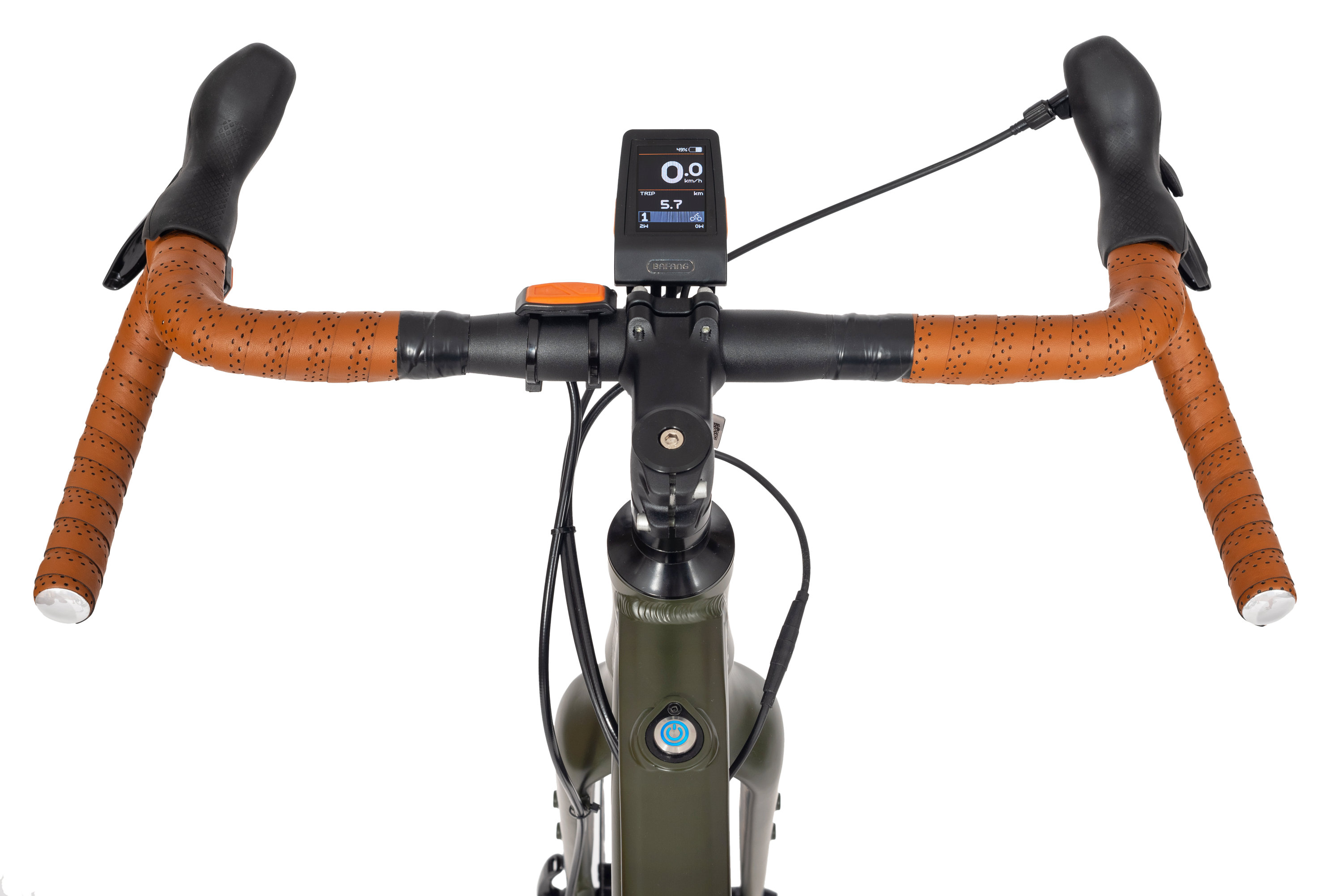

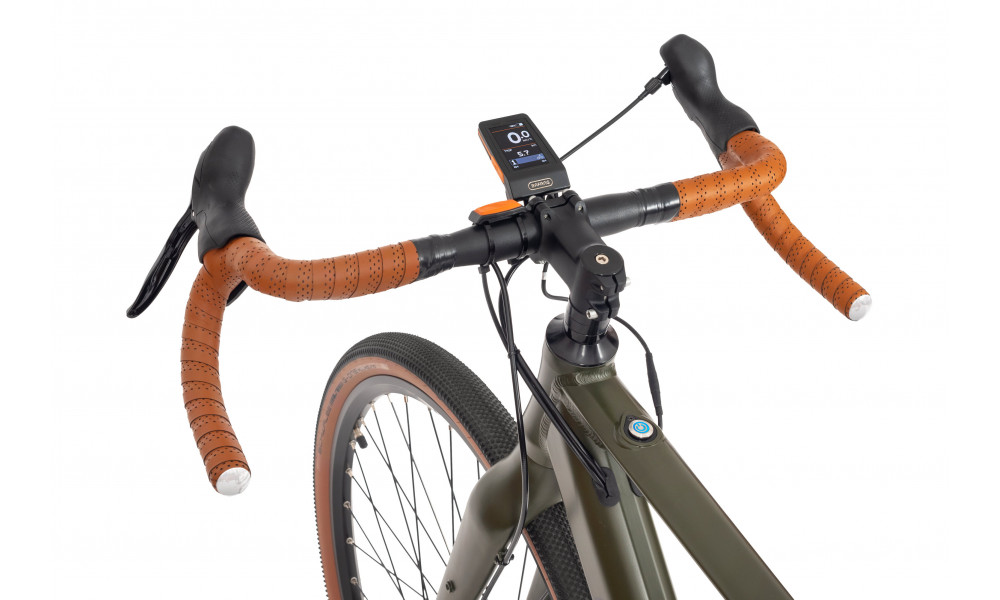

The electric assist system, which is discreetly placed on the bike, is based on Bafang technology. A small motor mounted in the rear hub provides 250W of power. The 349 Wh battery is completely hidden in the frame. The sporty character of the Forest is emphasized by the characteristic display, the control buttons of which are arranged in two places, so that you can operate the system regardless of how you place your hands on the steering wheel at any given moment.
- Capacity and range:
- 349.2 Wh: MAX 80 km
- Voltage: 36V
- Mount: Rear hub
- Motor assisted speed: 25 km/h (in accordance with EU standard EN 15194)
- Torque: 30 Nm
- Motor's brand: BAFANG
- Power: 250 W
- Computer: Bafang C260 CAN
- Fuses: 30A
- Lifespan: 700 charges
- Type: Li-ion
- Voltage: 36V
- Charger: 220-240V 42V / 2A / Typ D
- Cells brand: Greenway
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: ~ 5 hours
- FRAME: Hydroformowane aluminium
- FRAME SIZE: 19"
- FORK: Rigid, aluminium
- BRAKES: TEKTRO C400
- CHAIN: KMC e10

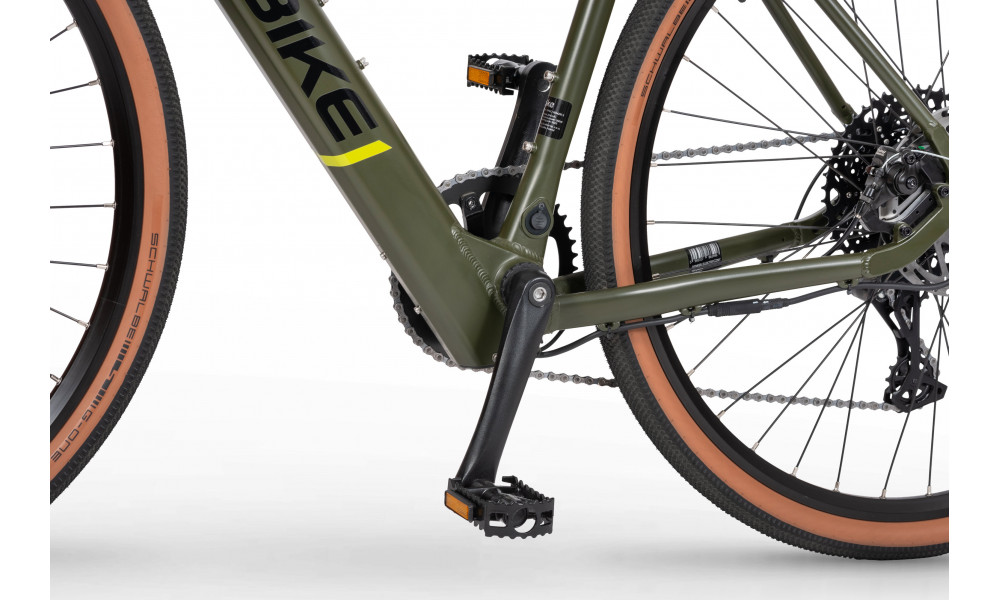

- CHAINWHEEL: Prowheel SOLID 44T, 1-speed
- REAR DERAILLEUR: Microshift RD-M6205GM
- FREEWHEEL: Microshift CS-H104 10-speed 11-48T
- HANDLEBAR: Promax HB-3048DB, aluminium, diameter in stem fixing spot (center): 31.8 mm, length: 44.80 mm
- STEM: Zoom TDS-RD479, aluminium, fork steerer: 28,6 mm, length: 70 mm
- HUBS: Front hub: KT KT-XA2F 13G 36H 9x100 mm / Rear Hub: Engine
- PEDALS: FP
- RIMS: 28", reinforced triple-chambered, Sapim spokes
- SADDLE: VELO VL-3381
- SHIFTERS: Microshift Advent X SB-M100A 10-speed
- TYRES: 28" x 1.75 Schwalbe G-ONE ALLROUND Evo
- WEIGHT: 16.8 kg
- SPEEDS: 10
- Effective top tube length: 590 mm
- Head tube lenght: 120 mm
- Frame size: 490 mm
- Wheel base: 1087.50 mm
- Seat tube angle: 74
- Headset angle: 70.50
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
DISTANCE:
ENGINE:
BATTERY:
GEOMETRY:
Pyörä lähetetään valmistajan alkuperäisessä pakkauksessa (etupyörä, ohjaustanko ja satula ovat yleensä irrotettuina), mikä varmistaa tuotteen turvallisuuden varastointi- ja kuljetusvaiheessa. Kun ostaja hankkii pyörän sellaisessa pakkauksessa, hän itse tai valitsemansa pyörähuollon ammattilainen on vastuussa asianmukaisesta pyörän kokoamisesta, säätämisestä ja käyttöönotosta.
