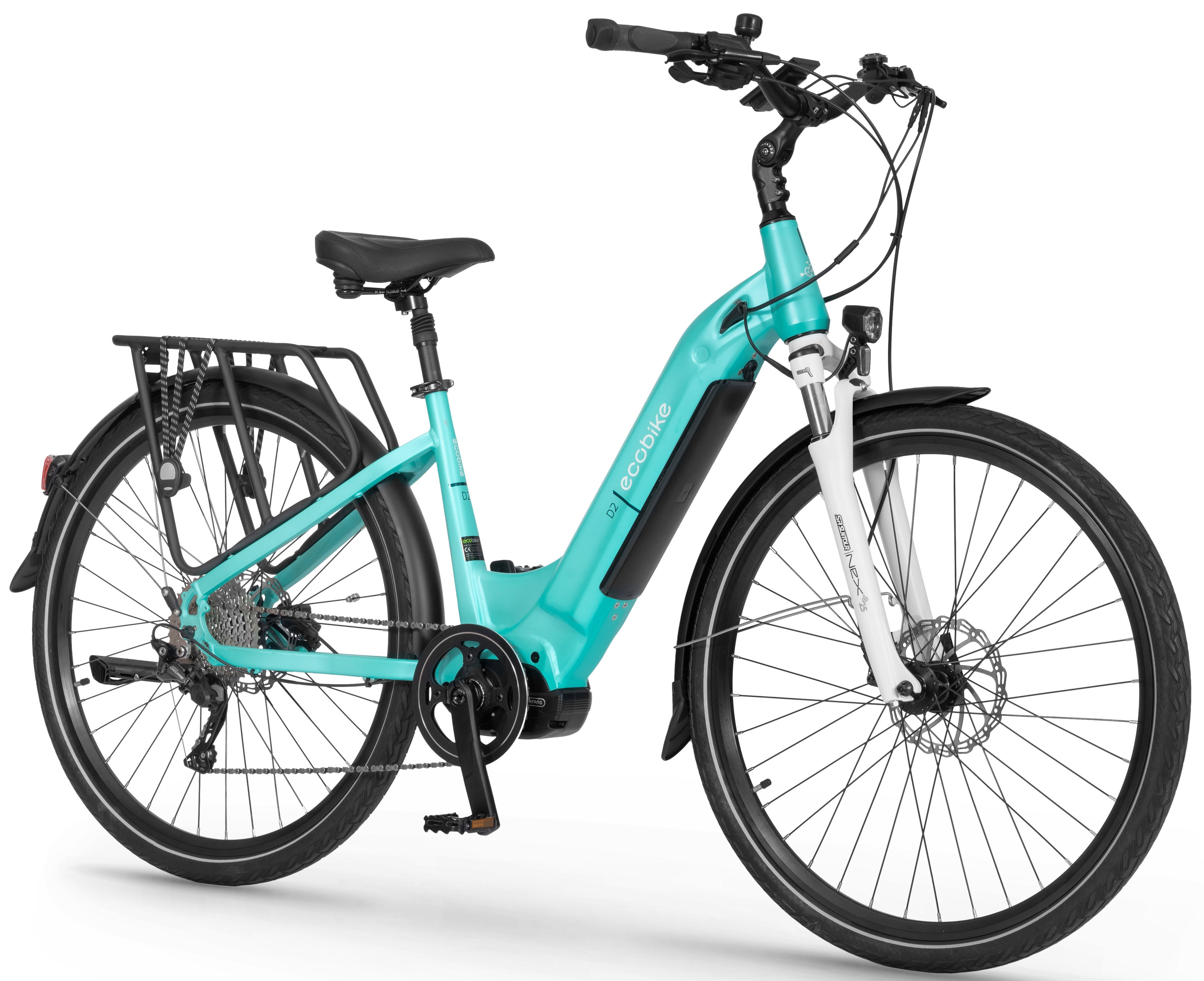

A celebrity among bicycles, recognized by Norwegians! This model scored 9/10 points in an independent test conducted by the recognized company Tek.no. All aspects that are important to customers, which make it reliable, comfortable and universal, have been taken under the microscope.
Link to the article: https://www.tek.no/test/i/ALExBz/buddy-gjoer-mye-rett-med-denne-elsykkelen
To quote the performer of the test, "... the EcoBike D2 City is a good all-round hybrid that is both a good buy at this price and a bike that we can confidently recommend." A bicycle with a system of a reliable brand - BAFANG! Travel the routes with the support of new technological solutions, with the comfort and joy of using the Ecobike that accompany you!

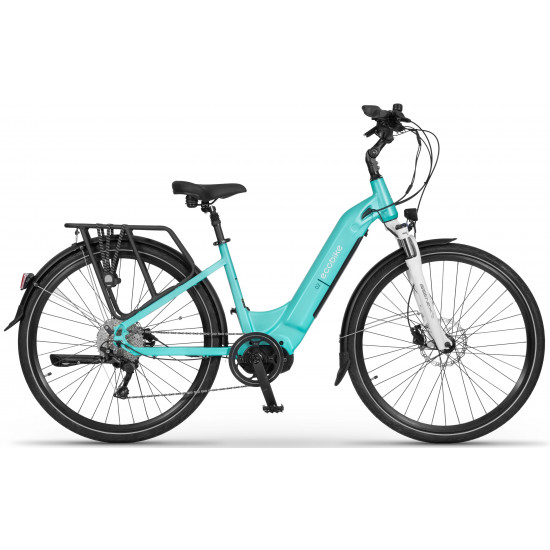

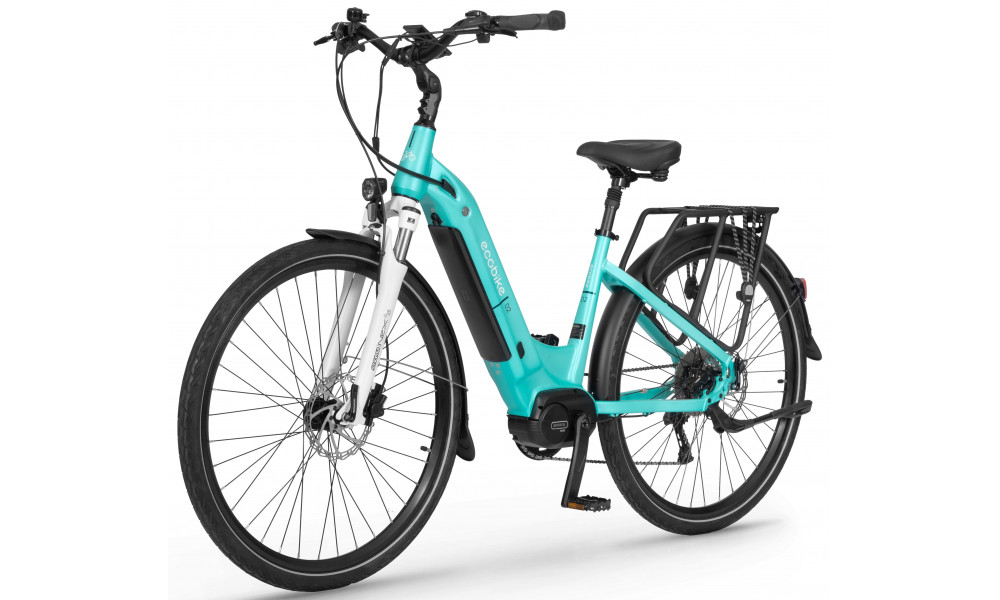

The shape makes the bicycle extremely stable and durable, and the modern design will attract the eye of many passers-by, fitting into any landscape.

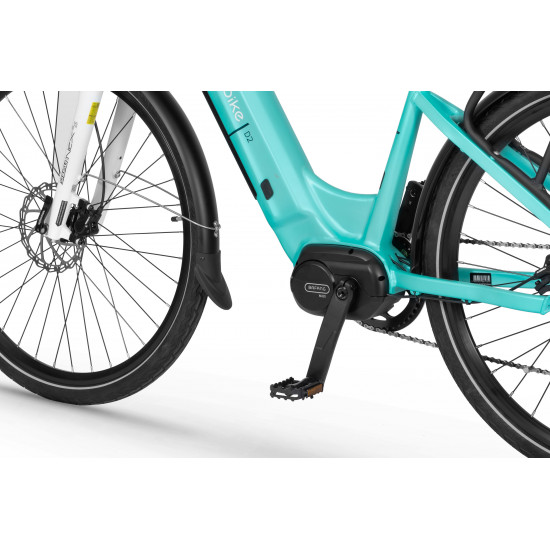

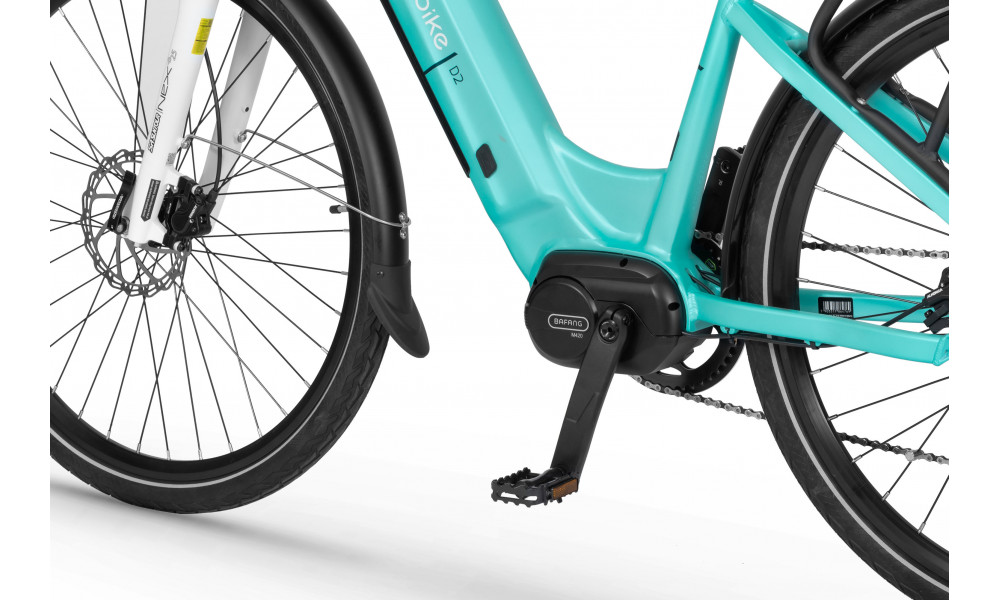

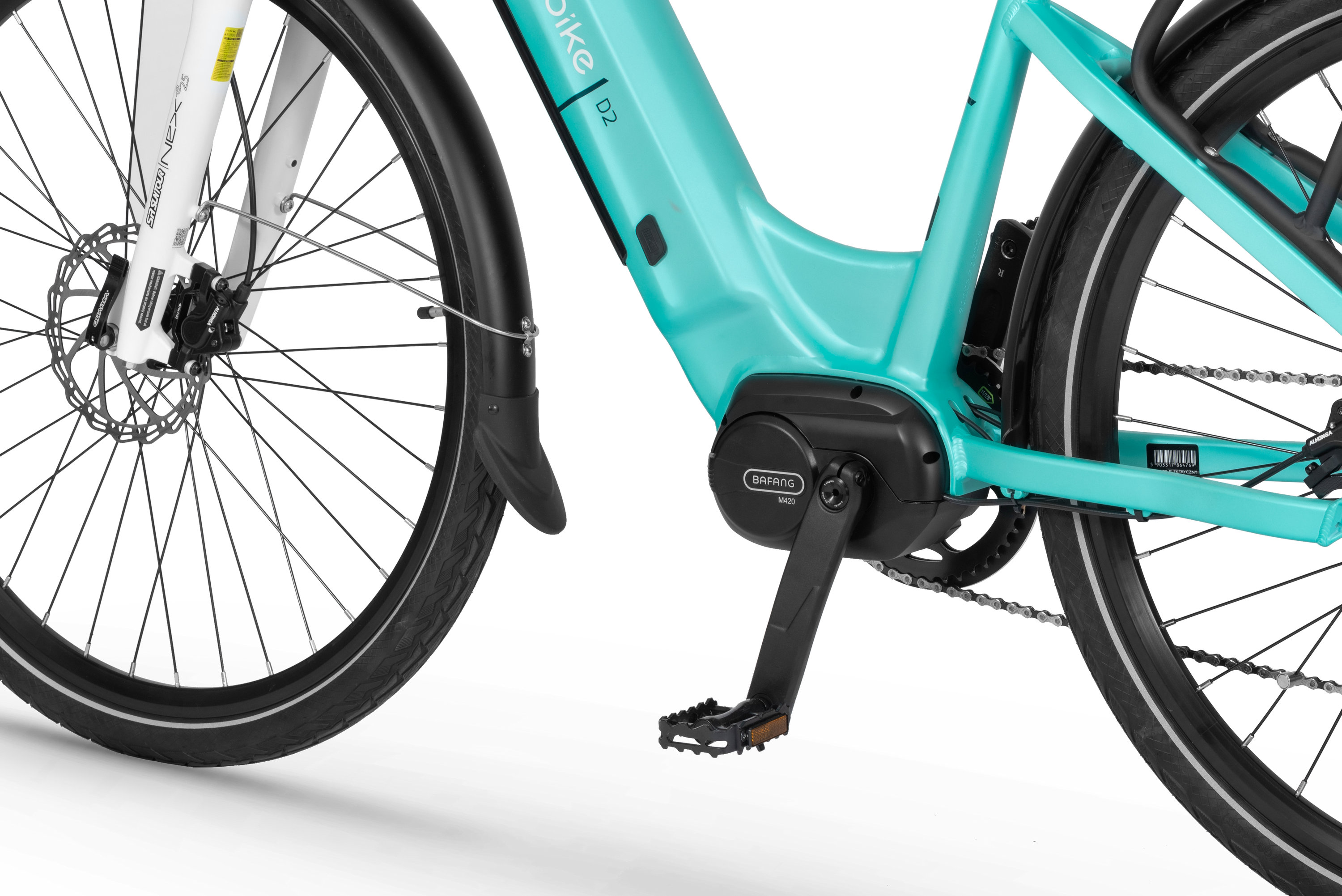

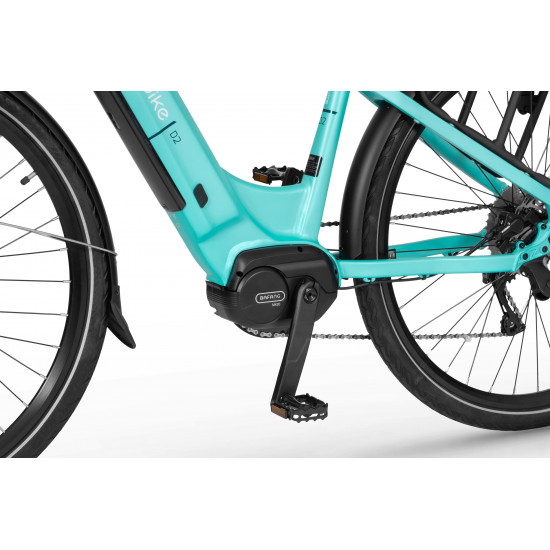

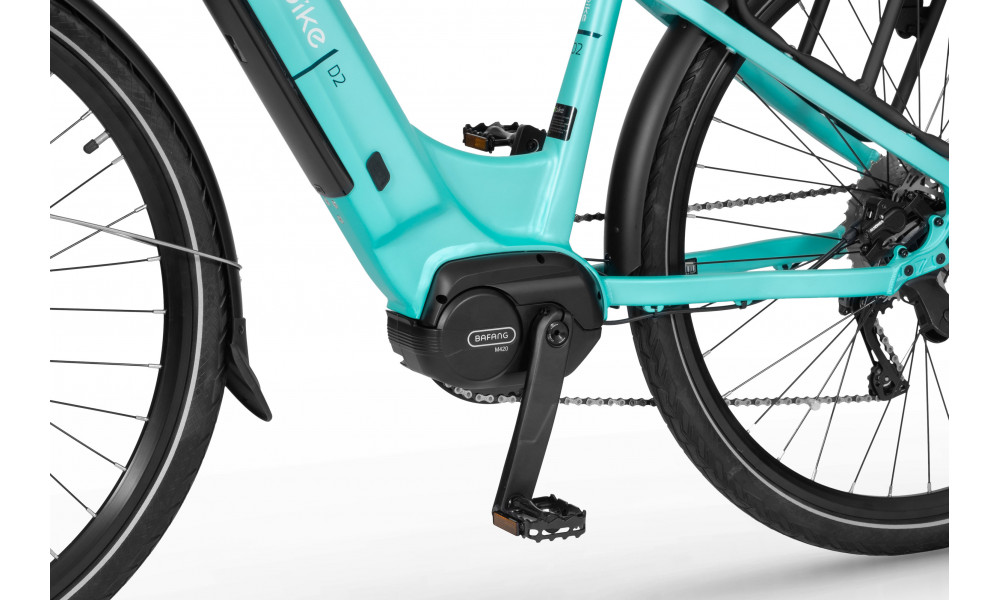

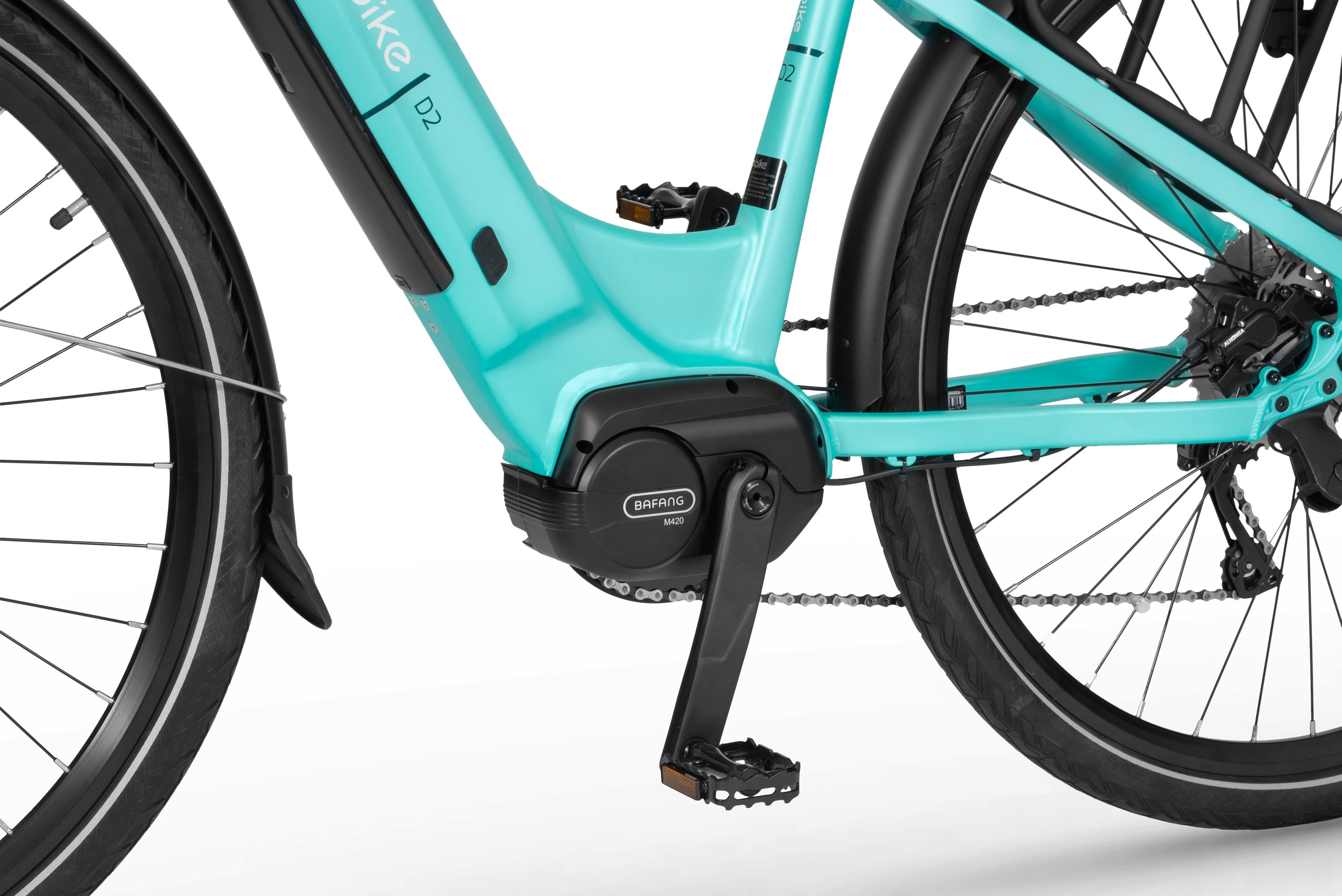

BAFANG M420 (48V) - with an intelligent assistance system, will allow you to experience the unique experience of smooth cycling, and the maximum speed in combination with a 48V 14Ah battery on LG cells will give you the opportunity to reach any destination on time!

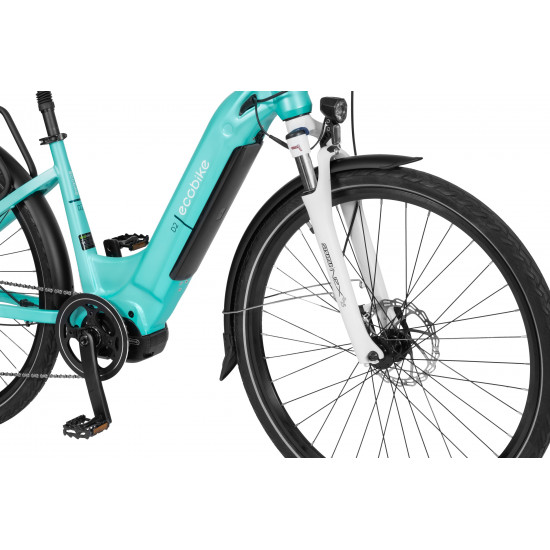

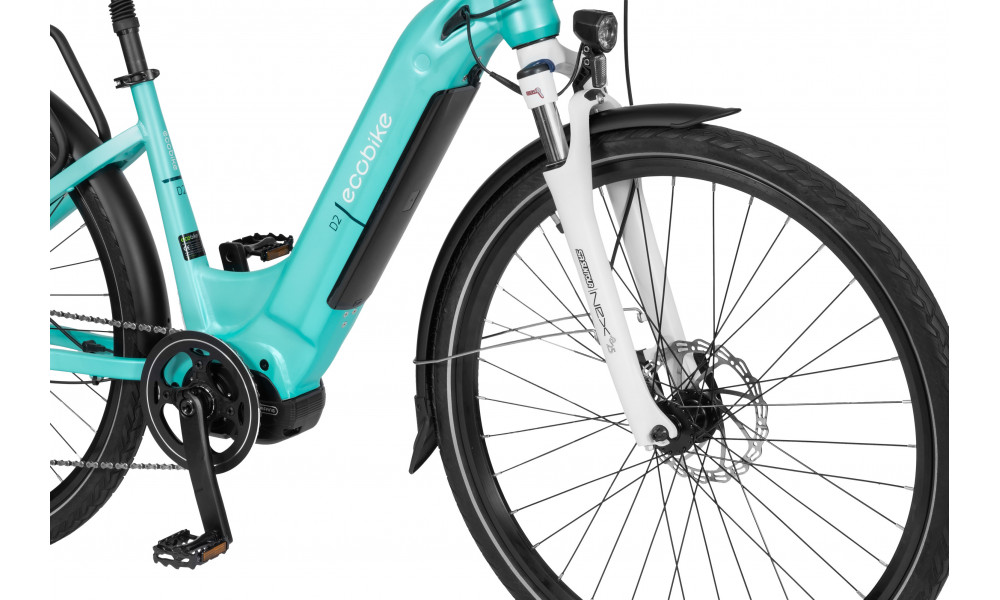

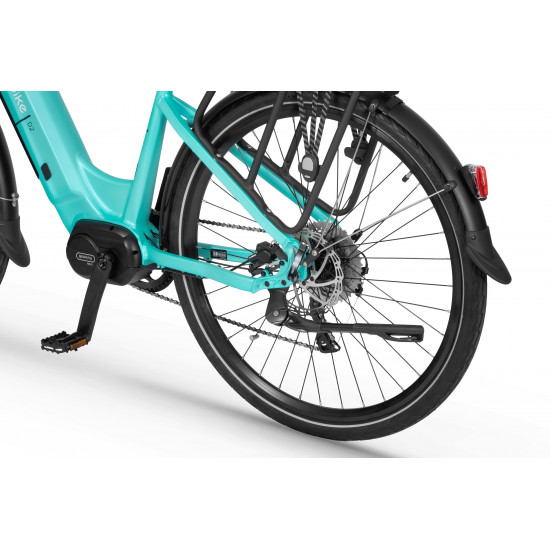

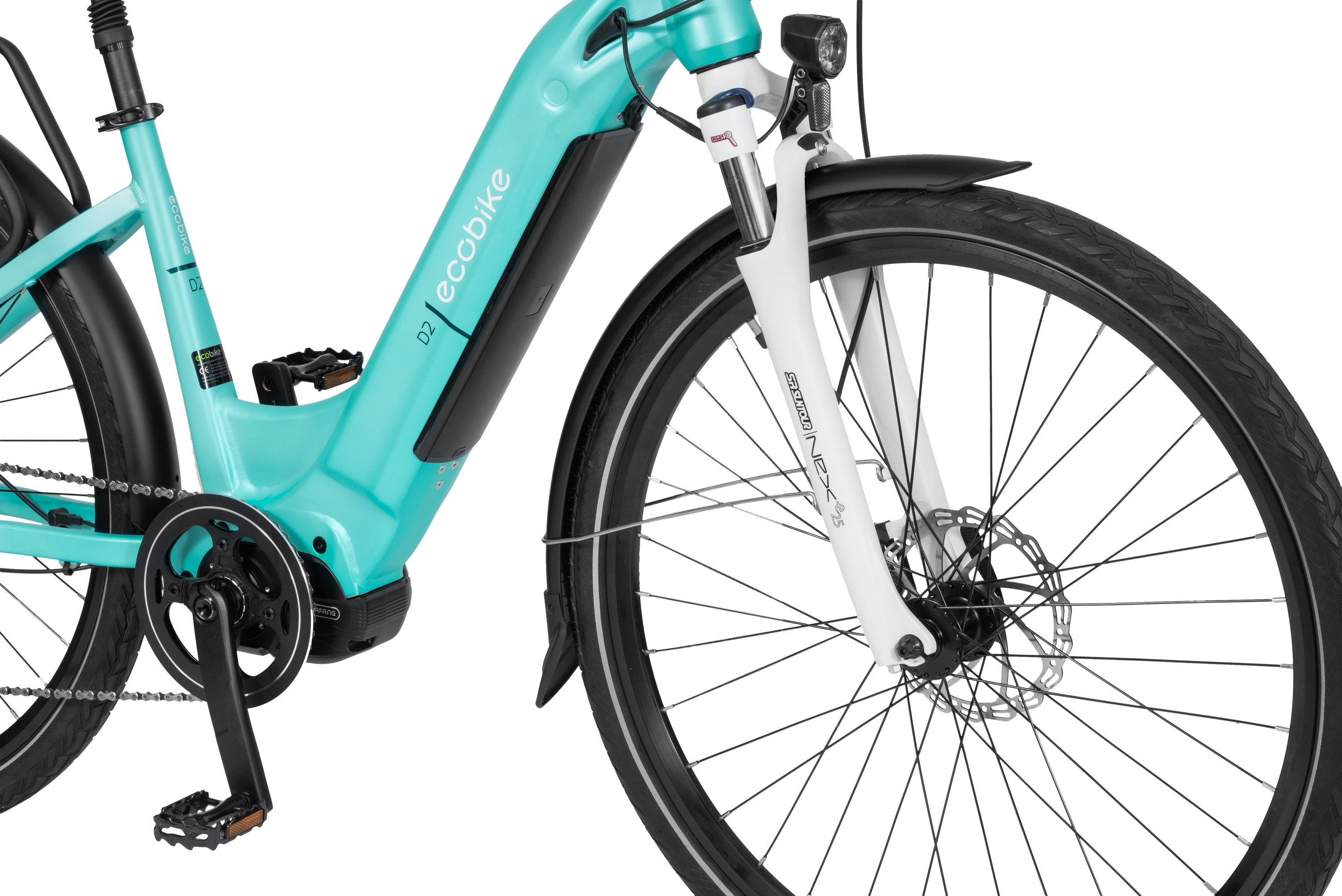

The D2 is a proud example of this - in addition to proven technology, it could not lack reliable components. Bike traction like this is essential. We took care of it using a SunTour SF15 NEX-E25 suspension fork with 63 mm of travel and TRC 28x1.95 tires. A high level of safety is ensured by hydraulic disc brakes ALHONGA. The derailleur in an e-bike with a mid-motor must be very durable, in D2 City we used the Shimano DEORE model.
- Capacity and range:
- 672 Wh: MAX 130 km
- Voltage: 48 V
- Mount: Central (mid-drive)
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 85 Nm
- Motor's brand: Bafang (M420)
- Power: 250 W
- Lifespan: 700 charges
- Type: Li-ion
- Voltage: 48 V
- Charger: 100-240V/54.6V 2A D type
- Cells brand: LG
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 7 hours
- FRAME: Hydroformed aluminium
- FRAME SIZE: 17"
- FORK: SunTour SF15 NEX-E25 LO DS 700C (63 mm)
- BRAKES: Alhonga HJ-HT472 hydraulic
- CHAIN: KMC 10 speed
- CHAINWHEEL: 1-speed, 44T

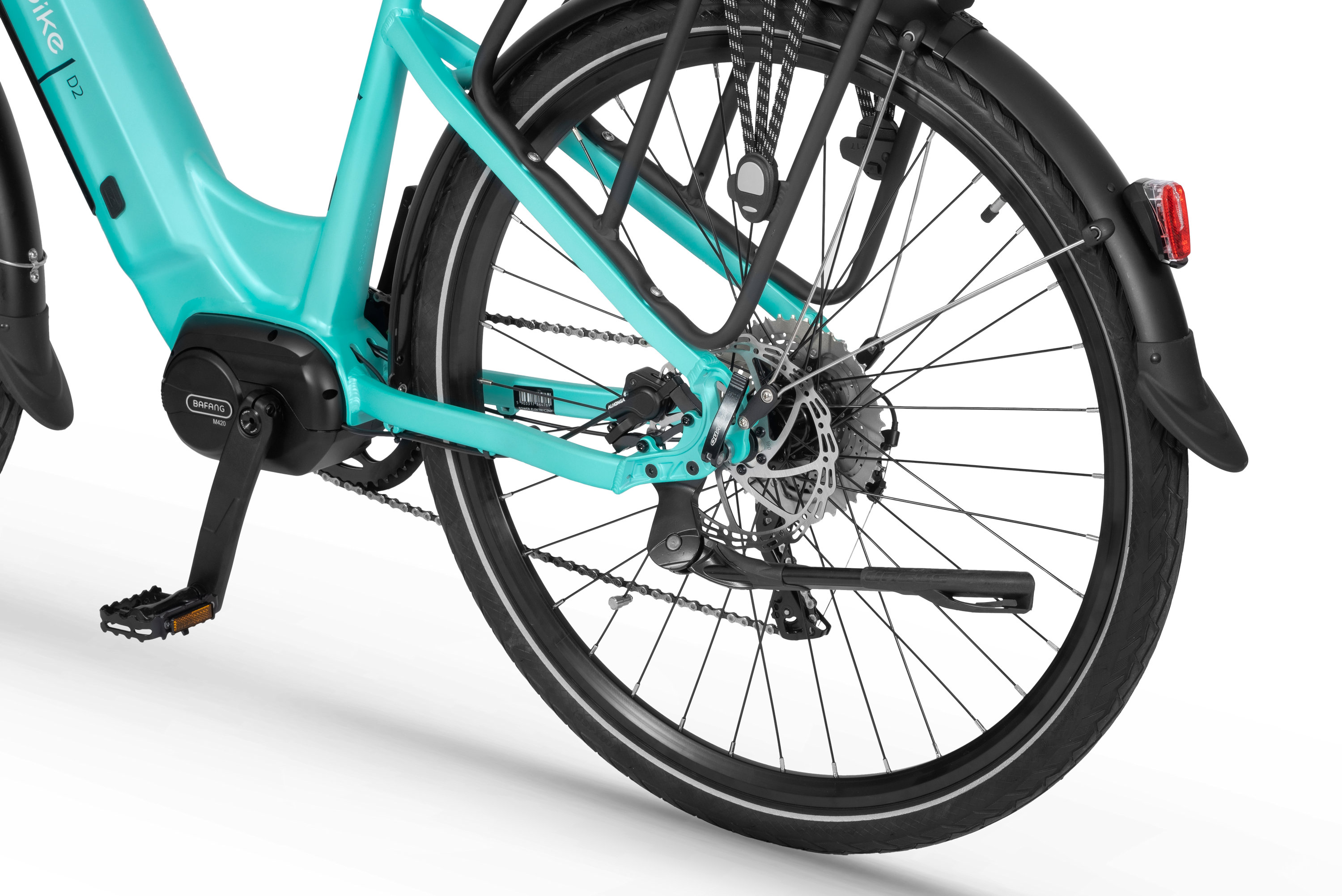

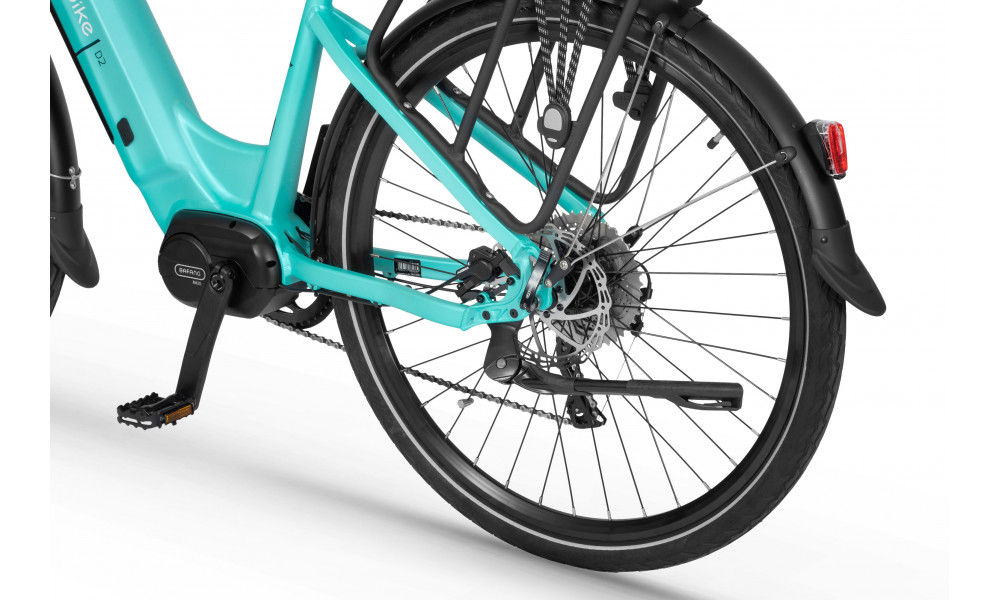

- REAR DERAILLEUR: Shimano Deore RD-M6000 GS, Shadow Plus, 10 speed
- FREEWHEEL: Shimano CS-M4100 11-42T 10-speed

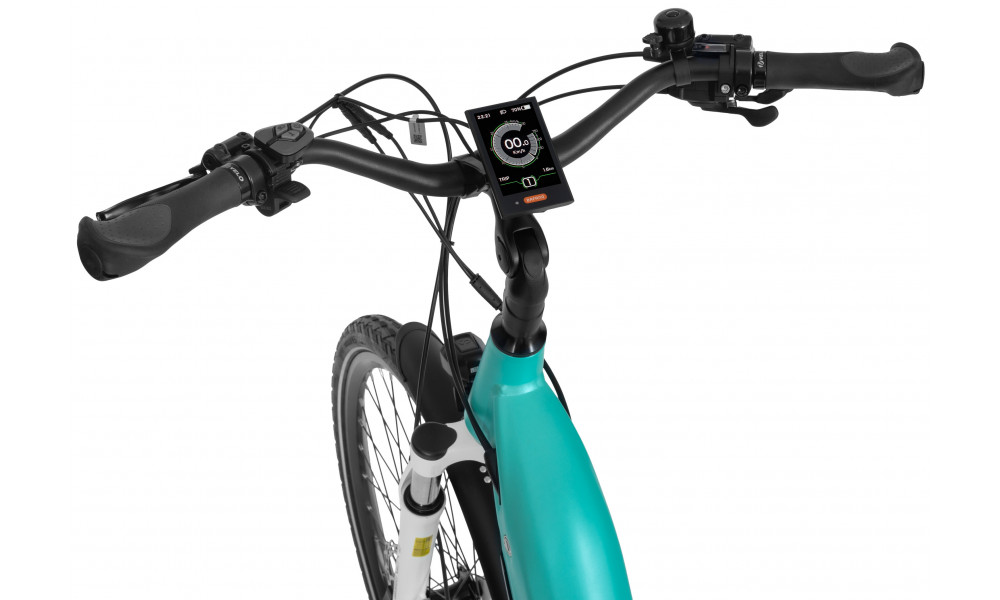

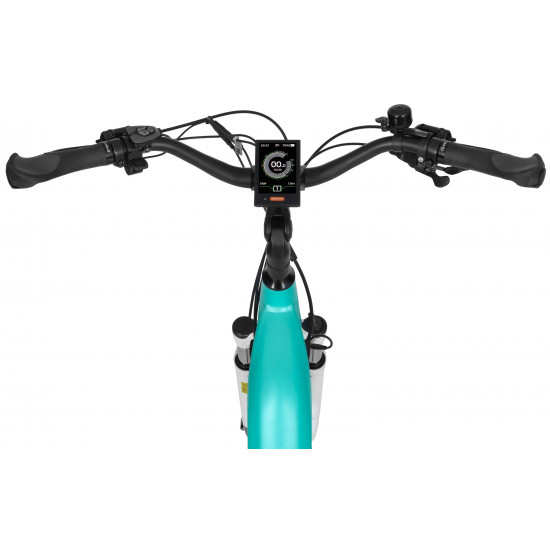

- HANDLEBAR: PROMAX HB-3188, 700 mm
- STEM: Promax 0 - 40 degrees / 90 mm, aluminium, adjustable
- HUBS: Front hub: KT-SN6F-QR / Rear Hub: KT-SN6R-QR
- PEDALS: VP-199
- RIMS: 28", reinforced
- SADDLE: Velo VL-8089E
- SEAT POST: Promax, diameter: 27.2 mm, length: 350 mm
- SHIFTERS: Shimano Deore SL-M6000-R, 10 speed
- SPOKES: HAICHENG 13G 281L stainless
- TYRES: TRC Indigo 28x1.95
- WEIGHT: 27.3 kg
- SPEEDS: 10
- MUDGUARDS: For front and rear wheel, with u-stays
- GRIPS: Velo VLG-1189AD3
- KICKSTAND: Rear, adjustable length, aluminium
- CARRIER: Aluminium, max.: 25kg, with carrier straps
- LIGHTS: Rear: Spaninga MLL XE / Front: Spaninga KENDO XE
- Effective top tube length: 615 mm
- Head tube lenght: 150 mm
- Frame size: 432 mm
- Wheel base: 1132.60 mm
- Seat tube angle: 73
- Headset angle: 70
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly

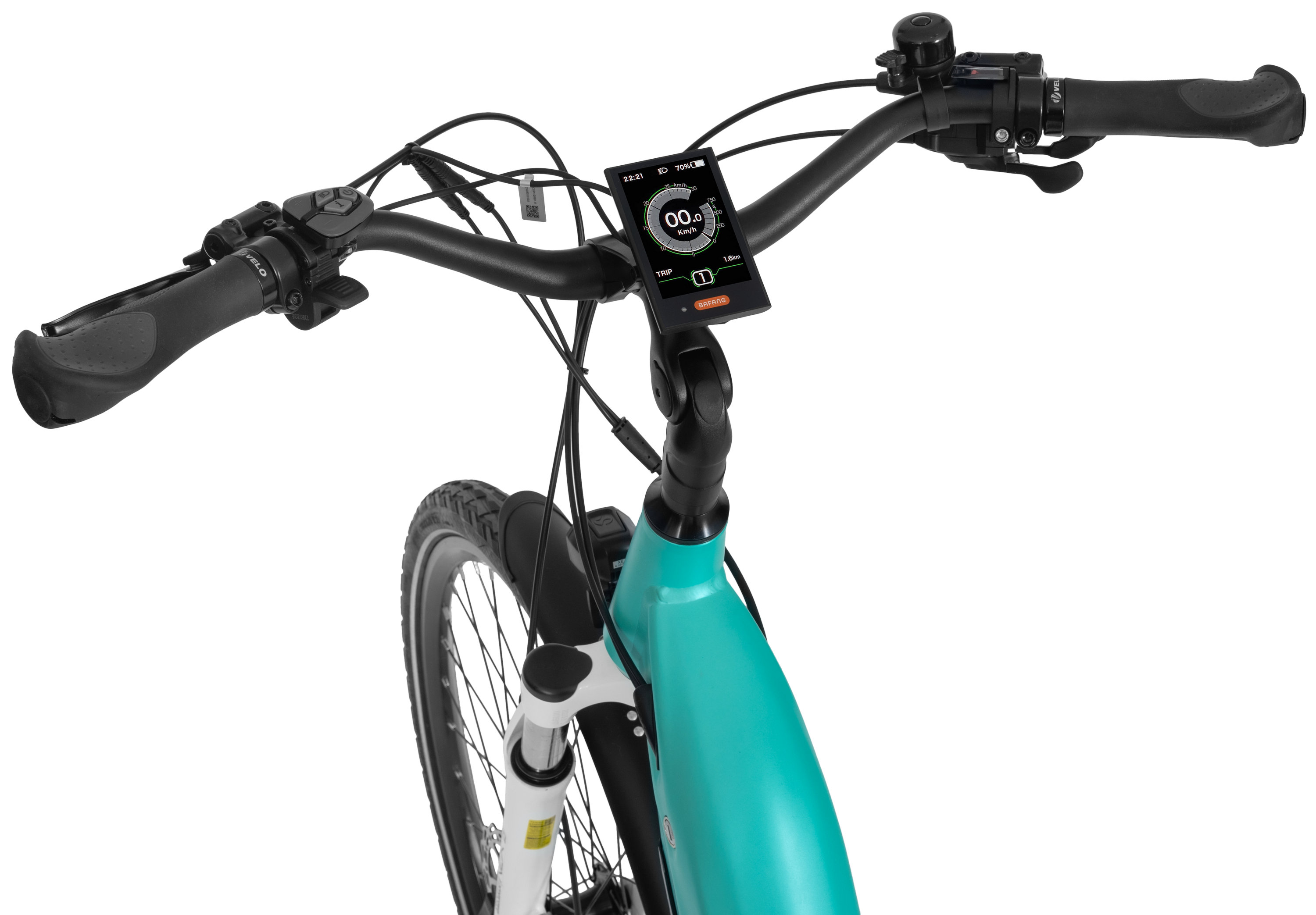

- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
DISTANCE:
ENGINE:
BATTERY:
GEOMETRY:
Pyörä lähetetään valmistajan alkuperäisessä pakkauksessa (etupyörä, ohjaustanko ja satula ovat yleensä irrotettuina), mikä varmistaa tuotteen turvallisuuden varastointi- ja kuljetusvaiheessa. Kun ostaja hankkii pyörän sellaisessa pakkauksessa, hän itse tai valitsemansa pyörähuollon ammattilainen on vastuussa asianmukaisesta pyörän kokoamisesta, säätämisestä ja käyttöönotosta.
