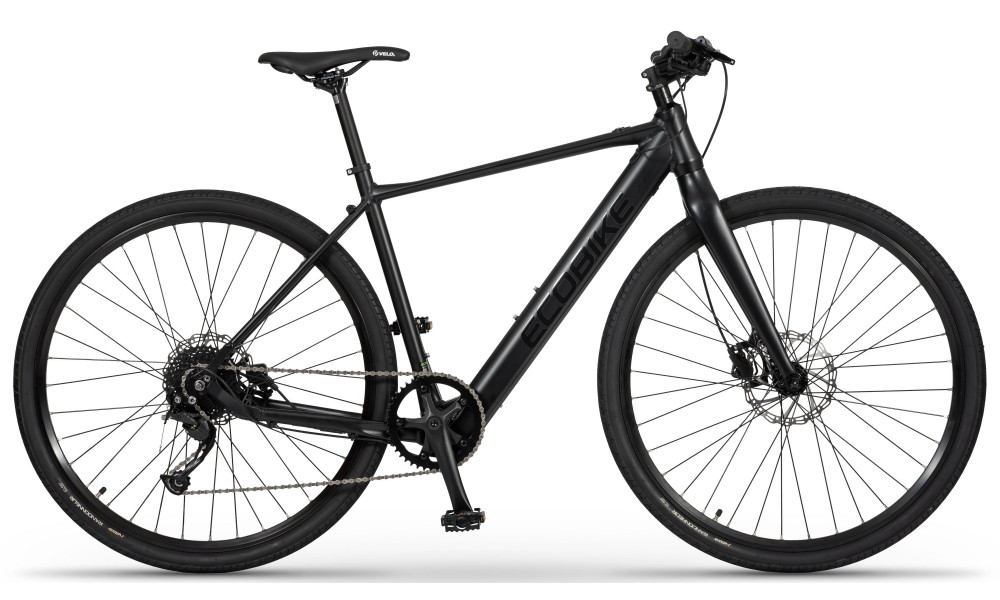

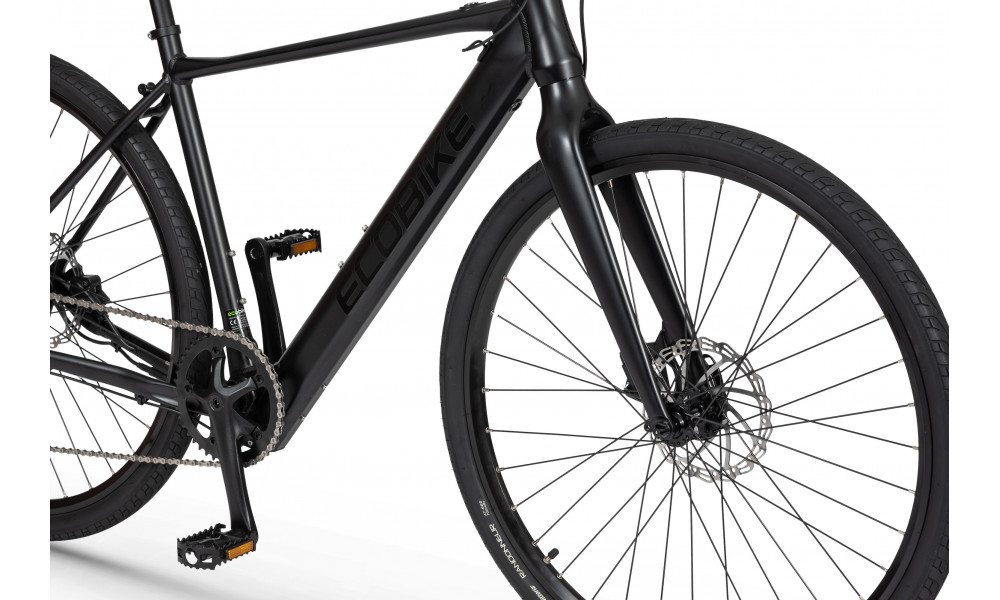

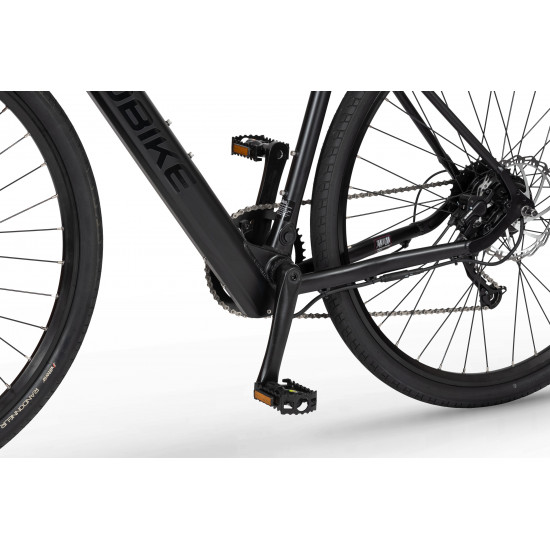

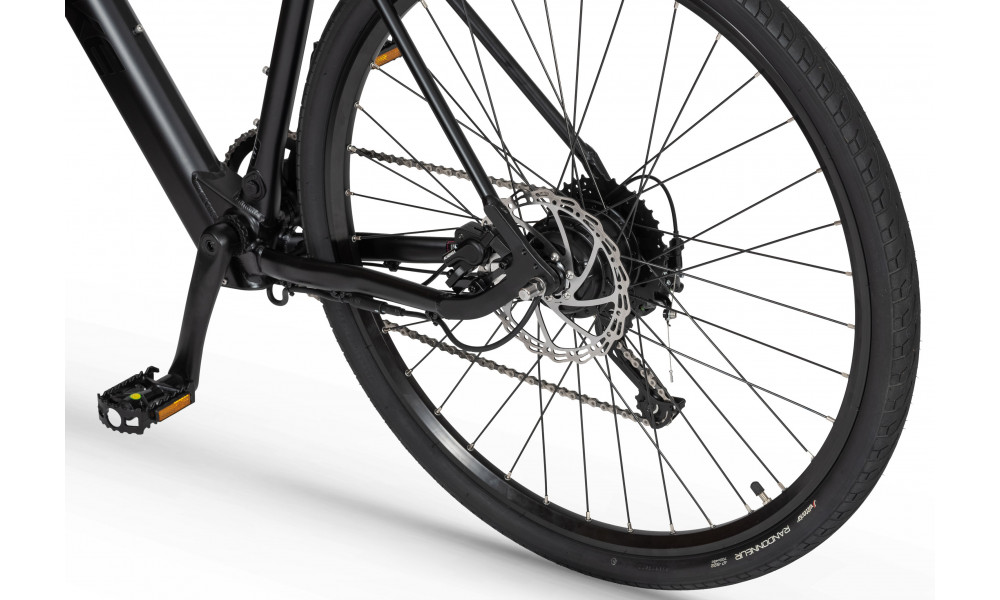

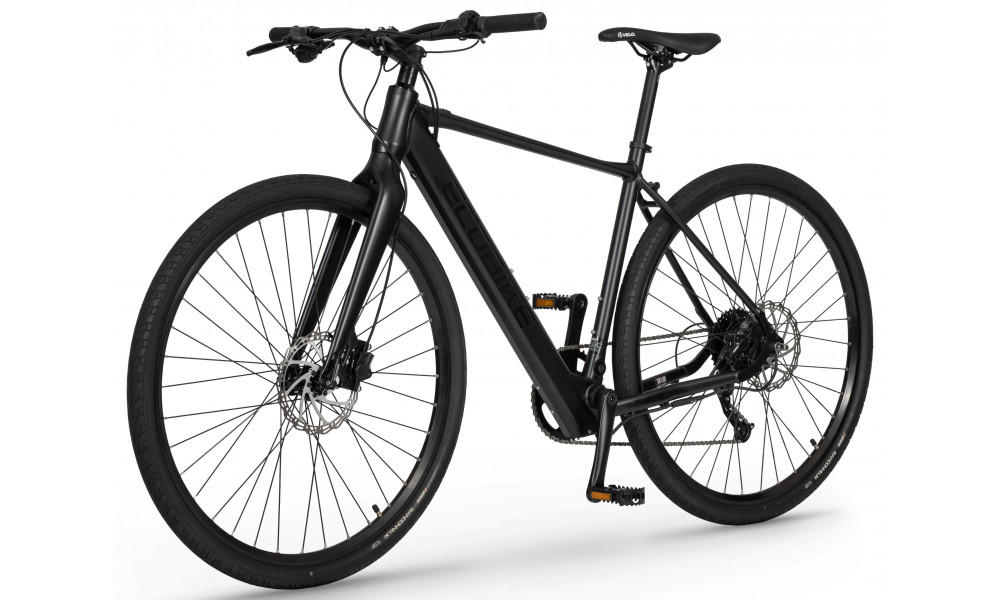

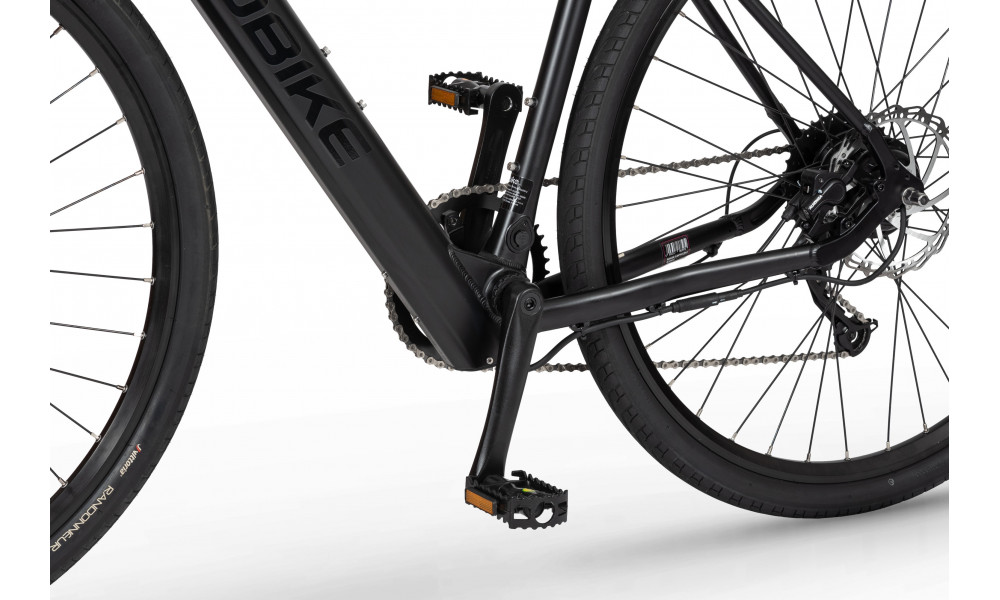

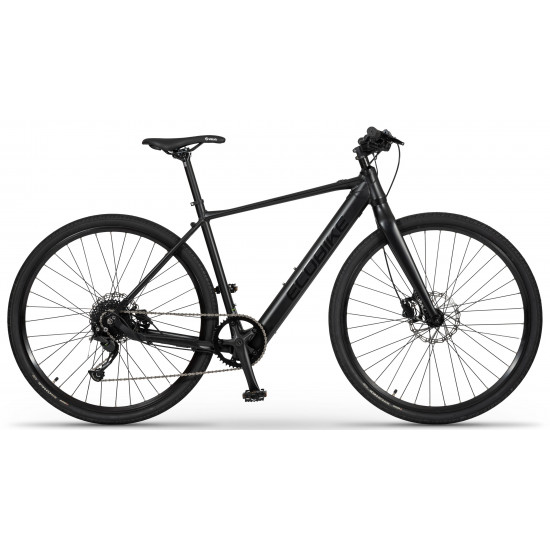

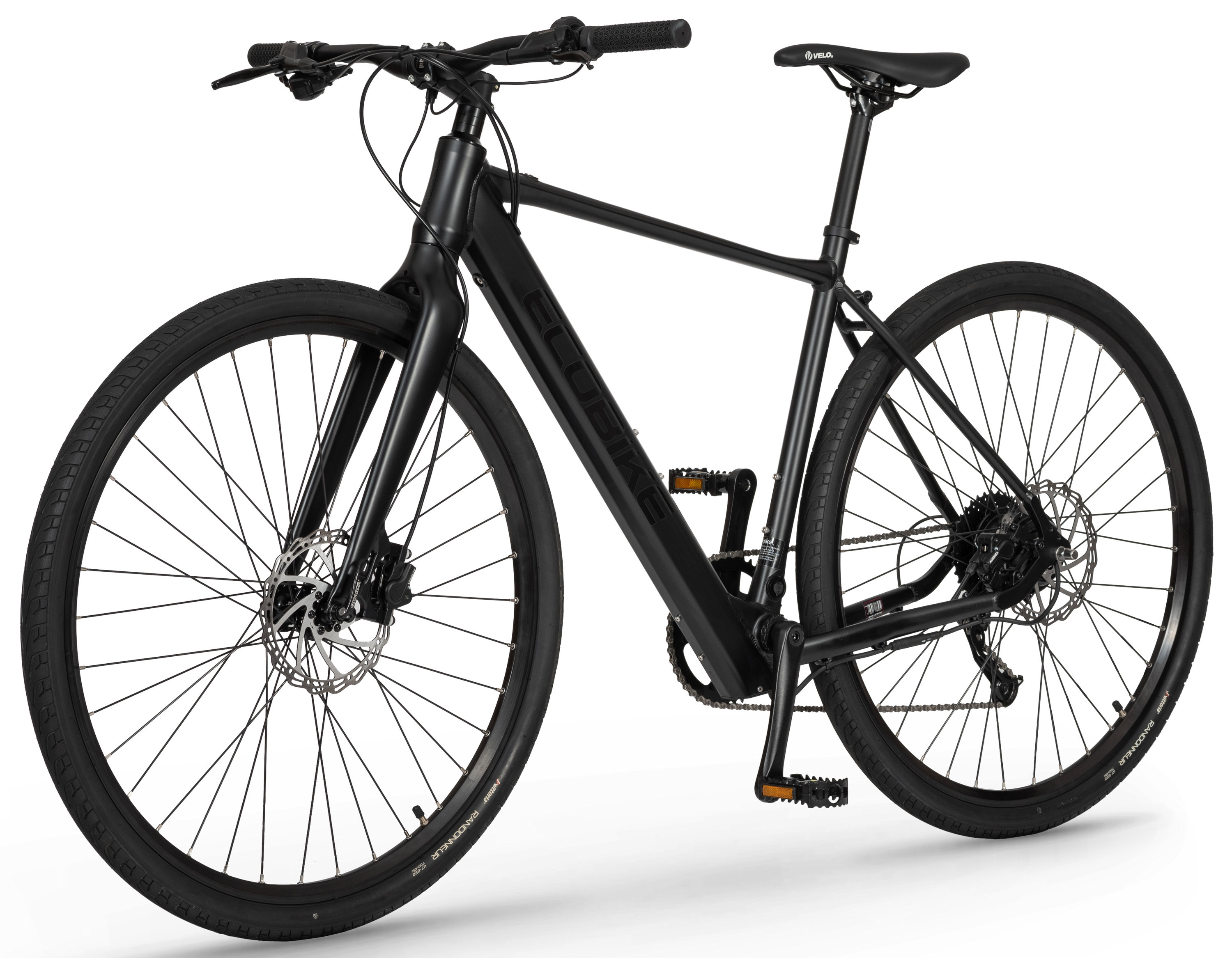

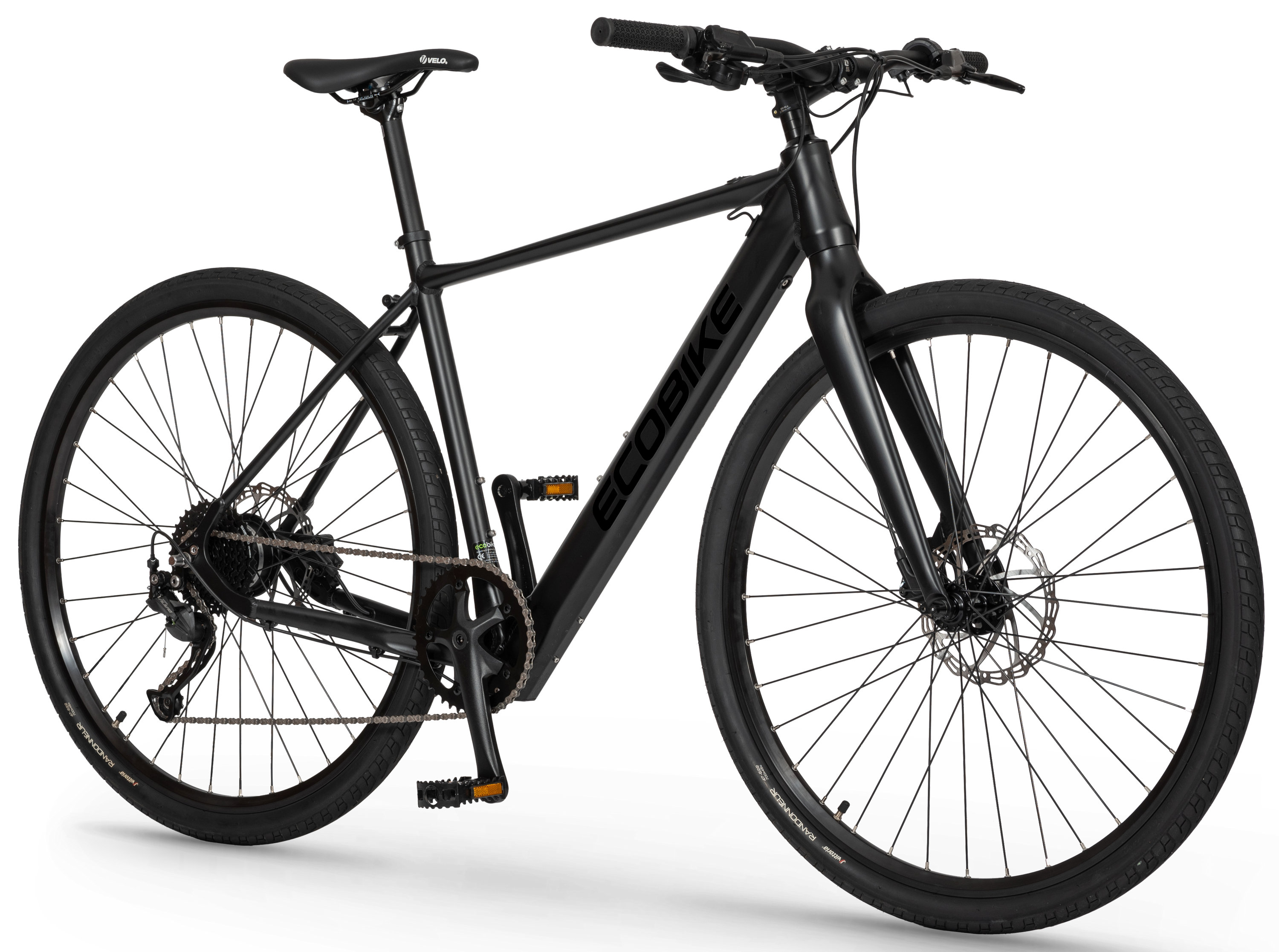

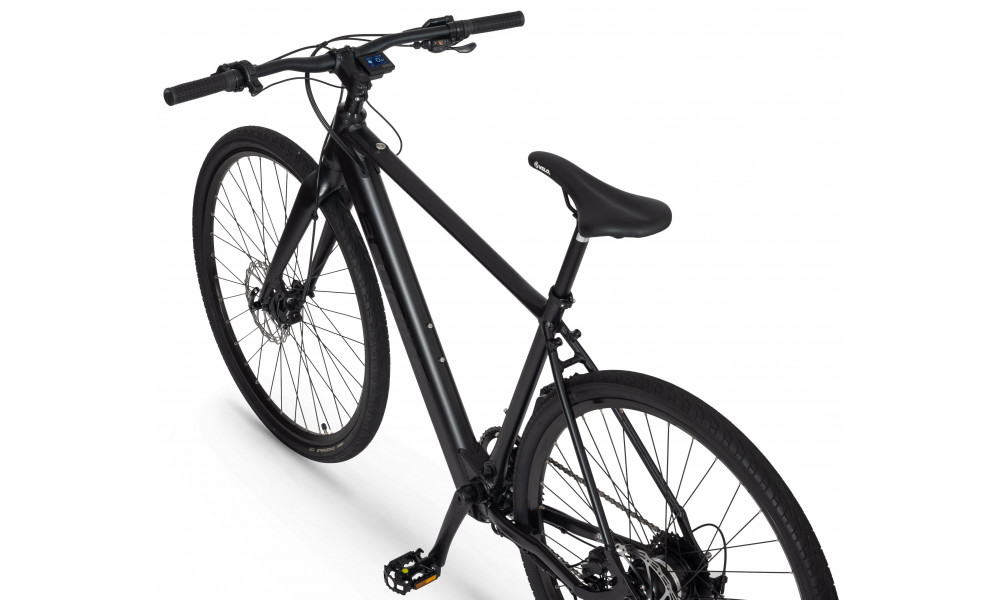

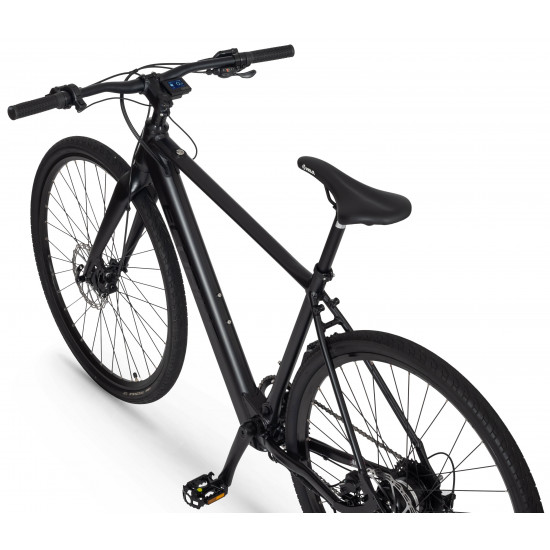

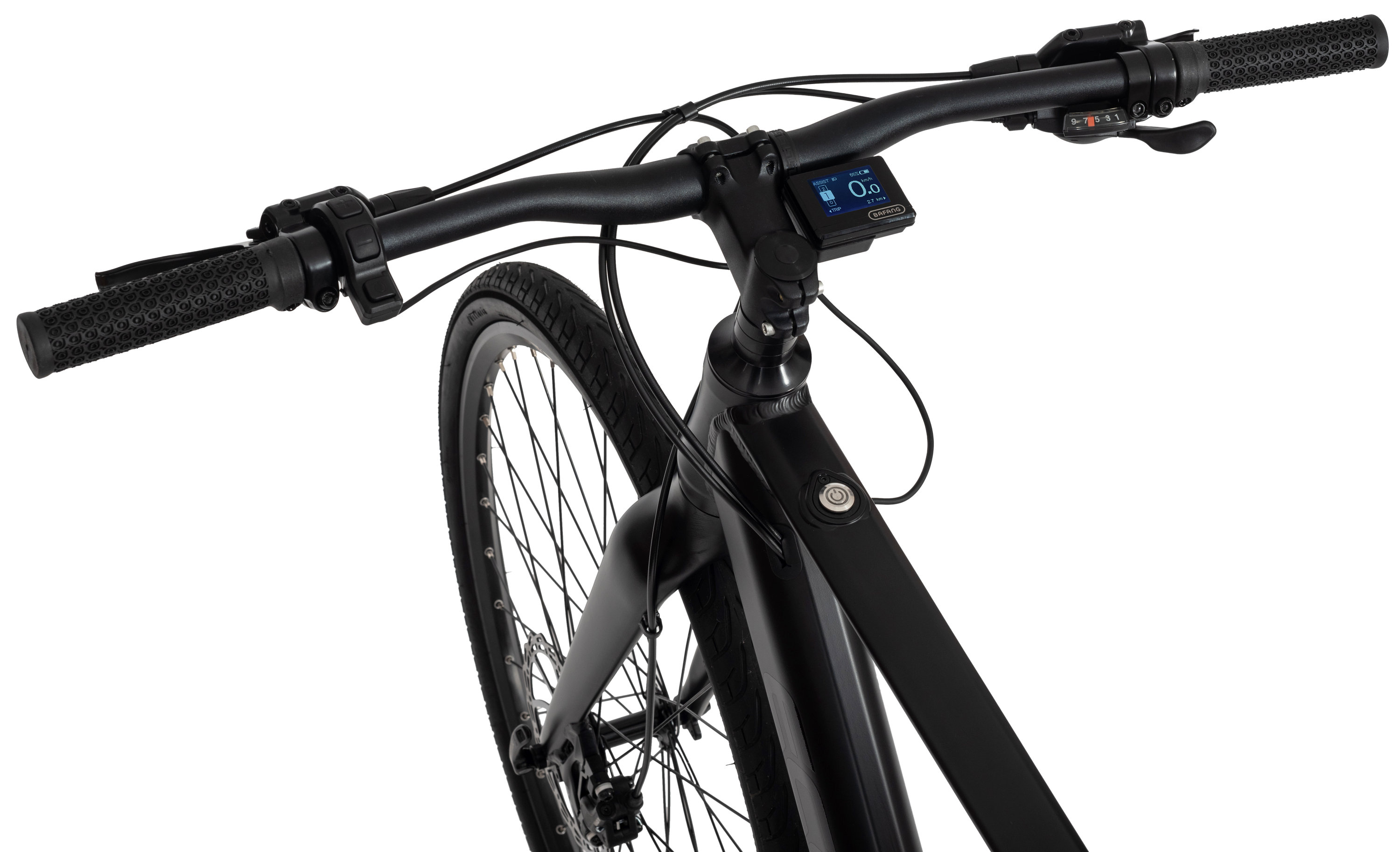

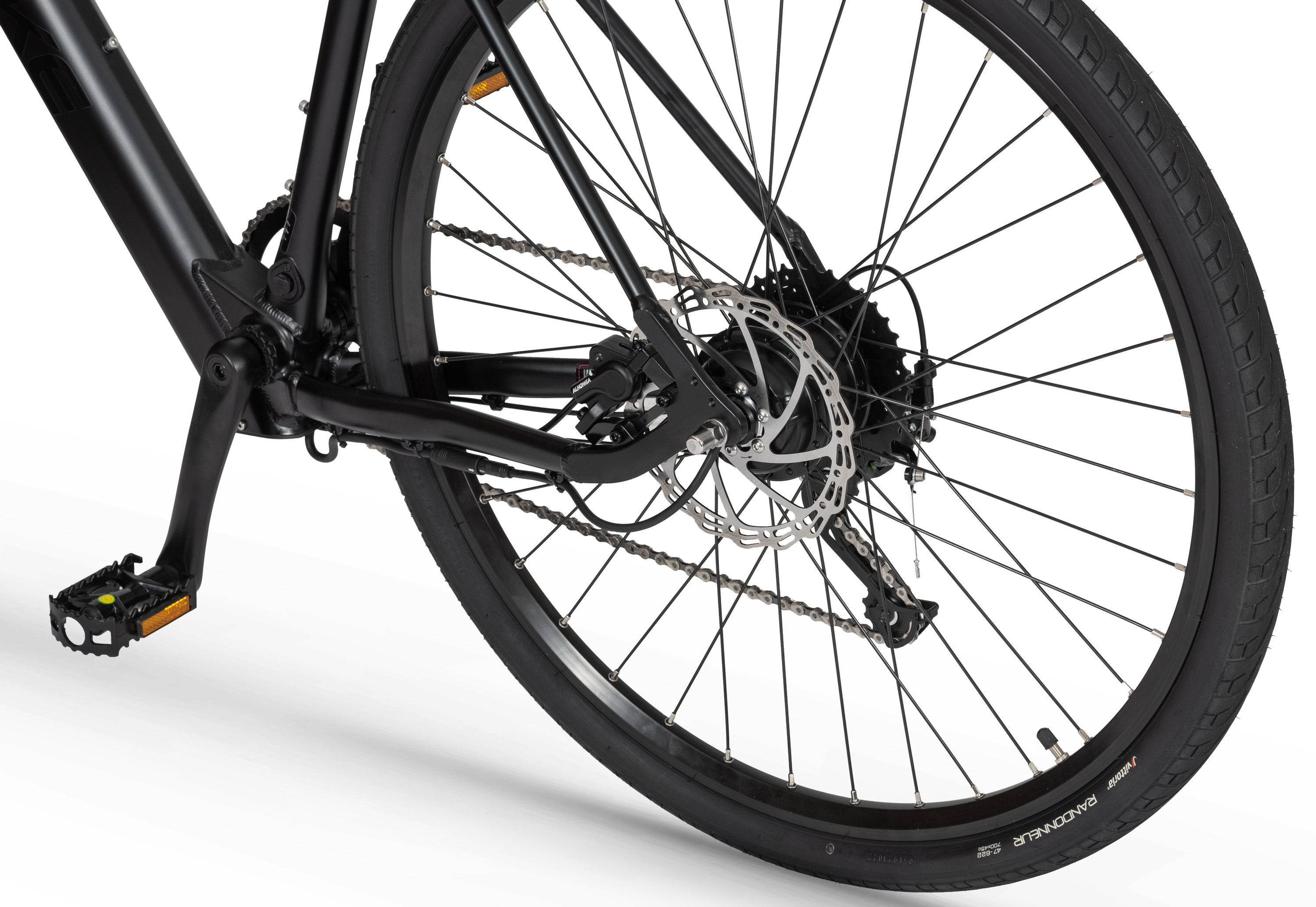

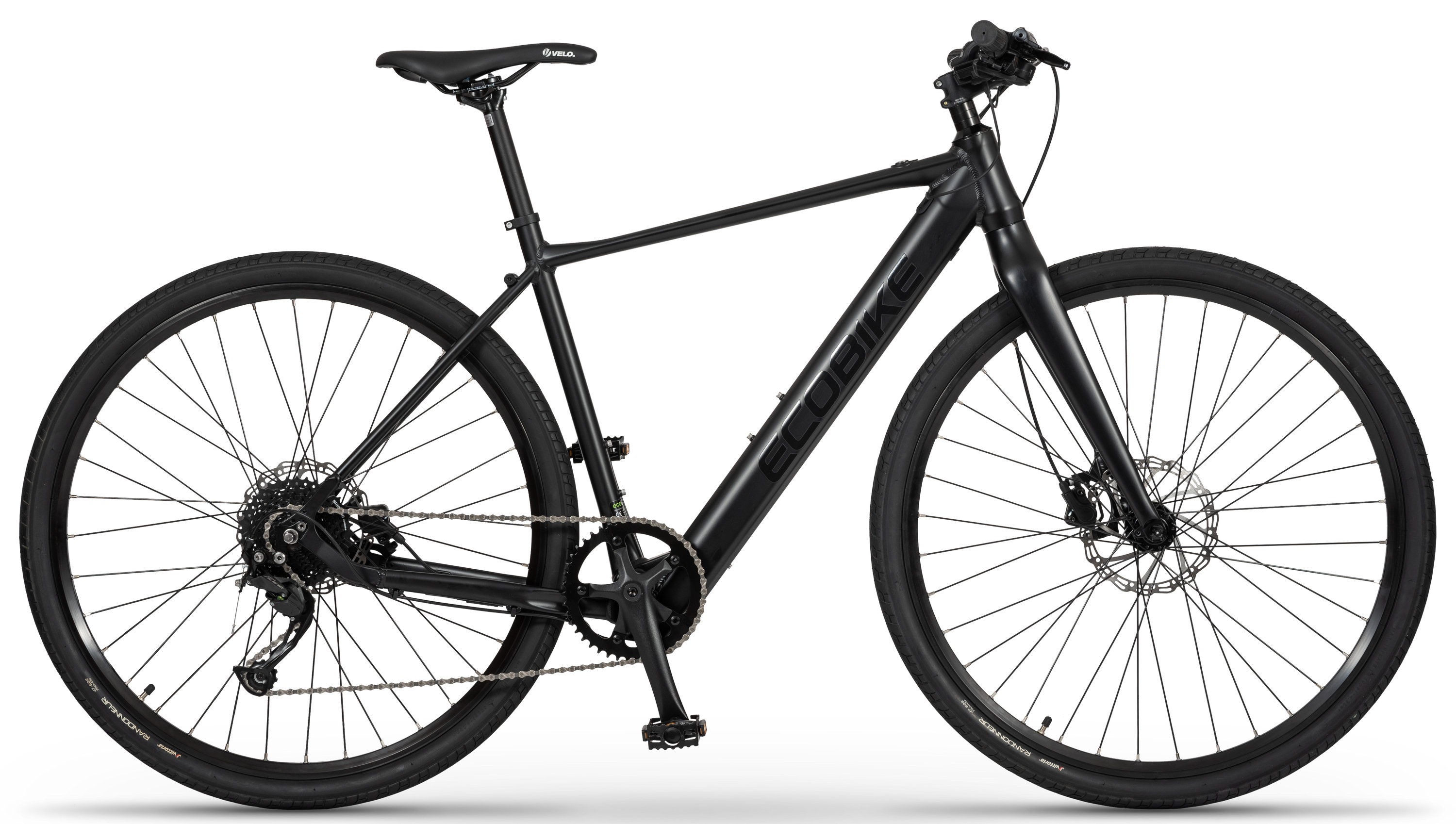

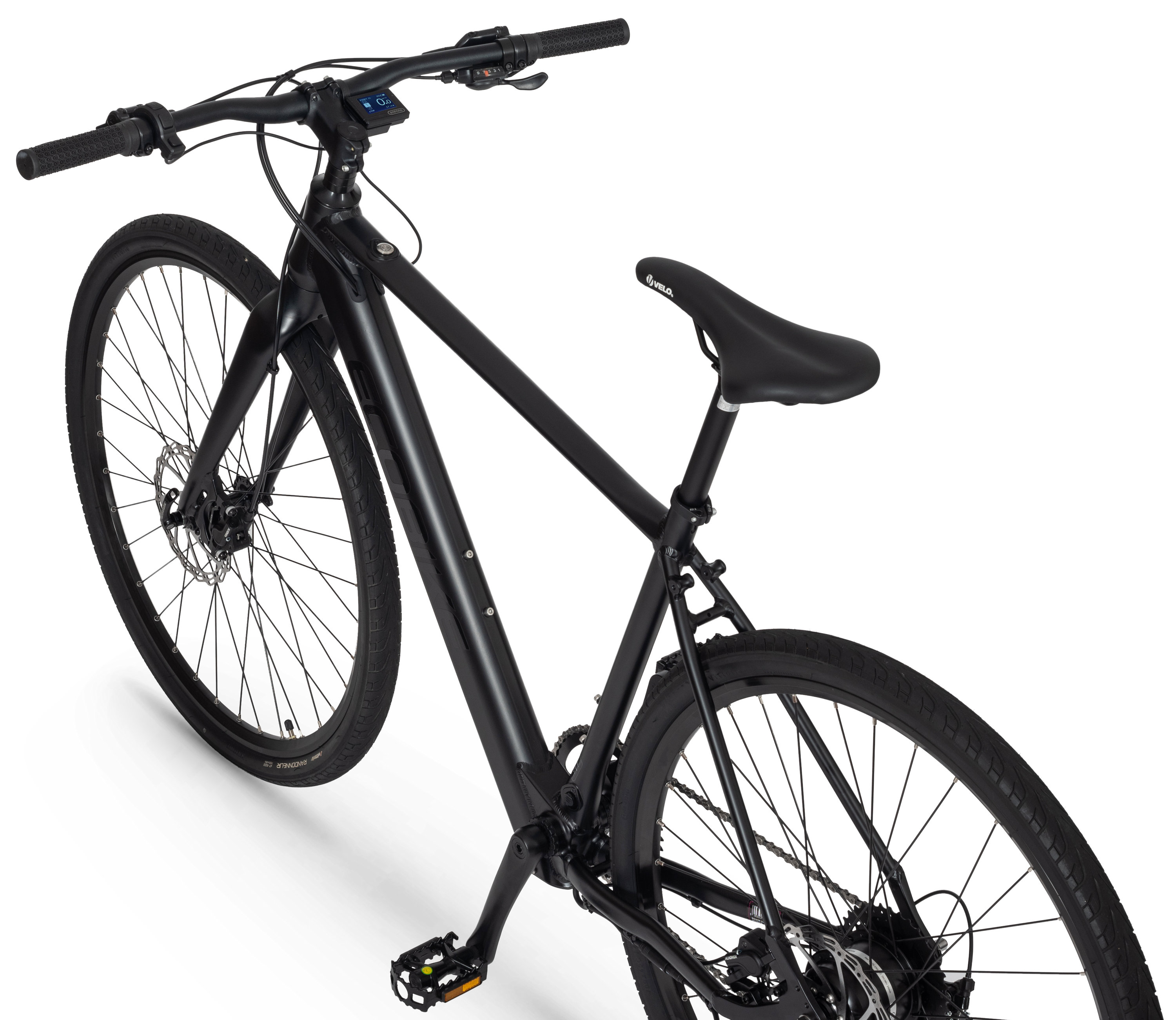

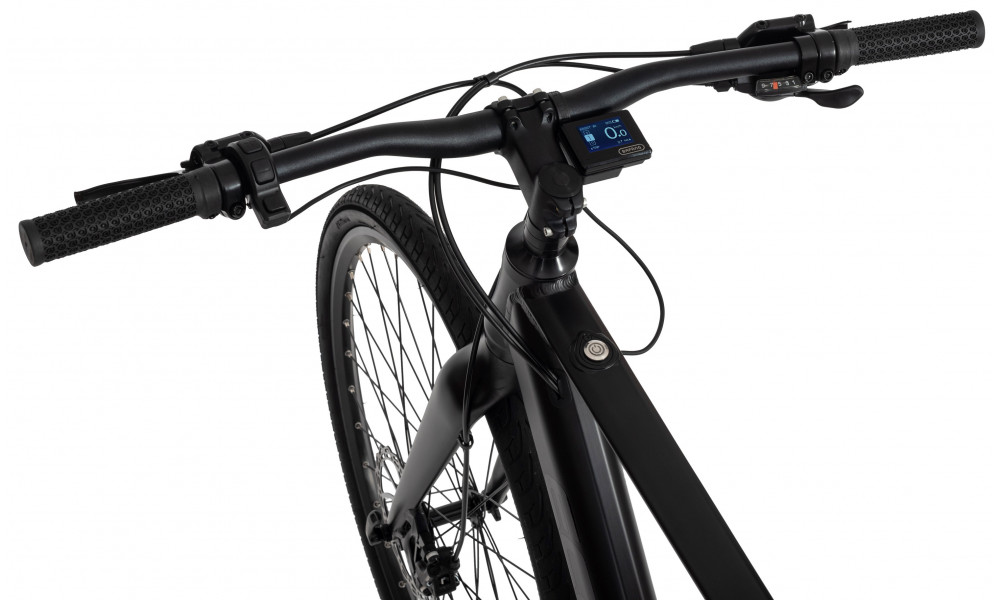

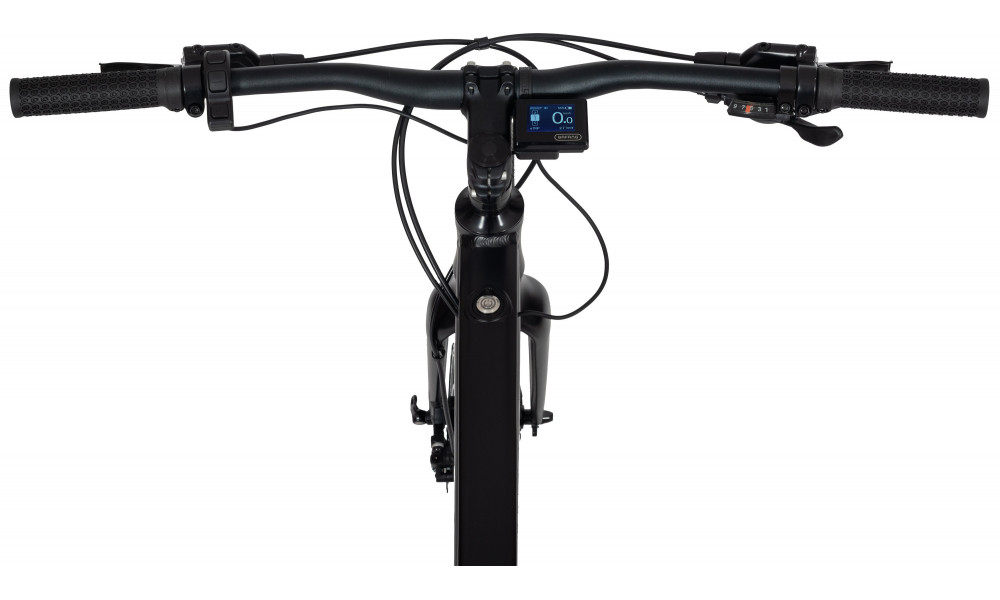

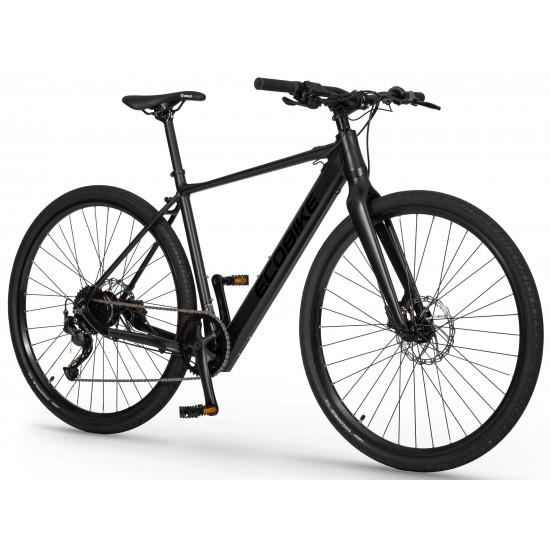

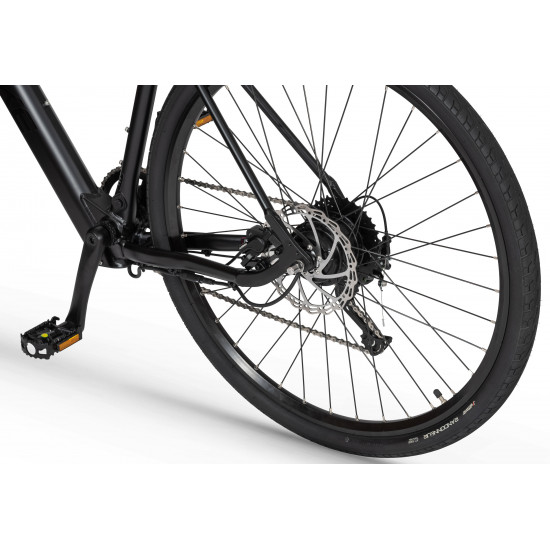

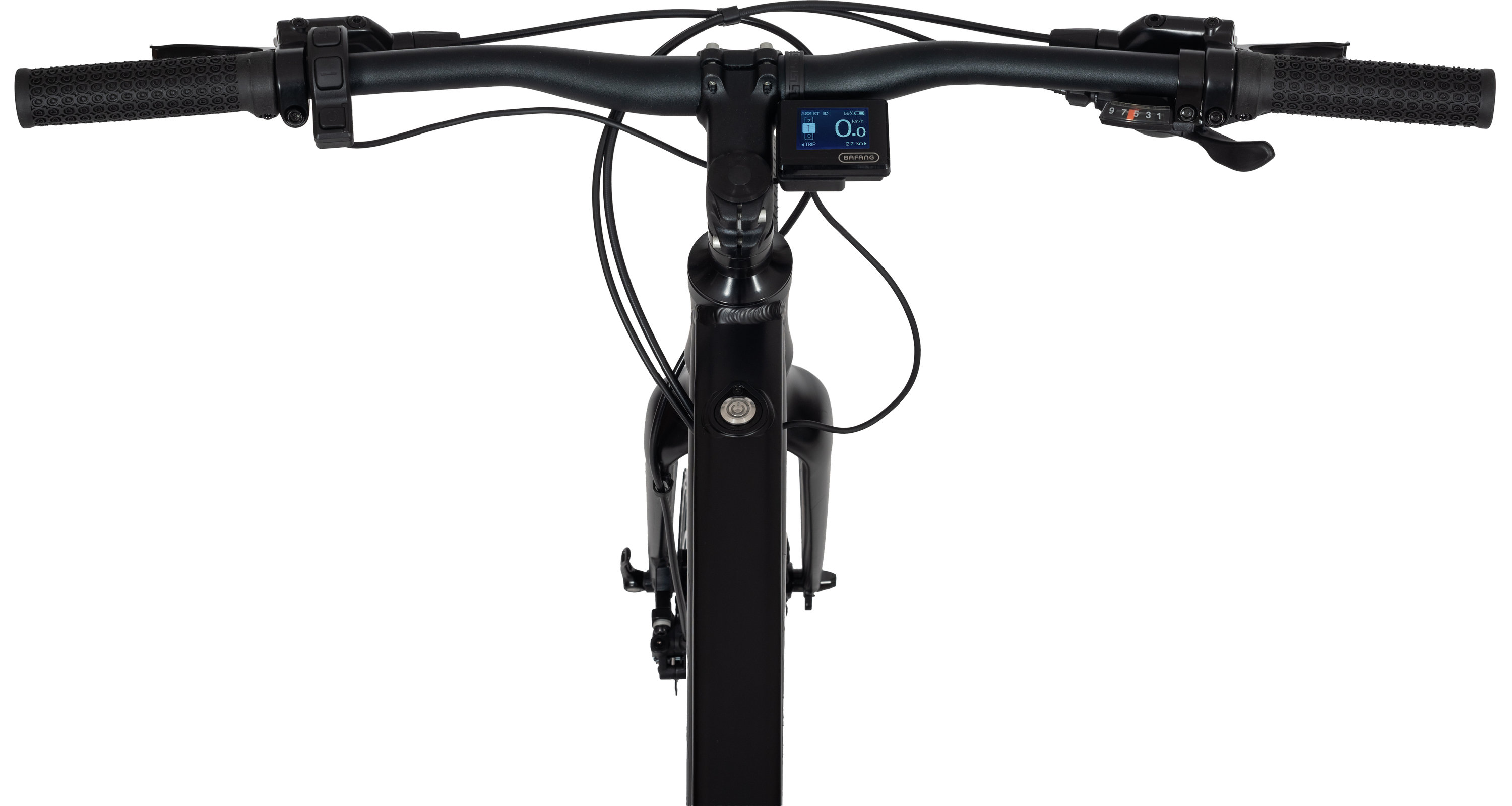

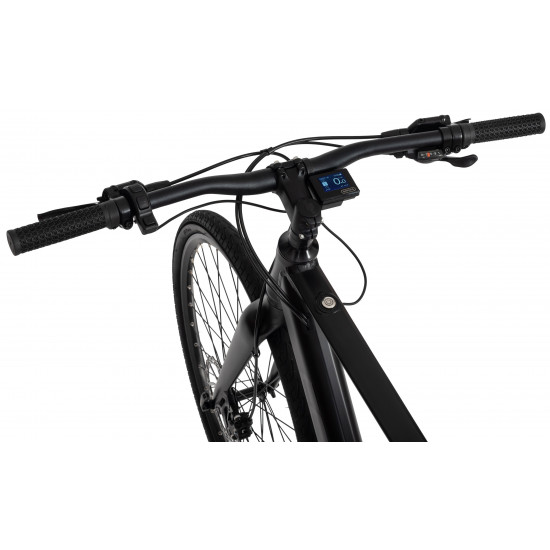

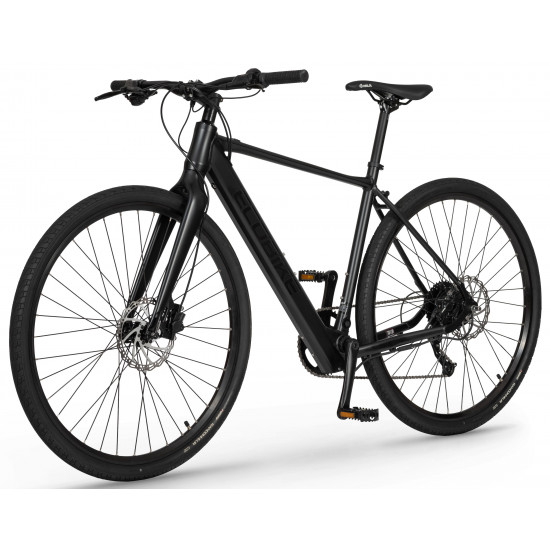

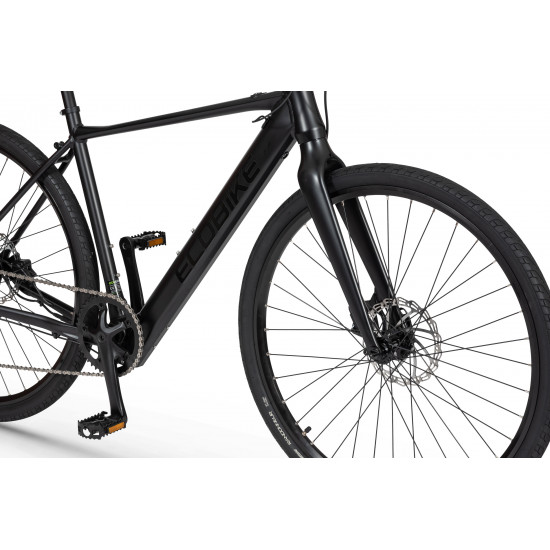

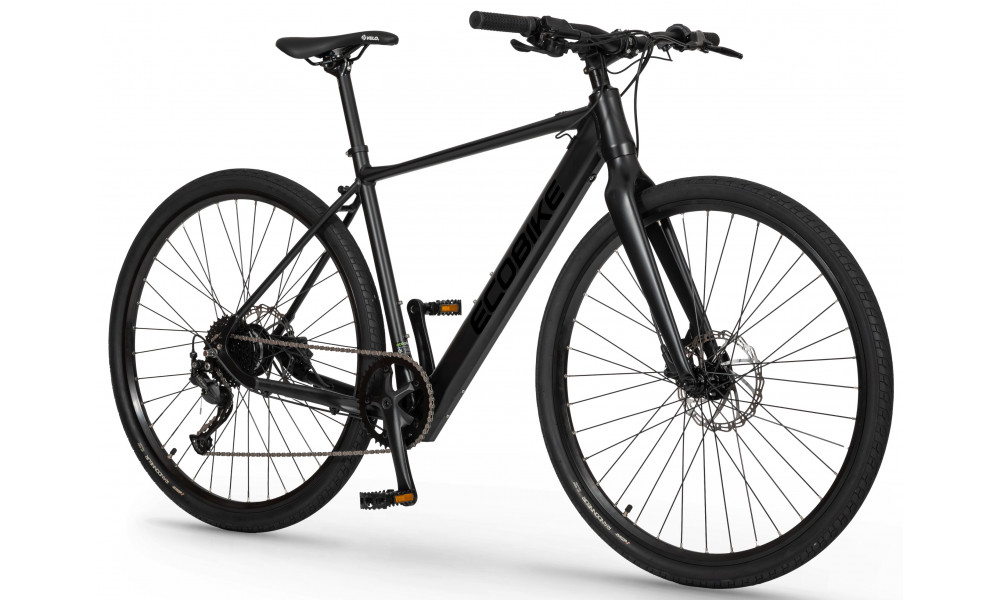

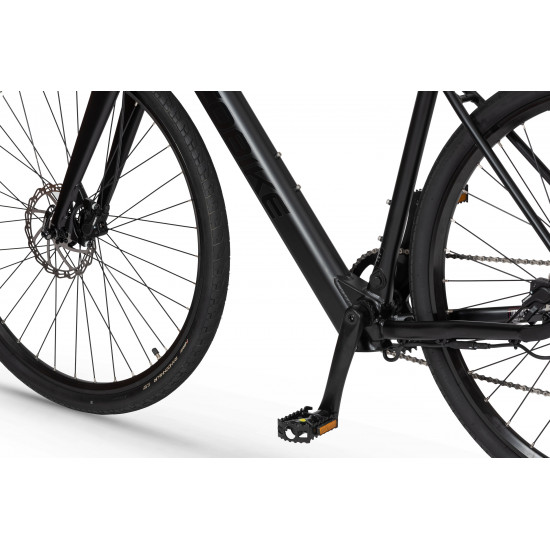

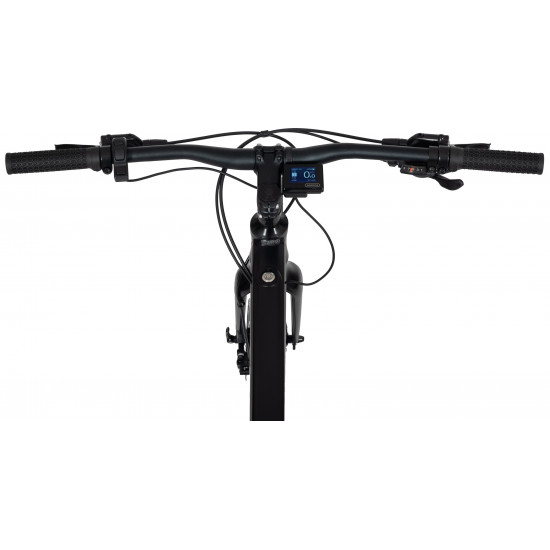

At first glance, it's hard to see the characteristics of an electric bike in the Urban, but it is a true e-bike. The electrical secrets of our fitness bike are hidden in the rear hub, where we discreetly mounted the motor and the frame with a covered battery. The display is inconspicuously, but practically, based right next to the stem. The entire system is based on Bafang technology. The bike was supposed to be minimalist and this unique style was fully achieved.
Minimalism for the 21st century must be characterized by lightness - Urban weighs only 16,5 kg!
The construction based on the proven aluminum frame and Shimano accessories allow you to meet all-city challenges.Designers took care of the thoughtful selection of components. The 9-speed drive unit is responsible for shifting: Shimano Alivio derailleur controlled by a Shimano Altus shifter - combined with a well-staged cassette, they will allow you to choose the right gear that does not strain your legs. Powerful and precise Alhonga hydraulic disc brakes allow you to feel safe during cycling. Vittoria City Randonneur tires provide good traction and low rolling resistance. All this makes the bike extremely light to ride.
Subtlety, aesthetics, lightness - all in one bike - Ecobike Urban!
- Capacity and range:
- 349.2 Wh: MAX 80 km
- Voltage: 36V
- Mount: rear wheel hub
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 30 Nm
- Motor's brand: BAFANG
- Power: 250 W
- Fuses: 30 A
- Lifespan: 700 charges
- Charging time: ~ 5 hours
- Type: Li-Ion
- Voltage: 36V
- Charger: 220-240V 42V 2A D type
- Cells brand: Greenway
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: ~ 5 hours

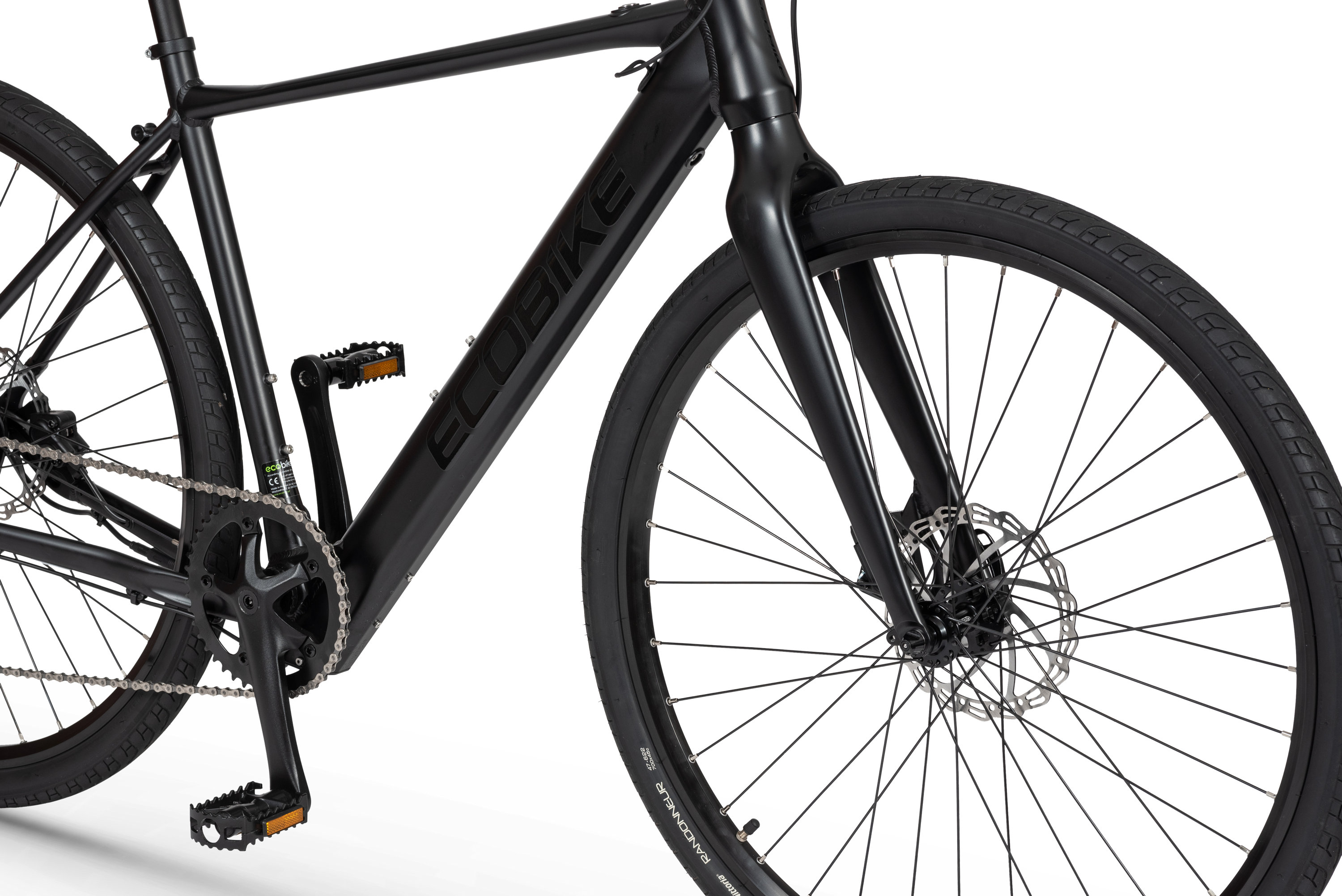

- FRAME: Hydroformed aluminium
- FRAME SIZE: 19"
- FORK: Rigid, aluminium
- BRAKES: Tektro HD M275 hydraulic disc

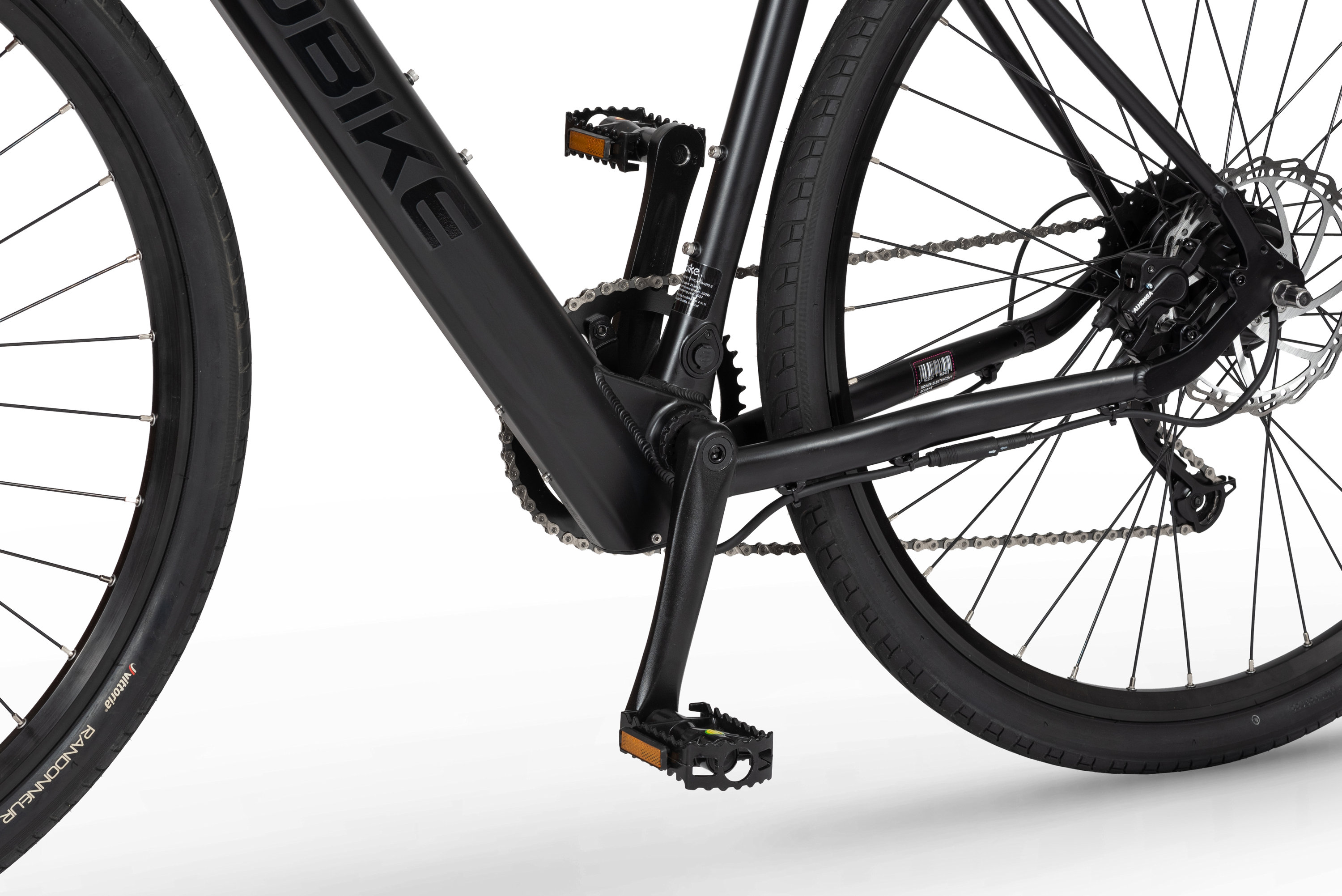

- CHAIN: KMC X8NP 1/2"*3/32"*110L
- CHAINWHEEL: Prowheel 44T, 1-speed
- REAR DERAILLEUR: Shimano ALIVIO SGS 9-speed
- FREEWHEEL: Shimano CS-HG200-9 9-speed 11-36T
- HANDLEBAR: Zoom MTB-AL-E320BT, aluminium, diameter in stem fixing spot (center): 31.8 mm, length: 720 mm
- STEM: Zoom TDS-RD479, aluminium, fork steerer: 28,6 mm, length: 70 mm
- HUBS: Front hub: KT KT-XA2F 13G 36H 9x100 mm / Rear Hub: Engine
- PEDALS: Included
- RIMS: 28", reinforced triple-chambered
- SADDLE: VELO VL-3381
- SEAT POST: Zoom SP-C255, diameter: 27.2 mm, length: 300 mm
- SHIFTERS: Shimano Altus 9 speed
- TYRES: Vittoria Tire City Randonneur (SNC) 47-622
- WEIGHT: 16.9 kg
- SPEEDS: 9
- GRIPS: VELO VLG-1889D2
- Effective top tube length: 590 mm
- Head tube lenght: 120 mm
- Frame size: 490 mm
- Wheel base: 1087.50 mm
- Seat tube angle: 74
- Headset angle: 70.50
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
DISTANCE:
ENGINE:
BATTERY:
GEOMETRY:
Pyörä lähetetään valmistajan alkuperäisessä pakkauksessa (etupyörä, ohjaustanko ja satula ovat yleensä irrotettuina), mikä varmistaa tuotteen turvallisuuden varastointi- ja kuljetusvaiheessa. Kun ostaja hankkii pyörän sellaisessa pakkauksessa, hän itse tai valitsemansa pyörähuollon ammattilainen on vastuussa asianmukaisesta pyörän kokoamisesta, säätämisestä ja käyttöönotosta.
