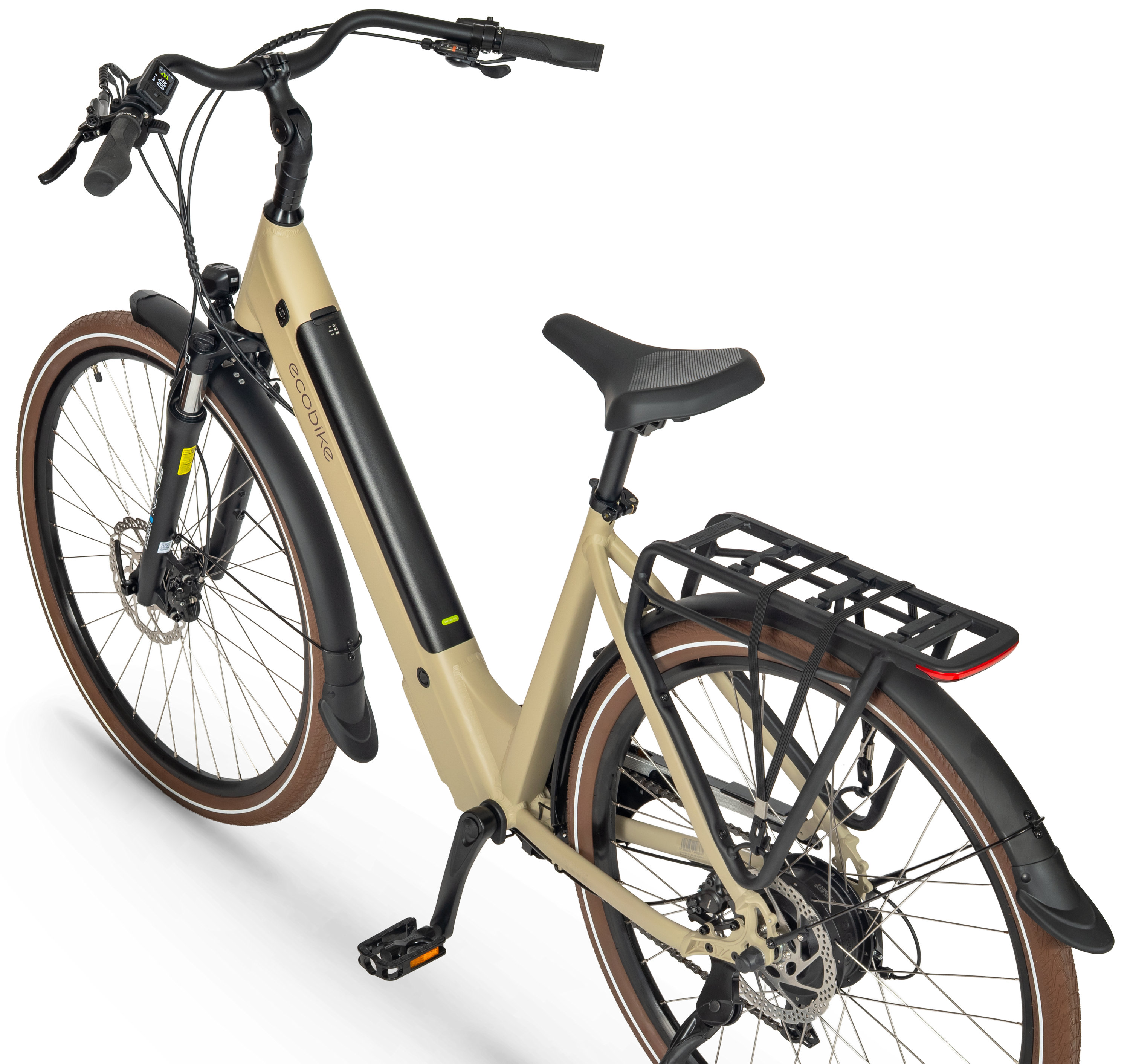

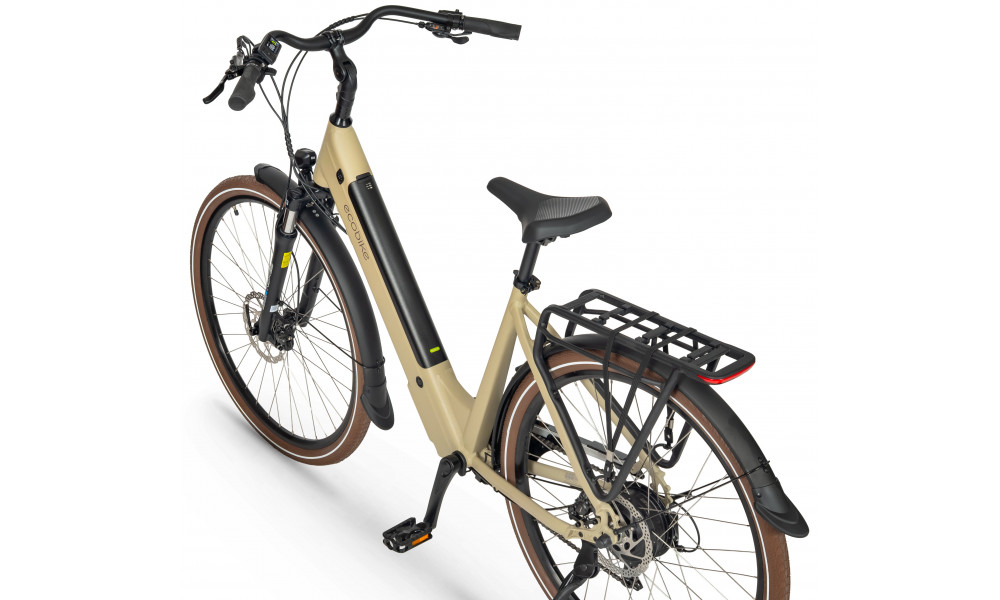

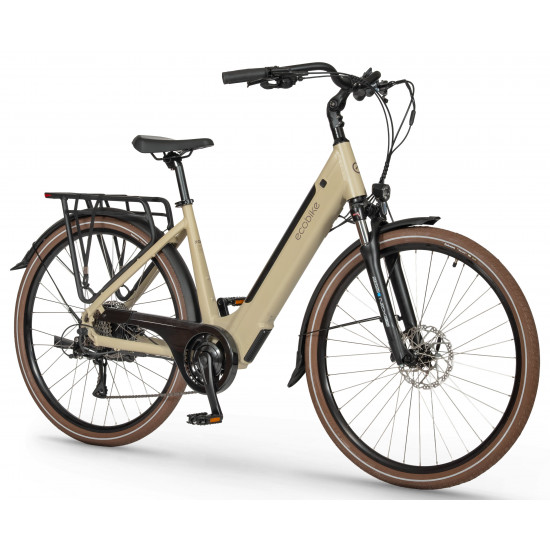

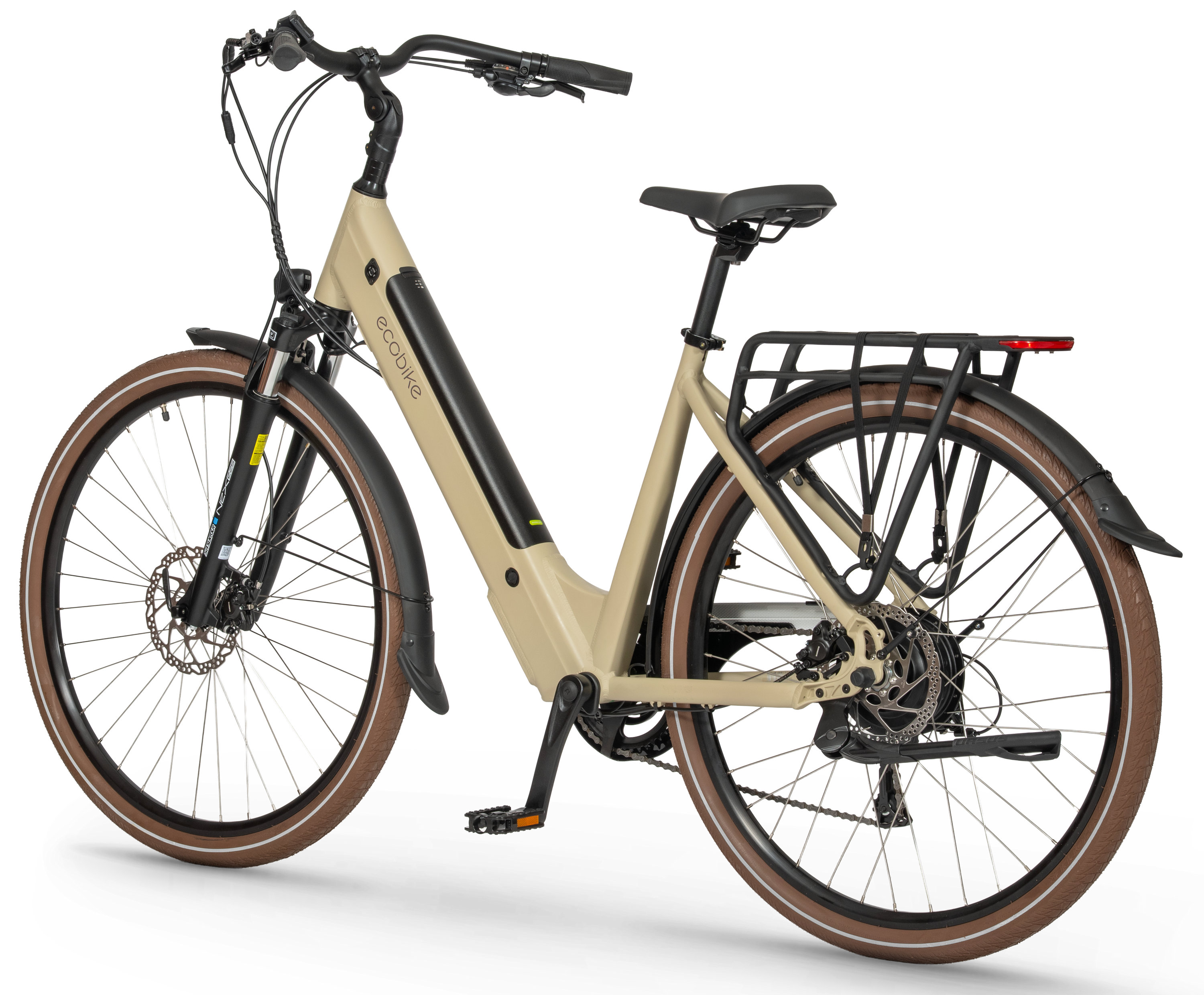

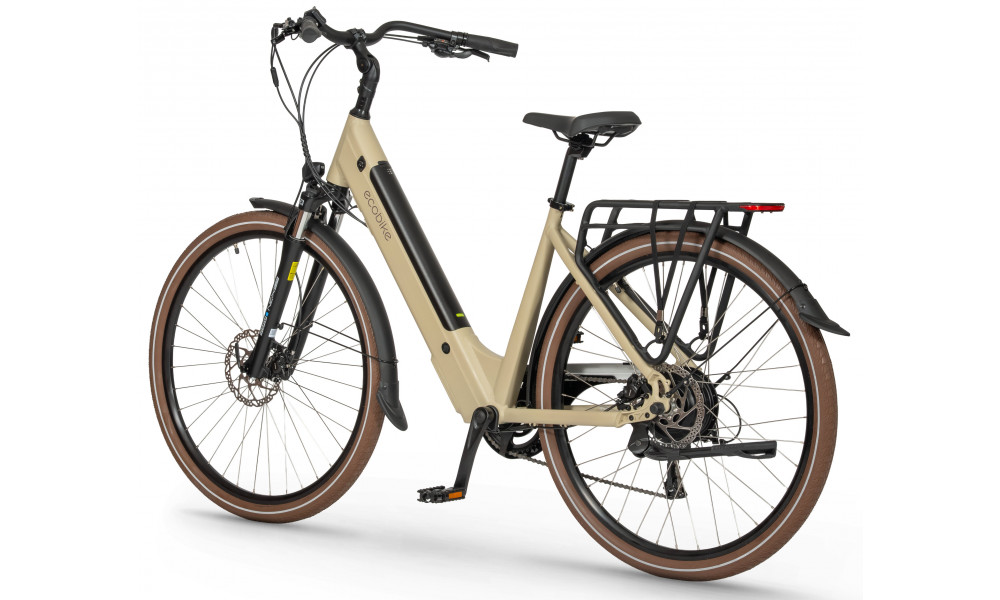

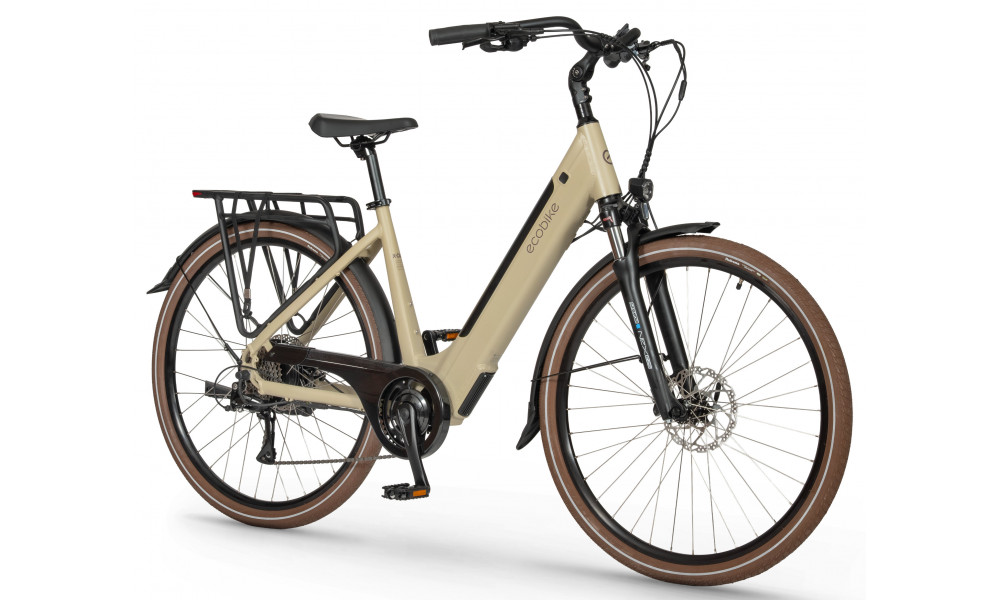

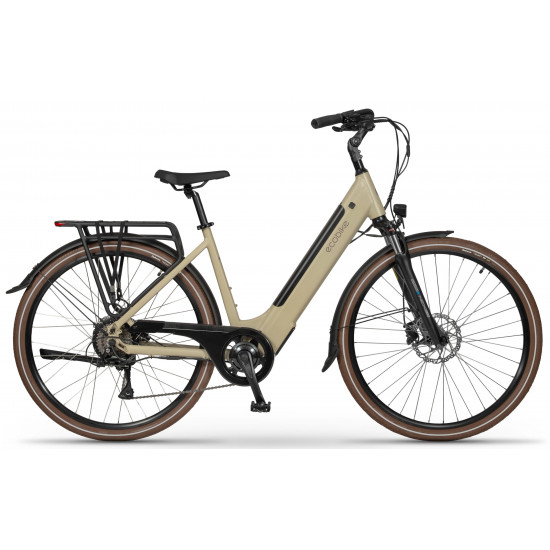

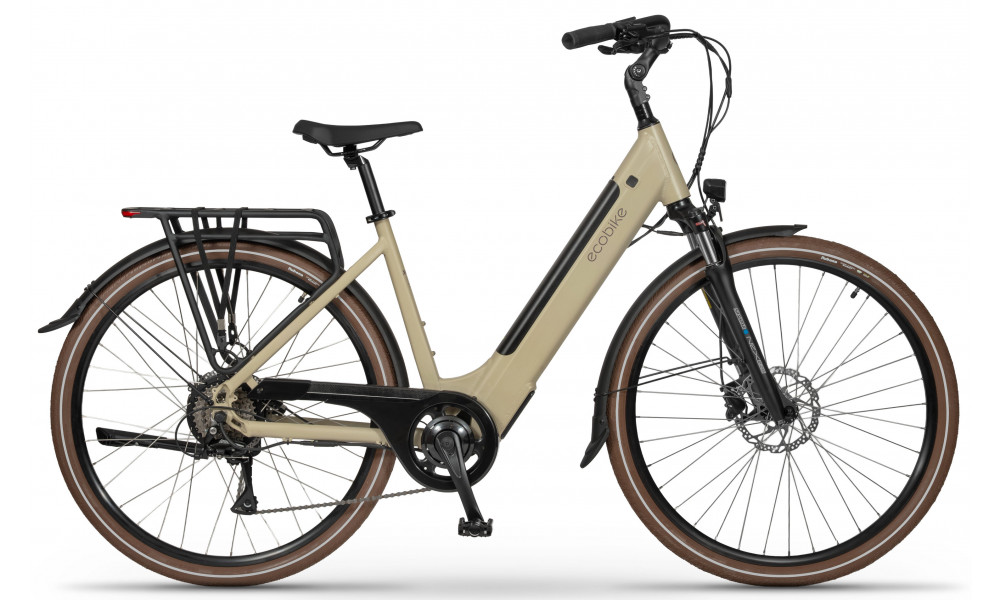

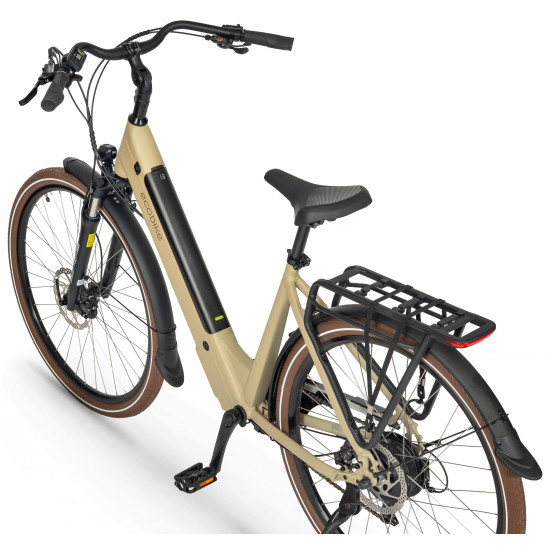

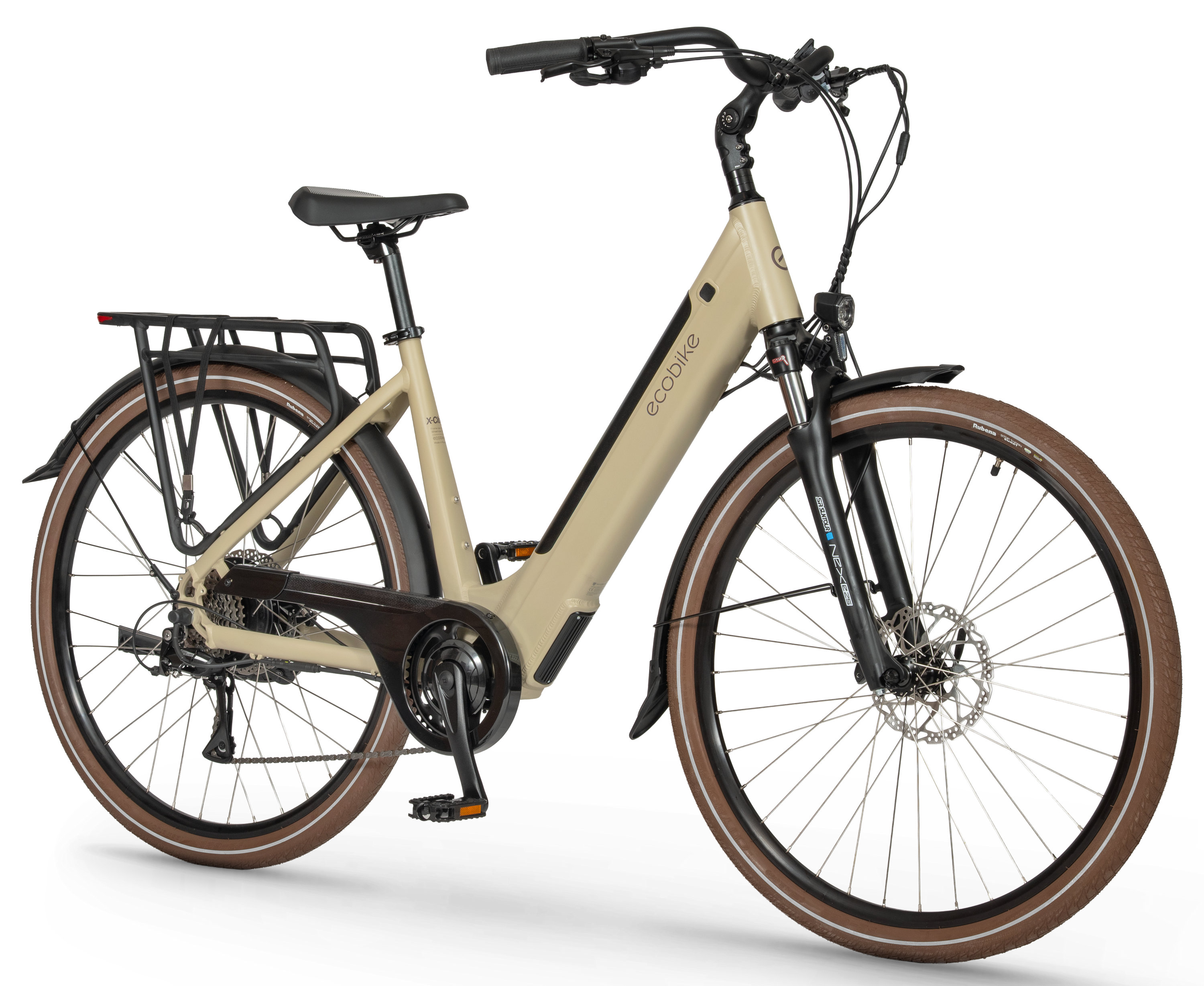

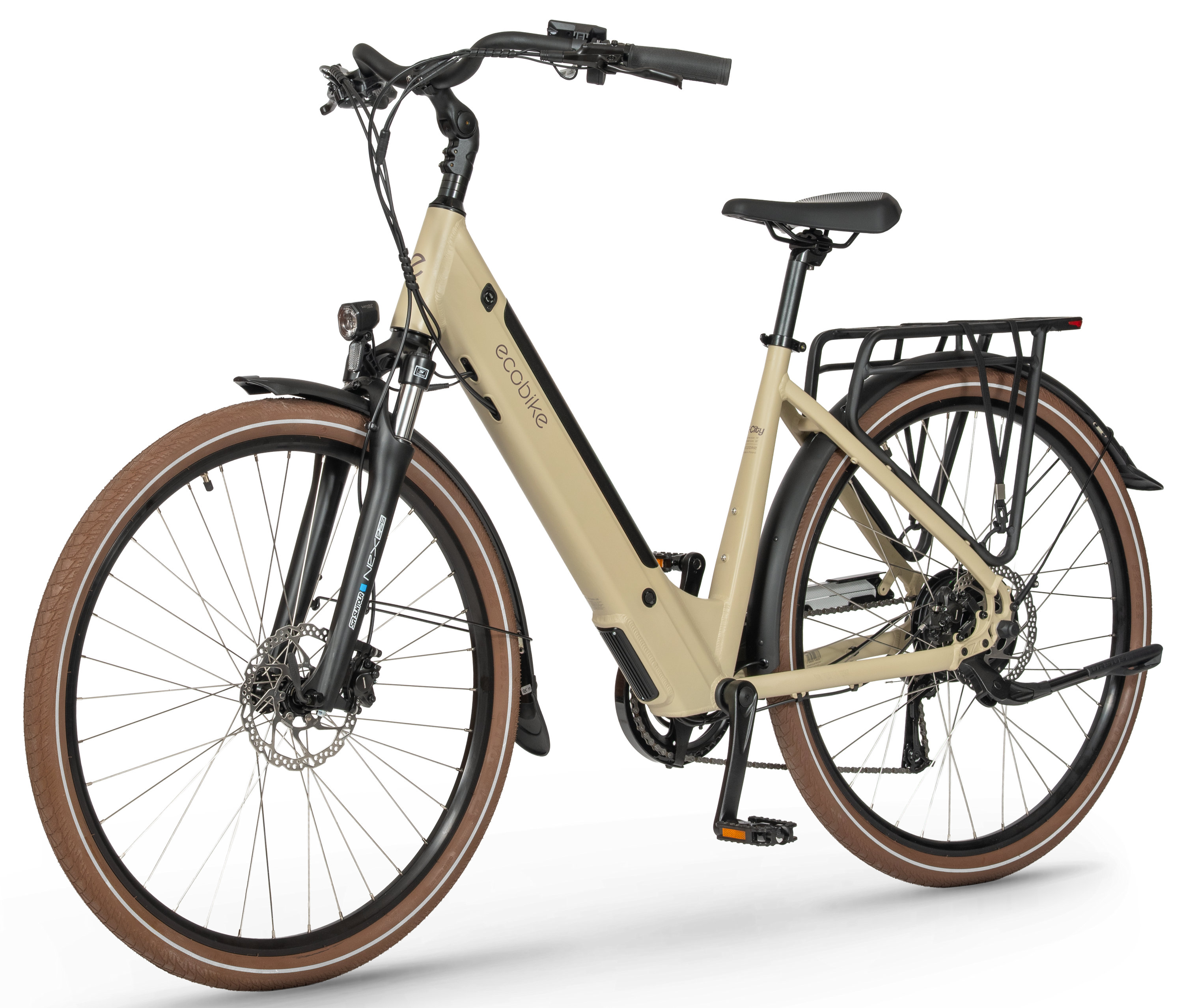

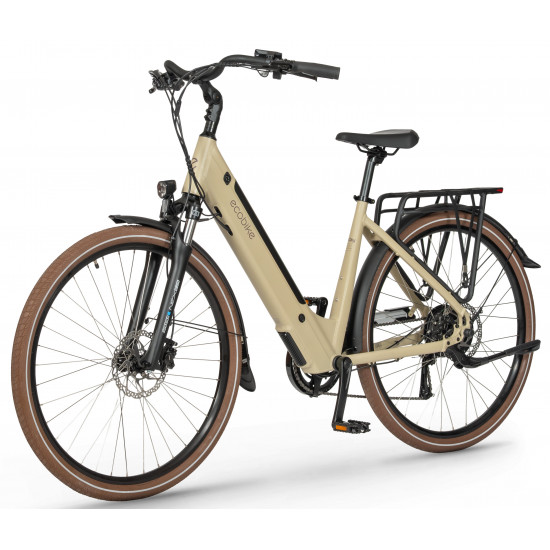

The city has its own rhythm: morning coffee, quick errands, an after-work meet-up, and trips out into the open air. Ecobike X-City is a city e-bike that helps you get there more comfortably, faster, and without getting out of breath - and it looks as good as its colors sound.
Although built for the urban jungle, X-City feels just as at home beyond it - on park paths, along the river, in green avenues, or during relaxed outdoor trips. Perfect when you want to swap asphalt for a bit of nature without giving up comfort.
Universal, comfortable, and ready for everyday life - it adapts to your day, not the other way around. Whether youre heading out just for a moment or taking a longer loop, X-City gives you freedom and enjoyment every time you ride.

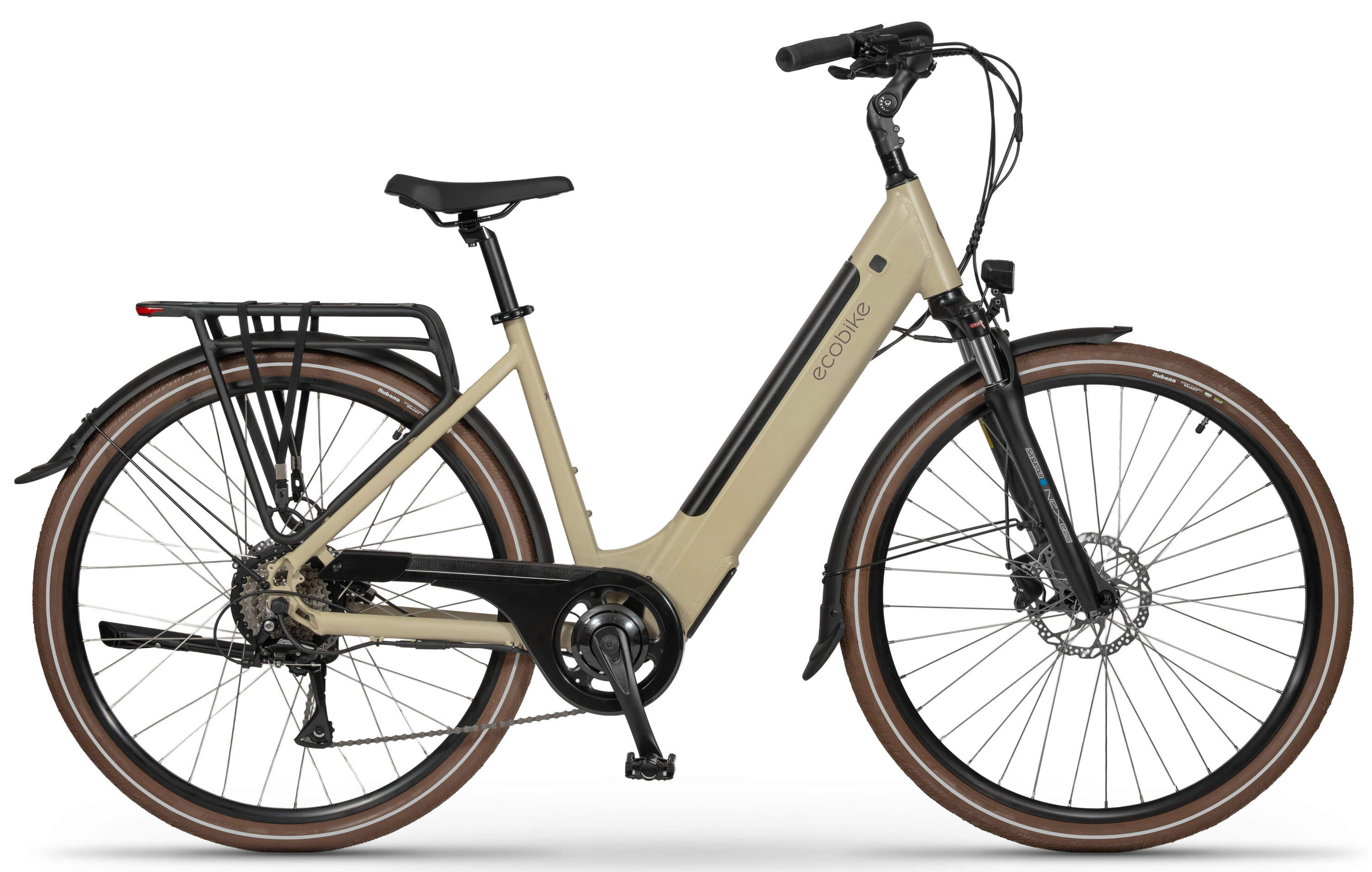

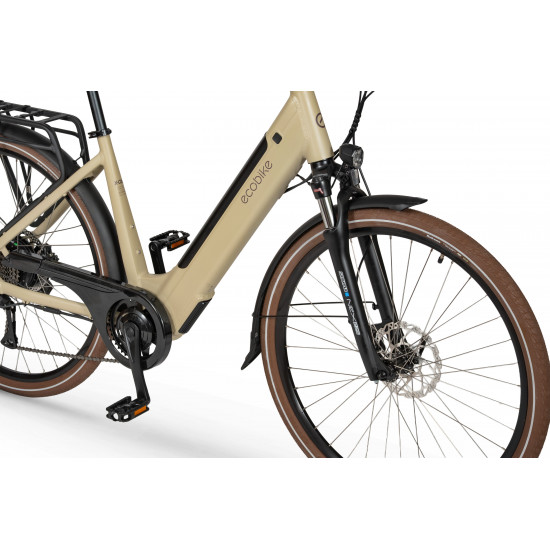

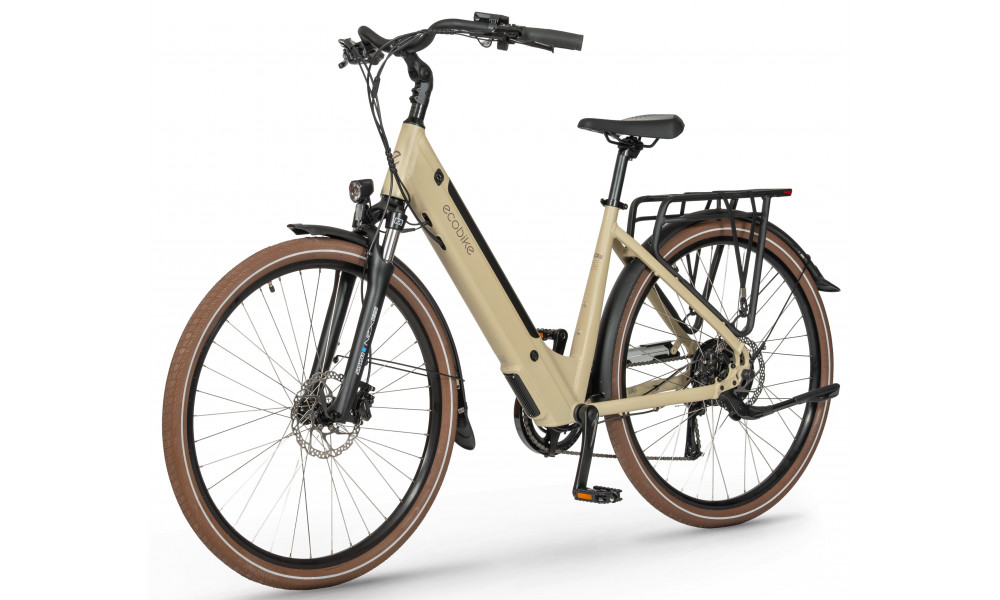

Product technical specifications

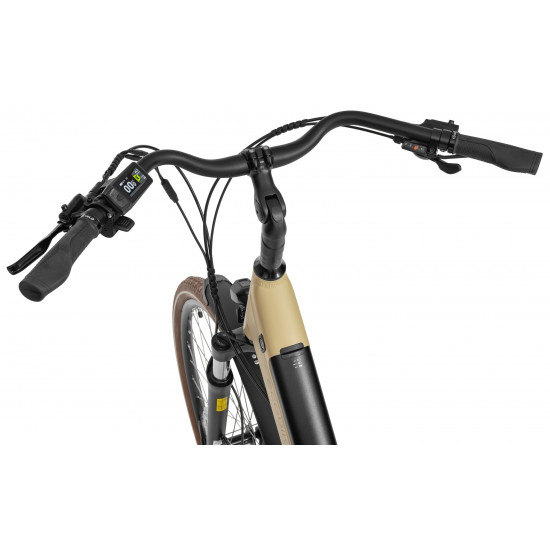

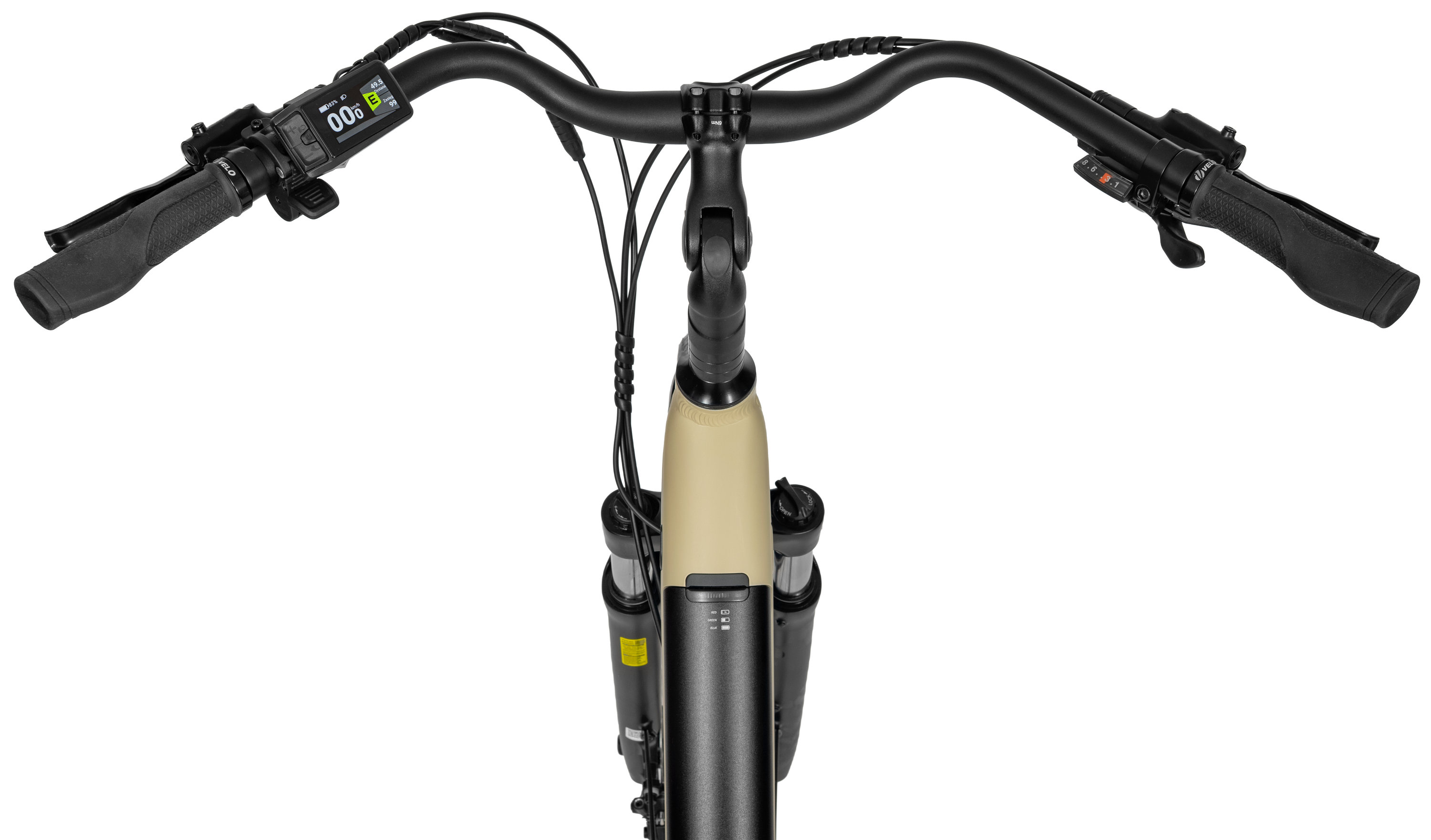

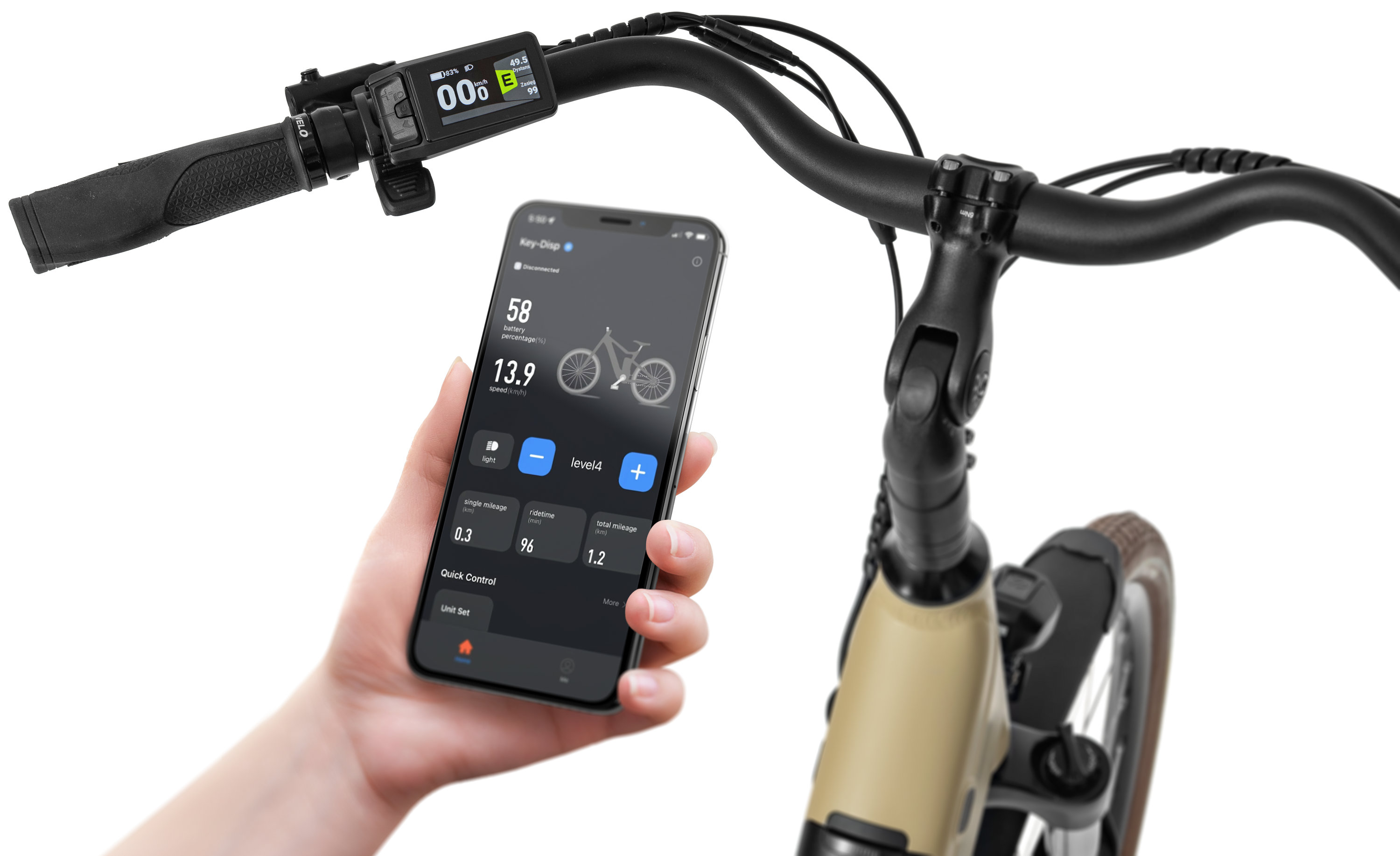

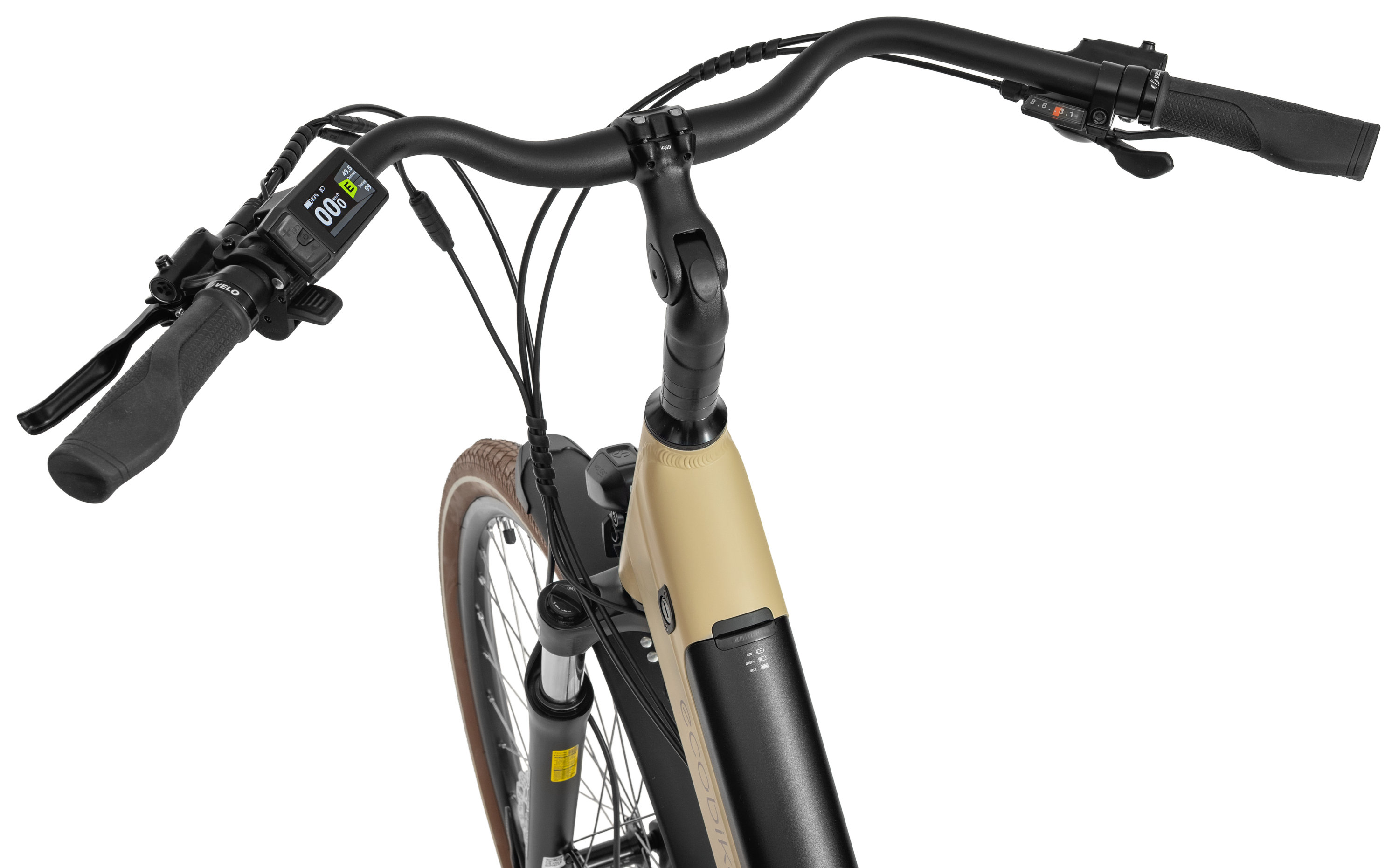

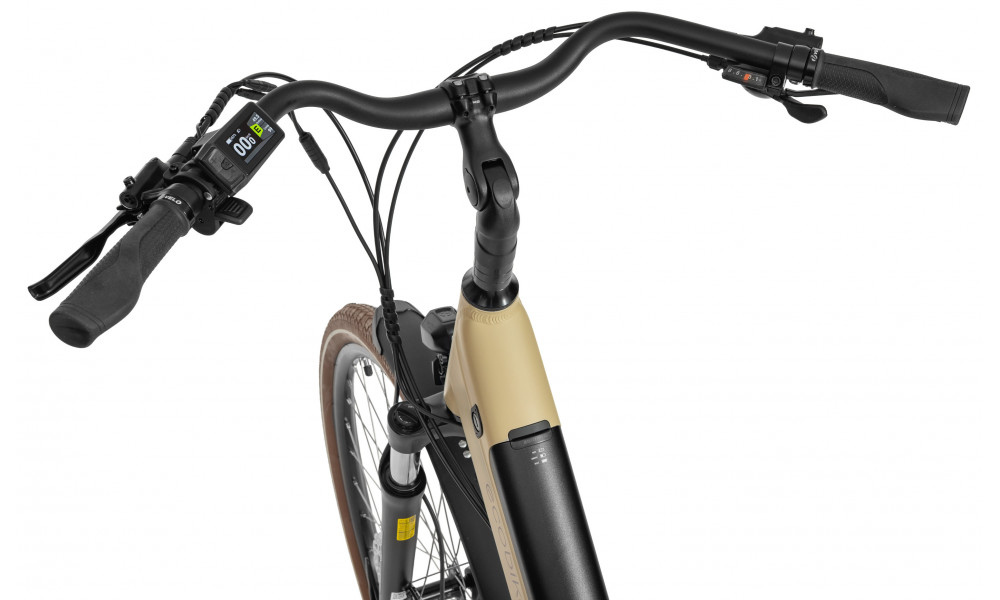

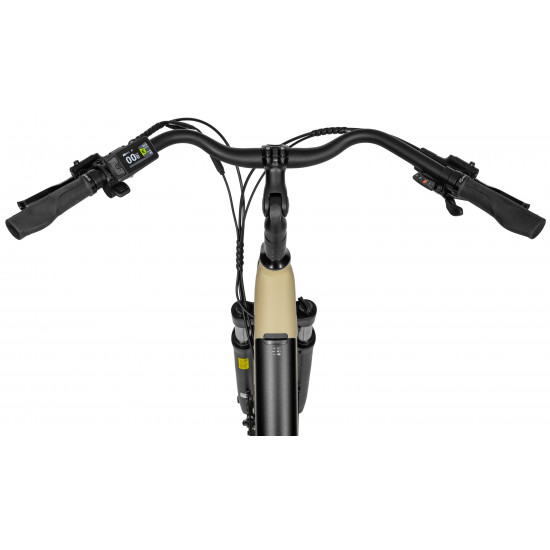

- Display model: DP C080
- Display type: Color LCD

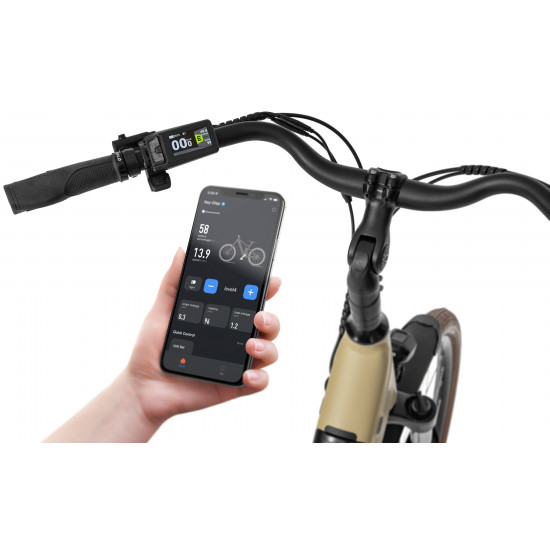

- Compatible application: Bafang Go
DISPLAY:
- Capacity and range:
- 504 Wh: MAX 140 km
- Voltage: 36V

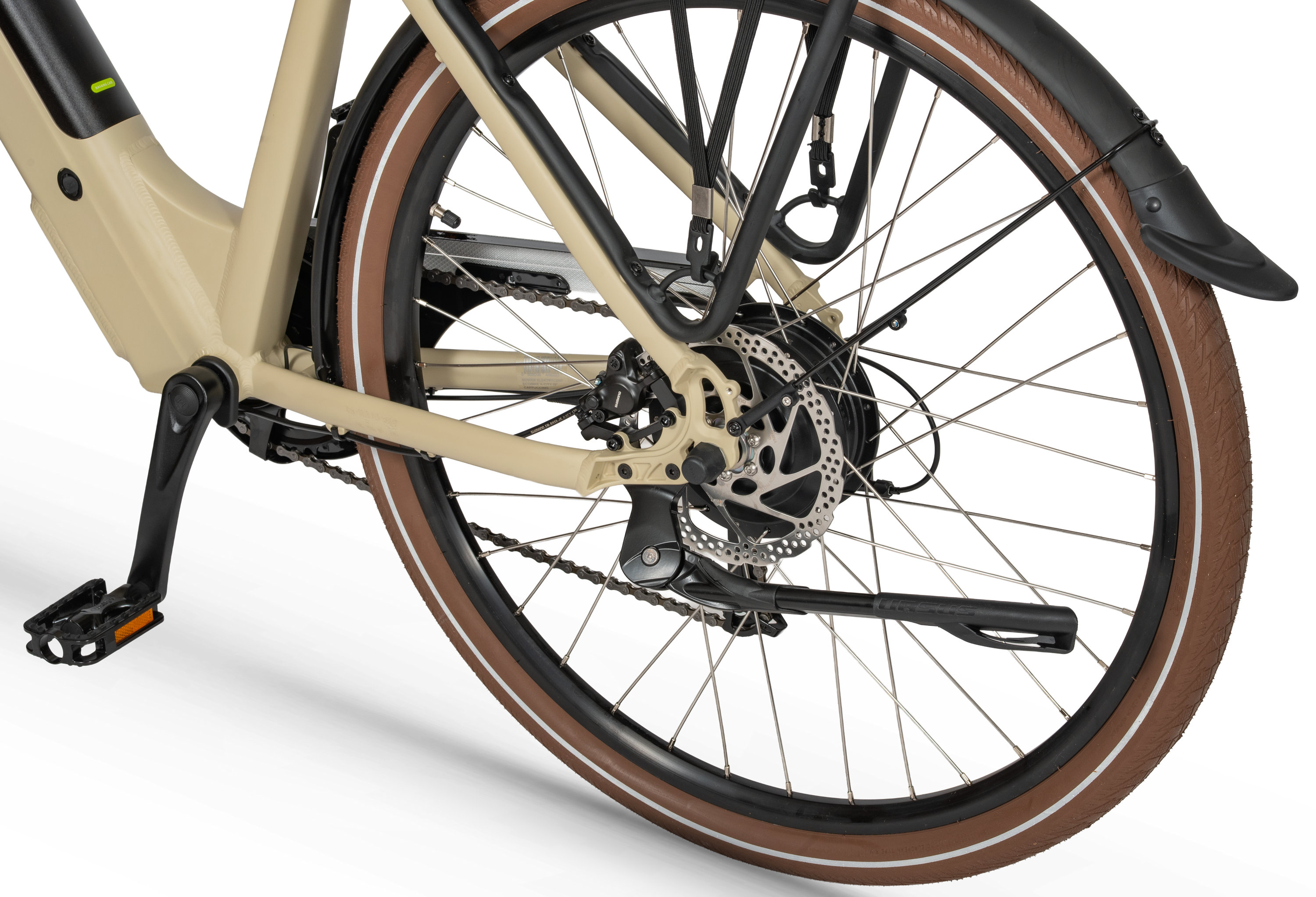

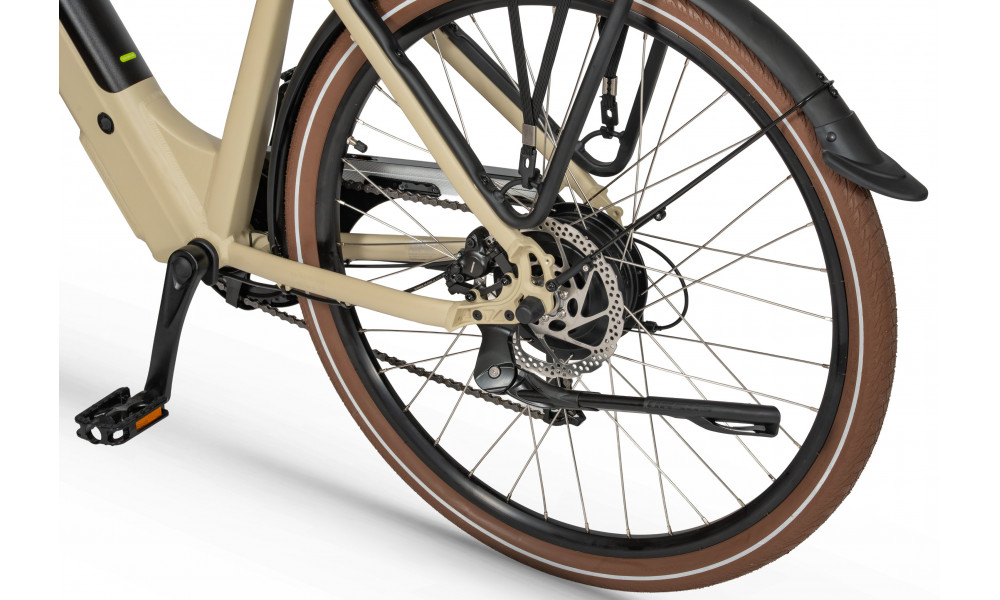

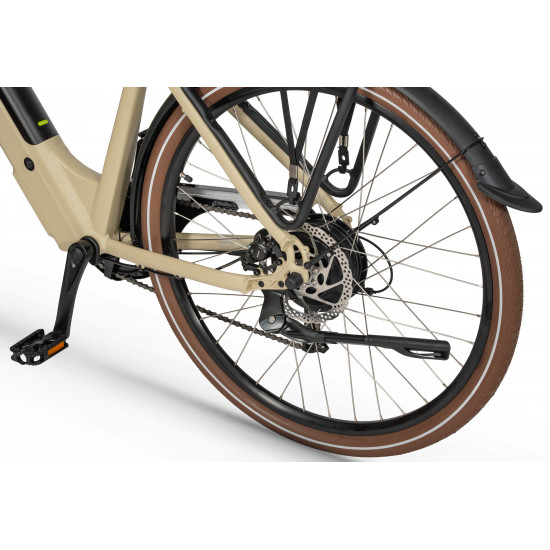

- Mount: rear wheel hub
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 45Nm
- Motor's brand: BAFANG
- Power: 250 W
- Lifespan: 700 charges
- Type: Li-Ion
- Voltage: 36V
- Charger: 100-240V / 42V 2A
- Cells brand: LG
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 4-8 hours

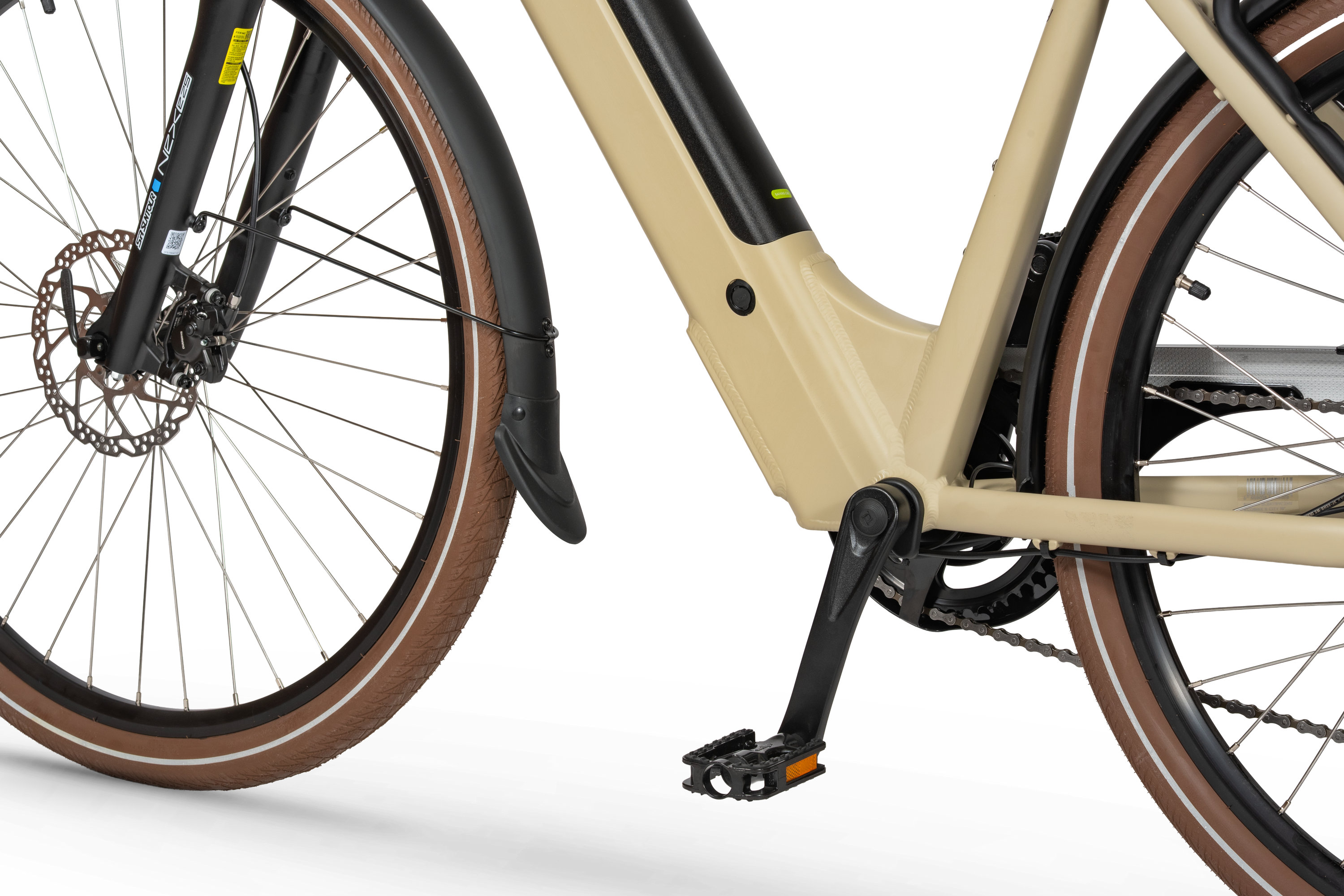

- FRAME: Hydroformed aluminium
- FRAME SIZE: 19"
- FORK: SR Suntour SF15 NEX-E25 LO, travel: 63 mm, suspension
- BRAKES: Shimano MT200 hydraulic disc

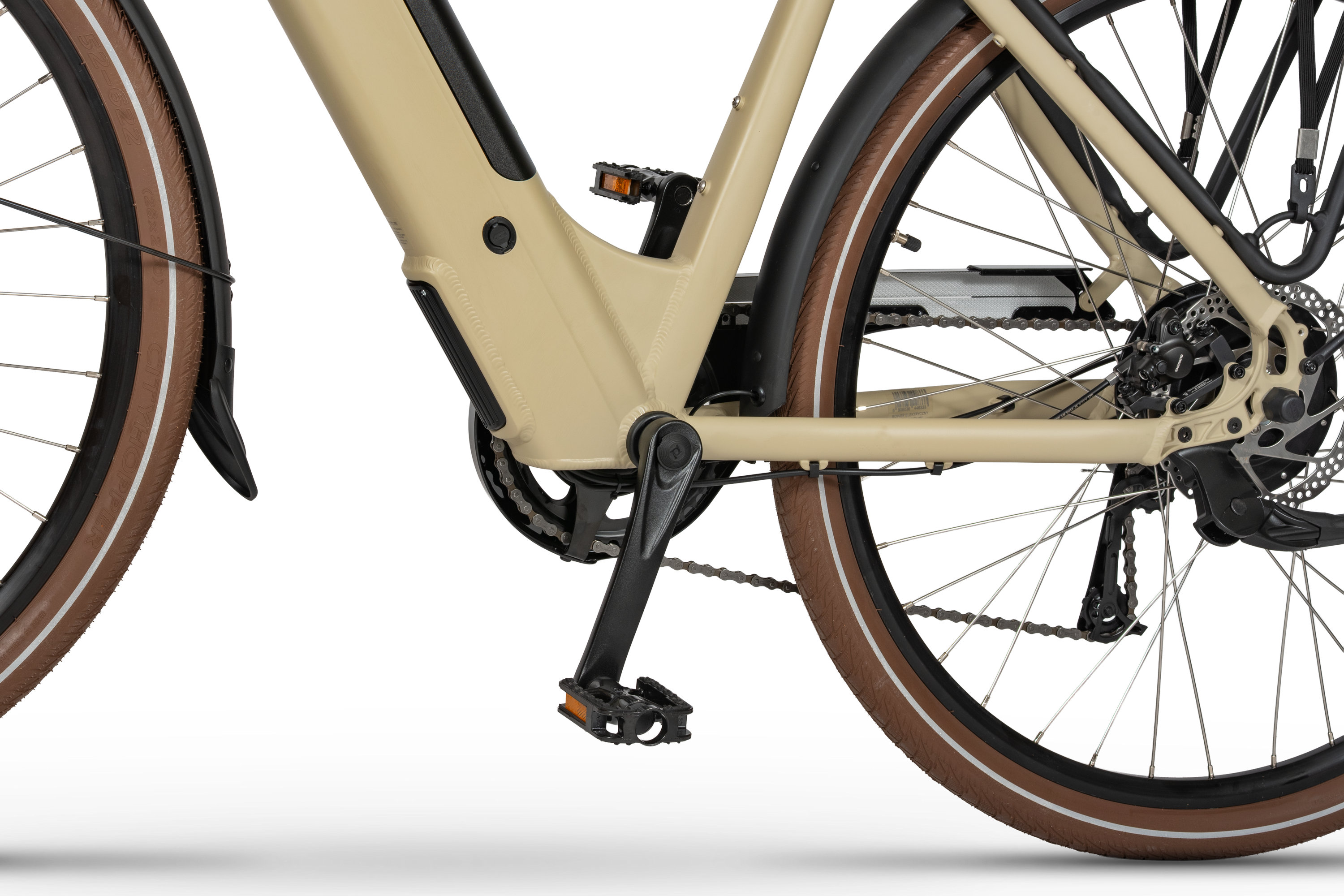

- CHAIN: KMC z7, 116L
- CHAINWHEEL: Prowheel PRO-A44, 44T
- REAR DERAILLEUR: Shimano Acera 8-speed
- FREEWHEEL: Sunrace MFM3, 13-32T, 8-speed

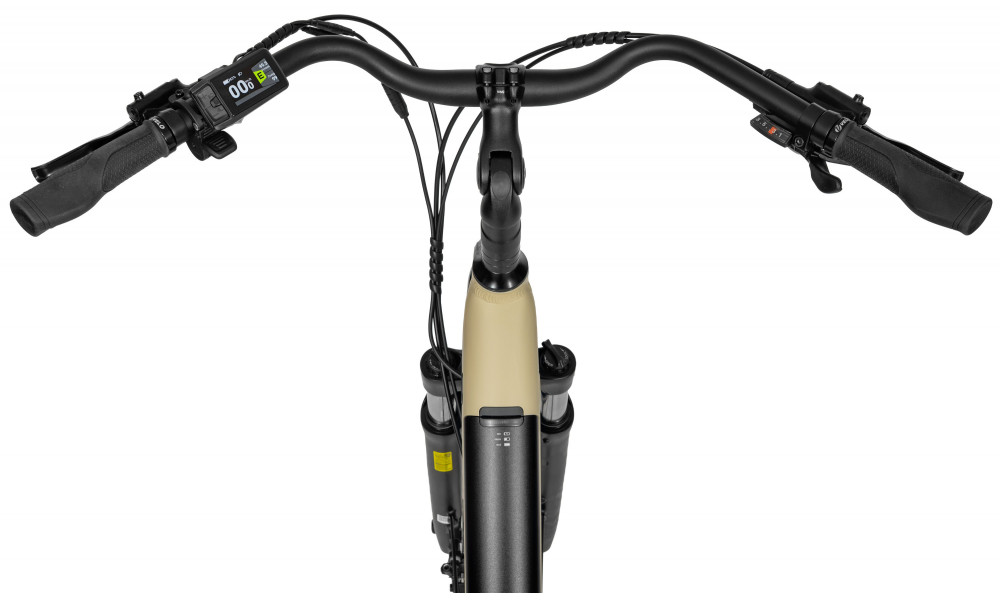

- HANDLEBAR: Promax, 700 mm x 31.8 mm
- STEM: Promax MA-595, 31.8 mm / extension 90 mm
- HUBS: Front hub: Shimano HB-TX505, 36H, 100W, QR / Rear Hub: N/A
- PEDALS: WELLGO LU-C33
- RIMS: 28" reinforced three-chambered rims, Sapim spokes
- SADDLE: DDK
- SEAT POST: Promax SP-252, diameter: 27.2 mm, length: 350 mm
- SHIFTERS: Shimano Altus 8-speed
- TYRES: 28" x 1.95 TRC Indigo / 28" x 2.0 Mitas Cityhopper
- WEIGHT: 26.2 kg
- SPEEDS: 8
- MUDGUARDS: For front and rear wheel, with u-stays
- GRIPS: VELO VLG-1985D3
- KICKSTAND: Rear, adjustable length, aluminium
- CARRIER: Aluminium, max.: 25kg, with carrier straps

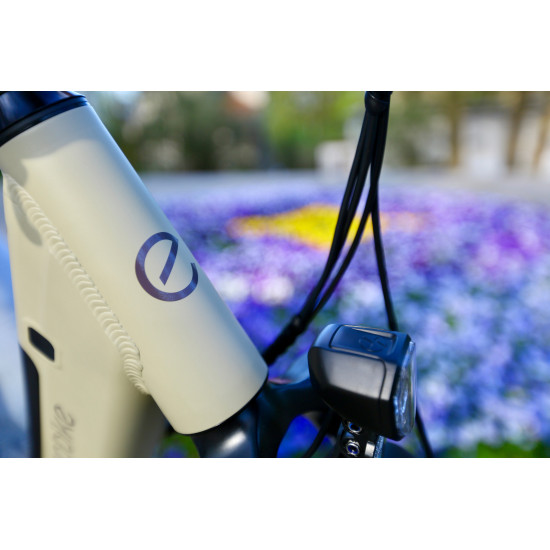

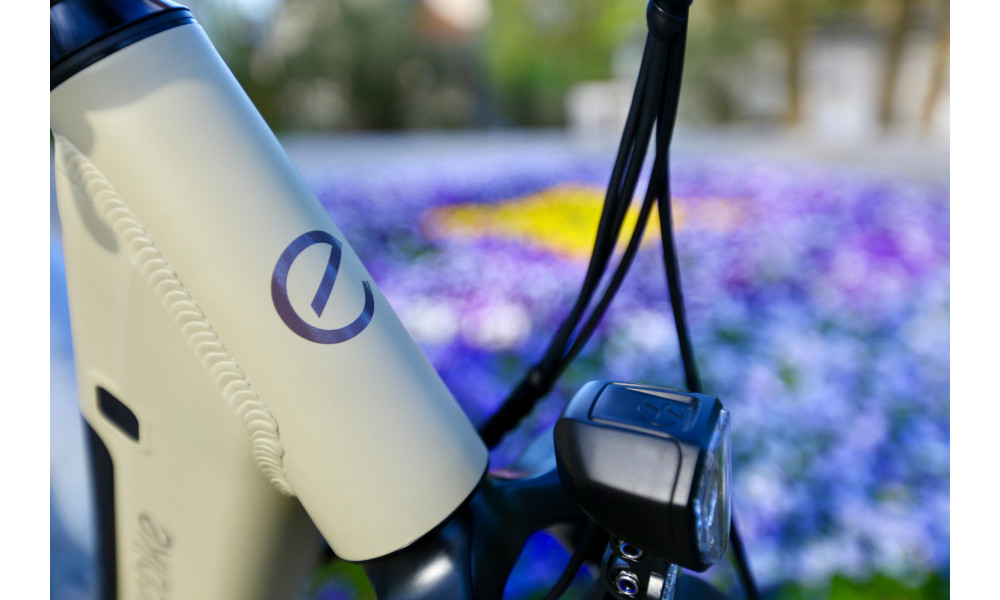

- LIGHTS: Rear Light: Spanninga GLOW STOP / Front Light: Spanninga Kendo XE 6-36V
- Effective top tube length: 605 mm
- Head tube lenght: 160 mm
- Frame size: 482.3 mm
- Wheel base: 1135.6 mm
- Seat tube angle: 73
- Headset angle: 69
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
DISTANCE:
ENGINE:
BATTERY:
GEOMETRY:
Pyörä lähetetään valmistajan alkuperäisessä pakkauksessa (etupyörä, ohjaustanko ja satula ovat yleensä irrotettuina), mikä varmistaa tuotteen turvallisuuden varastointi- ja kuljetusvaiheessa. Kun ostaja hankkii pyörän sellaisessa pakkauksessa, hän itse tai valitsemansa pyörähuollon ammattilainen on vastuussa asianmukaisesta pyörän kokoamisesta, säätämisestä ja käyttöönotosta.
