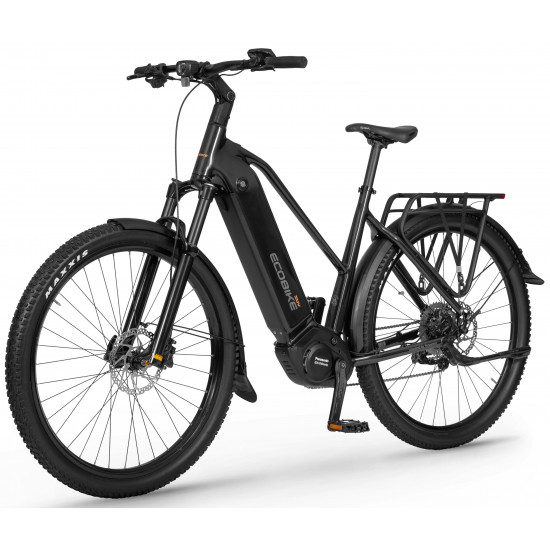

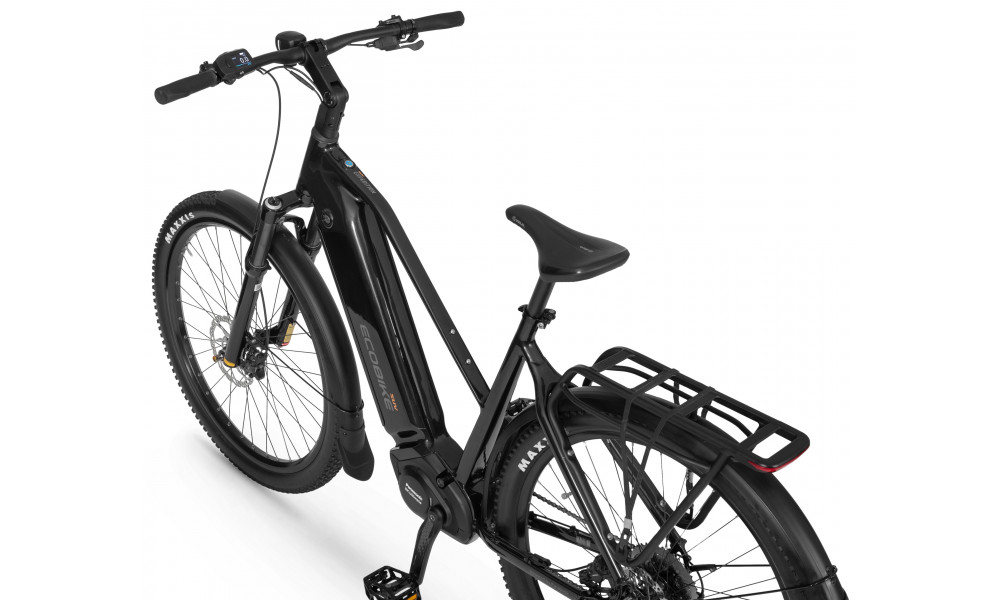

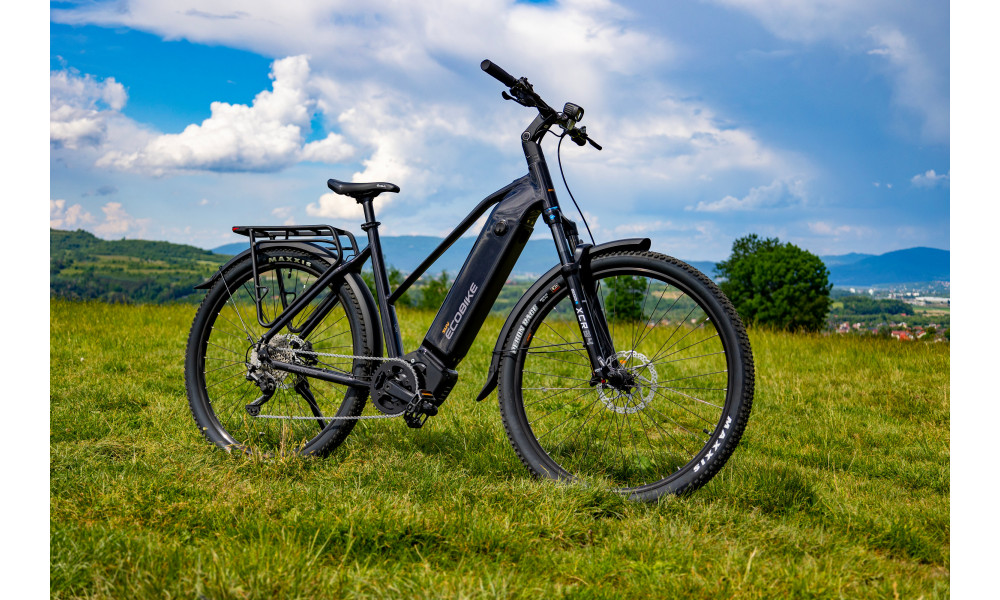

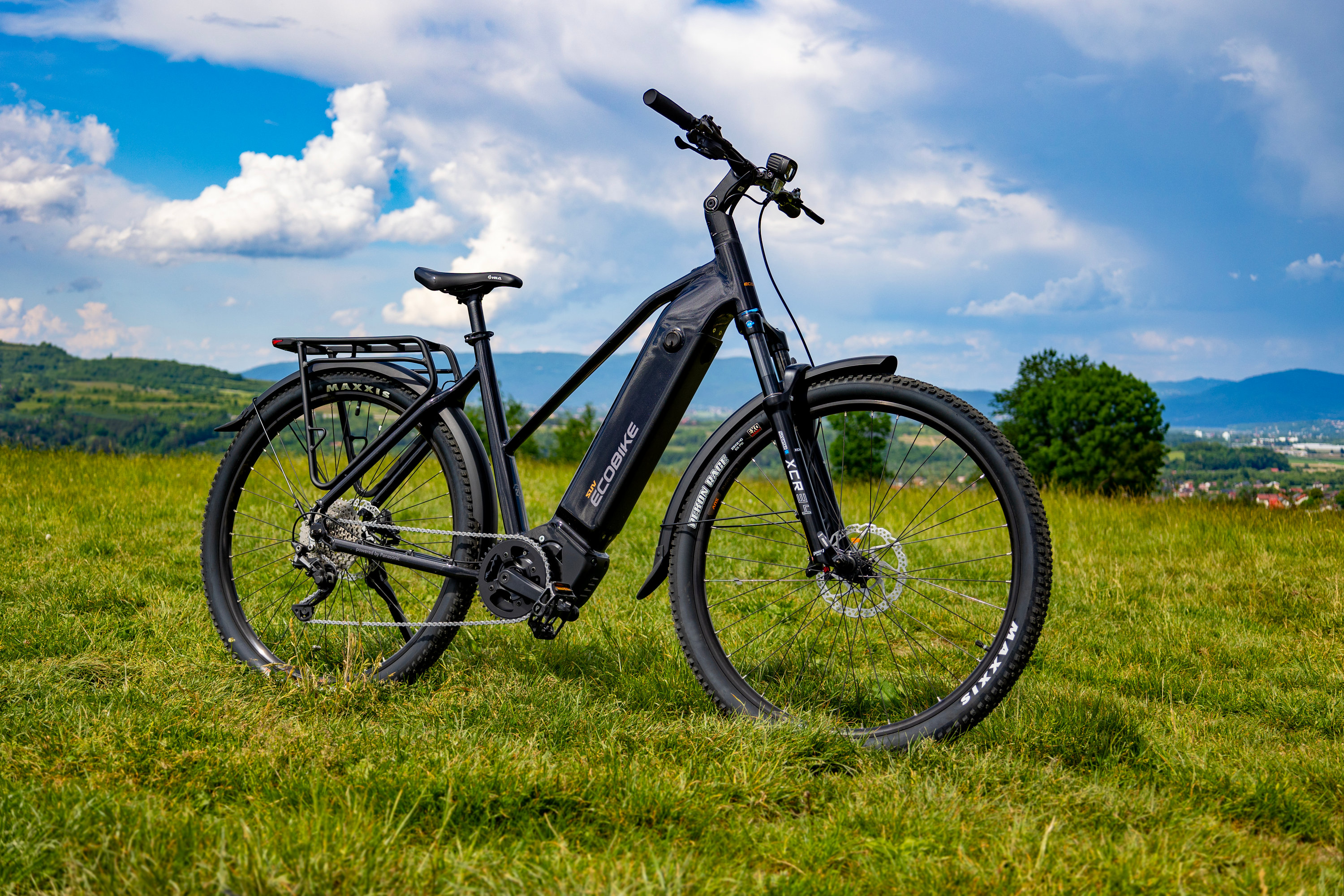

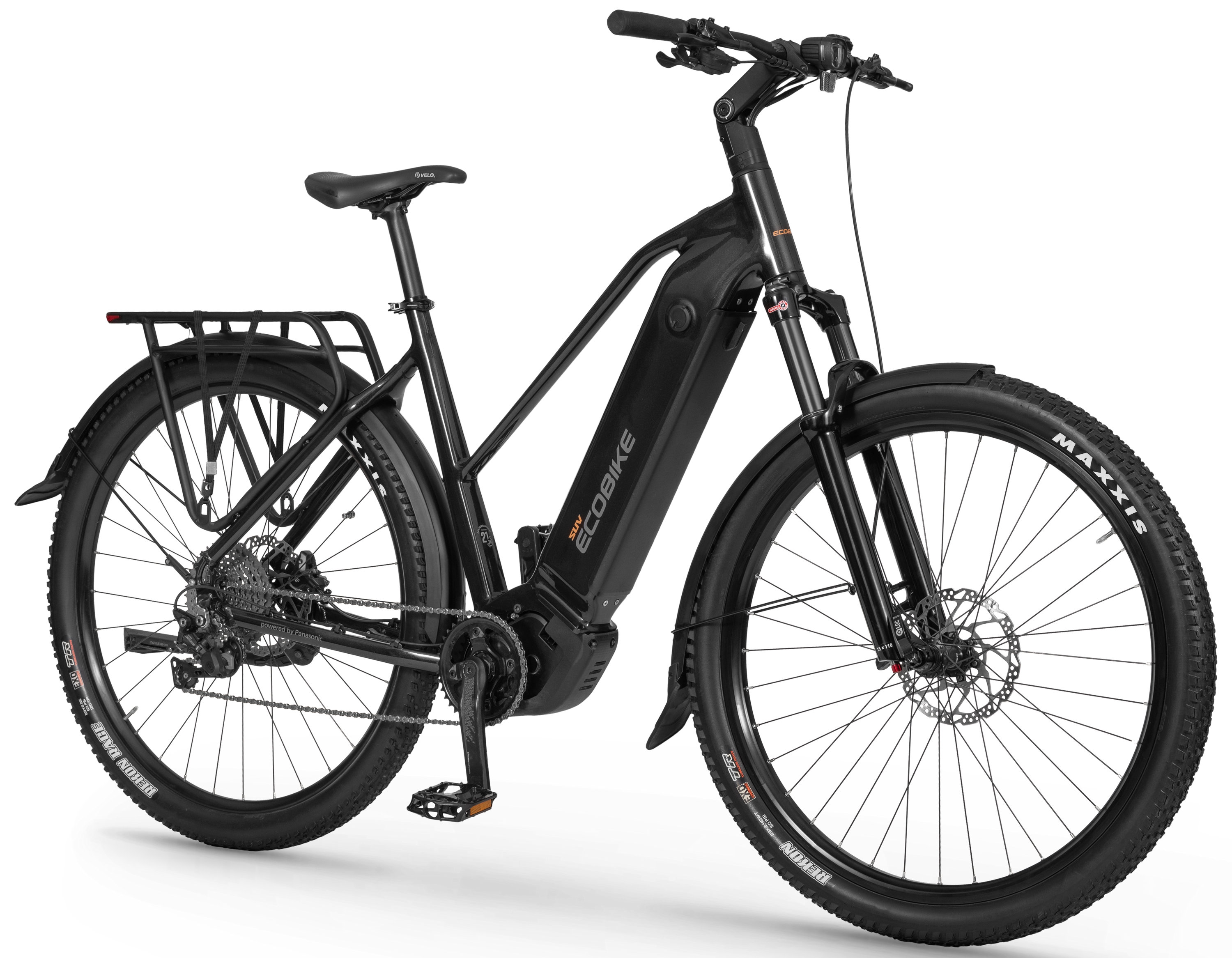

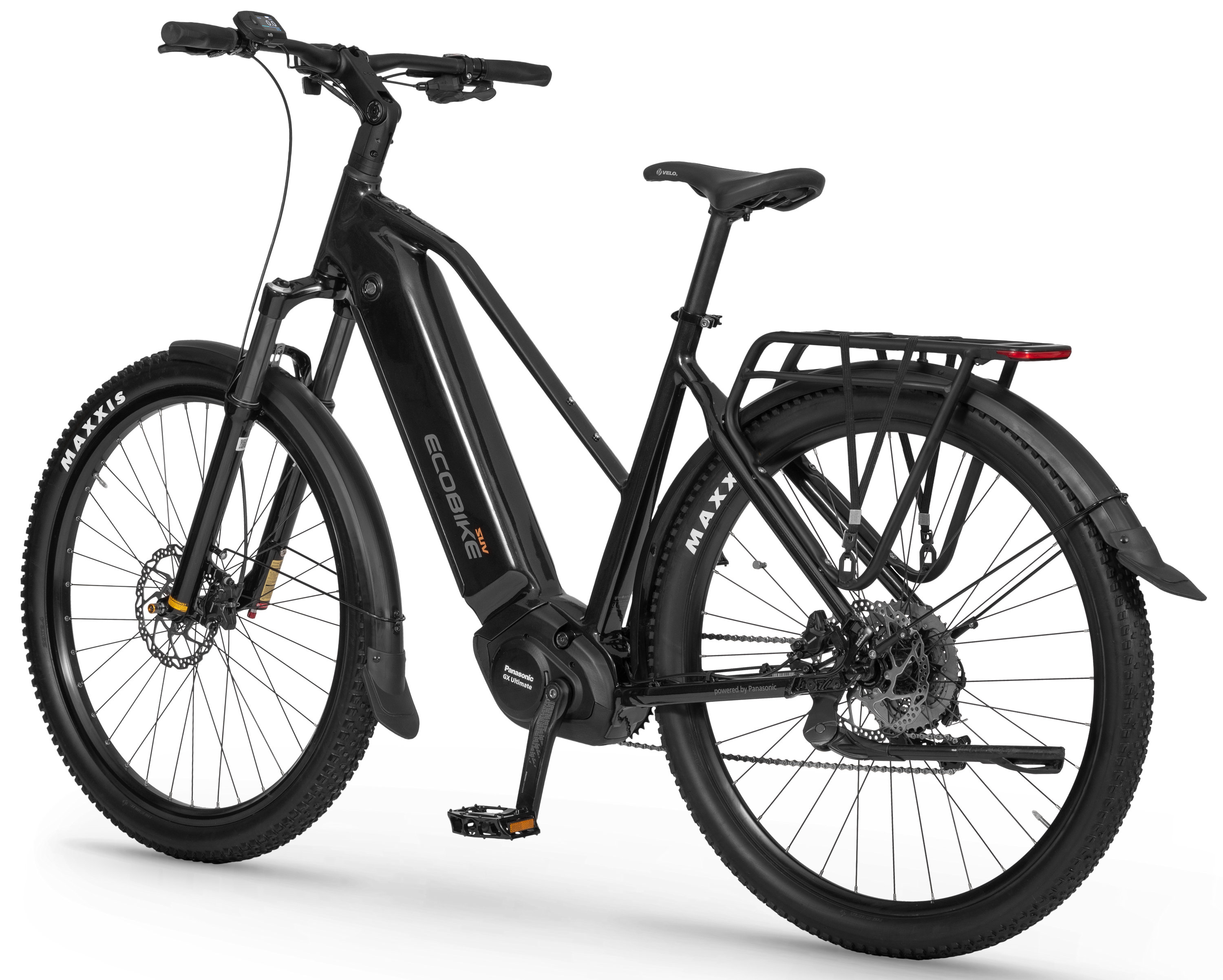

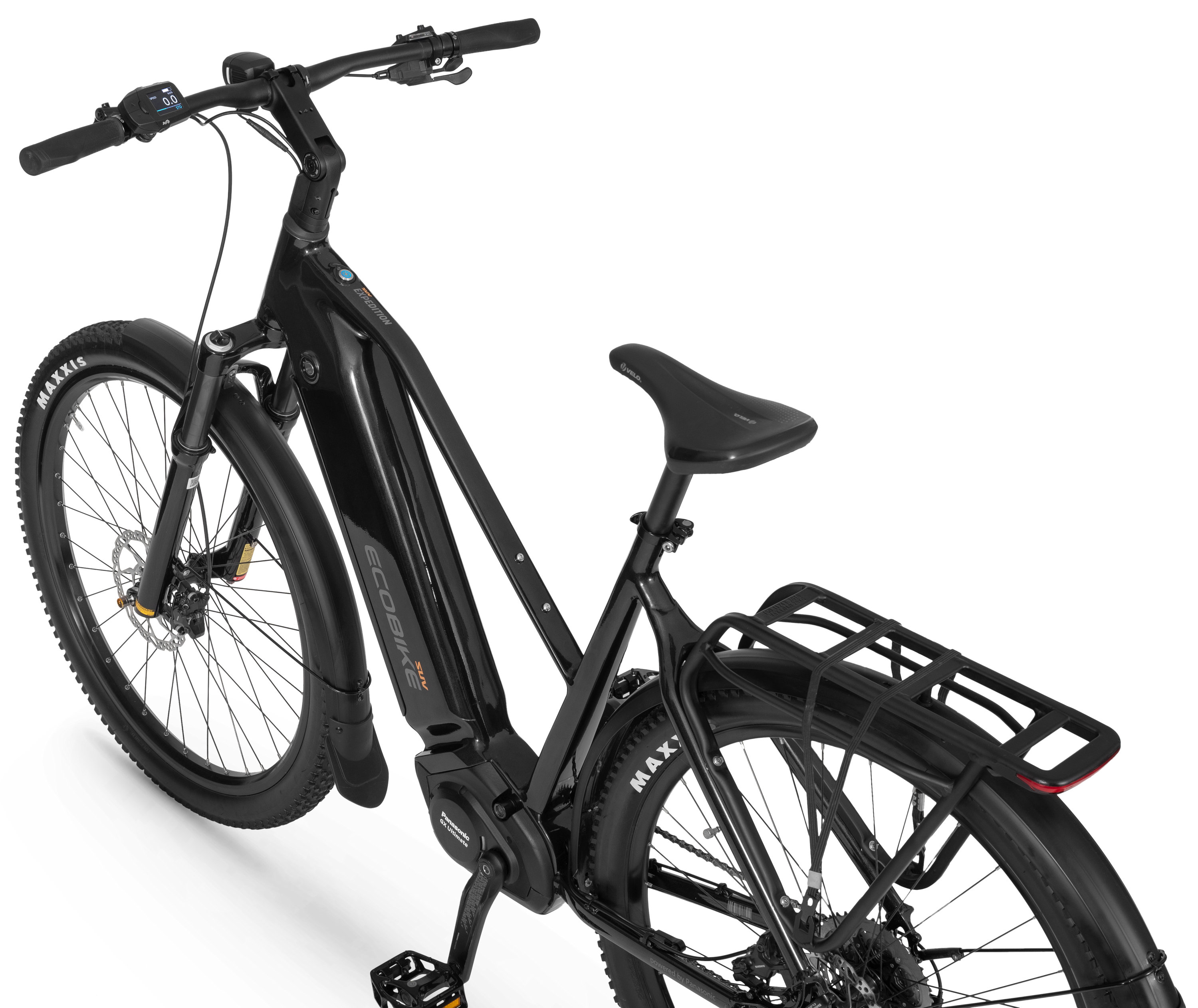

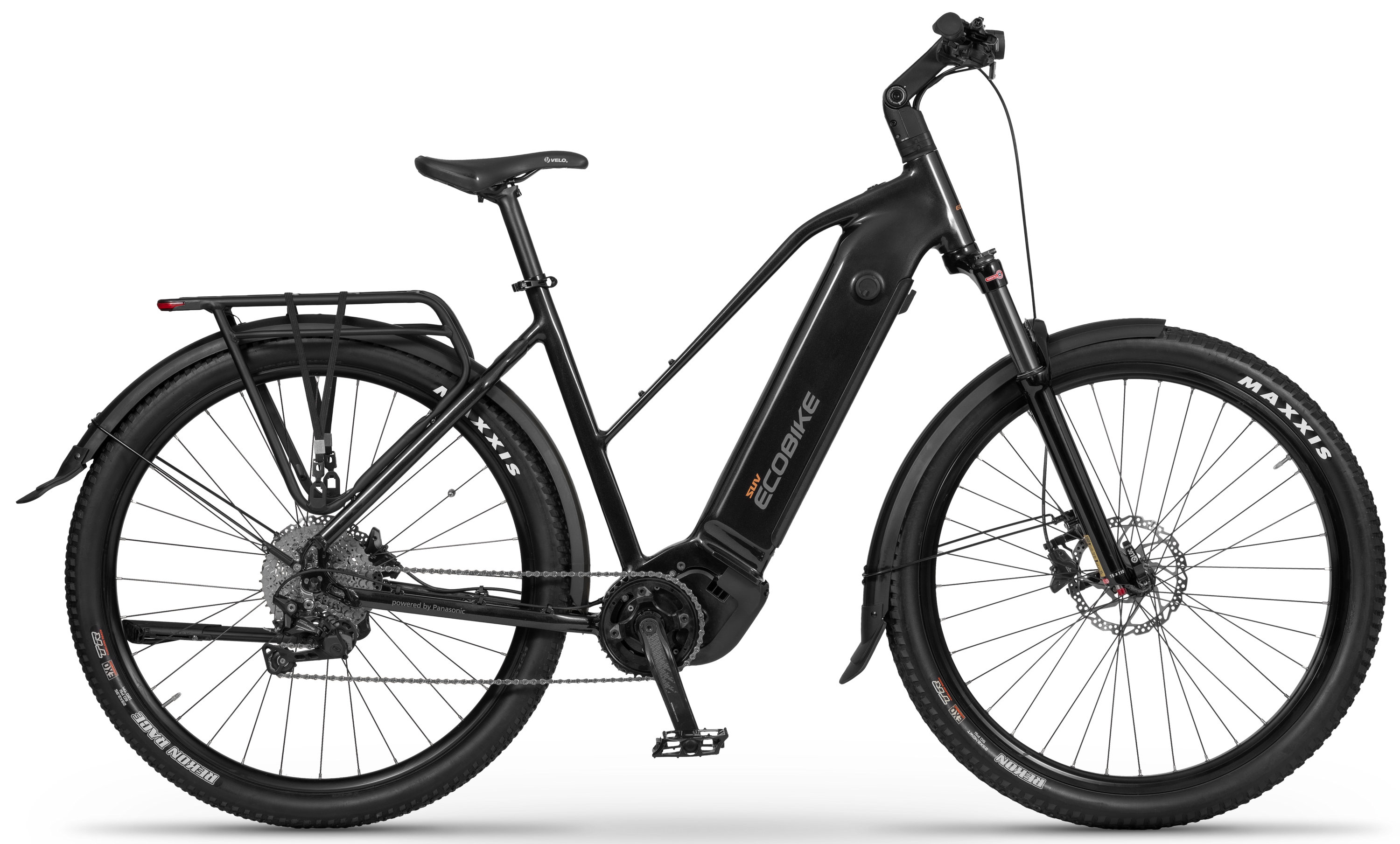

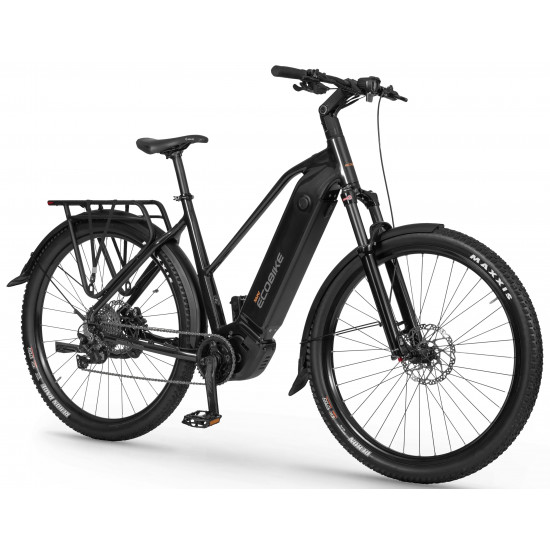

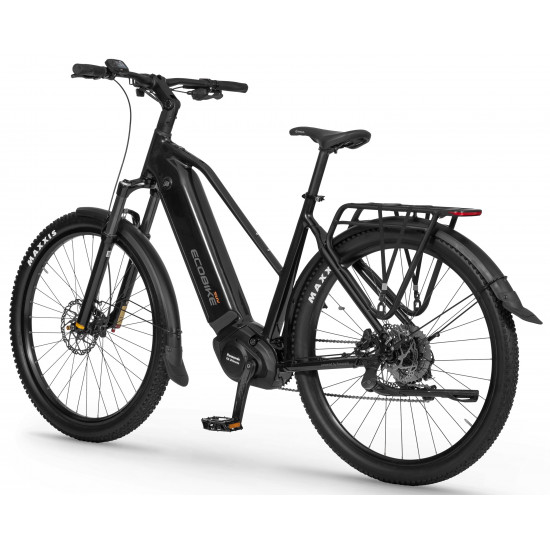

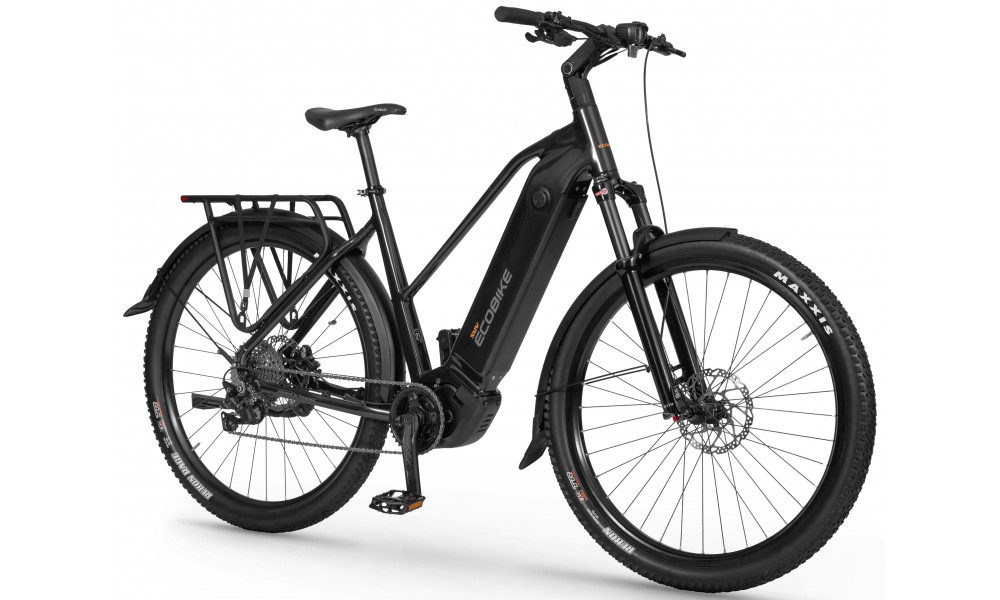

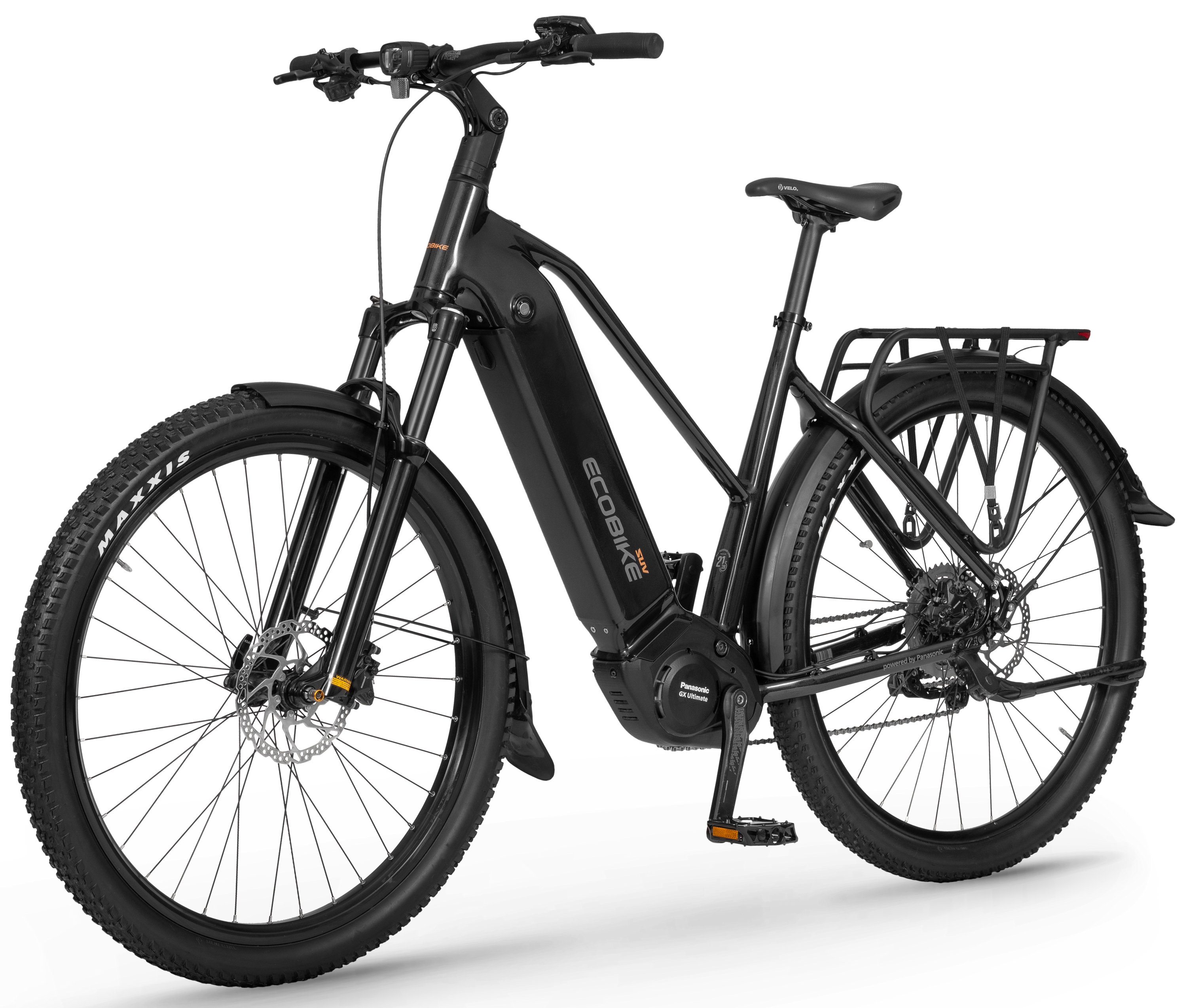

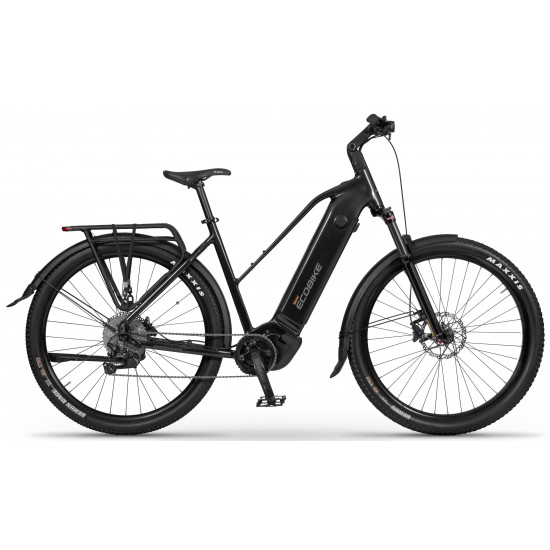

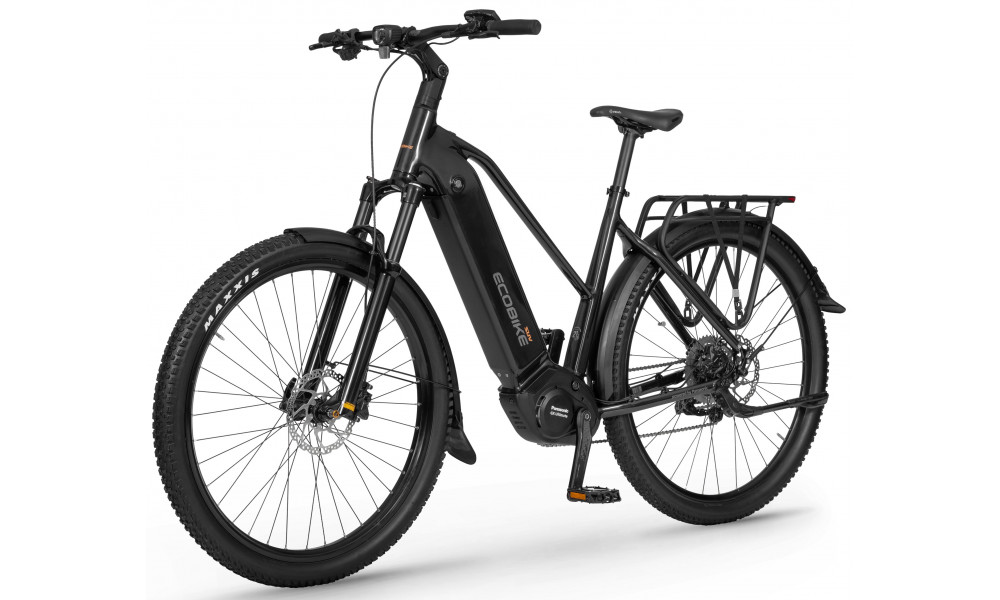

Introducing the latest gem in the Ecobike lineup, an SUV bike packed with a host of incredible features:

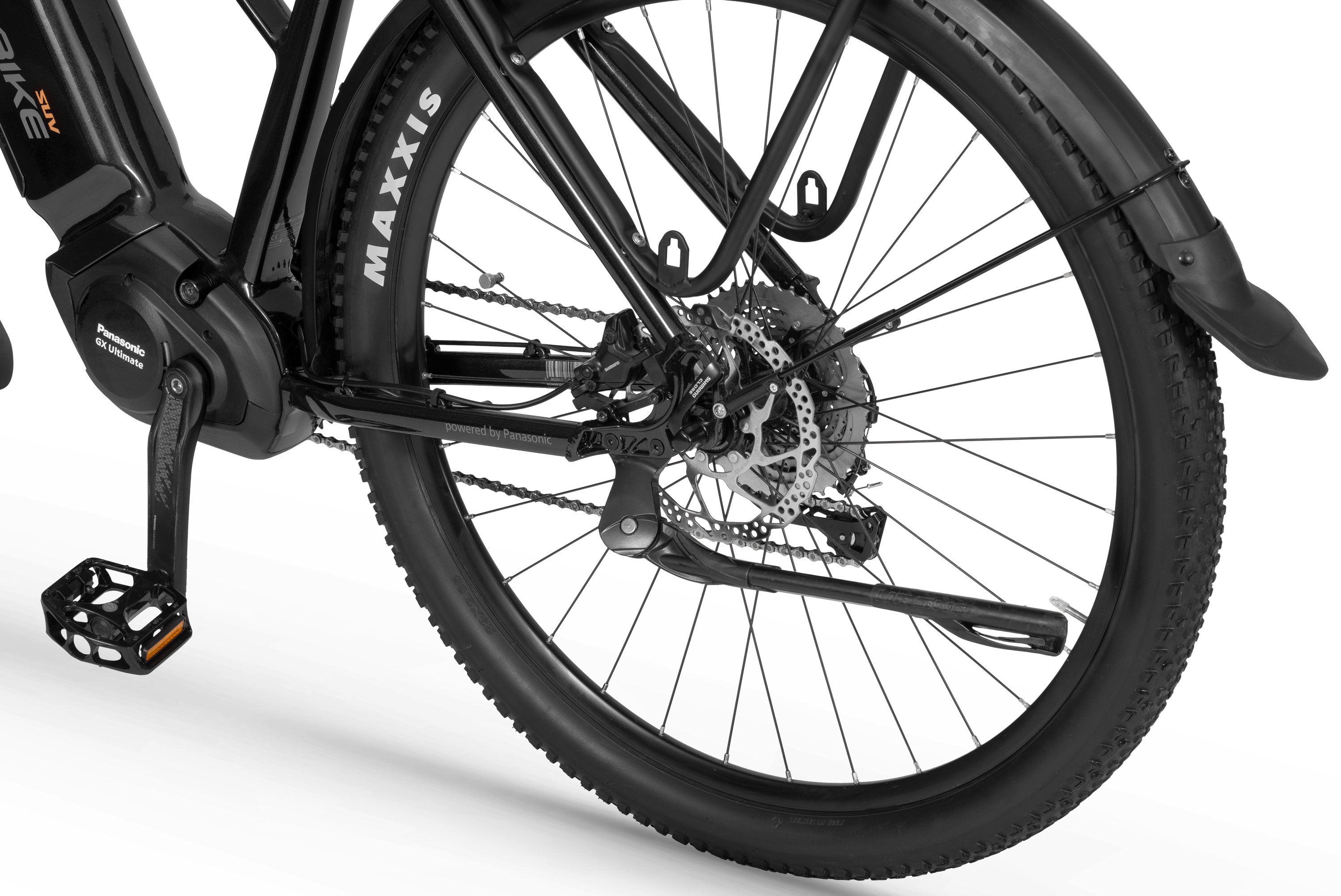

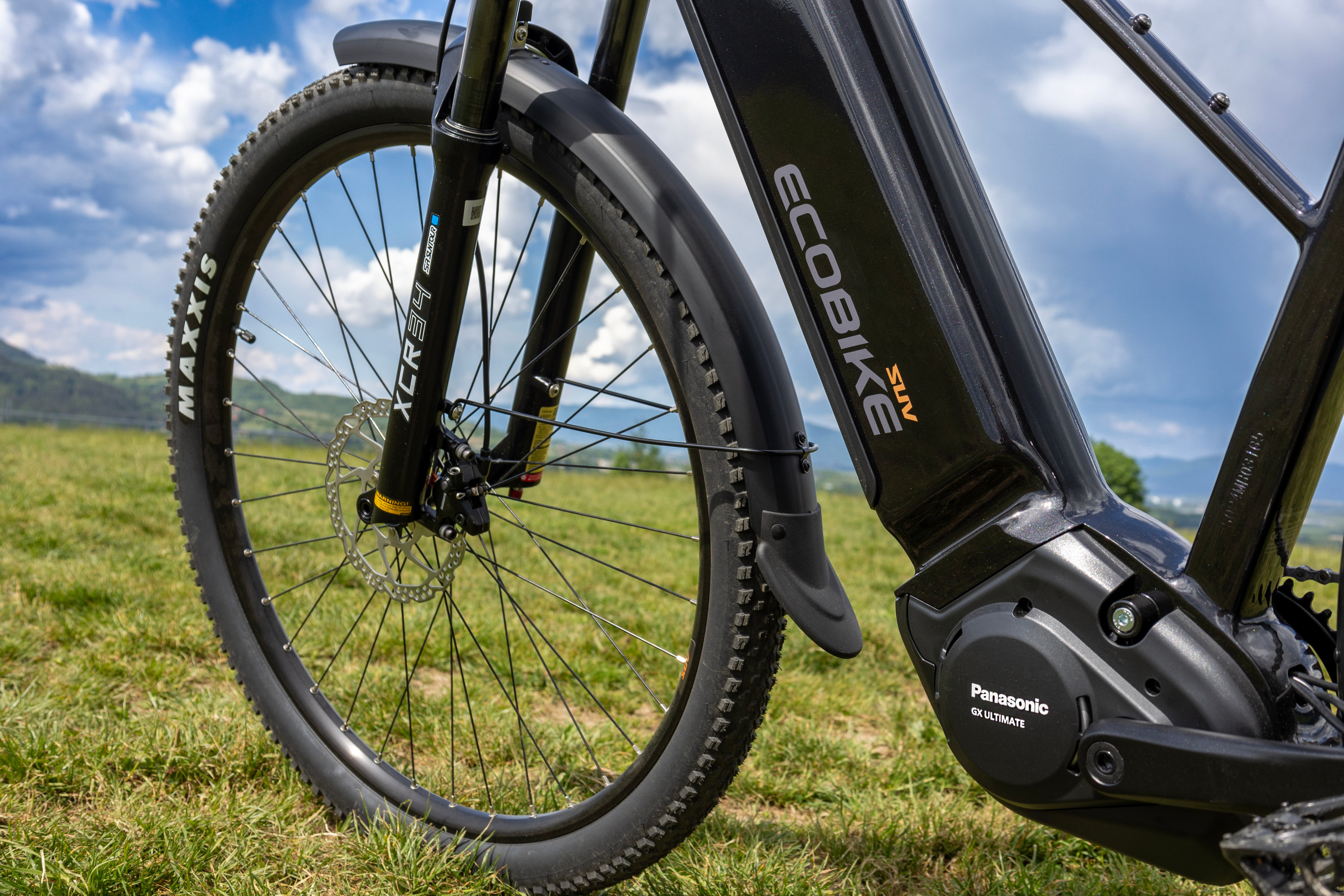

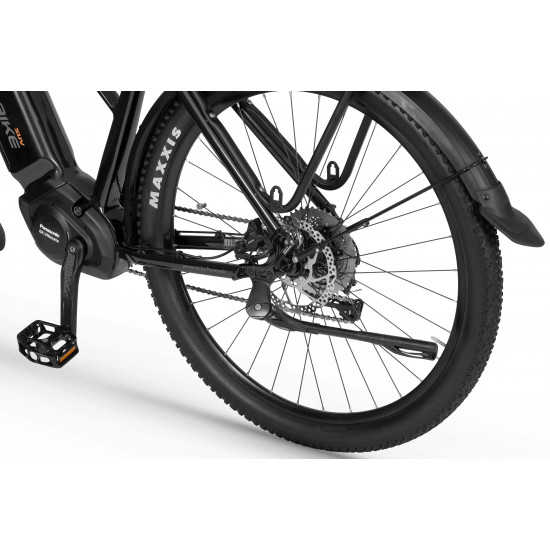

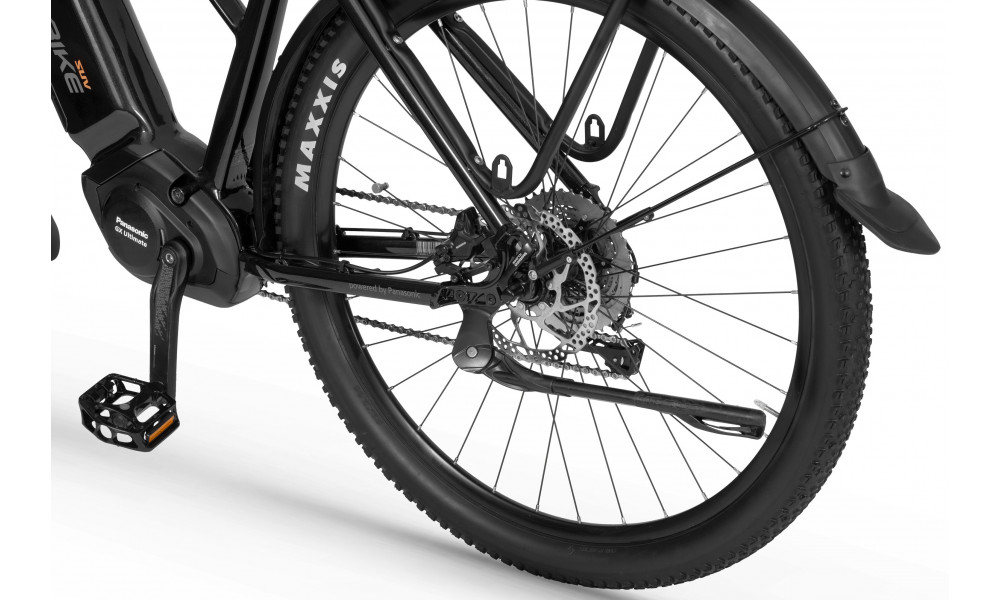

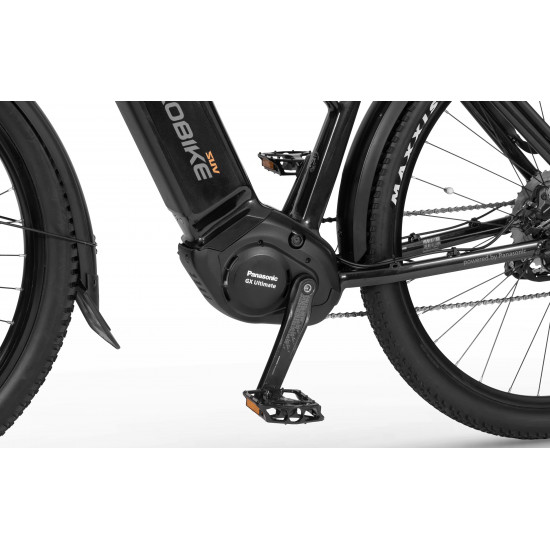

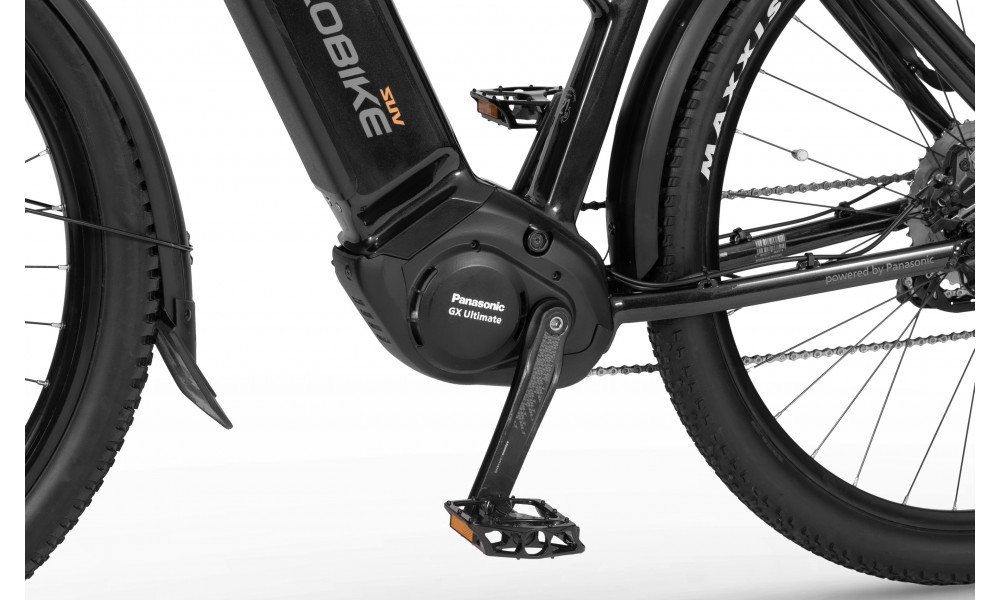

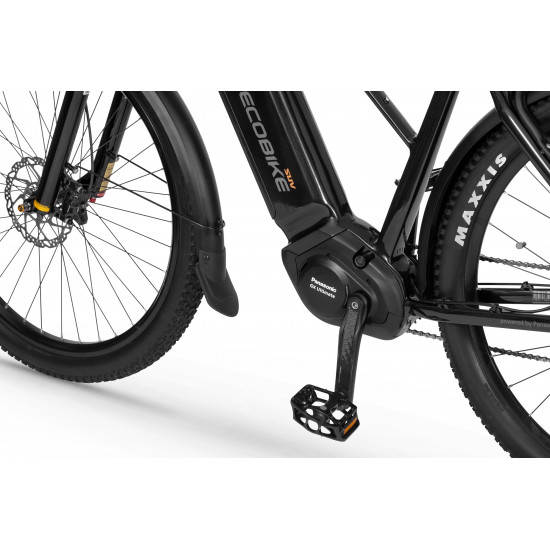

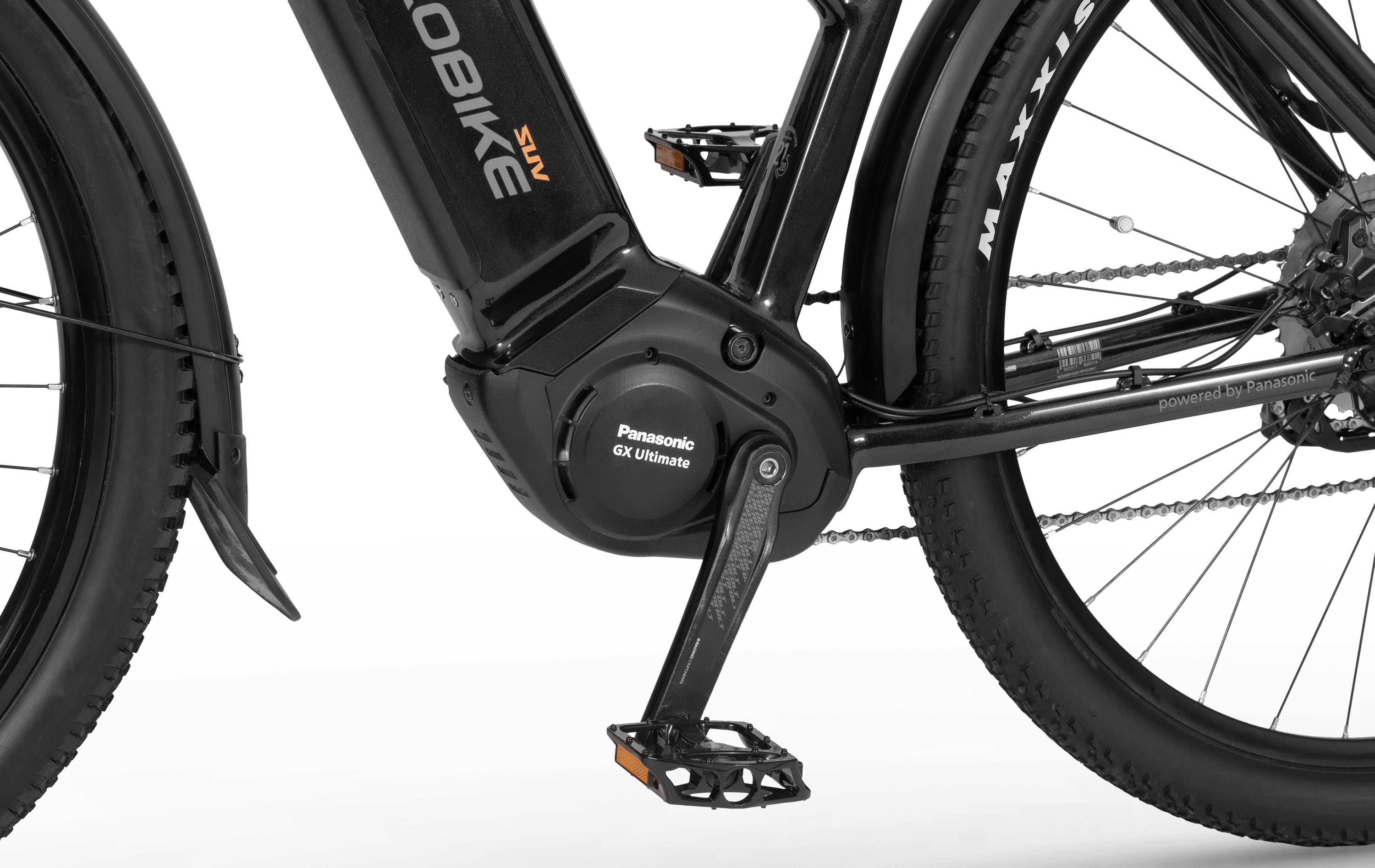

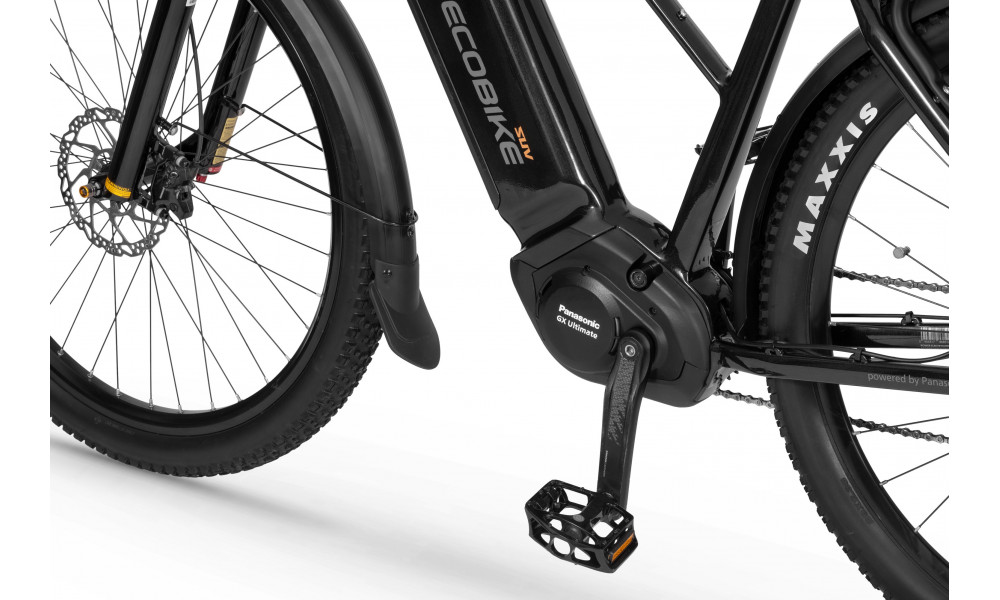

A high-performance Panasonic motor.
Komoot GPS navigation for seamless exploration.

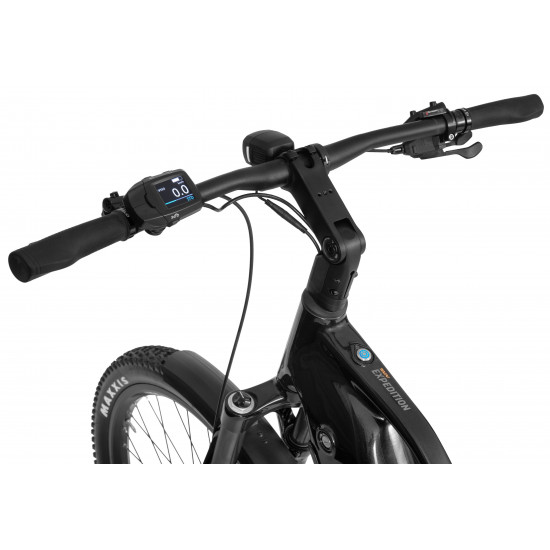

Streamlined cables discreetly tucked away in the stem.

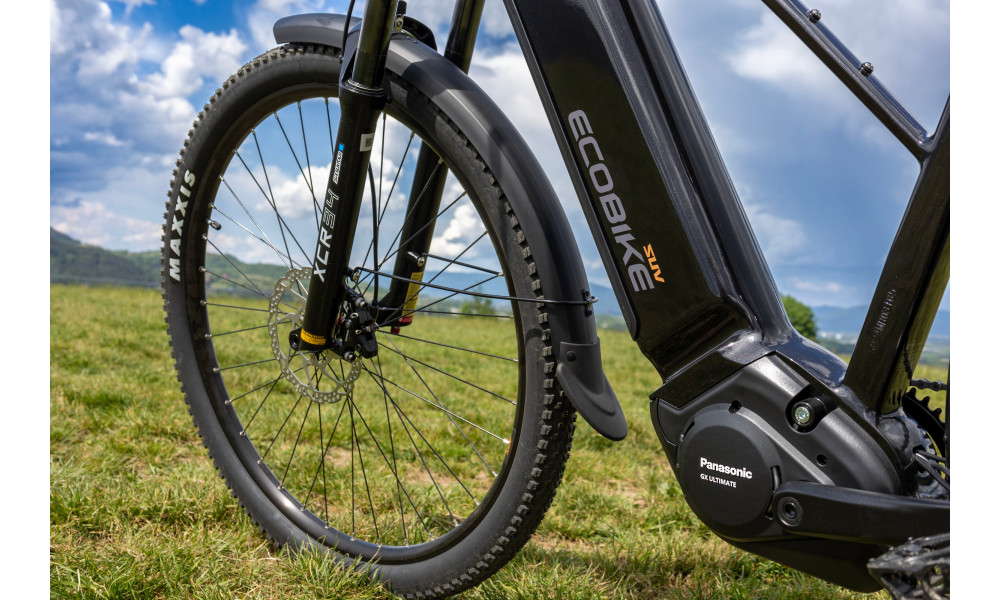

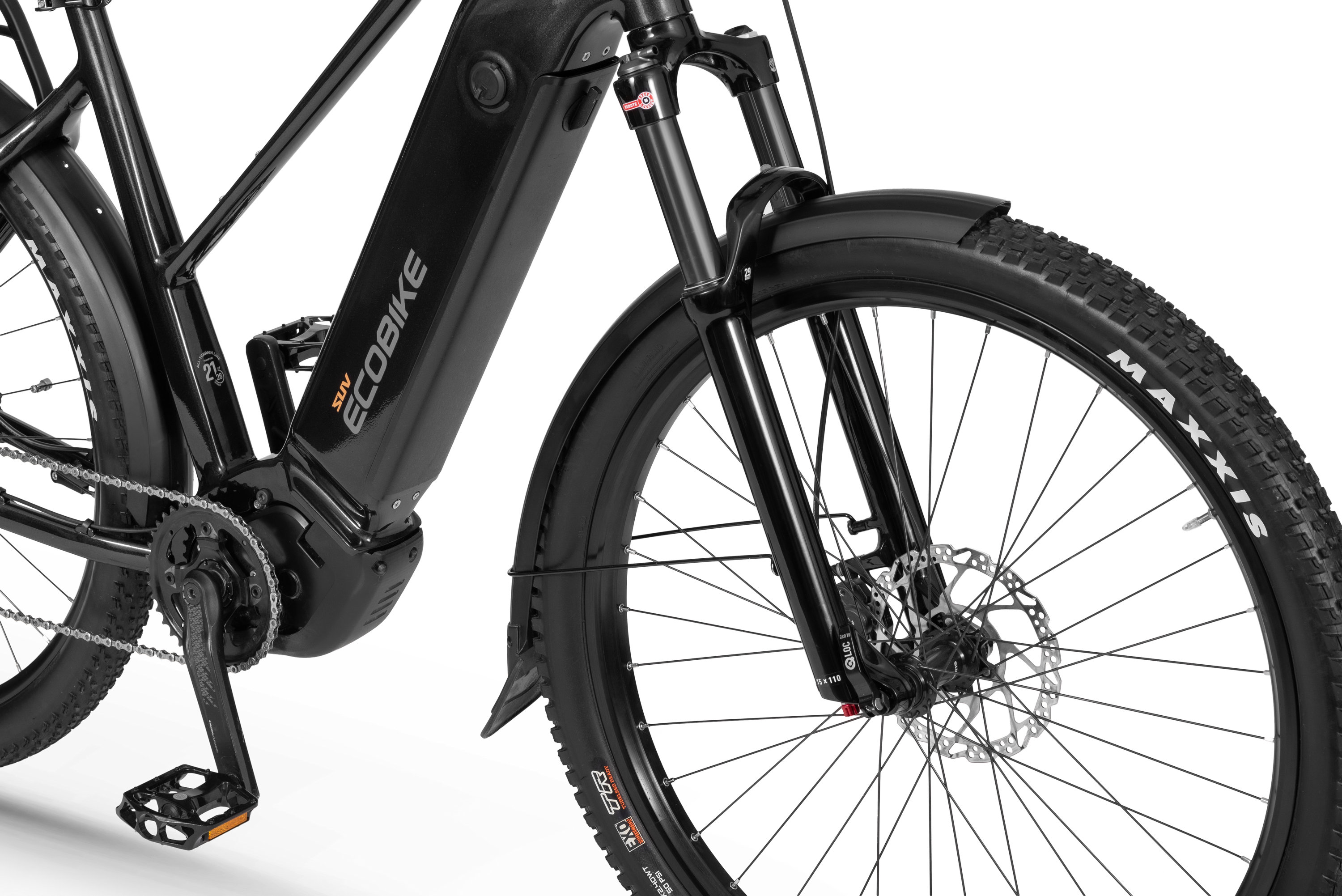

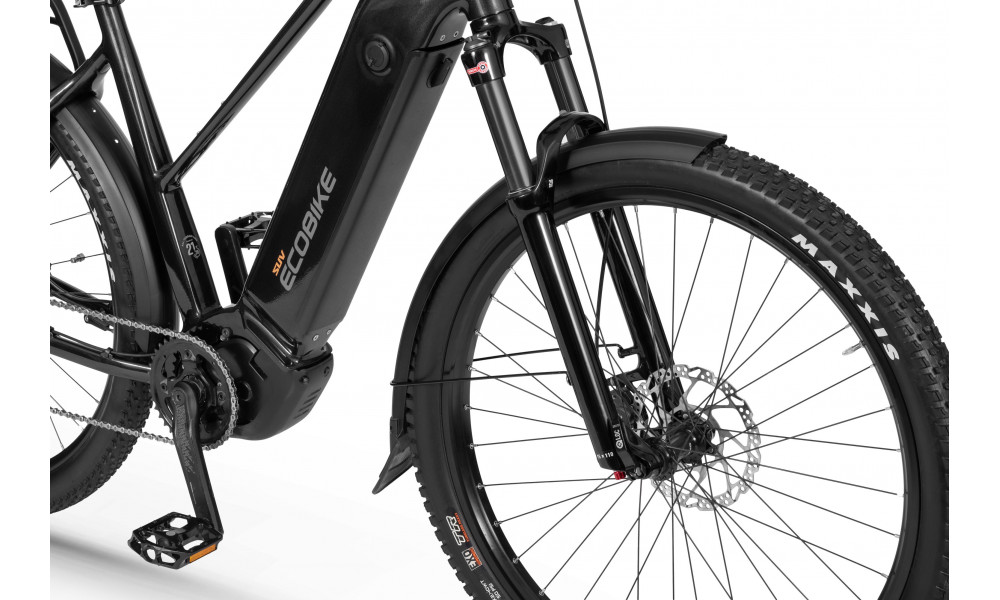

Suntour air shock absorber with an integrated fender.
A revolutionary do-it-all frame design for ultimate versatility.
Cutting-edge, energy-efficient lighting for enhanced visibility.
Premium Maxxis tires for an unbeatable grip on any terrain.
A robust 30 AH battery for extended, powerful journeys.
This SUV bike redefines what's possible, offering a blend of innovation and performance that's second to none.
Product technical specifications

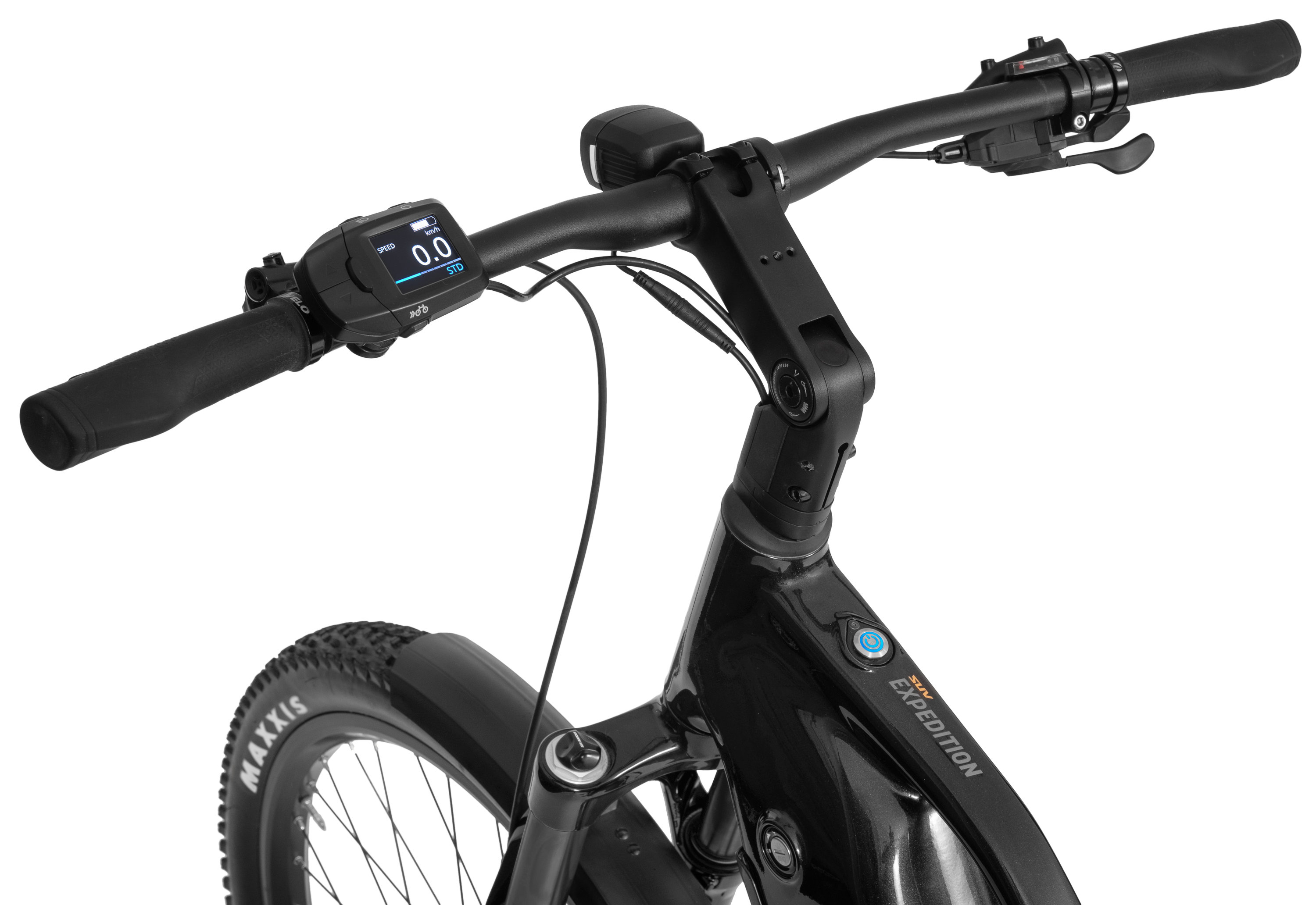

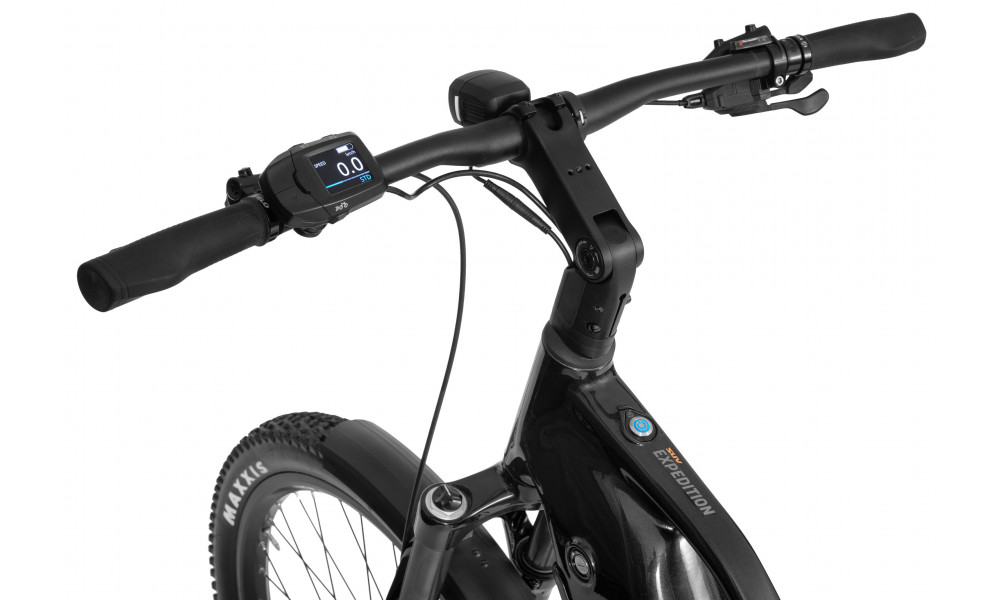

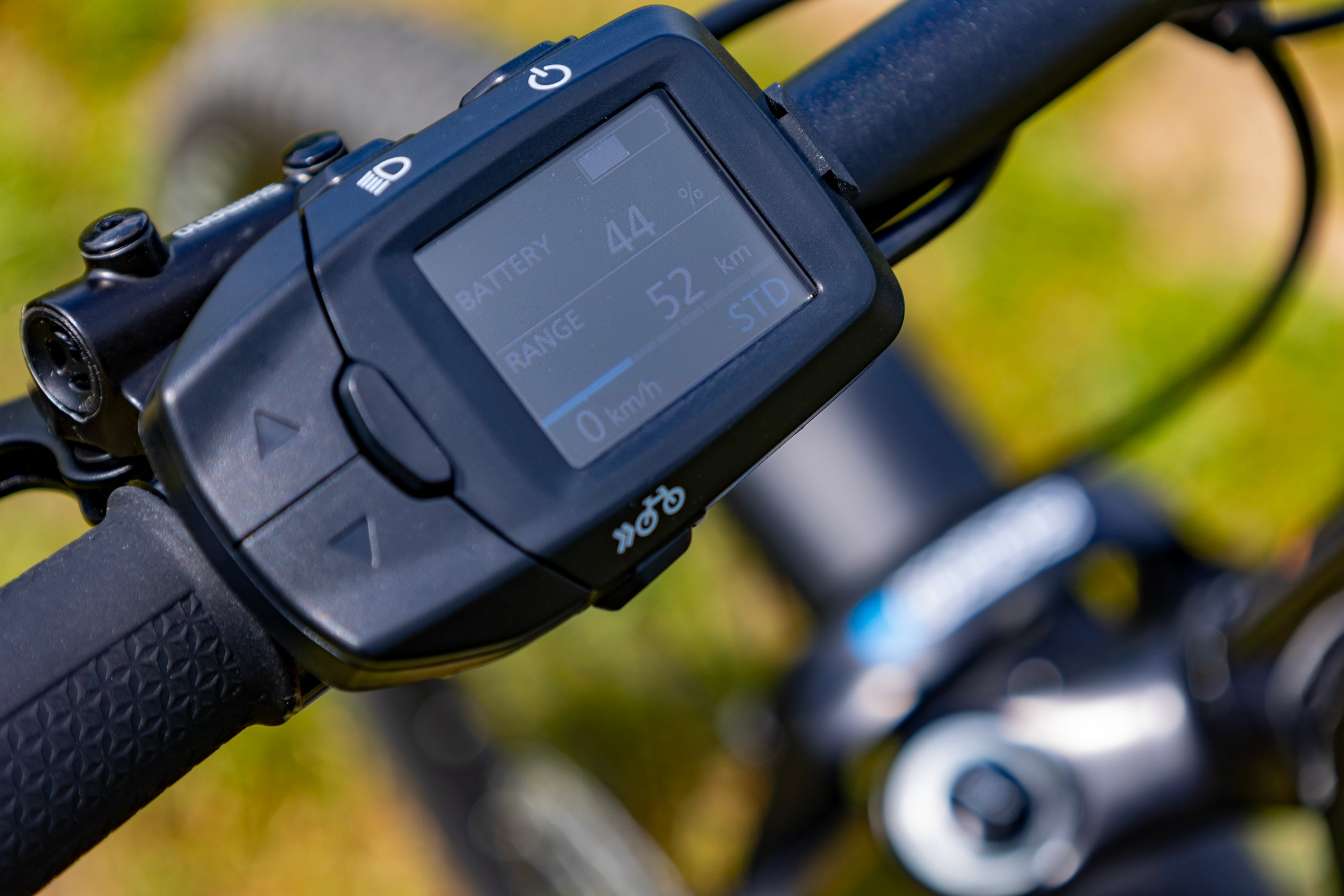

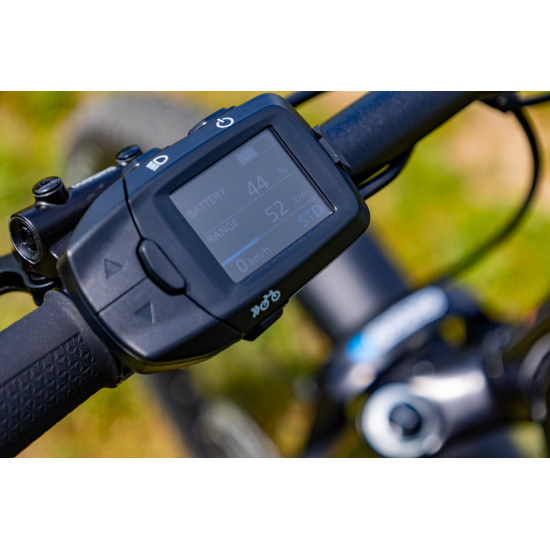

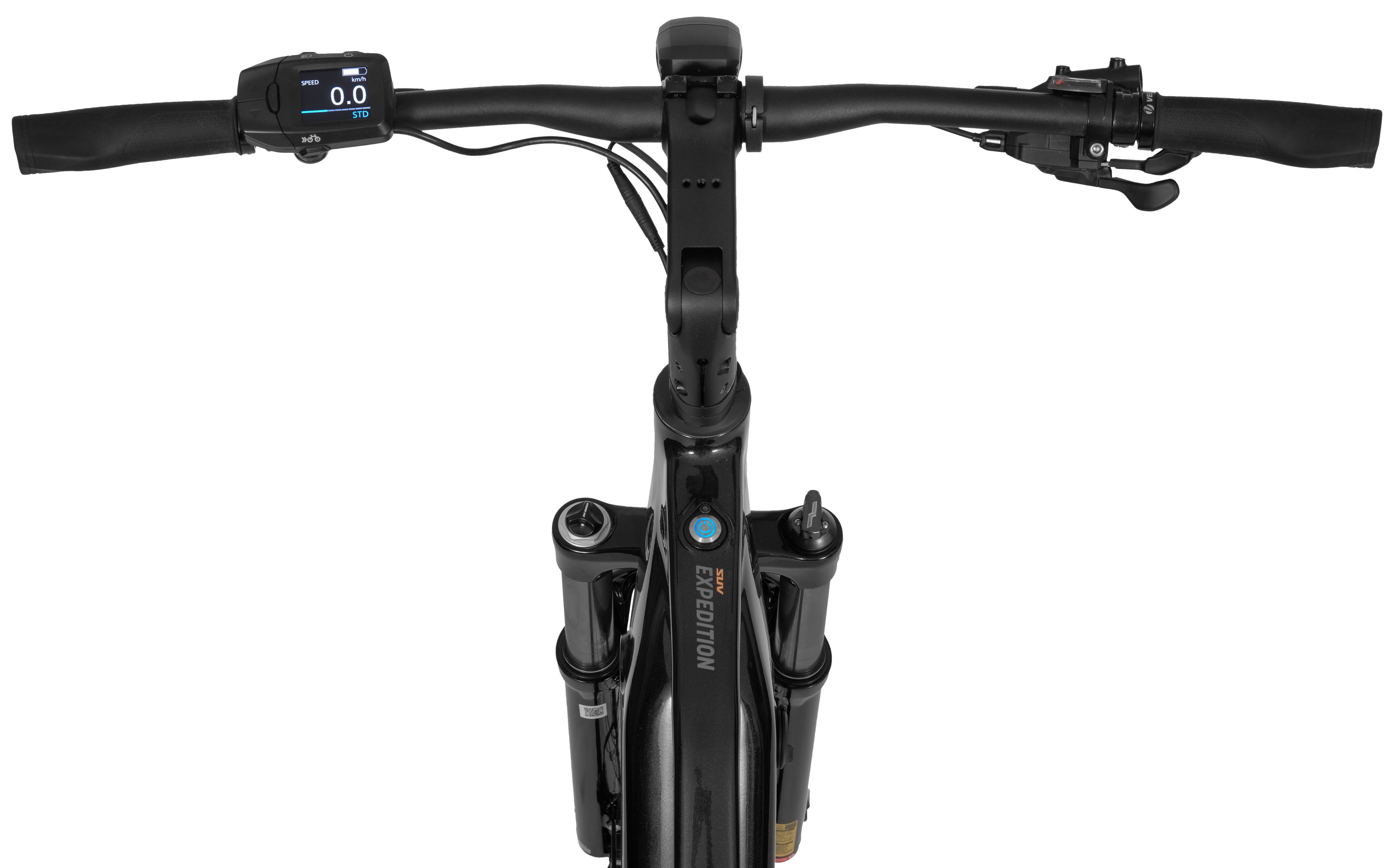

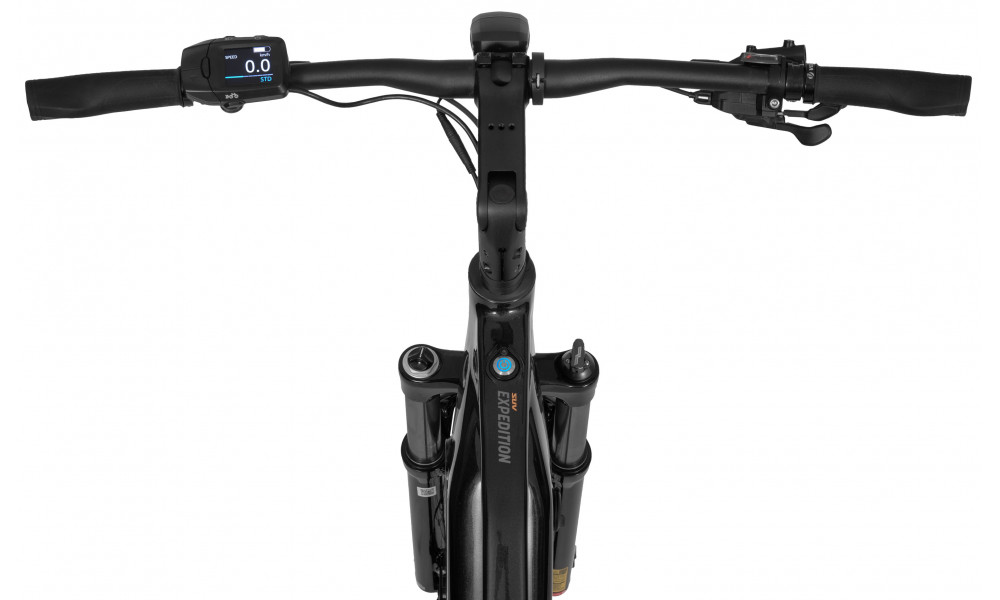

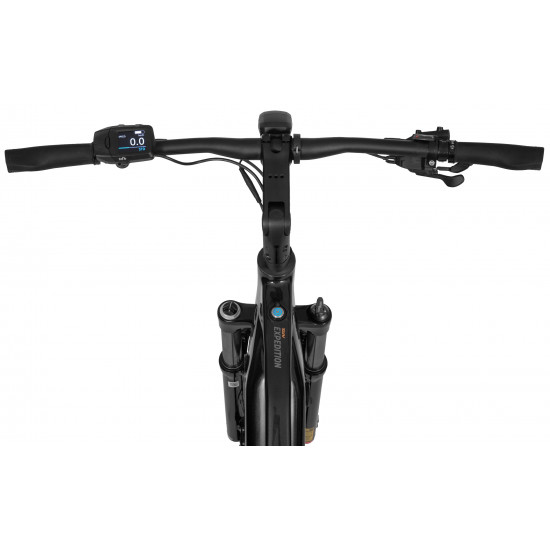

- Display model: Side color display
- Display type: Color LCD
- Compatible application: Komoot, Strava
DISPLAY:
- Capacity and range:
- 1080 Wh: MAX 200 km
- Voltage: 36V

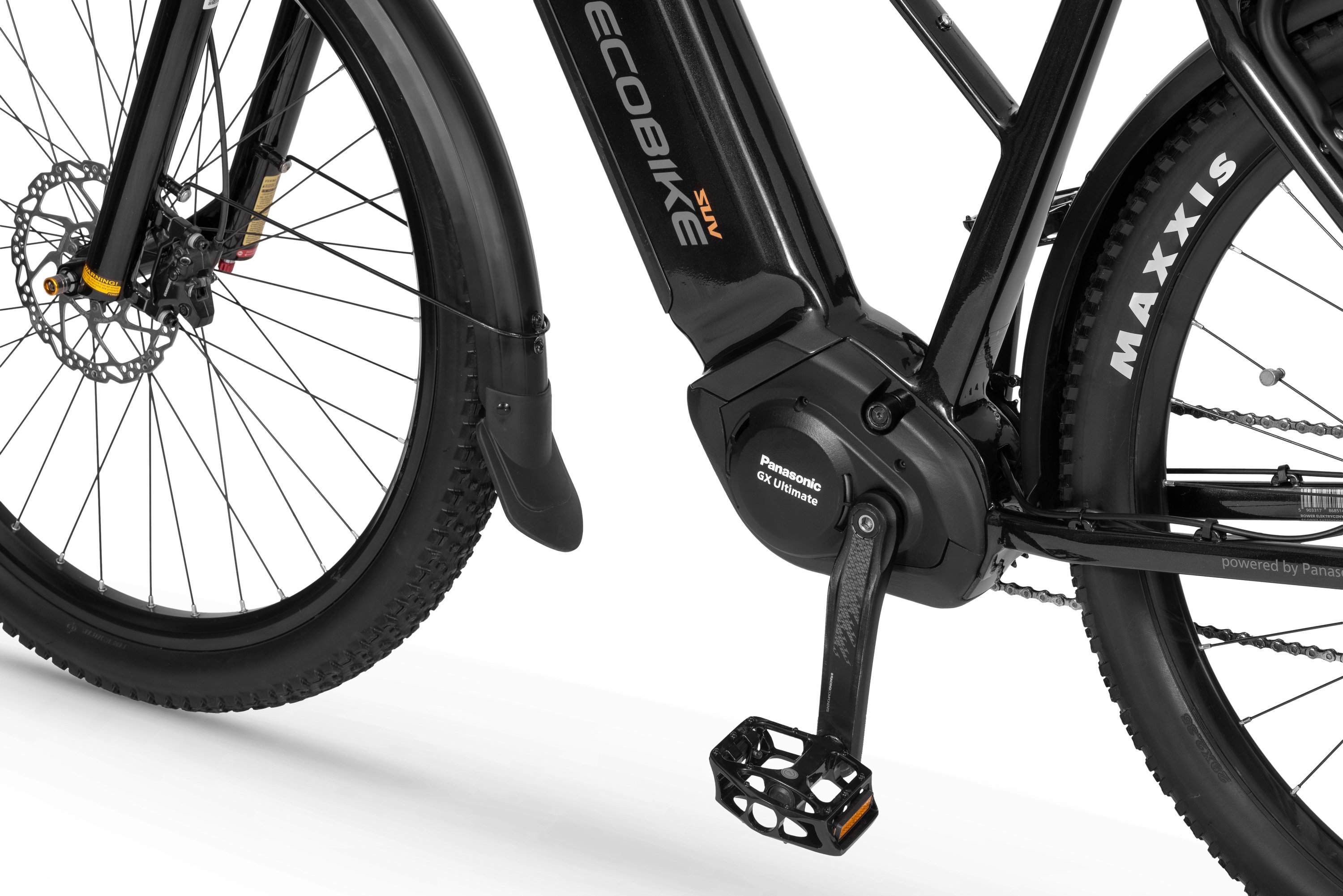

- Mount: Mid-drive
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 95 Nm
- Motor's brand: Panasonic
- Power: 250 W
DISTANCE:
ENGINE:
- Type: Li-ion
- Voltage: 36V
- Charger: 100-240V / 42V / 3A
- Cells brand: LG
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 7-8 hours

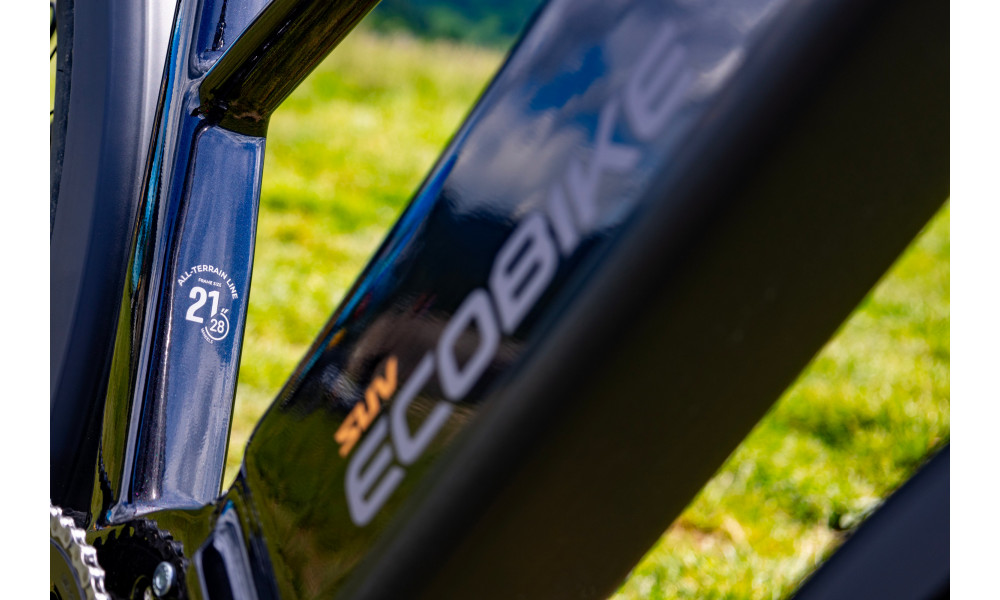

- FRAME: Hydroformed aluminium
- FRAME SIZE: 17"

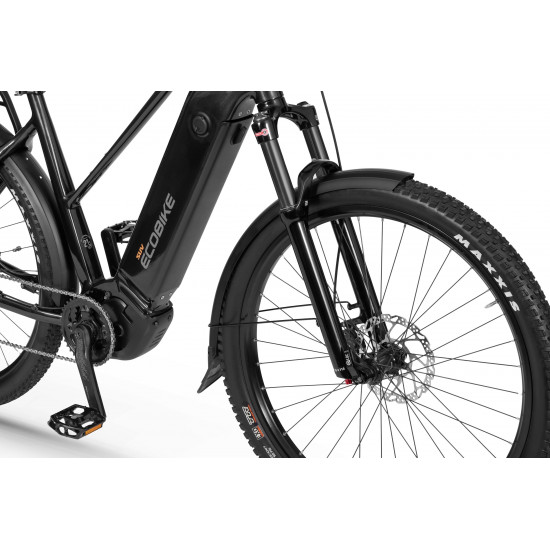

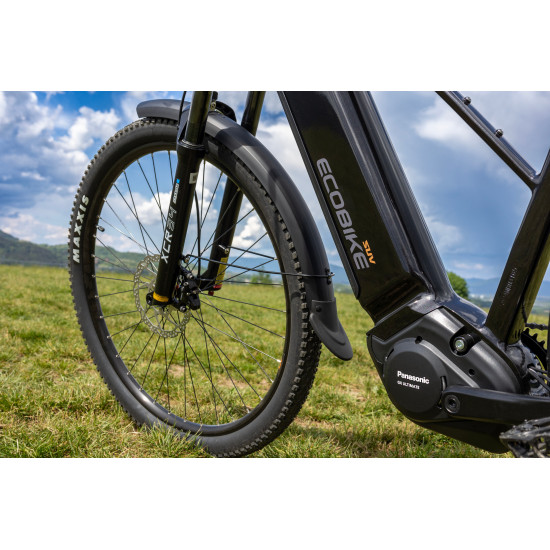

- FORK: SunTour XCR34X-BOOST AIR, 120 mm travel

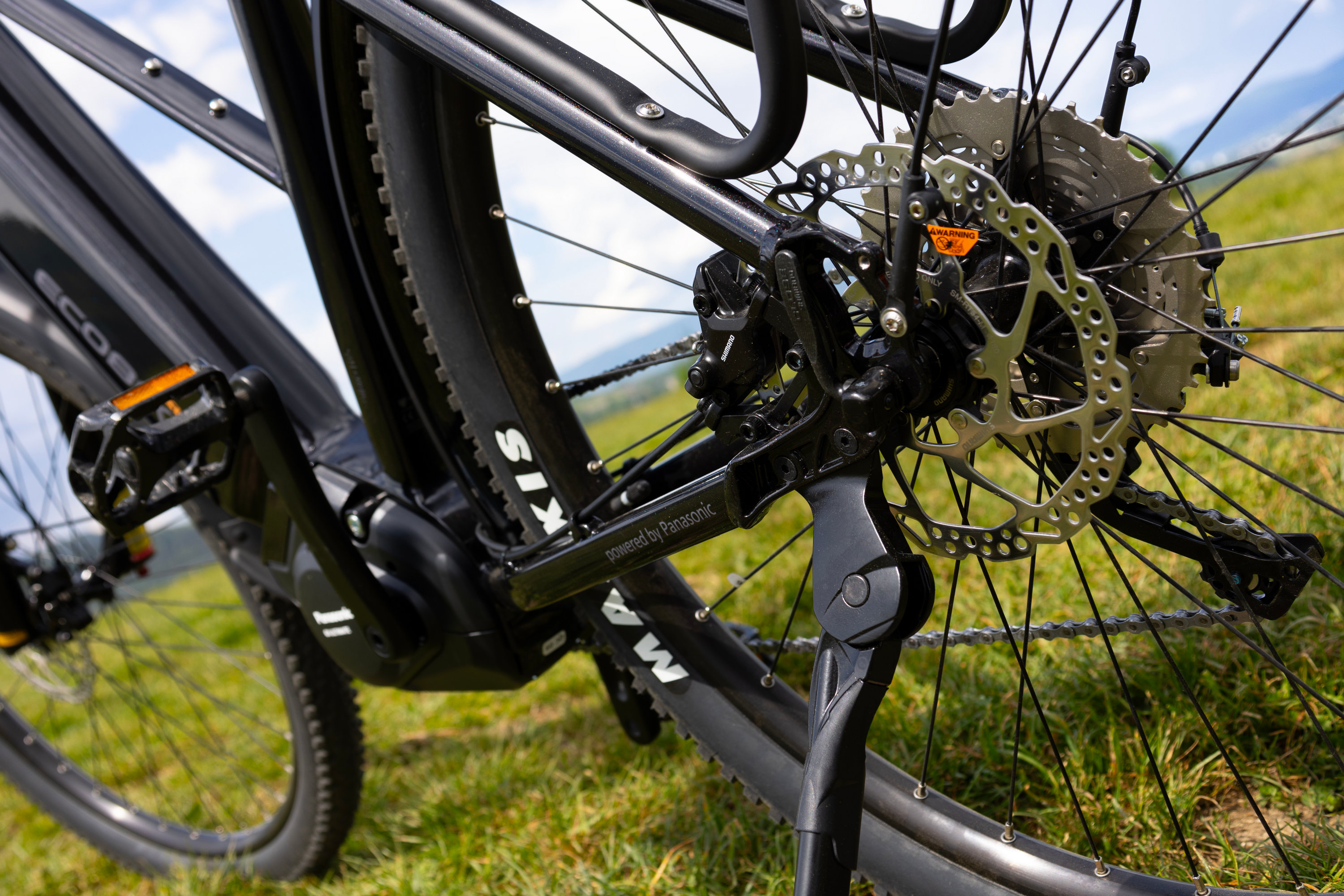

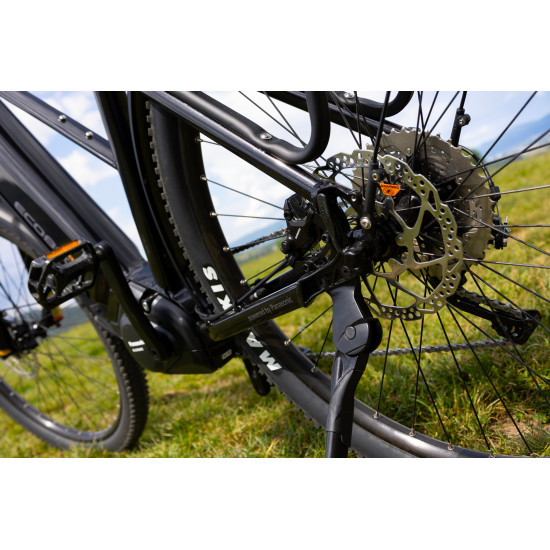

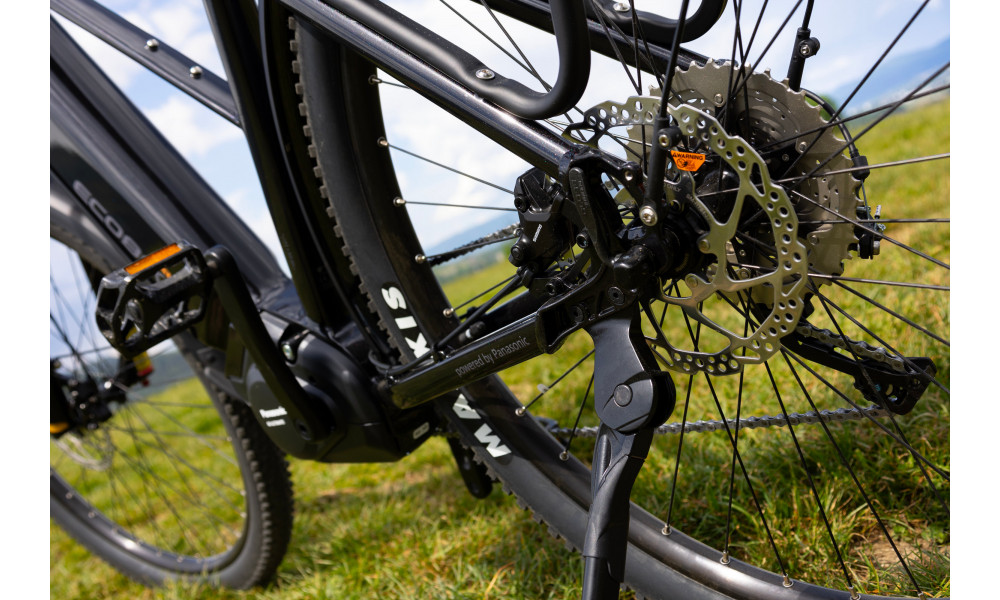

- BRAKES: Shimano MT401 hydraulic disc brakes
- CHAIN: KMC e10 Turbo Silver
- CHAINWHEEL: Prowheel 42T (104 BCD), 175 mm

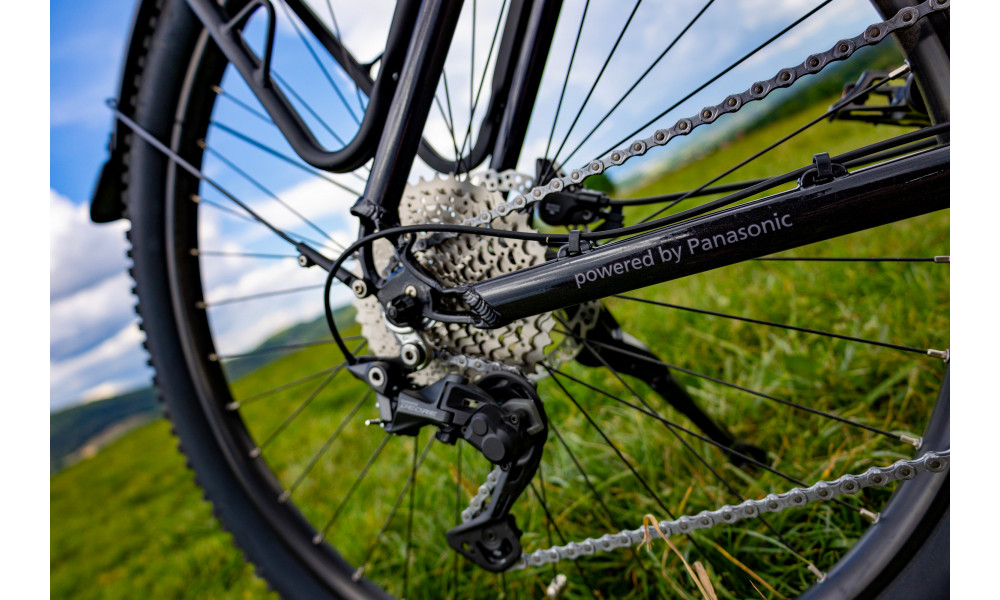

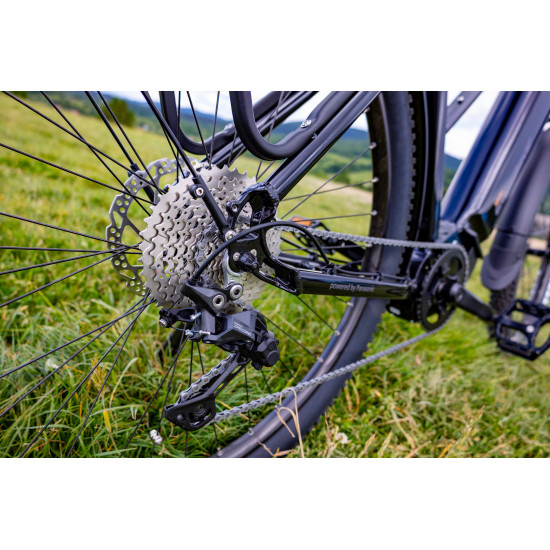

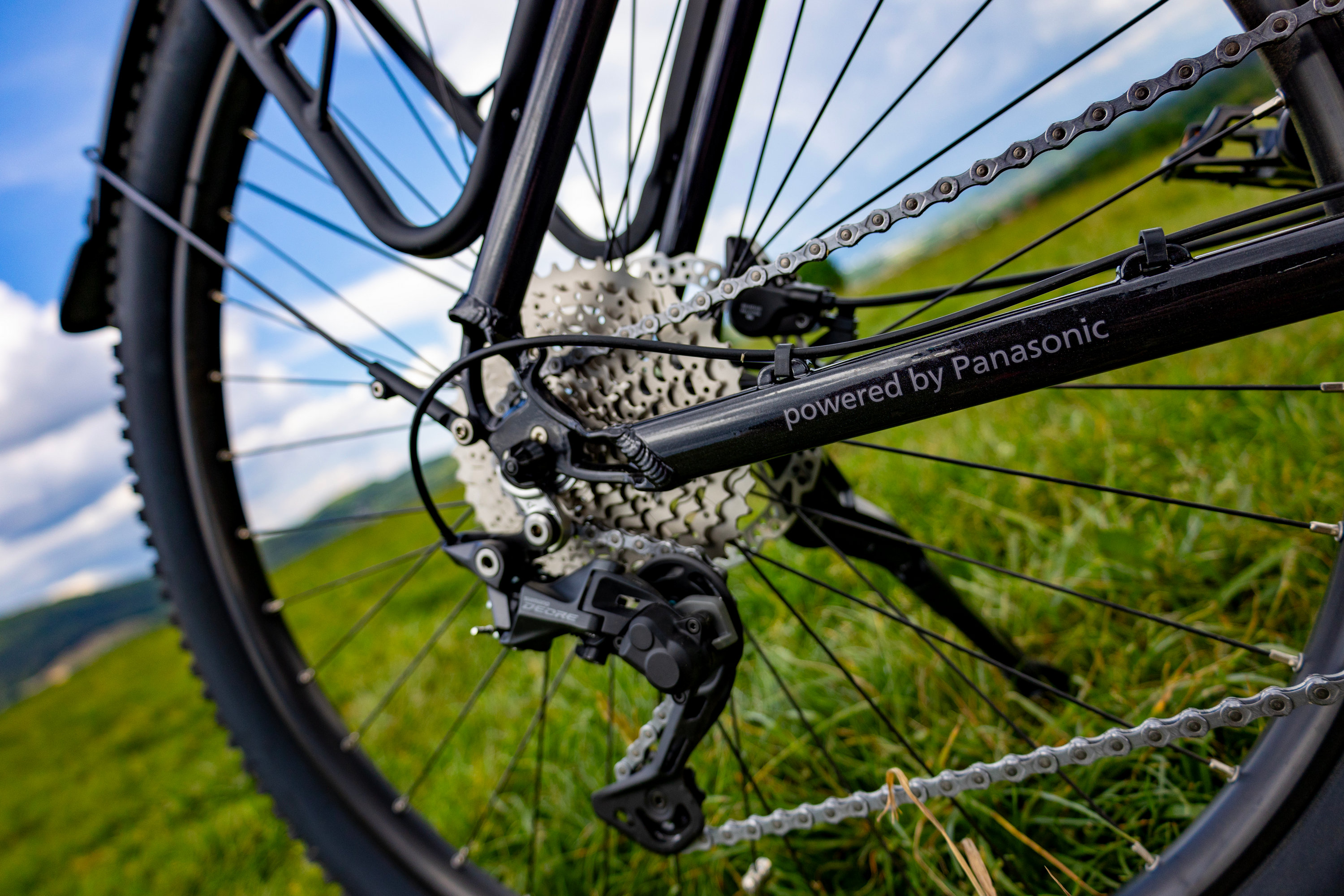

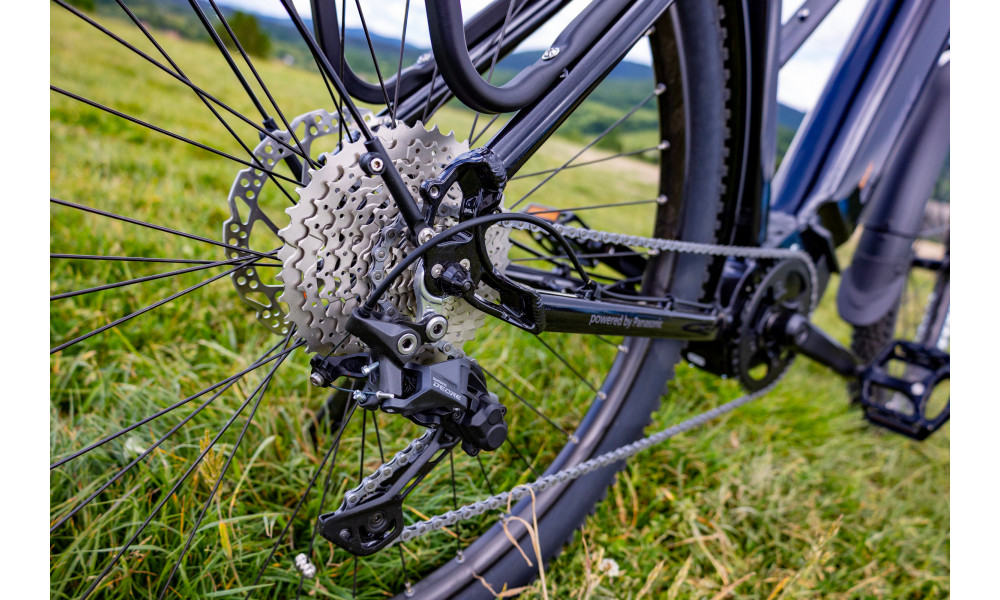

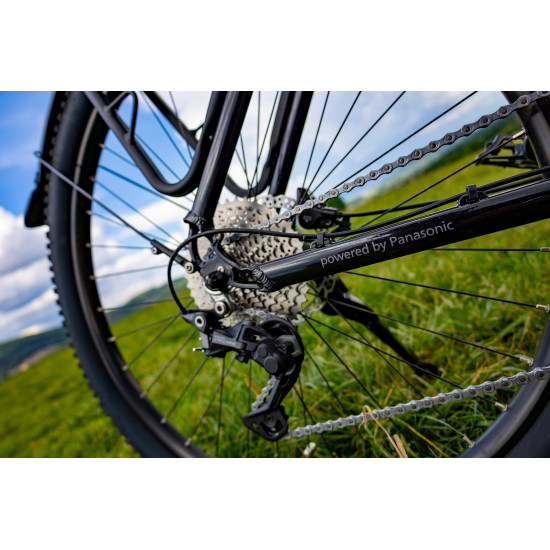

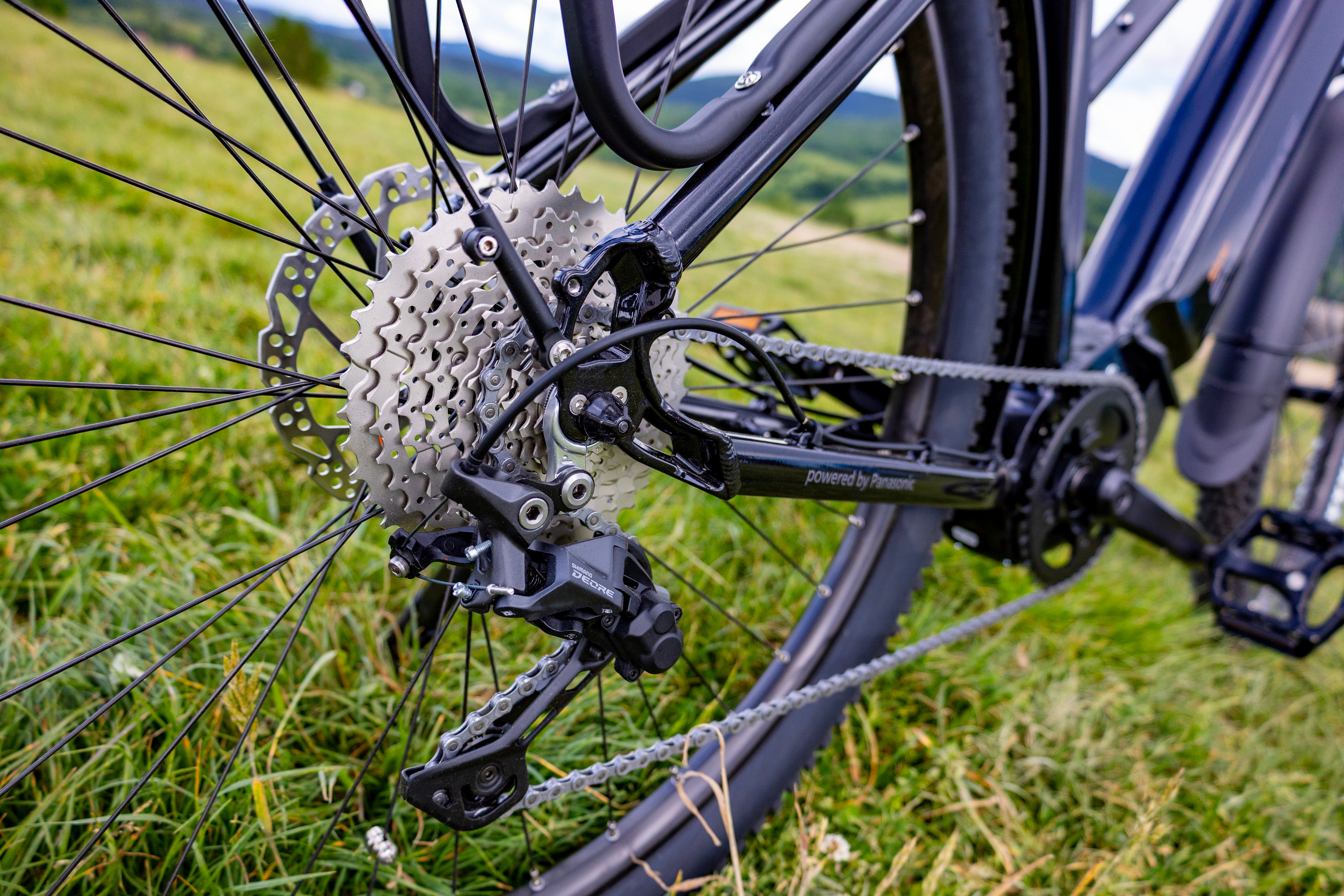

- REAR DERAILLEUR: Shimano Deore 10 speed
- FREEWHEEL: Shimano CS-M4100, Deore, 11-42T, 10 speed
- HANDLEBAR: Uno 720 mm x 31.8 mm
- STEM: Zoom 31.8 / 90 mm / 30 degrees
- HUBS: Front hub: Shimano HB-TC500-15-B 15 x 110 mm, 36H, Center Lock; Rear Hub: Shimano FH-TX505-8 / FH-QC300-HM, 135 mm, 36H, Center lock
- PEDALS: VP FP-203ZP
- RIMS: 29" reinforced three-chambered rims, Sapim spokes
- SADDLE: Velo VL-3625
- SEAT POST: UNO SP-619, 30.9 mm x 350 mm
- SHIFTERS: Shimano Deore 10 speed
- TYRES: 29" x 2.4 Maxxis Rekon Race
- WEIGHT: 27.1 kg
- SPEEDS: 10
- GRIPS: Velo VLG-2052D2
- LIGHTS: Rear Light: Spaninga GLOW XE / Front Light: Herrmans MR5
- Effective top tube length: 595 mm
- Head tube lenght: 145 mm
- Frame size: 433.5 mm
- Wheel base: 1156.7 mm
- Seat tube angle: 72.50
- Headset angle: 68
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
BATTERY:
GEOMETRY:
Pyörä lähetetään valmistajan alkuperäisessä pakkauksessa (etupyörä, ohjaustanko ja satula ovat yleensä irrotettuina), mikä varmistaa tuotteen turvallisuuden varastointi- ja kuljetusvaiheessa. Kun ostaja hankkii pyörän sellaisessa pakkauksessa, hän itse tai valitsemansa pyörähuollon ammattilainen on vastuussa asianmukaisesta pyörän kokoamisesta, säätämisestä ja käyttöönotosta.
