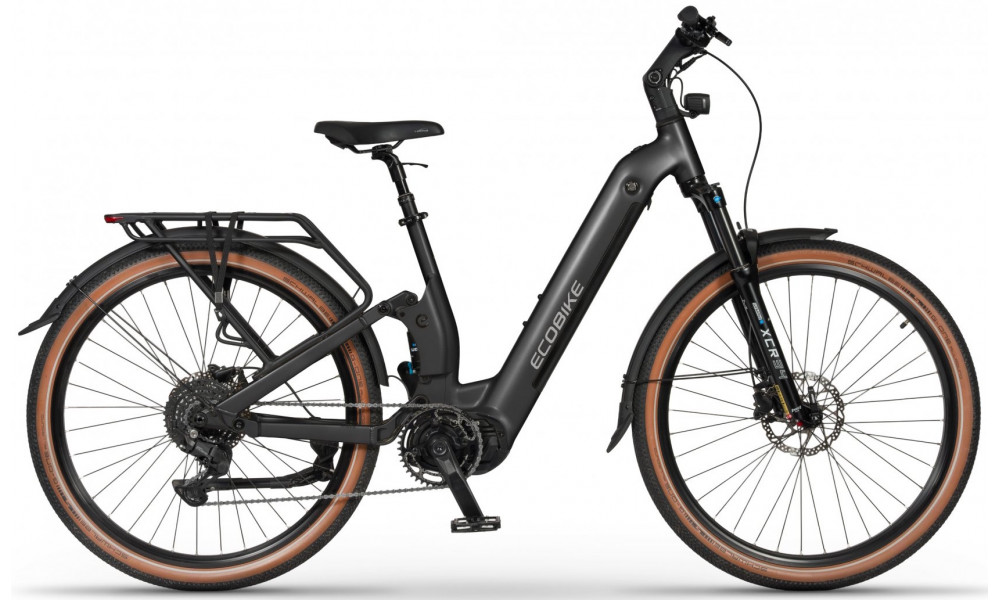

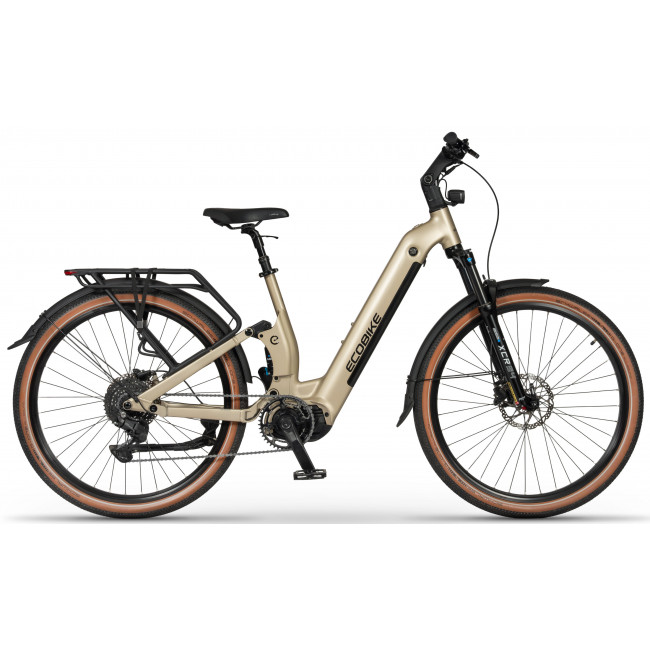

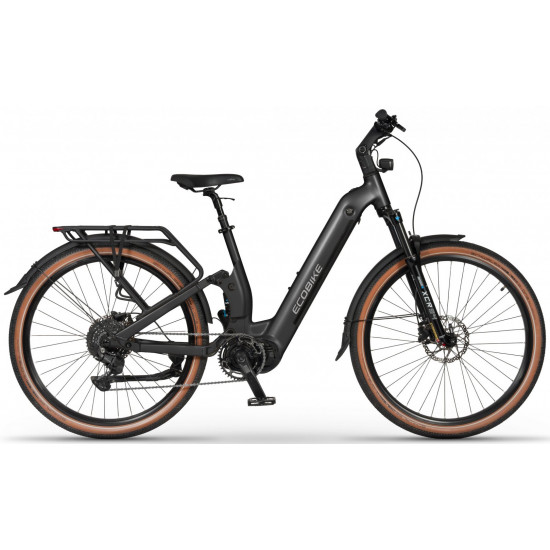

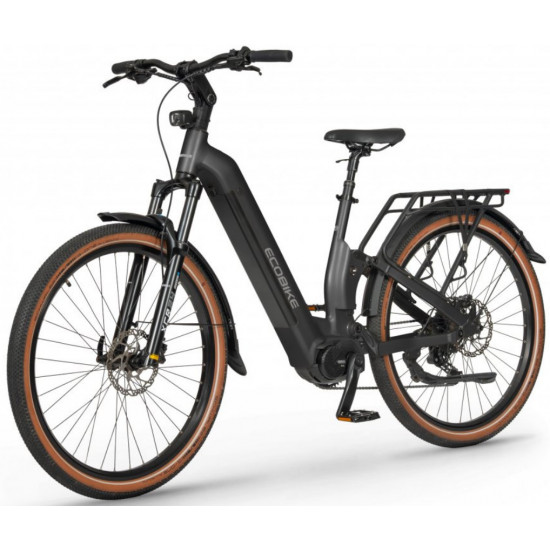

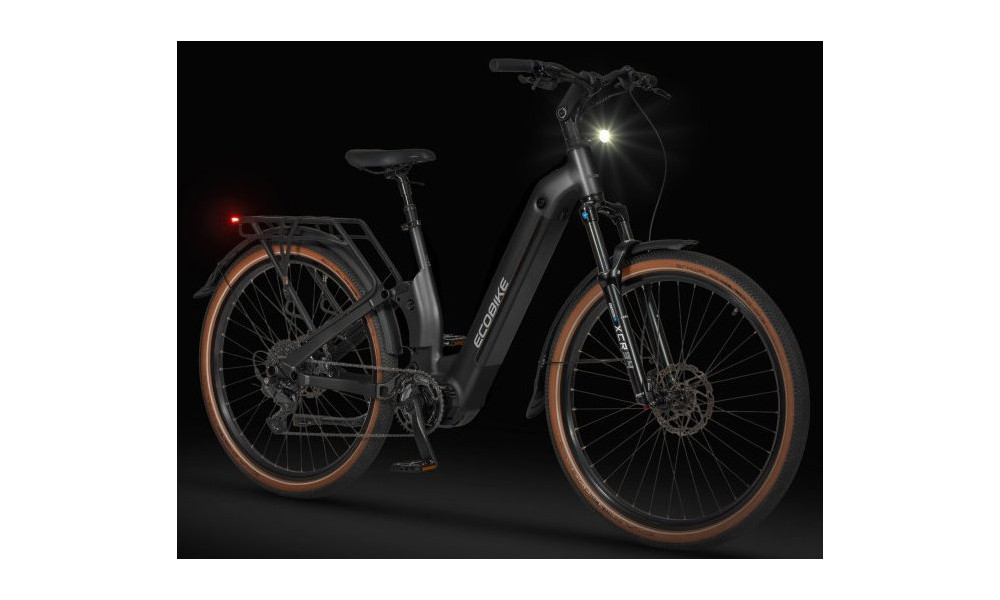

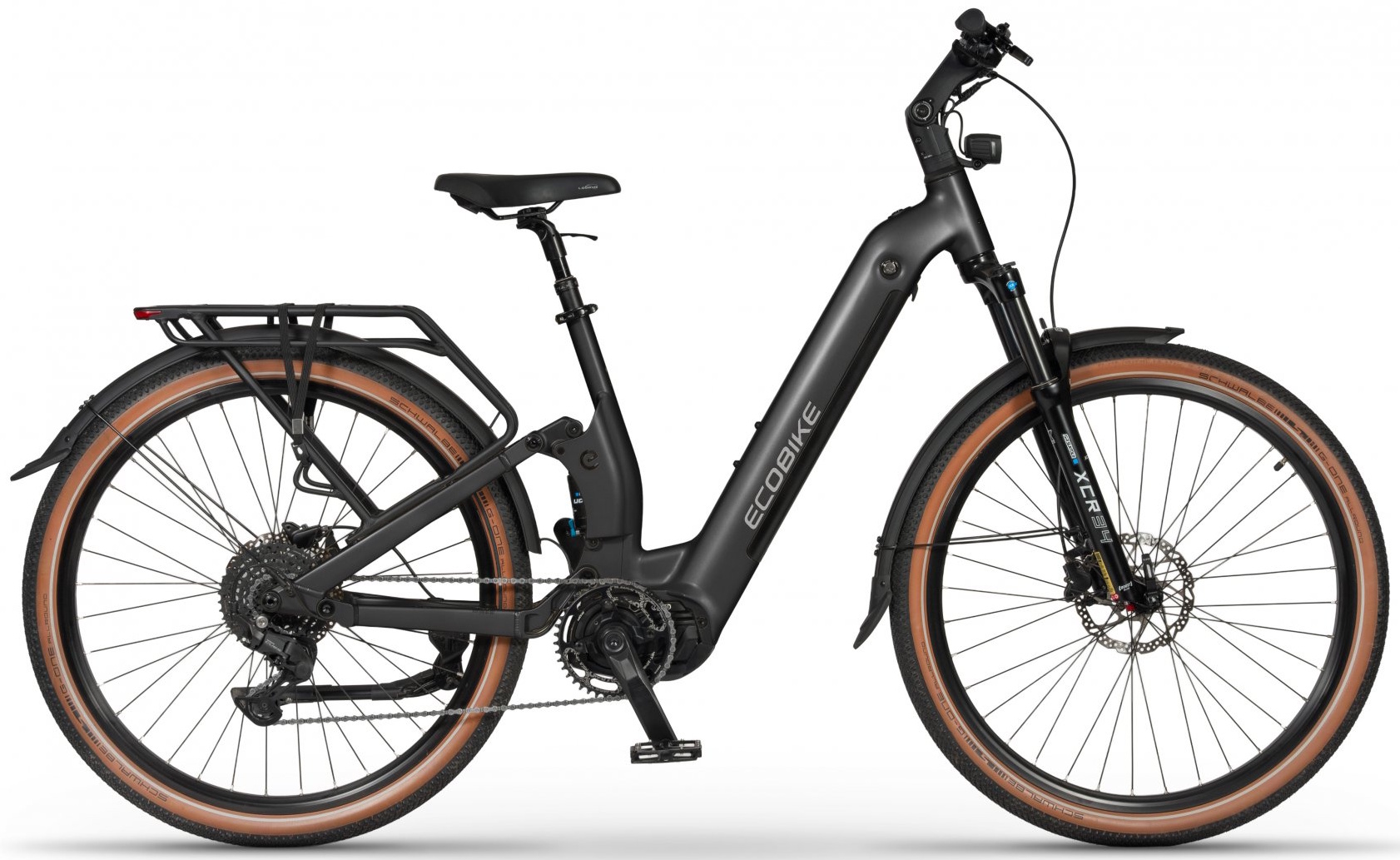

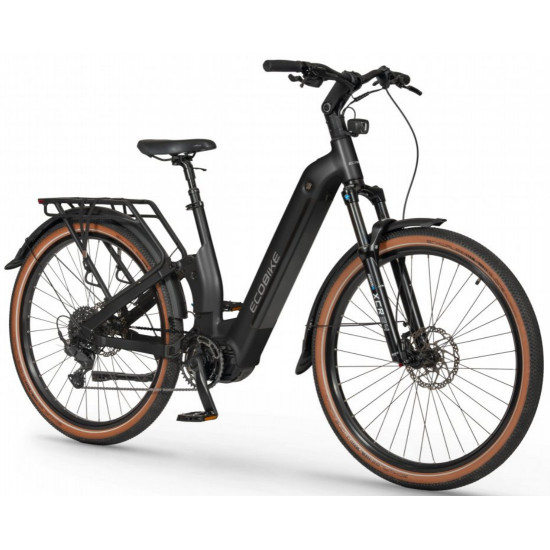

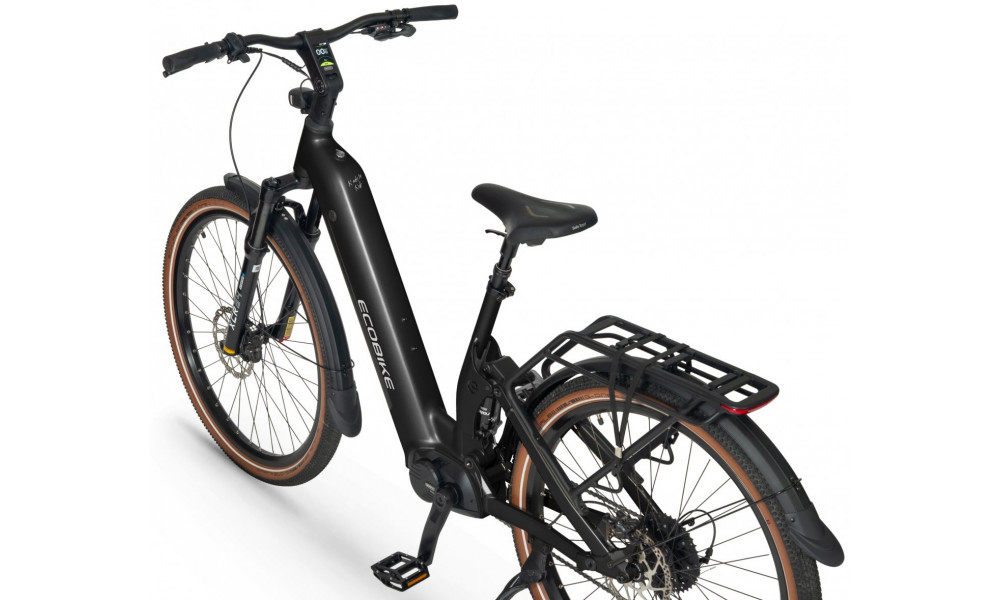

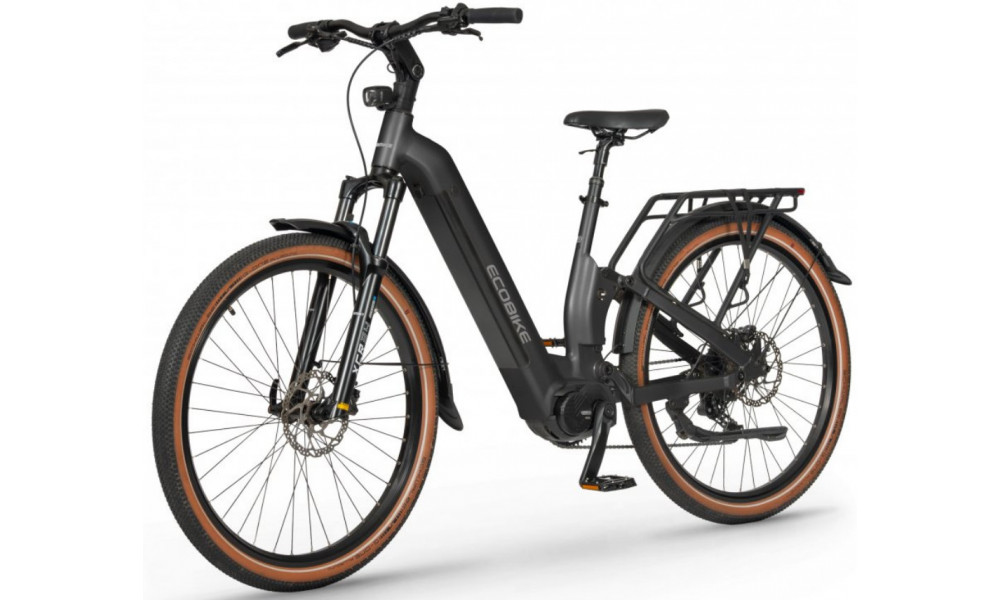

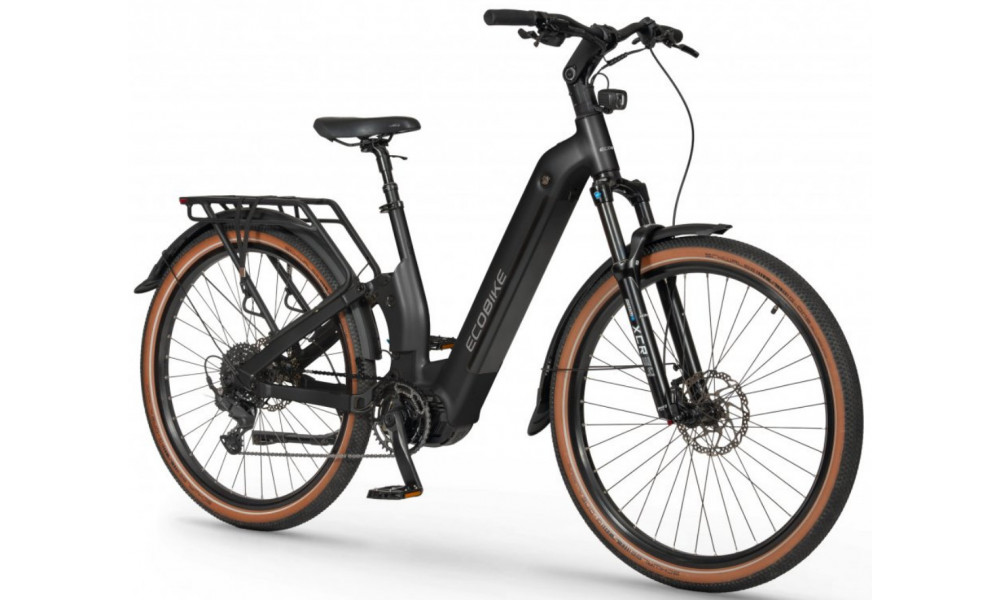

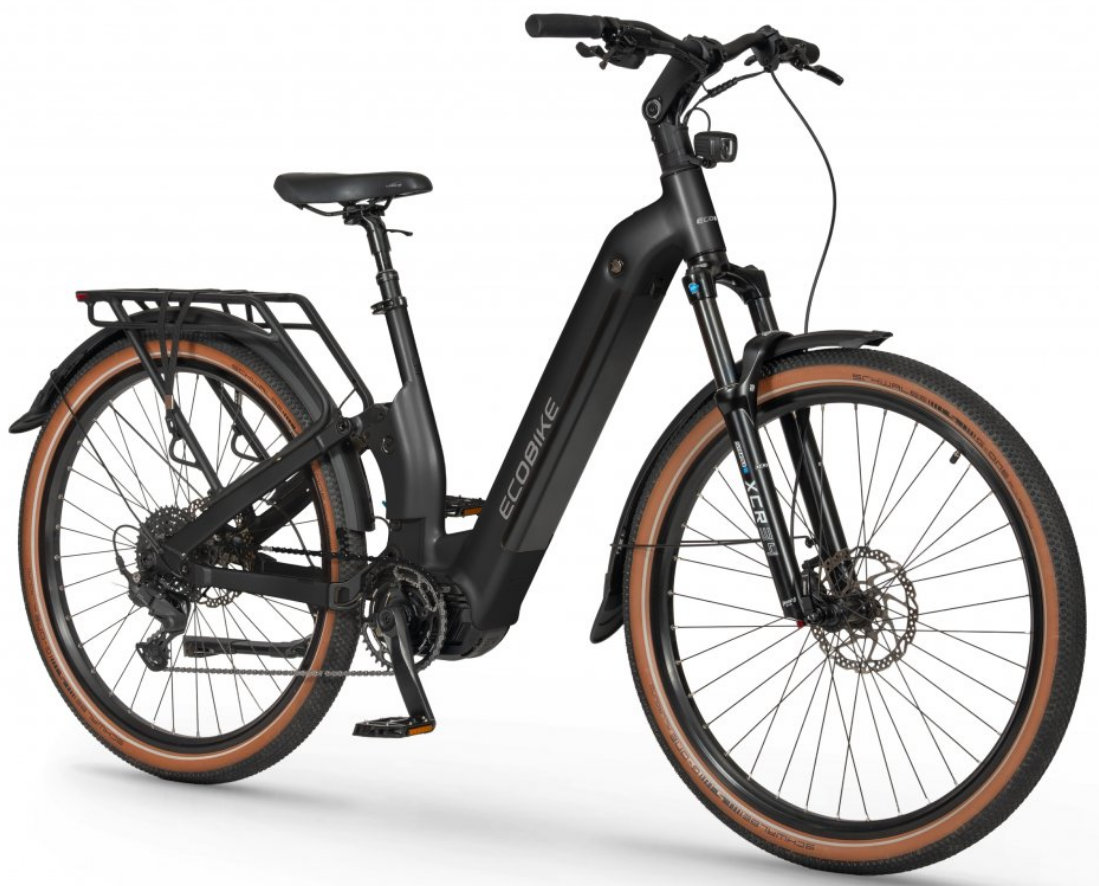

Ecobike Flex is a brand-new take on the electric bike, combining a convenient low-step frame with full suspension. Its the perfect choice for riders who value easy mounting, stability, and maximum riding comfort – whether youre commuting in the city or tackling more demanding trails.

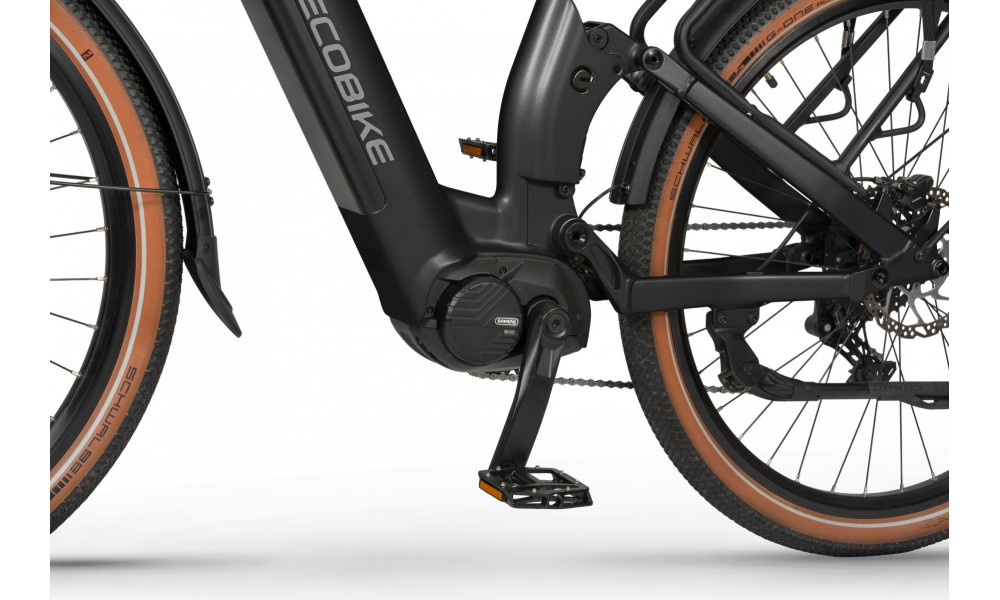

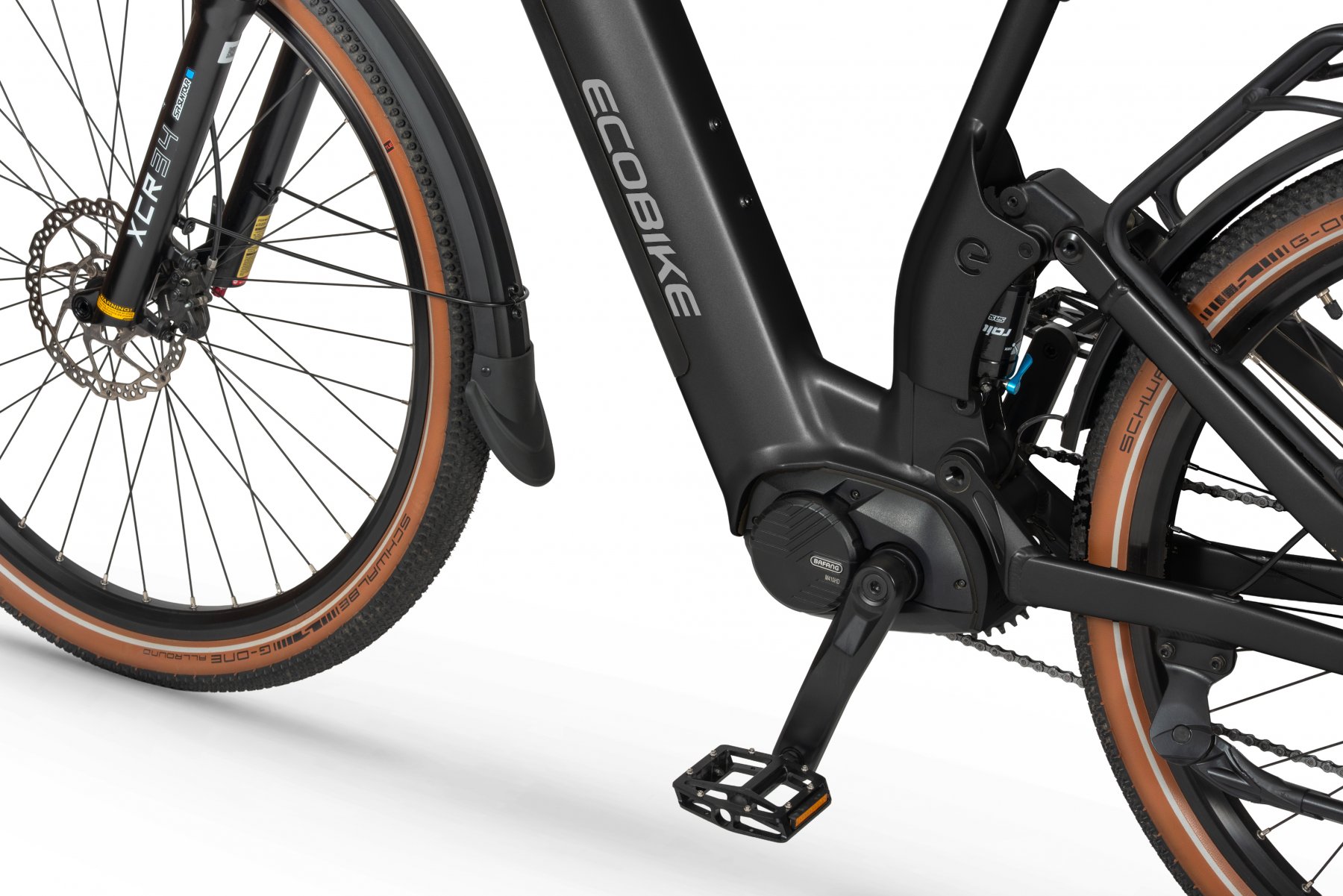

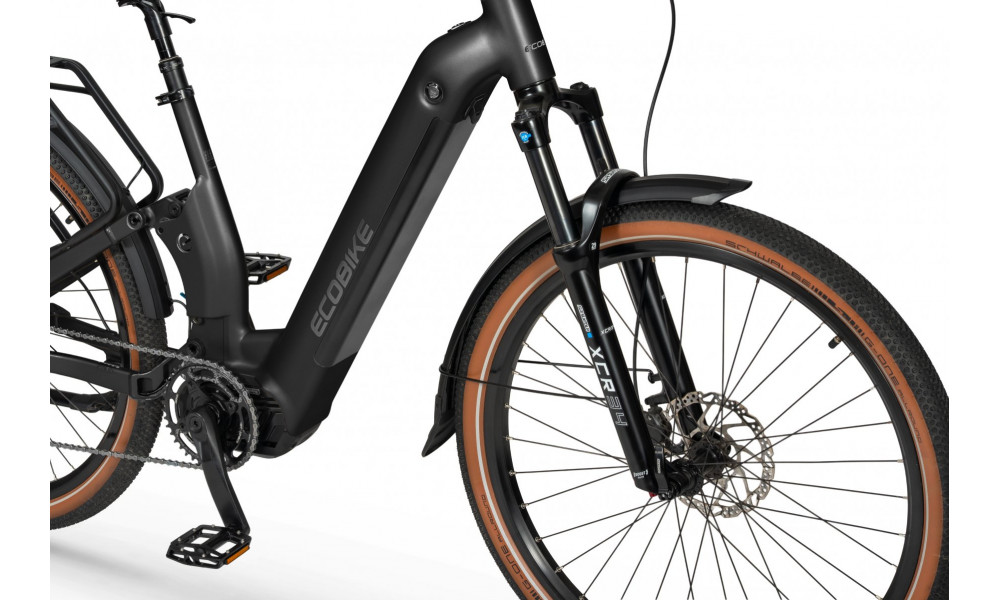

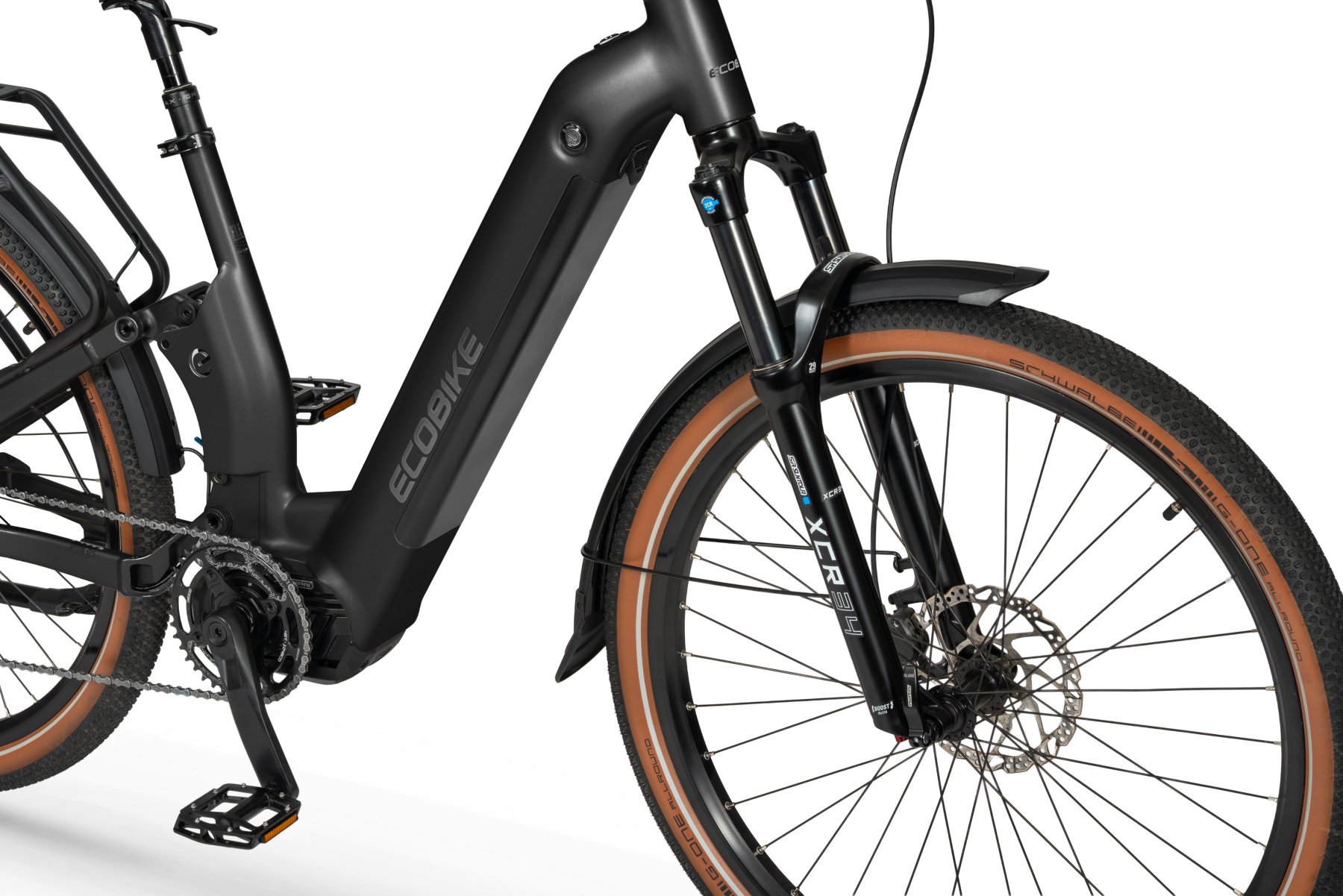

Ecobike Flex is equipped with a central motor delivering an impressive 100 Nm of torque, easily handling steep climbs and dynamic riding. Its powered by a massive 900 Wh battery, giving you the freedom to cover long distances without worrying about running out of energy.

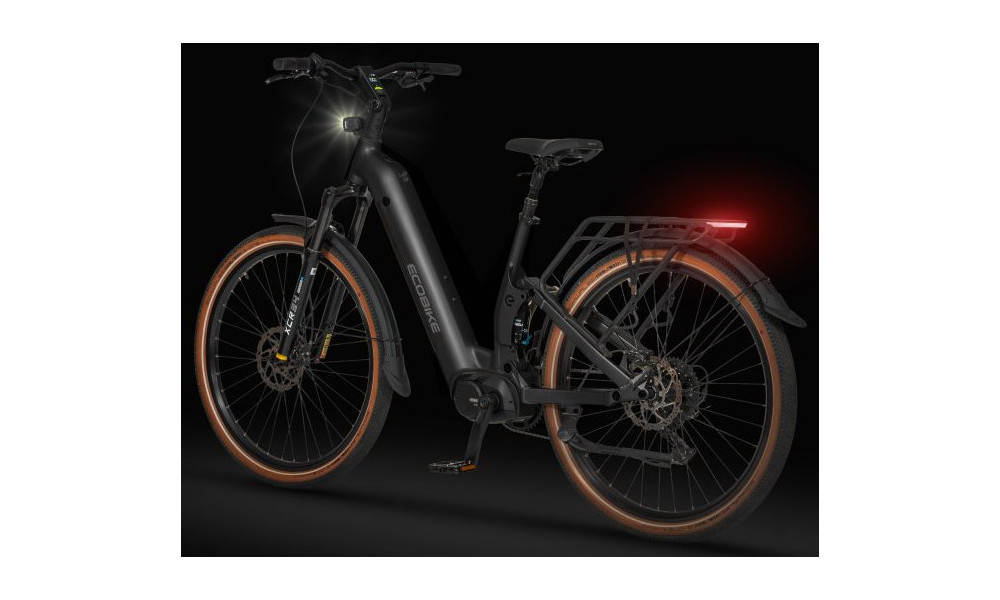

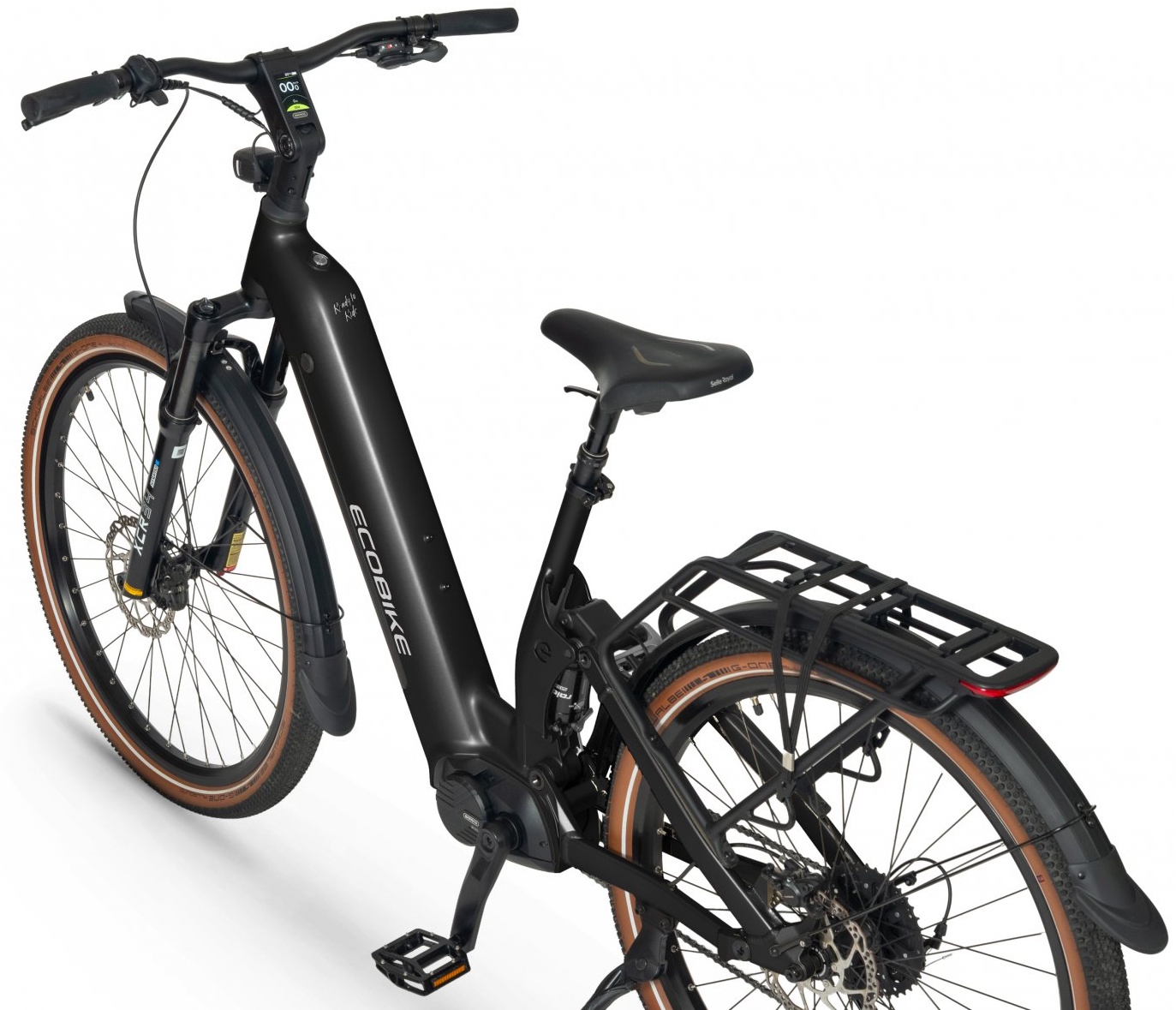

Clean cockpit system – neat and uncluttered cable layout. Emergency Stop-Light – the rear light brightens during braking, increasing your safety. MIK-compatible rear rack – fast and convenient pannier mounting, perfect for everyday rides and long-distance adventures.
Ecobike Flex is a bike that adapts to you and any terrain. It combines the comfort of full suspension, the ease of a low-step frame, and powerful performance to make every journey pure pleasure.
Product technical specifications

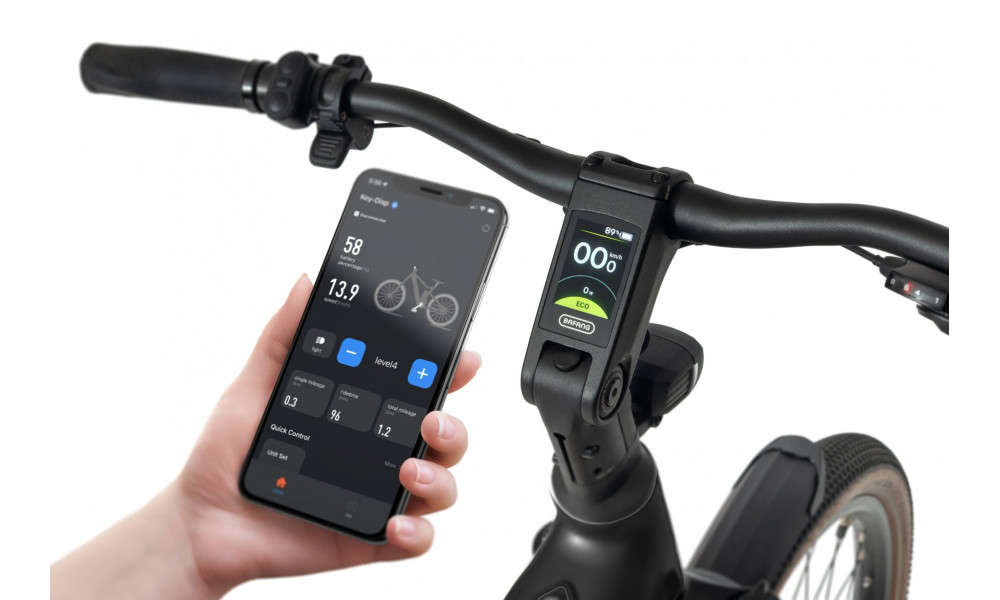

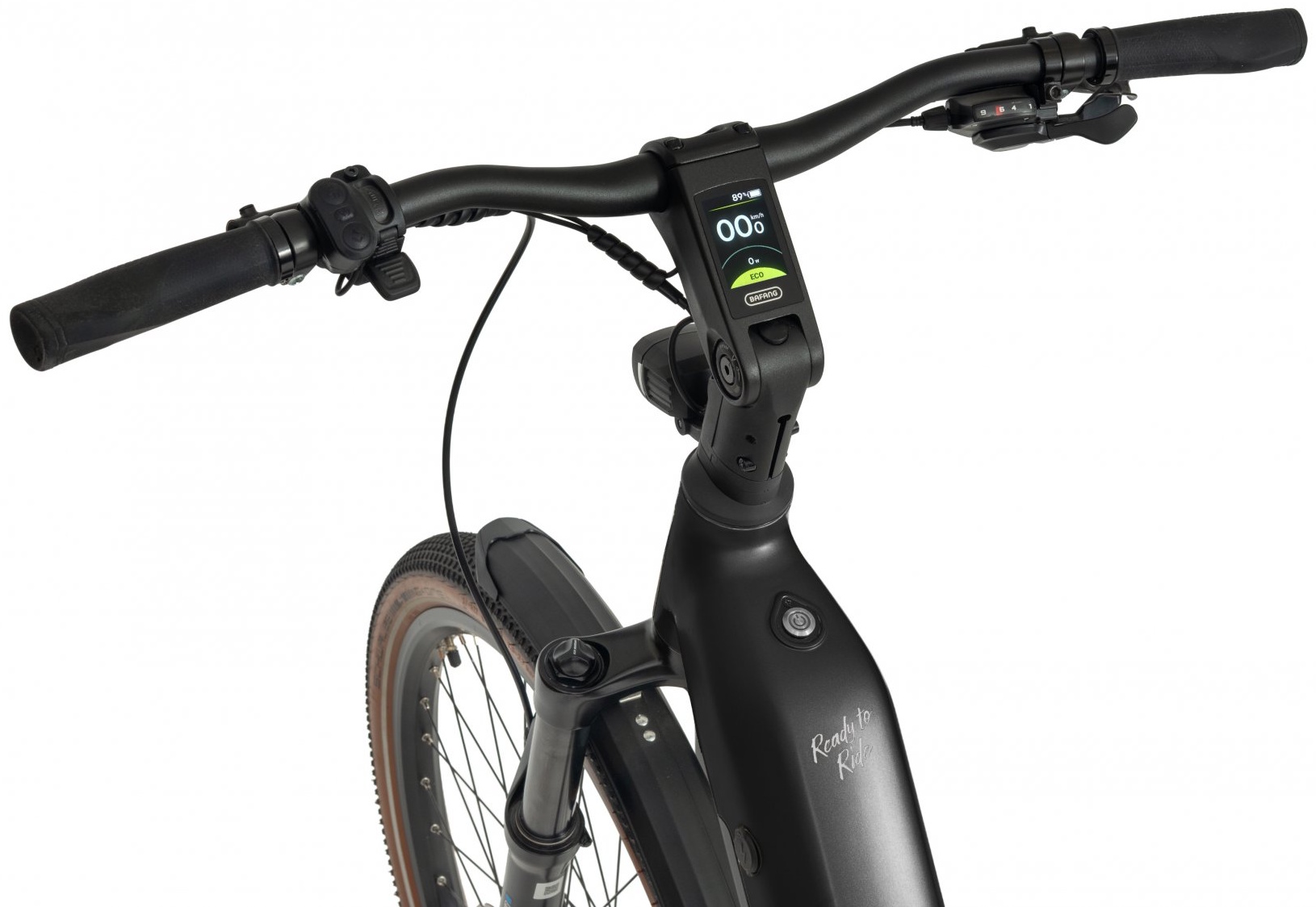

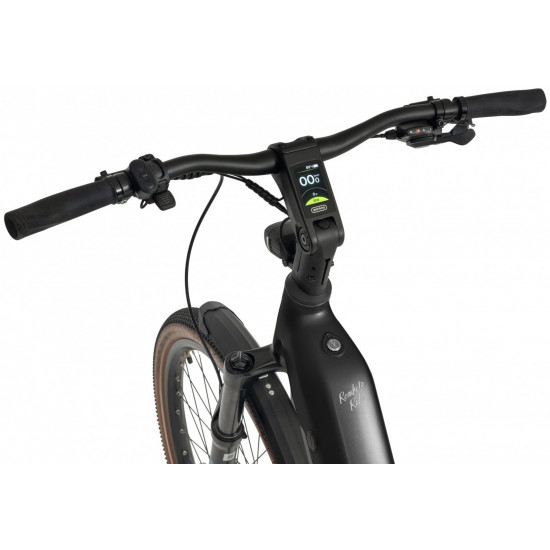

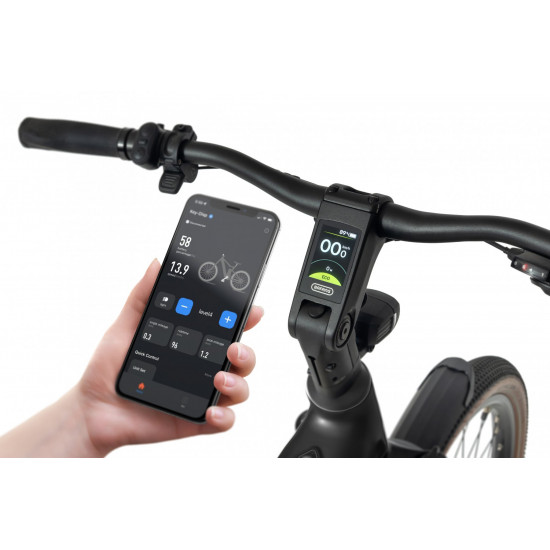

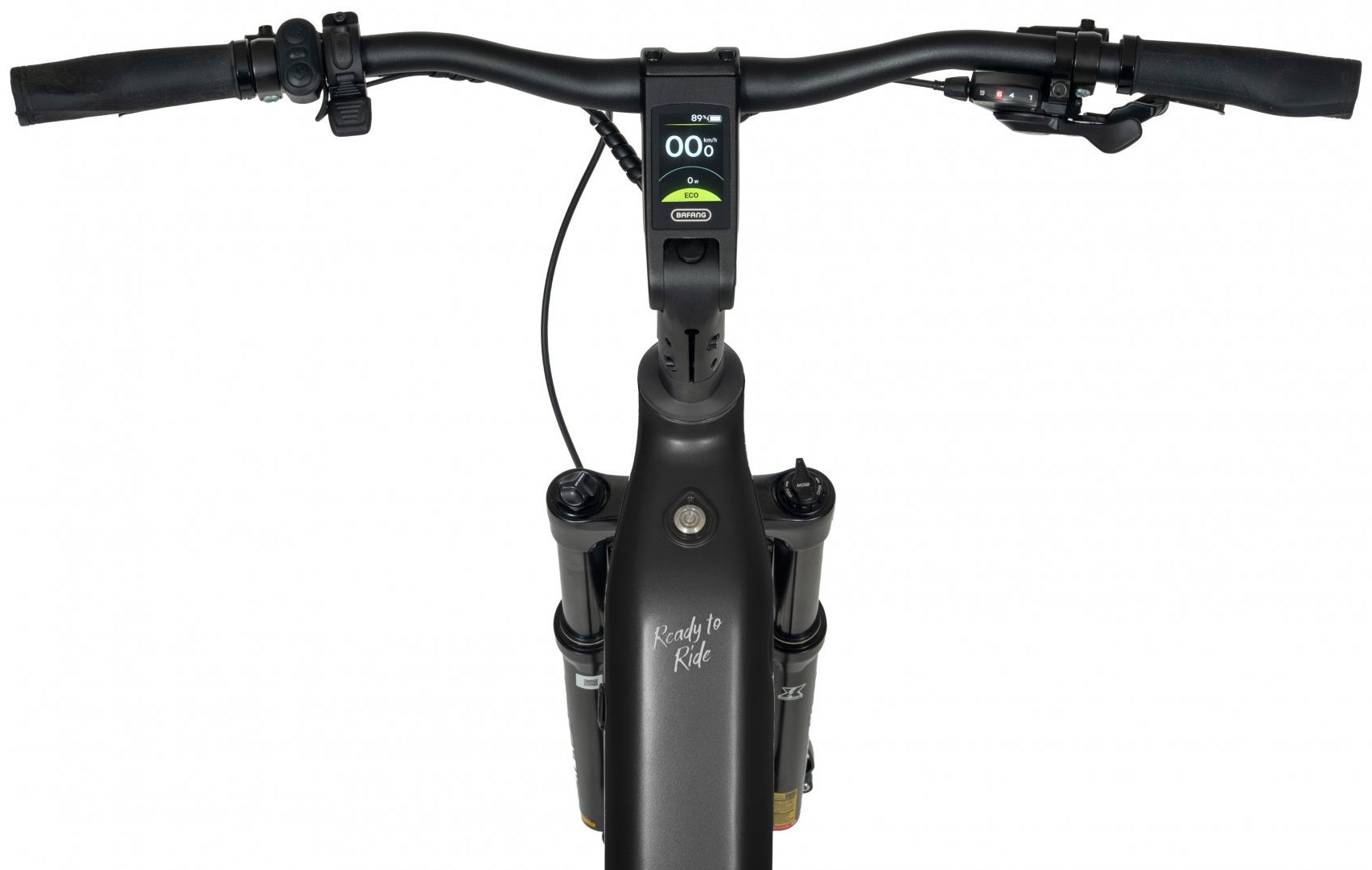

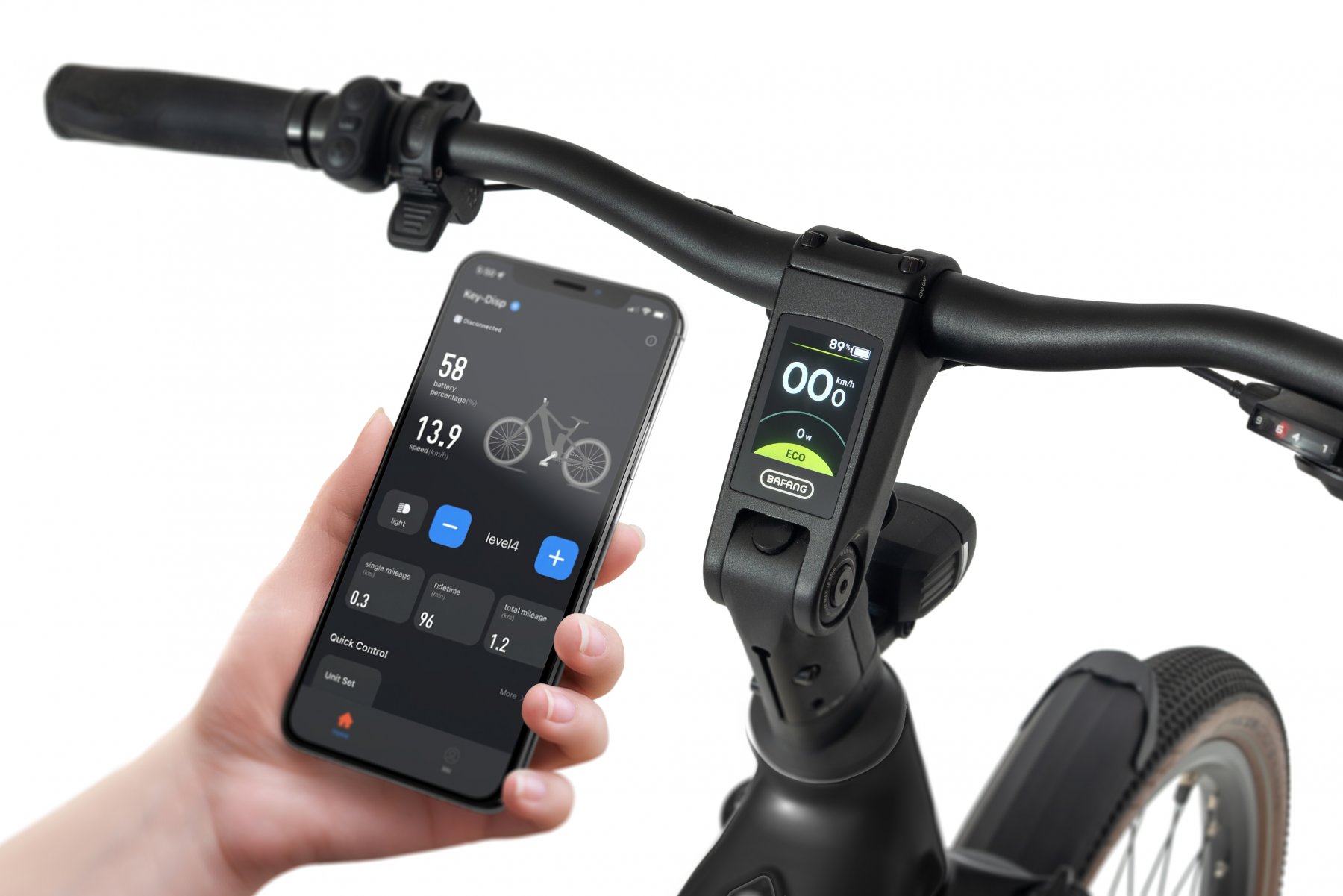

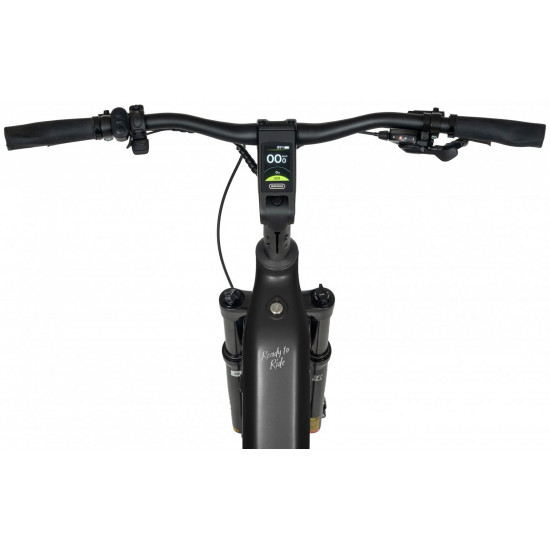

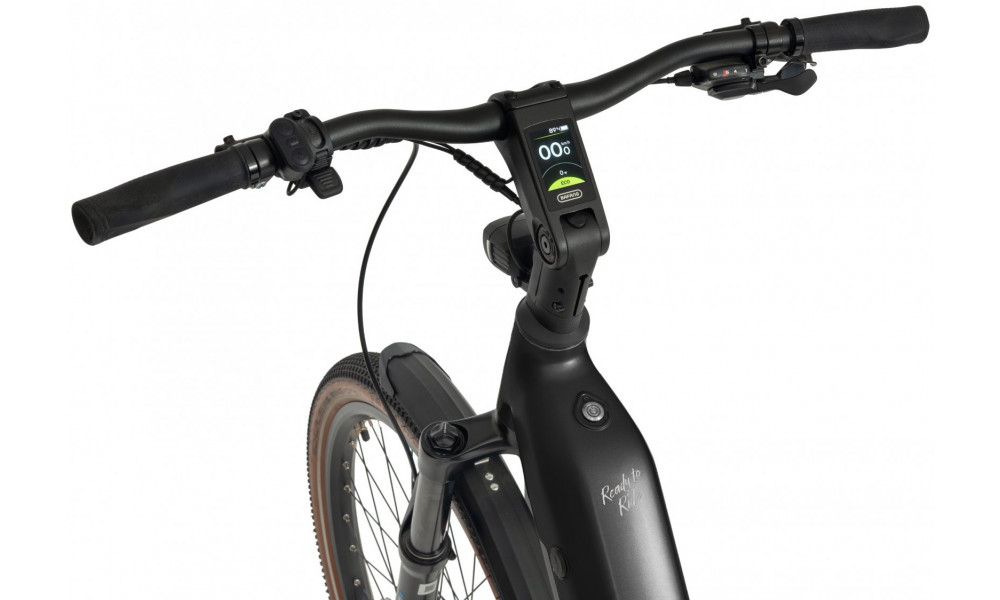

- Display model: DP C400 - stem display inside
- Display type: Color LCD
- Compatible application: Bafang Go
DISPLAY:
- Capacity and range:
- 900 Wh: MAX 170 km
- Voltage: 36V

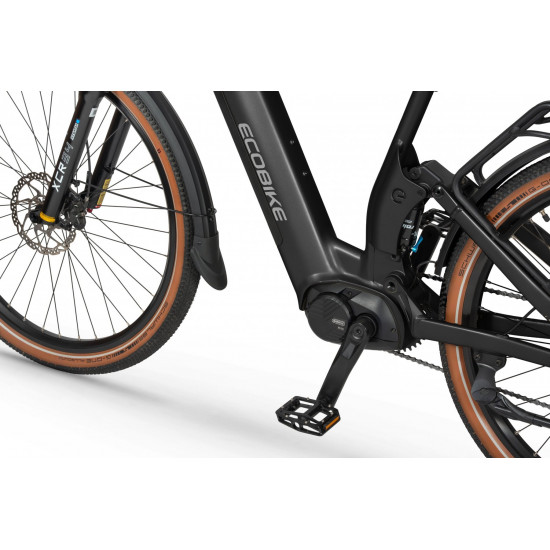

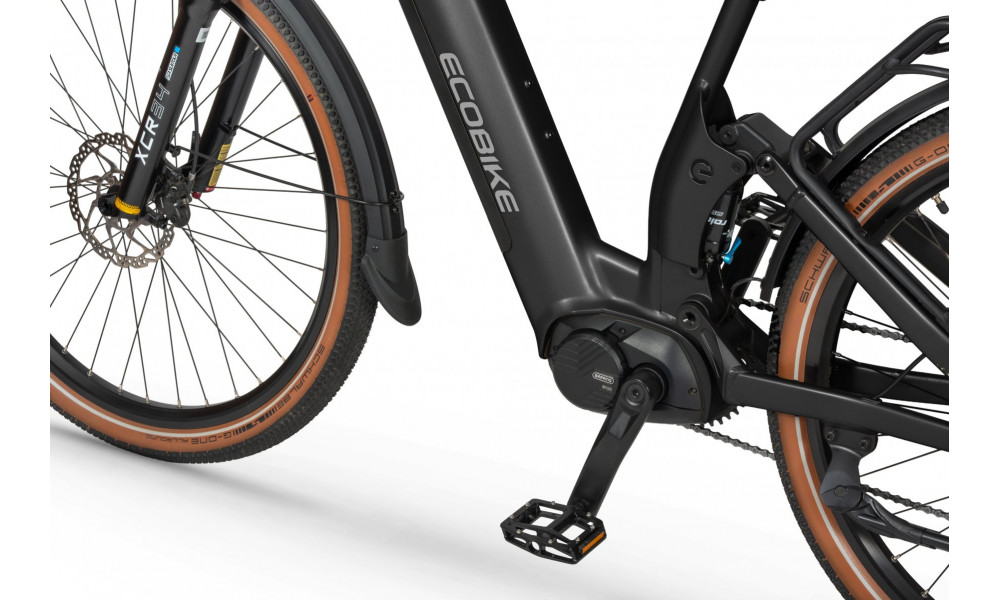

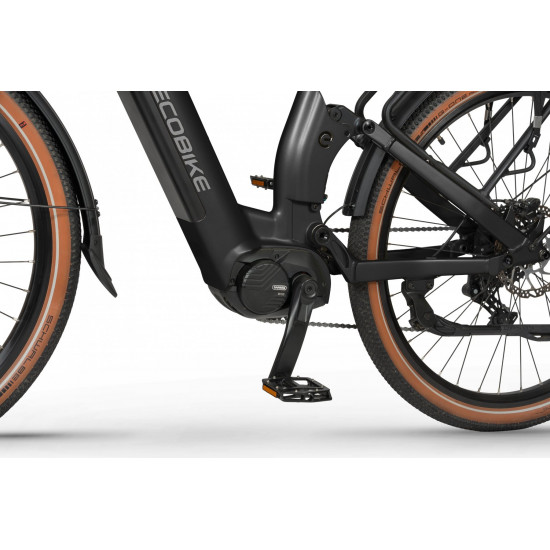

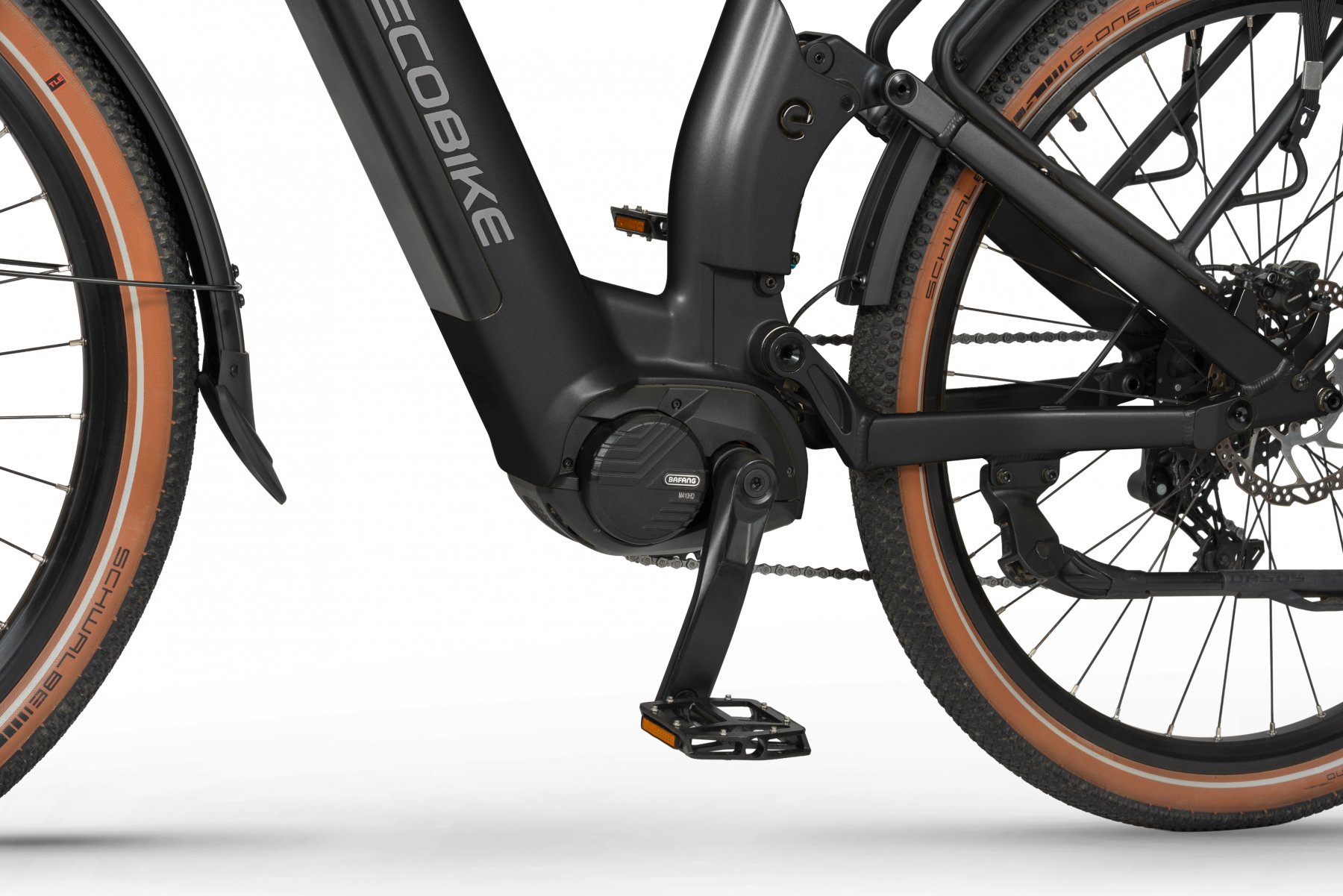

- Mount: Mid-drive, M410HD
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 100 Nm
- Motor's brand: Bafang
- Power: 250 W
DISTANCE:
ENGINE:
- Type: Li-ion
- Voltage: 36V
- Charger: 100-240V / 36V / 3A
- Cells brand: LG
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 7-8 hours
- FRAME: Hydroformed aluminium
- FRAME SIZE: L

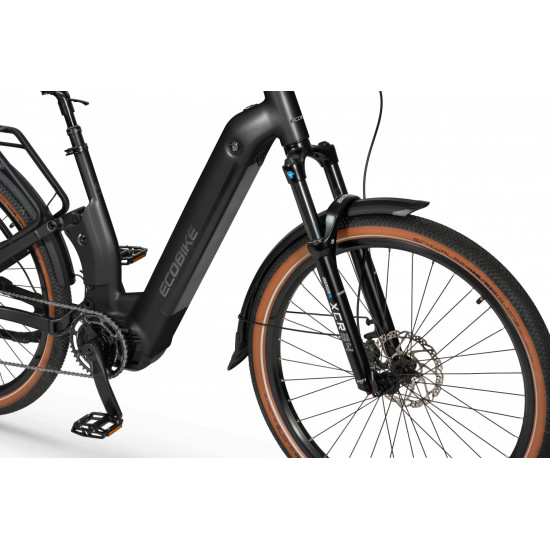

- FORK: SunTour SF25-XCR34X AIR BOOST, 120 mm travel

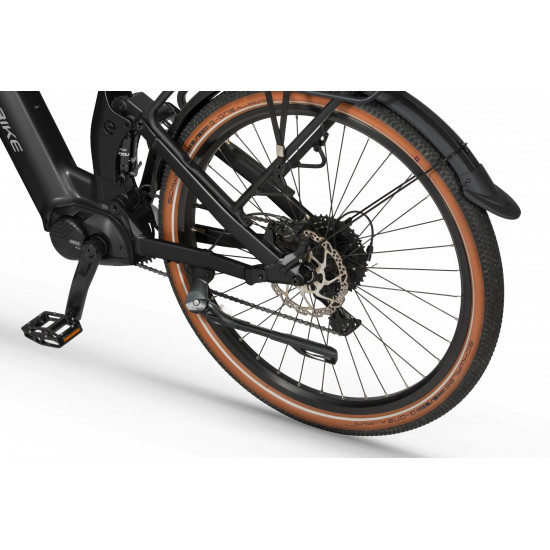

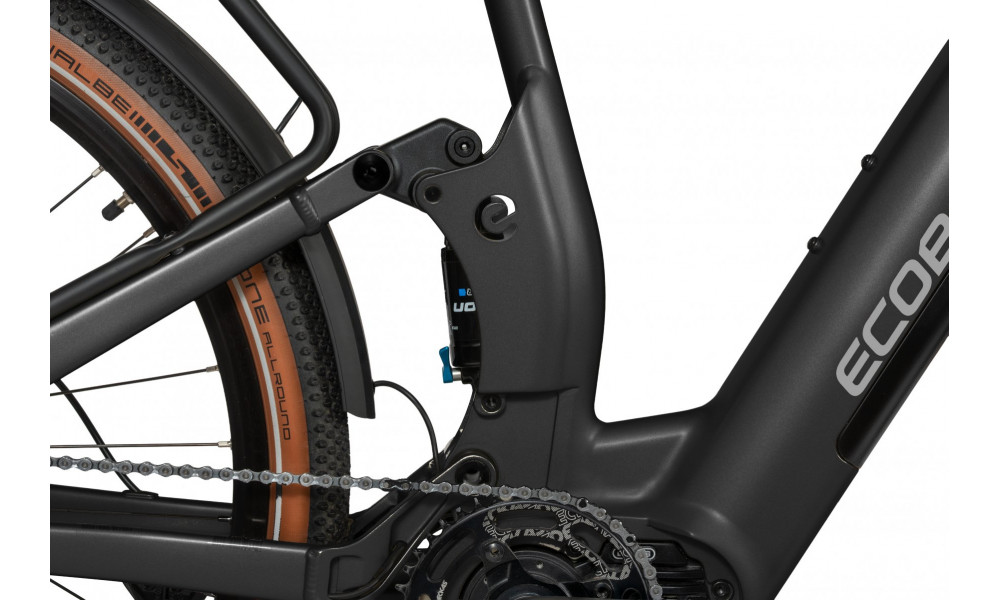

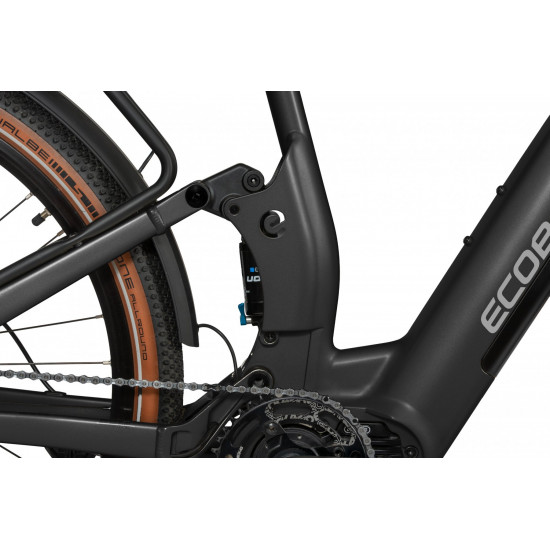

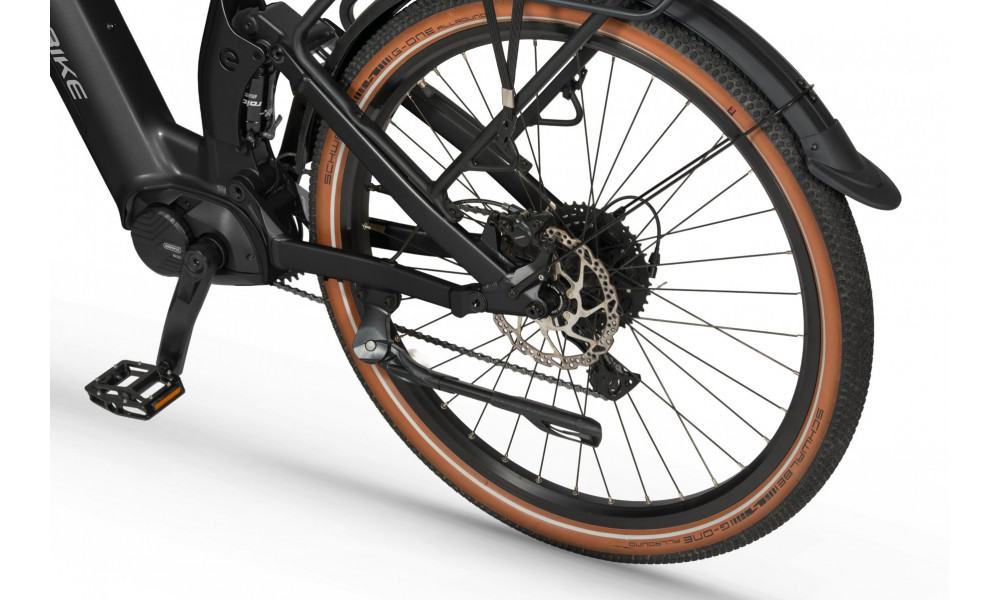

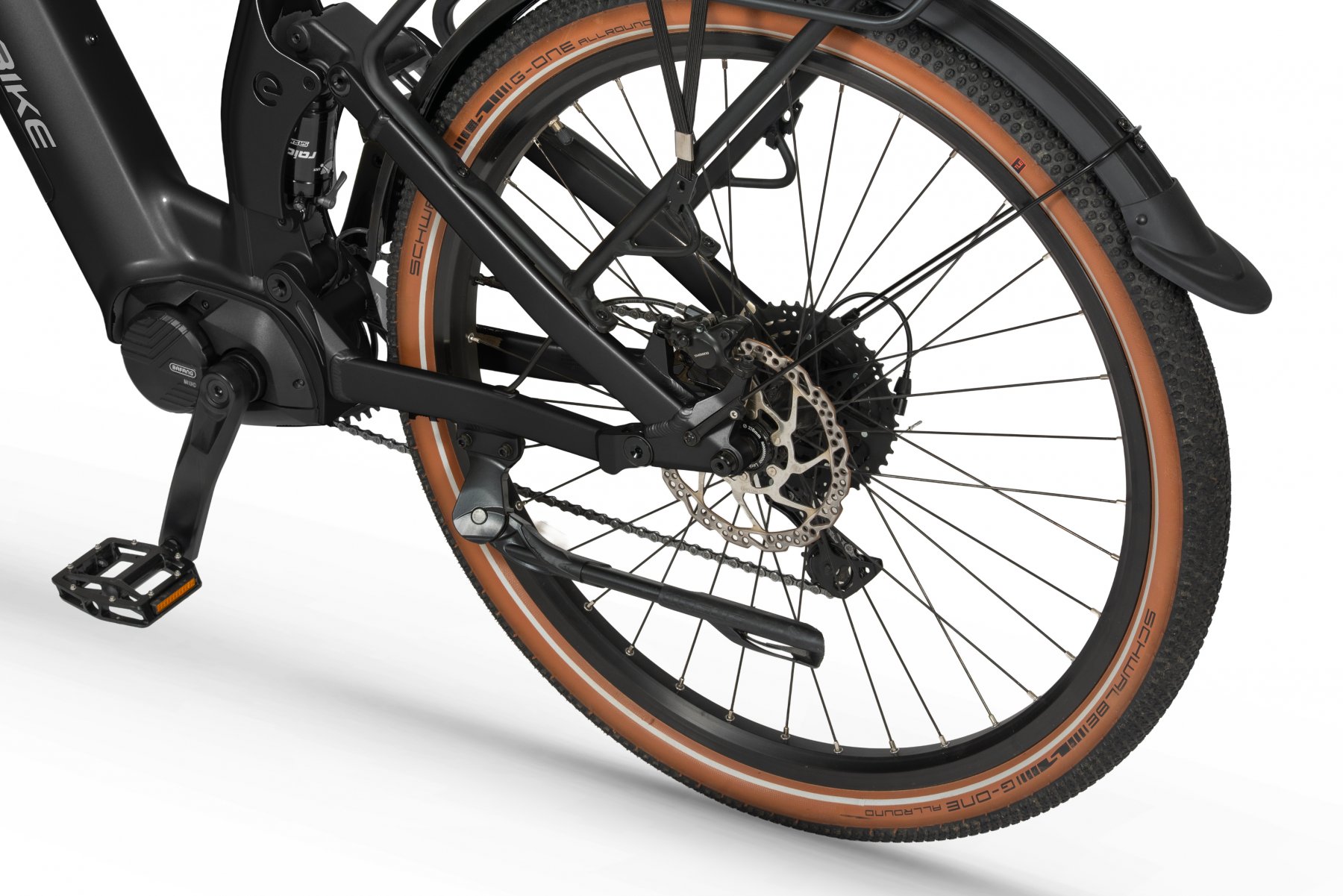

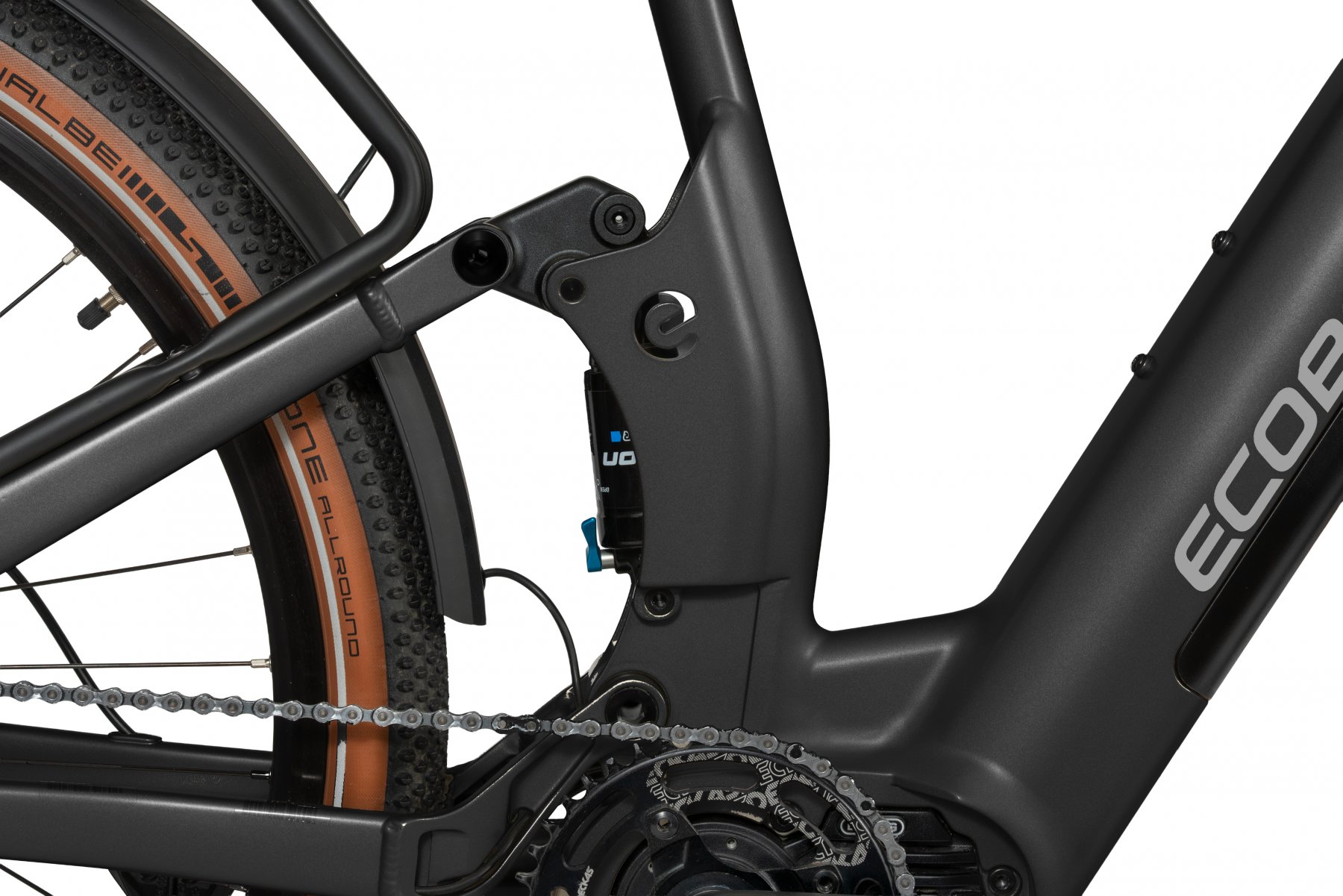

- REAR SHOCK: SunTour RS25-RAIDON, travel 100 mm
- BRAKES: Shimano MT200 hydraulic disc brakes
- CHAIN: KMC eGlide EPT
- CHAINWHEEL: Bafang 42T
- REAR DERAILLEUR: Shimano Cues, RD-U4000, 9 speed
- FREEWHEEL: Shimano Cues, 11-41T, 9 speed
- HANDLEBAR: Promax 3188, 700 mm x 31.8 mm, Rise: 30 mm
- STEM: Bafang 31.8 mm / E105 mm (with display)
- HUBS: Front hub: Shimano HB-TC500-15-B, 36H, 110 mm, Center lock, Thru type; Rear Hub: Shimano FH-TC500-HM-B, 148 mm, 36H, Center lock
- PEDALS: FP-203ZP
- RIMS: 28" reinforced three-chambered rims
- SADDLE: Selle Royal Lookin Evo Moderate
- SEAT POST: Promax, 30.9 mm x 480 mm, travel 150 mm
- SHIFTERS: Shimano Cues, SL-U4010-9R, 9 speed
- TYRES: 28" x 2.15 Schwalbe Marathon E Plus
- WEIGHT: 31.3 kg
- SPEEDS: 9
- GRIPS: Velo VLG-2052D2

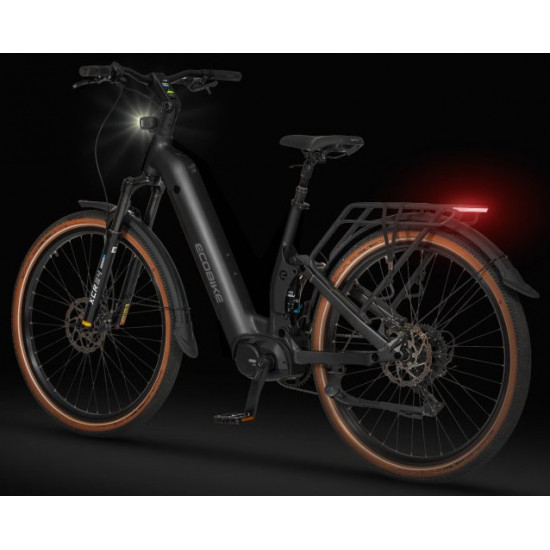

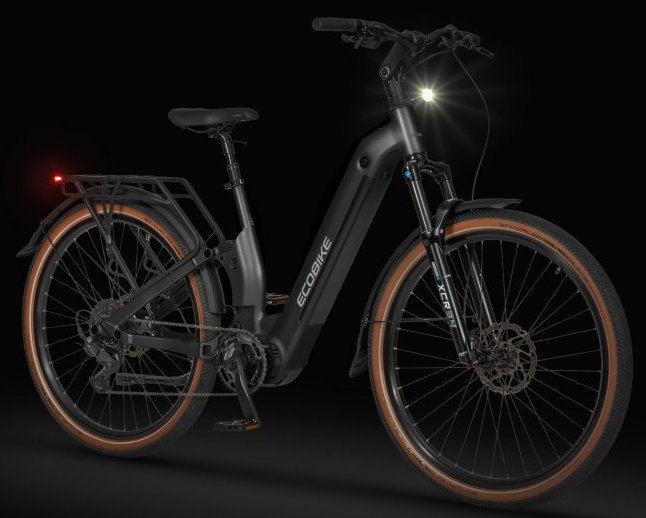

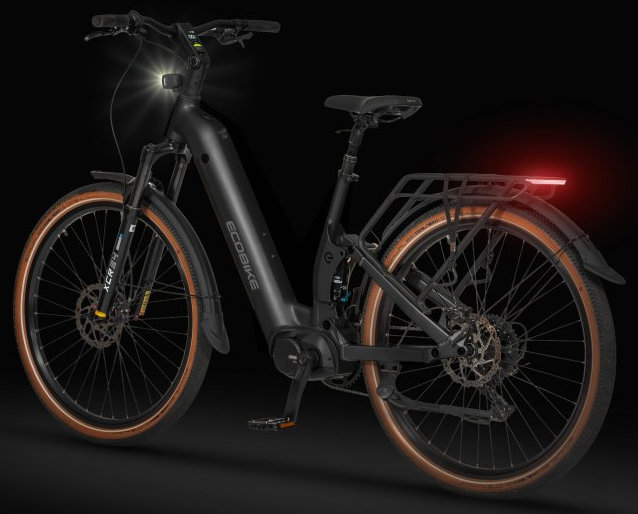

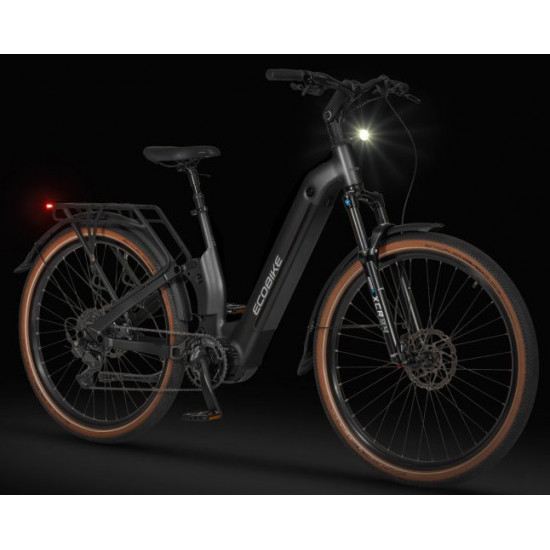

- LIGHTS: Rear Light: Spanninga GLOW STOP / Front Light: Herrmans MR5

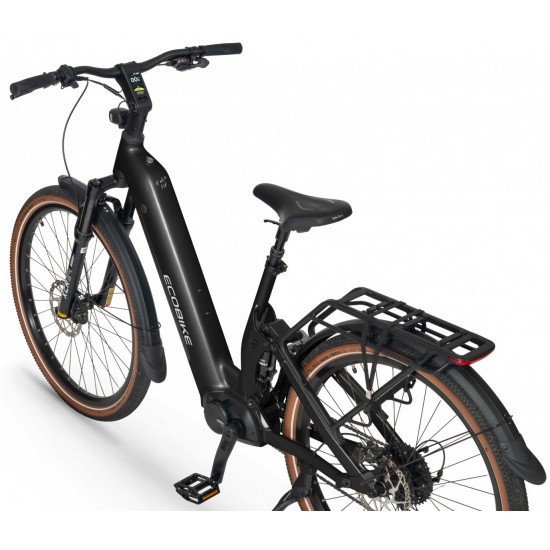

- BICYCLE PANNIER MOUNTING SYSTEM: MIK
- Effective top tube length: 607 mm
- Head tube lenght: 120 mm
- Frame size: 474 mm
- Wheel base: 1262.5 mm
- Seat tube angle: 77
- Headset angle: 68.5
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
BATTERY:
GEOMETRY:
Pyörä lähetetään valmistajan alkuperäisessä pakkauksessa (etupyörä, ohjaustanko ja satula ovat yleensä irrotettuina), mikä varmistaa tuotteen turvallisuuden varastointi- ja kuljetusvaiheessa. Kun ostaja hankkii pyörän sellaisessa pakkauksessa, hän itse tai valitsemansa pyörähuollon ammattilainen on vastuussa asianmukaisesta pyörän kokoamisesta, säätämisestä ja käyttöönotosta.
