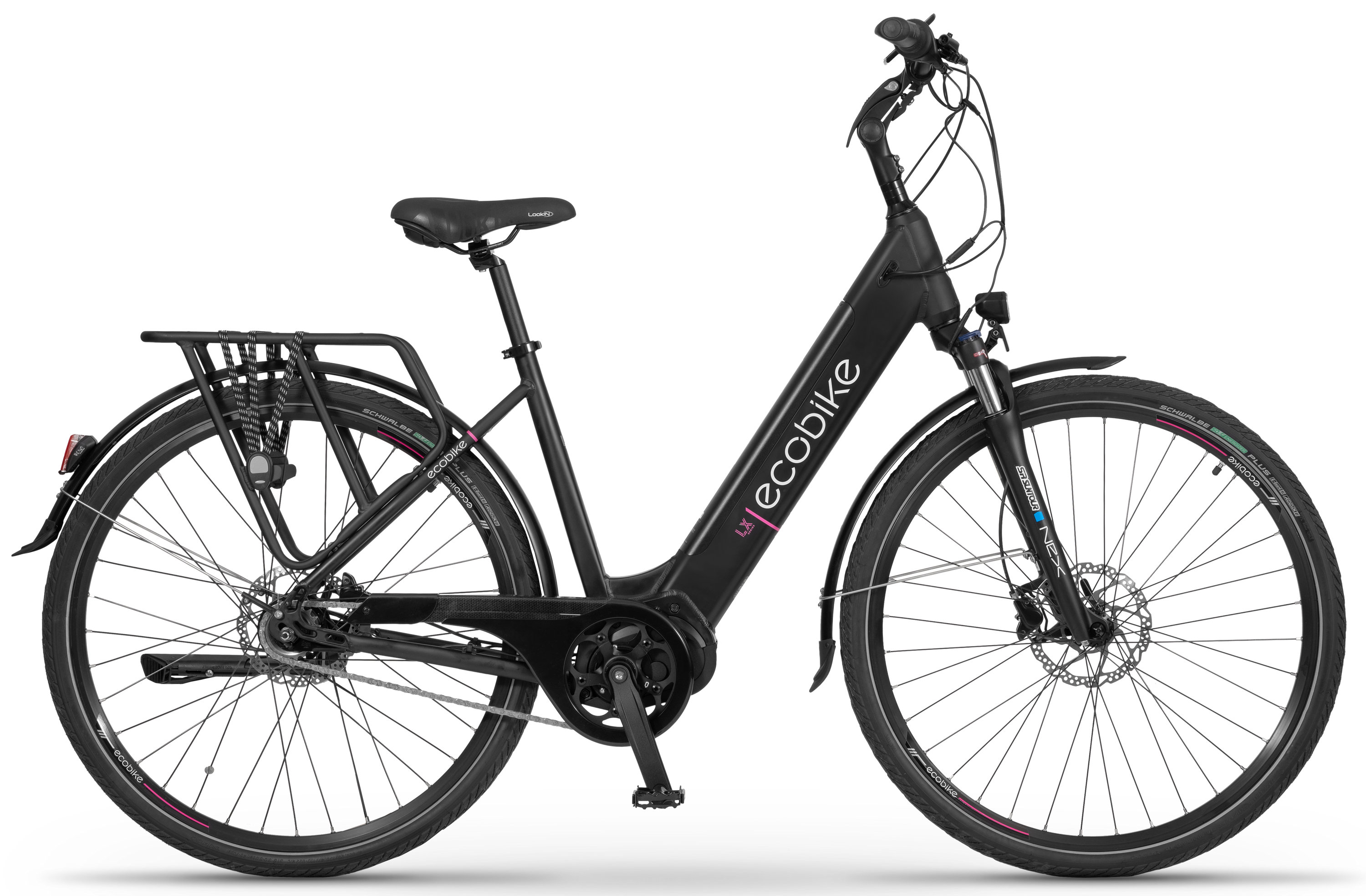

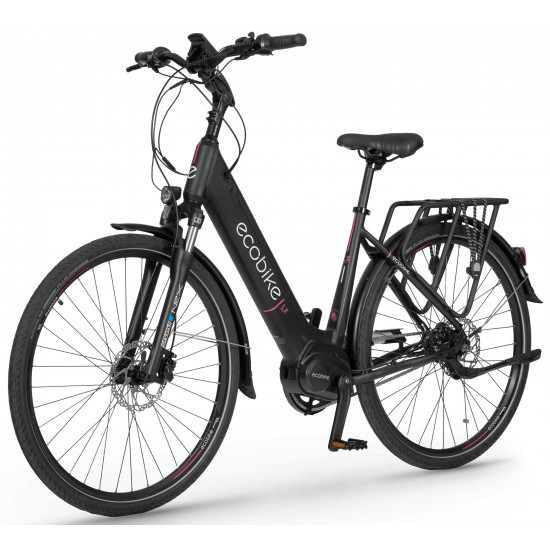

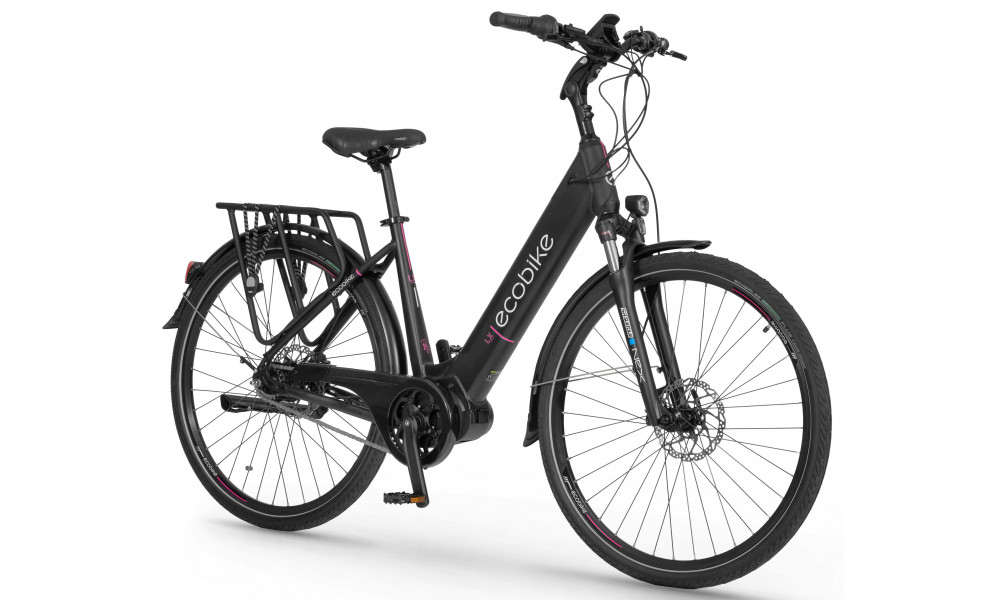

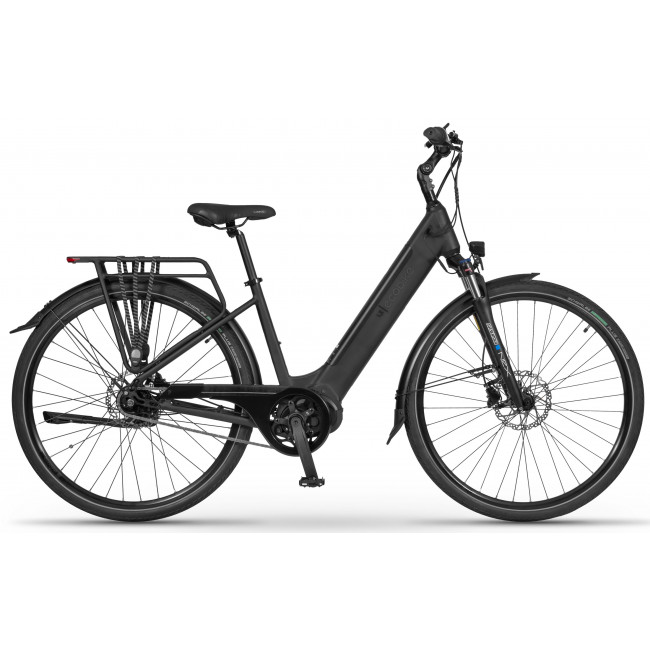

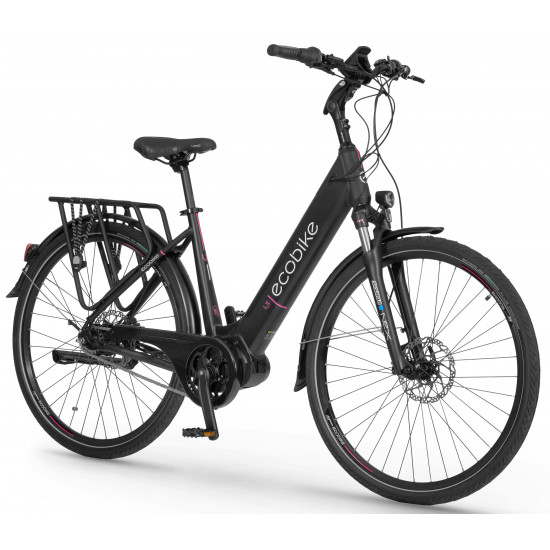

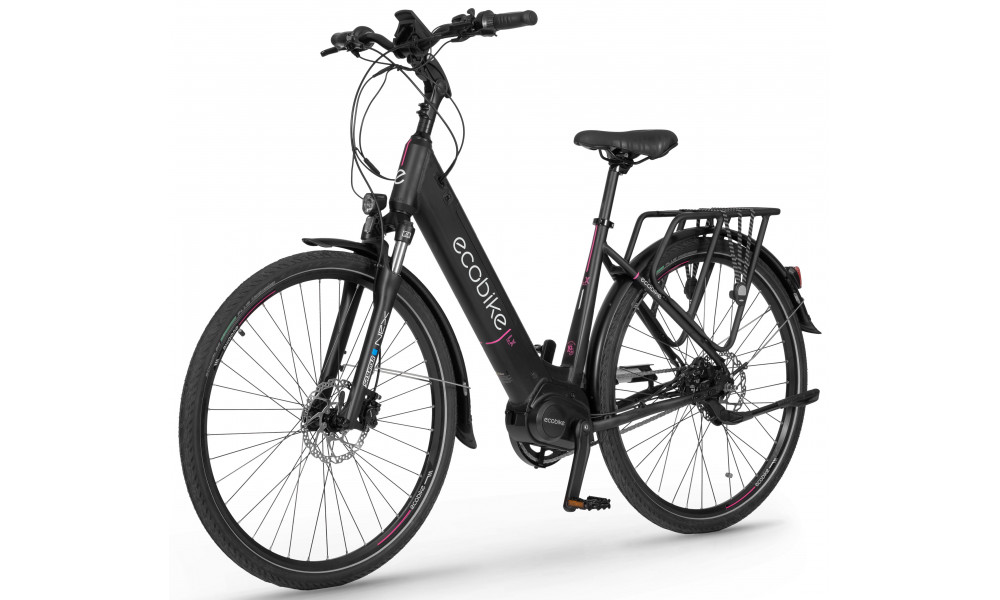

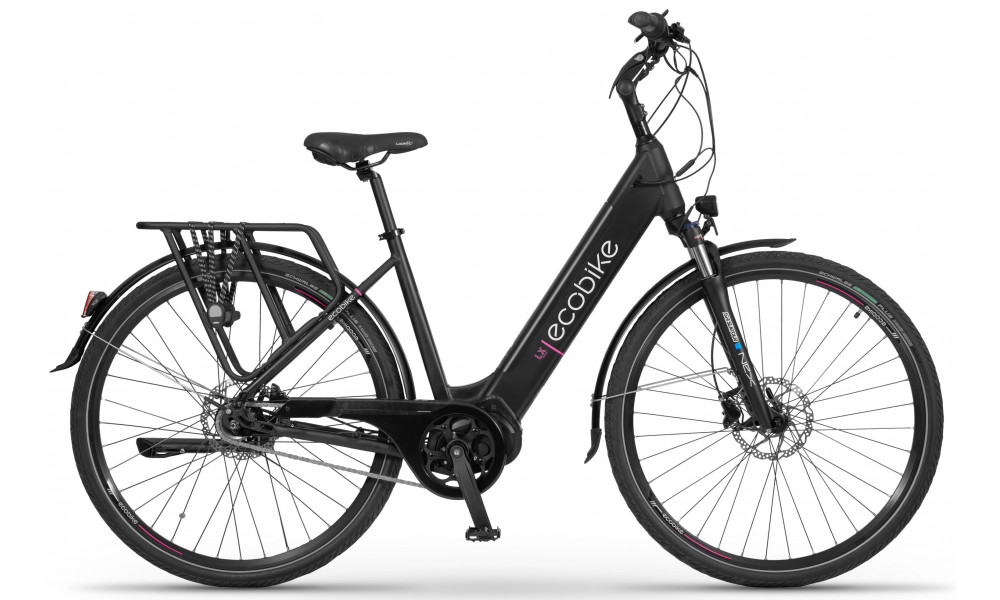

Kuvaus - Sähköpyörä Ecobike LX Black V2 556.8Wh
Ecobike is one of the first e-bike manufacturers in Europe. This means company has a many years of experience in electric bikes manufacturing and it can offer an ideal price vs quality ratio. World-class components assembled carefully with love for bicycles in Poland. All these advantages gained trust across the entire European continent.

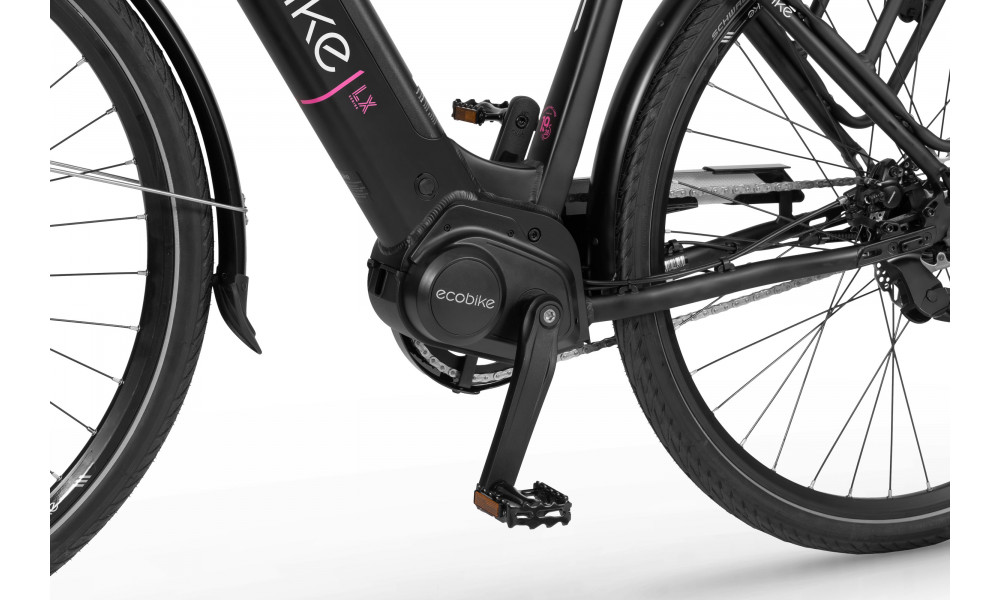

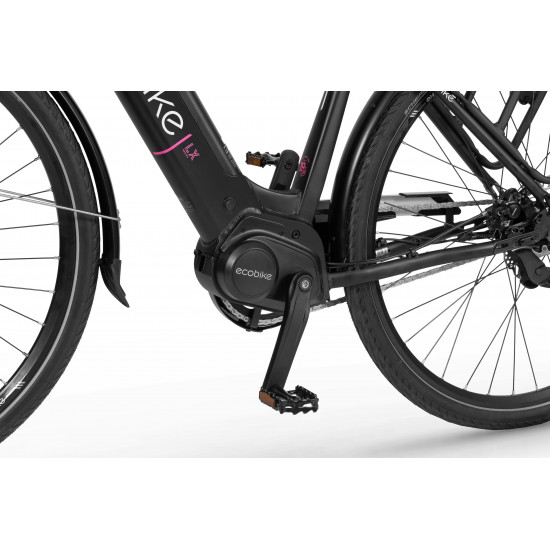

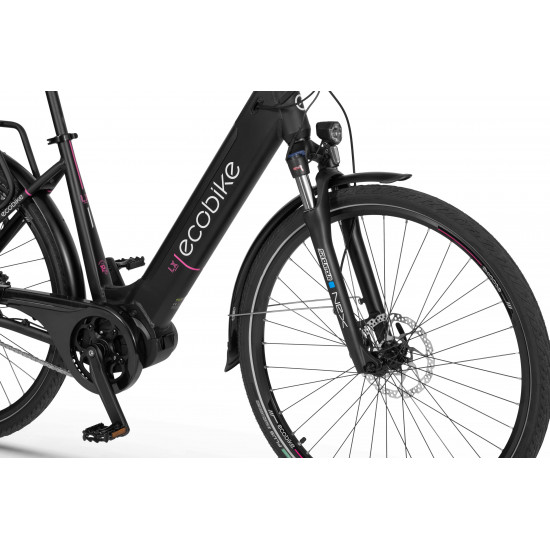

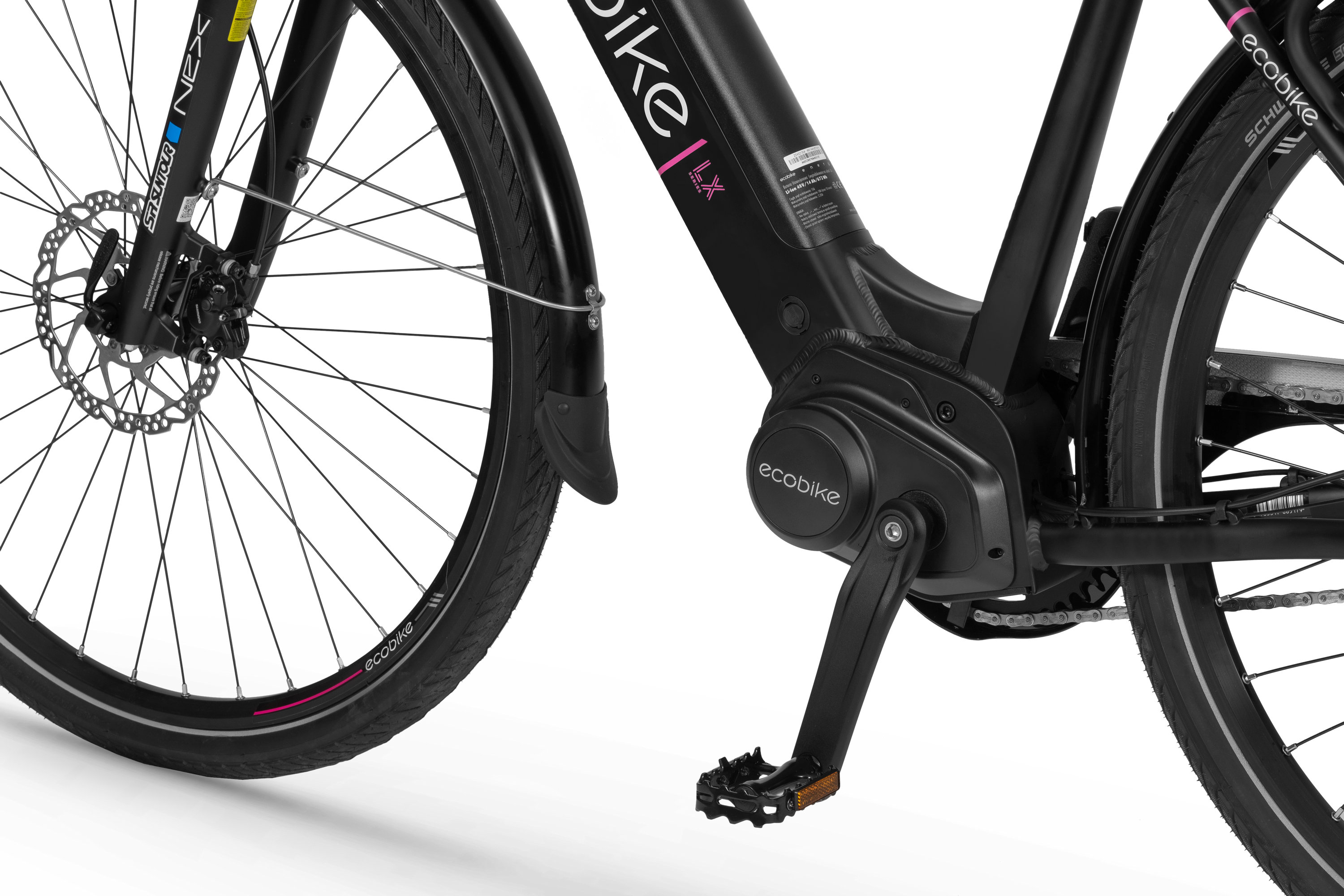

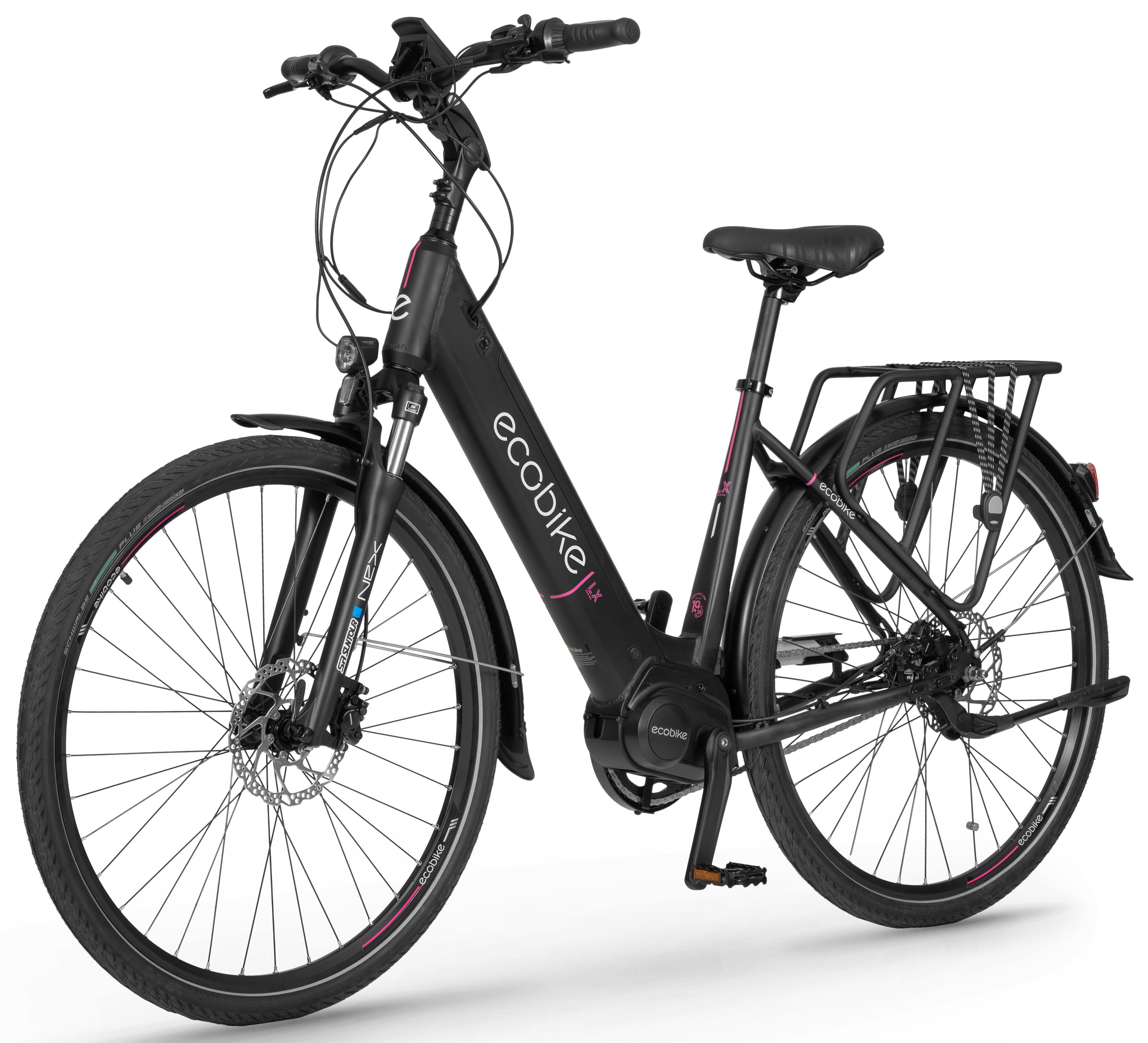

The frame geometry used in the LX is not only pleasing to the eye due to a perfectly matched battery or interesting design, but also works well in practice. The new design allows you to get in comfortably and take the optimal position for short journeys or longer trips. The changed ergonomic makes a great distribution of mass, it improves the grip of the battery, as well as its insertion and removal. The heart of the Ecobike LX is the developed and used by us for a long time Ananda mid drive. Its high torque of 100 Nm ensures efficient performance support even on steep climbs. Equipped with a pressure sensor, it enhances a unique driving experience, which remains smooth even in difficult conditions. The secret of good performance is a 48V system powered by a powerful LG battery. You will appreciate the control panel with a color display. It has been equipped with a dusk sensor that automatically turns on the bicycle lighting after dark. The user-friendly interface ensures easy, intuitive operation, and there are many functions at your disposal and configurable electric assist. Even the best system will not provide an interesting driving experience without finest components. The Shimano Nexus 7 derailleur is the crucial position in the LX specification, which is ideal for city traffic, as you can shift gears even when stop at traffic lights. It is also characterized by great durability and resistance to external factors. We have also used a SunTour Nex shock, Shimano hydraulic disc brakes, and strong Shcwalbe Energizer Plus tires - all of which makes the LX is a solid bike that can handle many demanding routes. The Ecobike LX also has been equipped with a rack, fenders, a comfortable Selle Royal gel seat and complete lighting, so it is immediately ready for your first journey.
Product technical specifications

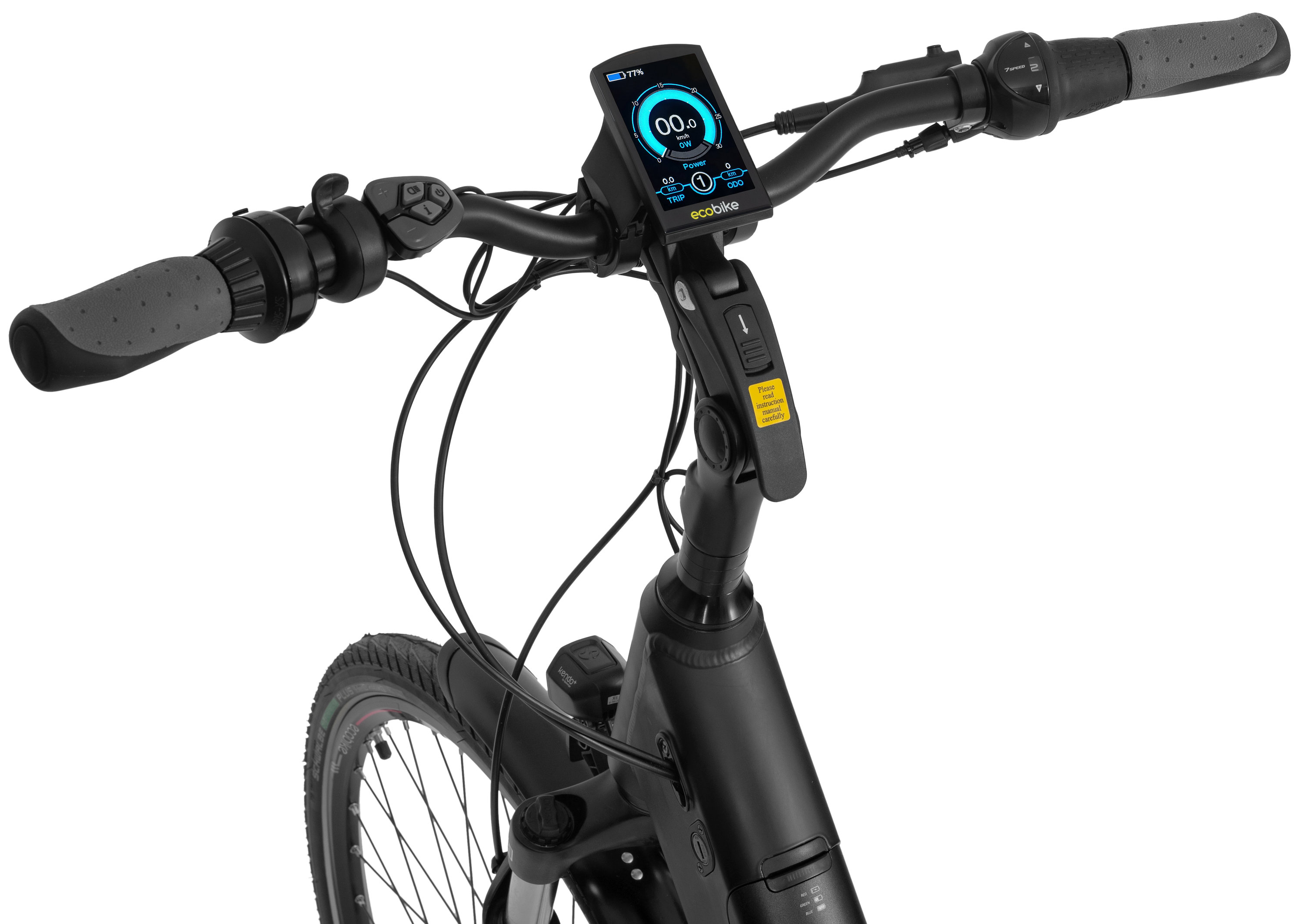

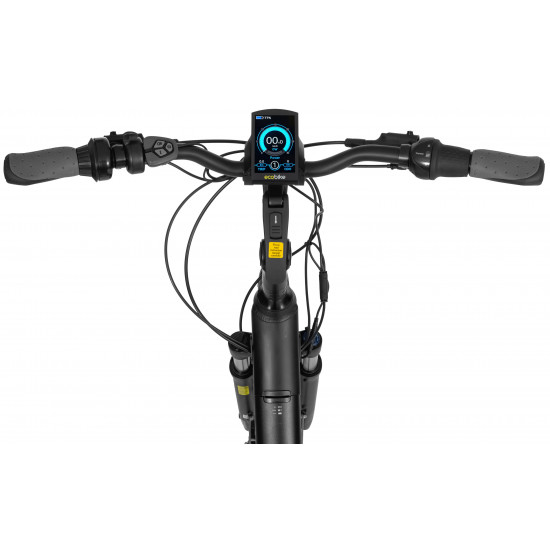

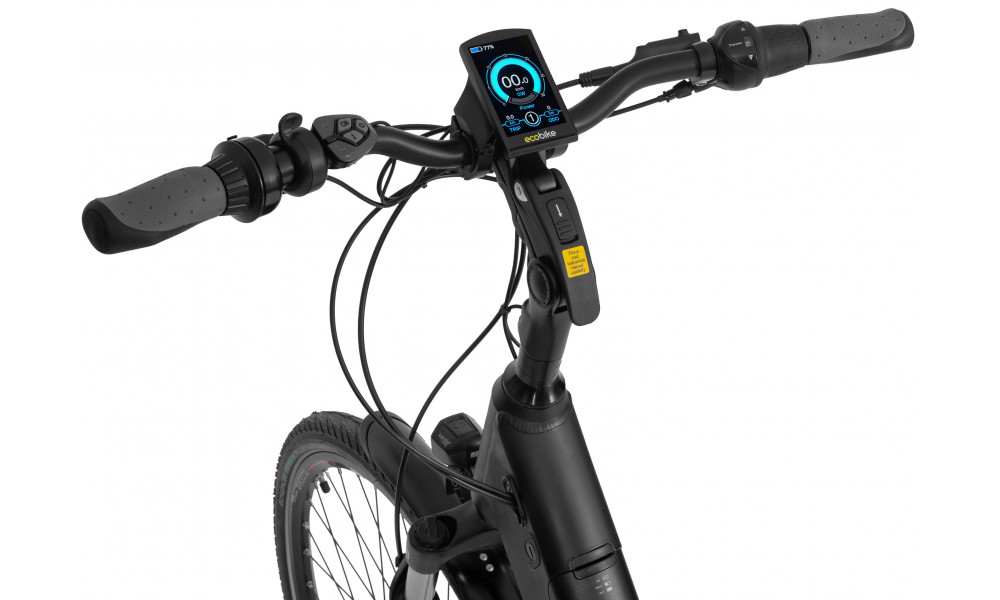

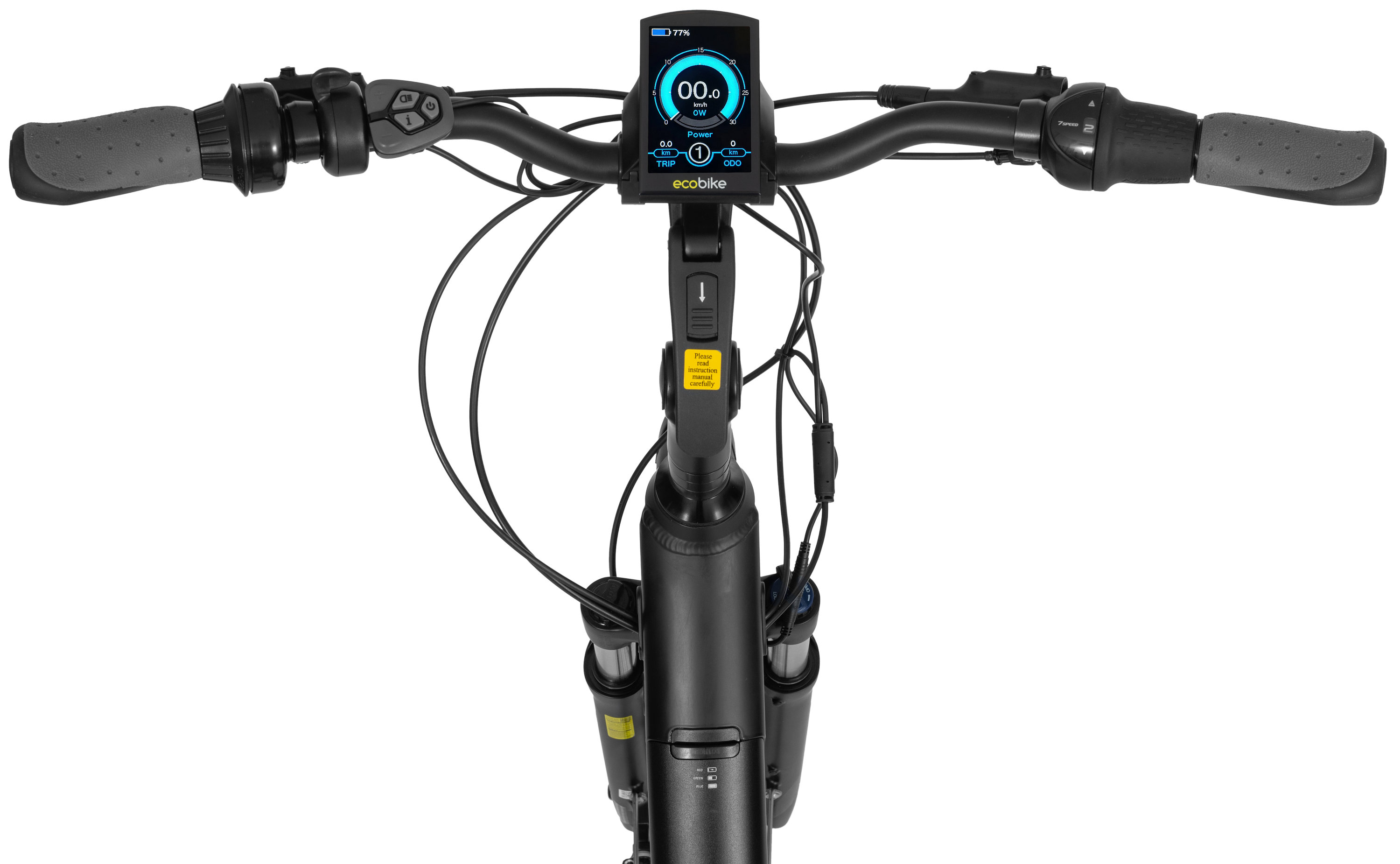

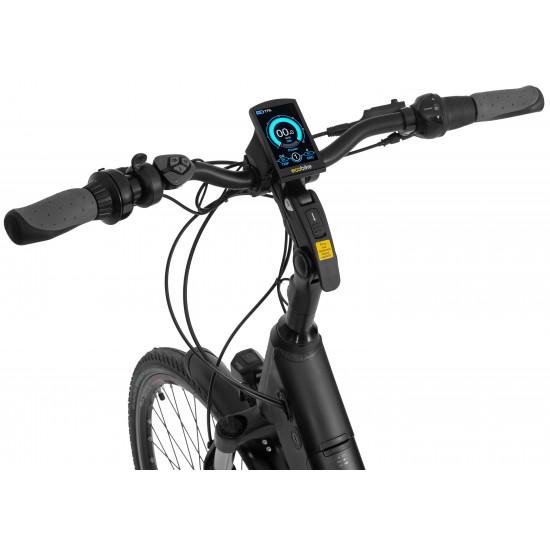

- Display model: C900
- Display type: Color LCD
- Compatible application: Ananda Ride
DISPLAY:
- Capacity and range:
- 556.8 Wh: MAX 135 km
- Voltage: 48 V

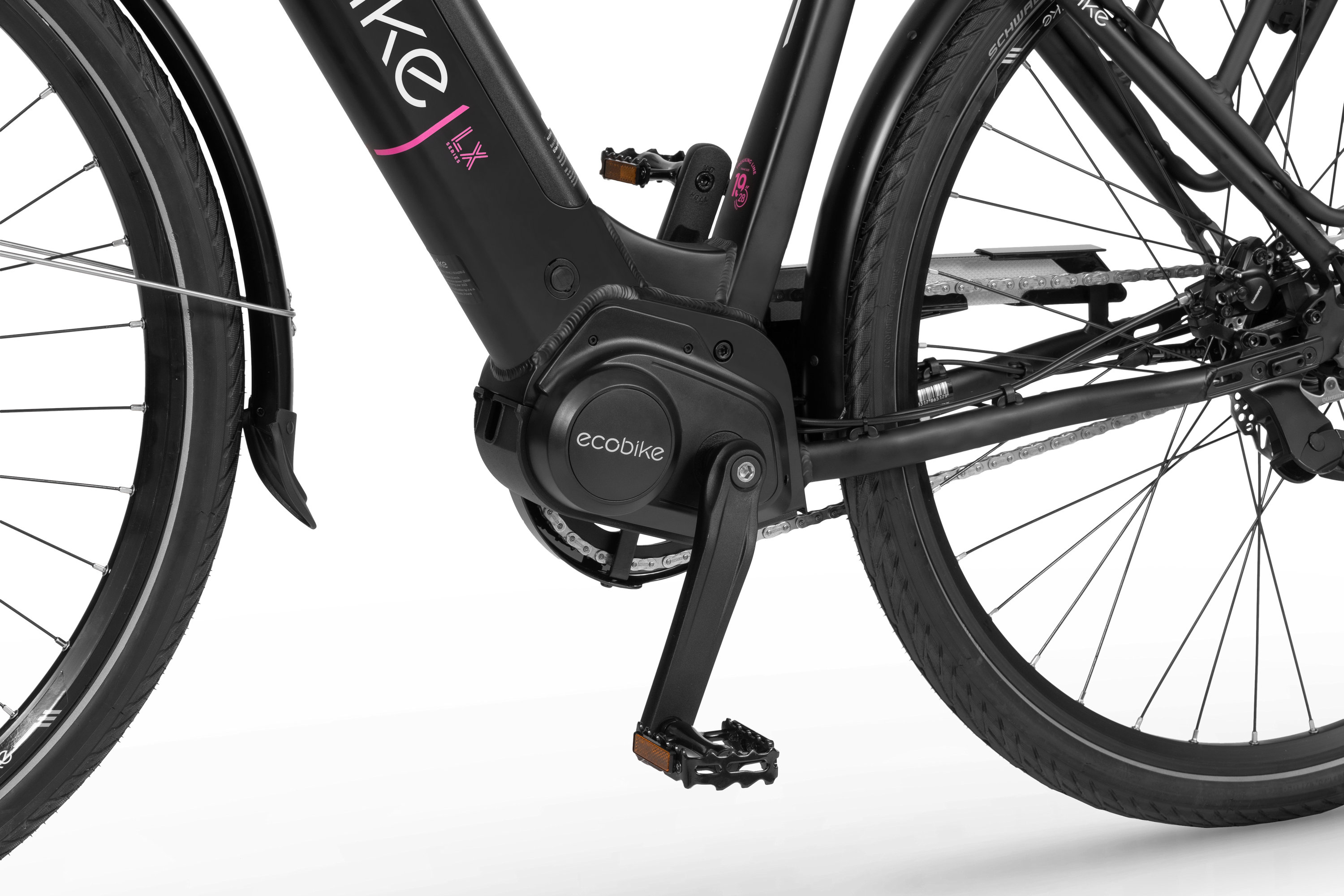

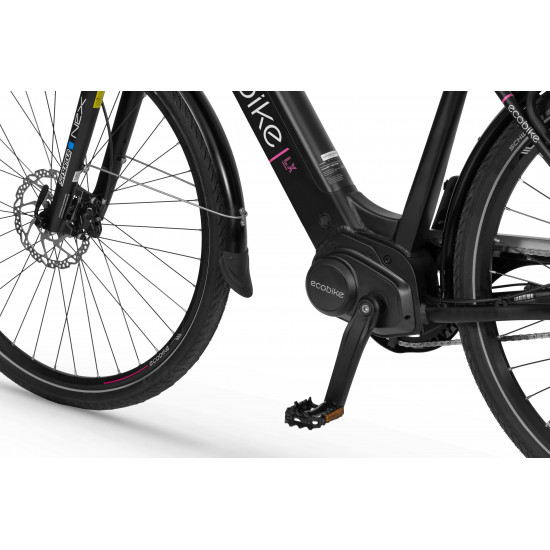

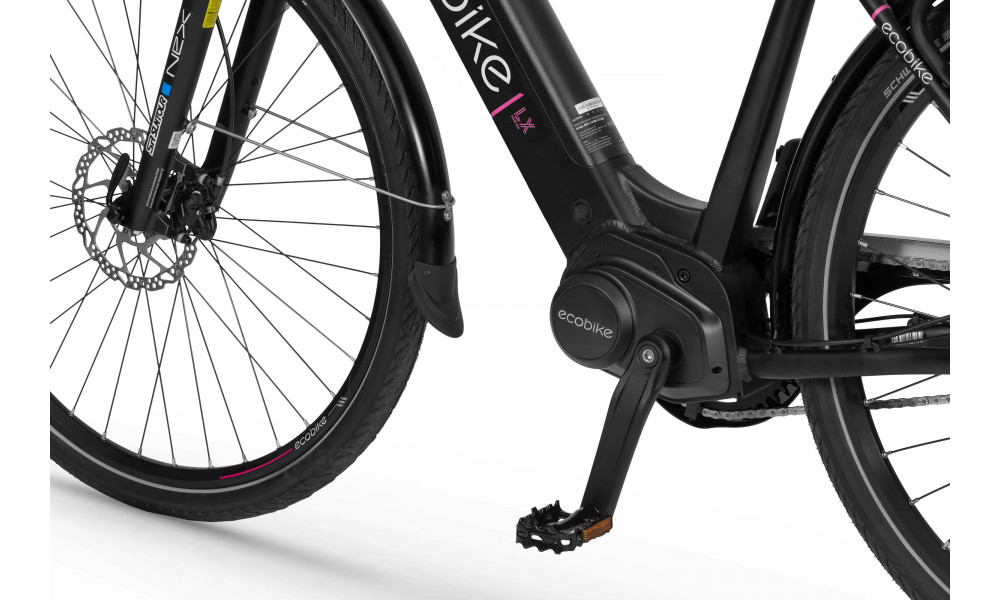

- Mount: Central (mid-drive)
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 100 Nm
- Motor's brand: Ananda
- Power: 250 W
- Lifespan: 700 charge
- Type: Li-ion
- Voltage: 48 V
- Charger: 220-240V/48V / 2A
- Cells brand: EVE
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 4-8 hours
- FRAME: Hydroformed alluminium
- FRAME SIZE: 17"

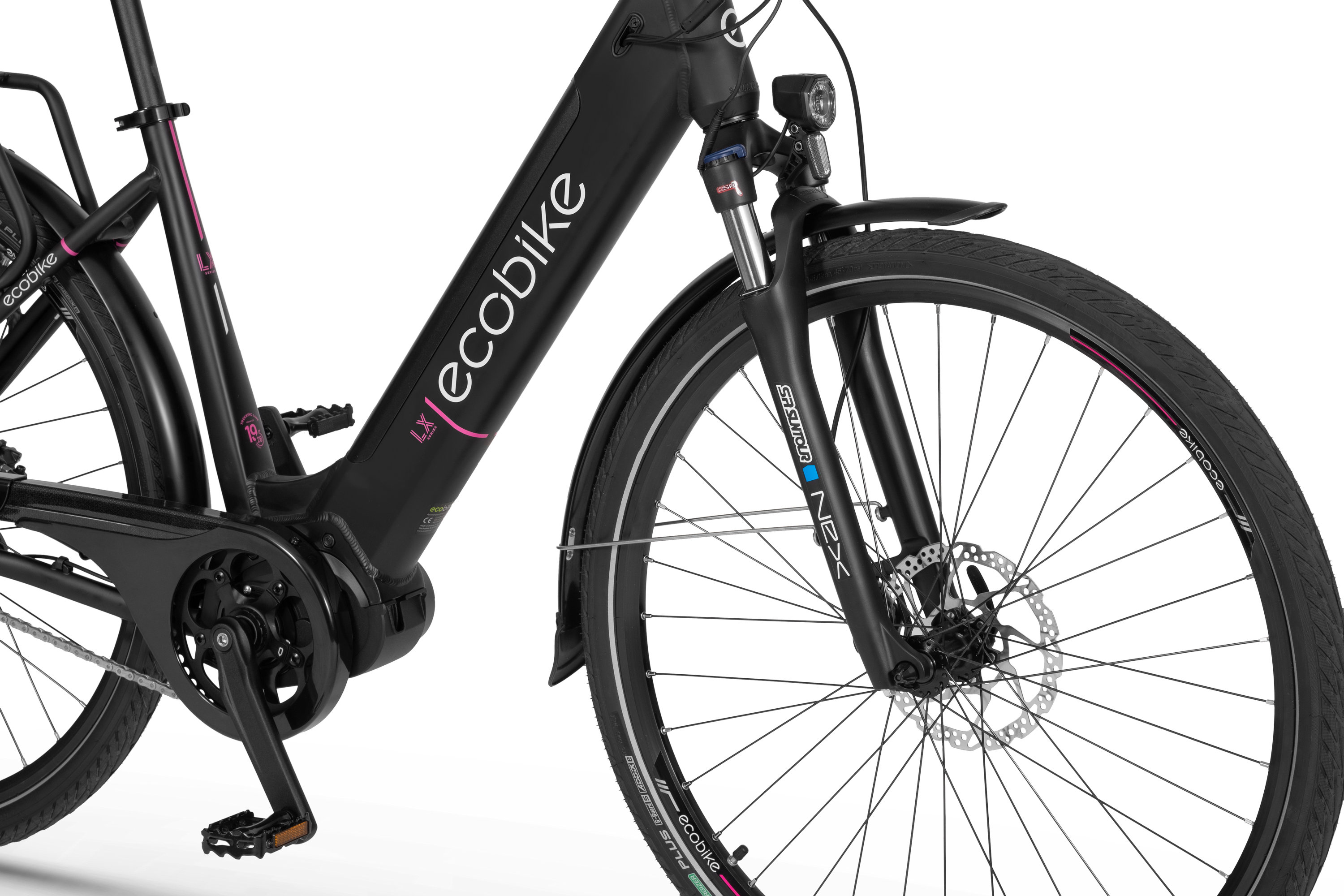

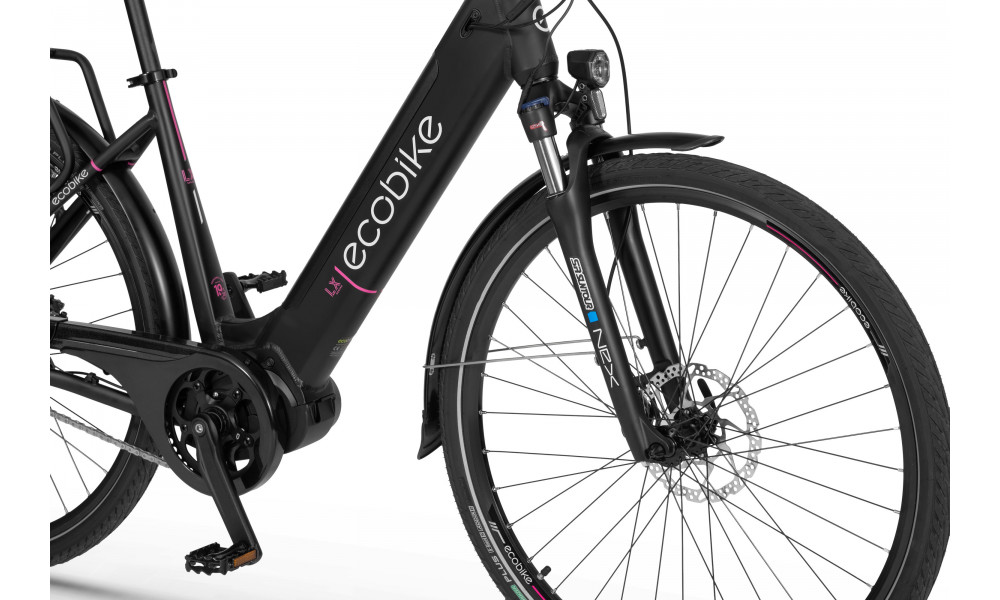

- FORK: SR Suntour NEX HLO, suspension
- BRAKES: Shimano MT200 hydraulic disc
- CHAIN: KMC Z1eHX EPT Wide
- CHAINWHEEL: Prowheel 1-speed, 44T
- REAR DERAILLEUR: NEXUS 7-speed
- FREEWHEEL: Shimano Nexus 20T
- HANDLEBAR: Promax 690 mm, 31.8
- STEM: Promax 30 degrees / 90 mm
- HUBS: Front hub: TORA 36H, Centerlock / Rear Hub: Shimano NEXUS
- PEDALS: Velo
- RIMS: 28" reinforced three-chambered rims
- SADDLE: Selle Royal Lookin Basic
- SEAT POST: Promax diameter: 27.2 mm, length: 350 mm
- SHIFTERS: Shimano NEXUS Revo 7-speed
- SPOKES: stainless steel, SAPIM
- TYRES: 28" x 1.75 Schwalbe Energizer Plus
- WEIGHT: 26 kg
- SPEEDS: 7
- MUDGUARDS: For front and rear wheel, with u-stays
- GRIPS: Velo VLG-1985-2D3
- KICKSTAND: Rear, adjustable length, aluminium
- CARRIER: Aluminium, max.: 25kg, with carrier straps
- LIGHTS: Rear Light: Spanninga GLOW XE / Front Light: Spaninga KENDO XE
- Effective top tube length: 595 mm
- Head tube lenght: 150 mm
- Frame size: 432 mm
- Wheel base: 1145 mm
- Seat tube angle: 73
- Headset angle: 69
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
DISTANCE:
ENGINE:
BATTERY:
GEOMETRY:
