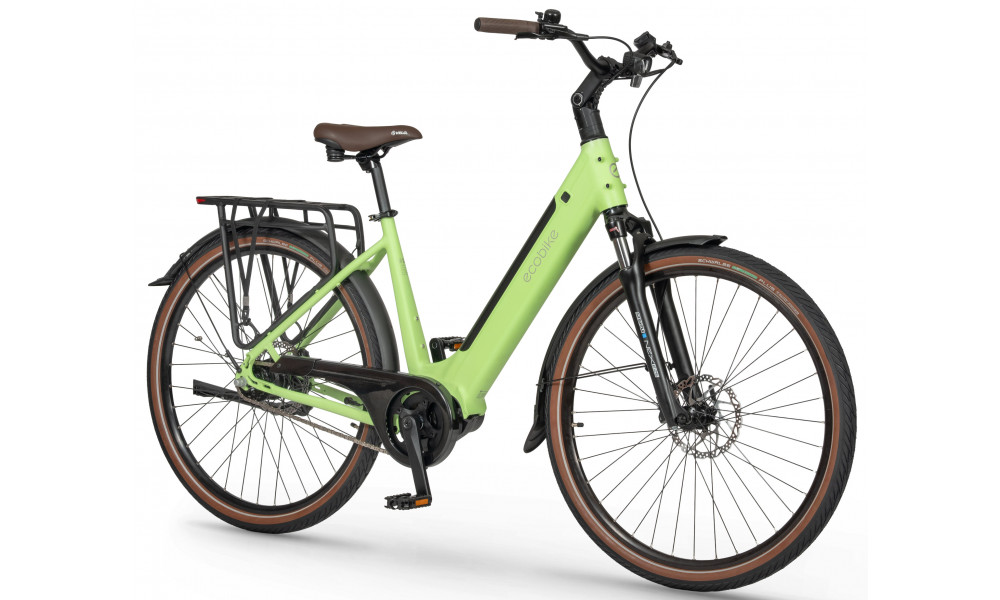

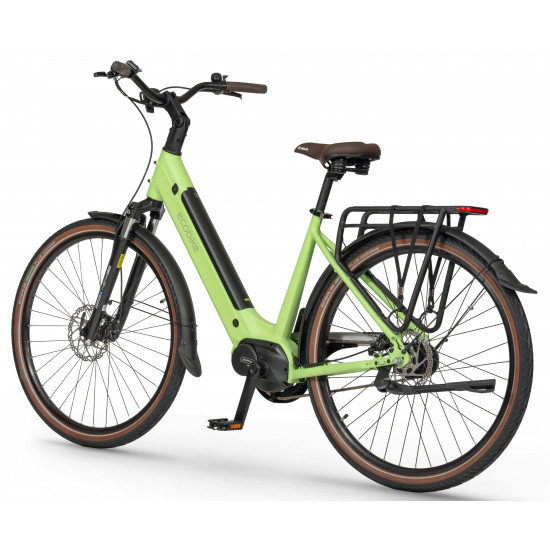

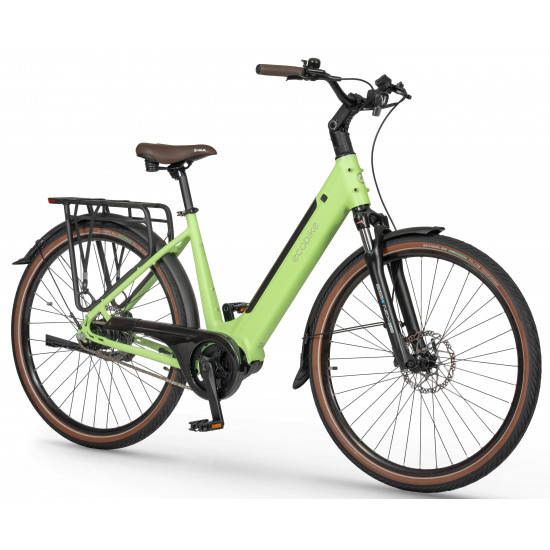

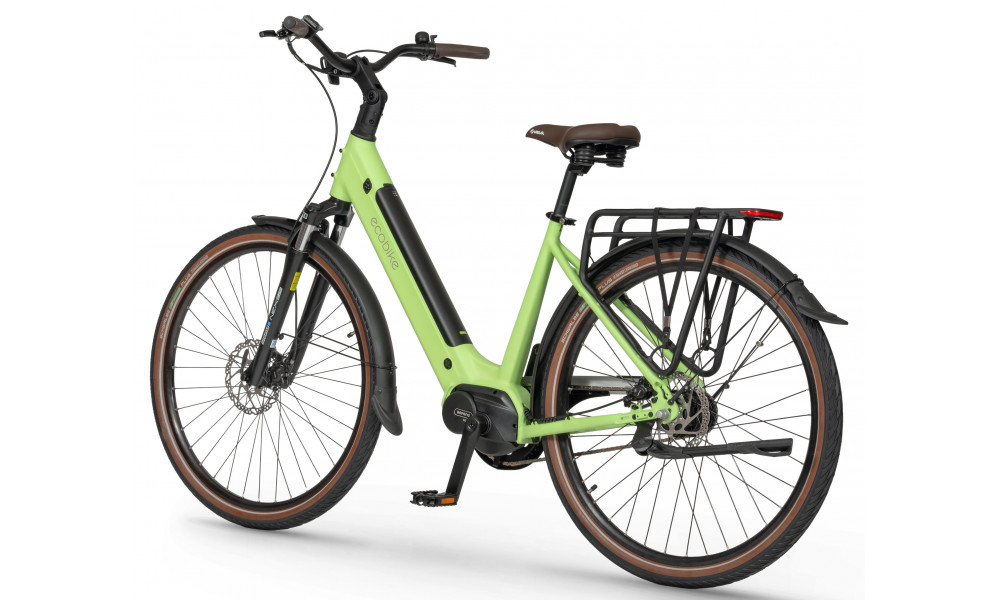

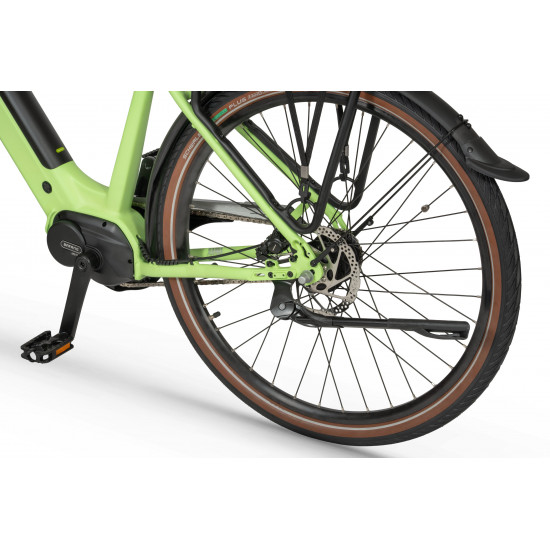

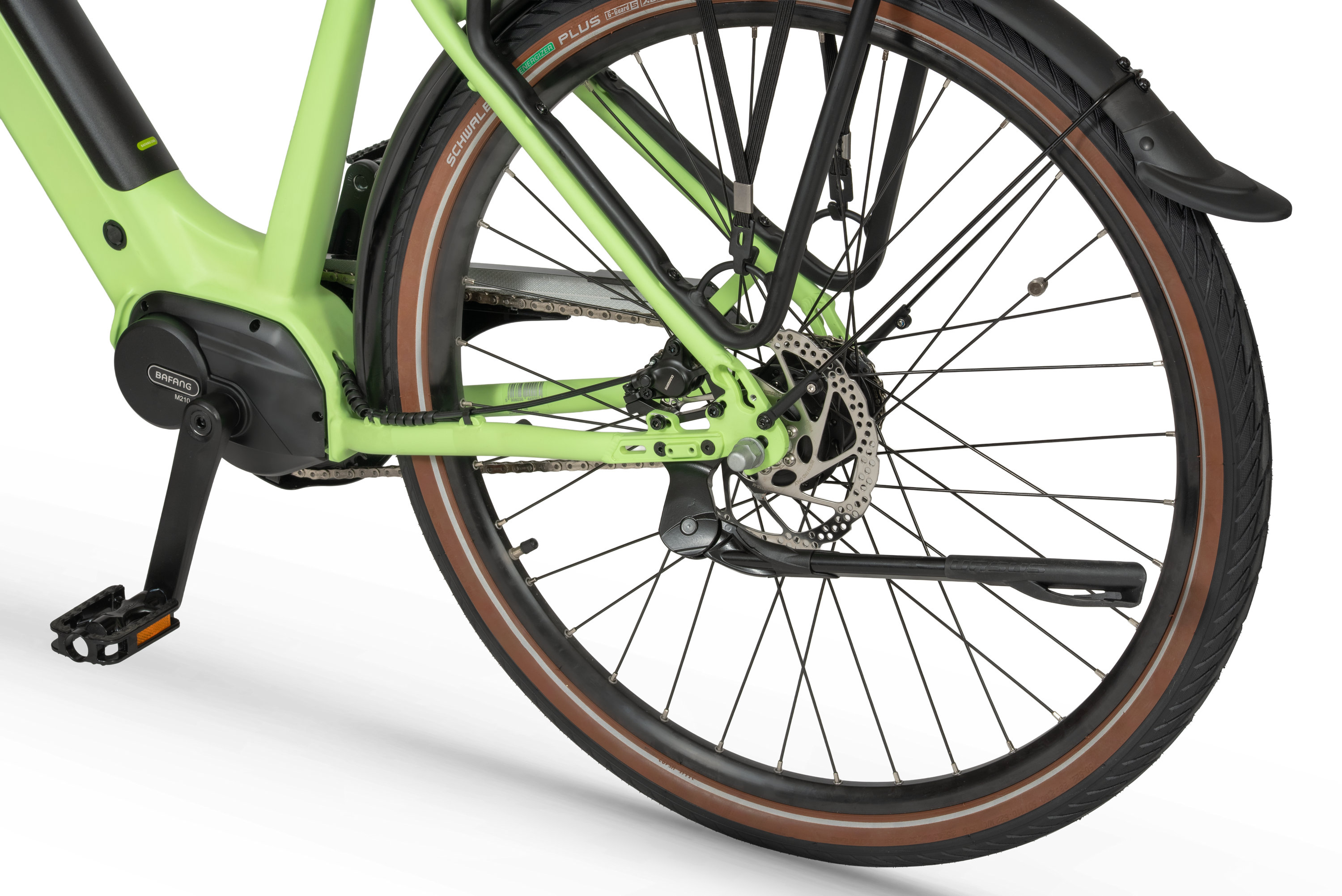

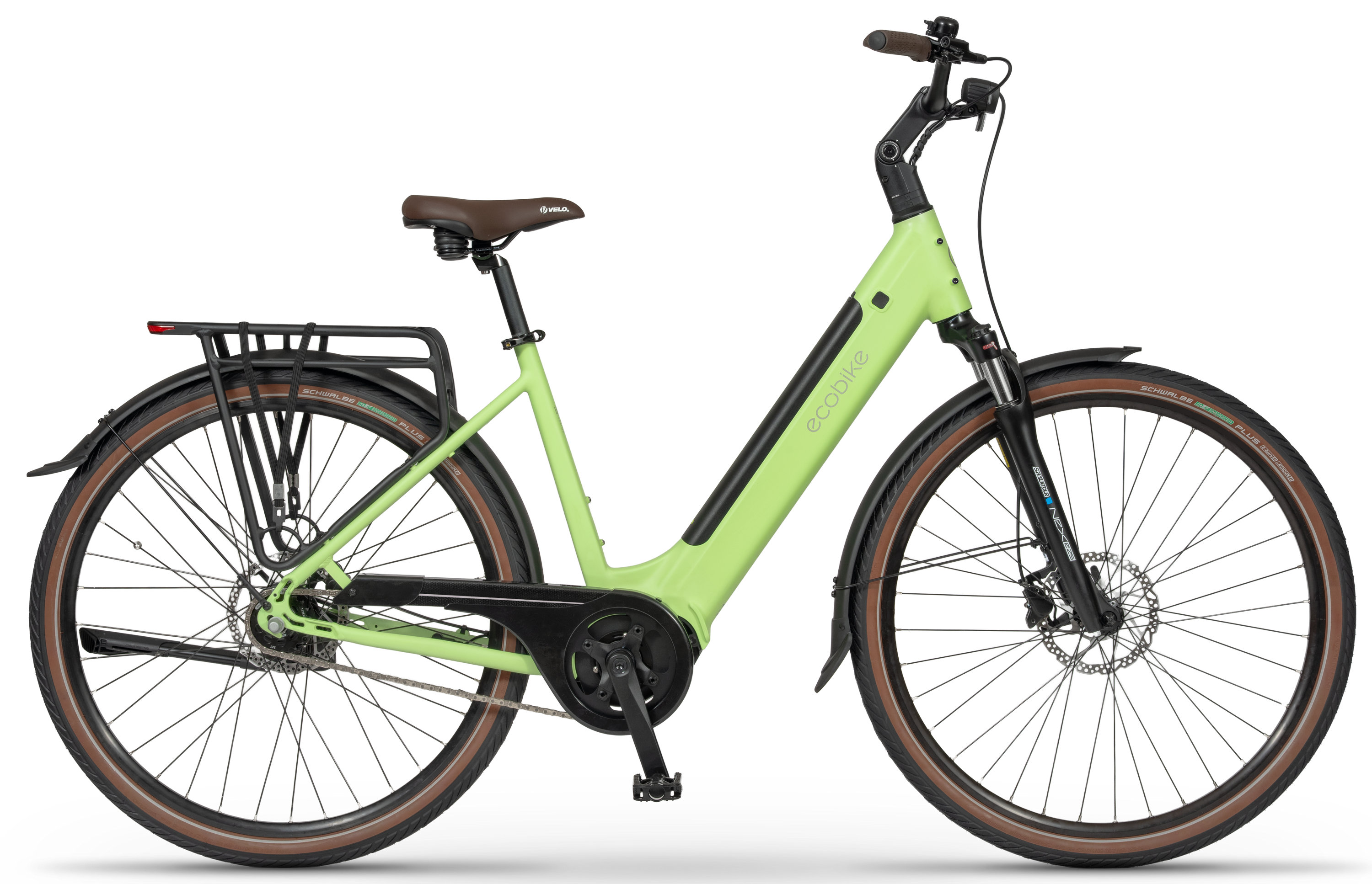

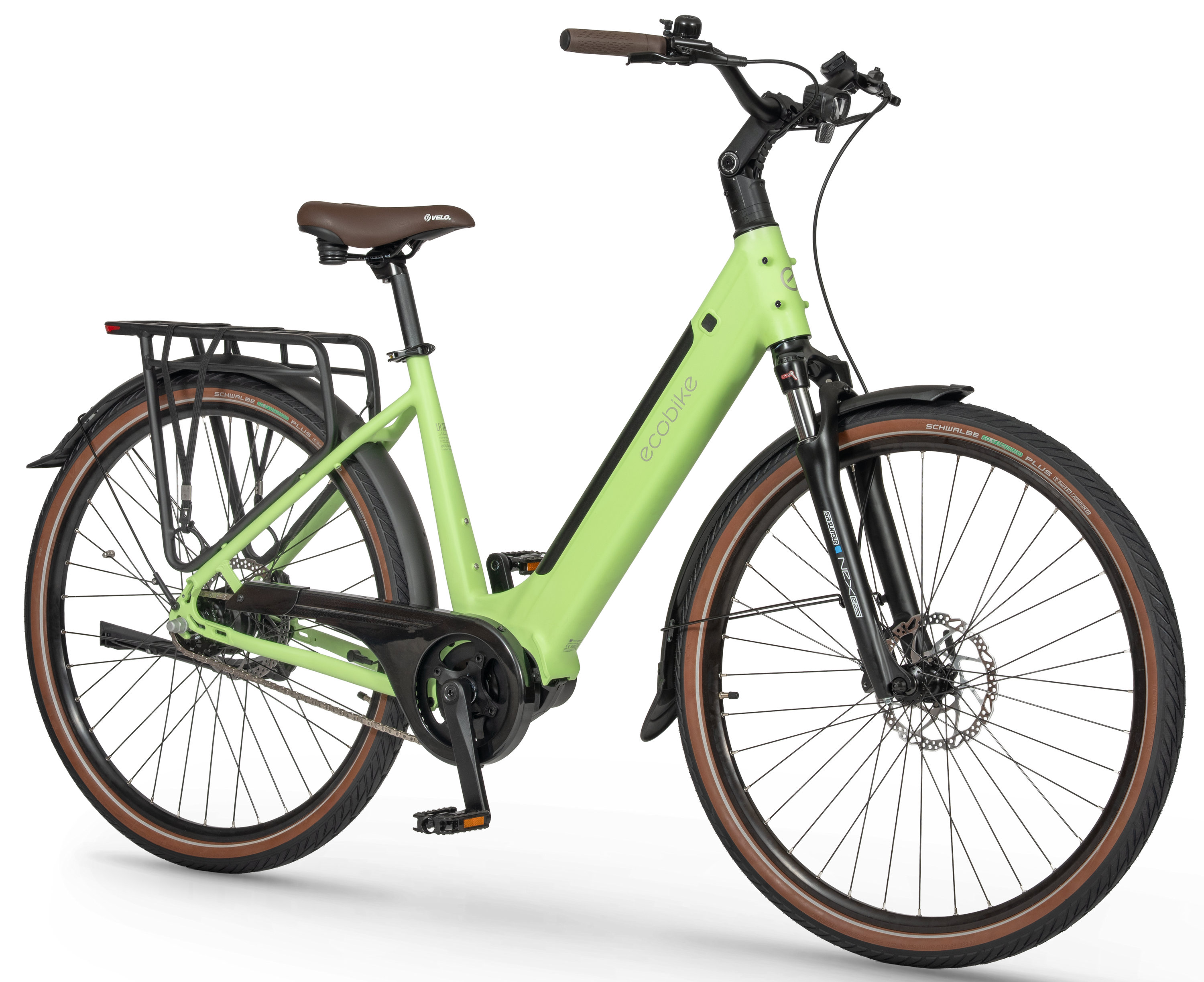

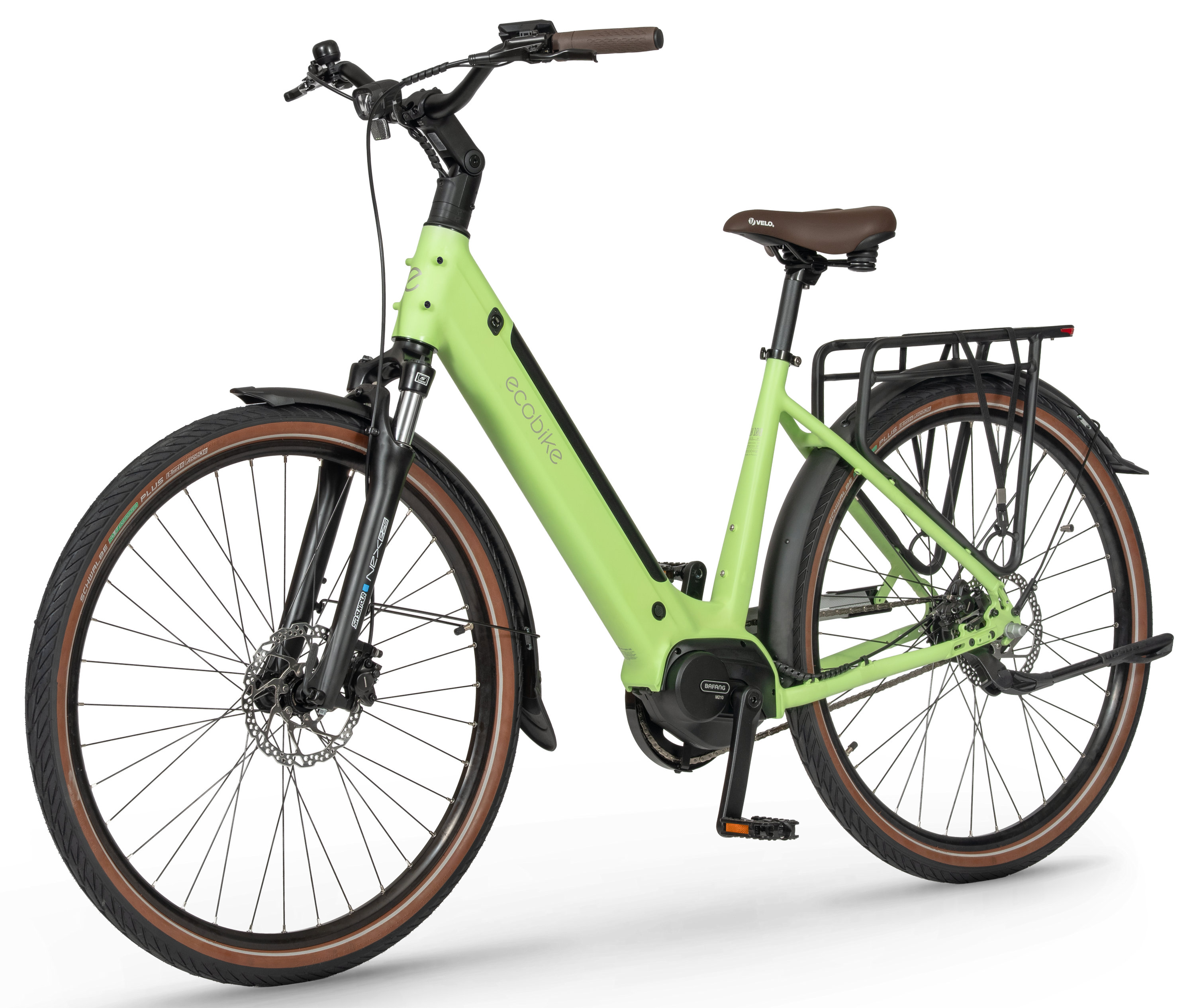

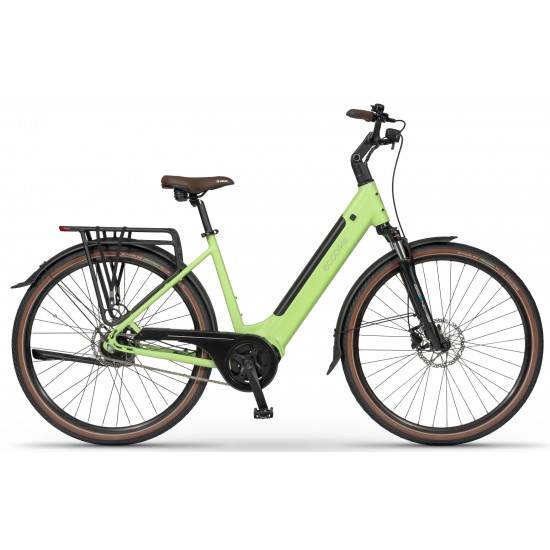

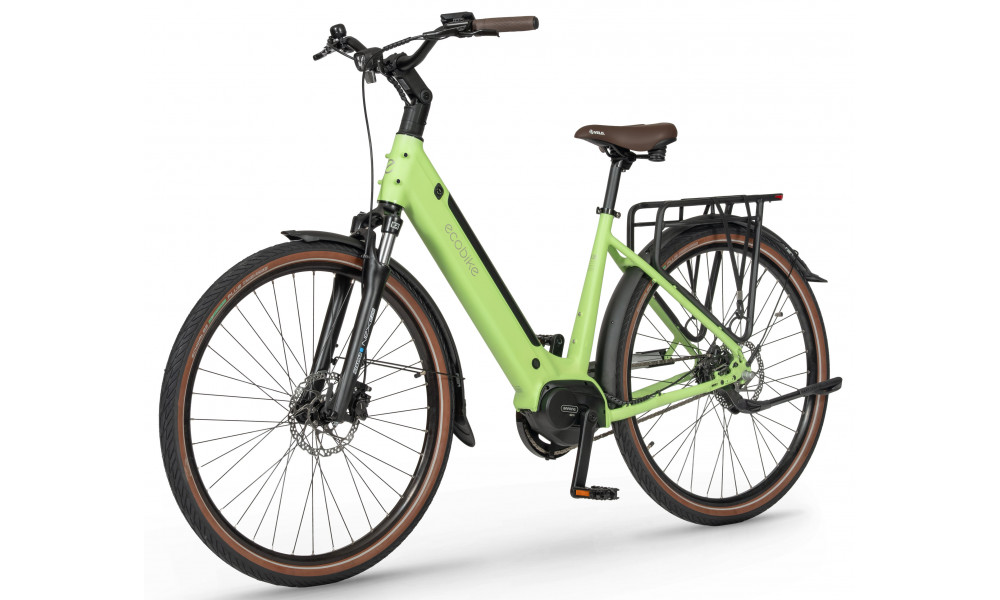

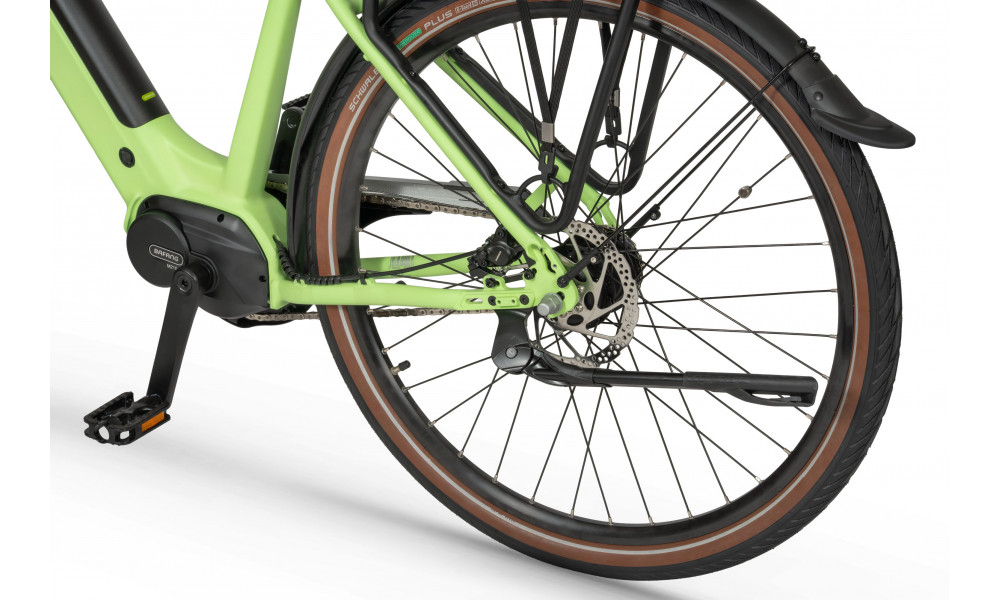

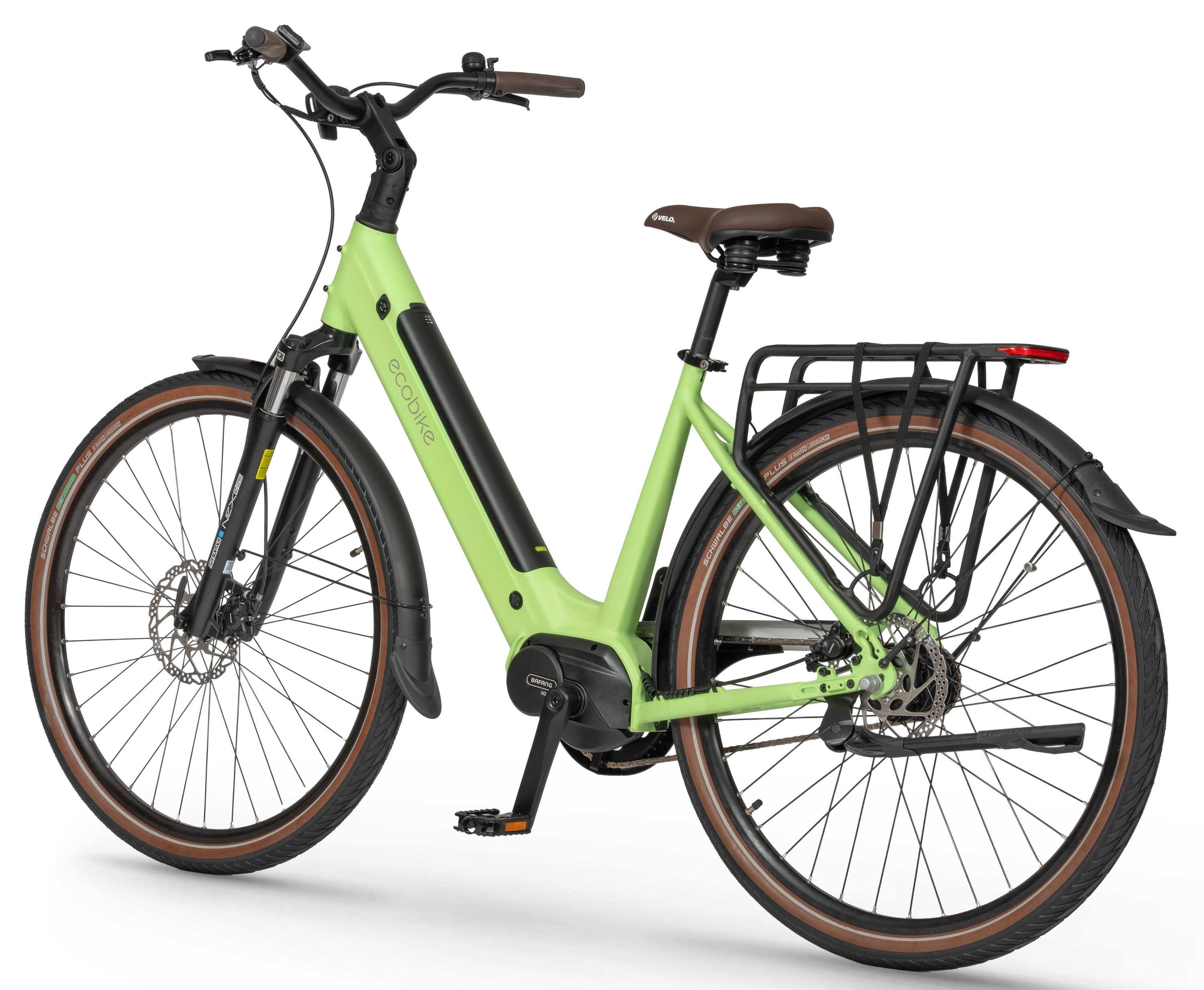

The LX 100 comes with a 3-speed automatic hub gear hidden in the rear wheel. That means the bike shifts gears for you – smoothly and effortlessly, with no need for shifters. Maximum comfort for everyday rides!

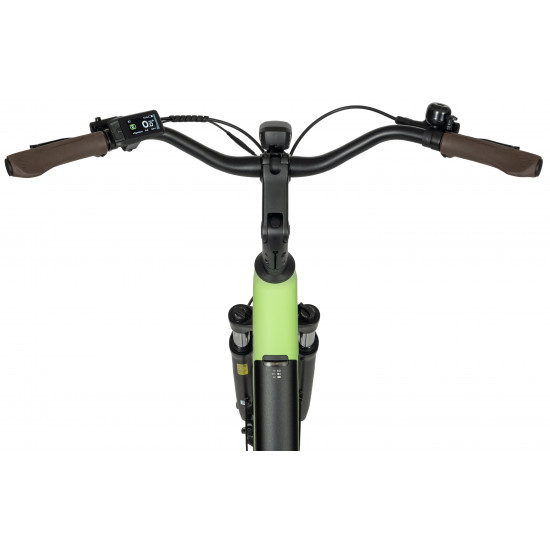

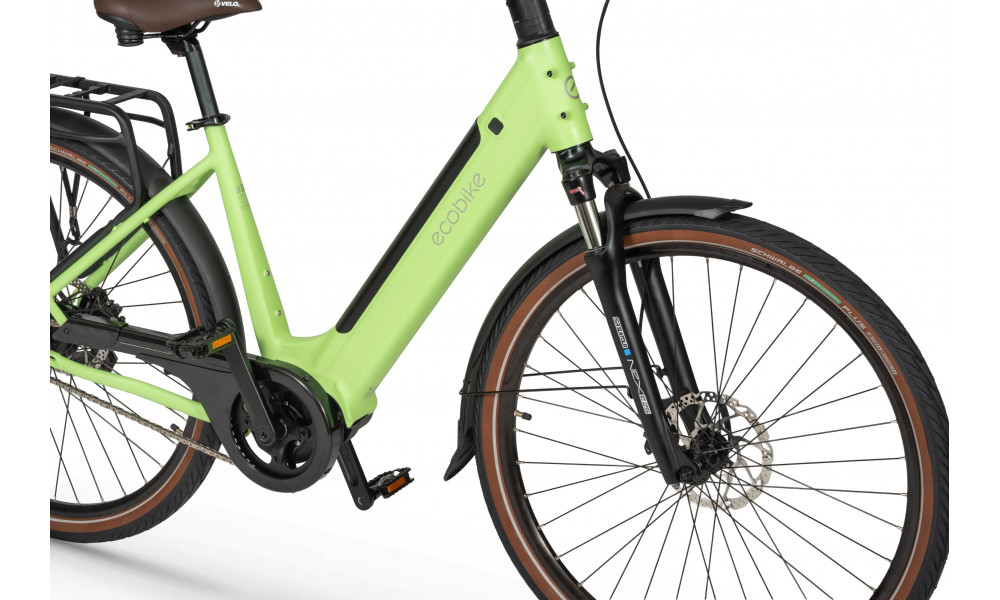

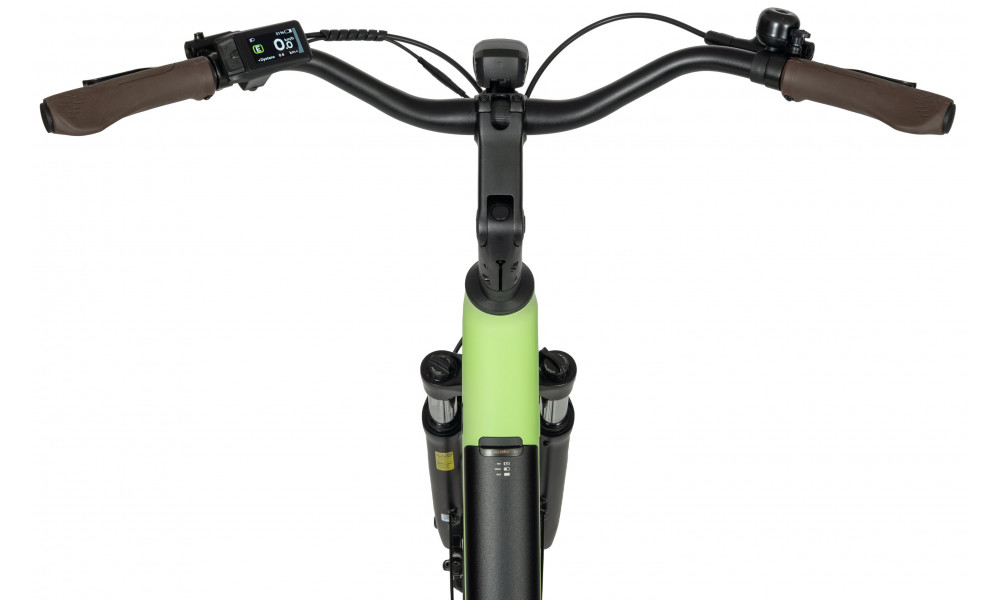

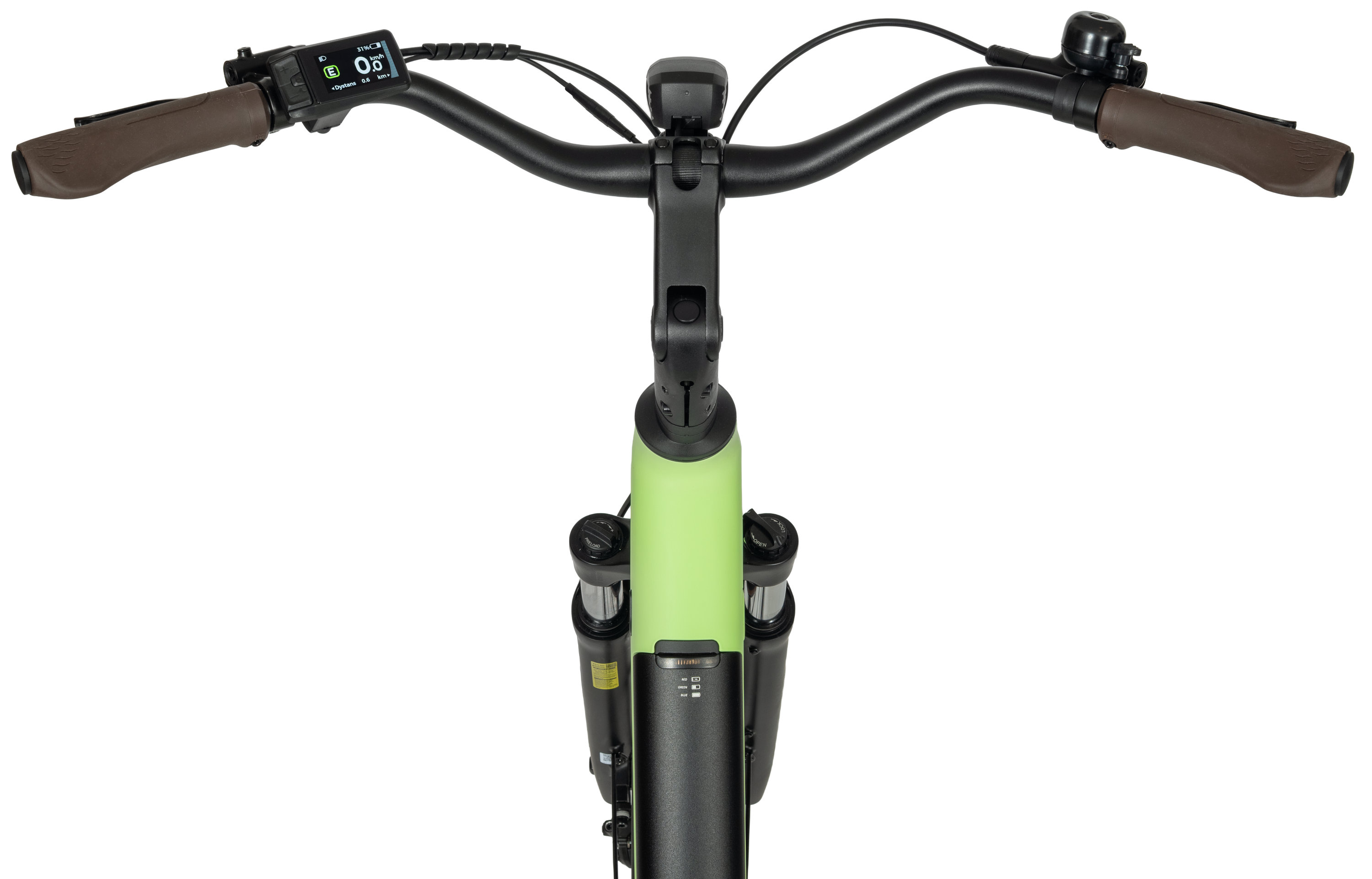

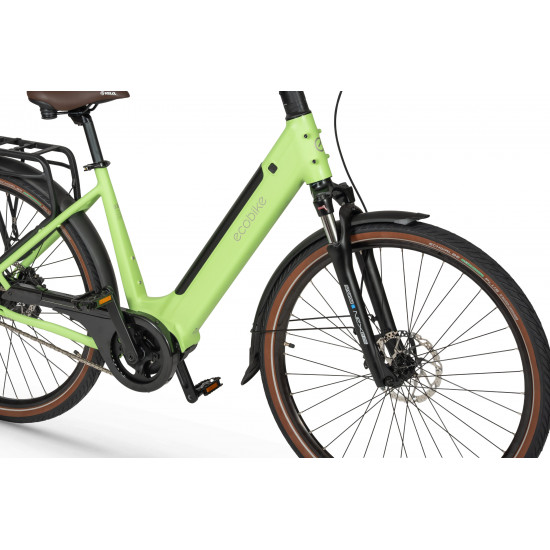

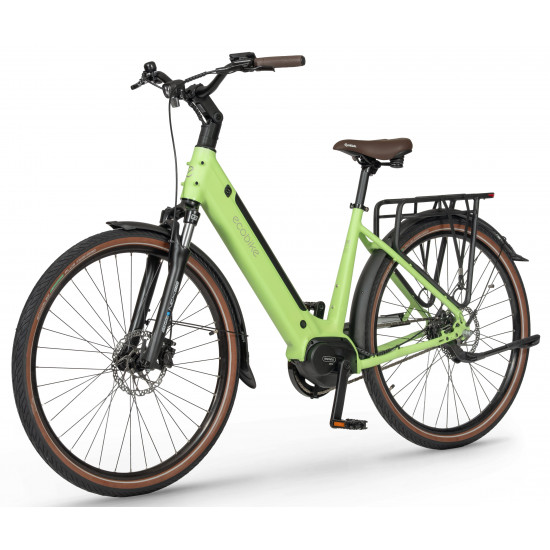

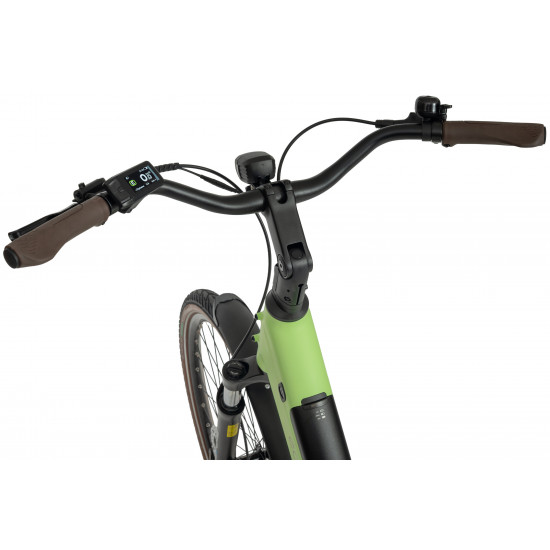

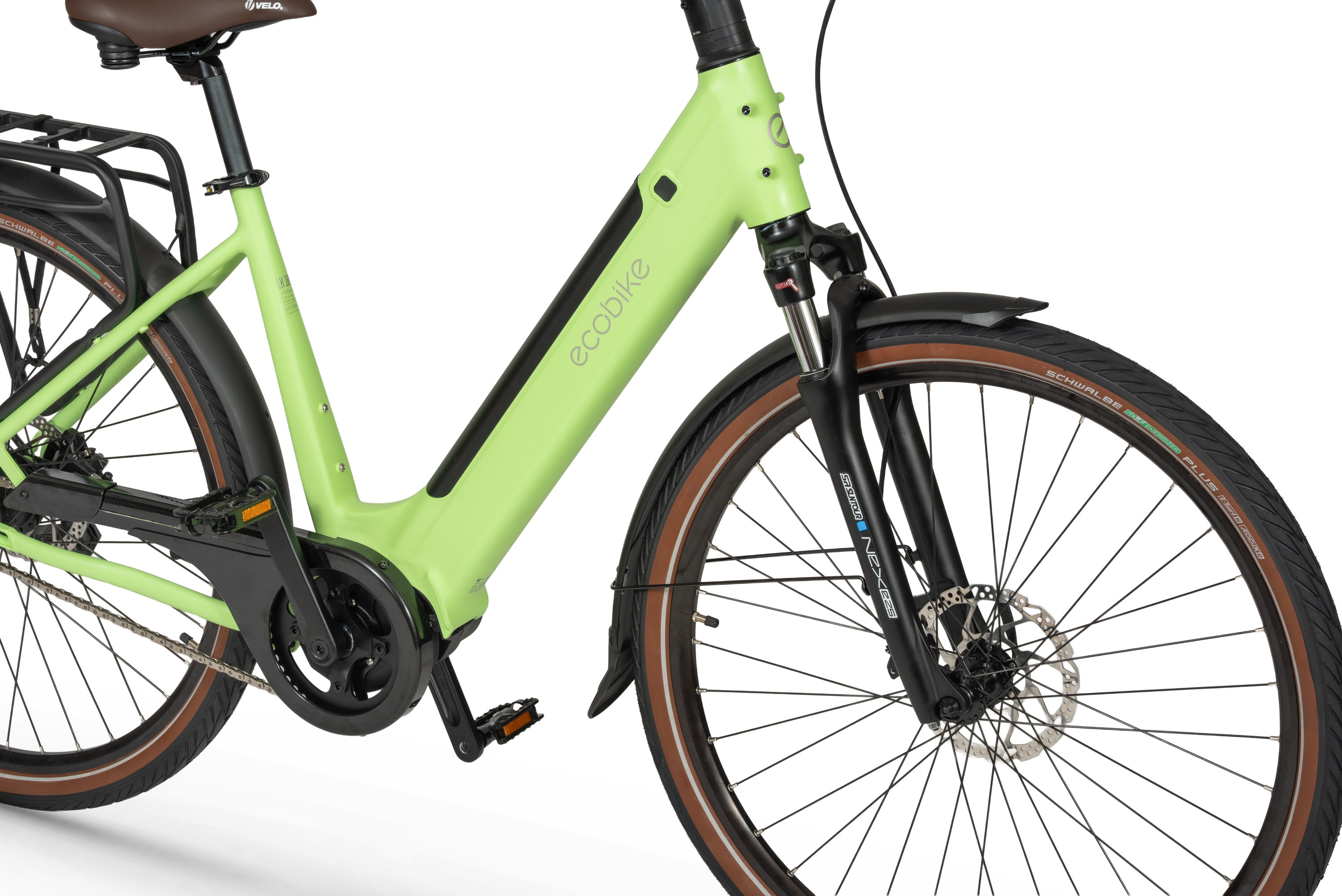

The frame geometry was created with urban routes in mind – comfortable, stable, and safe. The reinforced down tube adds extra stiffness, while the clean cockpit system keeps all cables neatly hidden for a sleek and tidy look.

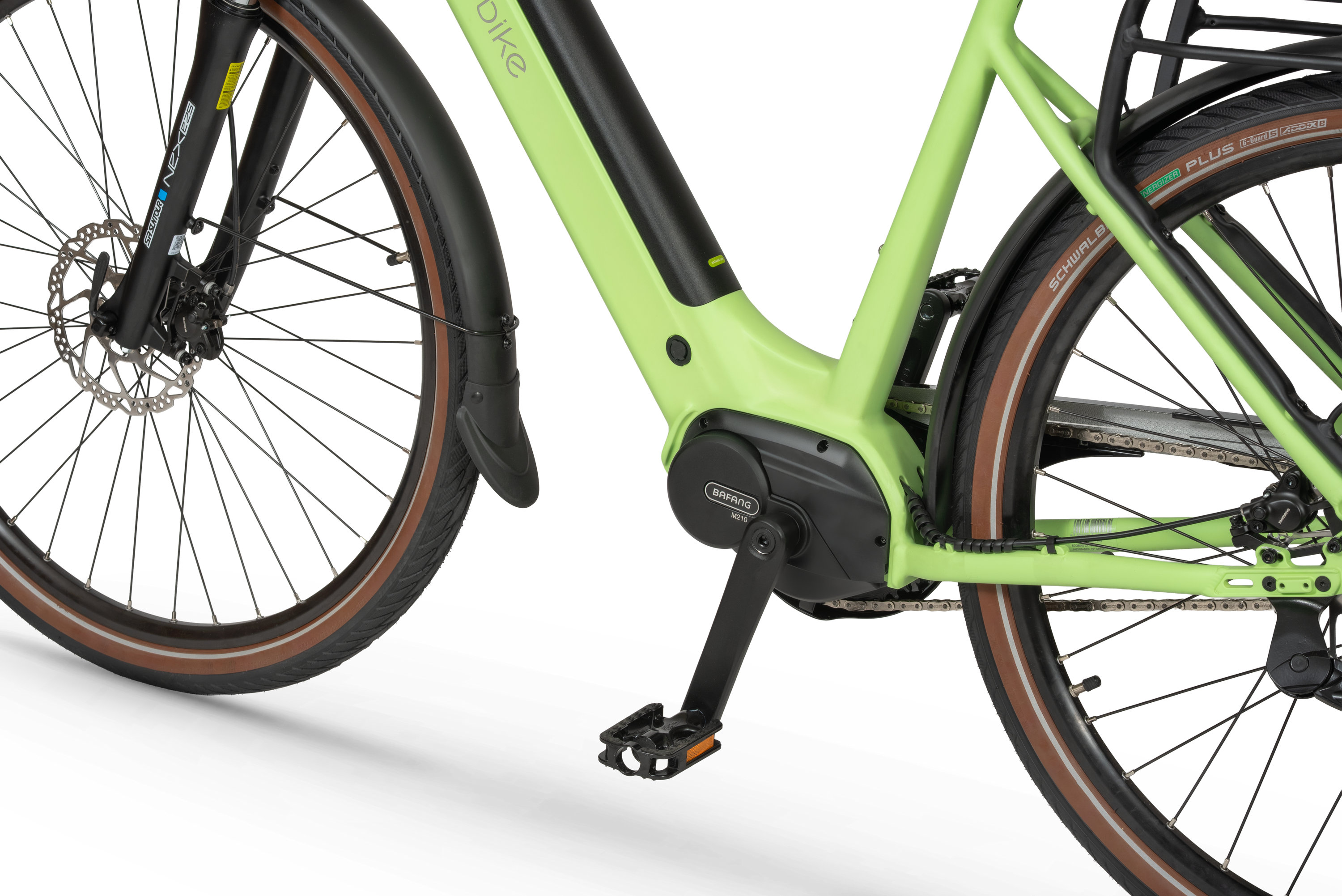

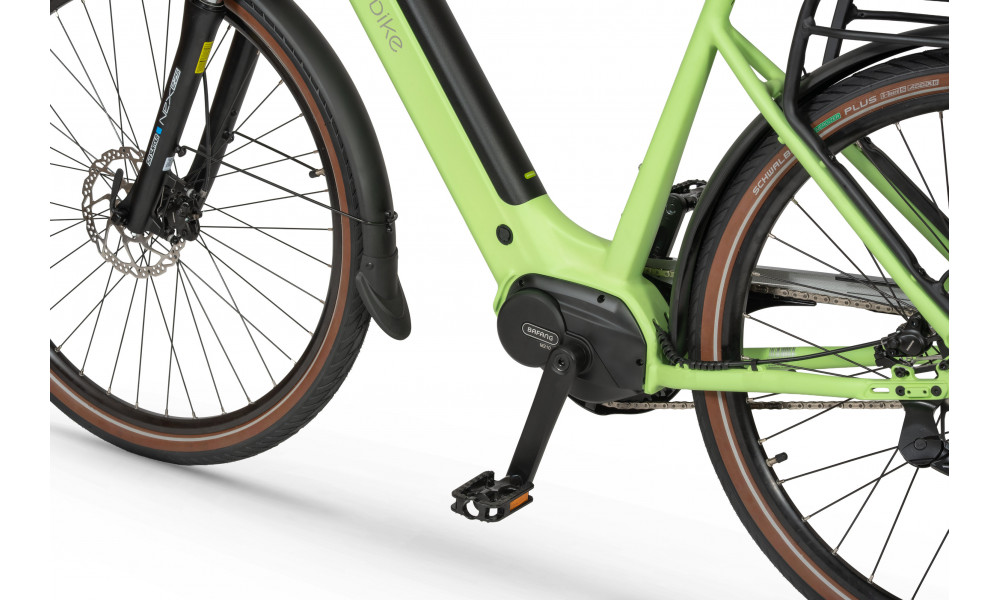

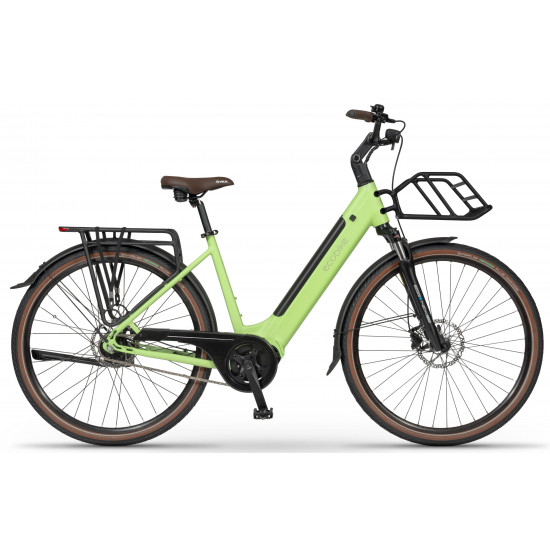

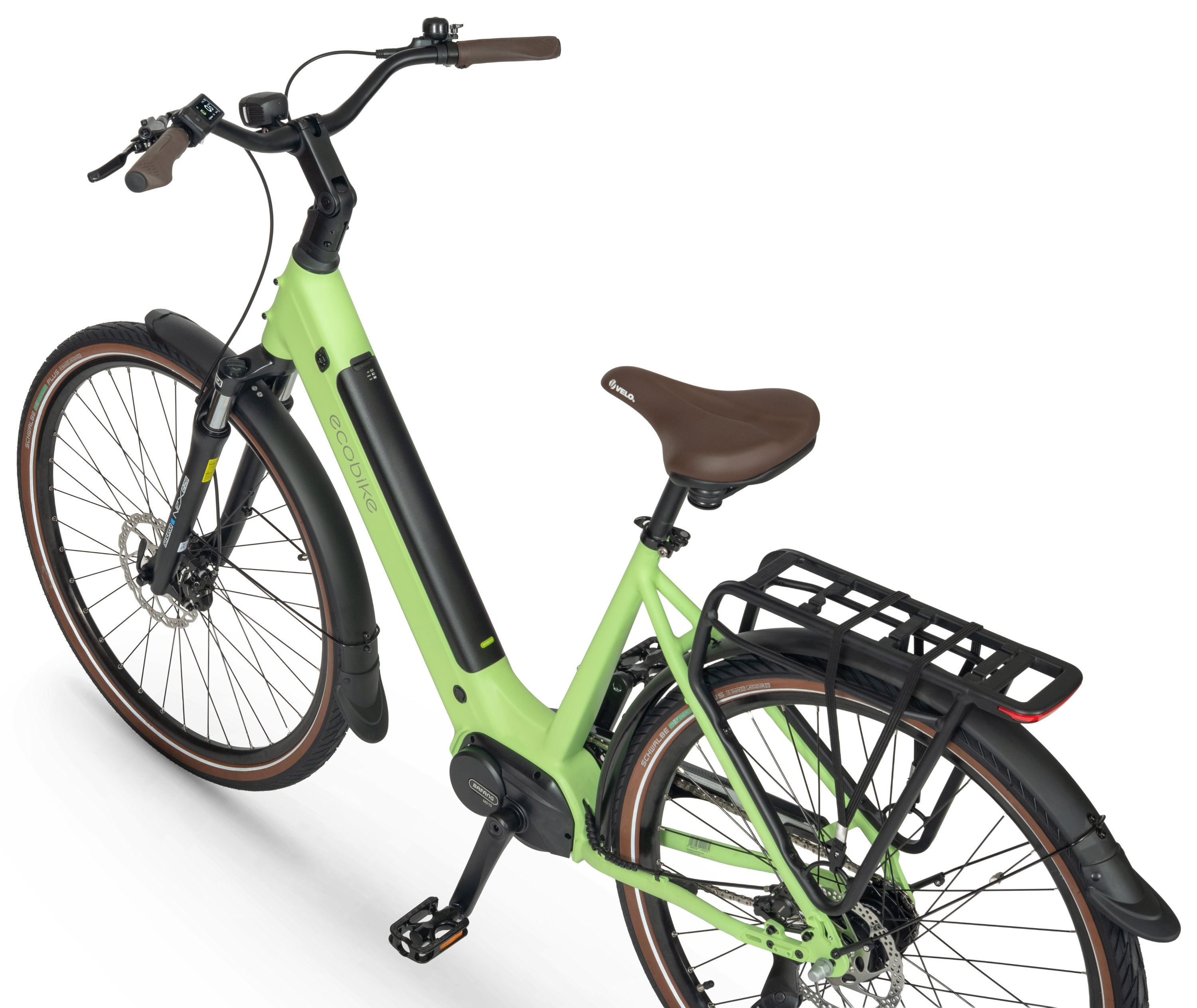

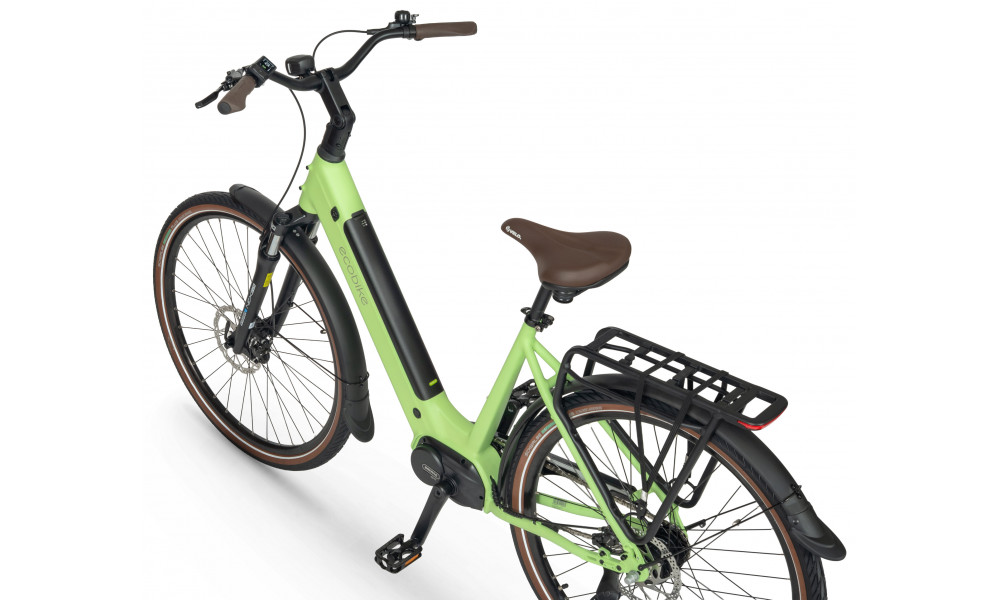

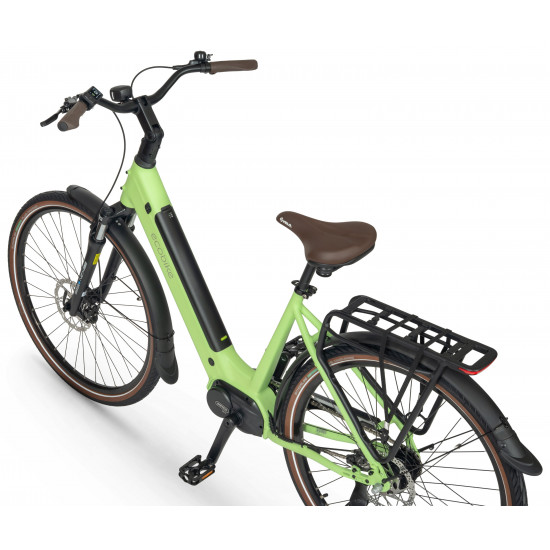

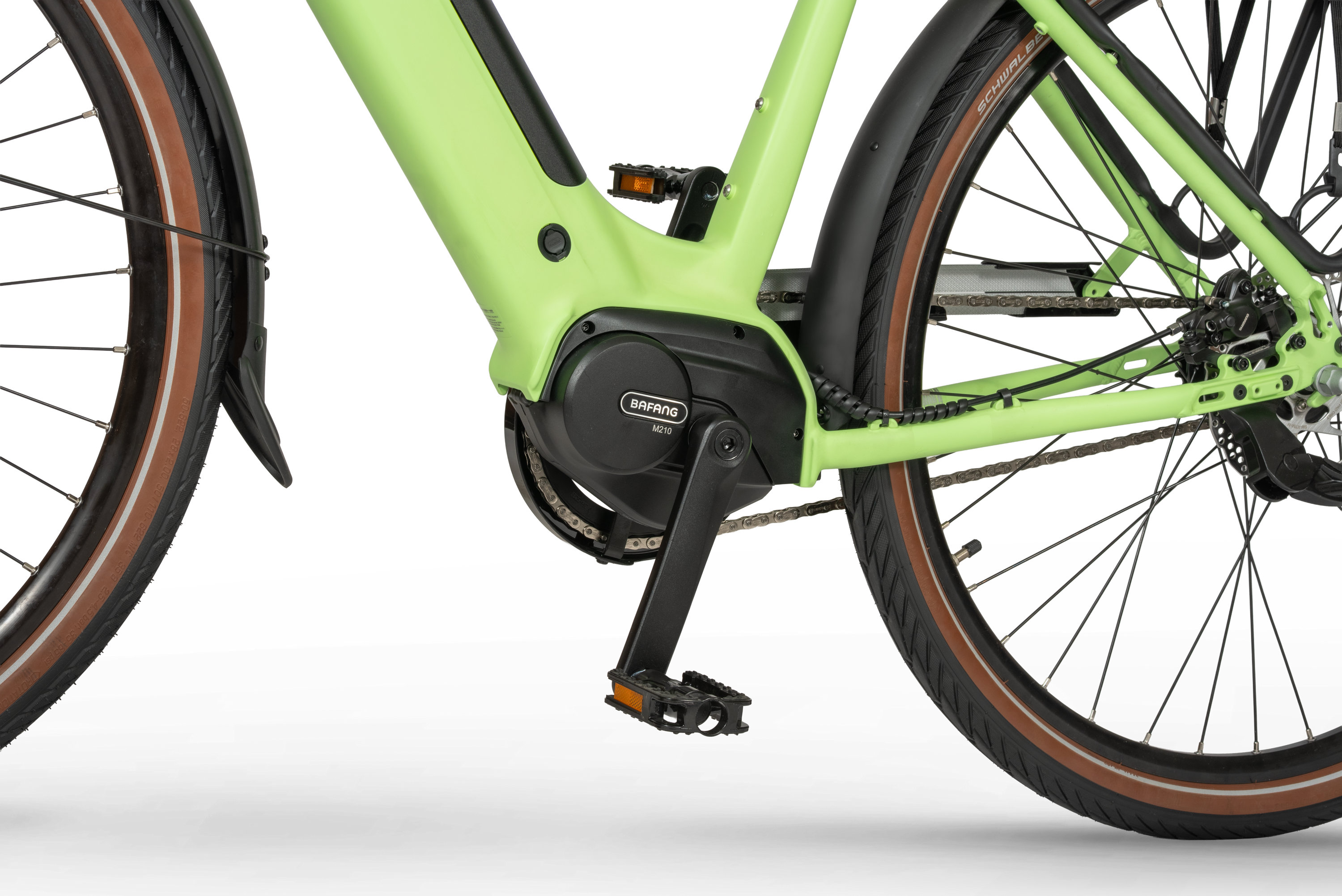

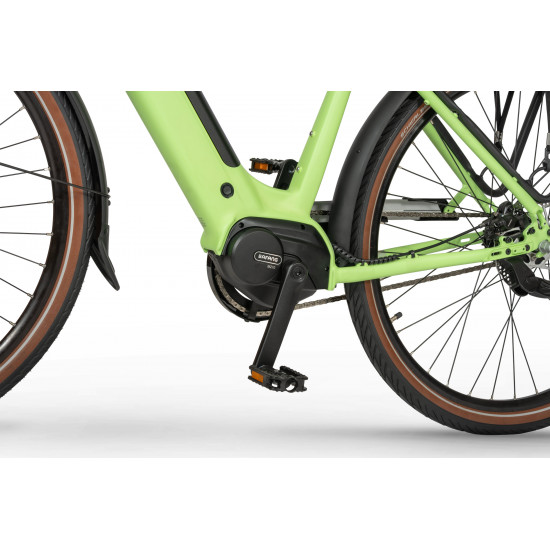

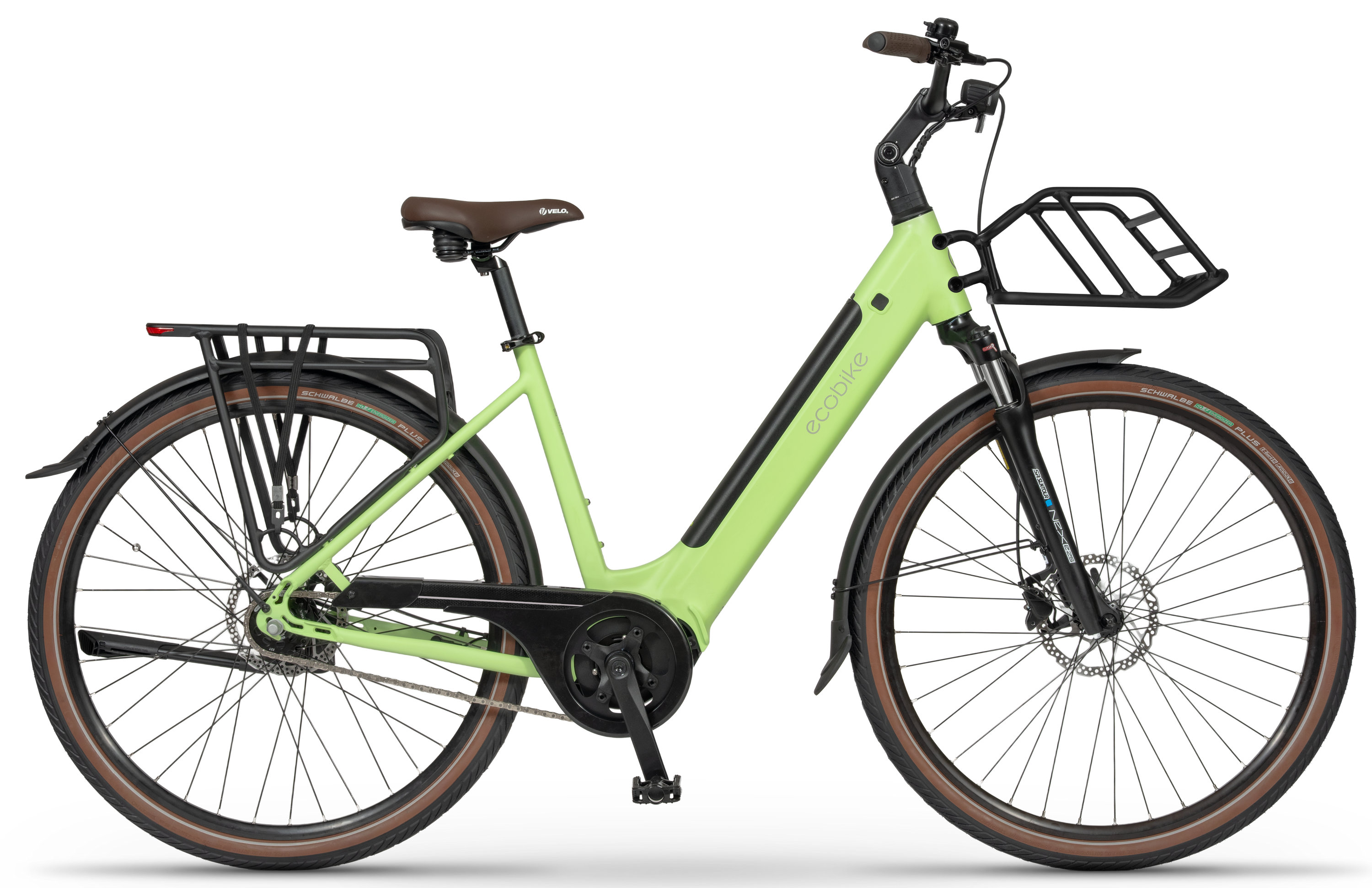

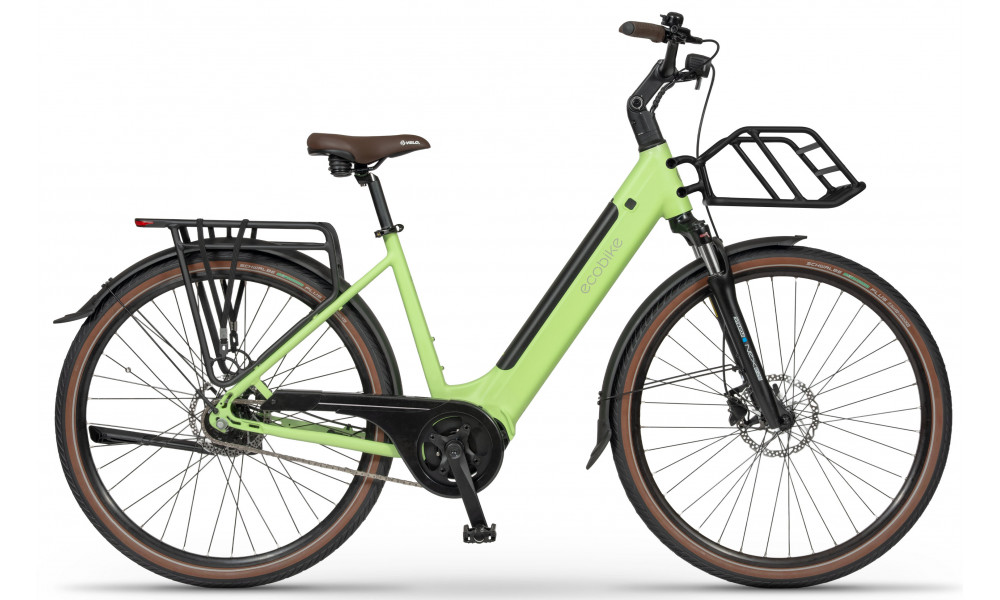

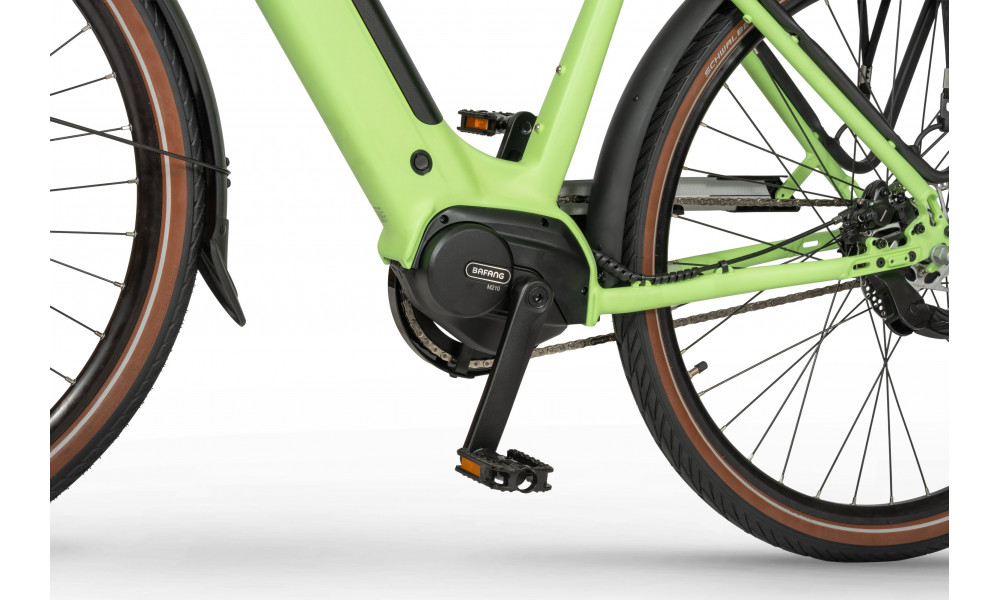

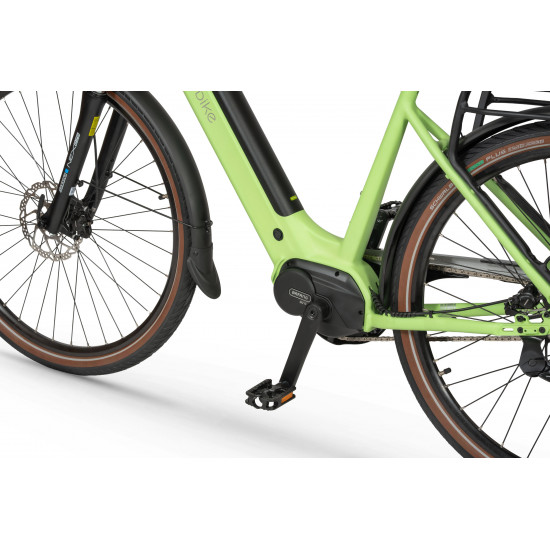

The central motor gives you support exactly when you need it, making the ride natural and well-balanced. With a rear rack featuring the MIK pannier system and the option to add a front rack, the LX 100 Automatic is ready for shopping, commuting, or even a longer weekend trip.
Modern lighting keeps you visible on the road, and the rear Emergency Stop-Light system increases brightness while braking – making sure everyone around you notices your moves.

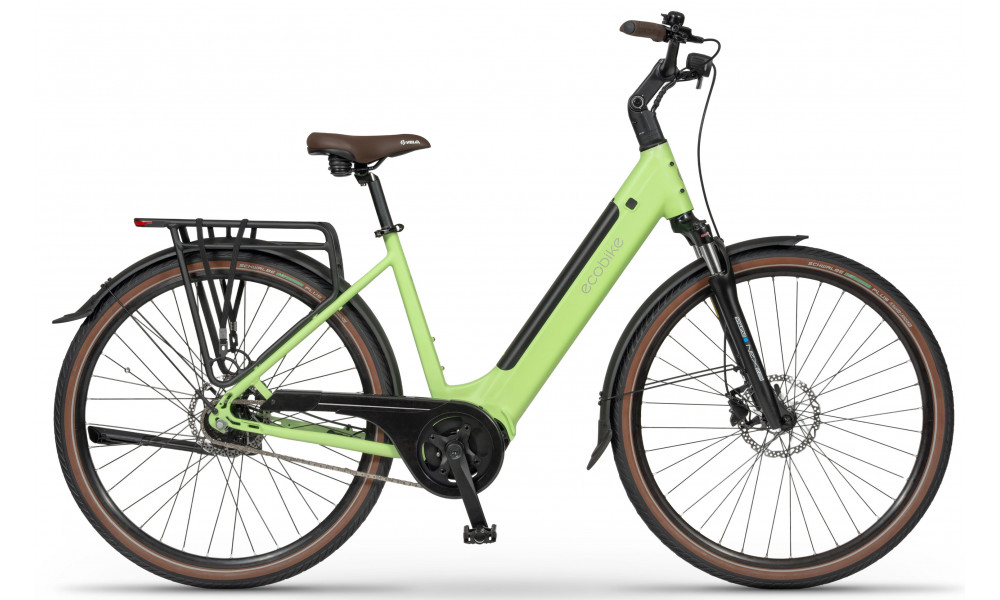

Ecobike LX 100 Automatic – comfort, convenience, and smart technology that takes you through the city without complications.
Product technical specifications

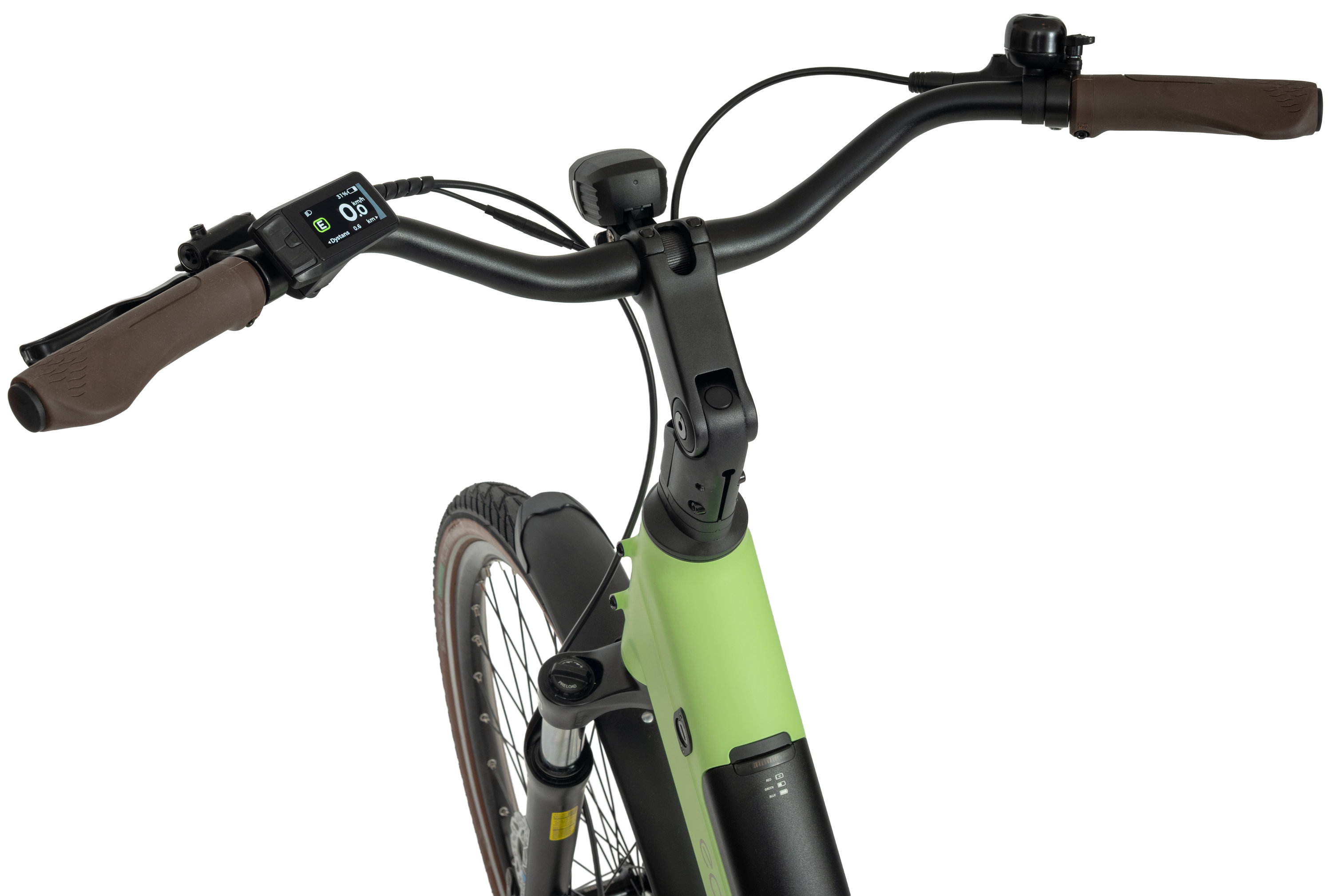

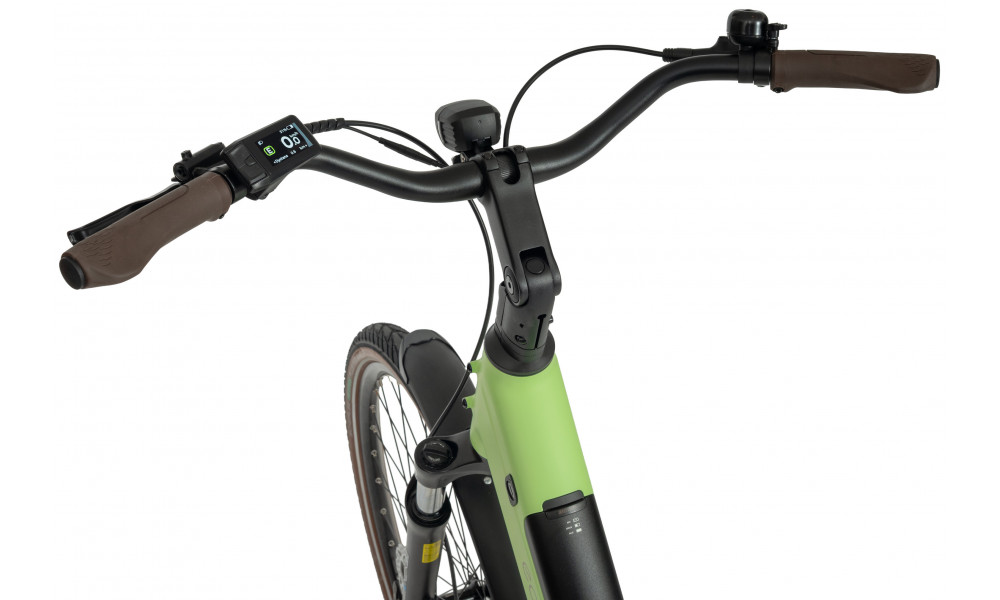

- Display model: DP C080
- Display type: Color LCD

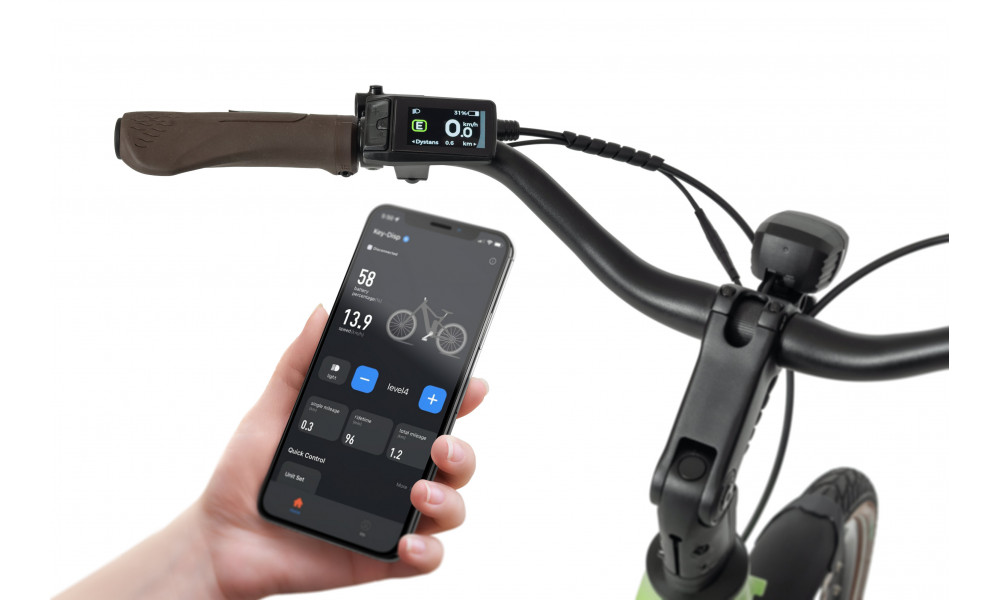

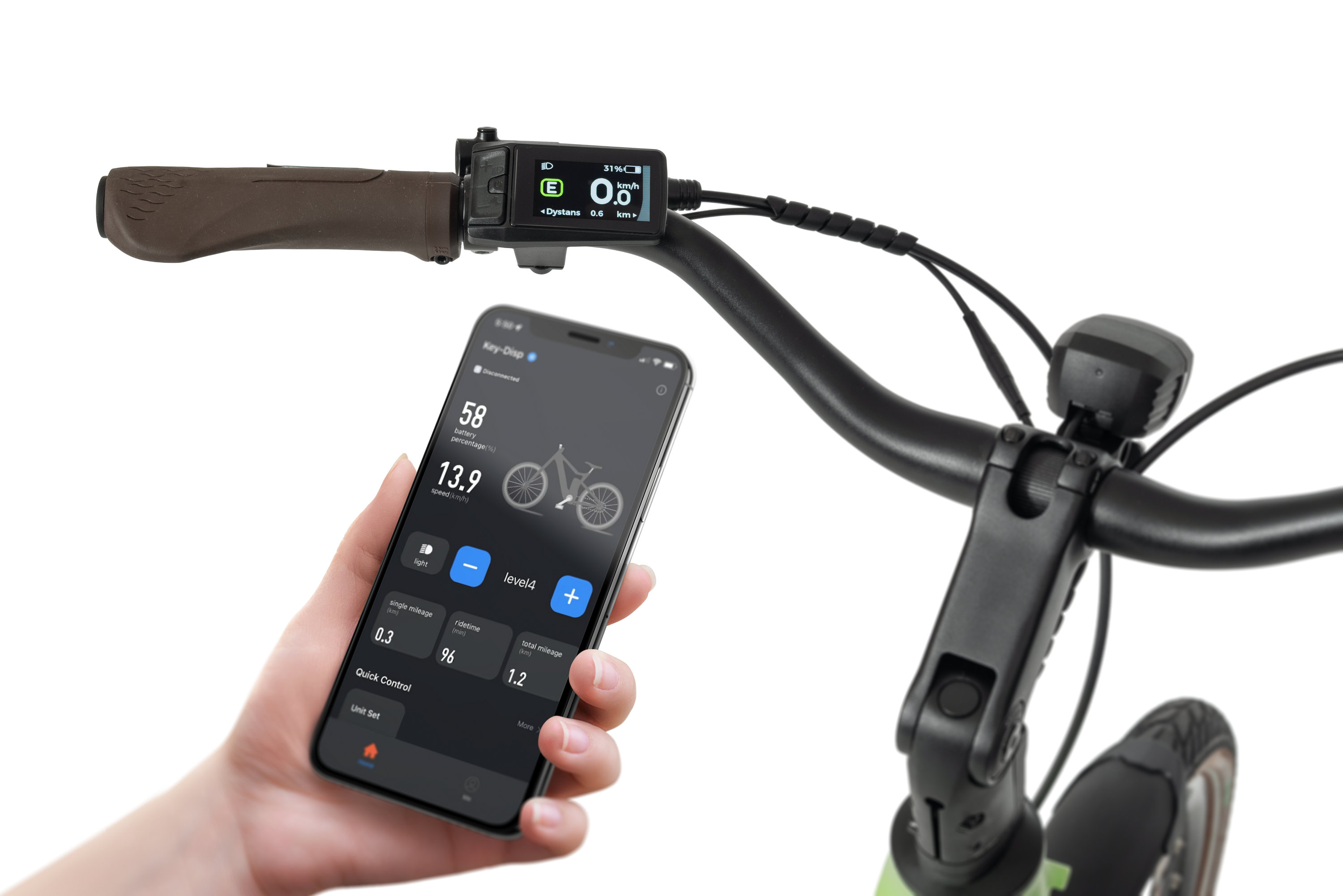

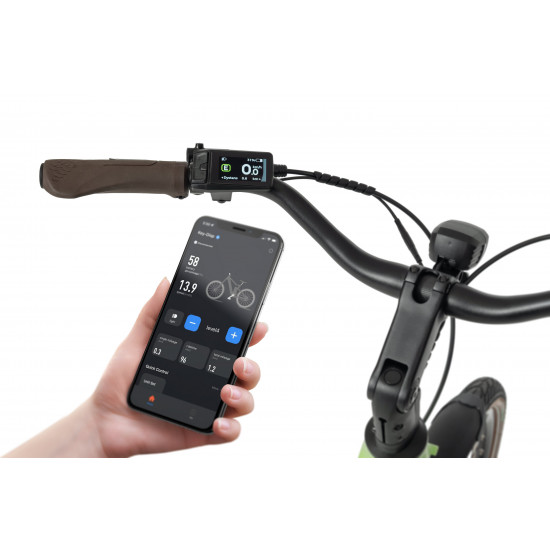

- Compatible application: Bafang GO
DISPLAY:
- Capacity and range:
- 630 Wh: MAX 140 km
- Voltage: 36 V
- Mount: Central (mid-drive)
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 80 Nm
- Motor's brand: Bafang
- Power: 250 W
- Lifespan: 700 charge
- Type: Li-ion
- Voltage: 36 V
- Charger: 100-240V / 42V 2A
- Cells brand: EVE
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 4-8 hours
- FRAME: Hydroformed alluminium
- FRAME SIZE: 17"
- FORK: SunTour SF15 NEX-E25, 63 mm travel
- BRAKES: Shimano MT200 hydraulic disc
- CHAIN: KMC Z410NP
- CHAINWHEEL: Prowheel 1-speed, 44T
- REAR DERAILLEUR: Bafang - automatic transmission
- FREEWHEEL: Bafang RG A310.D - 3-speed automatic transmission
- HANDLEBAR: Promax, 700 mm x 31.8 mm
- STEM: Zoom TDS-D636B-8, 31.8 mm / extension 90 mm
- HUBS: Front hub: TORA, 36H, 100W, Centerlock, QR / Rear Hub: Bafang
- PEDALS: WELLGO LU-C33
- RIMS: 28" reinforced three-chambered rims
- SADDLE: Selle Royal VL-6590
- SEAT POST: Promax SP-252, diameter: 27.2 mm, length: 350 mm
- SHIFTERS: N/A - automatic transmission
- SPOKES: stainless steel, SAPIM
- TYRES: 28" x 2.0 Schwalbe Energizer Plus
- WEIGHT: 27.9 kg
- SPEEDS: 3
- MUDGUARDS: For front and rear wheel, with u-stays
- GRIPS: VELO VLG-2094AD2
- KICKSTAND: Rear, adjustable length, aluminium
- CARRIER: Aluminium, max.: 25kg, with carrier straps
- LIGHTS: Rear Light: Spanninga GLOW STOP / Front Light: Herrmans MR5
- Effective top tube length: 595.2 mm
- Head tube lenght: 150 mm
- Frame size: 432 mm
- Wheel base: 1145 mm
- Seat tube angle: 73
- Headset angle: 69
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
DISTANCE:
ENGINE:
BATTERY:
GEOMETRY:
Pyörä lähetetään valmistajan alkuperäisessä pakkauksessa (etupyörä, ohjaustanko ja satula ovat yleensä irrotettuina), mikä varmistaa tuotteen turvallisuuden varastointi- ja kuljetusvaiheessa. Kun ostaja hankkii pyörän sellaisessa pakkauksessa, hän itse tai valitsemansa pyörähuollon ammattilainen on vastuussa asianmukaisesta pyörän kokoamisesta, säätämisestä ja käyttöönotosta.
