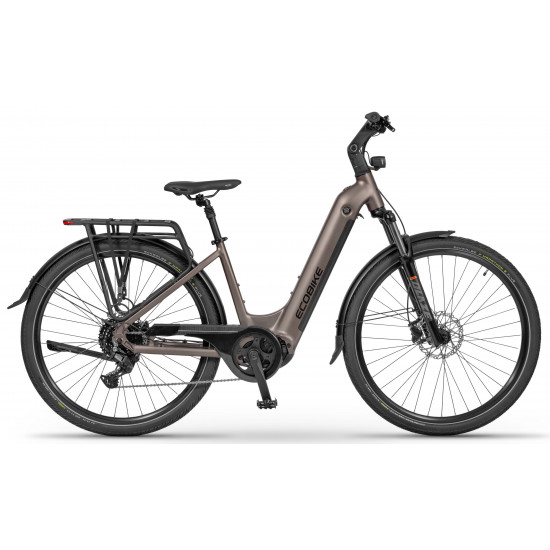

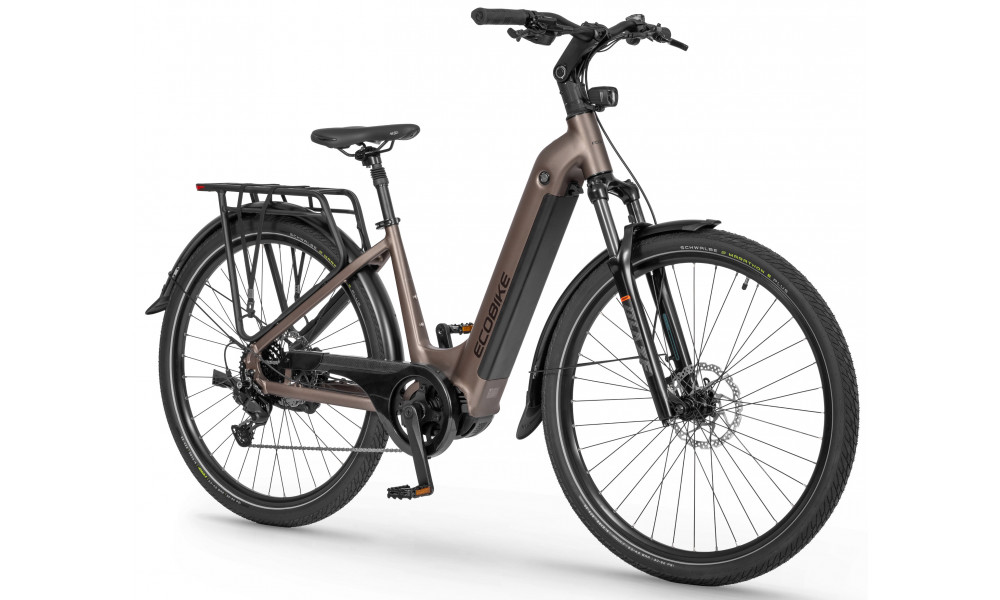

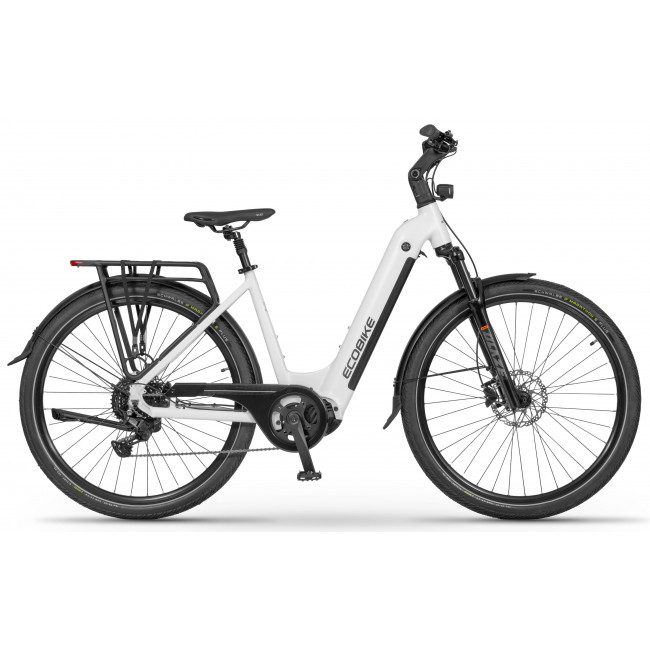

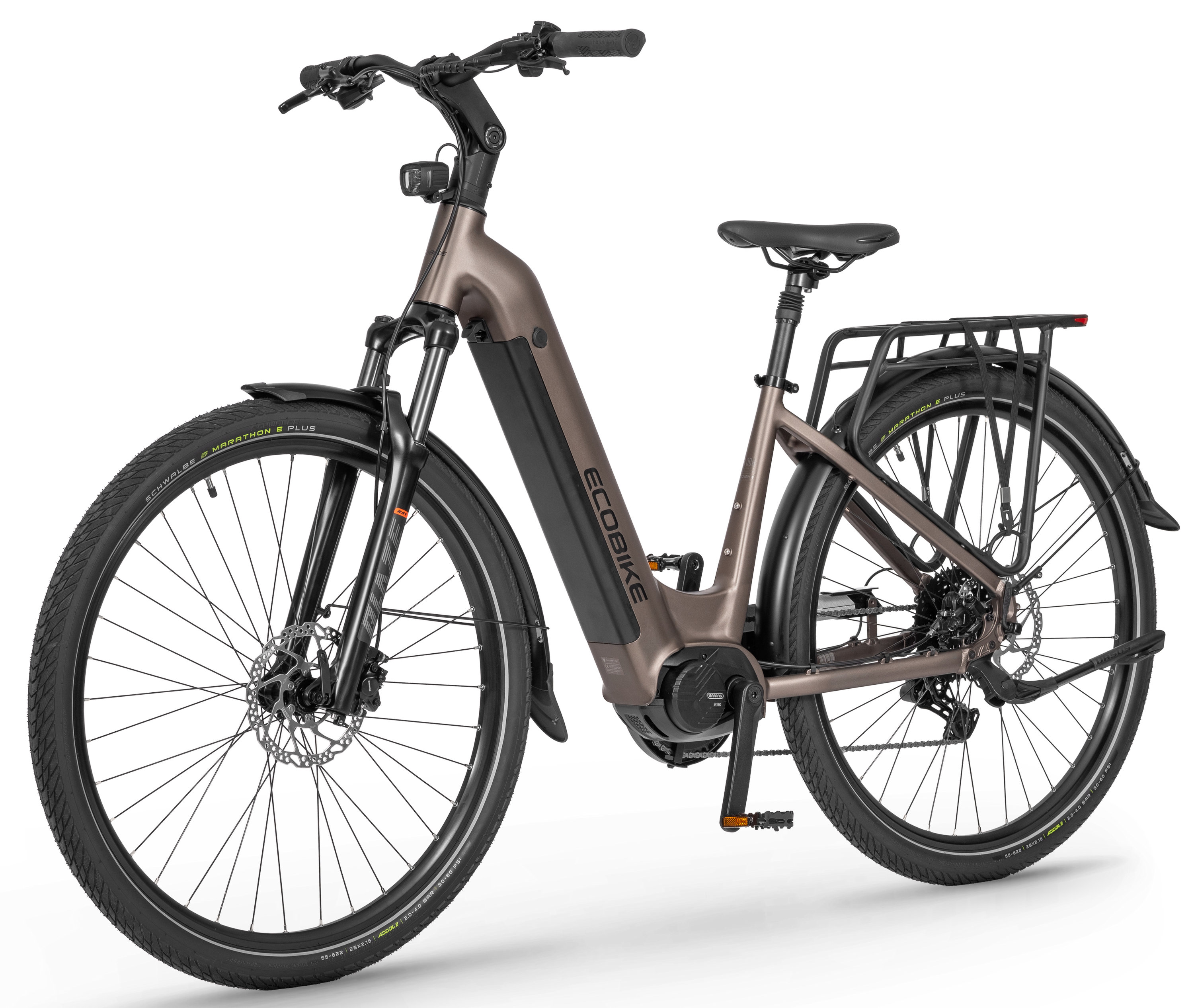

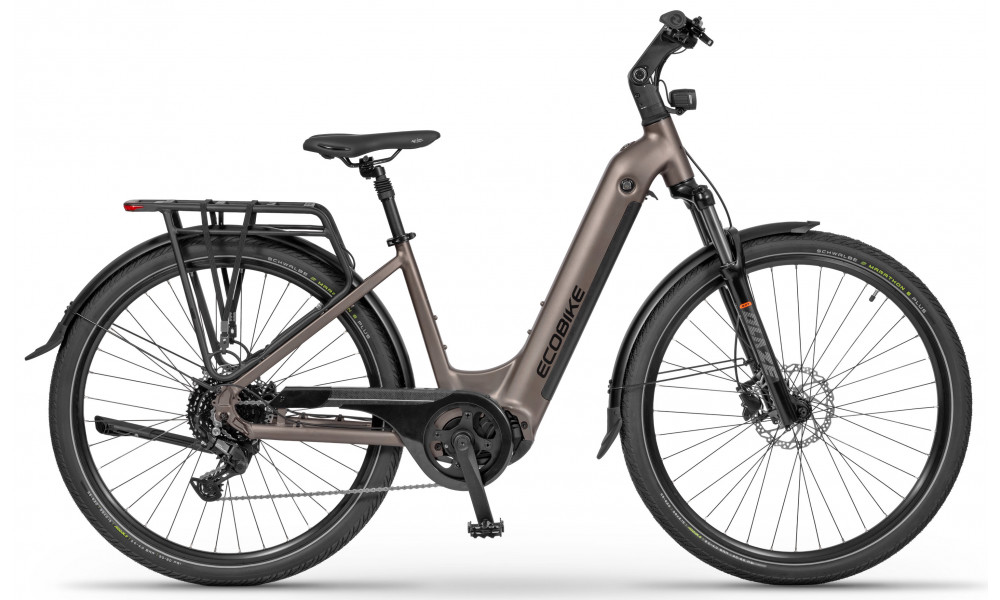

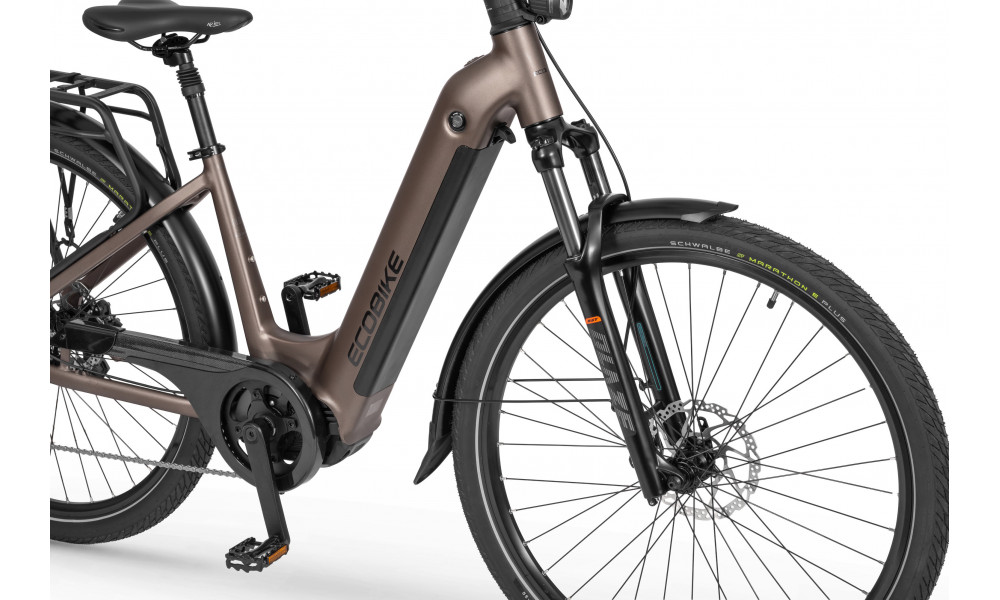

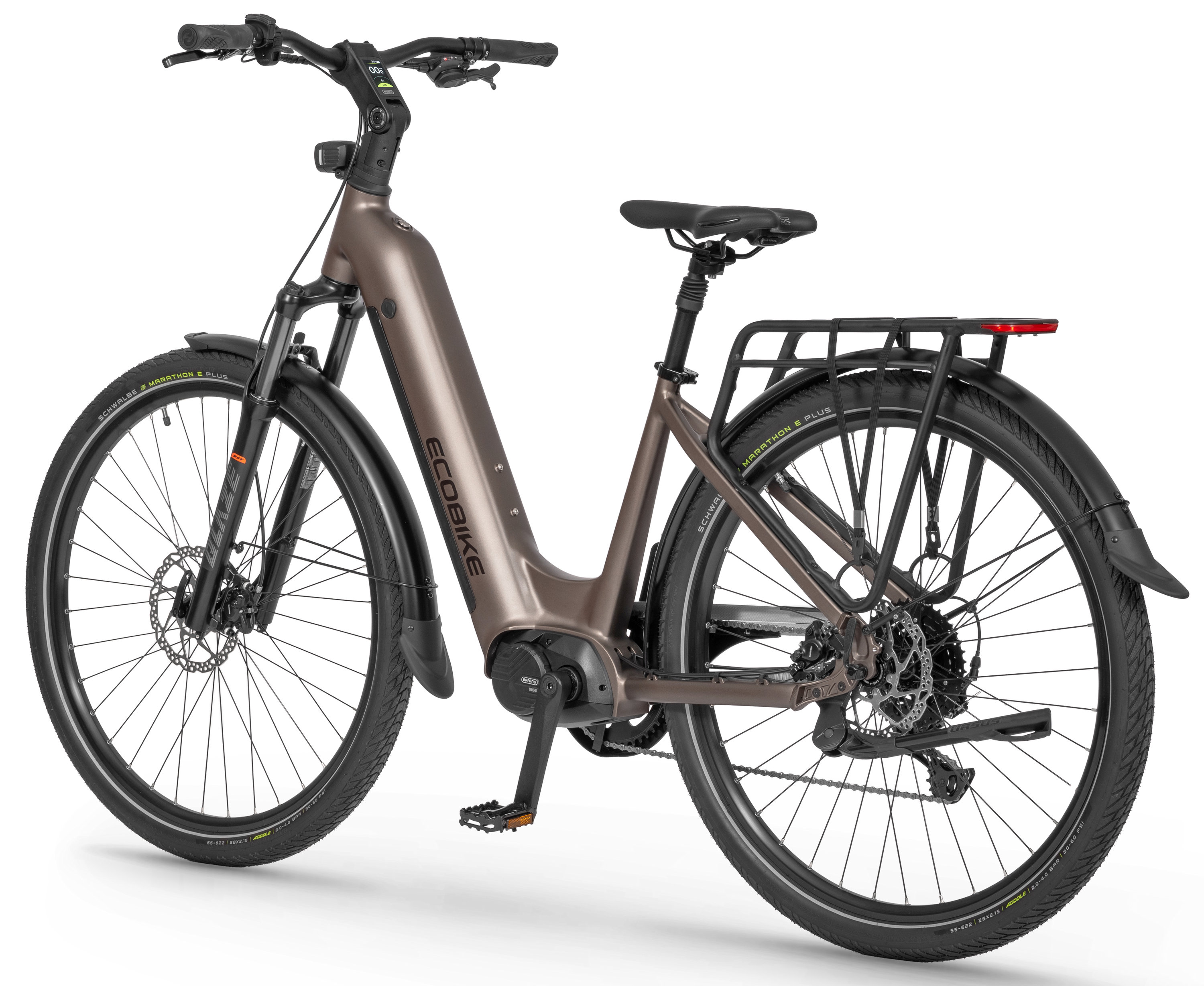

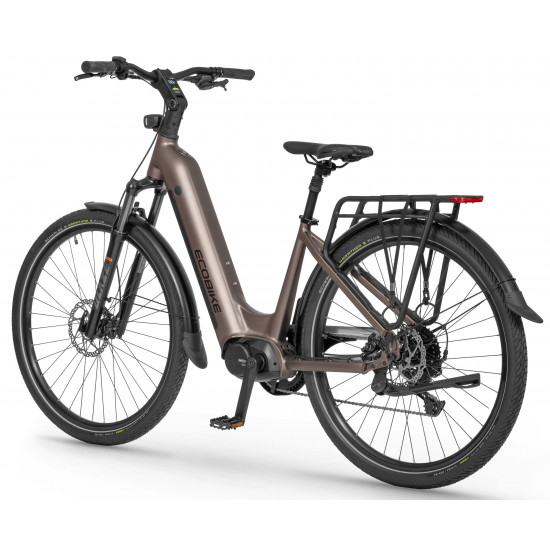

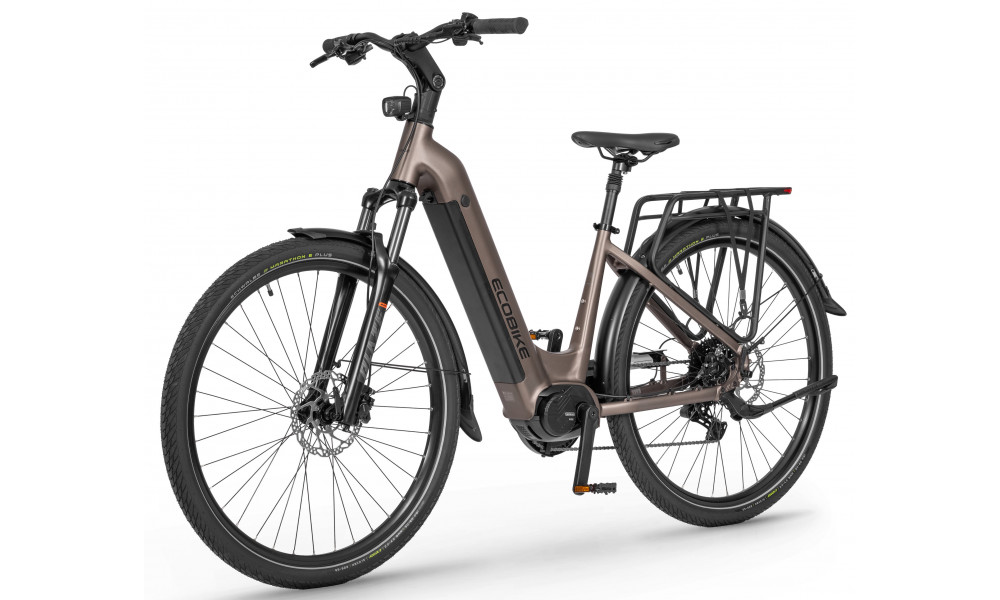

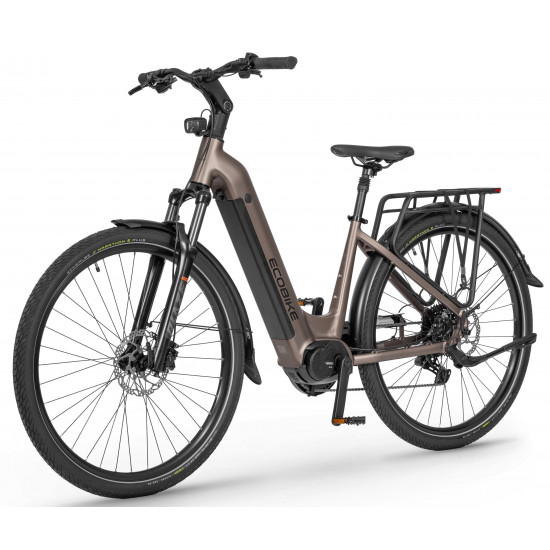

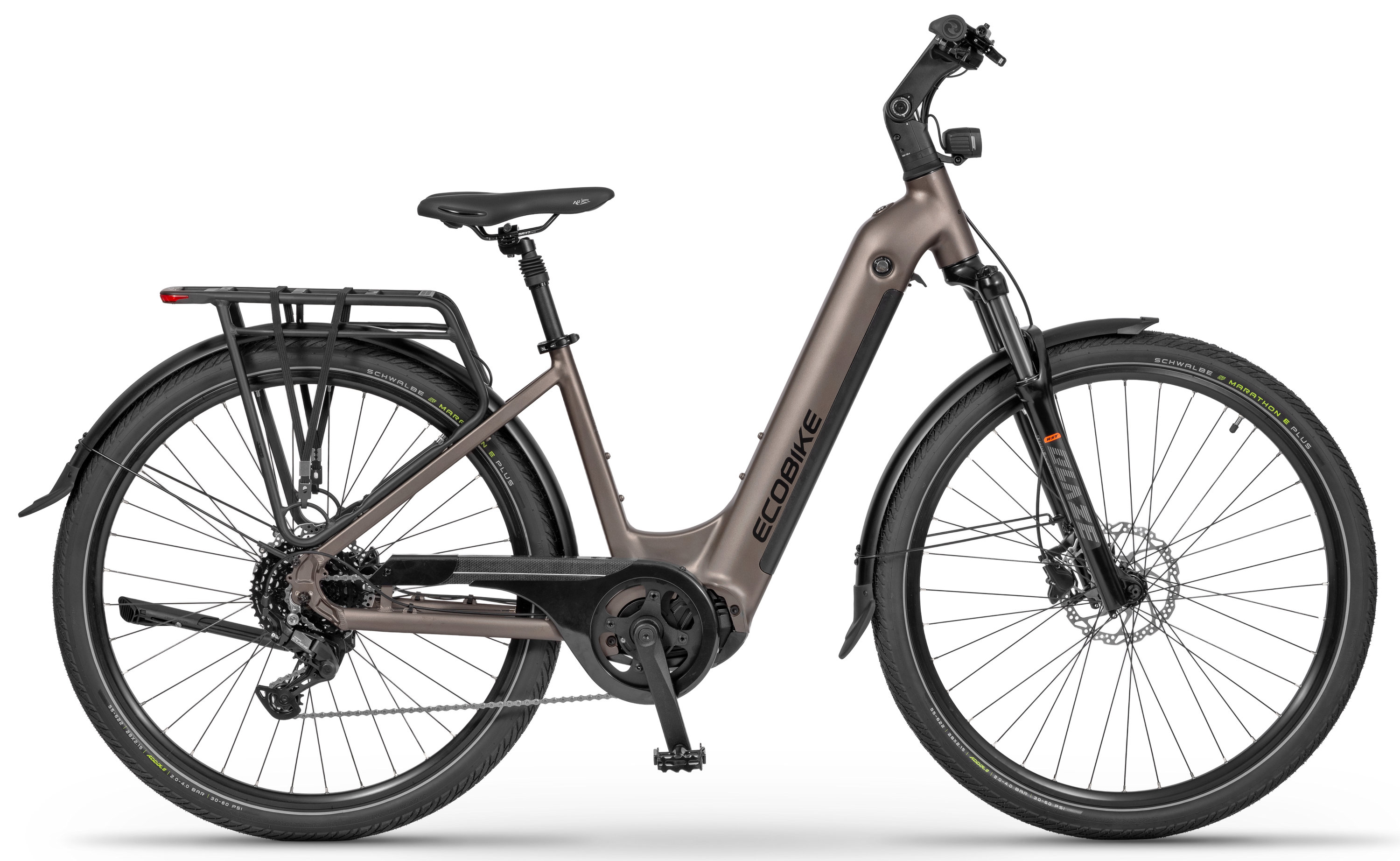

The latest LX 300 has undergone a solid refresh to meet the expectations of even more demanding riders. Its a perfect blend of modern technology, comfort, and safety, making every journey – from daily commutes to long adventures – a pure pleasure.

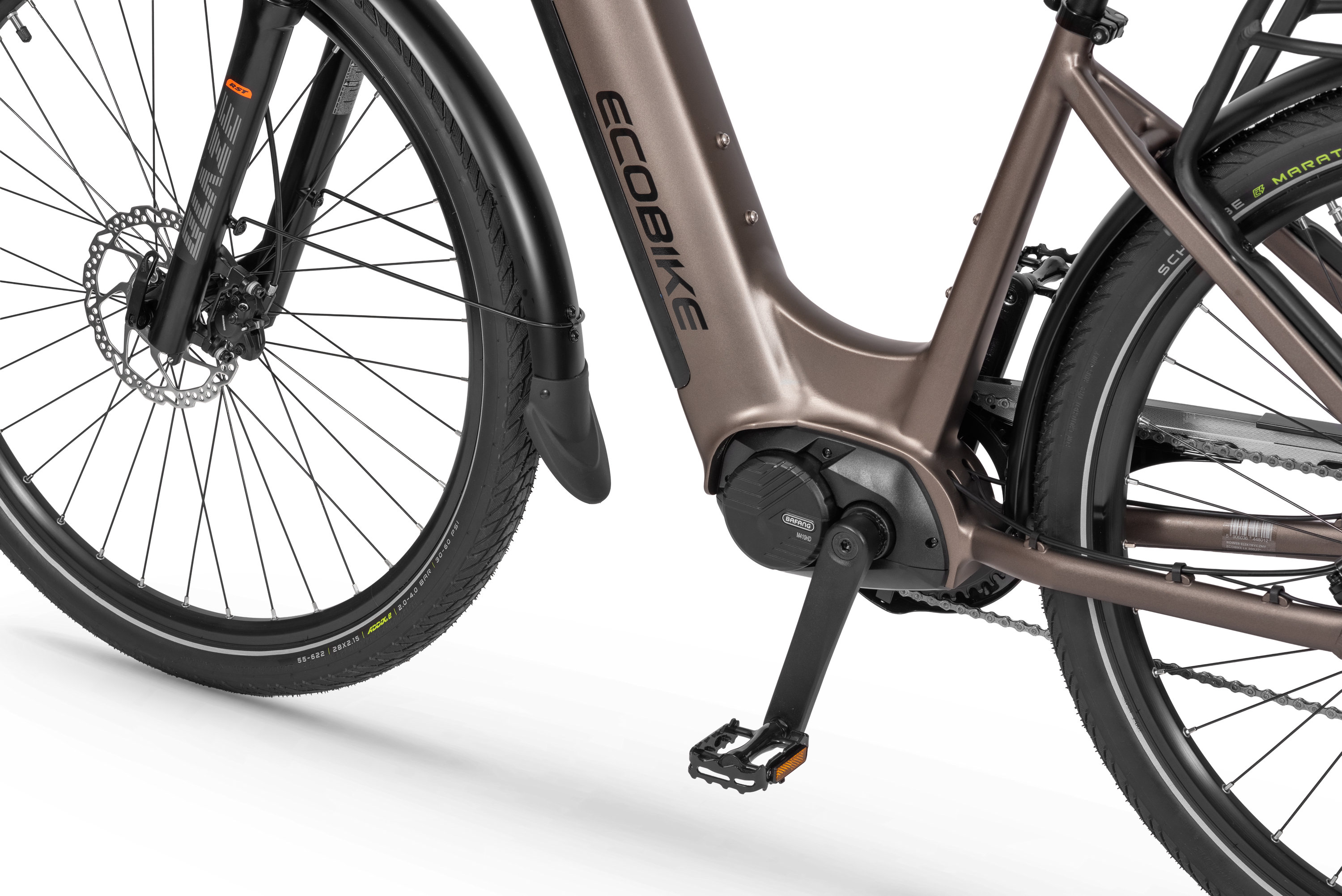

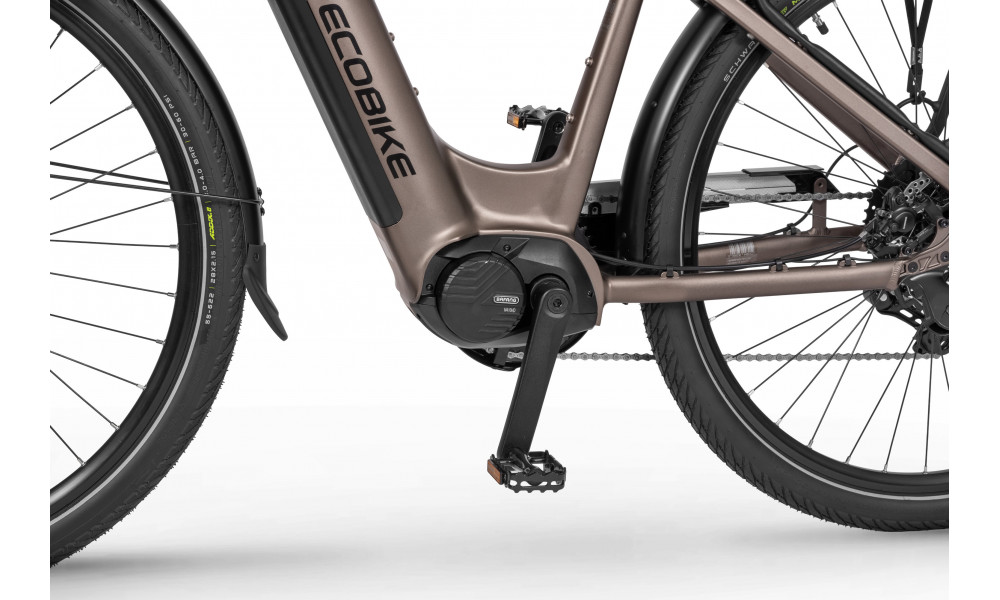

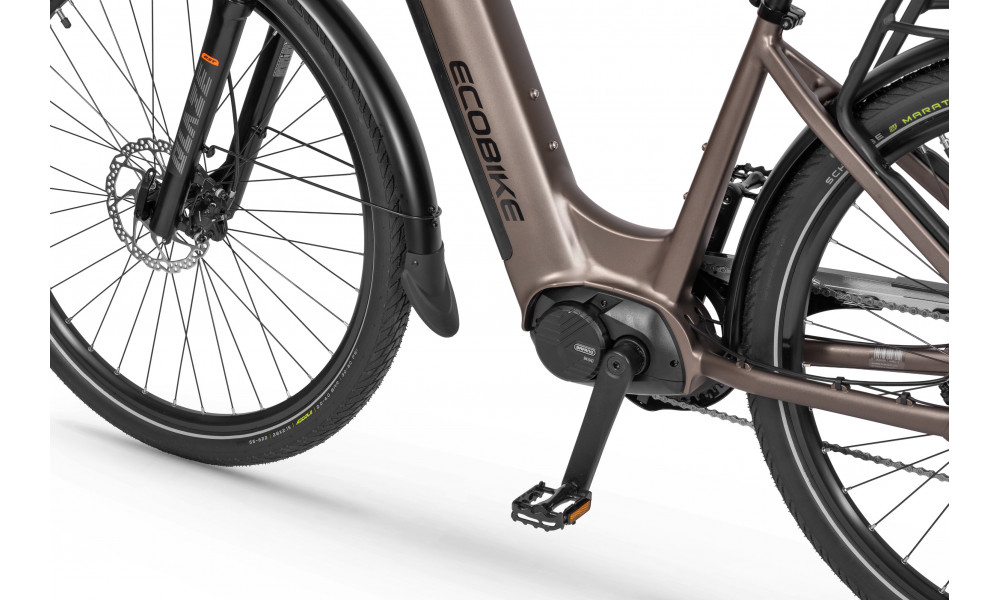

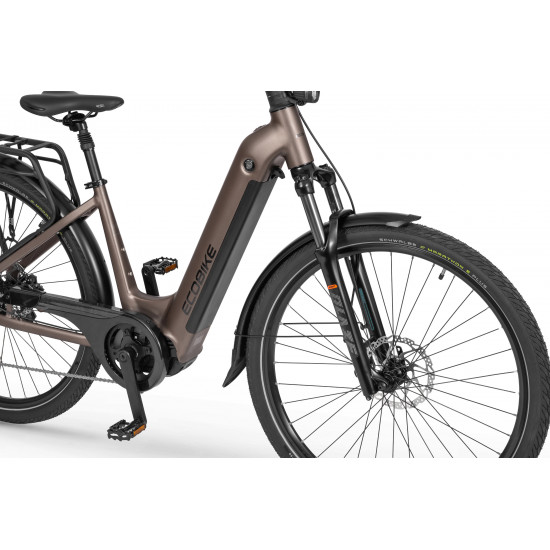

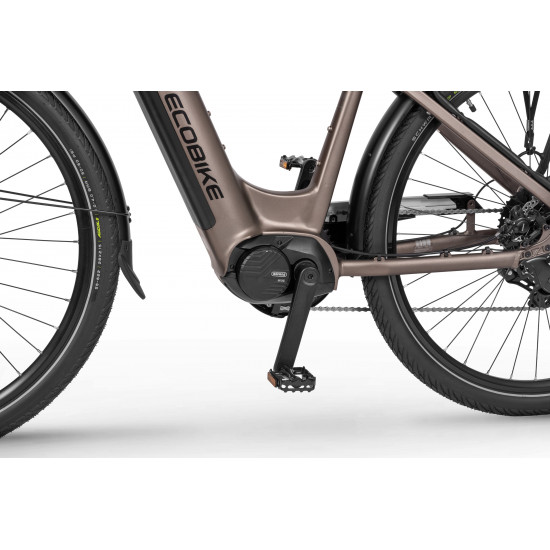

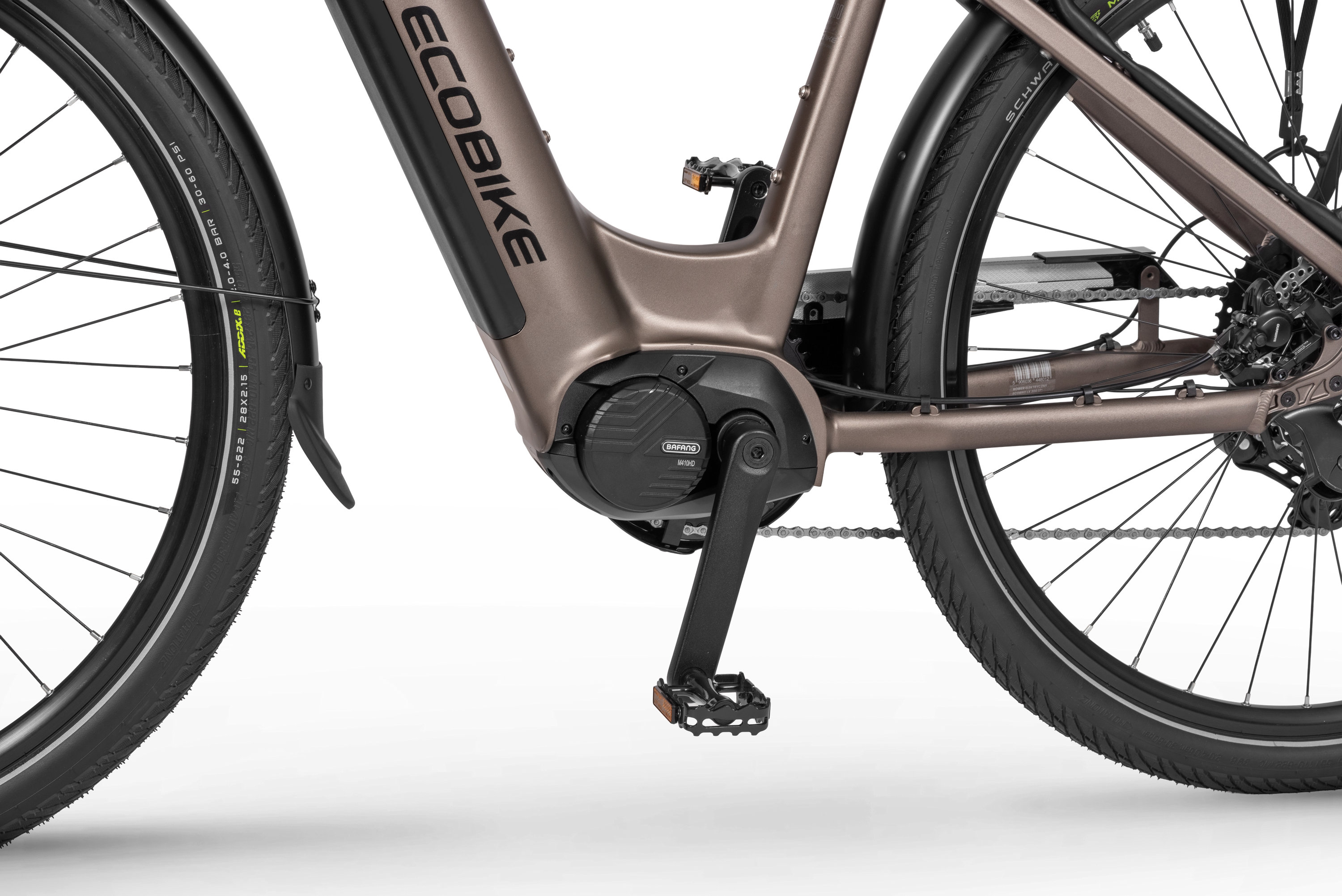

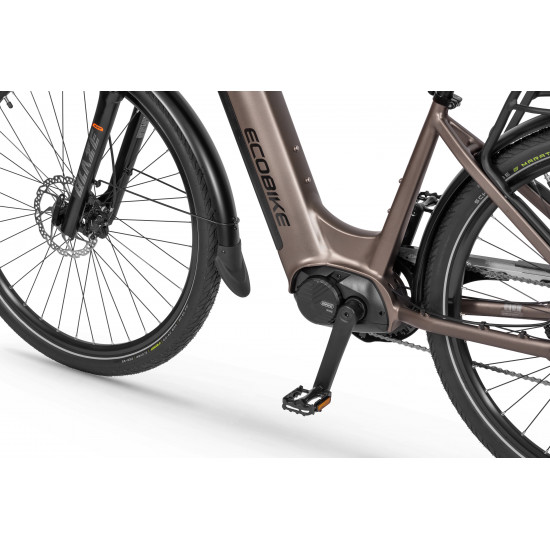

At the heart of the LX 300 lies a modern mid-drive motor supported by the complete Bafang system. It delivers smooth and natural assistance, performing equally well in the city and on longer trekking routes.

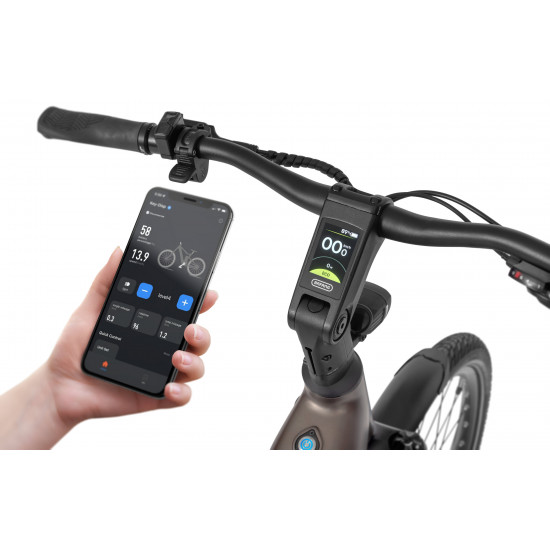

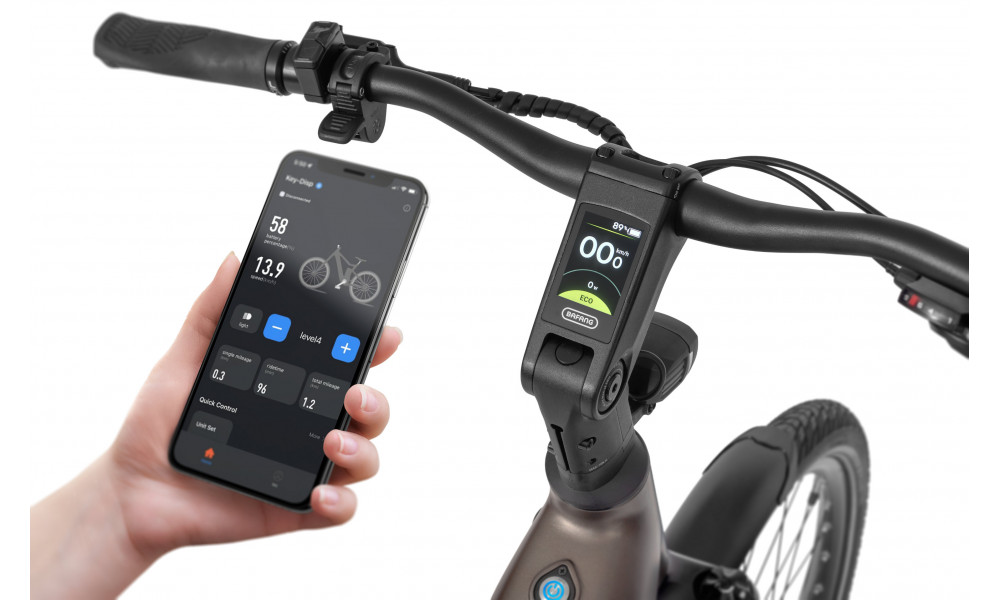

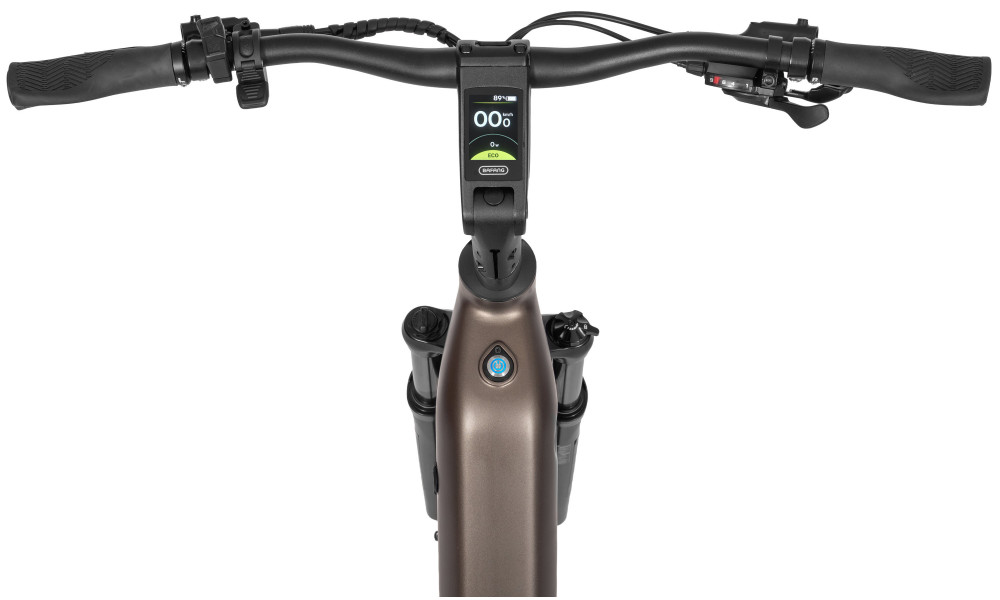

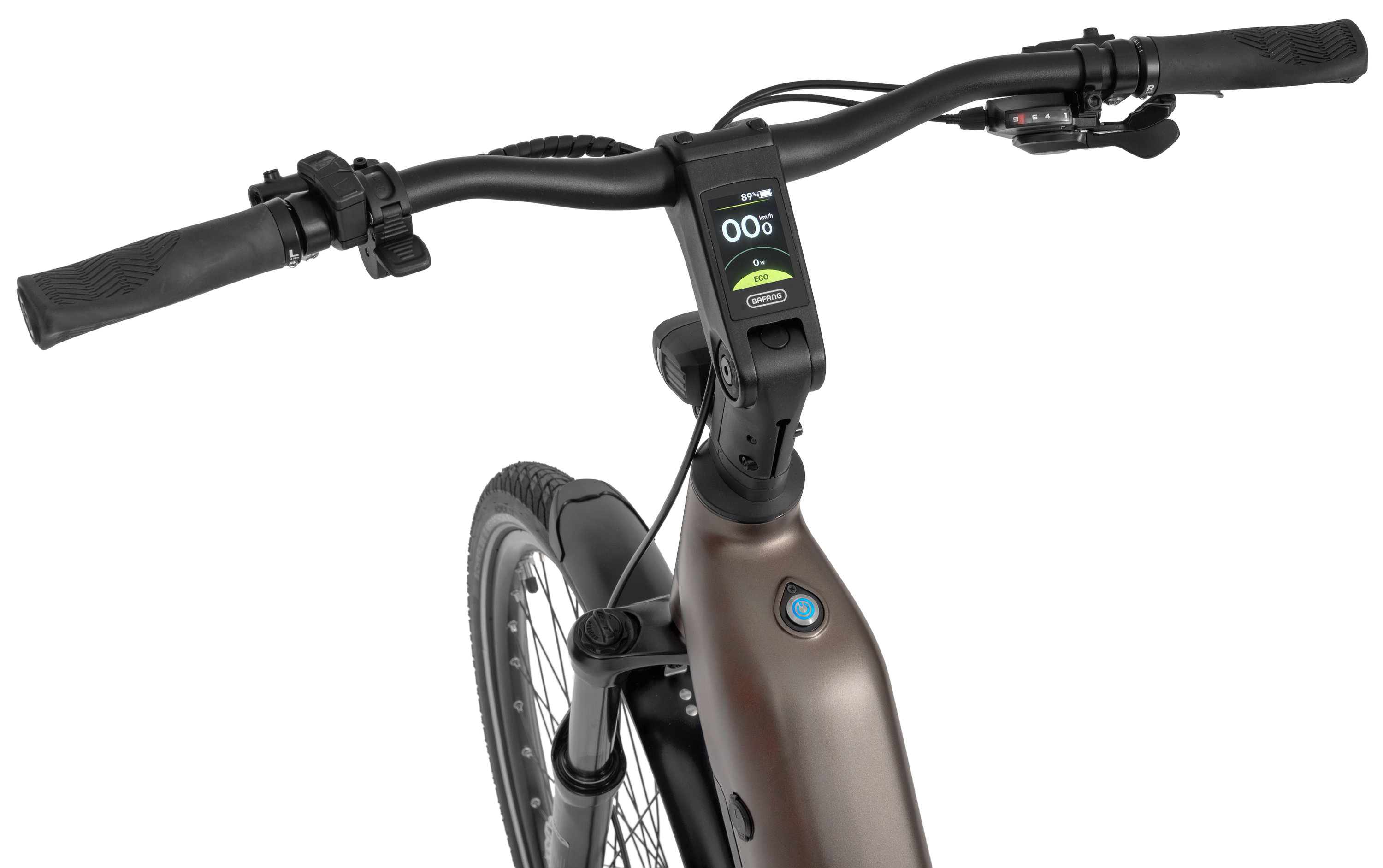

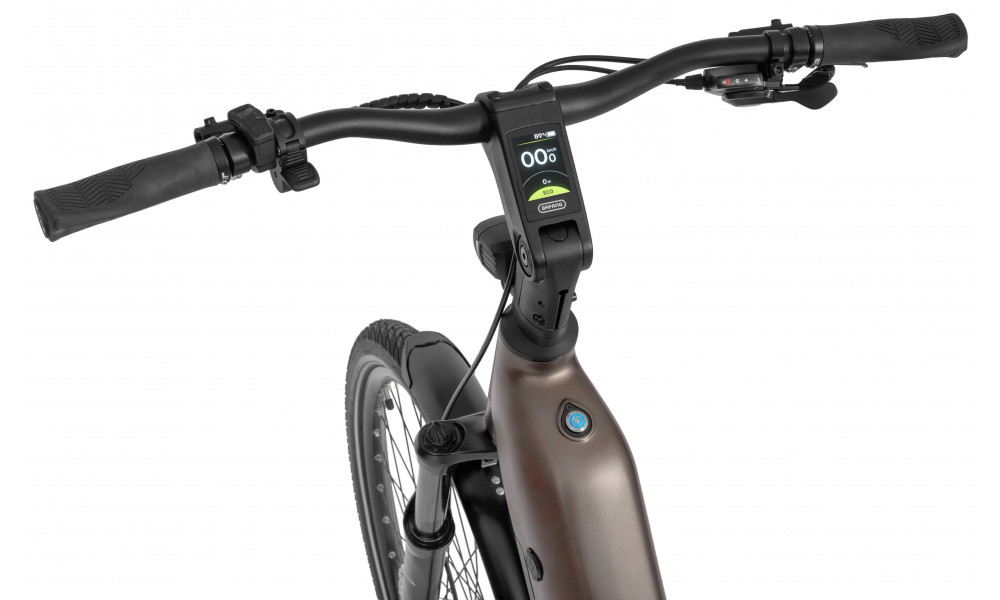

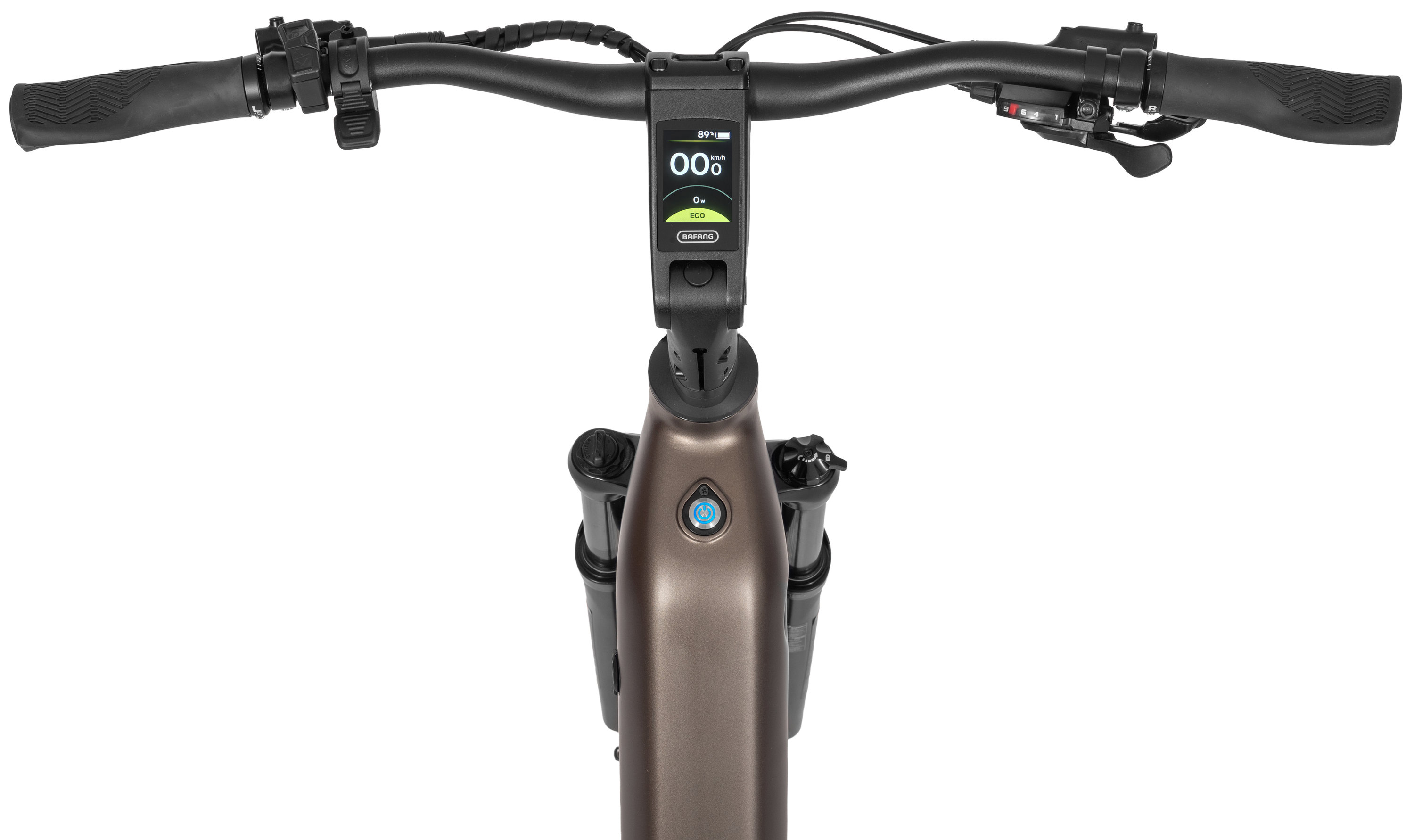

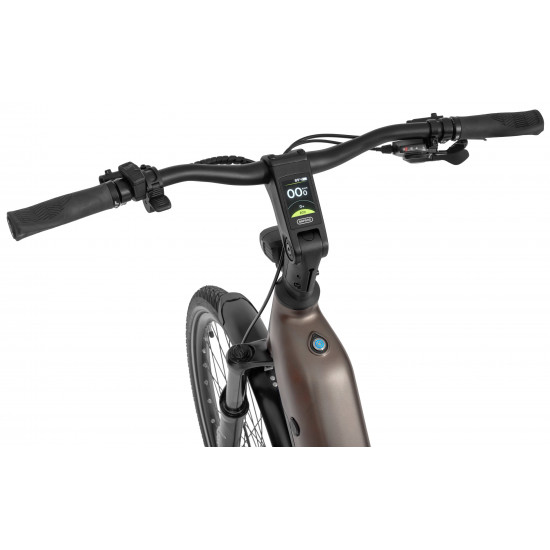

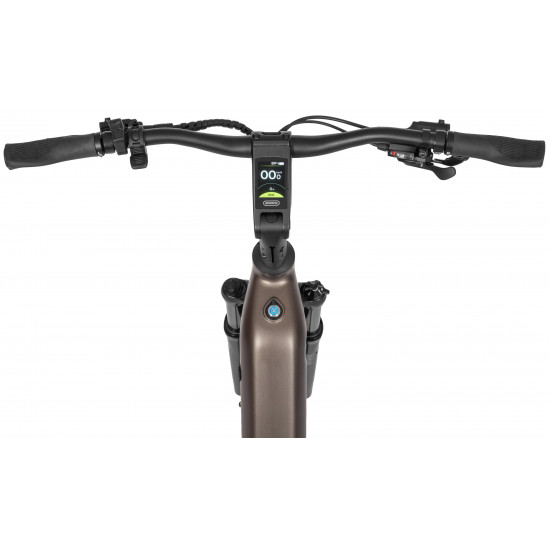

The headset and clean cockpit design keep all cables neatly hidden. The display integrated into the stem gives you full control over assistance settings while preserving the bikes elegant silhouette.

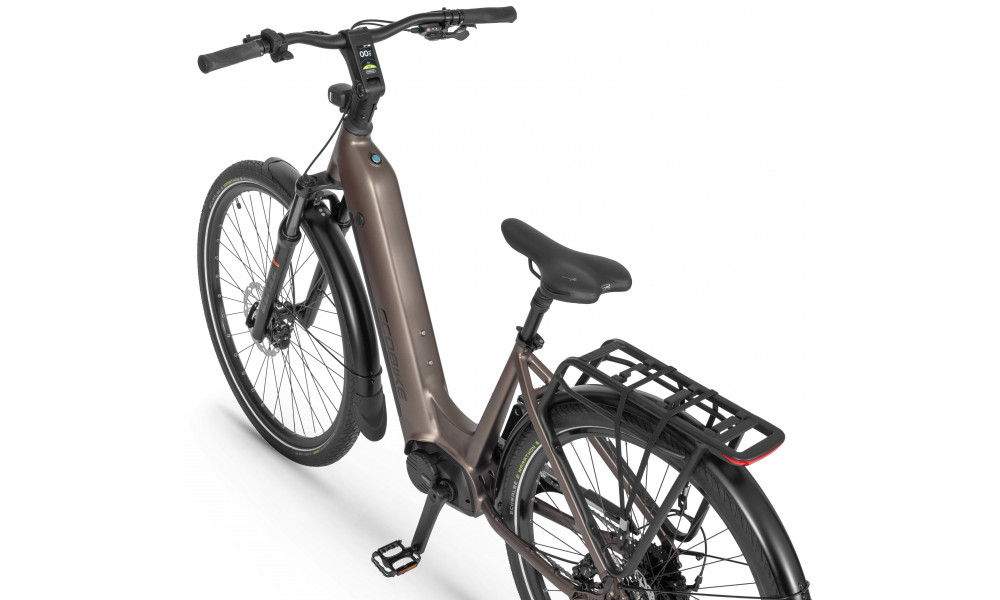

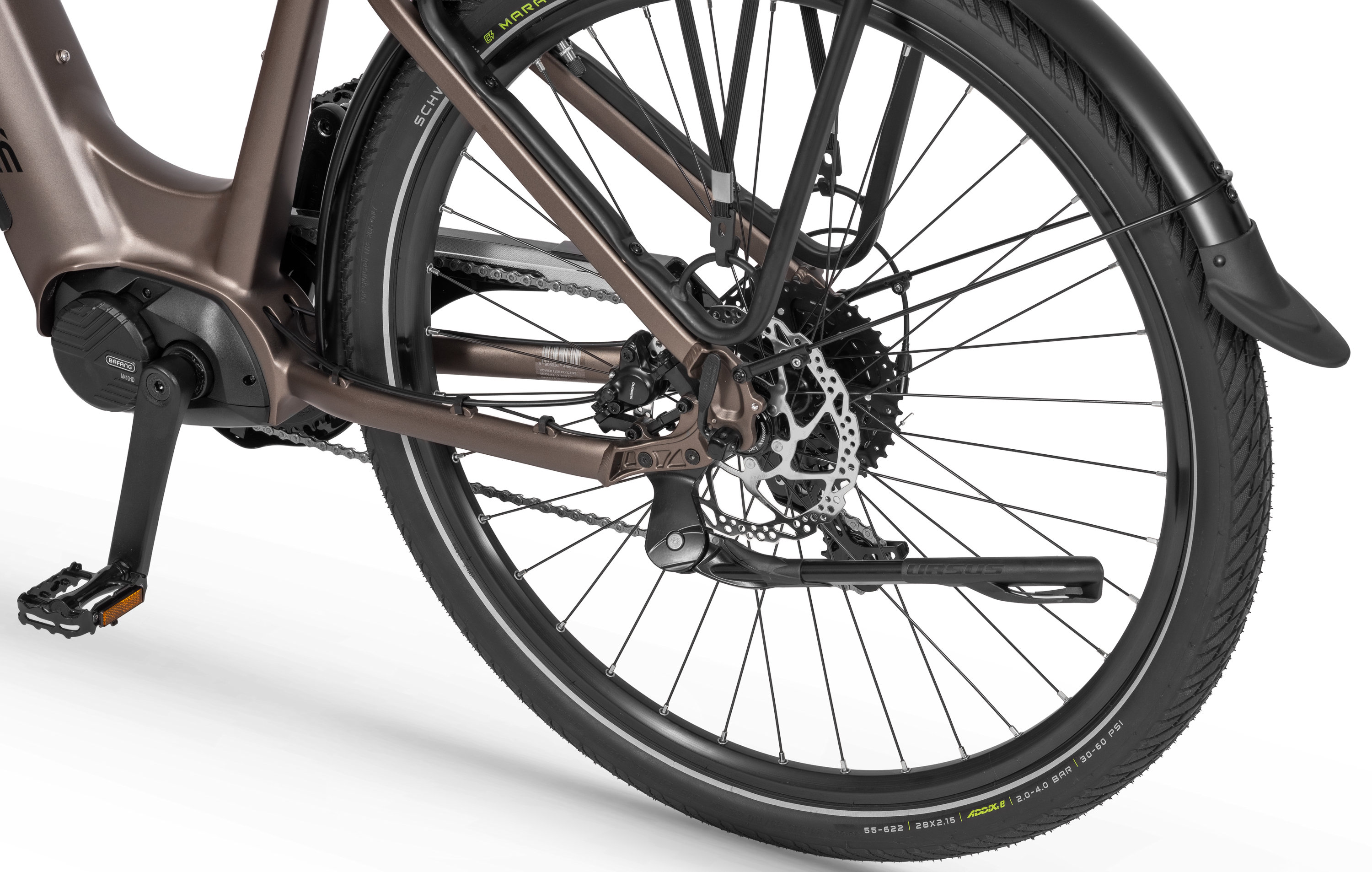

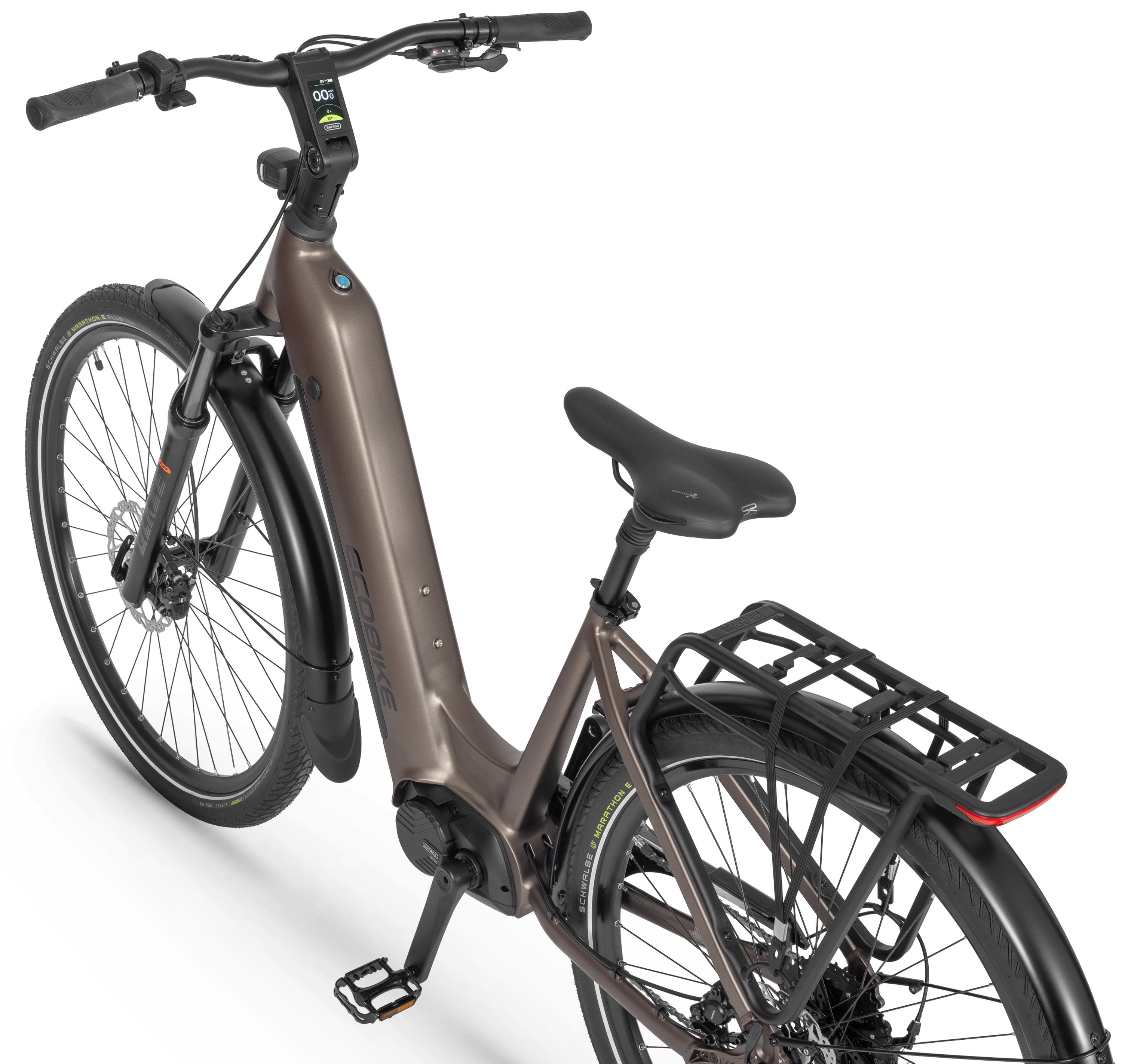

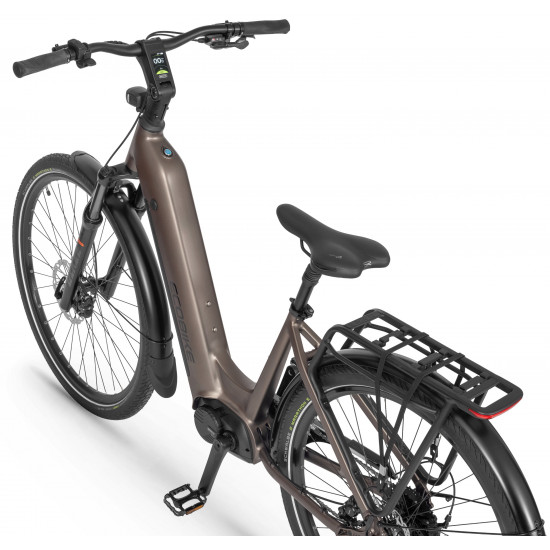

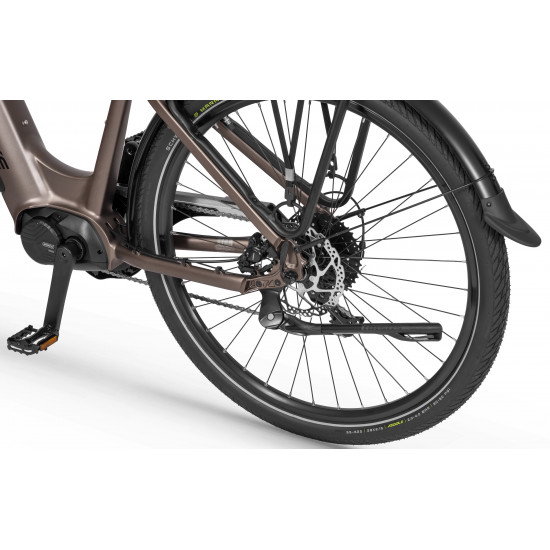

The LX 300 stands out with thoughtful details – from grips made of recycled materials, through a reinforced frame, to a rear rack with the MIK pannier system, allowing you to carry extra gear with ease.
The rear light with Emergency Stop-Light technology boosts your visibility – shining brighter when braking to alert other road users.
Product technical specifications
- Display model: DP C400 - stem display inside
- Display type: Color LCD
- Compatible application: Bafang GO
DISPLAY:
- Capacity and range:
- 900 Wh: MAX 170 km
- Voltage: 36 V
- Mount: Central (mid-drive)
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 100 Nm
- Motor's brand: Bafang
- Power: 250 W
- Lifespan: 700 charge
- Type: Li-ion
- Voltage: 36 V
- Cells brand: LG
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 4-8 hours
- FRAME: Hydroformowane alluminium
- FRAME SIZE: 17"
- FORK: RST BLAZE TNL29, travel 100 m
- BRAKES: Shimano MT200 hydraulic disc
- CHAIN: KMC eGlide EPT
- CHAINWHEEL: Prowheel 1-speed, 44T
- REAR DERAILLEUR: Shimano Cues, 9-speed
- FREEWHEEL: Shimano Cues, 11-41T, 9-speed
- HANDLEBAR: Promax, 700 mm x 31.8 mm
- STEM: Bafang, E105 mm - with display
- HUBS: Front Hub: TORA 36H, Centerlock / Rear Hub: Shimano FH-TX505-8, 135 mm, 36H, Center lock
- PEDALS: VP 199
- RIMS: 28" reinforced three-chambered rims
- SADDLE: Selle Royal Ariel
- SEAT POST: Promax, diameter: 27.2 mm, length: 350 mm
- SHIFTERS: Shimano Cues, 9-speed
- TYRES: 28" x 2.15 Schwalbe Marathon E Plus
- WEIGHT: 30.2 kg
- SPEEDS: 9
- MUDGUARDS: For front and rear wheel, with u-stays
- GRIPS: Herrmans Nucore Grip Town Wave
- KICKSTAND: Rear, adjustable length, aluminium
- CARRIER: Aluminium, max.: 25kg
- LIGHTS: Rear Light: Spanninga GLOW STOP / Front Light: Herrmans MR5
- Effective top tube length: 595 mm
- Head tube lenght: 130 mm
- Frame size: 432 mm
- Wheel base: 1163.5 mm
- Seat tube angle: 73.20
- Headset angle: 69
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
DISTANCE:
ENGINE:
BATTERY:
GEOMETRY:
Pyörä lähetetään valmistajan alkuperäisessä pakkauksessa (etupyörä, ohjaustanko ja satula ovat yleensä irrotettuina), mikä varmistaa tuotteen turvallisuuden varastointi- ja kuljetusvaiheessa. Kun ostaja hankkii pyörän sellaisessa pakkauksessa, hän itse tai valitsemansa pyörähuollon ammattilainen on vastuussa asianmukaisesta pyörän kokoamisesta, säätämisestä ja käyttöönotosta.
