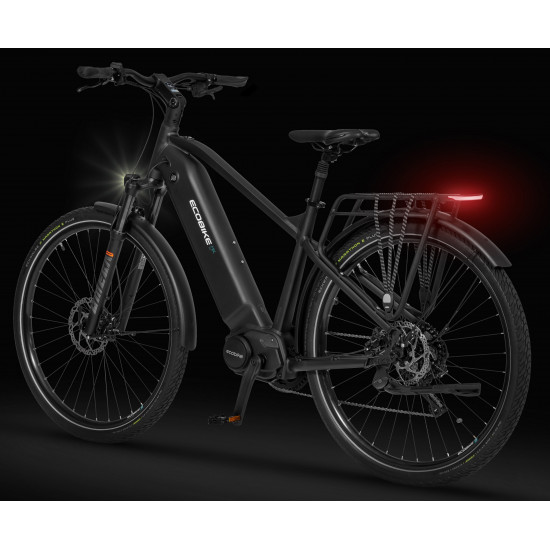

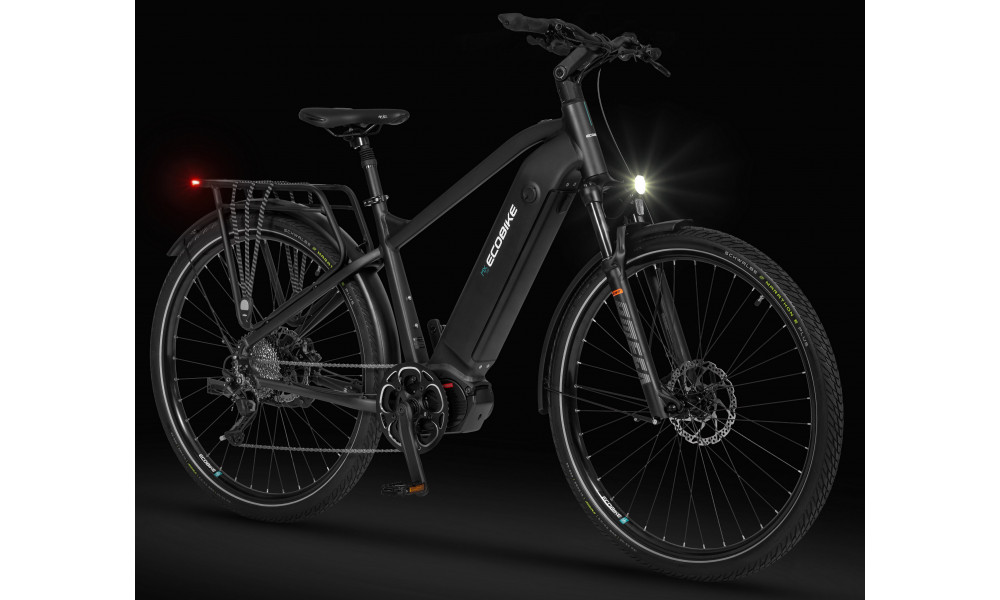

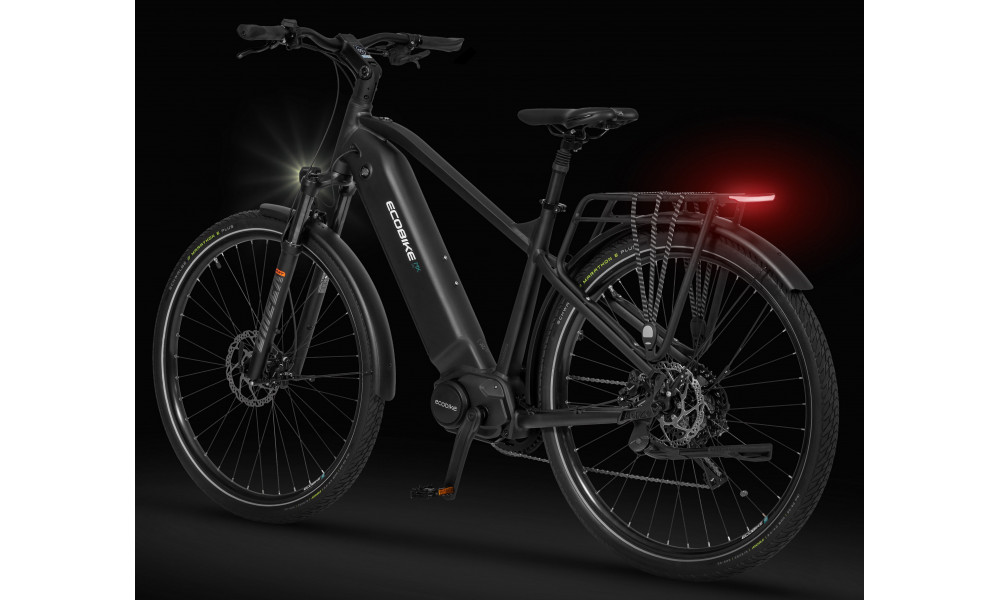

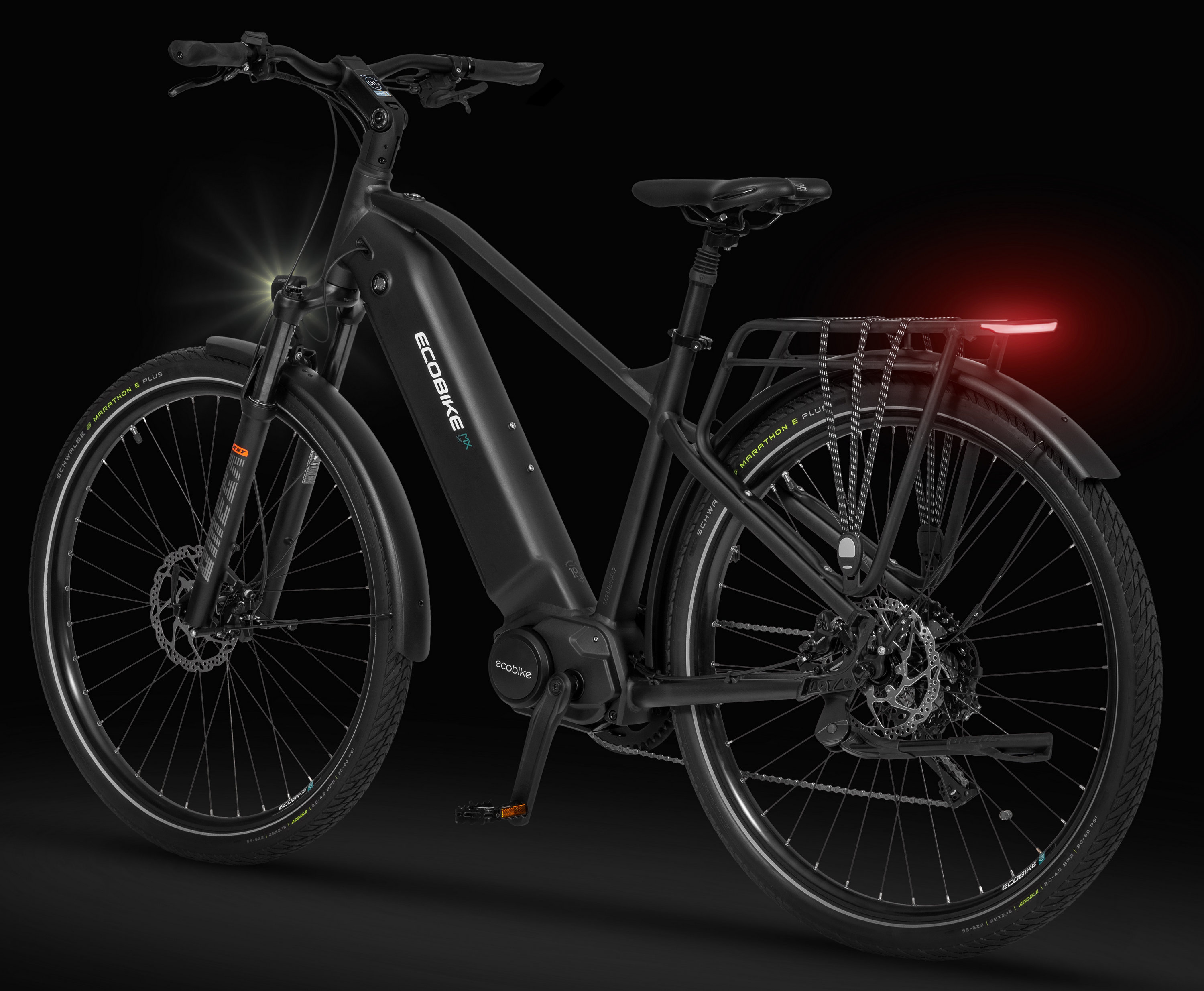

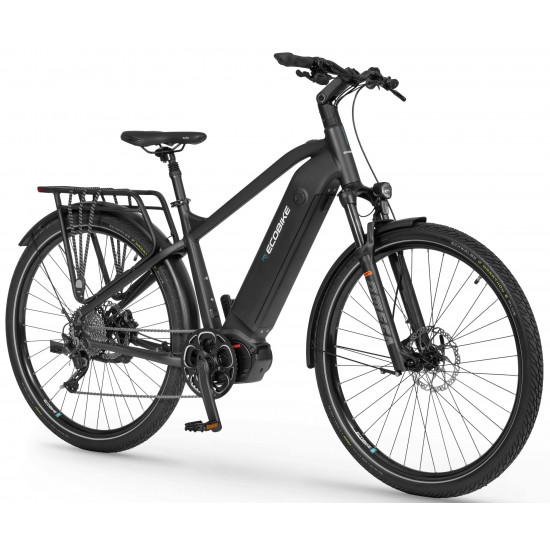

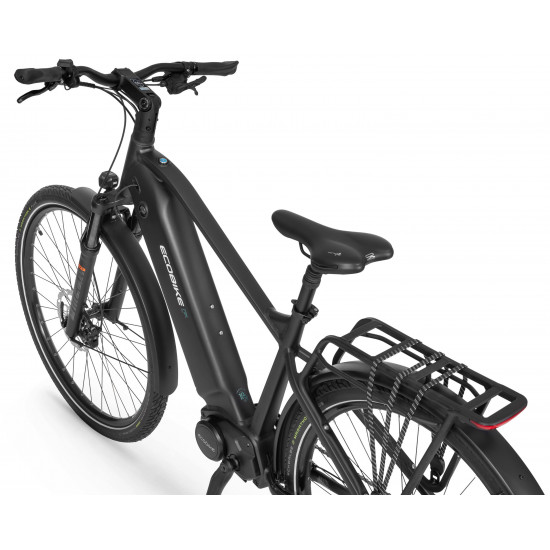

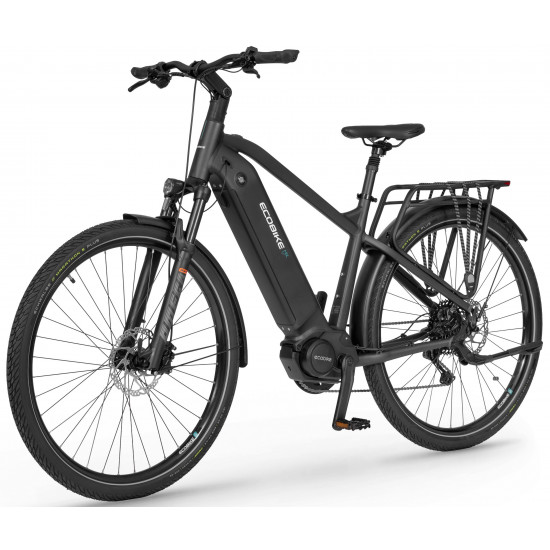

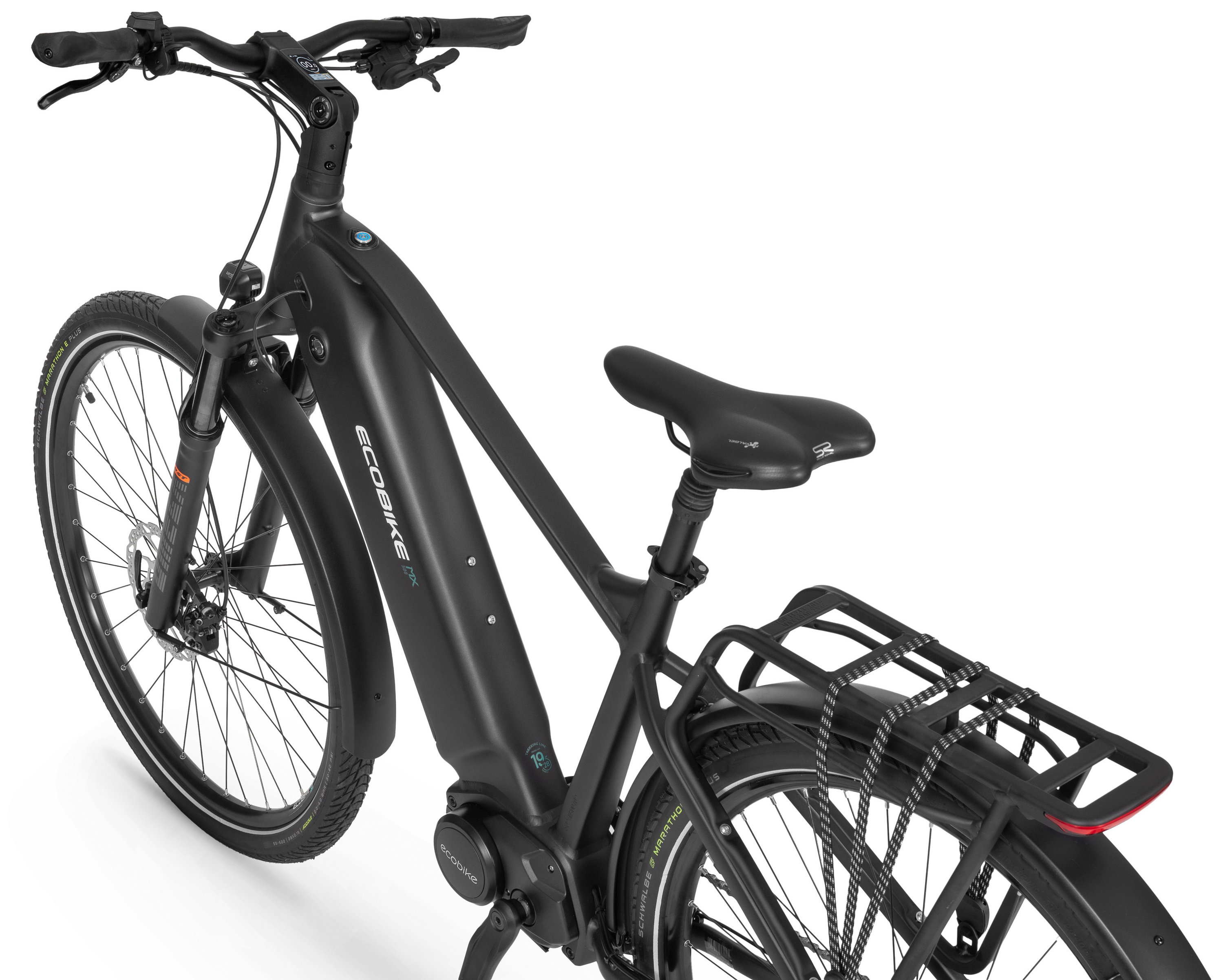

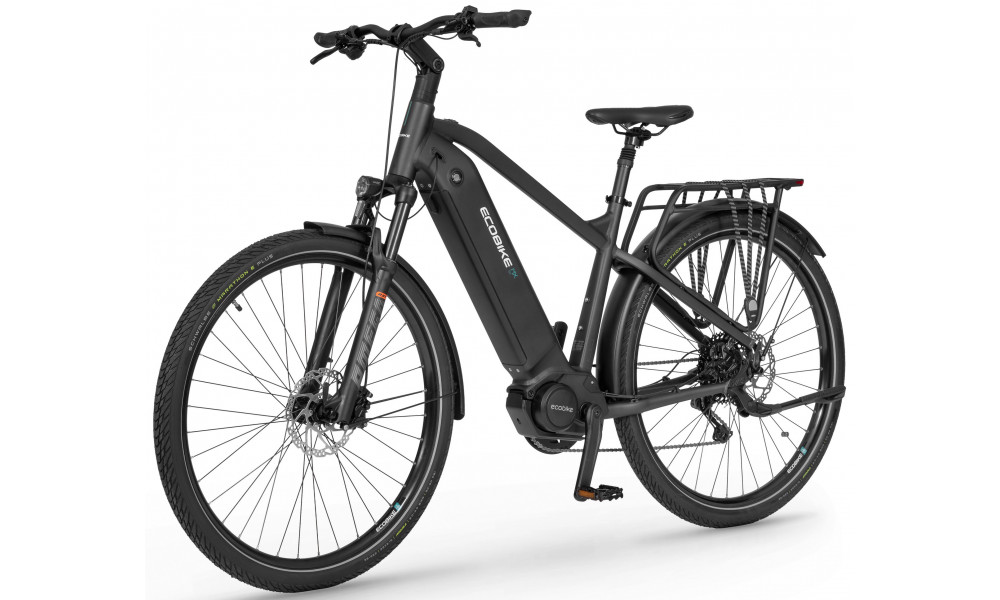

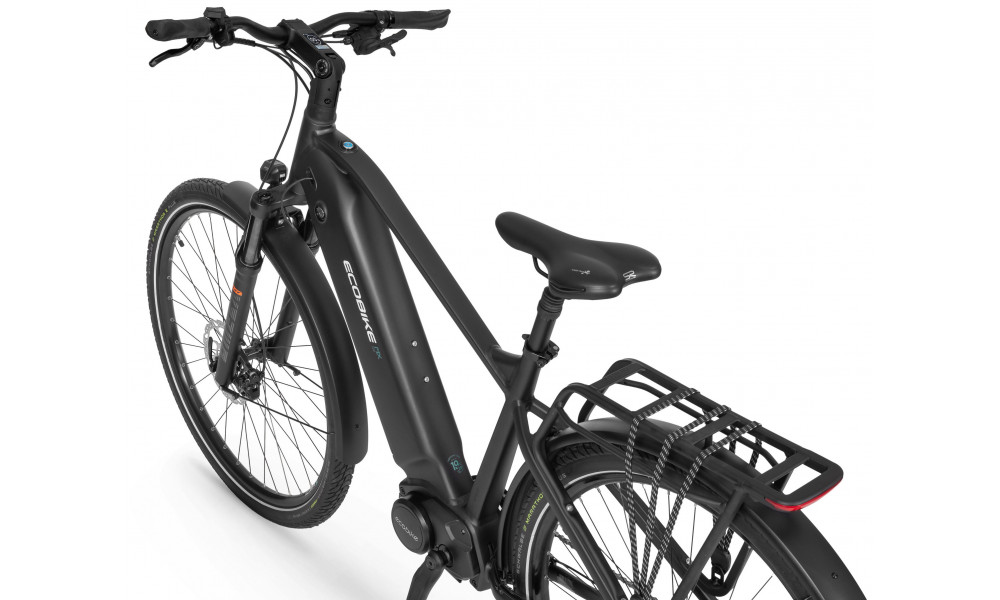

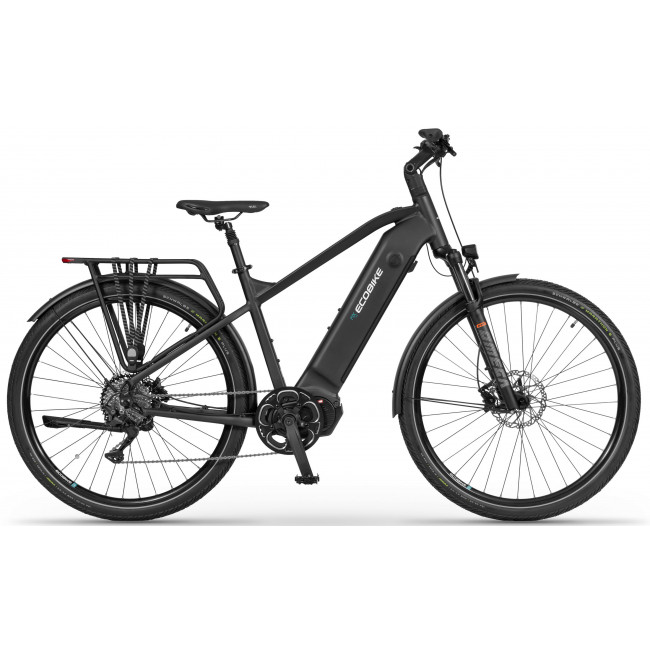

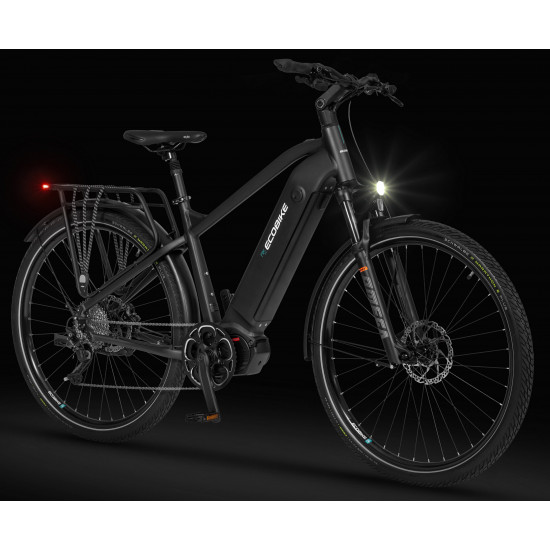

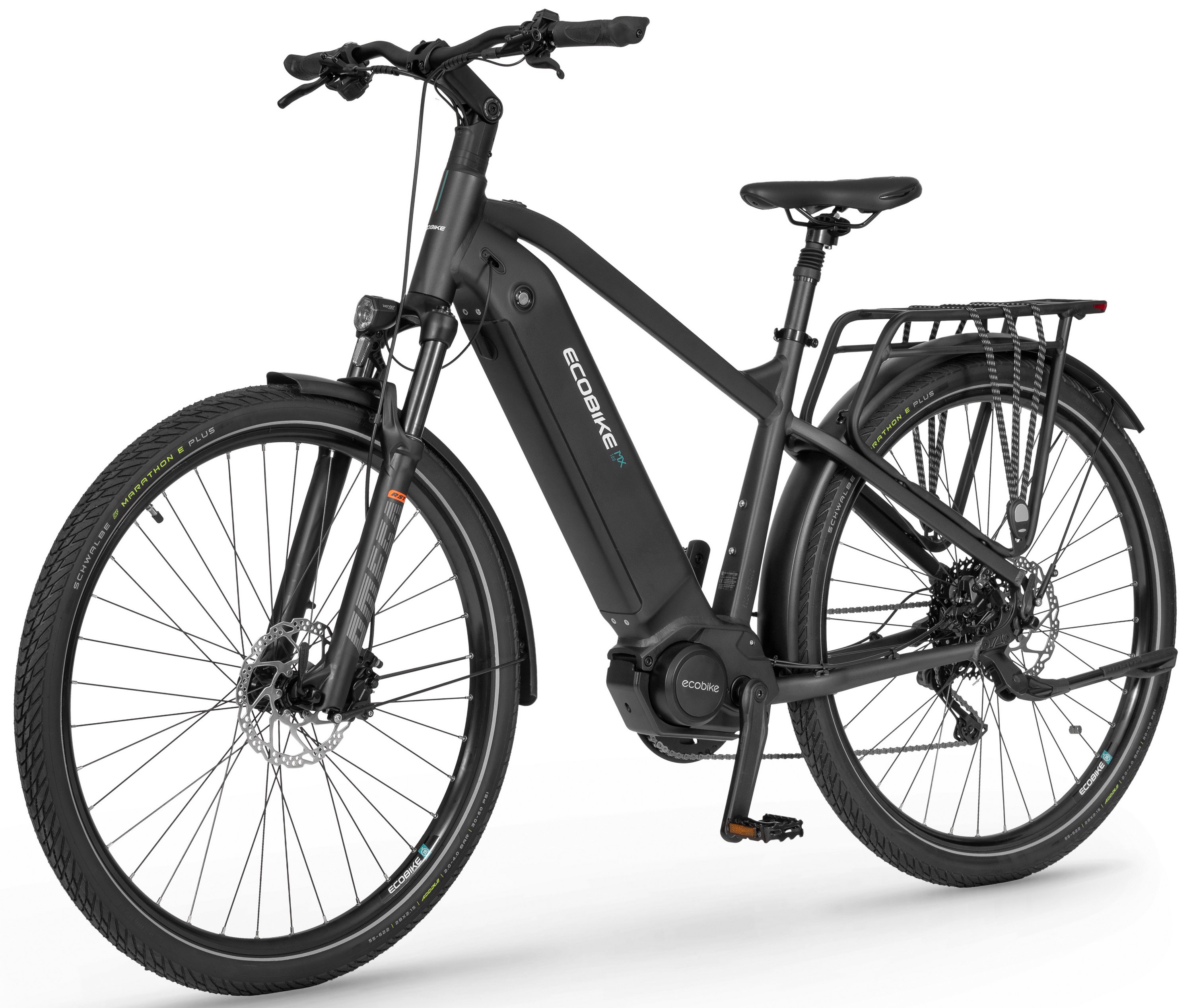

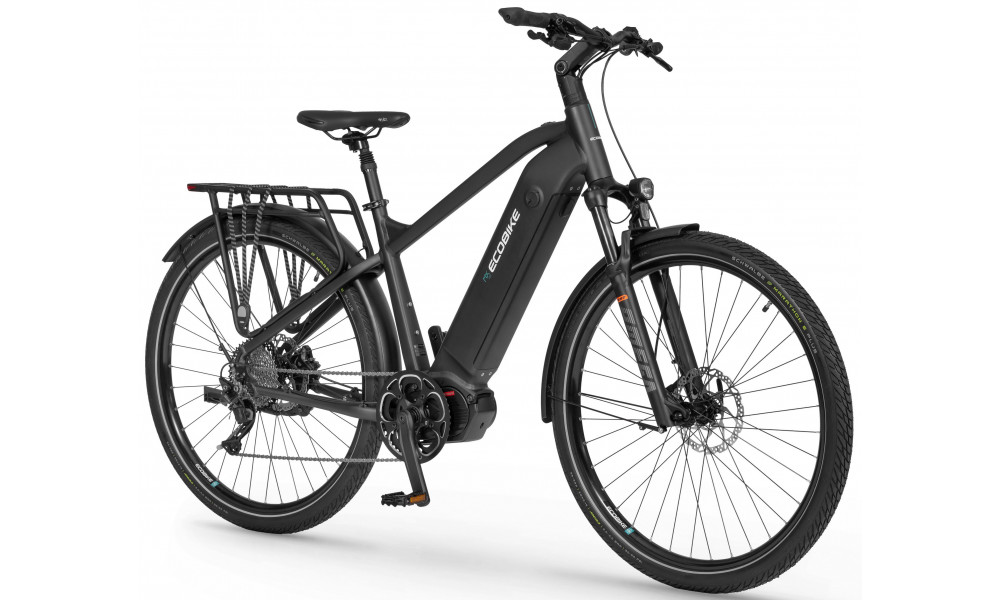

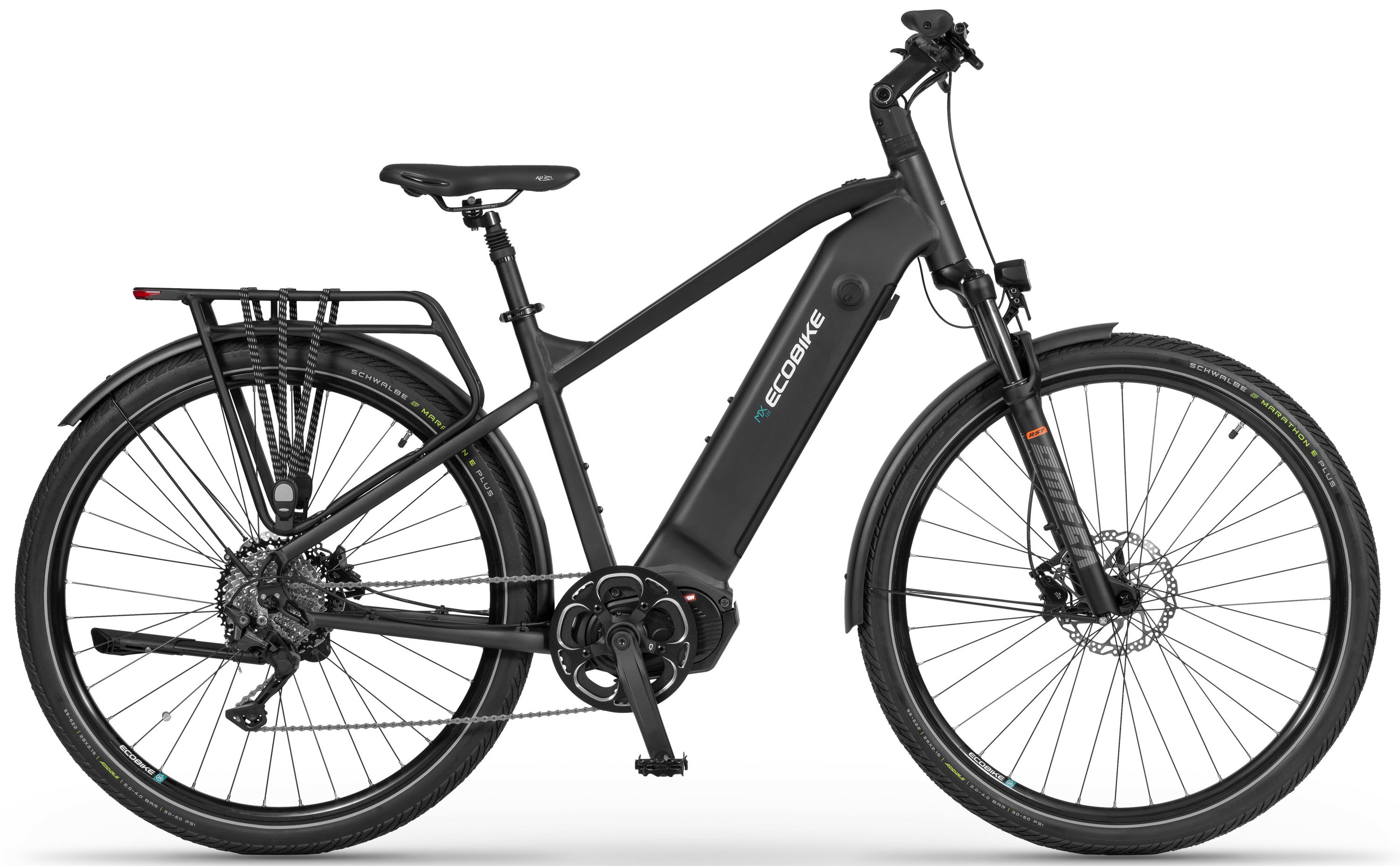

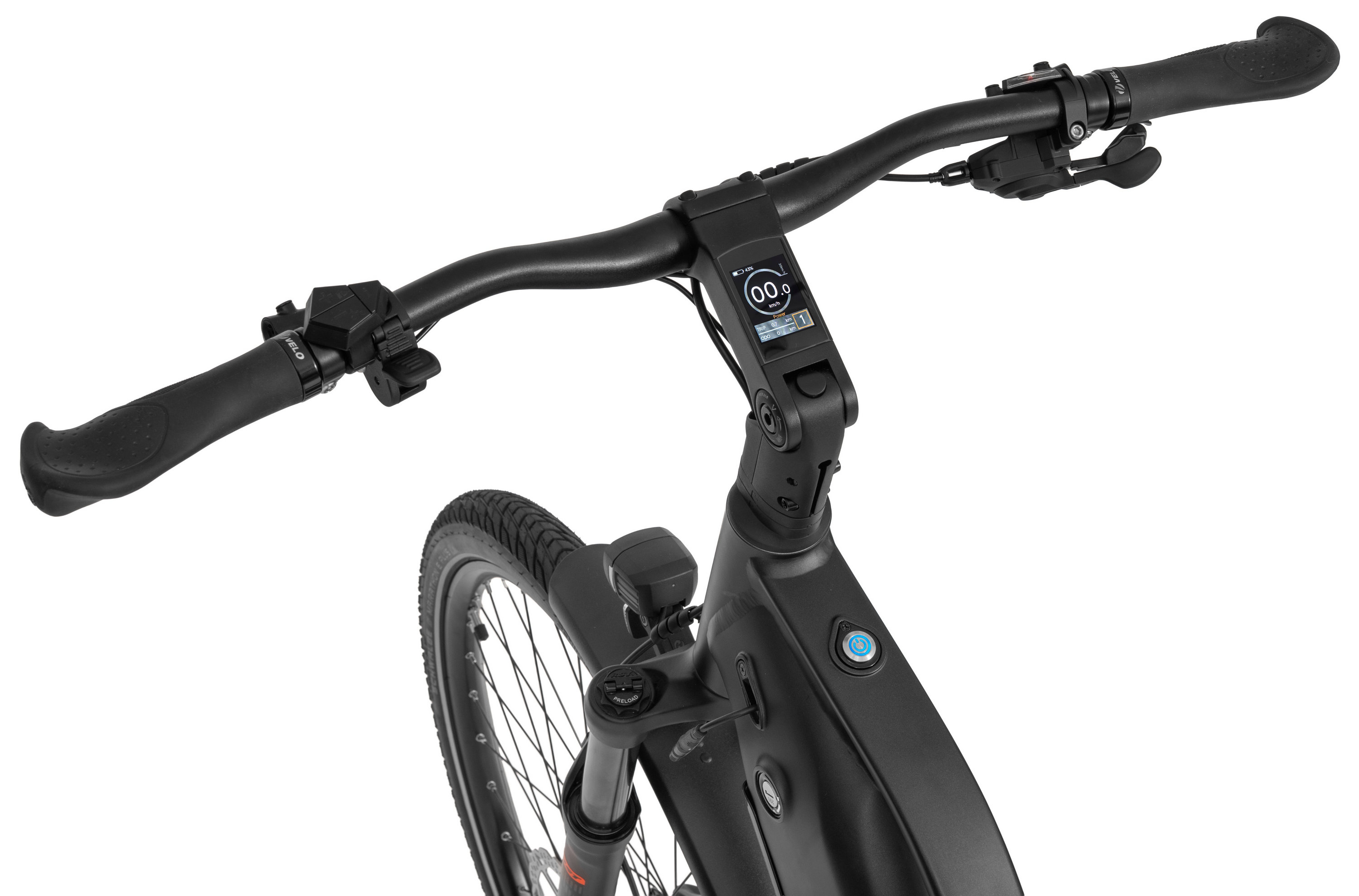

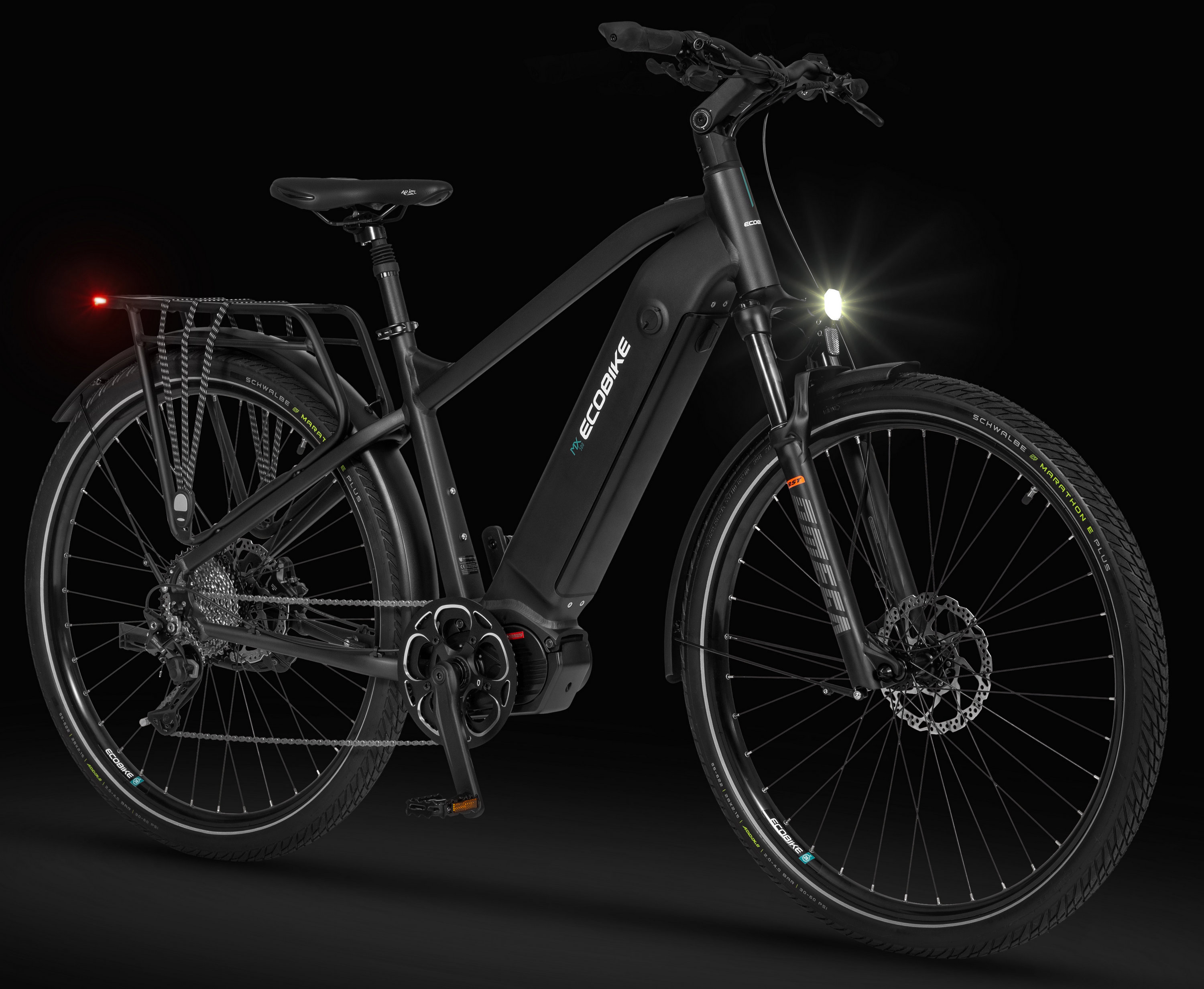

The exceptional design of the MX 500 bike encompasses three key factors for us: comfort, durability, and ergonomics. The new frame geometry allows you to maintain an optimal position for both short rides and longer trips. The reinforced construction ensures safety, while all vibrations and shocks are distributed in a way that maximizes riding pleasure. The sleek new look is also largely due to the concealment of cables in the stem and handlebars.

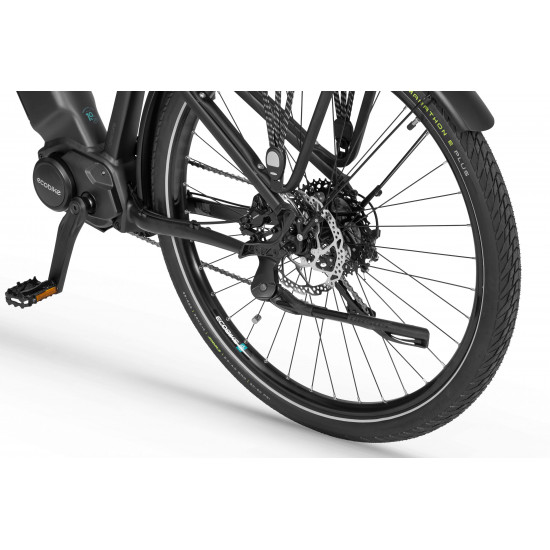

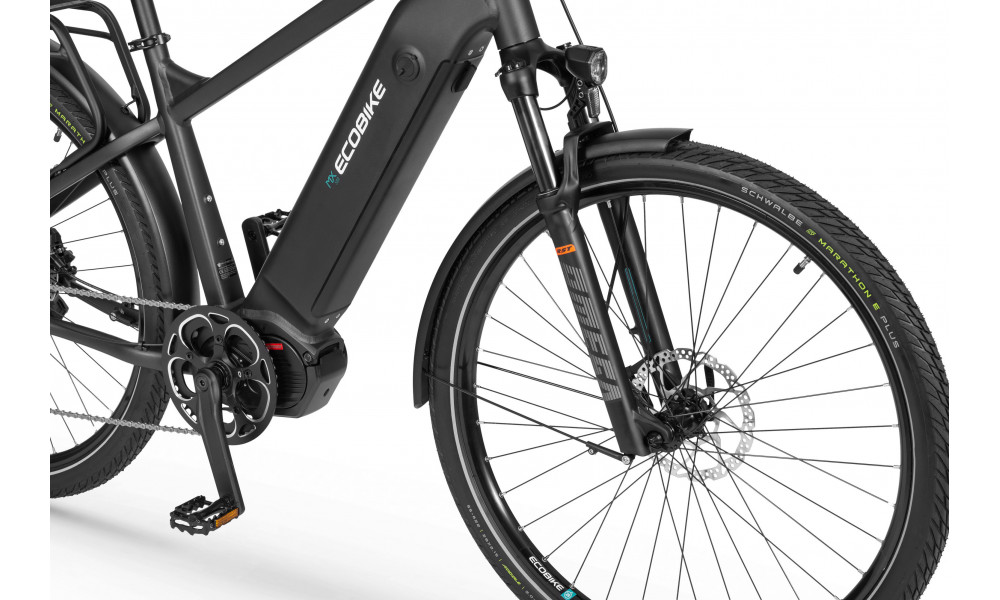

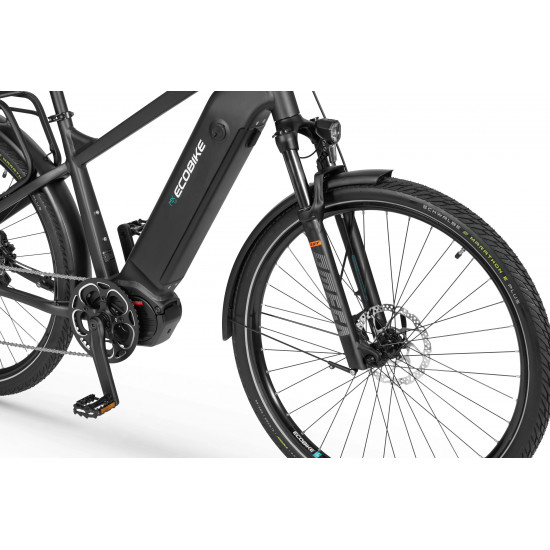

Achieved excellent balance by placing the electric motor at the correct angle and the battery in the lower part of the frame. You can be sure that the MX 500 electric bike will handle safely and confidently.

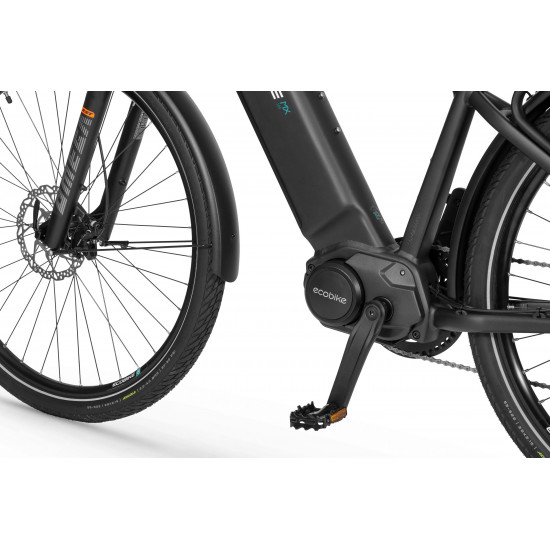

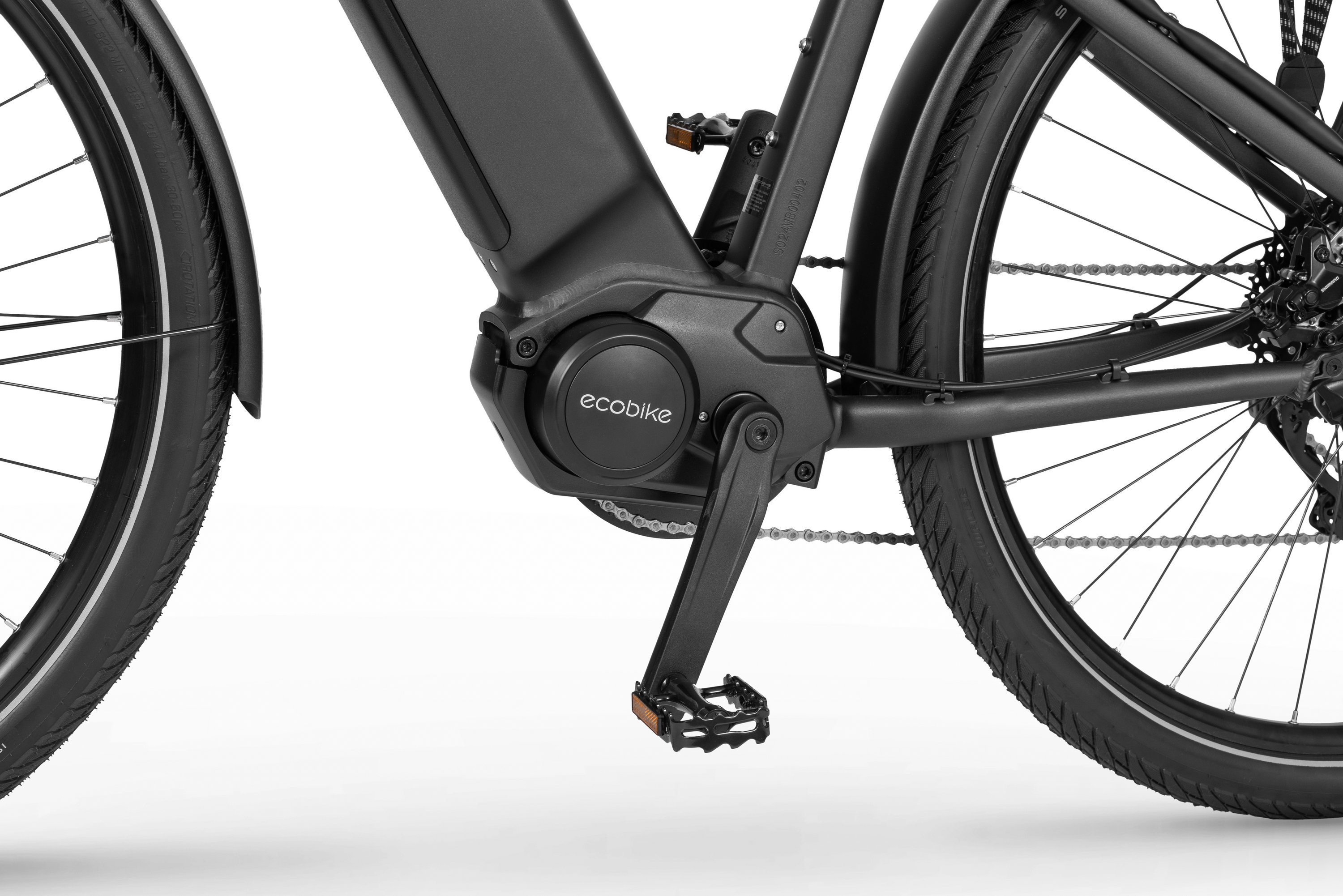

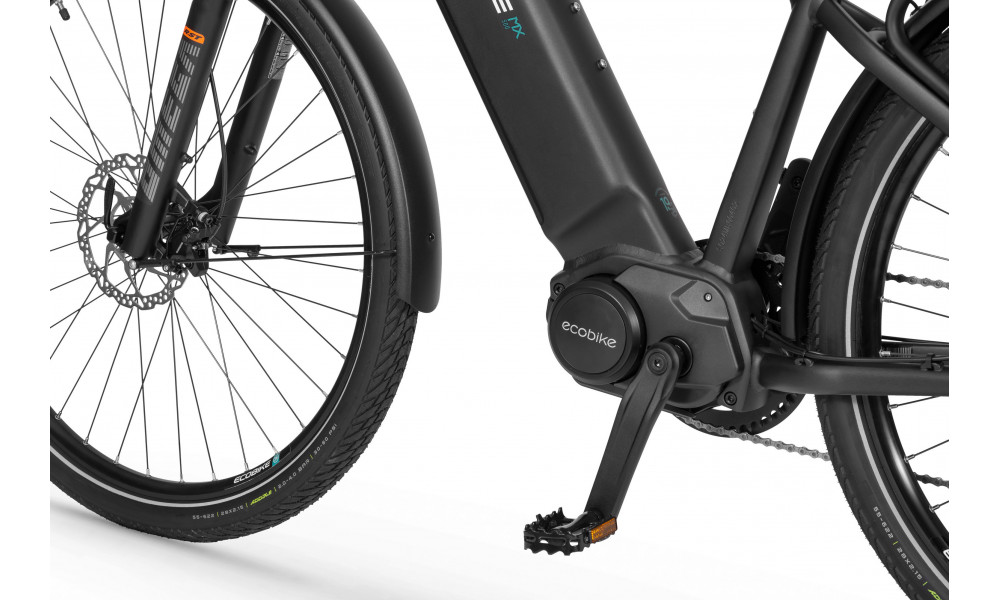

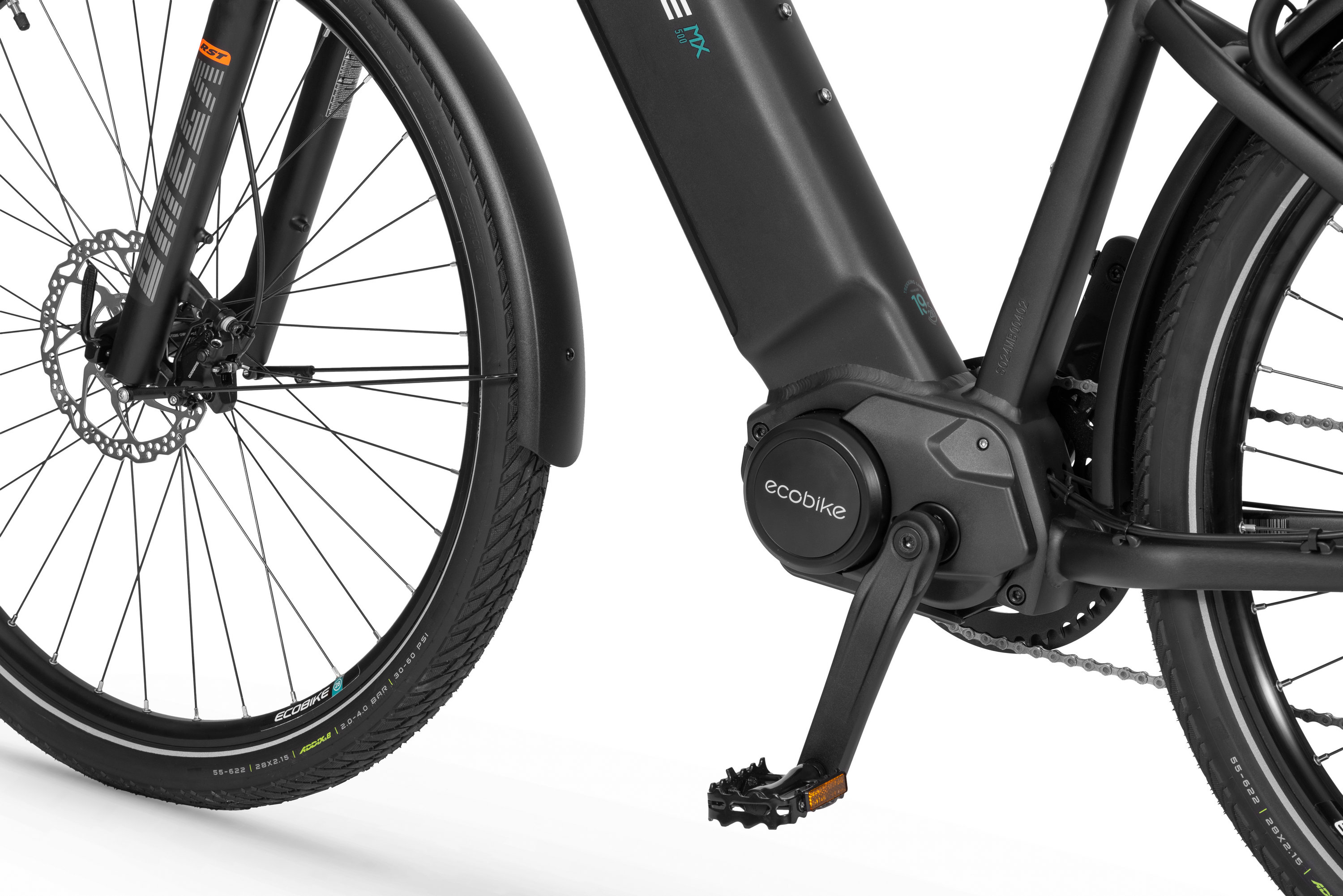

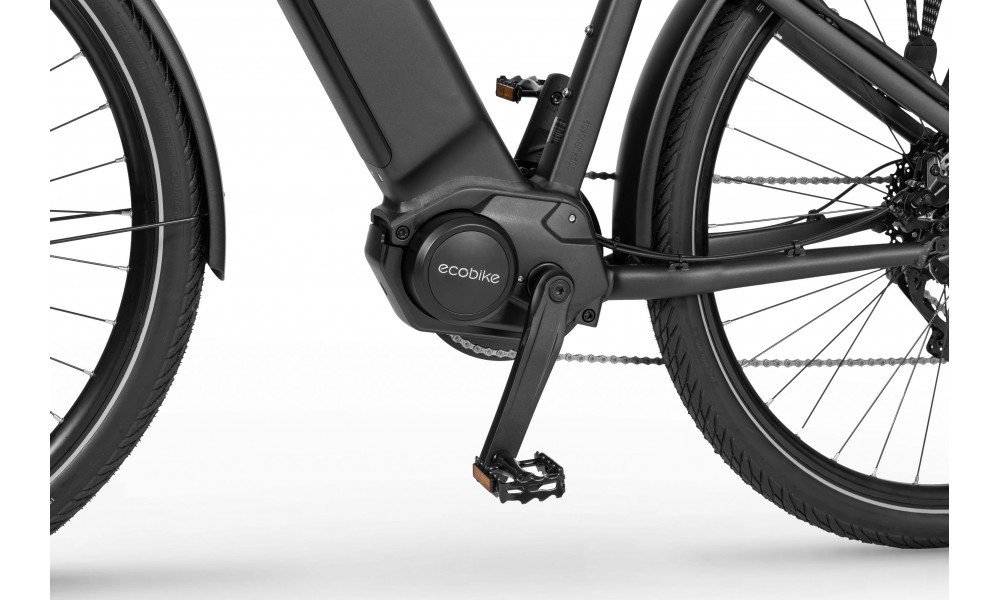

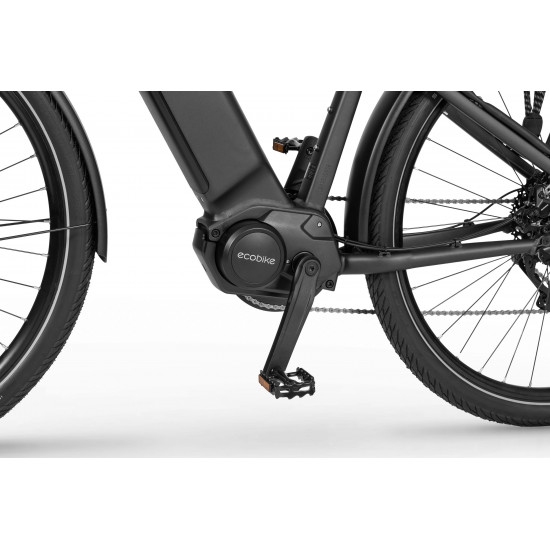

The assistance system embedded in the Ecobike MX 500 is an intelligent organism. The Ananda central motor generates up to 130 Nm of torque, allowing this machine to climb even the steepest hills. While the potential is substantial, the user decides how they want to ride, and the intelligent monitoring system adjusts the bike's operation to ensure smooth, long-lasting performance that closely mimics natural bike riding.
The Ecobike MX 500 is powered by 48V batteries equipped with Smart BMS technology, which intelligently manages battery operation to maintain its condition for years. Now you have two battery options to choose from, each powerful: a 15 Ah with 720 Wh capacity and a 20 Ah with nearly 1000 Wh capacity!

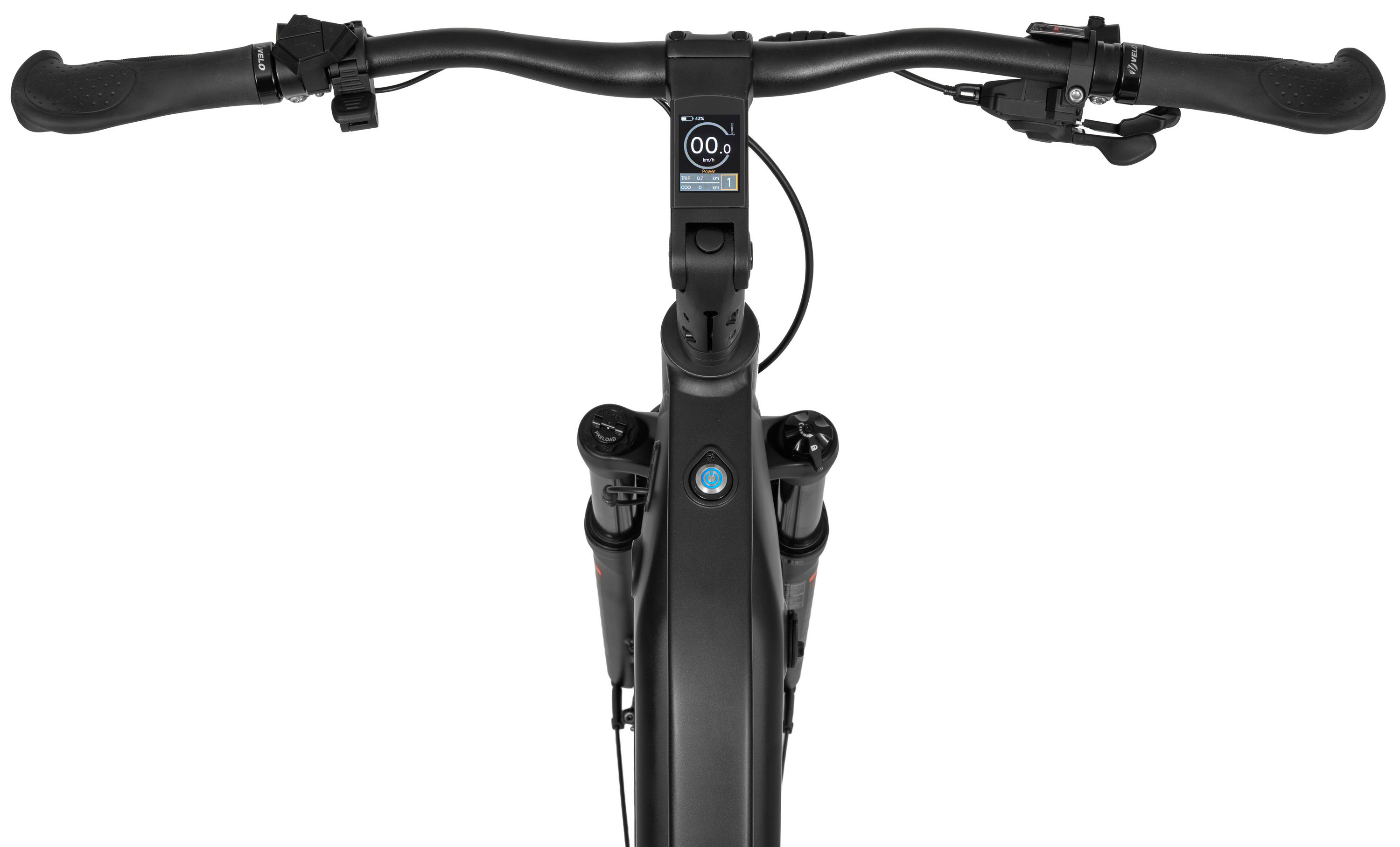

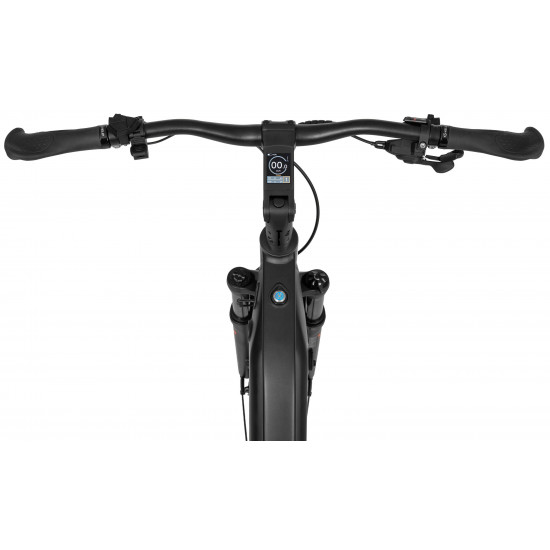

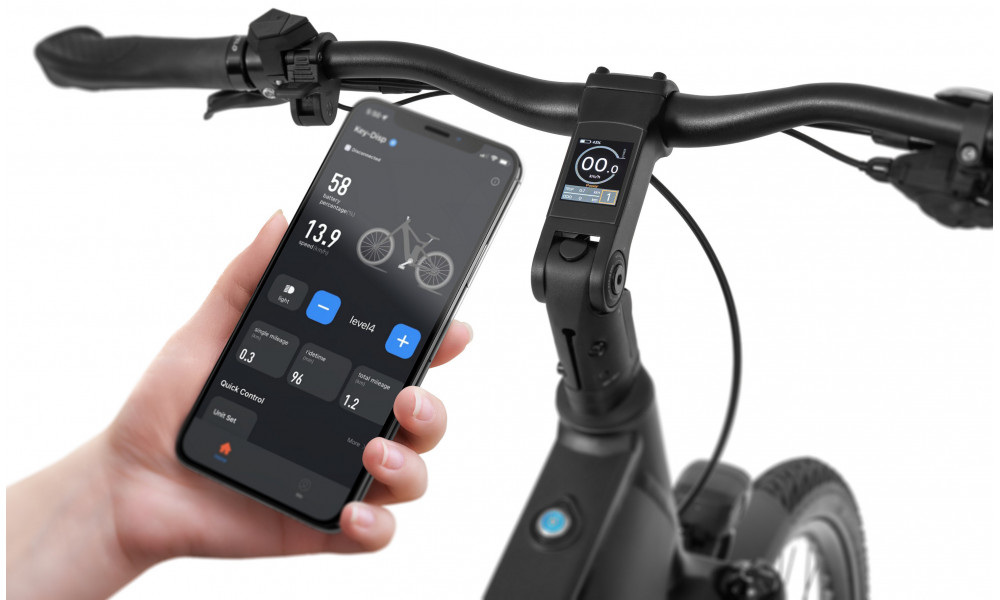

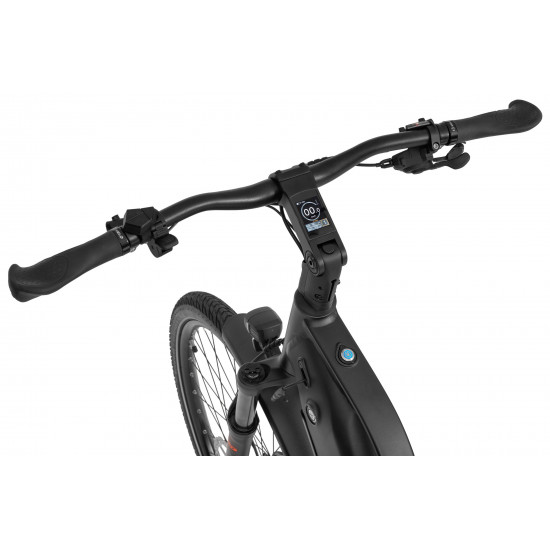

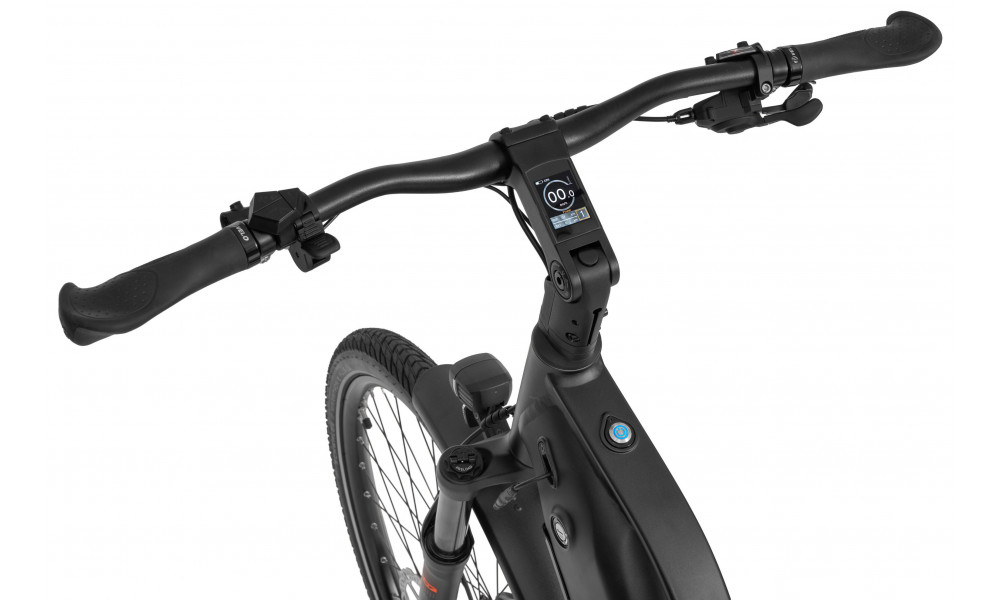

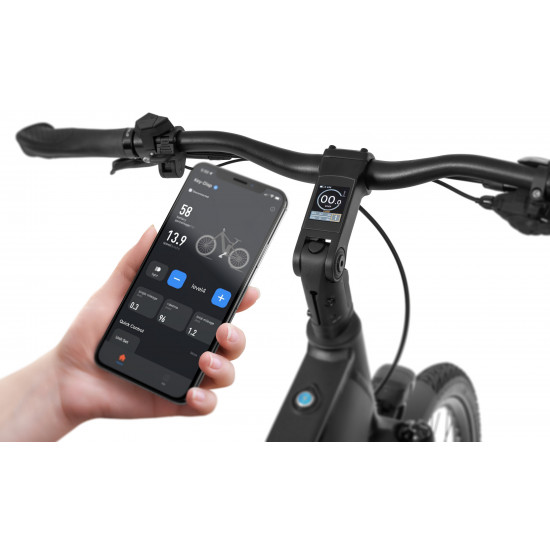

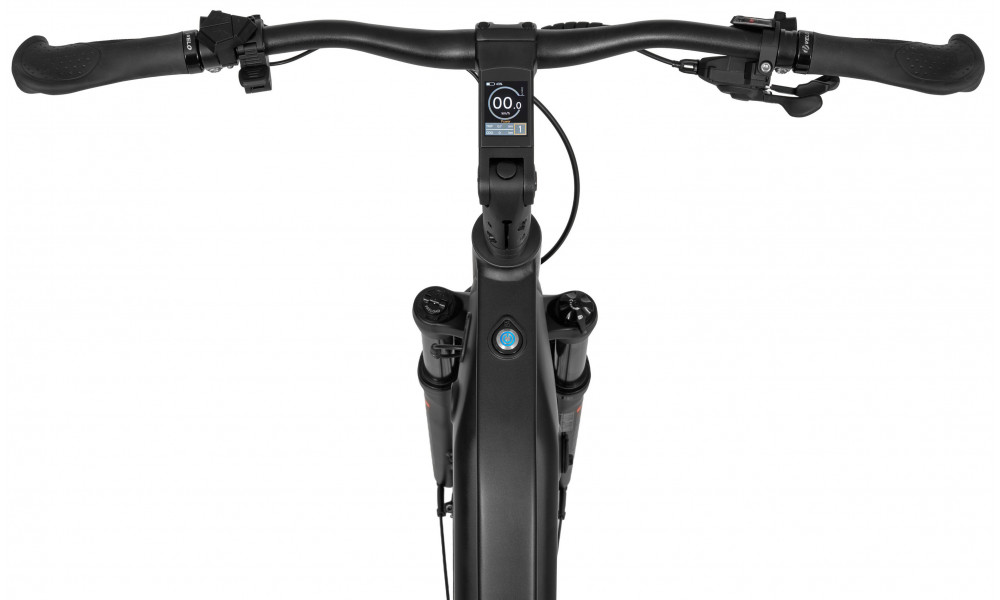

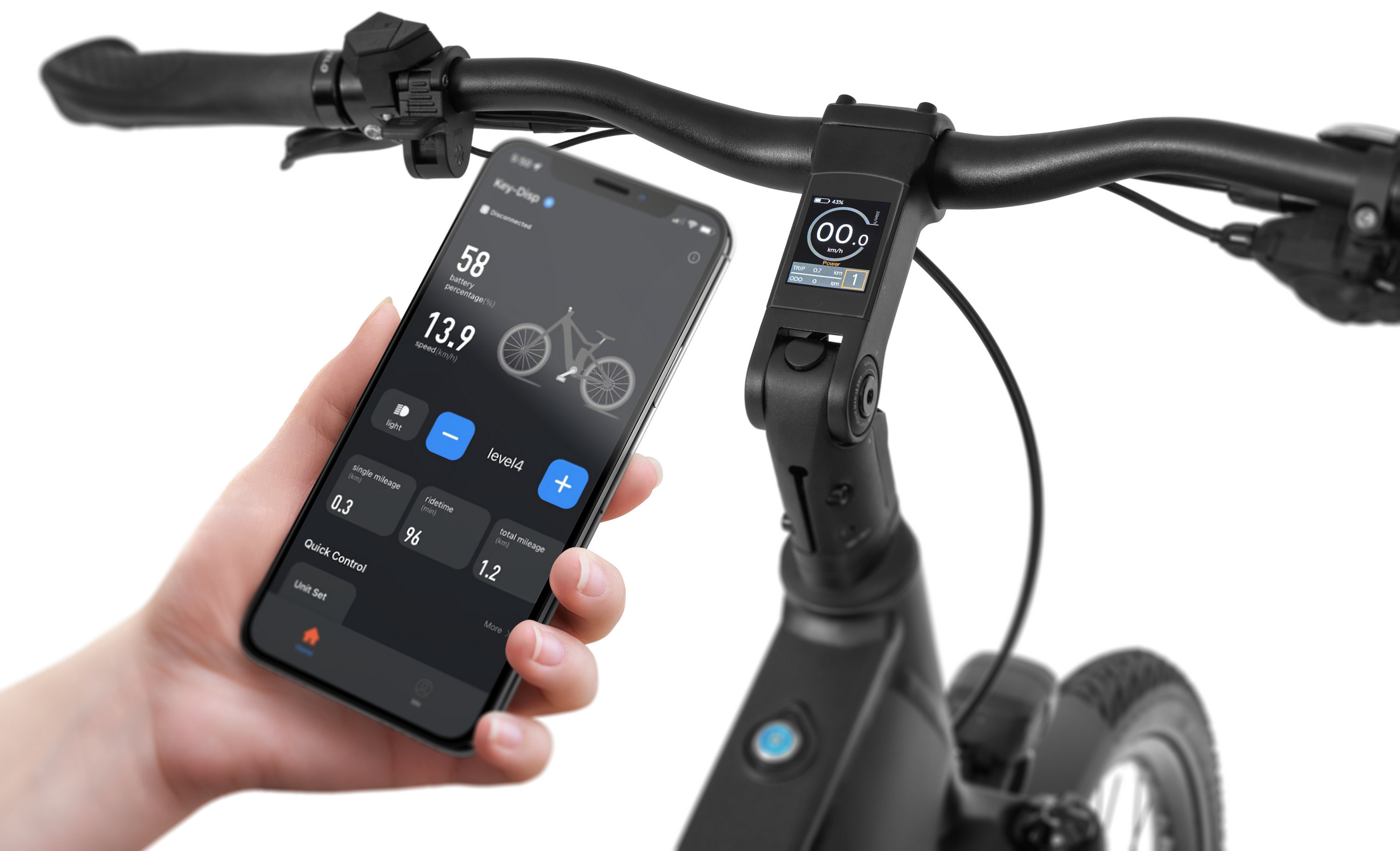

The user-friendly interface provides easy, intuitive operation, with plenty of features and customization options for electric assistance. Now you can pair the display with your smartphone, through which you can conveniently input your own settings.
Product technical specifications
- Display model: KD-786 - stem display inside
- Display type: Color LCD
- Compatible application: Ananda Ride
DISPLAY:
- Capacity and range:
- 720 Wh: MAX 175 km
- Voltage: 48 V
- Mount: Central (mid-drive)
- Motor assisted speed: 25 km/h in accordance with EU standard EN 15194
- Torque: 130 Nm
- Motor's brand: Ananda
- Power: 250 W
DISTANCE:
ENGINE:
- Lifespan: 700 charges
- Type: Li-ion
- Voltage: 48 V
- Charger: 100-240V
- Cells brand: LG
- Smart BMS (Battery Managment System)
- Battery can be removed for charging
- CHARGING TIME: 6-7 hours
- FRAME: Hydroformowane aluminium
- FRAME SIZE: 19"

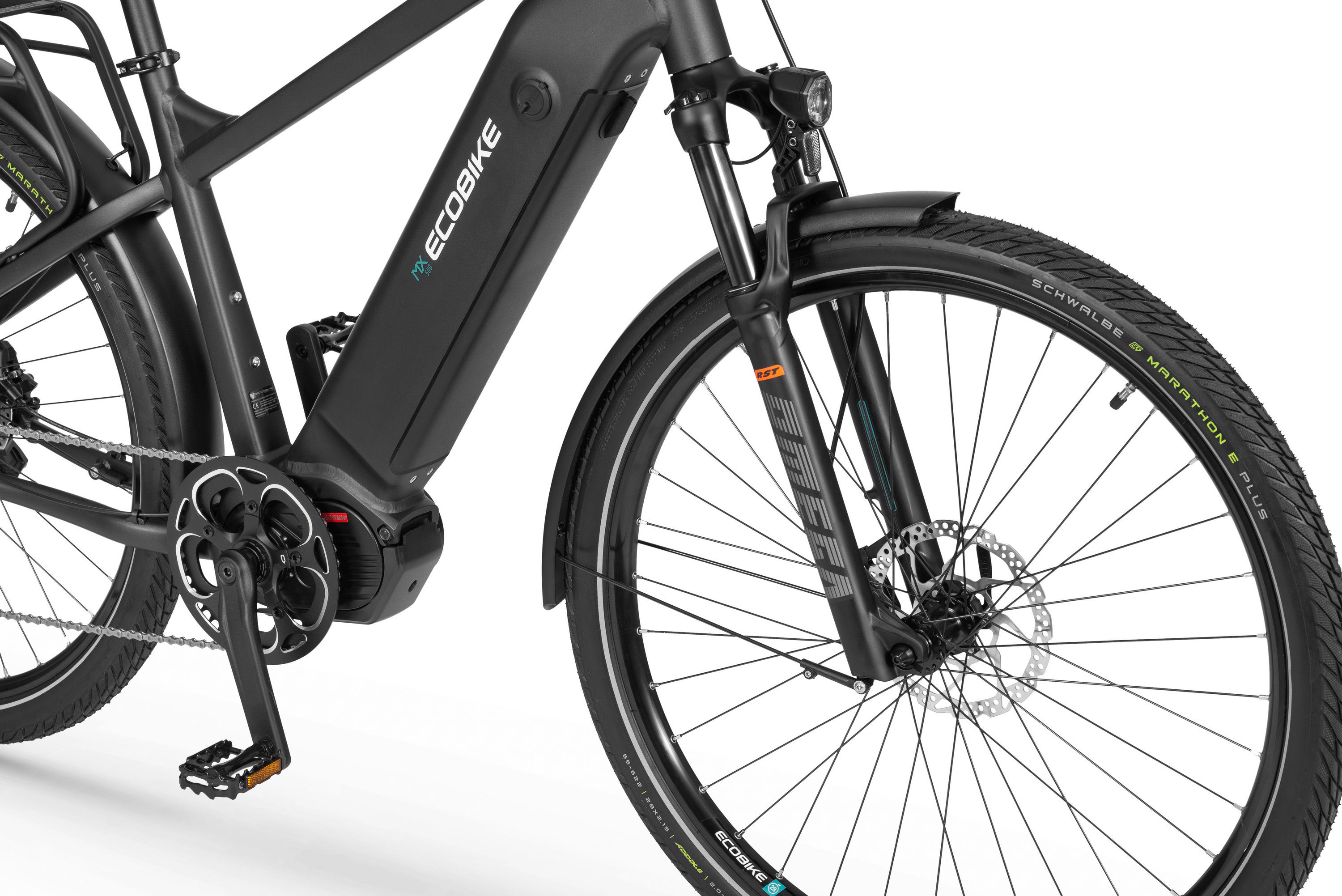

- FORK: RST OMEGA-TNL-29 travel 100 mm
- BRAKES: Shimano MT400 hydraulic disc
- CHAIN: KMC e10 Turbo Silver
- CHAINWHEEL: Ananda 46T

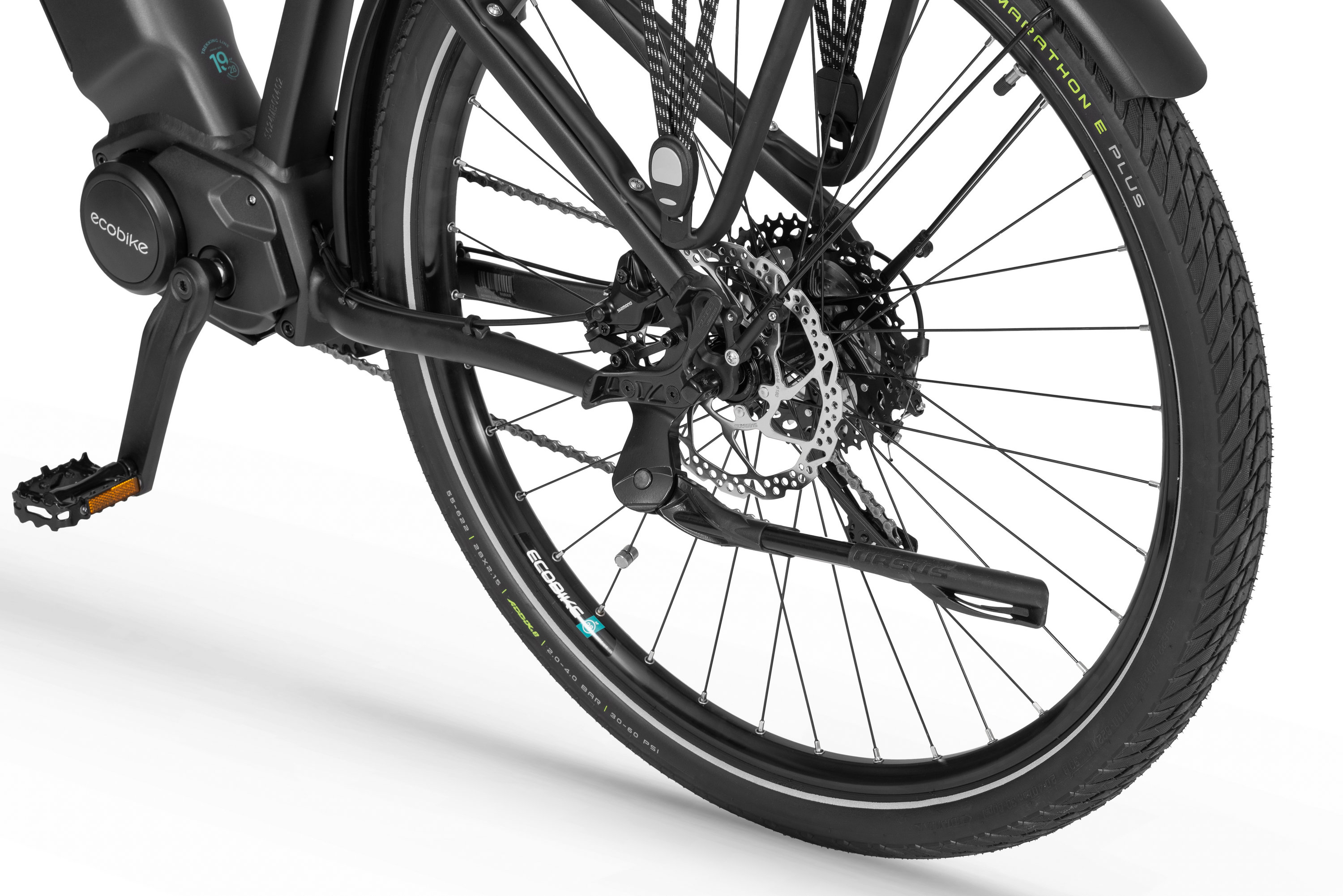

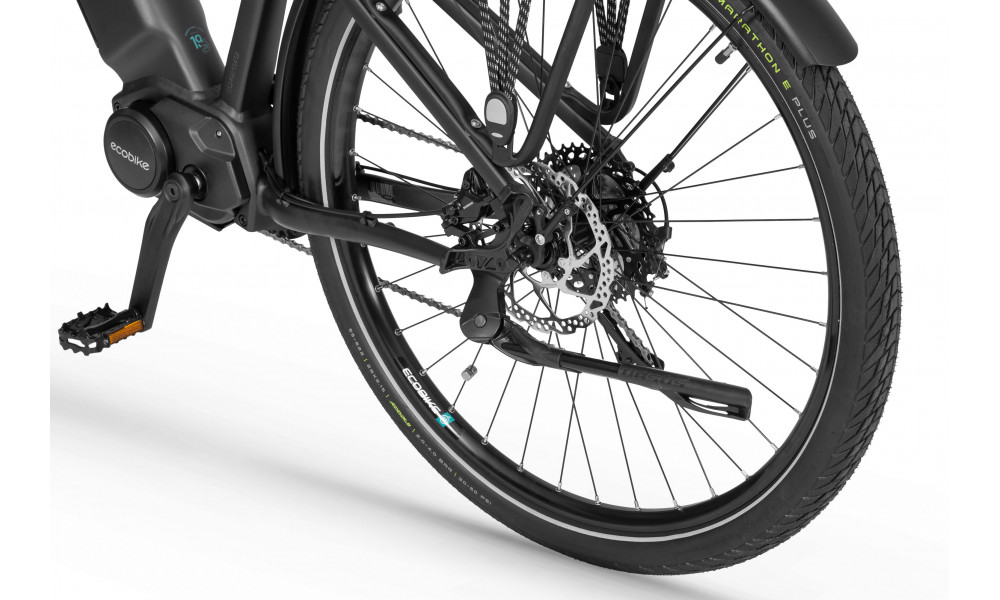

- REAR DERAILLEUR: Shimano Deore 10-speed
- FREEWHEEL: Microshift CS-H103, 11-42T, 10-speed
- HANDLEBAR: Promax ,700 mm, 31.8
- STEM: TDS-D658A-8FOV, 31.8 degrees / E: 105 mm
- HUBS: Front hub: Shimano HB-TX505, QR, 36H, Center Lock / Rear Hub: Shimano FH-TX505-8, QR, 36H, Center lock
- PEDALS: VP
- RIMS: 28" reinforced three-chambered rims, Sapim spokes
- SADDLE: Selle Royal ARIEL
- SEAT POST: Promax 30.9 degrees / 400 mm
- SHIFTERS: Shimano Deore 10-speed
- TYRES: 28" x 2.15 Schwalbe Marathon E-Plus / CST C1635 28X2.35
- WEIGHT: 28.8 kg
- SPEEDS: 10
- MUDGUARDS: For front and rear wheel, with u-stays
- GRIPS: Velo VLG-1189D3
- KICKSTAND: Rear, adjustable length, aluminium
- CARRIER: Aluminium, max.: 25kg, with carrier straps
- LIGHTS: Rear Light: Spaninga GLOW XE / Front Light: Herrmans MR5
- Effective top tube length: 610 mm
- Head tube lenght: 160 mm
- Frame size: 483.1 mm
- Wheel base: 1162.7 mm
- Seat tube angle: 72.50
- Headset angle: 69
- Maximum load: 125 kg
- Battery capacity - is measured in Wh (watt hours) or Ah (amper hours) and usually correlates with the maximum distance bike can cover with a fully charged battery. More capacity - longer range.
- Maximum range - Specifies the maximum route length you can travel on one full battery charge. The distance depends on the rider's weight, battery capacity, weather, terrain difficulty as well as the level of selected support mode. Please note that over the years of use - battery capacity will become lower. This is a normal chemical process of Li-Ion battery cell aging. Improper use and/or modifications may reduce the maximum range.
- Bike weight - Total weight of all bicycle components - engine, battery, frame and accessories. EcoBike electric bicycles have the lowest weight-power ratio.
- Engine power - The nominal power of the electric bicycle's engine, which is legal in most EU countries.
- Maximum engine power - The power of the electric bicycle's engine, which can be produced without speed limiter and may require replacing some parts to handle the voltages/amperage for the desired power. Maximum engine power cannot be selected by the user without making some hardware/software modifications. Removing limiter may require to register bike as an e-moped. In such case, different road laws applied as well. Improper modifications can lead to a damage of the e-bike system and nor the seller, nor manufacturer will be responsible for any losses or injuries.
- Lifespan - stated number can be lower if stored and used improperly
- Maximum speed is up to 25 km/h, which can be maintained by the engine. Once speed limit is reached - engine shuts off and you have to pedal it to reach higher speeds. Engine only works while pedaling (pedal assist). Bike does not have a speed lever. Support levels are selected on the controller on handlebar.
- Warranty - All EcoBike bikes have 2-year warranty for a bike frame and parts. Battery has 1-year warranty. For other warranty terms and exceptions please contact us or you can find it on our webpage.
BATTERY:
GEOMETRY:
Pyörä lähetetään valmistajan alkuperäisessä pakkauksessa (etupyörä, ohjaustanko ja satula ovat yleensä irrotettuina), mikä varmistaa tuotteen turvallisuuden varastointi- ja kuljetusvaiheessa. Kun ostaja hankkii pyörän sellaisessa pakkauksessa, hän itse tai valitsemansa pyörähuollon ammattilainen on vastuussa asianmukaisesta pyörän kokoamisesta, säätämisestä ja käyttöönotosta.
