Product technical specifications
- HOLLOWTECH II crankset
- Optimum power transfer Best balance for lighter weight and efficiency
- New designed crank arm
- Maintains high rigidity and reduces weight
- 4-arm construction crankset
- Iconic design
- Use: Road
- Group: Dura Ace R9200
- Model: FC-R9200
- Gradation: 50-34T
- Q-factor: 146 mm
- Threaded BB shell width: 68 / 70 mm
- Gear front: 2-speed
- Gear rear: 12-speed
- Construction: Hollowtech II
- Compatible chain: CN-M9100 HG 12-speed
- P.C.D: 110 mm
- Chain line: 43.5 mm
- Crank arm length: 165 mm
- Material: Crank arm - Aluminum Anodized, Crank axle - Steel Plated, Large Chainring - Aluminum Anodized / CFRP, Small Chainring - Aluminum Anodized
TECHNOLOGIES
HOLLOWGLIDE High rigidity hollow structure cuts down on weight yet maintains strength. Better power transfer and quicker and more precise front shifting.
HOLLOWTECH II The concept of HOLLOWTECH II technology is focused on producing a superior crankset which will maximize a riders power transfer. The rigidity of the crankset ensures pedaling efficiency while its weight, a key element of the crankset, you want light, aids in cycling longer distances over which the rider needs to pedal more. Naturally, SHIMANO strove for the optimum balance between the conflicting needs of stiffness while producing a lightweight crank. HOLLOWTECH technology is an ultra-lightweight hollow crankarm created by SHIMANO with the companys own proprietary forging technology that also maintains rigidity. The addition of HOLLOWTECH II technology integrates the bottom bracket axle with the right crankarm for more stiffness and a weight savings to achieve a high-dimensional balance. Its outboard bottom bracket bearing system provides better weight distribution and more pedaling stability, allowing for more efficient power transfer.
- Tuotteen nimi

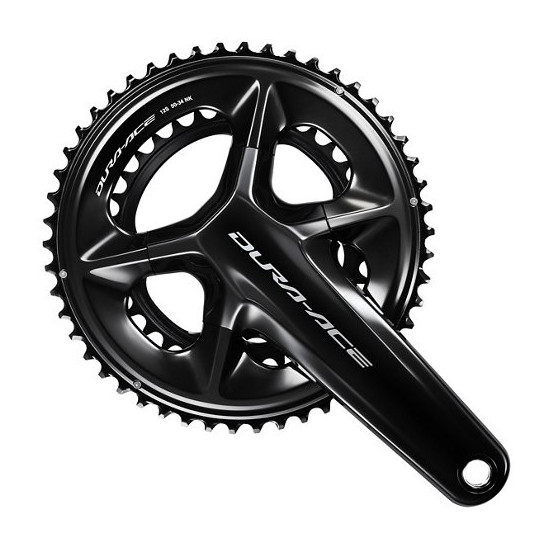

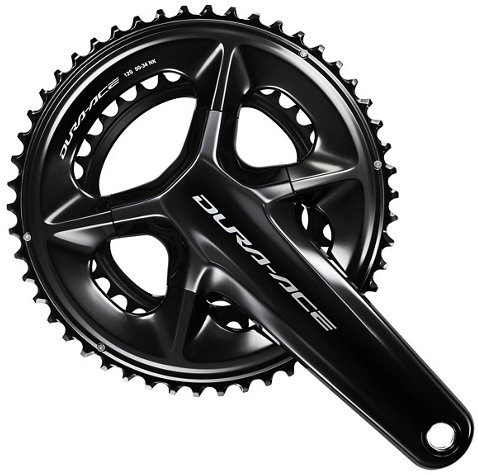

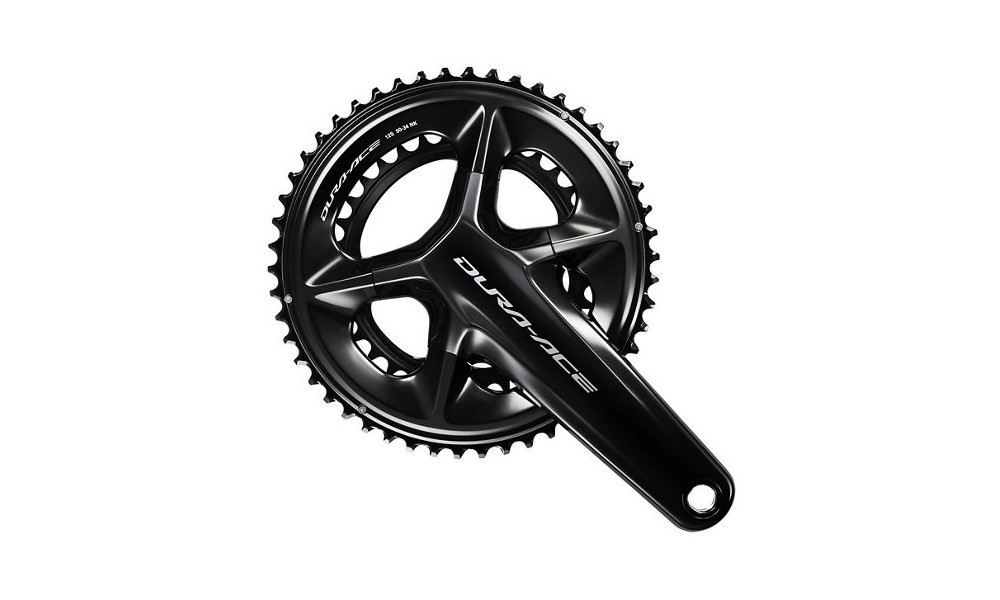

- Kampisarja Shimano DURA-ACE FC-R9200 165mm 2x12-speed 50x34T
- Tuotekoodi
- IFCR9200AX04
- Valmistajat
- Shimano
- Viivakoodi
