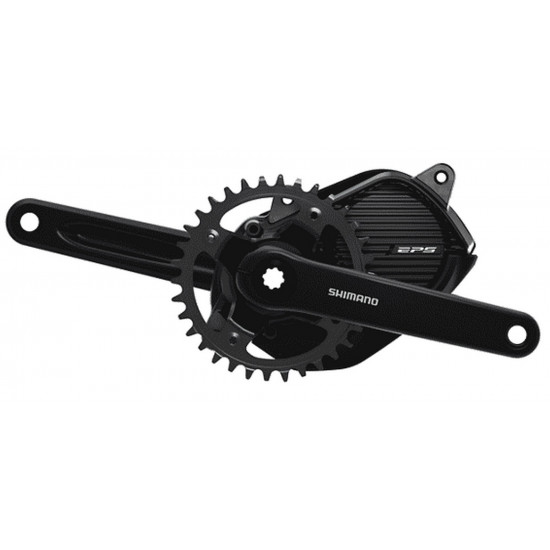

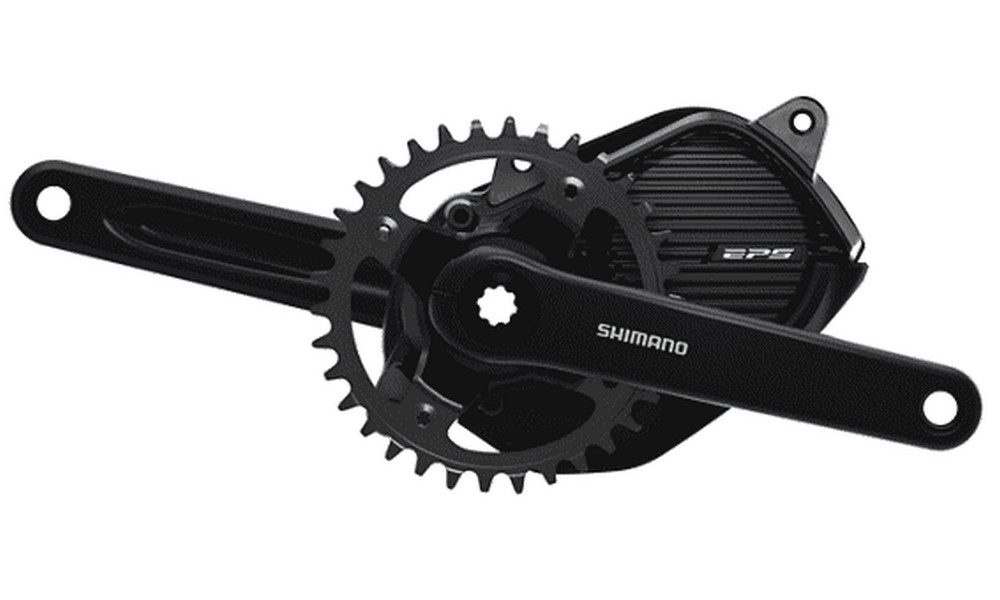

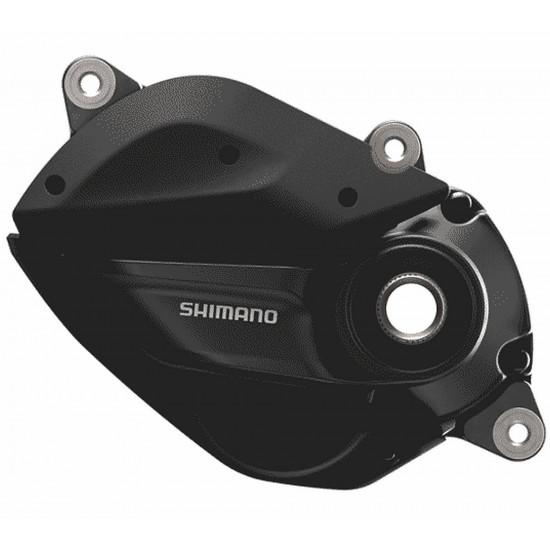

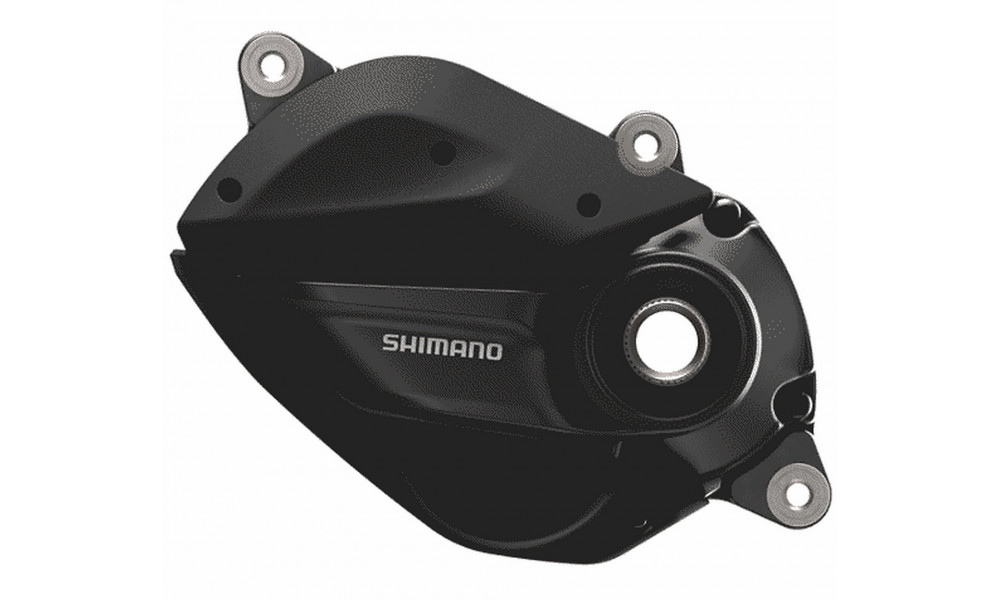

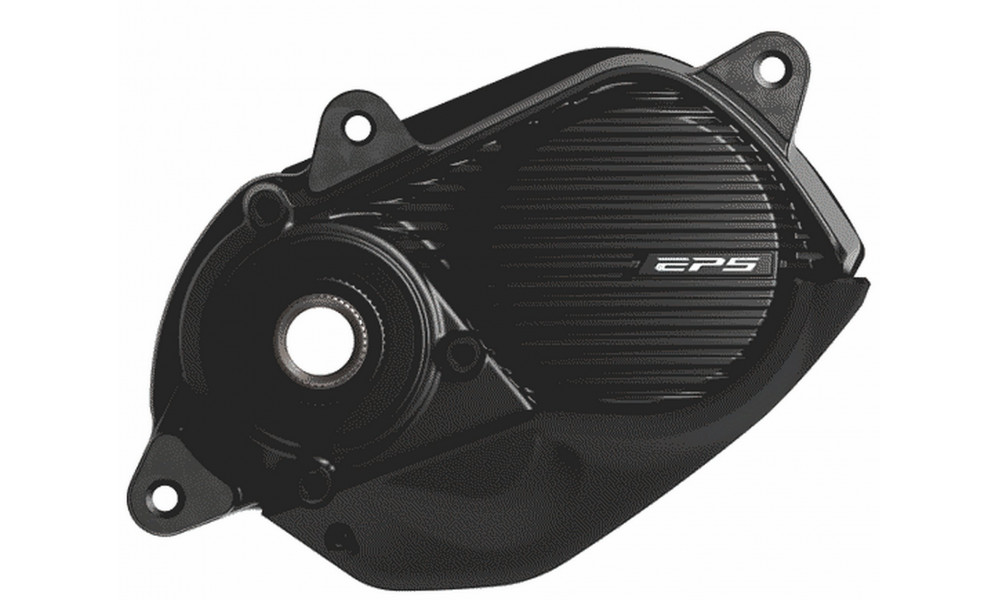

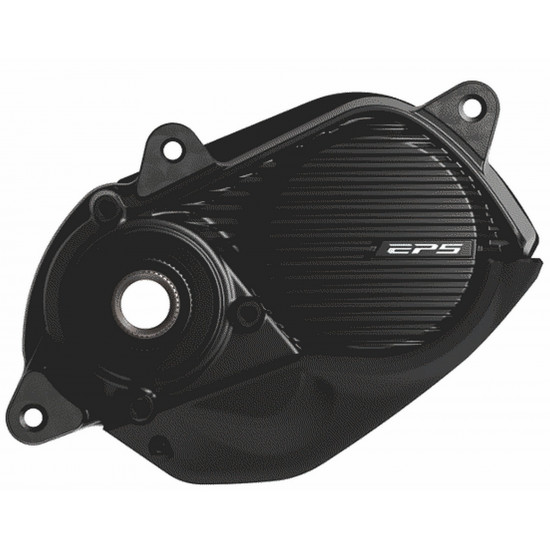

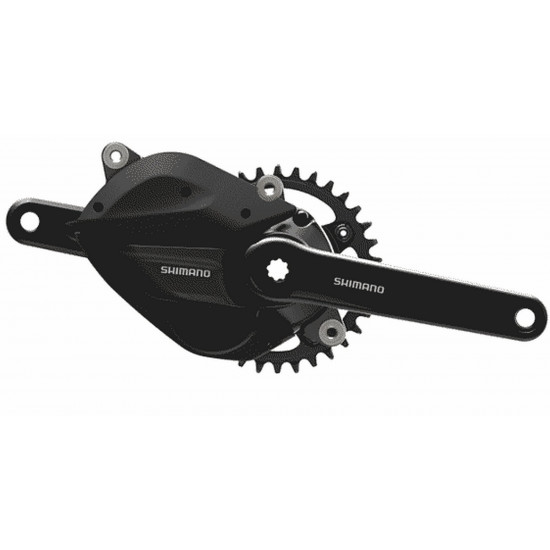

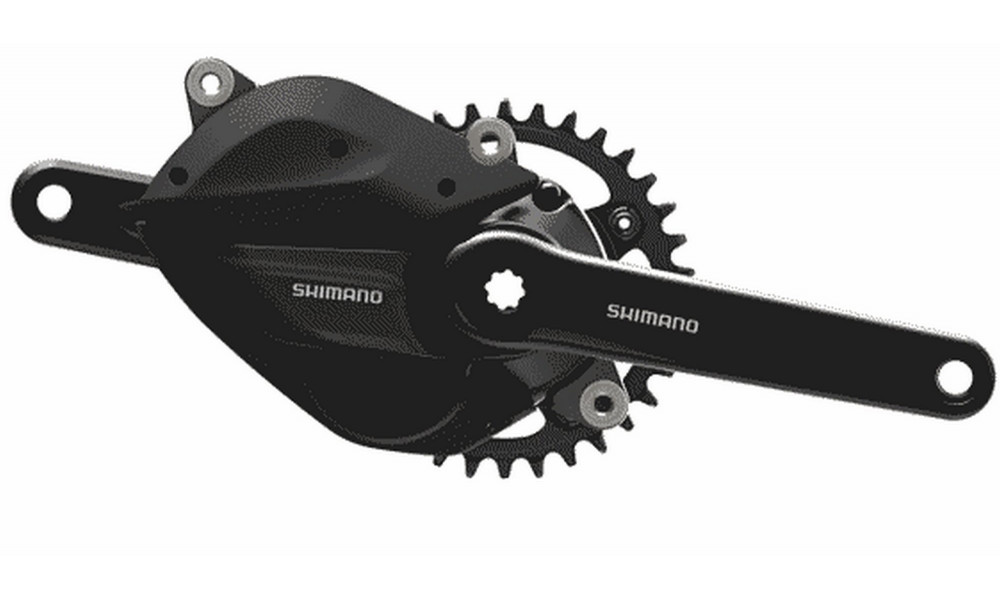

Moottori Shimano STEPS DU-EP500 Mid 36V 250W 60Nm
Kuvaus - Moottori Shimano STEPS DU-EP500 Mid 36V 250W 60Nm
Journey beyond the ordinary with this evolved drive unit's fantastic versatility and power. Experience the carefully tuned blend of the EP500's lightweight, whisper-quiet motor and a compact design that ensures a ride that feels incredibly natural with refined assist delivery.
Product technical specifications
- Compact, powerful, and whisper-quiet motor with seamlessly refined assist for a natural riding experience
- Maximum torque: 60 N·m
- Compatible with V-BRAKE, disc brake, roller brake and coaster brake
- Exclusive compatibility with our second-generation battery management system (BMS) via EW-SD300
- Intelligent core technologies elevate user experiences with smarter functionality
- AUTO SHIFT enhances cruising enjoyment with a consistent pace and intensity decided by the rider
- Make it yours with E-TUBE PROJECT
- Set up to 15 unique assist characters with FINE TUNE MODE
- Customize assist character, maximum torque, and assist start in BASIC MODE
- Maintains assist up to 28 mph for US Class 3 version
- Compatible battery mount: BM-EN600
- Compatible charger: EC-E6002, EC-E8004
- Torque sensor: yes
- Di2 compatible / Internal geared hub: yes
- Bike speed sensor: yes
- Compatible spindle type: 24mm narrow
- Continuous rated power: 250W
- Chain device compatible: yes
- Rated voltage: 36 V DC
- Maximum support bike speed: 25 km/h
- Walk assist function / Intelligent: yes
- Crank arm position sensor: yes
- Compatible wheel size: 1300-3000mm
- Motor type: brushless motor
- Position: midship
- Power supply for rear light: 12 V DC
- Power supply for front light: 12 V DC
- Cadence sensor: yes
Tuotteen tiedot
- Tuotteen nimi
- Moottori Shimano STEPS DU-EP500 Mid 36V 250W 60Nm
- Tuotekoodi
- IDUEP500
- Valmistajat
- Shimano
